SXT5320JXFJP20
-
DONG RUN ZE
-
8705301000

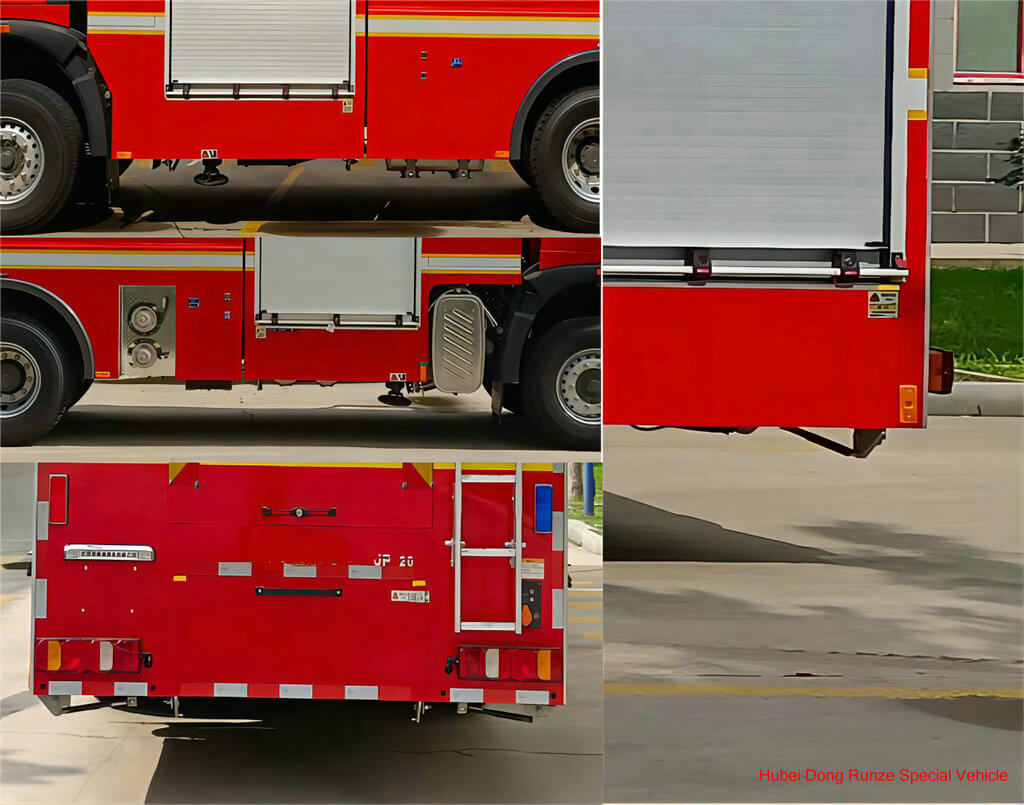

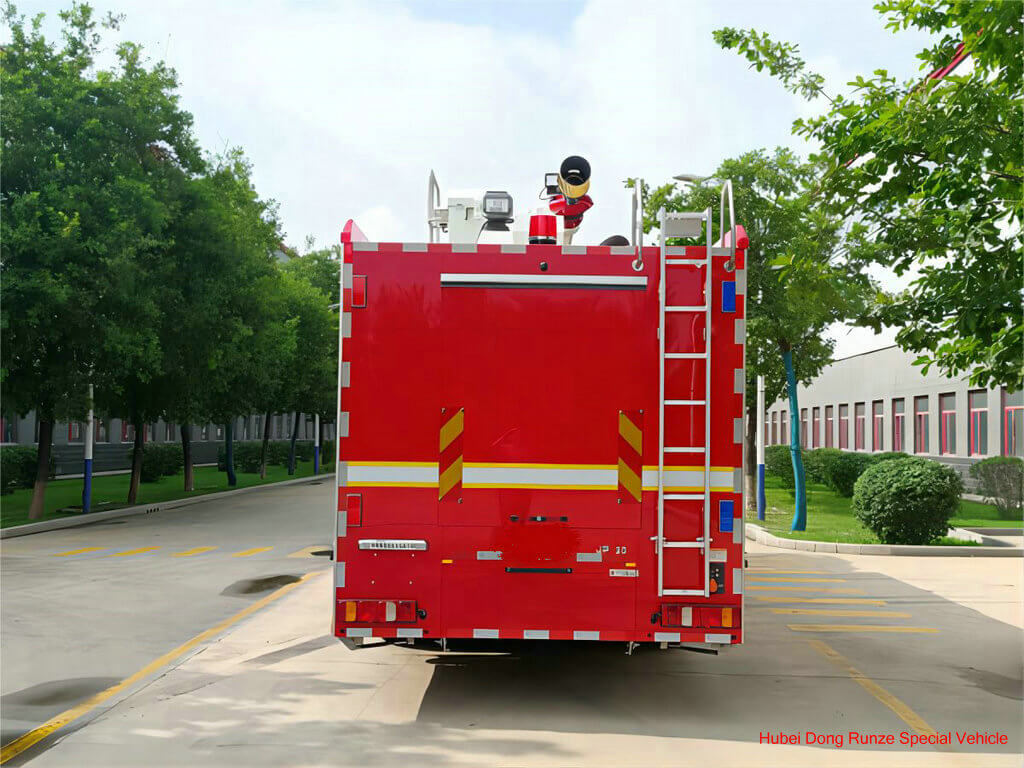

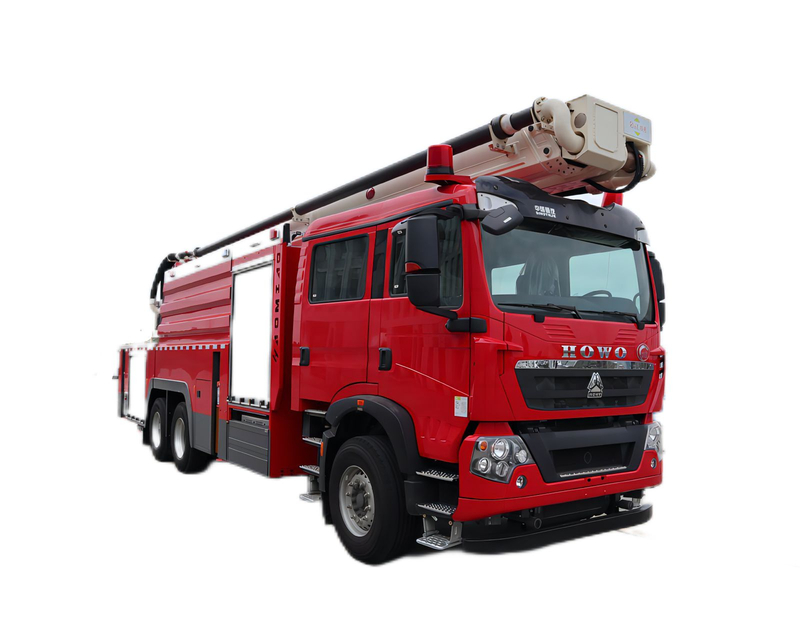

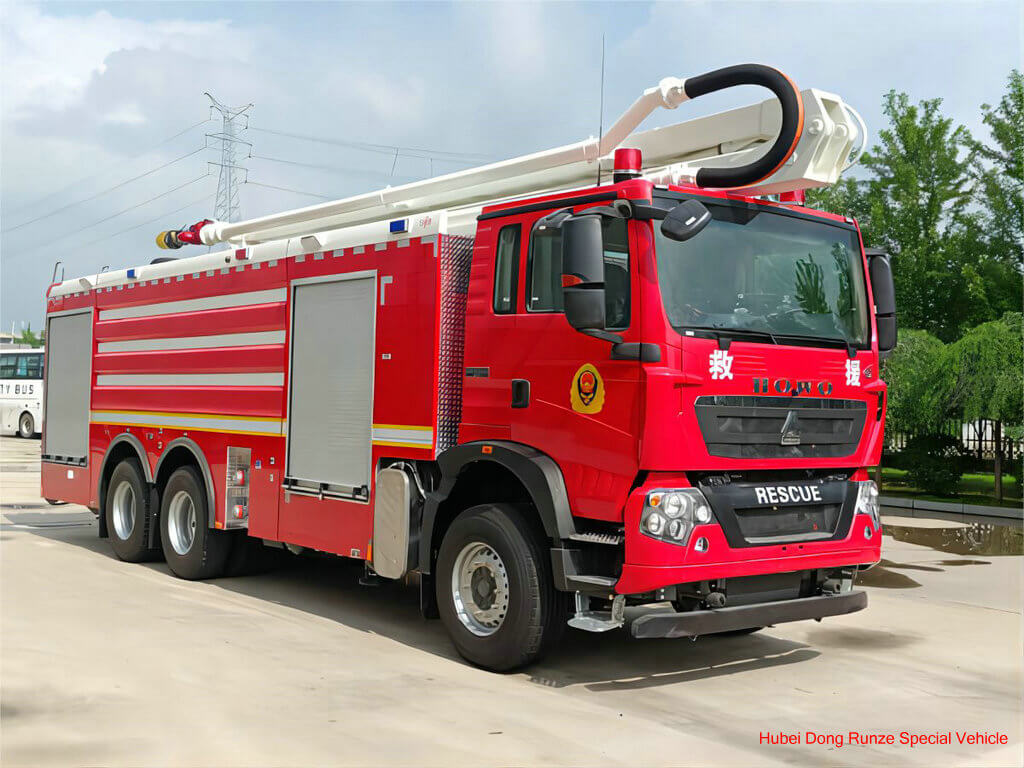

HOWO 20M Tower Water Foam Fire Fighting Truck
water tank : 10 m3, foam tank : 2 m3
20m boom , fire monitor >80m,≥120L/S . Water pump ≥100 L/s
Sinotruck chassis:ZZ5357TXFV464MF1
Overall dimensions: | 10420×2520×3770(mm) | Fuel type: | diesel oil | ||||
Total mass: | 31600(Kg) | ||||||
Net: | 19100(Kg) | Rated load mass: | 12350(Kg) | ||||
Approach angle/departure angle: | 13/11(°) | Front/rear suspension: | 1500/2650(mm) | ||||
Axle load: | 7900/11850/11850 | wheelbase: | 4300+1400,4325+1350,4600+1400, 4625+1350,4800+1400,4825+1350, 5200+1400,5225+1350,5800+1400, 5825+1350,4925+1350,4900+1400 ( mm) | ||||
Number of axles: | 3 | Maximum speed: | 100(km/h) | ||||
Number of tires: | 10 | Tire specification: | 385/65R22.5/315/80R22.5 18PR,385/65R22.5/12.00R20 18PR | ||||
oil consumption: | (L/100Km) | Number of springs: | 10/12,4/12,4/5,4/-/-,11/12 | ||||
Front track width: | 2110(mm) | Rear track width: | 1830/1830,1850/1850(mm) | ||||
Engine model | Engine manufacturer | Displacement (ml) | Power (kw) | ||||
MC13.48-60; MC13H.57-61; MC13.50-61; MC11.46-61; MC11.43-61; MC13H.60-61; MC13.50-60; MC11.44-60; MC11.40-60; MC13.54-61; MC11.40-61; WP10.5H430E62; WP10.5H460E62; MC11H.46-61; MC11H.49-61; WP12.460E62; WP10H400E62 | China Heavy Duty Truck Group Co., Ltd; Weichai Power Co., Ltd; | 12419; 13020; 12419; 10518; 10518; 13020; 12419; 10518; 10518; 12419; 10518; 10520; 10520; 11050; 11050; 11596; 9500 | 356; 422; 371; 341; 319; 444; 371; 327; 297; 400; 297; 316; 338; 341; 363; 338; 294 | ||||
Total tank volume: 12.350 m3, water tank volume: 10.3 m3, foam concentrate tank volume: 2.050 m3, Integrated side rear protective structure, rear protective height: 490mm Main special devices include boom, fire pump and fire monitor | |||||||
