ZLF5320JXFDG34
-
DONG RUN ZE
-
8705301000

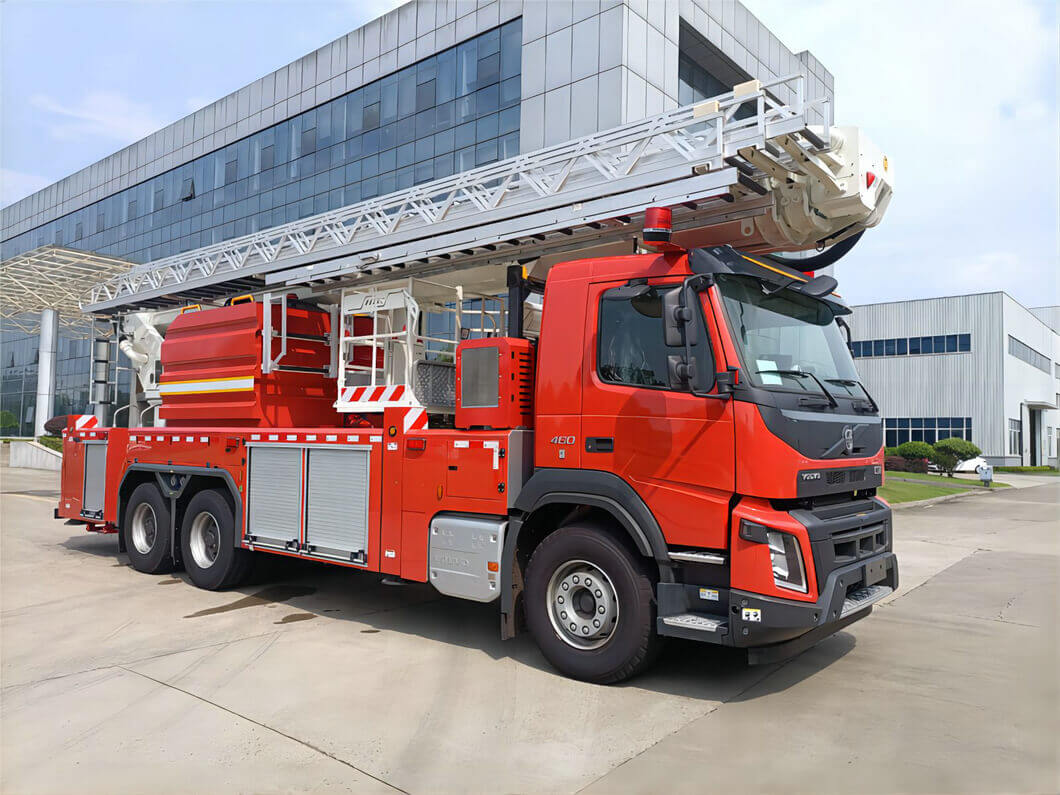

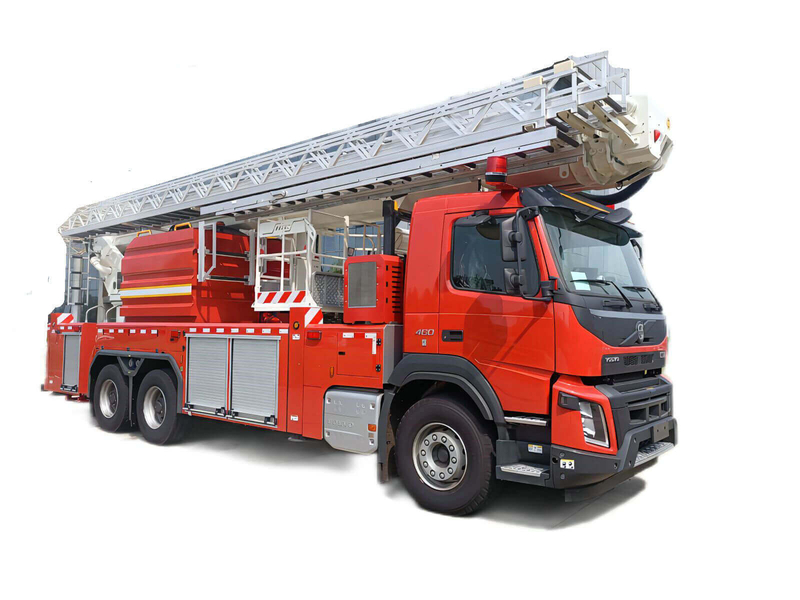

Volvo 6x4 Aerial Elevated 34m Platform Fire Truck
Water Tank 4000L, Foam Tank 2000L, Fire cannon 34m Ladder
Chassis Volvo FM460
Overall dimensions: | 10450×2530×3800(mm) | Fuel Type: | Diesel oil |
Total mass: | 31750(Kg) | ||
Net | 25600(Kg) | Rated load mass: | 6000(Kg) |
Approach Angle/Departure Angle: | 17/10 (°) | Front/rear overhang: | 1500/2660(mm) |
Axle Load: | 8350/11700/11700 | Wheelbase: | 4900+1370(mm) |
Number of shafts: | 3 | Maximum speed: | 90(km/h) |
Number of tires: | 10(PCS) | Tire Specifications: | 385/65 r22. 5/315/80 r22. 5 |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 3/3 |
Front wheel base: | 2109(mm) | Rear wheel base: | 1837/1837(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
D13K460 EU6; D13K460E | Volvo Power Train; Volvo Power Train; Volvo Power Train Volvo Power Train | 12777; 12777 | 346; 346 |
Total tank volume :6.0 cubic meters, water tank volume :4.0 cubic meters, water tank size :1273×2300×1410mm, foam tank volume :2.0 cubic meters, foam tank size :636×2300×1410mm. Integral side protection structure, rear protection device material :Q345B, section size (width × height):58×140mm, connection with the vehicle: bolt connection, rear protection height from the ground :450mm, forward extension :20mm. EBS is produced by KNORR, model EBS7 ECU. The main special devices are boom, fire pump, fire cannon. | |||
34m DG34 Fire-fighting Aerial Platform Fire Truck
Product parameters
| performance | unit | parameter |
| Chassis model | Volvo FM46064R | |
| Maximum engine power | Gram/Ropham | 346 |
| Number of passengers | person | 2 |
| Maximum travel speed | Kemm/Ha | 90 |
| Specific power | Colt | >10 |
| Overall dimensions L×W×H | governess | 10500×2540×3750 |
| Total mass | gram | 32000 |
| wheelbase | governess | 4900+1370 |
| Ladder frame action time | this | ≤120 |
| Tank volume | gram | 4000(water)+2000(foam) |
| Fire pump flow | Lee/min @mpa | 5400@1.0 |
| Fire cannon flow | Benefit/People | 4800 |
| Fire cannon range | Huh | 70 |
| Work bucket load rating | gram | 500 (no water spray) / 150 (water spray) |
| Number of ladder sections | section | 3 telescopic arm + 1 curved arm + 1 flying arm |
