ZLF5310JXFYT32
-
DONG RUN ZE
-
8705301000

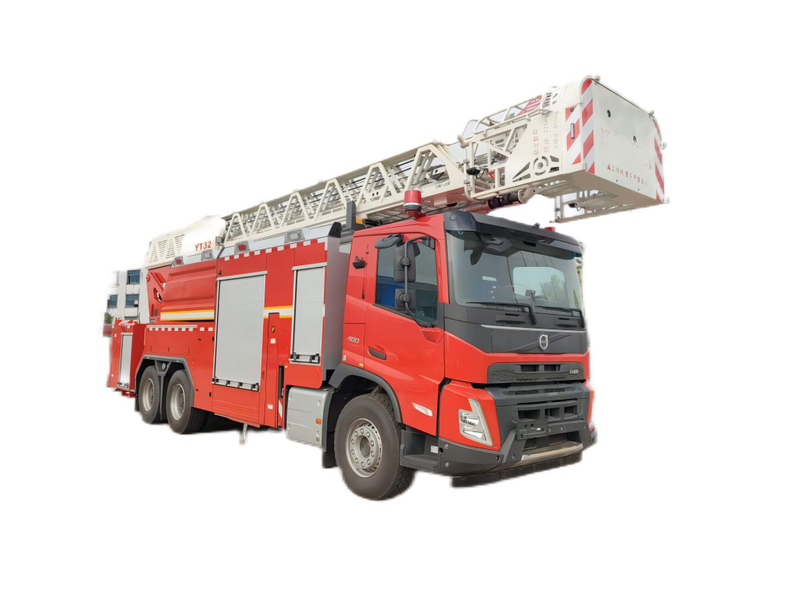

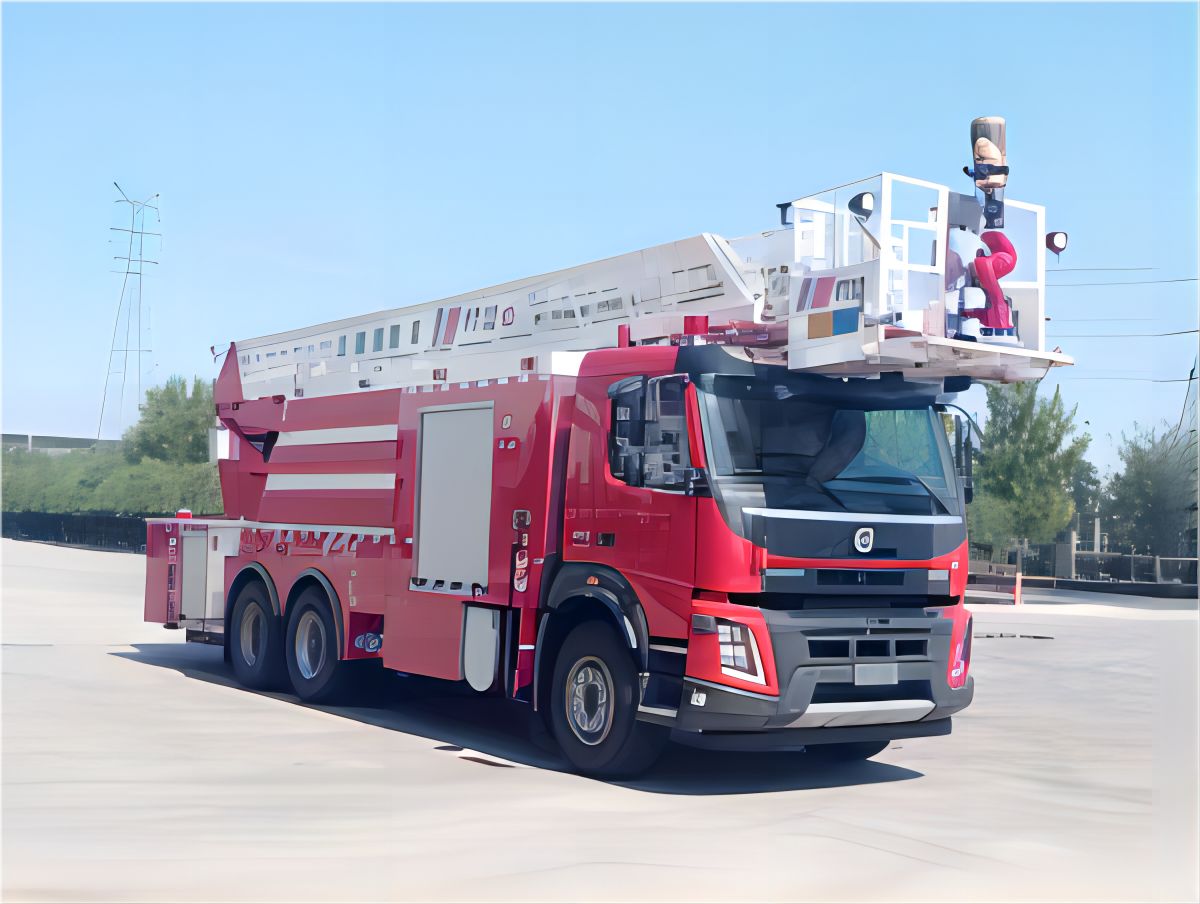

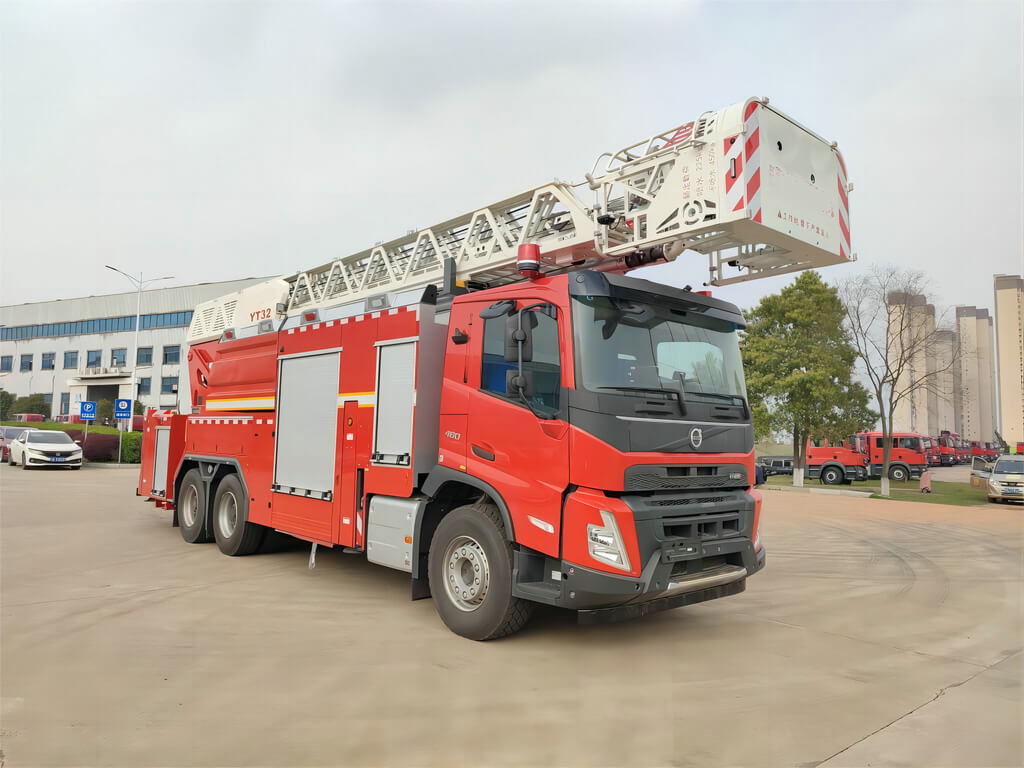

Volvo 32M Aerial Ladder Fire Truck
Water Tank volume :3900L,Foam Tank 2200L
YT32m ladder, fire pump, fire cannon
Overall dimensions: | 11290×2530×4000(mm) | Fuel Type: | Diesel oil |
Total mass: | 31000(Kg) | ||
Net | 24750(Kg) | Rated load mass: | 6100(Kg) |
Approach Angle/Departure Angle: | 16/10 (°) | Front/rear overhang: | 1520/2630(mm) |
Axle Load: | 8250/11300/11450 | Wheelbase: | 4900+1370(mm) |
Number of shafts: | 3 | Maximum speed: | 85(km/h) |
Number of tires: | 10(PCS) | Tire Specifications: | 385/65 r22. 5/315/80 r22. 5 |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 3/3 |
Front wheel base: | 2109(mm) | Rear wheel base: | 1837/1837(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
D13K460 EU6 | Volvo Power Train Volvo Power Train | 12777 | 346 |
Total tank volume :6.1 cubic meters, water tank volume :3.9 cubic meters, water tank size :1510×2480×1075mm, foam tank volume :2.2 cubic meters, foam tank size :835×2480×1075mm. Integral side protection structure, rear protection device material :Q345B, section size (H × W):140×58mm, connection with the vehicle: bolt connection, rear protection height from the ground :459mm, forward :800mm, rear :70mm. The ABS manufacturer is WABCO (Shanghai) Management Co., LTD., The main special devices are ladder, fire pump, fire cannon. | |||
