XZJ5327JXFYT32/G1 , ZLF5304JXFYT32
-
DONG RUN ZE
-
8705301000

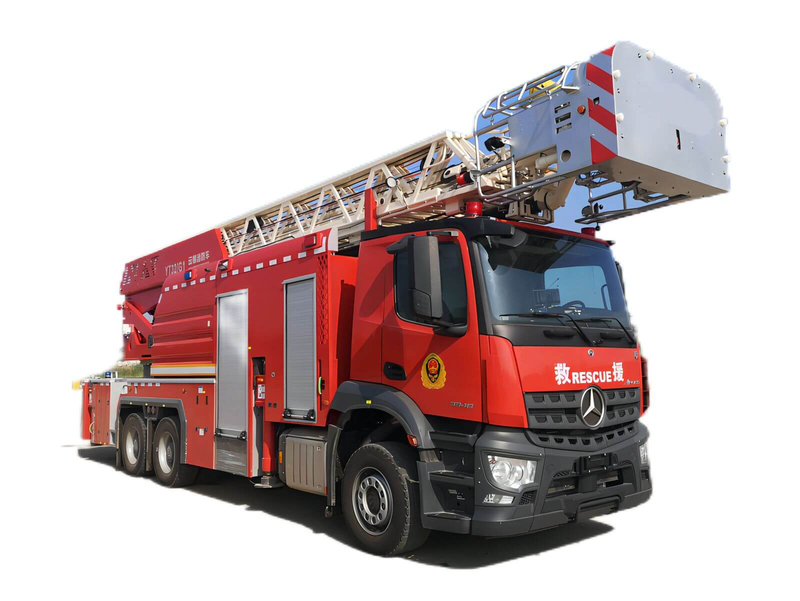

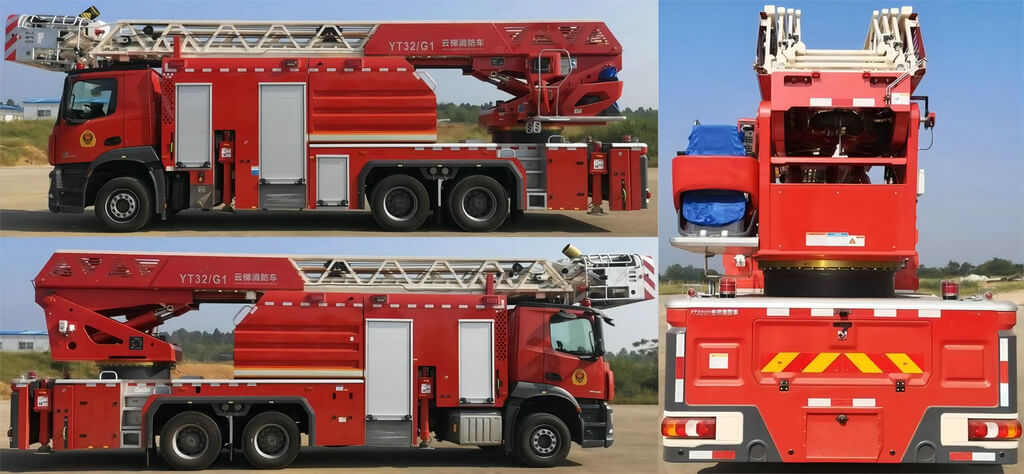

Arocs 6X4 YT32 M Aerial Ladder Fire Truck
32m ladder, fire cannon, Water Tank 4200L, Foam Tank 2100L
Chassis BenzArocs 3346E
Arocs 32M Aerial Ladder Fire Truck Main technical parameters
Overall dimensions: | 11340×2530×4000mm 11230×2540×3995mm | Fuel Type: | Diesel oil |
Total mass: | 31900(Kg) | ||
Net | 25550(Kg) | Rated load mass: | 6200(Kg) |
Approach Angle/Departure Angle: | 16/8 (°) | Front/rear overhang: | 1500/2870(mm) |
Axle Load: | 8300/11750/11850 | Wheelbase: | 4800+1350(mm) |
Number of shafts: | 3 | Maximum speed: | 90(km/h) |
Number of tires: | 10(PCS) | Tire Specifications: | 385/55 r22. 5/315/70 r22. 5/315/70 r22. 5385/65 r22. 5/315/80 r22. 5/315/80 r22. 5 |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 4/4 |
Front wheel base: | 2140(mm) | Rear wheel base: | 1804/1804(mm) |
Engine parameter
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
OM470LA.6-56 | Daimler Trucks AG | 10677 | 336 |
A : Special operation vehicle for fire fighting. Total tank volume :6.200 cubic meters, water tank volume :4.100 cubic meters, water tank size :1420×2460×1230mm, foam tank volume :2.100 cubic meters, foam tank size :725×2460×1230mm... Integrated side and rear protection structure, rear protection height from the ground :412mm, reach :820mm.ABS manufacturer is WABCO Automotive Control System (China) Co., LTD., model ABS-E 4S/4M. The main special equipment are ladder, fire pump and fire cannon. Maximum net engine power is 335kW. Strobe light color optional. B :Total tank volume :5.66 cubic meters, water tank volume :3.56 cubic meters, water tank size :1580×2480×940mm, foam tank volume: 2.1 cubic meters, foam tank size :930×2480×940mm. | |||
# 1.1 Overall dimensions of the whole vehicle (length × width × height): 11340 × 2530 × 4000mm.
# 1.2 The full load mass of the whole vehicle is 31900kg.
1.3 Driving mode: 6 × 4.
# 1.4 There are 2 crew members.
★ 1.5 Maximum working height: 32m.
# 1.6 Transverse span of legs: about 5.2 m.
# 1.7 Fire pump flow at 1.0 MPa pressure 100L/s.
# 1.8 Working bucket fire monitor flow 64L/s.
# 1.9 Working bucket load: 450Kg, working bucket water cannon
The water reaches the rated pressure and bears 200kg.
# 1.10 Specific power 10.5 kW/t (kw/t=336/31.9 ~ 10.5)
Minimum turning radius (m): 11.55;
Approach angle (°) 15;
Angle of departure (°) 11;
Minimum ground clearance (m) 0.312;
Cab length, width and height: 10036 × 2500 × 3009mm;;
Maximum allowable total mass (kg): 35000;
Maximum loading mass (kg): 31900;
Axle load mass (kg): 9000/1300/1300;
Braking distance (m): < 9 (V0 = 30km/h);
Wading height (m): 0.5.
....
# Fire Pump Flow: 1.0 MPa (normal pressure) 100L/s.
Model: Hill CB10/100-RSD .
Water absorption depth: ≥ 7m, water diversion time: ≤ 80s.
...
Electronic automatic foam proportional mixing system, mixing ratio Example 1-10%, the mixed system is accurate in measurement. With automatic, Manual mode selection. One-button automatic cleaning mode. Real nformation content such as foam and water flow is displayed when. Continuous stable operation time: ≥ 24 hours.
7.1 Model: Elk PLKD10/80-7200EXM
Electronically controlled water/foam dual-purpose gun, installed in the proper position of the working bucket Set.
7.2 Control: Equipped with wireless remote control ≥ 150m. DC 24V
Power supply.
# 7.3 Flow: 64L/s.
# 7.4 Effective range: water ≥ 75 m, foam ≥ 70 m.
...
# 8.1 Capacity: Water 4100L, foam 2100L.
8.2 Structure: With vertical and horizontal anti-swing plate, internal maintenance manhole
Easy access, anti-leakage and anti-corrosion of tank body, warranty 5 Years.
8.3 Material: 304 stainless steel material, tight inside and outside Multi-pass anticorrosive treatment. stainless steel tank top plate 3mm, side wall The plate thickness is 4mm, and the bottom plate thickness is 4mm;
8.4 Components:
8.4. 1 Water tank: Water tank: 1 population hole, caliber
450mm. exhaust valve + manhole cover combination; 1 liquid level Indicator; 1 tank bottom drain valve.
8.4. 2 Foam tank: 1 population hole with a diameter of 450mm,
Overflow cap + manhole cover combination; 1 liquid level indicator, 1 Bottom drain valves.
