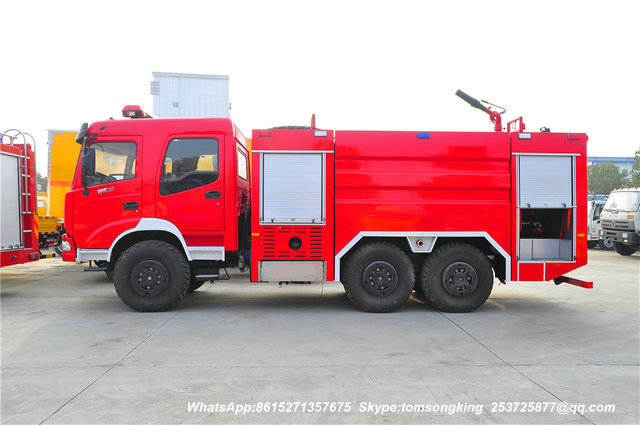

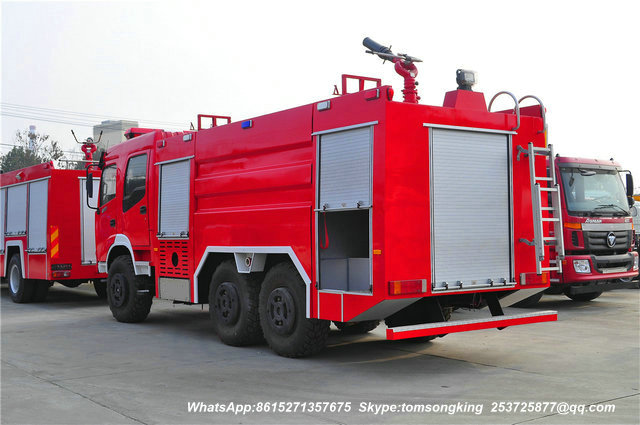

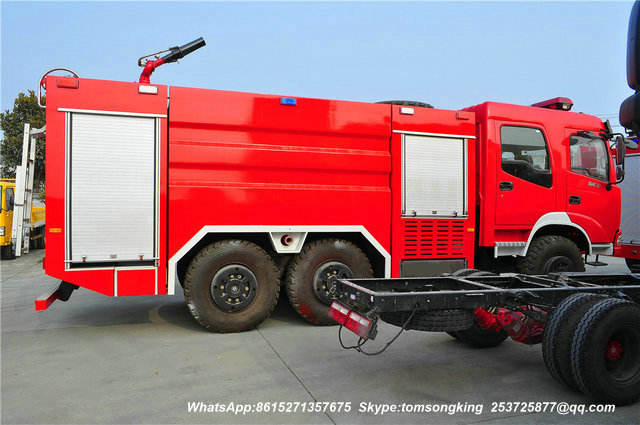

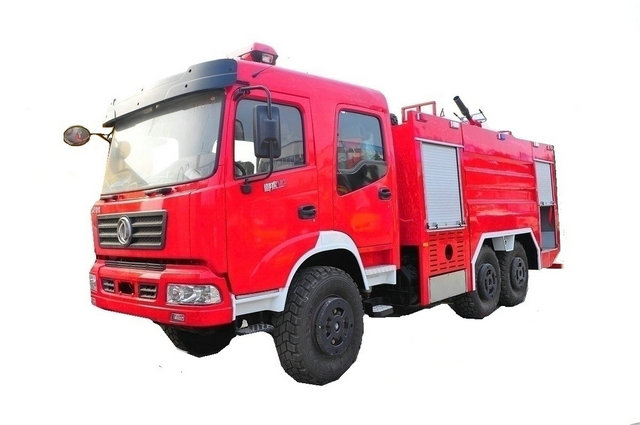

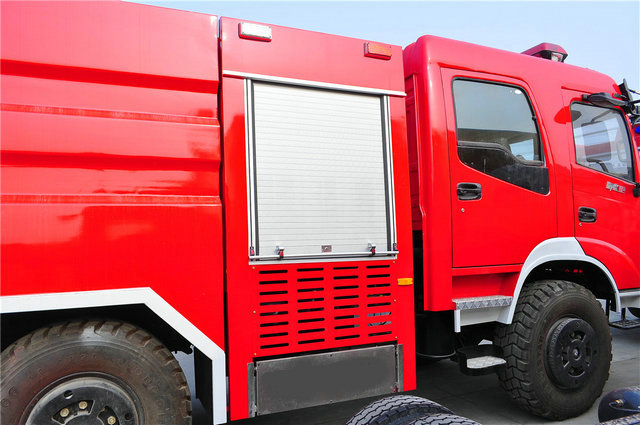

Dong Feng VP Water Fire Truck 6x6 Offroad All Wheel Drive with 5500Liters Water Foam Tank

Dong Feng VP Water Fire Truck 6x6 Offroad All Wheel Drive
with 5500Liters -6500L Water FoamTank
EURO 3- 4 / 5

Price: $ 80000
Discount Price: $ 70400
Quantity:

  • DRZ5165GXFSG60
  • DFAC VP
  • 8705309000

Dong Feng VP Water Fire Truck 6x6 Offroad All Wheel Drive with 5500Liters Water Tank

EURO 3- 4 / 5

6x6 fire truck-6400L-VP_1


6x6 fire truck-7900L-VP_1

6x6 fire truck-7400L-VP_16x6 fire truck-6800L-VP_1

6x6 fire truck-7600L-VP_1

Euro 3


Chassis parameters                                                                           www.truckinchina.com

Chassis model

DFS5160GLJ

Chassis brand

DONGFENG

Overall dimensions

7680X2500X2850mm

Wheel base

3500+1250mm

Front/rear wheel track

1916/1876mm

Front/rear suspension

1510/1800mm

Approach/departure angle

35/34°

Maximum speed

95km/h

Chassis Manufacturer

Dongfeng Motor Company

Cab

Configuration

a row and a half cab(with sleeping berth),allowable 3 passengers, air conditioner.

Color

White, other color is optional

Engine

Model

B190 33

Emission

Euro 3

Type

6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling, direct injection,diesel engine

Rated power

190hp,rated power speed 2500rpm

Displacement

6700ml

Max.torque

640N.m

Bore x stroke

102x120mm

Manufacturer

Dongfeng Cummins Engine Co.,Ltd

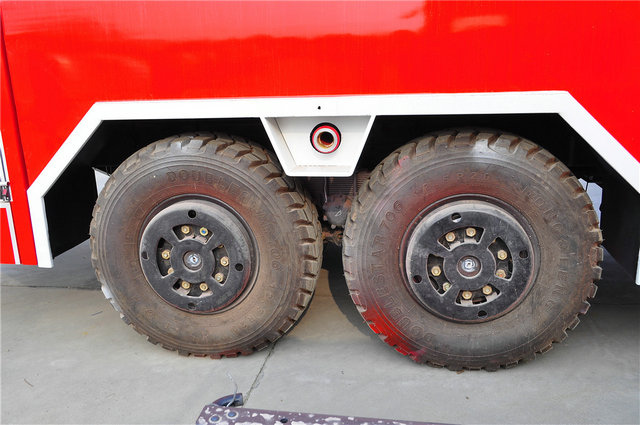

Tire

Size

12.5R20 steel wire tire

Number

6+1 nos

Clutch

Φ350 diaphragm clutch

Fuel tank

350L

Front axle

4.1 tons

Rear axle

4.4 tons

Drive form

6X6

Rated voltage

24V,DC

Transmissions

6 speed forward 1 reverse

Steering device

Power assisted steering

Steering wheel

Left hand drive optional Right hand drive



If there is a slight change in the chassis parameters above,please take the actual product as the standard







Euro 4

The total mass

16500 (Kg)

Curb Weight

7660 (Kg)

Wheelbase

3500+1250  (mm)

Chassis Model

DFS5160GLJ

Approach / departure angle

35/18 (°)

Front overhang / rear overhang

1385/1815mm)

Dimensions

7950×2470×2850 (mm)

Axle load

6000/10000(Kg)

Number of axes

2

Maximum speed

95  (km/h)

Tire Specifications

12.5R20

Number of tires

6

Front track

1916(mm)

Rear track

1876/1876(mm)

Emission standards

Euro 4

Type of fuel

diesel

Engine Model

Engine Manufacturer

Engine displacement

Engine power

YC6J180-42

ISDe185 40

Guangxi yuchai machinery co.,LTD

Dongfeng cummins engine co., LTD

6494

6700  (ml)

132

136 (kw)

Product Price

Should be configured with different vehicles and different coat materials, we recommend that you contact us
