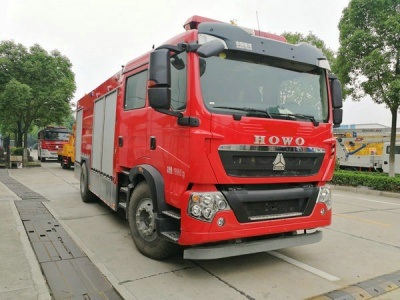

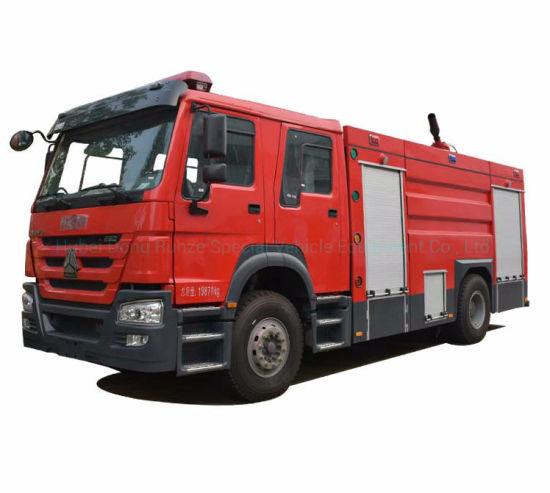

HOWO Double Cabin Fire Truck Duble Cabin RHD/LHD 4X2 /4x4 Offroad All Wheel Drive with 6500Liters - 8000L Water Foam Tank Euro 3, Euro 5-6 Double Cabin
HOWO Foam Fire Truck 4 X 4 Off Road All Wheel Drive with 6000Liters Water Foam Tank
Water tank volume(L)6000
Foam tank volume(L)2000
Fire Monitor Model:PS50 pressure:0.5-1.2MPa
Water monitor rated flow:50L/S
Water monitor rated reach≥70m
Fire Pump Model:CB10/60
(1)pump pressure (Mpa):1.0
flow(L/S):60L/S/1.0M
(2)pump pressure (Mpa):1.3
flow(L/S):42L/S/1.3M
Cell /+8615271357675
The pictures are for your reference only.
HOWO Foam Fire Truck 4 X 4 Off Road All Wheel Drive with 6500Liters Water Foam Tank
ZZ2187N5227E1 EURO 5 / 280HP -340Hp
The main technical parameters |
The dimensions: | 6752,7792,8292,9192×2520×3200(mm) | | |
Total quality: | 18000(Kg) | Anti-lock braking system: | with |
Curb weight: | 9000(Kg) | The rated load quality: | 8870(Kg) |
Approach Angle/Angle of departure: | 31/23, 31/16, 31/15, 31/13 (°) | Suspension before/after suspension: | 1602/1350,1602/1890,1602/2090,1602/2390(mm) |
Axial load: | 7000/11000 | Wheel base: | 3800,4300,4600,5200(mm) |
Shaft: | 2 | Top speed: | 90(km/h) |
Fuel consumption: | 29.0, 28.9 | Spring leaf number: | 4/9 + 6, 9/9 + 6 |
Tyre number: | 6 | Tire specifications: | 11.00-20 18PR,11.00R20 18PR,12.00-20 16PR,12.00-20 18PR,12.00-20 20PR,12.00R20 16PR,12.00R20 18PR,12.00R20 20PR |
Before the wheel track: | 2041202 2 | After the wheel track: | 1850 |
vehicle VIN | LZZ1BEMD××××××××× LZZ1BEMF××××××××× LZZ1BEMH××××××××× LZZ1BEND××××××××× LZZ1BENF××××××××× LZZ1BENH××××××××× |
Engine parameters |
The engine | Engine manufacturing enterprises | Displacement (ml) | Power (kw) |
D10.28-50
D10.31-50
D10.34-50
MC11.32-50 | SINOTRUCK | 9726
9726
9726
10518 | 206
228
249
238 |
Vehicle fuel parameters |
Fuel types: | diesel | Chassis emissions standards: | EURO 5 -6 |
other |
1, Cross-country total GW 16000 kg, axle weight (kg) for 6500/9500, cross-country loading 7000 kg. 2, Optional D10.28-50, D10.31-50, D10.34-50 engine,fuel consumption 29.0 L / 100 km; Optional MC11.32-50 engine, fuel consumption 28.9 L / 100 km. |
Fuel consumption parameters |
Working condition of the city | Working condition of the suburbs | Comprehensive value |
36.60 | 29.63 | 29.05 |
36.37 | 29.41 | 28.85 |
SpecialFunction | Water tank volume(L) | 6000 | Foam tank volume(L) | 2000 |
Fire Monitor | Model:PS50 Water monitor rated pressure:0.5-1.2MPa
Water monitor rated flow:50L/S Water monitor rated reach≥70m Pitching angle(°):-30~70 Level back to the corner(°):360 Spray angle(°)≥100 |
Fire Pump | Model:CB10/60 |
(1)pump pressure (Mpa):1.0
flow(L/S):60L/S/1.0MParotate speed(rmp):2800power(kw)98.5
time of drawing water:40s | (2)pump pressure (Mpa):1.3
flow(L/S):42L/S/1.3MParotate speed(rmp):2990power(kw)93.5
time of drawing water:40s |
* Low& Flat high water flow washing, high speed and high efficiency.
* All pneumatic pressure system, no weakness of hydraulic pressure, like high price and complicated mainteance
*Metal printed inside the tank keeps the tanker from rusting, stainless steel tanker is optional.
Chassis |
ZZ1167M4617C |
Dimensions (length×width×height) (mm) |
8640×2475×3350 |
Cab seating capacity |
4 |
Engine model |
WD615.93 EURO III |
Engine power(kW) |
213/2200r/min |
Wheel base(mm) |
4600 |
Max. Speed(km/h) |
102 |
Tank capacity (kg) |
7000 |
Water: 5000 |
Foam: 2000 |
Pump model |
CB20.10/30.60-XZ |
Pump flow(L/s) |
(1.0MPa)
Normal pressure |
60 |
(2.0MPa)
Middle pressure |
30 |
Fire monitor |
Model |
PL48/PS80W |
Flow(L/s) |
48/50 |
Reach(m) |
Water≥60, foam≥55 |
Fire Pump |
Atmospheric pressure pump |
Type: BS30 firefighting pump, Flow capacity: 30L/s, Pressure: 1.0MPa |
Medium-low pressure pump |
Type: CB60/10: Low pressure Flow capacity: 40L/s/1.0MPa; Medium pressure Flow capacity: 25L/S/2.0MPa |
Fire Monitor |
Type |
SP80 |
Shot Range |
≥60m |
Relying on strong technological capability, we can produce and sell the DONGFENG, SINOTRUCK, JMC, ISUZU, NORTH Benz series water fire truck, foam fire truck, powder 2. Fire truck, emergency rescue fire truck, forest fire truck, water truck with fire pump etc.
Our fire truck is widely used for fire fighting of construction, forest, petroleum, chemical industry, factories, mines, oil depot, wharf and other places.
All of our fire trucks with reliable quality, stable performance and reasonable price, and also all are equiped with full fire equipments.

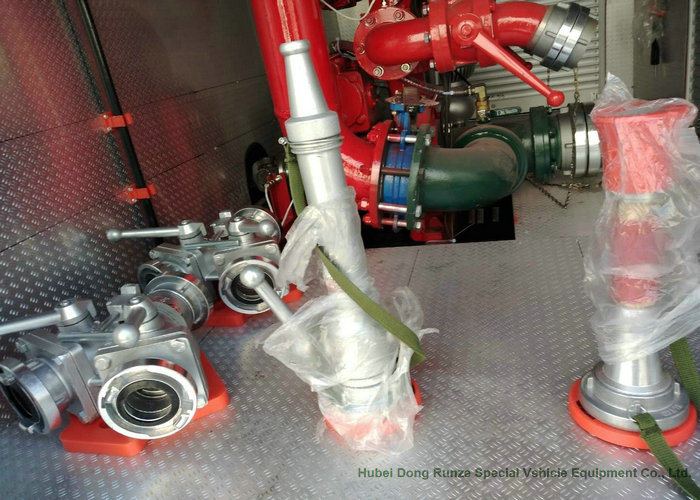

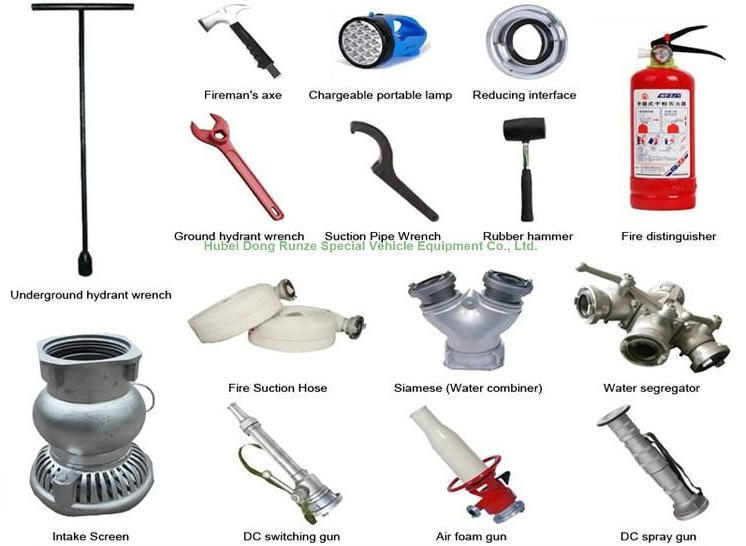

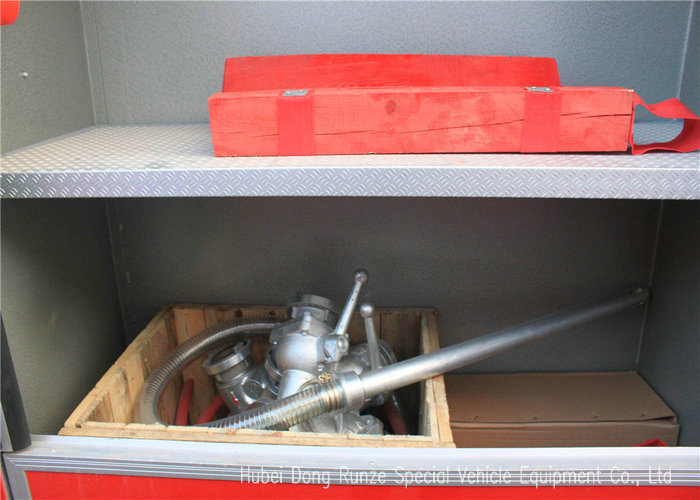

| No. | Name | Specification | Q't | Remark |
| 1 | Suction pipe | Ø125×2000mm | 4PCS | |
| 2 | Fire fighting belt | Ø65×2000mm | 8PCS | |
| 3 | Fire fighting belt | Ø80×2000mm | 4PCS | |
| 4 | Water purifier | FJF125 | 1PC | |
| 5 | Wye | FF65 | 1PC | |
| 6 | Ncreaser | KJ65/80 | 2PCS | |
| 7 | Belt pothook | FG600 | 4PCS | |
| 8 | Belt cloth | FP470 | 4PCS | |
| 9 | Above ground hydrant wrench | FB450 | 1PC | |
| 10 | Underground hydrant wrench | FBX800 | 1PC | |
| 11 | Suction wrench | FS100/125 | 2PCS | |
| 12 | Straight stream shut-off nozzle | QZG19 | 1PC | |
| 13 | Straight stream nozzle | QZ19 | 1PC | |
| 14 | Straight stream multi-jet squirt | QZH19 | 1PC | |
| 15 | Fire fighting axe | GF285 | 1PC | |
| 16 | Tool | GT1 | 1PC | |
| 17 | Fire extinguisher | | 1PC | |
Fire truck EURO 3
ZZ1167M4617C 266 horsepower EGR, HW76 flat top, HW13710CL, MCY13 drive axle, HF7 disc front axle, ZF8098 direction of the machine, vacuum tire, including air conditioning
300 horsepower EGR, HW76 flat top, HW13710CL, MCY13 drive axle, HF7 disc front axle, ZF8098 direction of the machine, vacuum tire, including air conditioning
ZZ1167M4617C fire truck chassis 270 horsepower EFR, four-door, HW13710, ST16 drive axle, HF7 disc front axle, ZF8098 direction of the machine, 11.00 nylon tires, including air conditioning
300 horsepower EFR, four-door, HW13710, ST16 drive axle, HF7 disc front axle, ZF8098 direction of the machine, 12.00 nylon tires, including air conditioning
Fire fighting truck
ZZ2187N5227E1 EURO 5 / 280HP -340Hp
