SXF5321JXFJP18
-
DONG RUN ZE
-
8705301000

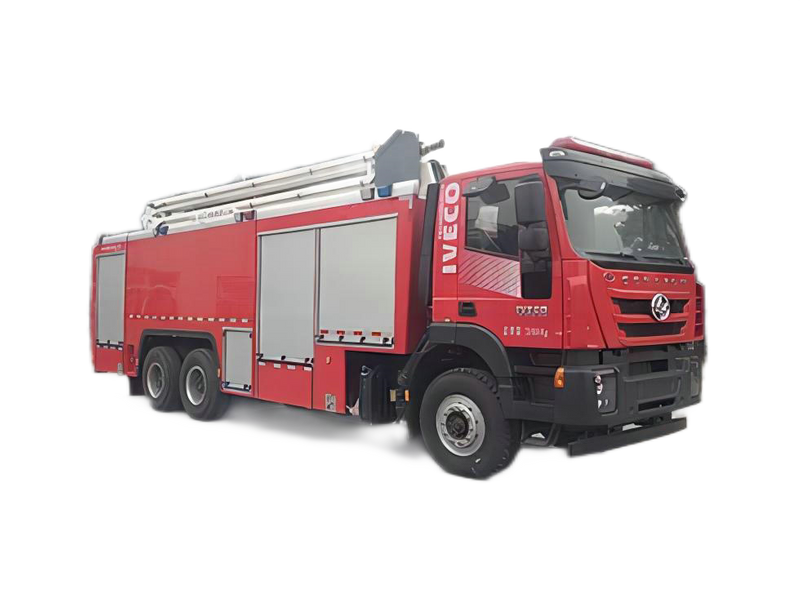

Saic-Iveco 18m Water Tower Fire Fighting Truck JP18
water foam tank : 11-12m3,
32m boom , fire monitor >80m,≥120L/S . Water pump ≥100 L/s
Main technical parameters
Chassis: CQ5346TXHTVG47-594 ，CQ5357TXFHL4
Fire pump: CB10/100-CXK;
1.18m SAIC-IVECO Foam Tower Aerial Fire Truck with 11000L~12000L Water & Foam
Overall dimensions: | 10740×2500×3860(mm) | Fuel Type: | Diesel oil |
Total mass: | 31800(Kg) | ||
Net | 20100(Kg) | Rated load mass: | 11550(Kg) |
Approach Angle/Departure Angle: | 19/10 (°) | Front/rear overhang: | 1435/2905(mm) |
Axle Load: | 6500/12650/12650 | Wheelbase: | 4700+1400,5000+1400,5900+1400(mm) |
Number of shafts: | 3 | Maximum speed: | 80(km/h) |
Number of tires: | 10(PCS) | Tire Specifications: | 12.00-20,12.00R20,315/80R22.5 |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 9/12,3/4 |
Front wheel base: | 2006,2020,2070(mm) | Rear wheel base: | 1850/1850(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) | |
F2CCE611A*L | Saic Fiat Red Rock Powertrain Co., LTD | 8709 | 287 | |
Tank volume :11.55 cubic meters, tank size :3925×2420×1270mm The main special devices are boom and fire cannon | ||||

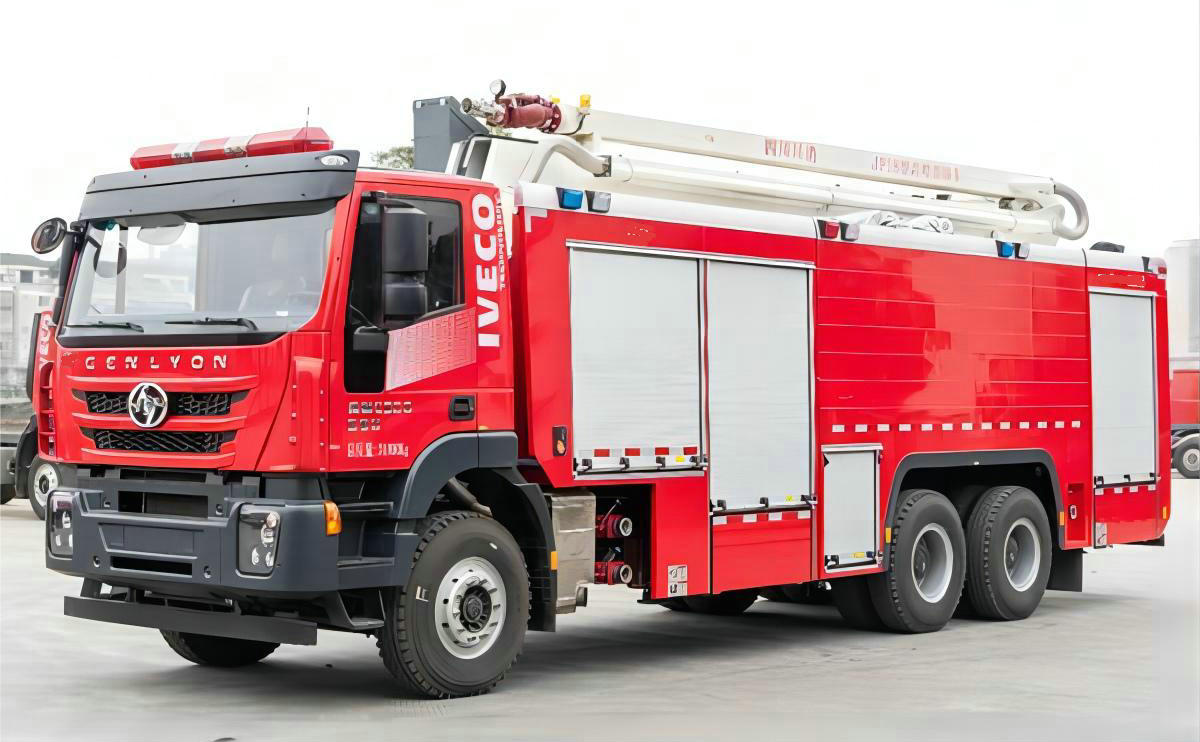

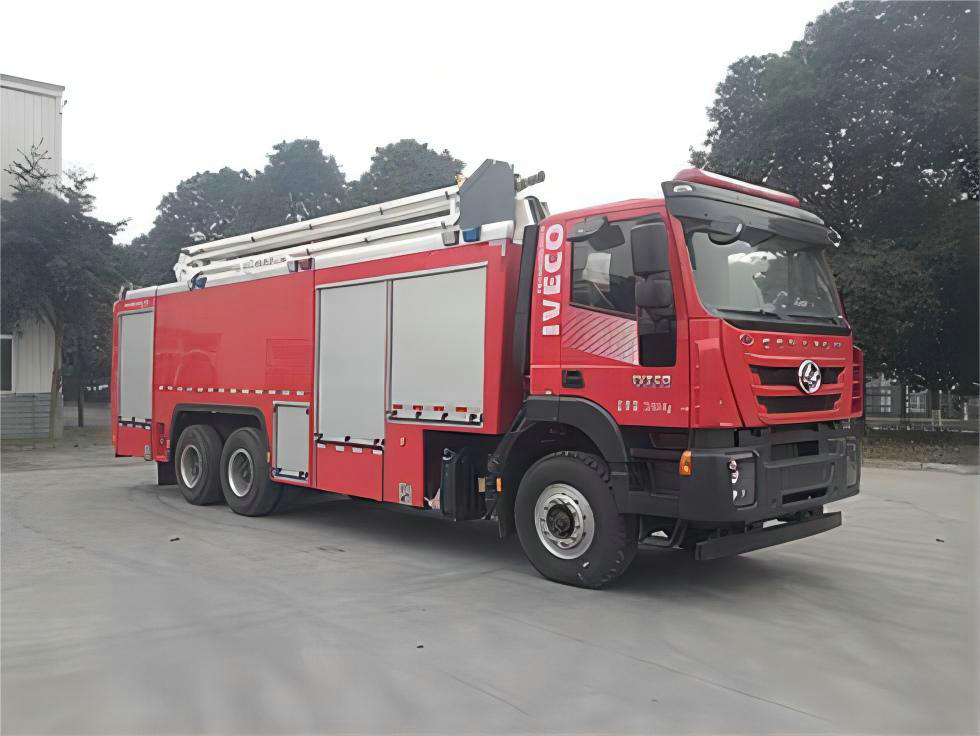

2. SAIC-IVECO 18m Water Tower Aerial Fire Truck with 12000L Water & Foam
The heavy-duty water tower fire truck SXF5321JXFJP18 is a usual vehicle used in municipal fire department and industrial areas. The max. working height is 18m and the working range is 7.5 meters. It can take 10000L water tank & 2000L foam tank. The fire pump flow rate is 100L/s and the fire monitor has 70m shoot distance.
3. The Whole Fire Truck's Parameters
| No. | Main Items | Technical Parameters |
| 3.1 | Model | SXF5321JXFJP18 |
| 3.2 | Overall Dimension | 10740mm×2500mm×3860mm |
| 3.3 | Full Load Weight | 31800kgs |
| 3.4 | Number of the Crew | 1+1 (include driver) |
| 3.5 | Max. Speed | 90km/h |
| 3.6 | Capacity | 10000L Water & 2000L Foam. PP composite material liquid tank |
| 3.7 | Fire pump flow rate | 100L/s @ 10bar |
| 3.8 | Fire monitor | 5700L/min. flow rate, 70m shoot range |
| 3.9 | Max. working height | 18m |
4. Chassis
| No. | Main Items | Technical Parameters |
| 5.1 | Standardized Sub-frame | |
| 5.1.1 | Material | High-strength rectangular tube made of special steel |
| 5.1.2 | Performance | The liquid tank and the sub-frame are connected by elastic connecting seats |
| 5.2 | Compartment | |
| 5.2.1 | Material | High-strength aluminum alloy profiles (Never Rust) |
| 5.2.2 | Structure | Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear |
| 5.3 | Roller Shutter Door | |
| 5.3.1 | Material | Aluminum alloy profiles with anodized surface |
| 5.3.2 | Structure | With rain-proof groove on the top, lever-type bar, lock handle, pull strap, two-point fixed seat, LED light and sensors. |
| 5.4 | Foot Pedals | |
| 5.4.1 | Material | High quality aluminum alloy |
| 5.4.2 | Structure | 50cm width, bear more than 300kg, anti-slip design, with double lock function. Mounted on the both sides of compartment. |
| 5.5 | Superstructure Electric Appliance | |
| 5.5.1 | Warning Light and Siren | Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin. |
| 5.5.2 | Strobe Light | Mounted on the both sides of the compartment |
| 5.5.3 | External Lighting | LED lights are mounted on the both sides of the compartment |
| 5.5.4 | Roof Lighting | LED lights are mounted on the inside of the roof |
| 5.5.5 | Side Indicator Light | Inline yellow warning light is mounted on the side of the compartment and pedals |
Rated Flow Rate: 100L/s @ 10bar
Vacuum Pump: Electric vacuum pump
Priming Manner: Automatic
Suction Height: 7m
Priming Time: ≤80s
Location: Rear-mounted
Flow Rate: 950-5700L/min.
Shoot Range: Water ≥ 70 m, Foam ≥ 60 m
Location: On the top of the boom
Control Manner: Remote control
Horizontal Rotation Angle: 0°~355°
Pitch Rotation Angle: -45°~120°
Capacity: Water 10000 Liters + Foam 2000 Liters
Material: PP composite material and Never Rust
Structure: Two Tank Manhole; One Overflow Device/Pressure Relief Device; Two Liquid Level Indicators; One Foam tank Drain Outlets with Valves; One Water tank Drain Outlets with Valves.
Basic Information | |||
Usage | Fire Extinguishing Truck | ||
Fuel Type | Diesel | ||
Length | 10740mm | ||
Width | 2500mm | ||
Height | 3860mm | ||
Curb Weight | 20100kg | ||
Gross Weight | 31800kg | ||
Seats | 2 | ||
Max Speed | 80km/h | ||
Chassis | |||
Chassis Model | CQ5346TXHTVG47-594 | ||
Front/Rear Overhang | 1435/2905mm | ||
Number of Leaf Springs | 9/12,3/4 | ||
Number of Axles | 3 | ||
Wheelbase | 4700+1400,5000+1400,5900+1400mm | ||
Axle Load | 6500/12650/12650kg | ||
Front Wheel Track | 2006,2020,2070mm | ||
Rear Wheel Track | 1850/1850mm | ||
Approaching/Departuring Angle | 19/10° | ||
Tire | |||
Number of Tires | 10 | ||
Tire | 12.00-20,12.00R20,315/80R22.5 | ||
Engine | |||
Model | Brand | Power | Displacement |
F2CCE611A*L | Saic Fiat Powertrain Hongyan Co., Ltd. | 287kW | 8709ml |
F2CCE611B*L | Saic Fiat Powertrain Hongyan Co., Ltd. | 257kW | 8709ml |
F2CCE611C*L | Saic Fiat Powertrain Hongyan Co., Ltd. | 235kW | 8709ml |
F2CCE611D*L | Saic Fiat Powertrain Hongyan Co., Ltd. | 215kW | 8709ml |
F3GCE611B*L | Saic Fiat Powertrain Hongyan Co., Ltd. | 318kW | 11120ml |
F3GCE611C*L | Saic Fiat Powertrain Hongyan Co., Ltd. | 288kW | 11120ml |
