ZLF5410JXFJP50
-
DONG RUN ZE
-
8705301000

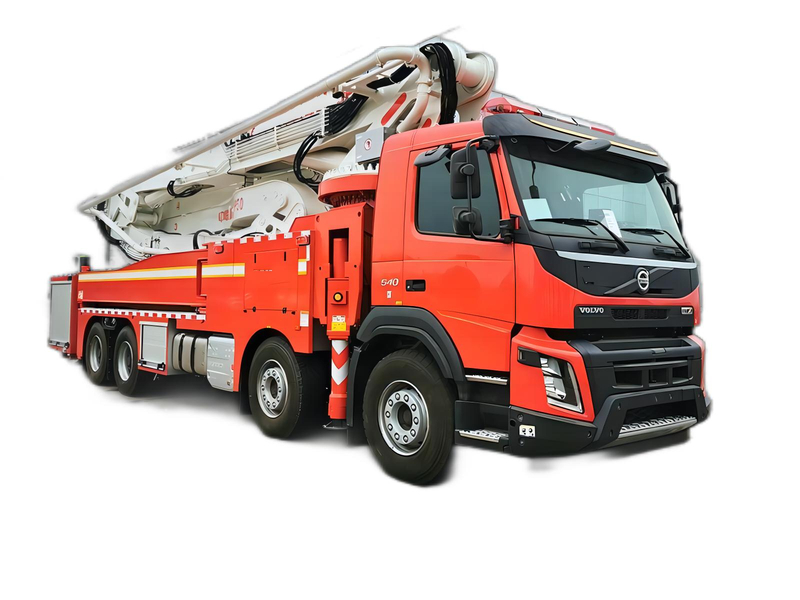

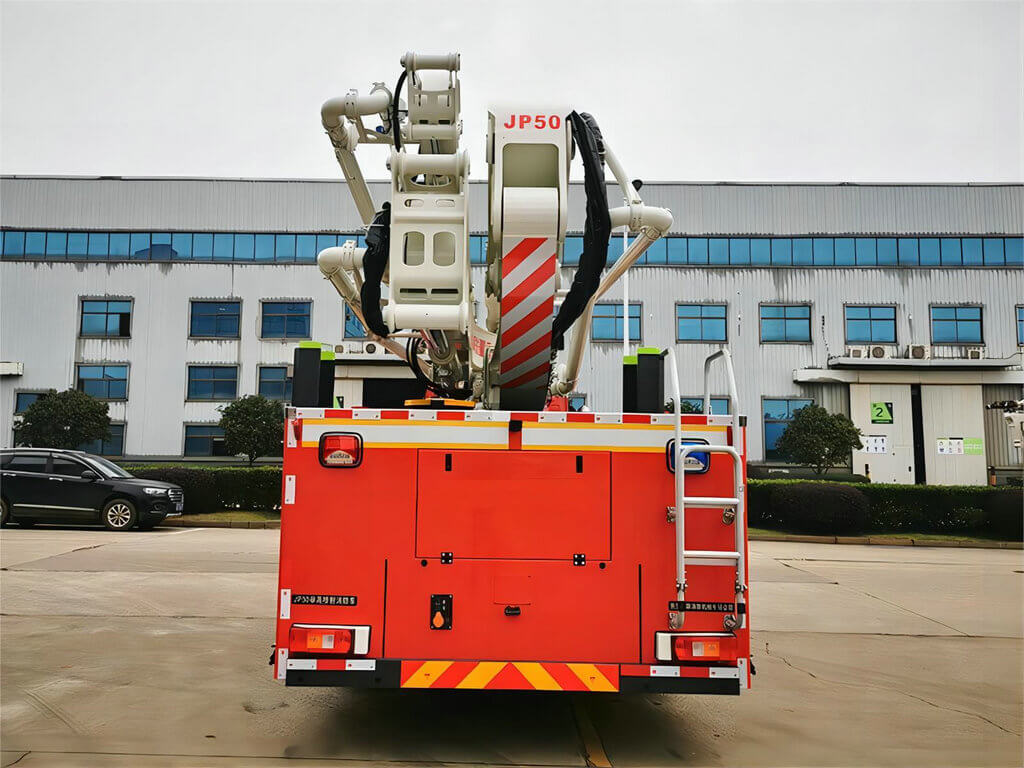

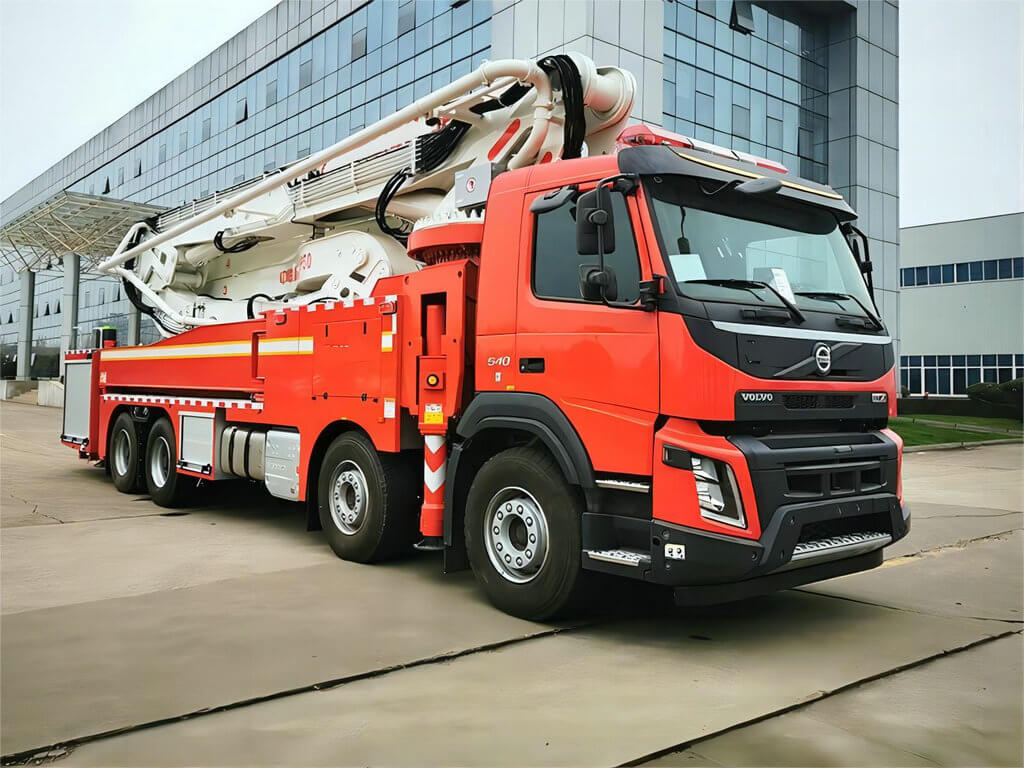

Volvo 50JP Water Foam Tower Fire Truck
water tank : 2.5m3, foam tank : 1.4m3
25m boom , fire monitor >80m,≥120L/S . Water pump ≥100 L/s
Main technical parameters of 5410JXFJP50 high jet fire engine | |||||||||
Vehicle type | 5410JXFJP50 | Fuel type | Diesel oil | ||||||
Overall dimensions (mm) | 11970 * 2540 * 3950 | Tank volume (m3) | 3.922 | ||||||
Total weight (kg) | 41000 | Rated mass (kg) | 3950 | ||||||
Net(kg) | 36900 | Front passenger | 2 | ||||||
Axle load (kg) | 7900/8400/12250/12450 | Maximum speed (km/h) | 85 | ||||||
other | Total tank volume :3.9 m3, water tank volume :2.5 m3,Foam tank 1.4m3 Engine power 405kW. Special devices 50m JP boom and fire cannon. | ||||||||
Chassis type | FM540 | Chassis brand | |||||||
Number of axes | 4 | Front wheel base (mm) | 2109/2109 | ||||||
Axis pitch (mm) | 1995 + 4205 + 1370 | Rear wheel base (mm) | 1837/1837 | ||||||
Number of tires: | 12 | Tyre specification | 385/65 r22. 5/315/80 r22. 5 | ||||||
Approach departure Angle | 14/9 | The front hangs and the back hangs | 1500/2900 | ||||||
Engine type | Engine manufacturer | Volume (ML) | Power (KW) | ||||||
D13K540 EU6 | Volvo Power Train Volvo Power Train | 12777 | 406 | ||||||
