JDF5330JXFJP25, SXT5346JXFJP26
-
DONG RUN ZE
-
8705301000

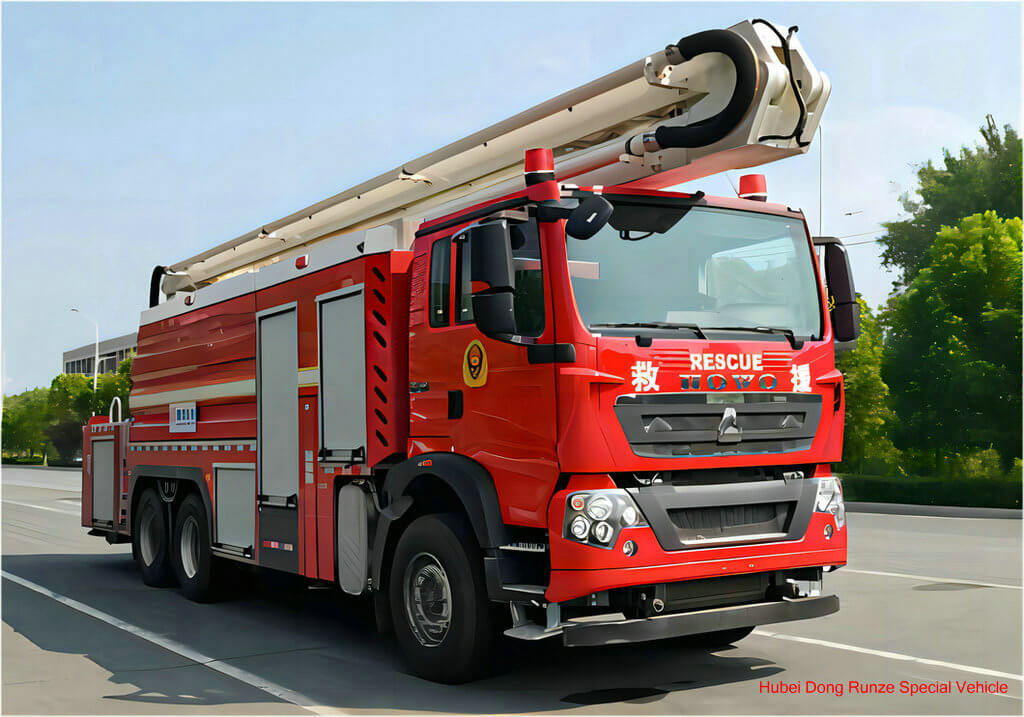

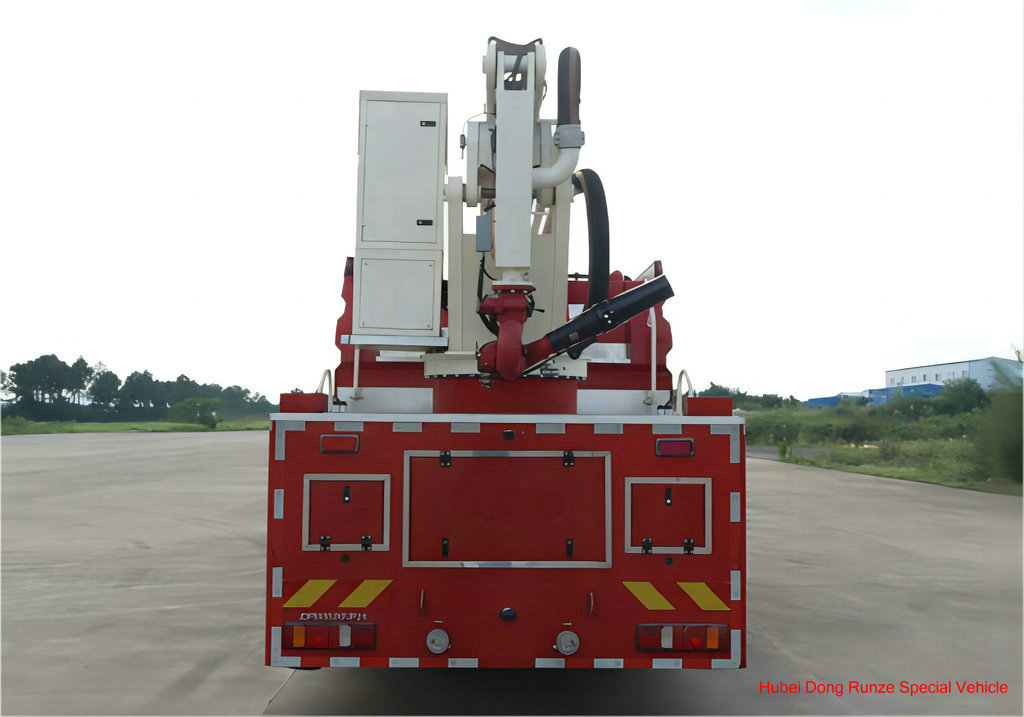

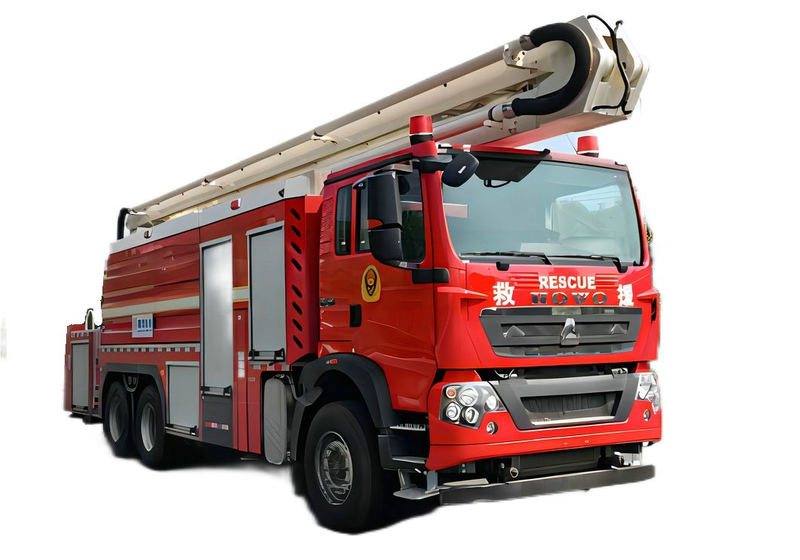

HOWO 25M Water Foam Tower Fire Truck
Sinotruck Chassis : ZZ5357TXFV464MF1
water tank : 8.9m3, foam tank : 2.9m3
25m boom , fire monitor >80m,≥120L/S . Water pump ≥100 L/s
Main technical parameters
Overall dimensions: | 11170×2550×3870(mm)(mm) | Fuel type: | diesel oil |
Total mass: | 33460(Kg) | ||
Net | 21460(Kg) | Rated load mass: | 11850(Kg) |
Approach angle/departure angle: | 19/9(°) | Front/rear suspension: | 1500/2935(mm) |
Axle load: | 7900/12780/12780 | wheelbase: | 4300+1400,4325+1350,4600+1400, 4625+1350,4800+1400,4825+1350, 5200+1400,5225+1350,5800+1400, 5825+1350,4925+1350,4900+1400 (mm) |
Number of axles: | 3 | Maximum speed: | 95(km/h) |
Number of tires: | 10 | Tire specification: | 385/65R22.5/315/80R22.5 18PR,385/65R22.5/12.00R20 18PR |
oil consumption: | (L/100Km) | Number of springs: | 10/12,4/12,4/5,4/-/-,11/12 |
Front track width: | 2110(mm) | Rear track width: | 1830/1830,1850/1850(mm) |
Engine model | Engine manufacturer | Displacement (ml) | Power (kw) |
MC13.48-60; MC13H.57-61; MC13.50-61; MC11.46-61; MC11.43-61; MC13H.60-61; MC13.50-60; MC11.44-60; MC11.40-60; MC13.54-61; MC11.40-61; WP10.5H430E62; WP10.5H460E62; MC11H.46-61; MC11H.49-61; WP12.460E62; WP10H400E62 | China Heavy Duty Truck Group Co., Ltd; Weichai Power Co., Ltd; | 12419; 13020; 12419; 10518; 10518; 13020; 12419; 10518; 10518; 12419; 10518; 10520; 10520; 11050; 11050; 11596; nine thousand and five hundred | 356; 422; 371; 341; 319; 444; 371; 327; 297; 400; 297; 316; 338; 341; 363; 338; 294 |
A :Total tank volume: 11.8 m3, water tank volume: 8.9m3, water tank size:2660×2490×1415mm, foam c tank volume: 2.900m3, foam tank size:860×2490×1415mm. Integrated side rear protective structure, rear protective height: 487mm. Forward extension: 610mm, backward extension: 125mm. The main special devices are boom, fire pump and fire monitor. B: Total tank volume :12m3 water tank volume :10 m3, foam tank volume :2.m3 | |||
JP25 Main performance data | ||
Overall size : (L x W x H) | 11600×2500×3870mm | |
Maximum total mass | 32350kg | |
Maximum truck speed | ≥95km/h (Electronic speed limit) | |
Minimum turning diameter | ≤23m | |
Approach angle | ≥14° | |
Departure angle | ≥9° | |
Maximum climbing ability | ≥25% | |
Outrigger span | Outrigger longitudinal span | 5925mm |
Outrigger transversal span | 4830mm | |
Electronic speed limit | 25m | |
Max. working radius | 13m | |
Range of amplitude of the boom | Angle between the first section arm and the water level: 0-85°; | |
Angle between the first section arm and the second section arm: 0-150°; | ||
Angle between the third section arm and the second section arm: 80-170°. | ||
Turning range | ≤30s | |
Leg deployment time | ≤60s | |
Rotation speed of the boom | 0.5~1.5r/min | |
Fire pump | Rated flow | 80 L/s |
Rated pressure | 1.4MPa | |
Fire monitor | Model | PLKD80-3480+5178+738 |
PLKD80+738 | ||
Rated flow | 80 L/s±8% | |
Rated pressure | 0.8MPa | |
Shoot range | Water: 75m | |
Foam: 70m | ||
