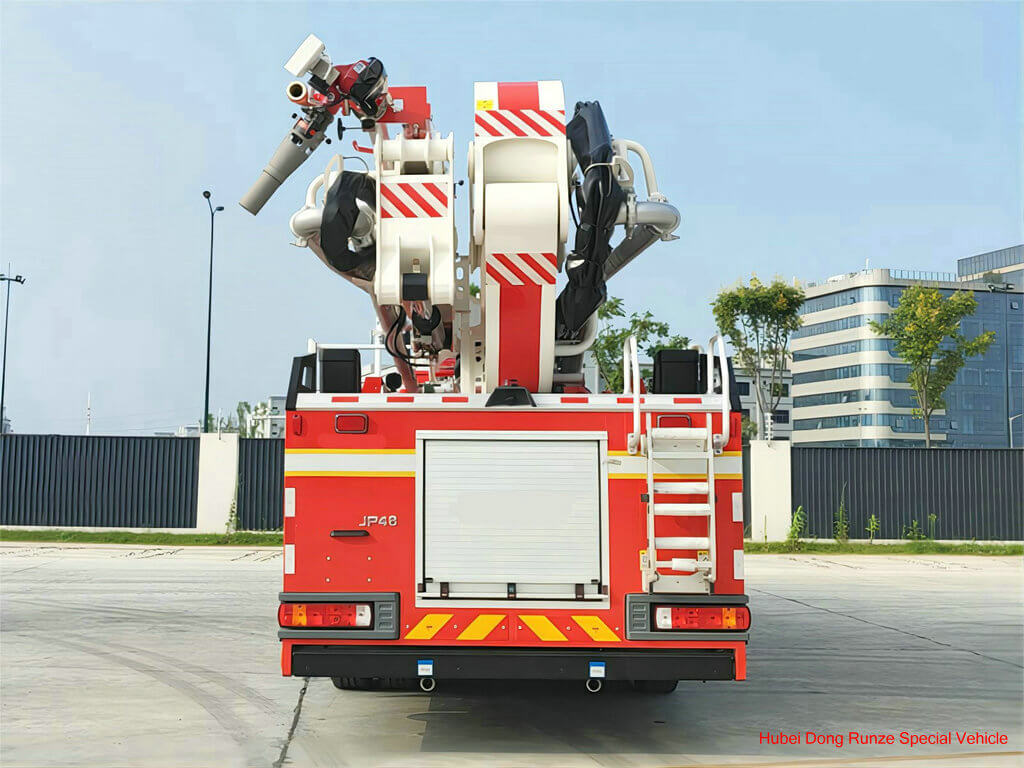

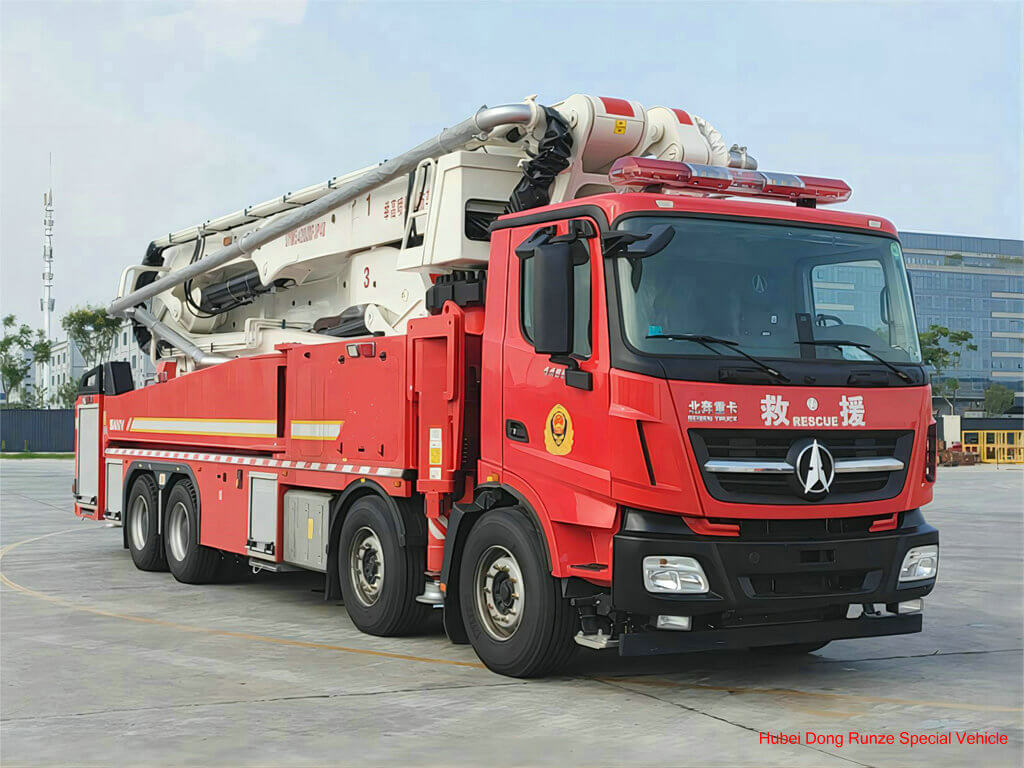

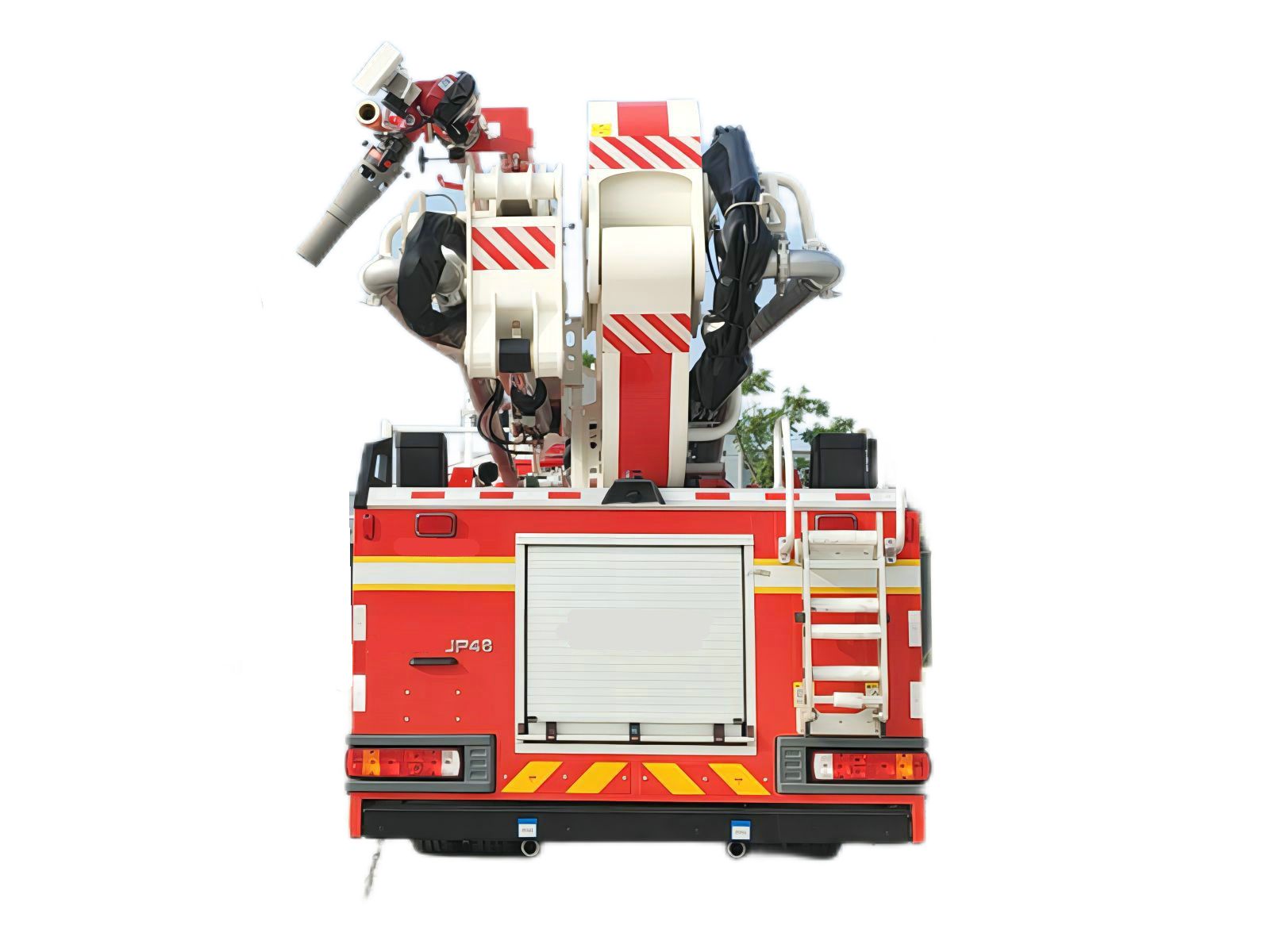

BEIBEN 48M Large-span Lifting Jet Fire Truck

Total mass:

42000(Kg)

Net

37850(Kg)

Rated load mass:

4000(Kg)

Approach Angle/Departure Angle:

17/10 (°)

Front/rear overhang:

1515/2835(mm)

Axle Load:

8600/7800/12800/12800

Wheelbase:

1950+4350+1350,1950+4650+1350(mm)

Number of shafts:

4

Maximum speed:

89(km/h)

Number of tires:

12(PCS)

Tire Specifications:

385/65R22.5 20PR/315/80R22.5 18PR

Fuel consumption:

(L/100Km)

Number of spring pieces:

4/4/5

Front wheel base:

2133/2133(mm)

Rear wheel base:

1874/1874(mm)

WP13.550 E62

Weichai Power Co., Ltd.

12540

405

Total tank volume :4cbm, tank volume :2.5cbm, foam tank volume :1.5cbm

Material of side protection device: aluminum alloy, composed of plane and cross bar, cross bar section height :100mm, cross bar spacing :180mm, and vehicle connection: bolt connection.

The main special devices are boom and fire cannon.

The work light on the side of the car body is only turned on during operation, and cannot be turned on during driving.

1.1 Vehicle parameters

Overall dimensions (length, width and height)

Length: 12500mm; width: 2550mm; height: 4000mm

maximum gross weight

≤44000kg

1.2 Support system

▲ Minimum expansion span

3.3m

▲ any support

With any support core technology, when the leg is supported under any expansion width, the boom can be carried out for fire extinguishing operations, without site restrictions

▲ Full leg extension and leveling time

≤40s

1.3 Arm rack system

▲ maximum workingheight

≥47.5m

▲ Maximum working range

≥42m

▲ Maximum working amplitude at a 3.3 m-wide span

≥27m

Whether the boom fire pump can be linked together

It can be linked, each arm can be arbitrarily action, and does not affect the jet flow

▲ Arm frame deployment time

≤180s

The rotation Angle

±360°

▲ Operating Angle range of the end boom

-60°~30° (boom 56 is straight as 0°), six arms can be inverted, flexible action without dead Angle

1.4 Fire protection system

Rated working flow rate of the whole vehicle

≥80L/s@1.6MPa

Fire pump model

Domestic well-known brand

Fire gun model

Domestic well-known brand

Fire gun maximum range

Water DC range of 80m, foam range of 70m

Fire gun horizontal turn angle range

-30°~+30°

Fire cannon pitch back to the corner range

-90°~+30°

foaming system

International brand class B bubble system

Volume of liquid tank

2m³ water + 1 m ³ class B foam

Pipe allows for working pressure

≥2.5MPa

delivery port

4 DN80 interfaces, external direct supply interface and boom pipe drainage interface are shared with this

End water supply port

1 DN80 interface at the end of the boom

Spray protection system

5,6 arm self-protection spray, protect the end boom and fire gun

1.5 Video surveillance system

End camera

High-definition camera, rotating with the fire gun

Automatic video storage

For 48 hours of continuous memory

The rear video shows

10 inches and above HD LCD screen

Remote control video display

A 7-inch HD LCD screen

1.6 Driving parameters

maximum speed

≥85km/h

1.7 Other

Control mode

Close control: 50 meters wired remote control (optional): 150 meters wireless remote control

Emergency recovery power

Gasoline engine pump set

1.8 Thermal insulation configuration in the cold area

The fire truck pump room is equipped with warm device to meet the normal use in winter in northern China

2 Chassis configuration and parameters

2.1 Emission standards

EURO 5-6 VI

2.2 Rated engine power

≥400kW

2.3 ▲ engine maximum torque

≥2500N.m

2.7 Top vehicle speed

≥85km/h

2.9, the gearbox

A 12-gear manual transmission, with a synchronizer,

I gear speed ratio of 15

2.10 Rated load of one bridge + the second bridge

≥9000kg+9000kg

2.11 Rated load

≥26000kg

2.12 ▲ car frame

The frame width is 300mm high, two layers and frame thickness is 14mm

2.13, Electrical system

Power main switch, second hand throttle, off-car start-stop function, CAN bus

On-board terminals that meet the requirements of State VI;

Battery specifications and parameters: 180Ah maintenance-free, 212V;

2.14, and the fuel oil system

The 300L aluminum alloy

Bring the oil mouth

2.15, the brake system

Service brake type: double-circuit compressed air brake

Dynamic adjustment type: EBS + ESC, with ASR function

Parking brake system type: spring energy storage air break brake

Auxiliary brake system type: exhaust brake system + retarder system

2.16 Cab house

Two-door cab, body in white is high strength skeleton + outer skin structure, middle longitudinal beam is composite beam structure; width is 2450mm; the cab meets the requirements of GB 26512-2021 Commercial Vehicle cab crew protection; alarm lights are installed in the cab

Automatic air conditioning, air suspension main seat, electric glass lifter, adjustable steering wheel, remote control keys

Four-point spiral spring suspension, flashlight roll

2.17 tires

No inner tire

2.19 ▲ minimum distance to ground clearance

≥300mm

3 landing leg

3.1 Type 1

Type X (front expansion, rear swing)

3.3 Minimum expansion span

3.3m

3.4 Leg position detection system

Both front and posterior legs are equipped with real-time position detection device

3.5 Support position support

Full leg extension, one side and any position support can be used

3.6 Leg operation

Automatic deployment and leveling, and the emergency state can be manually operated

3.7 Off-ground detection

Upper inner hidden type, safe and reliable

4 Arm rack and rotation

4.1 Number of boom joints / type

6 Folding arms

4.2 Maximum working height

≥47.5m

4.3 Maximum working range

≥42m

4.4 Arm rack operation mode

Wired remote control, wireless remote control (optional), tail operation panel close control, manual multi-channel valve operation

4.5 Swing-back mechanism

The motor drives the reducer to achieve ± 360° continuous rotation

5 fire extinguisher system

5.1 Rated working flow rate of the whole vehicle

≥80L/s@1.6MPa

5.2 Model of fire pump

Famous domestic brands

5.3 Rated flow rate of the fire pump

≥170L/s@1.0MPa

5.4 Fire gun type

Domestic known, famous brand

5.5 Fire gun rated flow rate

≥100L/s

5.6 Fire gun type

Electric remote control gun, can realize the elevation, swing and DC-spray conversion, the installation position of the rear of the boom (the end of the six arms)

5.7 Foam system

International brand class B bubble system

5.8 Adjustment range of foam mixing ratio

0.5%~10%

5.9, and the vacuum pump

Electric vacuum pump

5.10 Pressure bearing capacity of boom pipe

2.5MPa

5.11 Rated diameter of the boom pipe

DN125mm, Low pressure loss

5.12, pipe material

Stainless steel pipe + aluminum alloy pipe

5.13, fire interface [buckle]

Water suction mouth

2 DN150 interfaces

Water injection outlet

With 4 DN80 interfaces

delivery port

With 4 DN80 interfaces

External injection foam mouth

1 DN65 interface

The foam mouth is absorbed

1 DN50 interface

End water supply port

1 DN80 interface

5.14 Carrying liquid tank material

Stainless steel, top and side plate thickness 4mm, partition 3mm, bottom plate thickness 3mm internal passivation corrosion treatment, top anti-skid treatment; tank with 10 years warranty

5.15 Tank connection mode

elastic fixing

5.16 Force collector

Broken-shaft force collector (with cooler)

6 Security protection system

6.1 Emergency functions

All hydraulic valves are provided with emergency mechanical operation; the system has an emergency power unit for closing the boom and legs during engine and oil pump failure

6.2 Interlock on and off the bus

The arm shall not leave the main support; the arm shall not move without the main support

6.3 Buffer protection of the boom

Limit position and sudden operating handle, the system can automatically achieve acceleration and deceleration

6.4 Arm frame limit protection

Depending on the leg support position, the program automatically restricts the arm movement at the allowable working posture

6.5 Table table protection

When the arm frame is closed, it can be automatically matched

6.6 Waterway overpressure protection

When the water channel exceeds the pressure, the safety valve overflows

6.7 Notary protection of the fire pump

Prevent damage to the fire pump from idling

6.8 Overpressure protection of the water tank

DN100mm Aore water outlet, automatic overflow device at 0.1MPa pressure to prevent accidental overpressure

6.9 Soft-leg protection

When the arm frame is in the process of action, the legs appear off the ground, with the automatic sound and light alarm function, and  allows the arm frame to move in the safe direction

6.10 constant speed control of fire pump

When the fire pump works, adjust the attitude of the boom, and the program will automatically control the movement speed of the boom, and the speed of the fire pump is always constant

6.11 Arm frame limit protection

When the boom approaches the limit range, it can automatically stop slowly

6.12 Swing-back buffer protection

When the rotation stops suddenly, the system can effectively buffer

6.13 Arm stand against interference protection

The inherent procedure limits on the points of possible interference and interference with the car body to ensure that no interference and collision occur during misoperation

6.14 Leg action alarm

When leg movement, sound and light prompt to prevent collision

6.15 legs not recovered in place

Cab light alarm prompt, to prevent driving accidents

6.16 Equipment box door is not closed prompt

Cab light alarm prompt, to prevent driving accidents

6.17 No bit cue was received from the boom

Cab light alarm prompt, to prevent driving accidents

7 electrical system

7.1 Special motion controller

Special motion controller, adapted to the large range of temperature change, high vibration, high impact, strong electromagnetic interference and other harsh working environment

7.2 Industrial-grade display screen

Industrial display screen, strong, waterproof and seismic, adapt to high and low temperature environment and other harsh working environment

7.3 Video surveillance system

The rear 10 inch and above bright LCD color display + remote control 7 inch and above bright LCD color display + over 48 hours of local continuous storage

7.4 Remote data monitoring module

With real-time positioning function, working condition data monitoring

7.5 Warning light alarm system

Red alarm lights on the top of the cab, red left and right on the rear of the cab. The alarm is integrated in the cab with fire alarm sound, siren sound, external propaganda and other functions

7.6 Vehicle wiring harness

The whole car adopts the wiring harness and protection level not less than IP67 connector design

7.7 Electric control leg operation box

Integrated leg deployment, retraction and leveling operation

7.8 Cable reel

50 m special cable drum

7.9, and the sensor of the

Adopt high reliability brand (pressure, displacement, angle, etc.)

7.10 Centralized power distribution box

The vehicle adopts independent power distribution system design

7.11 Close control operation panel

The rear of the body is equipped with integrated near control operation panel, including engine start and stop, waterway operation, emergency boom operation, lighting operation, status indication and other functions

7.12 Operation of the fire pump

Fire pump remote control, close control one key start, stop

7.13 Emergency electronic control operation of the boom

Close control panel electronic control operation, as the backup of the remote control operation

7.14 Easy operation of the boom

The boom is extended and closed with one key

7.15, warning lamp fixtures

Yellow strobe lights are provided on the top of the legs and on the arms

7.16, lighting fixtures

Each operation office and the equipment box are equipped with lighting

7.17 360 panoramic driving auxiliary system

7 inches and above in the cab + reversing radar + panoramic camera around the car + dashcam

7.18 Automatic charging and separation device

Configure the battery automatic separation inflatable charging device

7.19 Cab power interface

The cab is equipped with DC12V, DC24V and AC220V charging ports

7.20 Remote control

Integrated video surveillance, boom operation, fire gun operation, fire pump operation and other functions

8 hydraulic pressure system

8.1 Hydraulic system type

Variable pump + proportional valve system (international brand)

8.2 System pressure

≥35MPa

8.3 Arm-operating valve

International brand hydraulic pilot high-performance solenoid proportional valve

8.4 Leg operating valve

International brand hydraulic pilot high-performance solenoid proportional valve, leg automatically spread leveling

8.5, emergency pump

One gasoline engine emergency pump unit

8.6, and the oil filter

Configure the famous brand filter, the filter accuracy of 10 μ m, and with the filter element blockage indication

8.7 Balancing valve and the core hydraulic components

Famous brand

9 Body and box

9.1 Material material

The skeleton is made of high strength aluminum alloy profile, the plate is all aluminum alloy plate and skin for anodic oxidation treatment

9.2 Structure

The skeleton of the equipment box is made of high strength aluminum alloy profile, and the hidden type. The high strength structure is bonded between the plate and the skeleton. The outer surface of the car body is smooth, smooth and beautiful, effective shock absorption and avoid loosening

9.3, rolling shutter door

The aluminum alloy shutter door with lock can be opened with 1 key, light and flexible, good sealing, waterproof and dustproof function; each equipment box has lighting, controlled by the shutter door

10 Optional list

11.1 Wireless remote control function

Wireless remote control, charger 2 (220V, 24V each 1), 2 batteries

12 Random attachment

12.1, fire hose 25-80-20

10

12.2 Fire emergency lighting lights

2

12.3 Dry powder fire extinguisher

1

12.4 Water pipe ABC wrench

2

12.5 suction pipe wrench

2

12.6 Ground fire hydrant wrench

1

12.7 Water-collector

1

12.8 Underground fire hydrant wrench

1

12.9, KXK80 internal buckle / 80 males

2

12.10 KXK80 buckle / 80 females

2

12.11 Ointerface KJK65 male / 80 females

2

12.12 Special interface KJ 65 / 80Z

2

12.13, the external suction foam tube

1

12.14, automatic winer YD

1

12.15 leg pads

4

12.16 One set of common seals

A set

12.17 Fire Engine Manual (digital printing)

Two sets

12.18 Fire truck operation training video U disk

1

12.19 active wrench 375GB4440

1

12.20, hexagonal wrench 1.5-12GB5356 10 set

A set

12.21 Wire forceps 180QB2442.1

1

12.22 Slip forceps 160QB2440.1

1

12.23, double-headed dumb wrench 3236GB4388

1

12.24, SL-451S-B

1

12.25, Random Toolbox BC19 ″

1

12.26,5.5-32GB4388 16 piece set

A set

12.27 Plum Wrench Set 5.5-32GB4388

A set

12.28, one-word screwdriver 5200

1

12.29, cross screwdriver 5200

1

12.30 Foam gun head

1

12.31 Chassis spare tire

1
