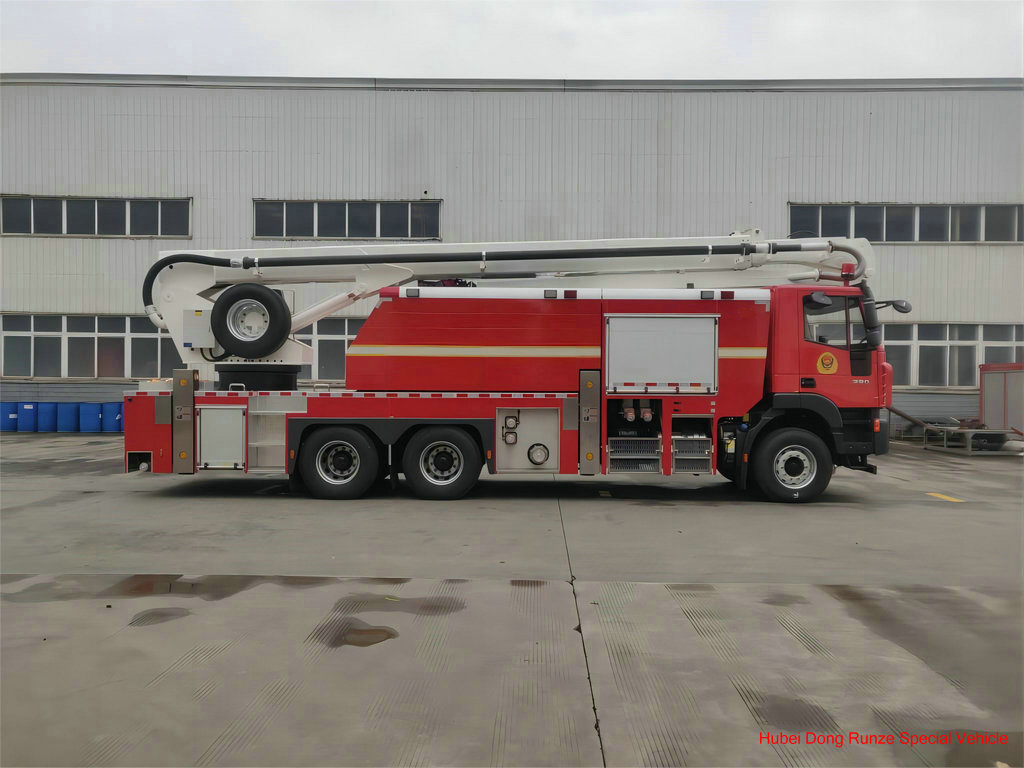

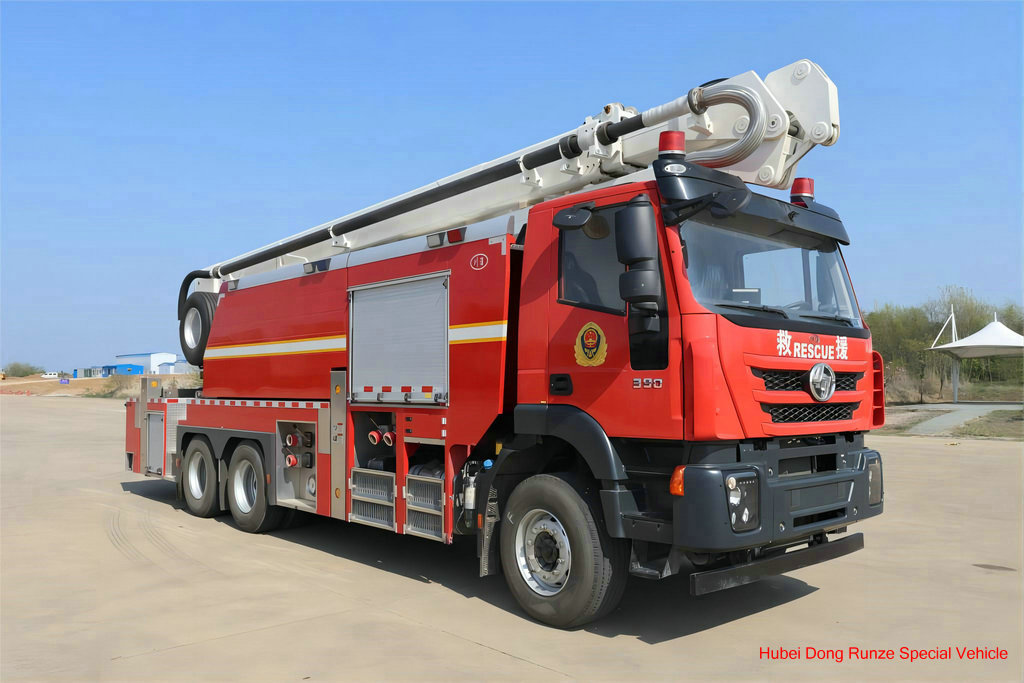

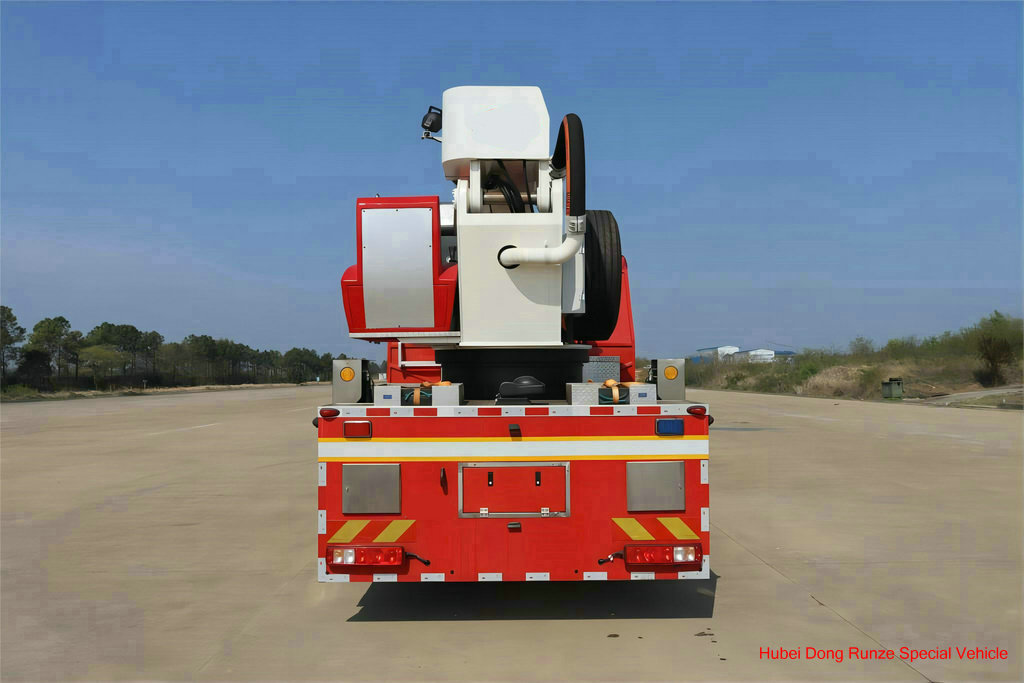

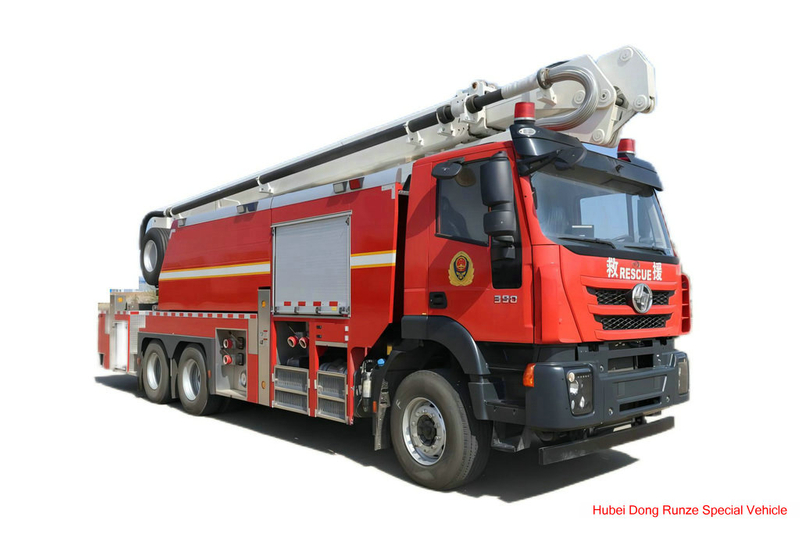

Saic-Iveco 32m Water Tower Fire Fighting Truck 32JP
water tank : 6.1m3, foam tank : 2.1 m3
32m boom , fire monitor >80m,≥120L/S . Water pump ≥100 L/s
Main technical parameters
Chassis: CQ5346TXHTVG47-594 ，CQ5357TXFHL4
Fire pump: Waterous CB10/100-CXK;
Fire Cannon: Elkhart PLKD10/80-8294-06
32m SAIC-IVECO Foam Tower Aerial Fire Truck with 6000L Water & Foam
Main technical parameters
Overall dimensions: | 10890×2530×4000(mm) | Fuel Type: | Diesel oil |
Total mass: | 32000(Kg) | ||
Net | 23550(Kg) | Rated load mass: | 8300(Kg) |
Approach Angle/Departure Angle: | 16/7 (°) | Front/rear overhang: | 1435/2870(mm) |
Axle Load: | 7700/12150/12150 | Wheelbase: | 4600+1400,4800+1400,5800+1400(mm) |
Number of shafts: | 3 | Maximum speed: | 90(km/h) |
Number of tires: | 10(PCS) | Tire Specifications: | 385/65R22.5 20PR/315/80R22.5 18PR/315/80R22.5 18PR,385/65R22.5 20PR/12.00R20 18PR/12.00R20 18PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 3/4,9/12 |
Front wheel base: | 2100(mm) | Rear wheel base: | 1858/1858(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
SC10E420Q6; SC12E420Q6; SC12E440Q6; SC12E460Q6; SC12E480Q6; SC10E370Q6; SC10E400Q6; F2CCE611G*M; F2CCE611H*M | Shanghai New Power Automobile Technology Co., LTD.; Saic Fiat Hongyan Powertrain Co., LTD. | 10420; 11810; 11810; 11810; 11810; 10420; 10420; 8709; 8709 | 309; 309; 323; 338; 353; 272; 294; 287; 263 |
A: Total tank volume :8.2 cubic meters, water tank volume :6.15 cubic meters, water tank size :2500×2475×1040mm, foam tank volume :2.108 cubic meters, foam tank size :855×2475×1040mm. Integrated side and rear protection structure, rear protection height :360mm, The main special devices are boom, fire pump, fire cannon. B:Total tank volume : 6 cubic meters, water tank volume :5.1 cubic meters, water tank size :2150×2460×1000mm, foam tank volume :0.980 cubic meters, foam tank size :1000×1020×1000mm. | |||
32m SAIC-IVECO Foam Tower Aerial Fire Truck with 6000L Water & Foam
The heavy-duty foam tower fire truck model is SXF5291JXFJP32, and is a usual vehicle used in municipal fire department and industrial areas. The max. working height is 32m and the working range is more than 17m. With 3500L water tank & 2500L foam tank. The water pump flow rate is 100L/s and the boom fire monitor has 70m spray distance.
3. The Main Parameters
| No. | Main Items | Technical Parameters |
| 3.1 | Model | SXF5291JXFJP32 |
| 3.2 | Overall Dimension | 10750mm×2530mm×4000mm |
| 3.3 | Full Load Weight | 29450 Kg |
| 3.4 | Number of the Crew | 2 (including driver) |
| 3.5 | Max. Speed | 90km/h |
| 3.6 | Capacity | 3500L~6100L Water & 1000L~2100L Foam. PP composite material liquid tank |
| 3.7 | Fire pump flow rate | 100L/s @ 10bar |
| 3.8 | Fire monitor | 5700L/min. flow rate (adjustable), 70m shoot range |
| 3.9 | Max. working height | 32 meters |
4. Chassis of The Fire Truck
| No. | Main Items | Main Technical Parameters |
| 5.1 | Standardized Sub-frame | |
| 5.1.1 | Material | High-strength rectangular tube made of special steel |
| 5.1.2 | Performance | The liquid tank and the sub-frame are connected by elastic connecting seats |
| 5.2 | Aluminum Compartment | |
| 5.2.1 | Material | High-strength aluminum alloy profiles (Never Rust) |
| 5.2.2 | Structure | Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear |
| 5.3 | Aluminum Roller Shutter Door | |
| 5.3.1 | Material | Aluminum alloy profiles with anodized surface |
| 5.3.2 | Structure | With rain-proof groove on the top, lever-type bar, lock handle, pull strap, two-point fixed seat, LED light and sensors. |
| 5.4 | Aluminum Foot Pedals | |
| 5.4.1 | Material | High quality aluminum alloy |
| 5.4.2 | Structure | 50cm width, bear more than 300kg, anti-slip design, with double lock function. Mounted on the both sides of compartment. |
| 5.5 | Upperbody Electric Appliance | |
| 5.5.1 | Warning Light and Siren | 2 warning lights and siren are mounted above cabin. The controller is installed in the driver's cabin. |
| 5.5.2 | Strobe Lights | Mounted on the both sides of the compartment |
| 5.5.3 | External Lighting | LED lights are mounted on the both sides of the compartment |
| 5.5.4 | Roof Lighting | LED lights are mounted on the inside of the roof |
| 5.5.5 | Side Indicator Lights | Inline yellow warning light is mounted on the side of the compartment and pedals |
Flow Rate: 100L/s @ 1.0Mpa
Vacuum Pump: Electric
Priming Type: Automatic
Suction Height: 7 meters
Priming Time: ≤80 seconds
Location: In Rear Pump Room
Flow Rate: 950-5700 L/min.
Shoot Range: Water ≥ 70 meters, Foam ≥ 60 meters
Location: On the top of the boom
Control Manner: Remote control
Horizontal Rotation: 0°~355°
Pitch Rotation: -45°~120°
Capacity: Water 3500 ~6100 Liters and Foam 1000~2100 Liters
Materials: PP composite material and Never in Rust
Structure: 2 Tank Manhole; 1 Overflow Device/Pressure Relief Device; 2 Liquid Level Indicators; 1 Foam tank Drain Outlet with Valve; 1 Water tank Drain Outlet with Valve.
