SYM5422JXFJP48;SYM5425JXFJP48
-
DONG RUN ZE
-
8705301000

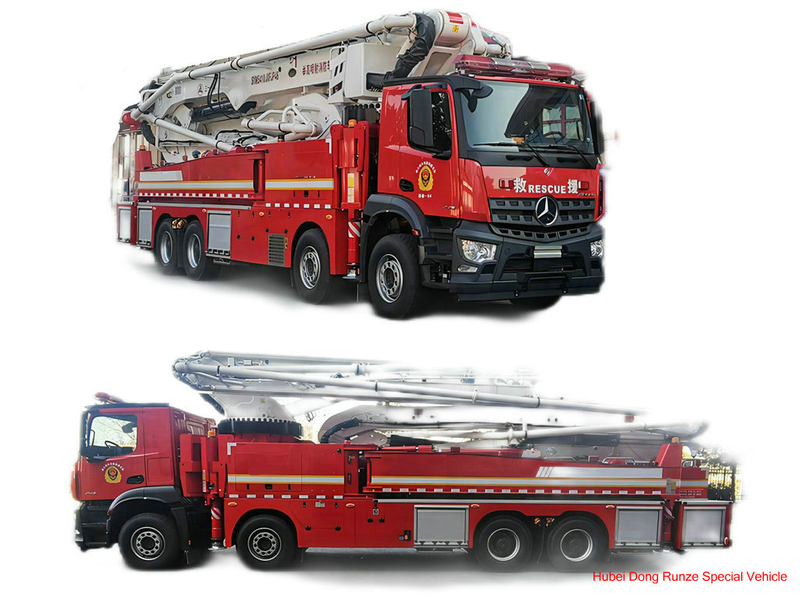

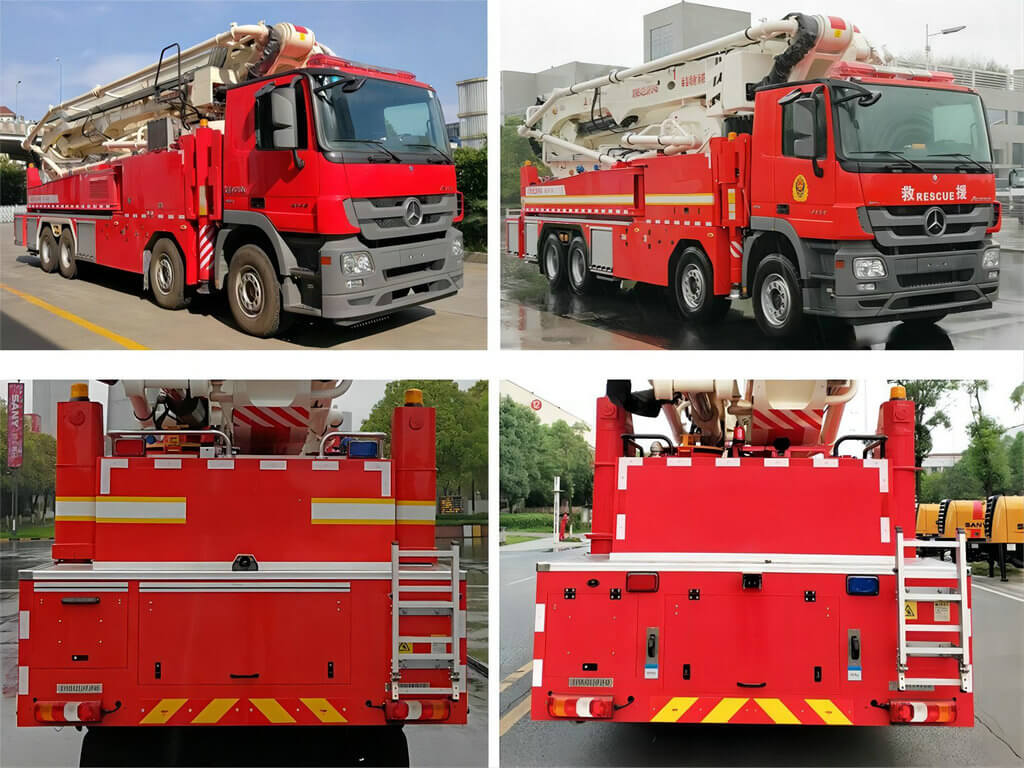

4144 Actros 48m Long Span Water Tower Lifter Fire Truck JP48
water tank : 2m3, foam tank : 0.98m3

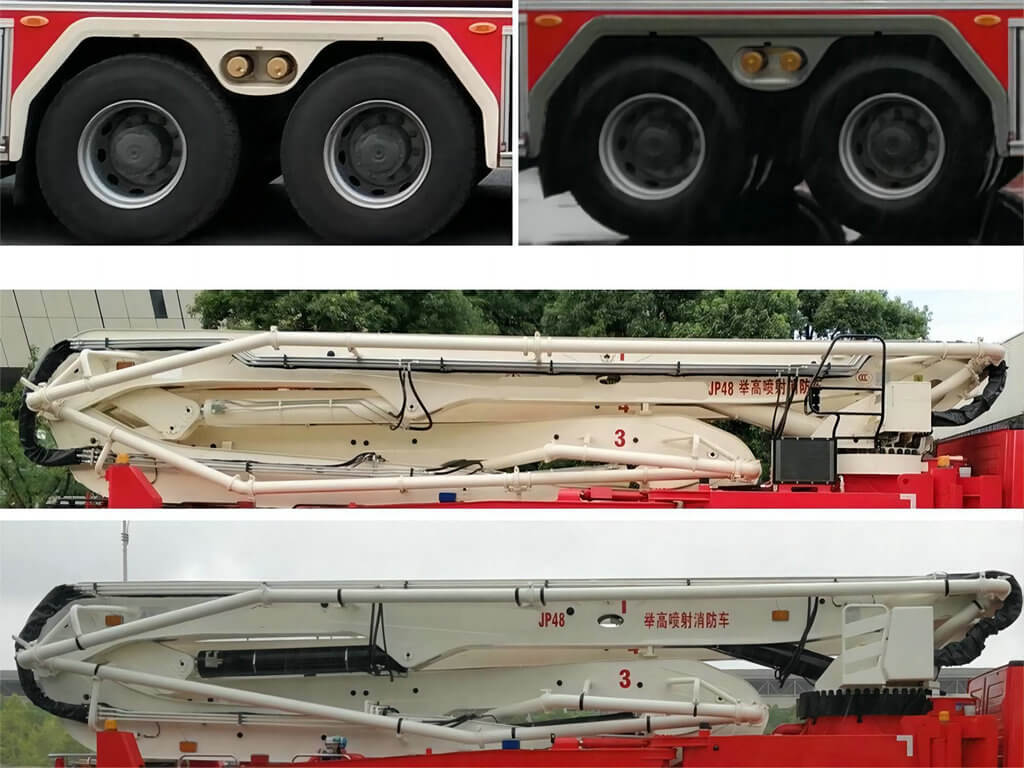

48m boom, fire pump, fire cannon,
Overall dimensions: | 12000×2520×3990(mm) | Fuel Type: | Diesel oil |
Total mass: | 42450(Kg) | ||
Net | 39300(Kg) | Rated load mass: | 3000(Kg) |
Approach Angle/Departure Angle: | 16/10 (°) | Front/rear overhang: | 1440/2825(mm) |
Axle Load: | 8800/8600/12500/12550 | Wheelbase: | 2020+4280+1350(mm) |
Number of shafts: | 4 | Maximum speed: | 90(km/h) |
Number of tires: | 12(PCS) | Tire Specifications: | 385/65 r22. 5315/80 r22. 5 |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 4/4/4 |
Front wheel base: | 2096/2096(mm) | Rear wheel base: | 1804/1804(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
OM501LA.V/4 | Daimler AG | 11946 | 325 |
Total tank volume :2.980 cubic meters, Water tank volume :2 cubic meters, tank size :1960×1730×610 mm, foam tank volume :0.98 cubic meters, foam tank size :960×1730×610 mm. Integrated side and rear protection structure, rear protection height from the ground :497 mm The main special devices are boom and fire cannon. | |||
4148 Actros 48m Long Span Water Tower Lifter Fire Truck JP48
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
OM501LA.V/6 | Daimler AG | 11946 | 355 |
Technical parameters of 48m fire truck | |||
Parameter name | 5422JXFJP48 | 5400JXFJP48 | |
complete | Overall dimensions (L x W x H) | 12mx 2.5mx3.97m | 12mx 2.5mx 3.95m |
vehicle Parameter | Maximum total weight | 42450kg | 40250kg \ |
Model of chassis | Bentz 4144 | Volvo Fm500 | |
complete vehicle Parameter | Engine power emission standard | 325kw@1800rpm Euro V | 368kw@1800rpm Euro V |
Maximum unfolding span (front x back) | 9.1 m x9.84 m | 9.06m x9.89 m | |
Supporting System | Minimum unfolding span | 3.3 m | 3.3 m |
Action time of support leg | 40s | 40s | |
Maximum working height | 47.5 m | 47.5 m | |
Maximum operating range | 42.5 m | 42.5 m | |
Maximum downward working depth | 29 m | 29 m | |
Maximum working amplitude in case of 3.3m cross span | 28 m | 28 m | |
Boom System Unfolding time of boom Slewing angle | 180s 士360° | 180s 土360° | |
Slewing time | 200s | 200s | |
Allowable lifting weight of boom terminal end | 180kg (long-distance loading rescue) | 180kg (long-distance loading rescue) | |
Model of fire control pump | Darley PSP1500 of the USA | Hale 8FGR of the L JSA | |
Rated flow of pump | 5400L .PM | 10000L .PM | |
Rated working flow of whole vehicle | 4200L PM | 6400L PM | |
Rated flow of gun | 4800L PM | 5700L _PM | |
Hydraulic System Others | Maximum theoretical jetting range | 80 m | 80m |
Volume of liquid tank | 3,000L (total volume of water and foam) | 3,000L (total volume of water and foam) | |
Scope of left and right swing angles of fire control gun | [-45° ,+45° ] | [-30° ,+30° ] | |
Allowable working pressure of pipeline Manipulation mode | 2.5MPa (ultra-high-rise water supply) | 2.5MPa (ultra-high-rise water supply) | |
Local control + wired remote control (wireless optional) | Local control + wired remote control (wireless optional) | ||
