SYM5510JXFJP62
-
DONG RUN ZE
-
8705301000

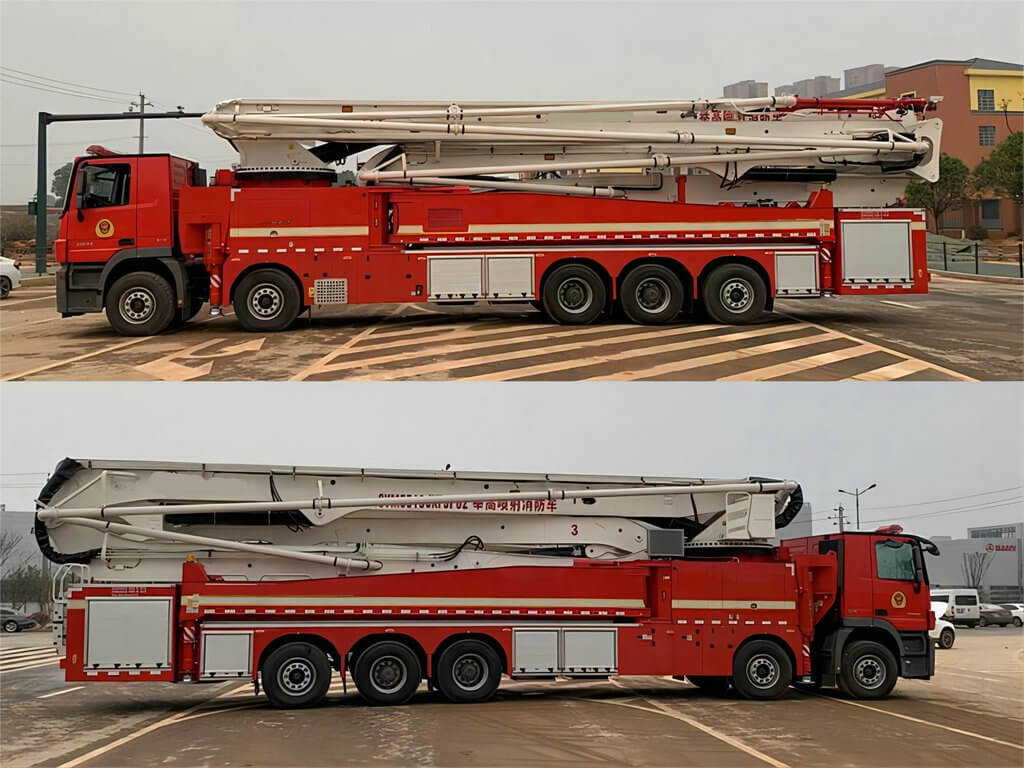

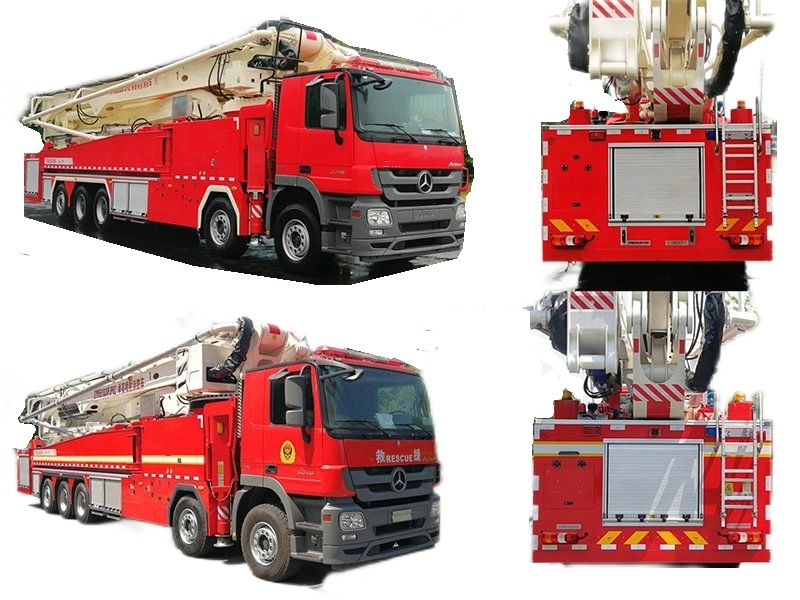

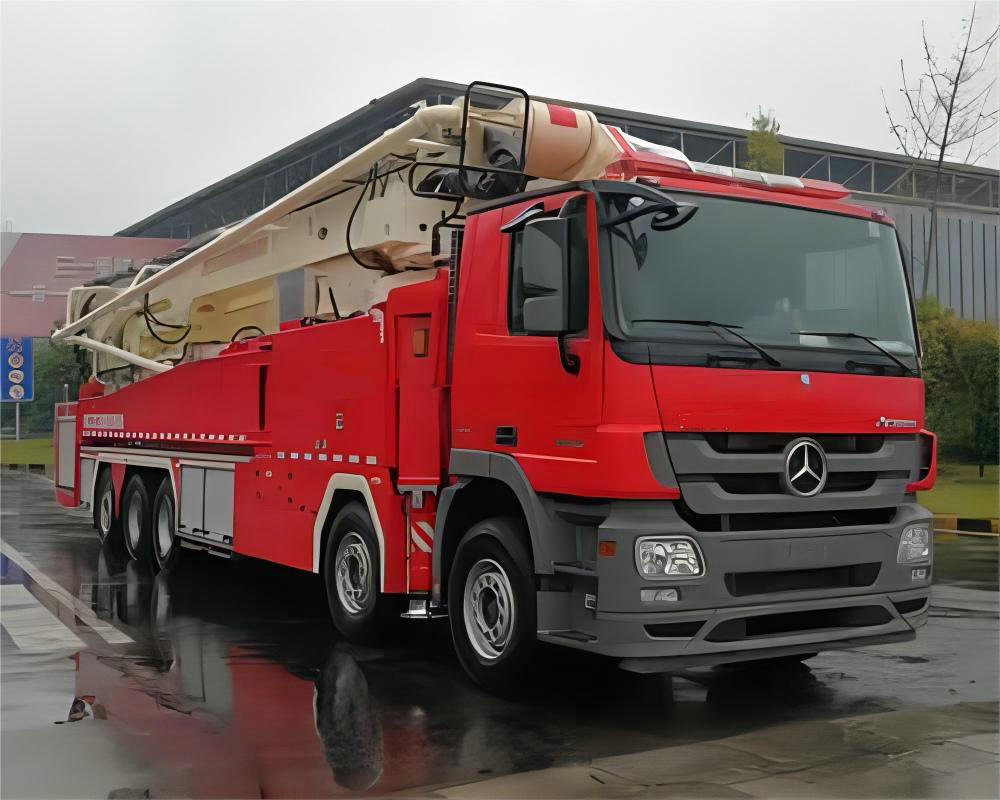

JP62 M Long Span Water Tower Fire Truck
water tank : 2m3, foam tank : 0.98m3
62 m boom, fire pump, fire cannon,
5046 Main technical parameters
Overall dimensions: | 15490×2550×3970(mm) | Fuel Type: | Diesel oil |
Total mass: | 51400(Kg) | ||
Net | 48050(Kg) | Rated load mass: | 3200(Kg) |
Approach Angle/Departure Angle: | 16/8 (°) | Front/rear overhang: | 1440/3355(mm) |
Axle Load: | 8400/8600/12950/12950/8500 | Wheelbase: | 2020+5180+1350+1450(mm) |
Number of shafts: | 5 | Maximum speed: | 85(km/h) |
Number of tires: | 14(PCS) | Tire Specifications: | 385/65 r22. 5/315/80 r22. 5/385/65 r22. 5 |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 4/4/4 / - |
Front wheel base: | 2096/2096(mm) | Rear wheel base: | 1804/1804/2113(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
OM501LA.V/5 | Daimler AG | 11946 | 350 |
Total tank volume :3.1 cubic meters, water tank volume :2.0 cubic meters, water tank size :1960×1730×610 mm, foam tank volume :1.1 cubic meters, foam tank size :1155×1730×610 mm. Integrated side and rear protection structure, rear protection height :473 mm, The main special devices are boom and fire cannon. The fifth axis is the air bag suspension | |||
Parameter name | 5510JXFJP62 | 5511JXFJP62 | |
Overall parameters | Overall dimensions (L xW xH) | 15.6m x 2.53m x 4m | 15.6m x 2.53mx 4m |
Model of chassis | Bentz 5046 | Volvo Fm540 | |
Chassis Parameter | Engine power | 335 kw @ 1800 rpm | 397 kw @ 1450-1900 rpm |
Tail gas emission standard | Euro V | Euro V | |
Maximum unfolding span (front x back) | 9.2mx 12.75m | 9.2mx 12.75m | |
Supporting System | Minimum unfolding span | 4m | 4m |
Action time of support leg | 40s | 40s | |
Maximum working height | 62.5m | 62.5m | |
Maximum operating range | 56m | 56m | |
Maximum downward working depth | 45m | 45m | |
Boom System | Maxnmym working. amliludein 35m case of 4m transverse span | 35m | 35m |
Unfolding time of boom | 270s | 270s | |
Slewing angle | 土360° | 土360° | |
Allowable lifting weight of boom terminal end | 180kg (long-distance loading rescue) | 180kg (long-distance loading rescue) | |
Fire control pump | Waterous CRU10000 | Waterous CRU10000 | |
Fire control gun | Akron 3482+5177 | Akron 3480+51 78 | |
Rated flow of pump | 10000L PM | 10000L .PM | |
Rated flow of gun | 4800L _pm | 5700Lpm | |
Hydraulic System | Rated working flow of whole vehicle | 4200L .PM | 4800L .PM |
Maximum jetting range | Water 85m/ 70m | Water 85m/ 70m | |
Volume of liquid tank | 3,200L (2,000L water + 1,200L foam) | 3,200L (2,000L water + 1,200L foam) | |
Scope of left and right swing angles of fire control gun | [-30° ,+30° ] | [-30° ,+30° ] | |
Allowable working pressure of pipeline | 2.5MPa | 2.5MPa | |
Others | Manipulation mode | Local control + wired remote control (wireless optional) | Local control + wired remote control (wireless optional) |
Emergency retraction power | Gasoline engine pump group | Gasoline engine pump group |
