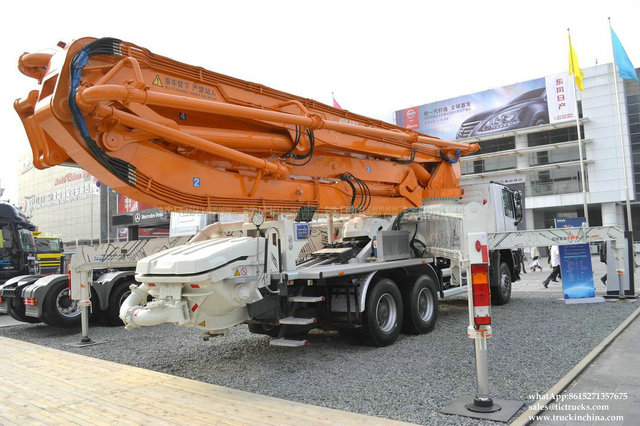

ZLJ5339THB zoomlion truck-mounted concrete pump
| FOB: | |
|---|---|
| Quantity: | |
|
| |
-
ZLJ5339THB
-
zoomlion
-
87059091
ZLJ5339THB zoomlion truck-mounted concrete pump
ZLJ5339THB zoomlion truck-mounted concrete pump parameters configuration
Boom system
Boom vertical depth (m)34.1
Arm horizontal length (m)45
Boom height (m)49
Vehicle shape parameters
Overall height (mm)4000
Overall width (mm)2500
Full length (mm)12020
Wheelbase (mm)4500+1350
Hydraulic system
Pipe diameter (mm)125
Pumping system parameters
Conveying cylinder stroke (mm)2100
Conveying cylinder bore diameter (mm)260
Number theory of pump pressure (times/min)28
Number theory of pump low pressure (times/min)26
Theory of pump pressure (Mpa)12
Theory of pump pressure low pressure (Mpa)8.3
Theoretical displacement of concrete pressure (m ³/h)120
Concrete theoretical output low-voltage (m ³/h)180
Chassis parameter
Top speed (km/h)85
Displacement (l)11.95
Engine power (kW/rpm)300/1800
Engine modelMercedes-Benz OM501LA.III/17
Kerb mass (kg)32870
Number of axes3
Chassis modelMercedes-Benz ACTROS 3341 6X4
Working parameters
Vehicle weight (kg)33500
Maximum pumping height (m)49
Displacement (per hour)180
| Weights and Ground pressure | ||||
|---|---|---|---|---|
| Curb weight | 32870 kg | 32.9 t | 72,466 lbs | |
| Gross vehicle weight rating | 33000 kg | 33 t | 73,000 lbs | |
| Axle load distribution | 7500 kg / 25500 kg (tandem axle) 7.5 t / 25.5 t (tandem axle) 16,500 lbs / 56,200 lbs (tandem axle) | |||
| Dimensions | ||||
|---|---|---|---|---|
| Overall length | 11775 mm / 12020 mm | 38′8″ / 39′6″ | ||
| Overall width | 2500 mm | 8′3″ | ||
| Overall height | 4000 mm | 13′2″ | ||
| Undercarriage and Suspension | ||||
|---|---|---|---|---|
| Number of axles | 3 | |||
| Wheelbase | 4500+1350 mm | 14′10″+4′6″ | ||
| Front track | 2034 mm | 6′9″ | ||
| Rear track | 1804 mm / 1804 mm | 6′0″ / 6′0″ | ||
| Front/rear overhang | 1440 mm / 3480 mm, 1440 mm / 3495 mm | 4′9″ / 11′6″, 4′9″ / 11′6″ | ||
| Angle of approach | 17° | |||
| Angle of departure | 10.2° | |||
| Leaf springs | 3 / 5 | |||
| Tyres and Wheels | ||||
|---|---|---|---|---|
| Number of tyres | 10 | |||
| Tyres dimension | 315/80R22.5 | |||
| Engine model | Engine displacement | Engine power | Engine manufacturer | |||
|---|---|---|---|---|---|---|
| 1 | OM501LA.III / 17 | 11946 cc | 11.9 L | 729 cu in | 300 kW | 408 hp |
