Mobile Shower Trailer Customizing Tow Draw Bar Dolly

Mobile Shower Trailer Customizing Tow Draw Bar Dolly
Tow Draw Bar Dolly Food Trailer
Price: $ 68000
Discount Price: $ 65000
FOB:
Availability:
Quantity:

  • DRZ903

  • DONG RUN ZE

  • 8716400000

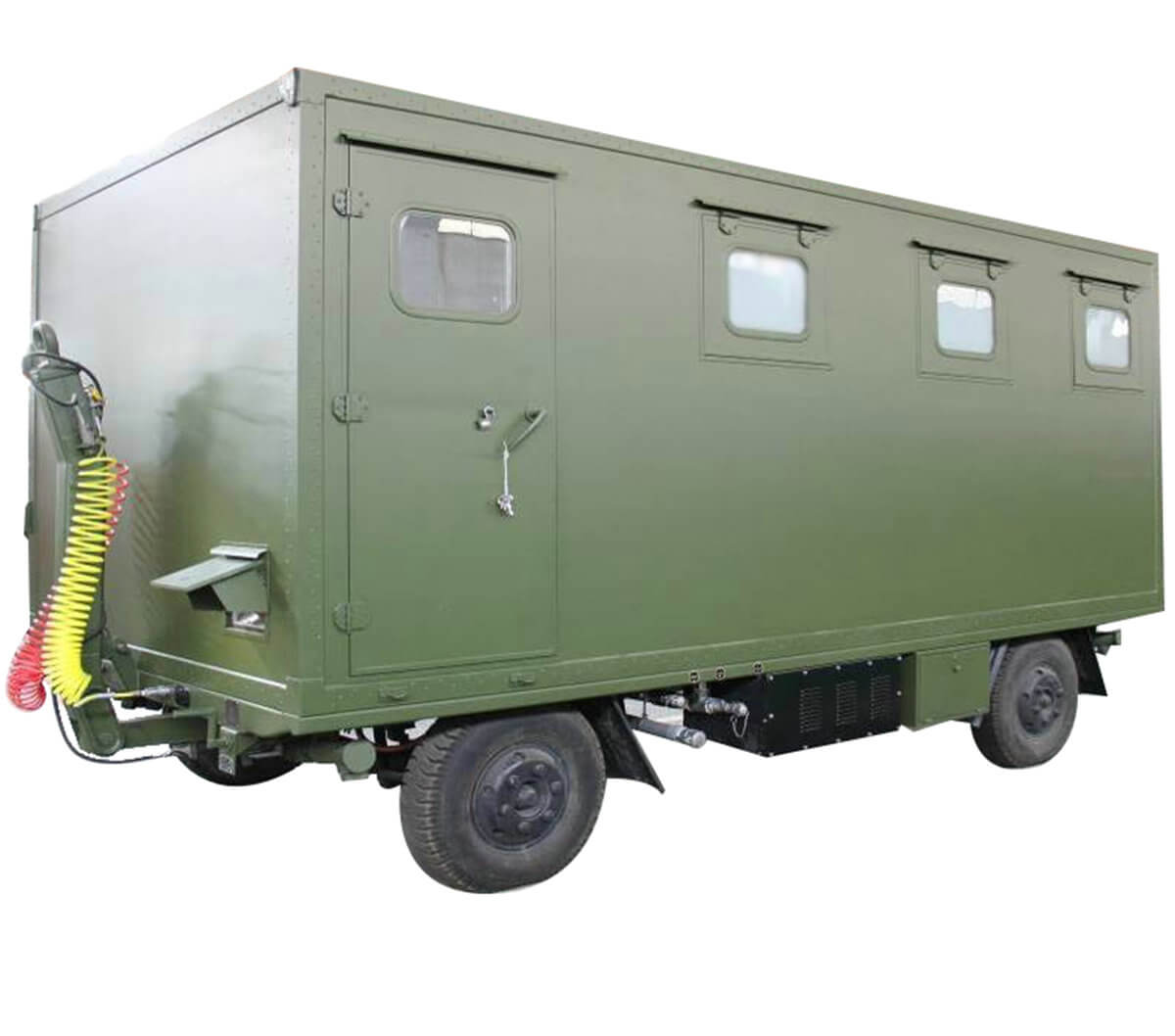

 Mobile Shower Trailer Customizing Tow Draw Bar Dolly

Draw Bar Trailer ,Dolly Trailer

 Shower Trailer-01Shower Trailer-02

Fully Trailer

Net weight 5000 (kg)

Overall dimensions 7600X2500X2200 (mm)


The shower trailer is consist of a carriage and a trialer chassis with a two-wheel joint. It is equiped with high-performance closed-combustion energy-saving boiler for oil fuels, shower equipments, tanks, etc. The vehicle has full capacity, high performance, user-friendly control, strong support capacity and general adaptation.

Structure

The shower trailer is based on a trailer chassis with a two-wheel joint with full performance of the origin chassis. The trailer is consist of the chassis, the carriage, the high-performance water heater, control system, electric system, water supply system, shower system, etc. The high-performance water heater could raise the water temperature to 60 ℃ within 3 ater temperature to 60 could r etc.  stion energy-saving boiler -5 minutes.The 800 kg heat-preserving water tank could provide service for 8 people each time, 40 people per hour. With sufficient water supply, the trailer could provide continuous service of hot water. The water temperature could be regulated within 37℃-43℃.

Application

The main purpose is to provide hot water for shower in the field.

Technical Parameters Shower Car


Maximum Bathing Capacity (Person-Time /h) : 60(Continuous External Water Supply)

Maximum Number Of Simultaneous Showers: 10 person

Body Size Of Water Tank (L) : 1200 (Shower For Up To 35 People)

Environmental Adaptation Temperature (℃) : 25 ~ 40

Altitude (m) : 3000 (Up To 5000)

Minimum Ground Clearance (㎜) : 420

Compartments  Dimension (㎜) : 6800 x2300x2200


 DRZ Shower Trailer

DRZ Shower Trailer

Functional  Equipment  /ModelQuatityDescription
1Chassis
1Adopt All - Mounted Chassis Structure, Transportation Is Flexible And Convenient
2

Body Part



Body Frame Modification/Aluminum Skin Modification/Skirt Assembly1 SetRoof Reinforcement Beam, Roof Stanchion, Bearing Bracket, Embedded Reinforcement, Reinforcement, Hole Opening And Sealing, Material: Use Special Steel Plate, Thick Seamless Square Pipe, Gb Angle Steel, Channel Steel, i-Steel
Polyurethane Insulation, Flame Retardant Insulation Layer/Area Partition1 SetPolyurethane Foaming On Site
Generator Cabin And Door, Car Hinge1 SetGenerator Set Heat Dissipation, Noise Reduction, Exhaust Modification, Drag Structure, Sound Insulation Materials
Working Doors1 SetDesign The Work Door According To The Situation After The Box System Reform
Push And Pull The Ladder From Behind1 SetThe Rear Part Of The Car Body Is Designed To Push And Pull And Fold The Ladder
3


 Shower


Fuel Boiler1Combustion Engine 10w Card: 170L Boiler Content, Korean Technology, Imported Accessories Assembly
Power Control Box1Customize Power Control Equipment Assembly
Water Filter1Stainless Steel, Customization

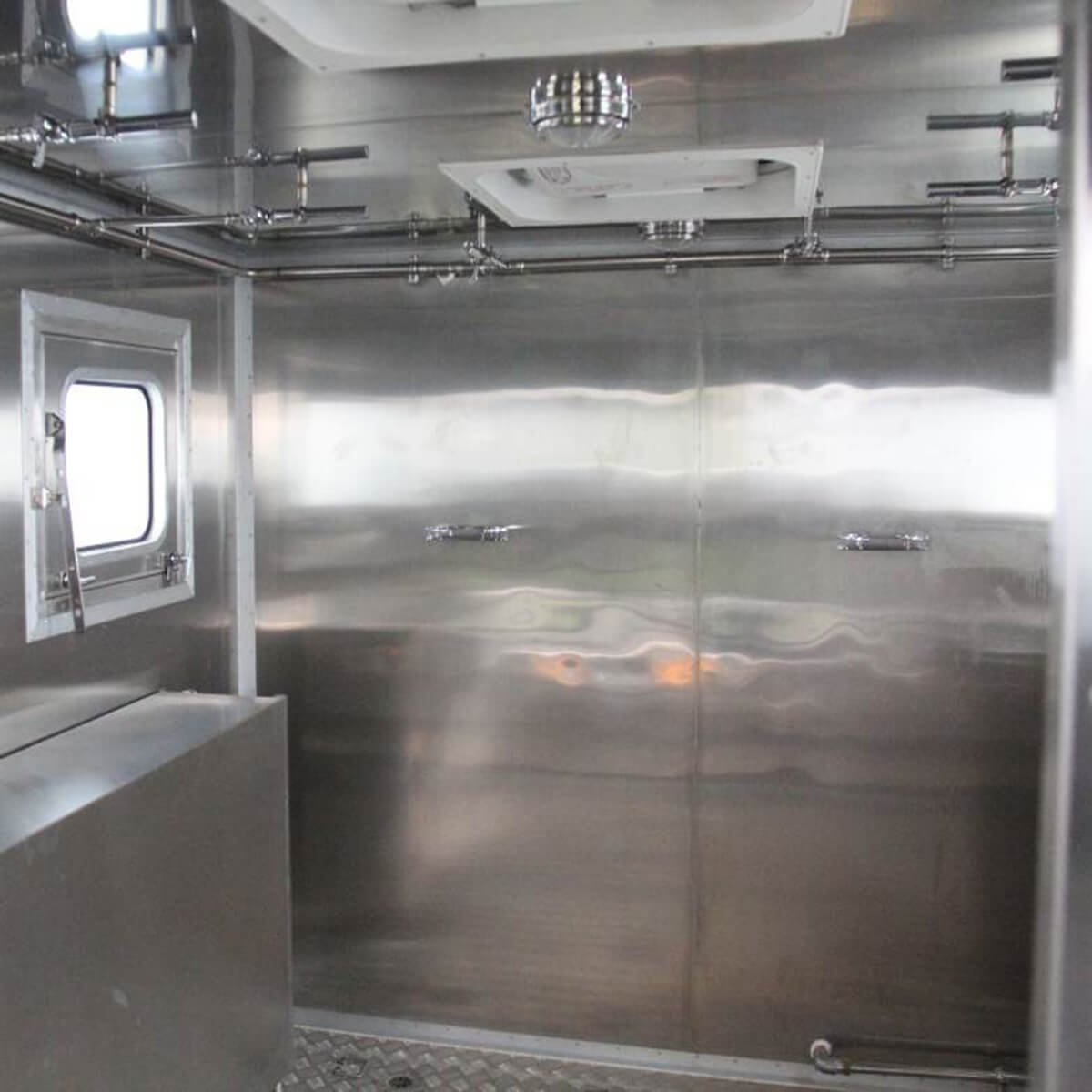

Shower Pipe1 SetCustom Piping, Stainless Steel + Hose Design
Shower1 SetStainless Steel, Customized
Shower Switch1 SetStainless Steel Shower Switch
Warm Air Blower1Diesel Air Heater
Clothing Shoe Ark1 SetClothes And Shoes Cabinet, Customized Size
Other Miscellaneous1 SetNon-Slip Mat, Coat And Hat Hook, Waterproof Curtain, Etc

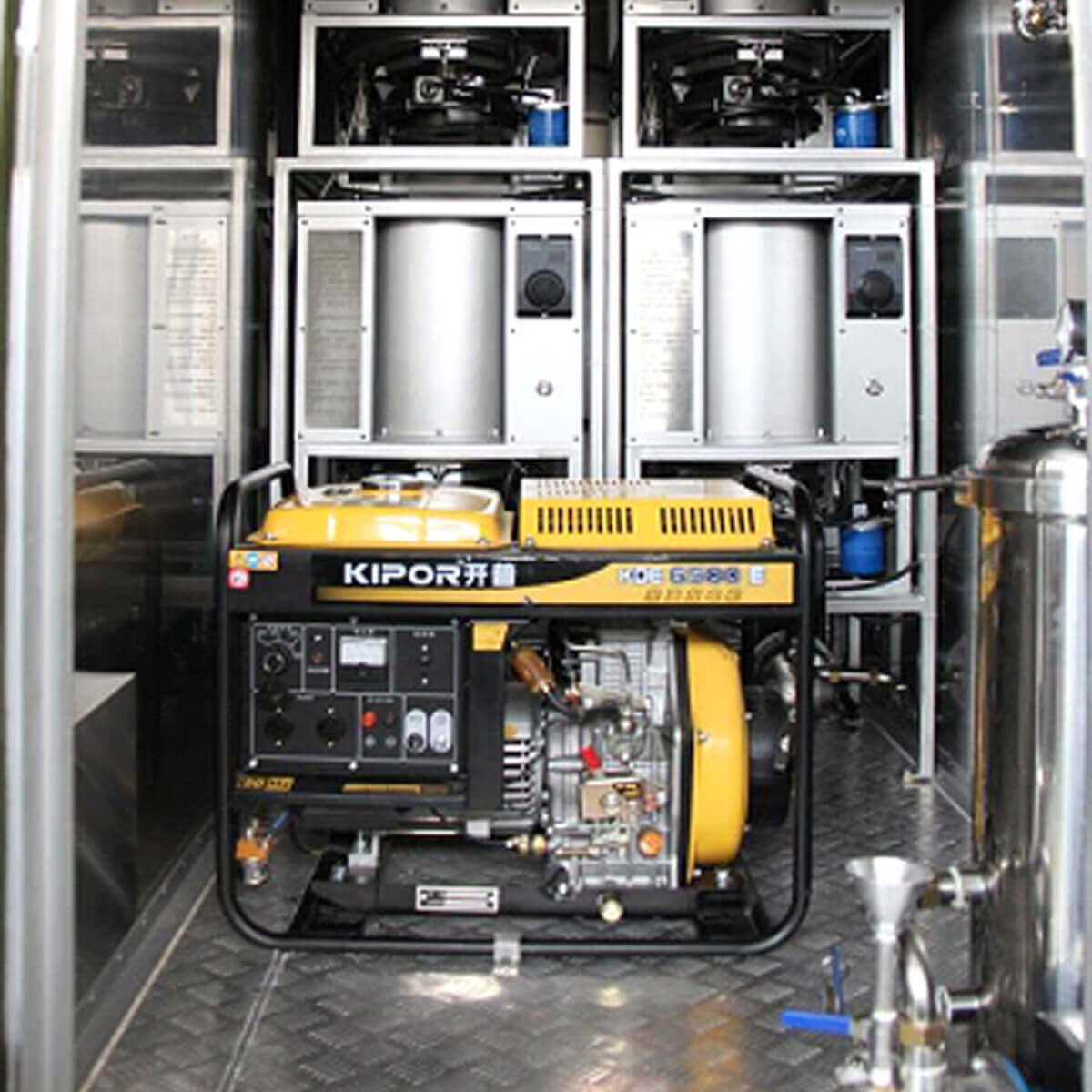

Power Generation Equipment1Ito Generator, 4Kw
The Power Cord Set1 Set30M, Steel Fixed Bracket Installation, High Temperature Resistant Plastic Shell, Steel Bearing; Input 220V, Including Storage Tray
Leakage Protection System1 SetInstall Leakage Protector To Ensure The Safety Of Electricity In The Car
Mains1 Set220v Municipal Ac Power Supply; The Power Interface Adopts Limit Plug-Ins For Safety Protection (Single-Phase Three-Level, Water-Proof And Dustproof, Wrong Insertion And Leakage Proof)
Boiler Power System1 SetAccording To The Boiler Equipment Electricity Uses The Special Line Design, Guarantees This Set Of Equipment Electricity Safety
7

Shower

Oil Supply System

Fuel Tanks And Modifications1160L For Driving And Boiler
Fuel Supply Line1 SetAccording To The Oil Tank System To Reform The Oil Road System
8Water Supply SystemWater Supply Line1 SetPrivate Water Supply Line
Water Tank1Special Water Tank With Capacity Of 1800L
Proportioning Mixing Valve
1: 1 Adjustable Temperature-Controlled Proportional Water Mixing Valve
Water Pump (Self-Priming)12.5 m3 / h,
Water Hose1 The RootShower Hose
Waste Water Hose1Special Hose
Quick Joint Pipe1 SetSpecial Hose
Strongpoint8Star Octagon Flash Strobe, Red And Blue Four
Box Lamp1 SetLed Body Lamp
10Accessory SystemFire Extinguishers And Supports1 SetCustom-Made Stainless Steel Fire Extinguisher Rack In The Car, With a 4Kg Dry Powder Fire Extinguisher
Ventilation System1 SetThe Box Is Designed With An Exhaust Ventilation System
