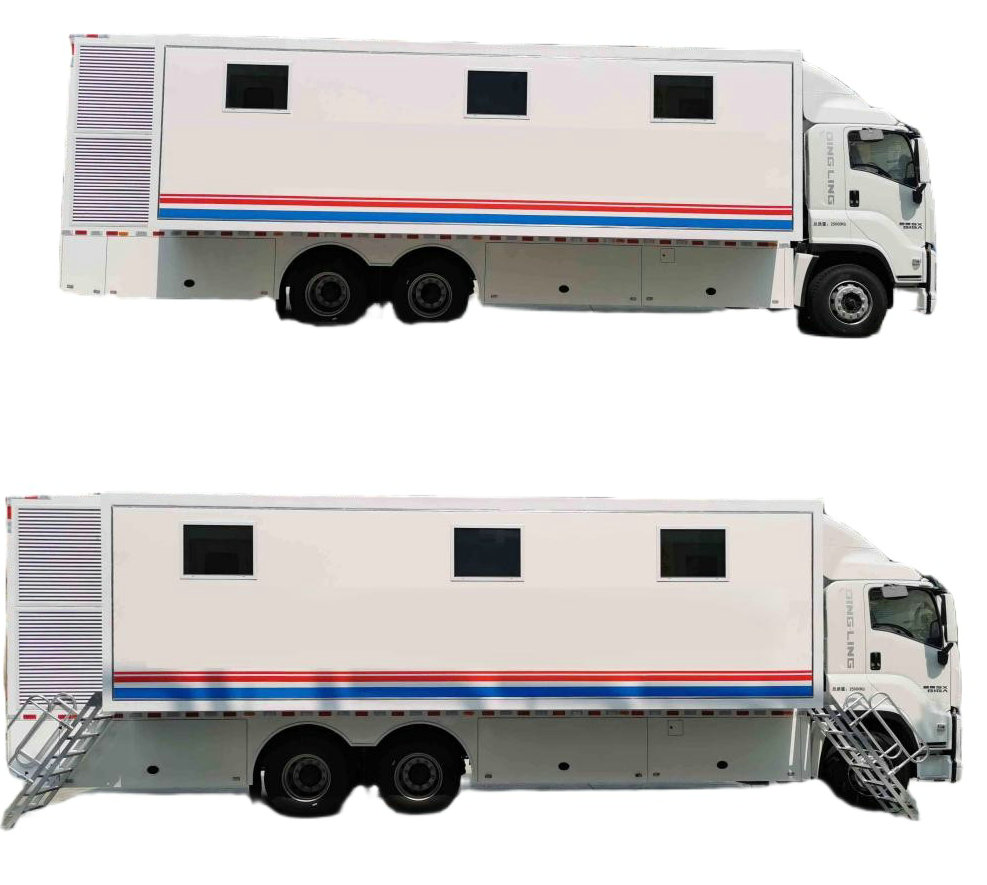

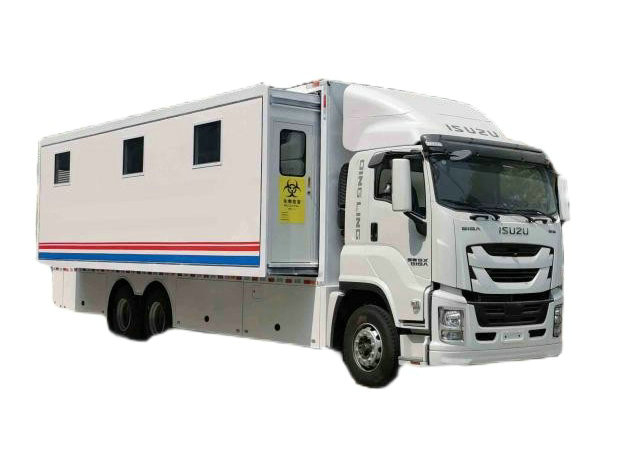

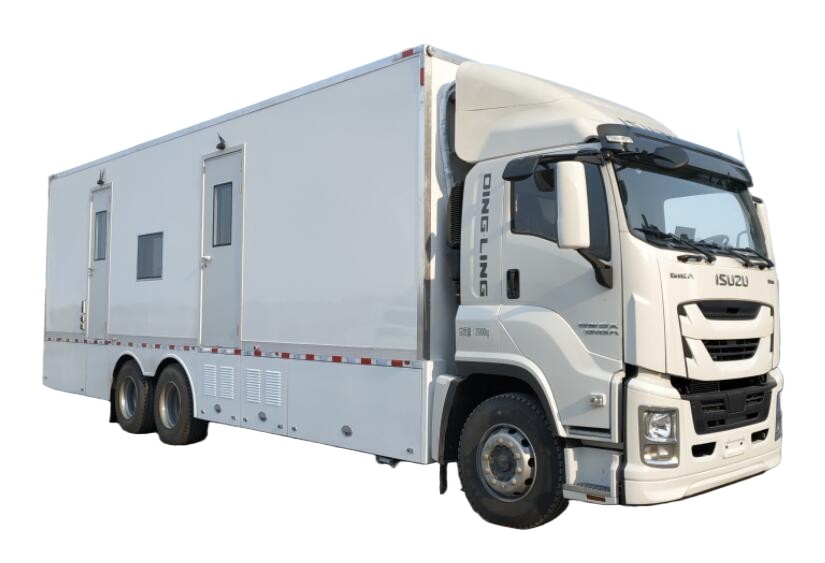

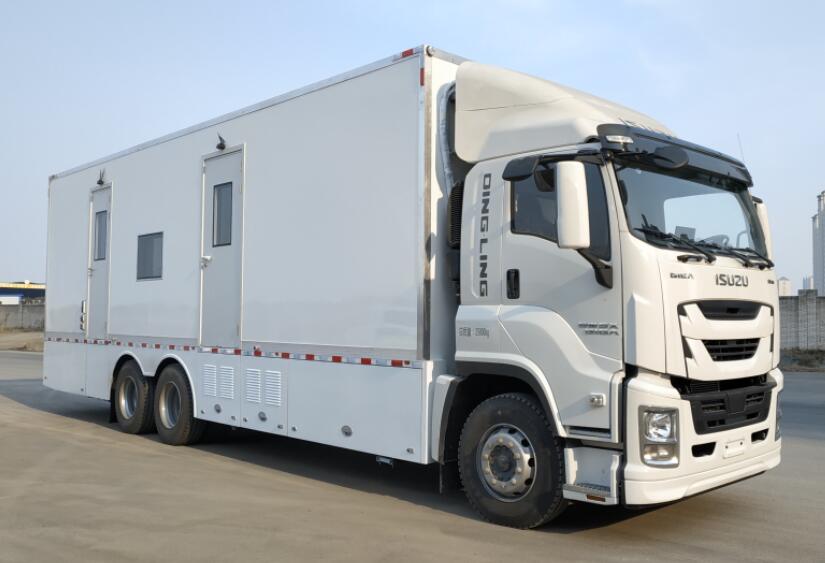

Dong Runze GIGA Mobile P2 Laboratory Clinics Medical Truck
6HK1-TCG60 Isuzu (China) Engine
Optional on-board lead-lined rooms, CT scanners, X-ray machines, medical examination beds, and imaging workstations; various brands and models of CT scanners, X-ray machines, and other medical equipment
Price for refer only. Final Price Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
DRZ5250XYL04XHA
-
DRZ
-
870590400
Dong Runze GIGA Mobile P2 Laboratory Clinics Medical Truck
Main Technical Parameters
Item | Specific Parameters |
Overall Dimensions | 9500mm×2550mm×4000mm, 10500mm×2550mm×4000mm, 11940mm×2550mm×4000mm |
Gross Mass | 25000kg |
Curb Mass | 24870kg |
Approach/Departure Angle | 17°/13°, 17°/11°, 17°/8° |
Front/Rear Overhang | 1370mm/2110mm, 1370mm/2660mm, 1370mm/3500mm |
Wheelbase | 4650mm+1370mm, 5100mm+1370mm, 5700mm+1370mm |
Axle Number | 3 Axles |
Maximum Speed | 105km/h, 89km/h (after optional speed limiter installation) |
Tire Specification | 295/80R22.5 18PR |
Tire Quantity | 10 pcs |
Engine Parameters
Engine Model | Manufacturer | Displacement | Power | Net Power |
6HK1-TCG60 | Isuzu (China) Engine Co., Ltd. | 7790ml | 221kW | 219kW |
No. | Item Name | Product Name | Quantity | Brief Technical Requirements or Service Specifications |
1 | Mobile Nucleic Acid Testing Vehicle | Medical Vehicle | 1 set | Shall include reagent preparation area, sample preparation area and amplification & testing area, with corresponding buffer rooms and decontamination areas; single-side expansion to form a corridor. |
2 | Reagent Preparation Area | Clean Bench | 1 unit | For placing equipment during operation. |
3 | Single-channel Pipettes (0.5–10μL, 5–50μL, 20–200μL, 50–1000μL: 1 piece for each specification) | 3 pieces | For liquid transfer. | |
4 | 8-channel Pipettes (0.5–10μL, 5–50μL: 1 piece for each specification) | 2 pieces | For liquid transfer. | |
5 | Mini Centrifuge | 1 unit | For sample centrifugation. | |
6 | Vortex Mixer | 1 unit | For sample oscillation and mixing. | |
7 | Medical Refrigerator-Freezer | 1 unit | For reagent storage (2–8℃ refrigeration for sample preservation; -10℃~-25℃ freezing function). | |
8 | Sample Preparation Area | Biosafety Cabinet | 1 unit | Protective device for sample preparation. |
9 | Medical Refrigerator-Freezer | 1 unit | For reagent storage (2–8℃ refrigeration for sample preservation; -10℃~-25℃ freezing function). | |
10 | Mini Centrifuge | 1 unit | For sample centrifugation. | |
11 | Vortex Mixer | 1 unit | For sample oscillation and mixing. | |
12 | Automatic Nucleic Acid Extractor | 1 unit | For nucleic acid extraction. | |
13 | Automatic Nucleic Acid Workstation | 1 unit | For nucleic acid extraction. | |
14 | Single-channel Pipettes (0.5–10μL, 5–50μL, 20–200μL, 50–1000μL: 1 piece for each specification) | 3 pieces | For liquid transfer. | |
15 | 8-channel Pipettes (0.5–10μL, 5–50μL: 1 piece for each specification) | 2 pieces | For liquid transfer. | |
16 | Dry Bath Incubator | 1 unit | ||
17 | Amplification & Analysis Area / Decontamination Room | Mini Centrifuge | 1 unit | For sample centrifugation. |
18 | Amplification & Analysis Area | Real-Time Fluorescent Quantitative PCR System | 3 units | For sample analysis. |
19 | Portable Real-Time Fluorescent Quantitative PCR System | 5 units | For sample analysis. | |
20 | Computer | 3 units | ||
21 | Printer | 1 unit | ||
22 | Decontamination Room | Autoclave | 1 unit | For sterilization of medical waste. |
23 | Disinfection Facilities | Mobile UV Disinfection Cart | 3 units | For sterilization and disinfection. |
24 | Auxiliary Equipment | External Truck 、Trailer-Mounted Generator Set | 1 unit |
Left access door, right access door, left-middle-right doors, or left-right rear doors;
Externally flipped step-type boarding stairs;
Various interior layouts;
Side windows: Optional sliding windows, sunshades, reverse monitoring systems, or roof-mounted air conditioners;
Optional power supply modes; charging ports can be installed on compartment doors;
Side protection: Skirt structure made of Q235 steel, with a ground clearance of 430mm;

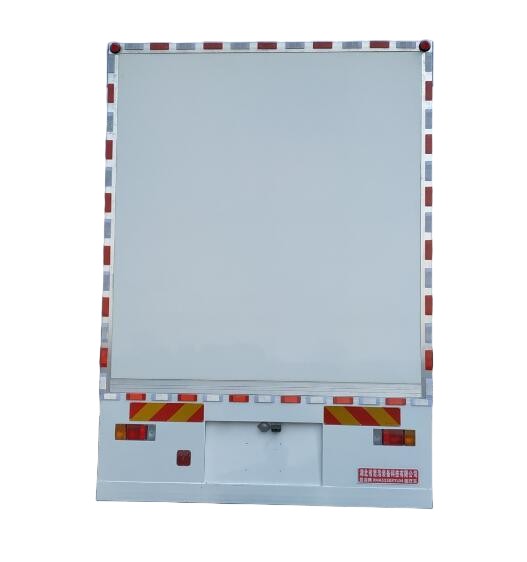

Rear protection: Skirt structure made of Q235 steel, with a ground clearance of 500mm;
Special equipment: Biosafety cabinets, mobile laboratory analysis equipment, hydraulic sterilization devices, power supply systems, water supply and drainage systems, etc.;

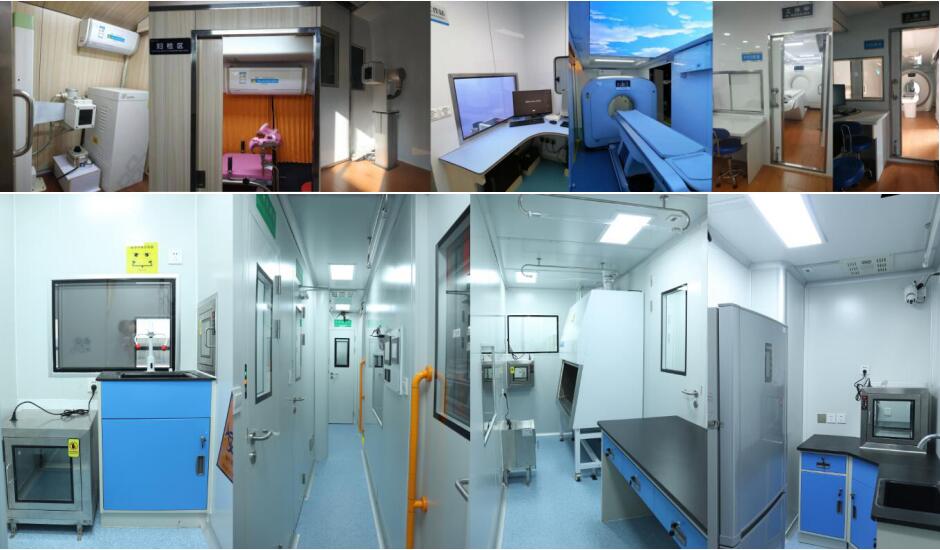

The vehicle can be equipped with various medical-specific facilities such as medical workbenches, medical lighting lamps, and ultraviolet disinfection lamps, suitable for mobile medical services, blood collection, or testing functions;
Optional on-board lead-lined rooms, CT scanners, X-ray machines, medical examination beds, and imaging workstations; various brands and models of CT scanners, X-ray machines, and other medical equipment are available as options;
Corresponding relationships between vehicle overall length, front overhang, wheelbase, and rear overhang:
11940mm = 1370mm (front overhang) + 5700mm (wheelbase) + 1370mm + 3500mm (rear overhang);
10500mm = 1370mm (front overhang) + 5100mm (wheelbase) + 1370mm + 2660mm (rear overhang);
9500mm = 1370mm (front overhang) + 4650mm (wheelbase) + 1370mm + 2110mm (rear overhang);
Optional expandable compartment: The right side of the compartment can be extended when the vehicle is parked.
