ZZ1257N4641W
HOWO
8705909990

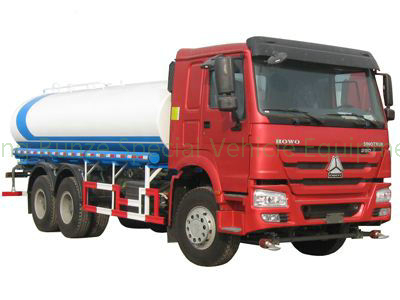

HOWO ZZ1257N4641W 20m3 water tank truck to Ghana price
HOWO ZZ1257N4641W
22-25 CBM SINOTRUK HOWO 6x4 Water Tank Truck with 336HP
Driving Mode: Left Hand Drive (RHD is optional)
Cab: HW76 Flat roof cab with one sleeper bed, with A/C
Engine: SINOTRUK WD615.69, 336HP
Transmission: HW19710, 10 speeds
Front axle: HF9 drum type, 9 tons
Driving axles: HC16 double reduction 2x16 tons
Steering: ZF technology from Germany
Tires: 12.00R20, 10+1 spare
Tank body capacity: 20-25 CBM
Thickness of tank body (mm): 5 mm
Main equipments: Water pump with full set spraying system , including front and rear sprinkle system , high pressure water gun , etc
Other technical details according to CNHTC factory standard
Technique parameter
336HP SINOTRUK HOWO 6x4 WATER TANK TRUCK 20-25 CBM | |||
Cab | Model | HW76 | |
Driving type | Left Hand Drive(RHD is optional) | ||
Cab type | Flat roof cab with one sleeper bed, with A/C | ||
Engine | Engine Model | Sinotruk WD615.69 Euro II ,336hp | |
Type | Inline, 6 cylinder, supercharging intermediate cooler, 2 valve, rear supercharger | ||
Displacement | 9.726L | ||
Max. output | 247KW/2200rpm | ||
Max. torque | 1350Nm/1300-1600rpm | ||
Equipments | Transmission | HW19710,10 speeds | |
Clutch | Φ430diaphragm spring clutch, hydraulic control air power assisted. | ||
Steering | ZF Germany technology | ||
Front axle | HF9 drum type, 9 tons | ||
Rear axle | HC16 double reduction ; ratio:5.73,4.8 optional | ||
Fuel tank | 400L | ||
Tires | 12.00R20, 10+1spare | ||
Electrical System | Operating voltage :24V; Alternator:1540W; Starter:24V,7.5KW; Batteries :2x12V/165Ah | ||
Brakes | Service brake | Dual-circuit pneumatic brake | |
Parking brake | Energy storage spring cutoff brake | ||
Auxiliary brake | Engine exhaust brake | ||
Option | ABS and automatic slack adjuster | ||
Weights | Curb. Weight kg | 11330 | |
Total weight kg | 25000 | ||
Rated payload kg | 13540 (13420 is optional) | ||
Performance | Max. speed km/h | 102 | |
Max. grade ability % | 50 | ||
Min. turning circle m | 20 | ||
Dimensions | Overall dimension mm | 10350x2496x3548 | |
Wheel base mm | 4575+1400 | ||
Front/rear overhang mm | 1500/2900 | ||
Front/rear wheel track mm | 2022/1850 | ||
Min. ground clearance mm | 267 | ||
Approach/departure angle | 16/12° | ||
Tank body | Capacity m³ | 25 | |
Thickness of tank body mm | 5 | ||
Main equipments | Water pump | ||
Options | Full set spraying system , including front and rear sprinkle system , high pressure water gun , etc |
HOWO ZZ1257N4641W 20m3 water tank truck to Ghana price
HOWO ZZ1257N4641W
22-25 CBM SINOTRUK HOWO 6x4 Water Tank Truck with 336HP
Driving Mode: Left Hand Drive (RHD is optional)
Cab: HW76 Flat roof cab with one sleeper bed, with A/C
Engine: SINOTRUK WD615.69, 336HP
Transmission: HW19710, 10 speeds
Front axle: HF9 drum type, 9 tons
Driving axles: HC16 double reduction 2x16 tons
Steering: ZF technology from Germany
Tires: 12.00R20, 10+1 spare
Tank body capacity: 20-25 CBM
Thickness of tank body (mm): 5 mm
Main equipments: Water pump with full set spraying system , including front and rear sprinkle system , high pressure water gun , etc
Other technical details according to CNHTC factory standard
Technique parameter
336HP SINOTRUK HOWO 6x4 WATER TANK TRUCK 20-25 CBM | |||
Cab | Model | HW76 | |
Driving type | Left Hand Drive(RHD is optional) | ||
Cab type | Flat roof cab with one sleeper bed, with A/C | ||
Engine | Engine Model | Sinotruk WD615.69 Euro II ,336hp | |
Type | Inline, 6 cylinder, supercharging intermediate cooler, 2 valve, rear supercharger | ||
Displacement | 9.726L | ||
Max. output | 247KW/2200rpm | ||
Max. torque | 1350Nm/1300-1600rpm | ||
Equipments | Transmission | HW19710,10 speeds | |
Clutch | Φ430diaphragm spring clutch, hydraulic control air power assisted. | ||
Steering | ZF Germany technology | ||
Front axle | HF9 drum type, 9 tons | ||
Rear axle | HC16 double reduction ; ratio:5.73,4.8 optional | ||
Fuel tank | 400L | ||
Tires | 12.00R20, 10+1spare | ||
Electrical System | Operating voltage :24V; Alternator:1540W; Starter:24V,7.5KW; Batteries :2x12V/165Ah | ||
Brakes | Service brake | Dual-circuit pneumatic brake | |
Parking brake | Energy storage spring cutoff brake | ||
Auxiliary brake | Engine exhaust brake | ||
Option | ABS and automatic slack adjuster | ||
Weights | Curb. Weight kg | 11330 | |
Total weight kg | 25000 | ||
Rated payload kg | 13540 (13420 is optional) | ||
Performance | Max. speed km/h | 102 | |
Max. grade ability % | 50 | ||
Min. turning circle m | 20 | ||
Dimensions | Overall dimension mm | 10350x2496x3548 | |
Wheel base mm | 4575+1400 | ||
Front/rear overhang mm | 1500/2900 | ||
Front/rear wheel track mm | 2022/1850 | ||
Min. ground clearance mm | 267 | ||
Approach/departure angle | 16/12° | ||
Tank body | Capacity m³ | 25 | |
Thickness of tank body mm | 5 | ||
Main equipments | Water pump | ||
Options | Full set spraying system , including front and rear sprinkle system , high pressure water gun , etc |
Water Tanker Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675
The sprinkling truck is mainly used for construction of mines and other enterprises, road flushing and dust covering in large-medium-scale cities, high and low-level spraying for urban landscaping, pesticide spraying and guardrail washing as well as functions of carrying and draining off water and emergency firefighting etc.
(1)High pressure, wide range of spraying good flushing effect
(2)Blunt head universal adjustment, meet the arbitrary Angle and the combination of the flush operation
(3)Pneumatic control and manual control system can realize two functions
(4)External sandblasting processing of tank, internal anti-corrosion treatment,Outside surface adopts advanced polyurethane paint, beautiful appearance and easy
(5)Front and back high spray is optional, water jet diffusion function, 360 degrees of rotation, 150 degree tilt up and down.
Options small flow pump, spraying reel to wake insecticidal garden trees flowers and plants
SINOTRUCK HOWO 6x6 water tank truck 5257GSS
Water Tank Truck Model | SINOTRUCK HOWO 6x6 water tank truck | |
Cabin / Passenger Capacity | One and half row Seat, HW76 cab, tiltable, | |
without air conditioner (optional), 2+1 passenger | ||
Chassis | Model | ZZ2257 |
Overall dimensions | 9980*2496*3580 mm | |
G.V.W | 25000 kg | |
Net weight | 9105 kg | |
Design load | 20000 kg | |
Drive type | 6x6 | |
Suspension F/R | 1578/2490 mm | |
Wheelbase | 4300+1400 mm 4600+1400 mm | |
Number of axles | 3 | |
Axle-load | 7000/18000 kg (all axle driving ) | |
Approach/Departure Angle | 31/16 ° | |
Track F/R | 2041/1830/1830 mm | |
Tire ( No. & specification) | 12.00-20, 10pcs+1pc (optional off road tires 6 pcs) | |
Max speed (Km/h) | ≥ 102 km/h | |
Brake system | Pneumatic braking | |
Steering | ZF8098 Steering | |
Transmission | HW15710, Mechanical 10+2 | |
Engine | Type of fuel | diesel |
Power | 196kw ( 266 hp ) optional 290 hp | |
Exhaust | 9726 ml | |
Tank capacity | 15000~22000 Liters = 15~22 m3 | |
Water Tank | Tank shape | Oval shape. |
Water tanker size | 7000*2300*1600 mm (20 m3) | |
Tank material | Mild steel / stainless steel / aluminum alloy | |
Standard equipment | With water pump, water cannon with working platform. | |
fire valve, water valves, water pipes. | ||
Also could modify in potable or transport water tank. |
WhatsApp:8615271357675
Water Tanker Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675
The sprinkling truck is mainly used for construction of mines and other enterprises, road flushing and dust covering in large-medium-scale cities, high and low-level spraying for urban landscaping, pesticide spraying and guardrail washing as well as functions of carrying and draining off water and emergency firefighting etc.
(1)High pressure, wide range of spraying good flushing effect
(2)Blunt head universal adjustment, meet the arbitrary Angle and the combination of the flush operation
(3)Pneumatic control and manual control system can realize two functions
(4)External sandblasting processing of tank, internal anti-corrosion treatment,Outside surface adopts advanced polyurethane paint, beautiful appearance and easy
(5)Front and back high spray is optional, water jet diffusion function, 360 degrees of rotation, 150 degree tilt up and down.
Options small flow pump, spraying reel to wake insecticidal garden trees flowers and plants
SINOTRUCK HOWO 6x6 water tank truck 5257GSS
Water Tank Truck Model | SINOTRUCK HOWO 6x6 water tank truck | |
Cabin / Passenger Capacity | One and half row Seat, HW76 cab, tiltable, | |
without air conditioner (optional), 2+1 passenger | ||
Chassis | Model | ZZ2257 |
Overall dimensions | 9980*2496*3580 mm | |
G.V.W | 25000 kg | |
Net weight | 9105 kg | |
Design load | 20000 kg | |
Drive type | 6x6 | |
Suspension F/R | 1578/2490 mm | |
Wheelbase | 4300+1400 mm 4600+1400 mm | |
Number of axles | 3 | |
Axle-load | 7000/18000 kg (all axle driving ) | |
Approach/Departure Angle | 31/16 ° | |
Track F/R | 2041/1830/1830 mm | |
Tire ( No. & specification) | 12.00-20, 10pcs+1pc (optional off road tires 6 pcs) | |
Max speed (Km/h) | ≥ 102 km/h | |
Brake system | Pneumatic braking | |
Steering | ZF8098 Steering | |
Transmission | HW15710, Mechanical 10+2 | |
Engine | Type of fuel | diesel |
Power | 196kw ( 266 hp ) optional 290 hp | |
Exhaust | 9726 ml | |
Tank capacity | 15000~22000 Liters = 15~22 m3 | |
Water Tank | Tank shape | Oval shape. |
Water tanker size | 7000*2300*1600 mm (20 m3) | |
Tank material | Mild steel / stainless steel / aluminum alloy | |
Standard equipment | With water pump, water cannon with working platform. | |
fire valve, water valves, water pipes. | ||
Also could modify in potable or transport water tank. |
WhatsApp:8615271357675
