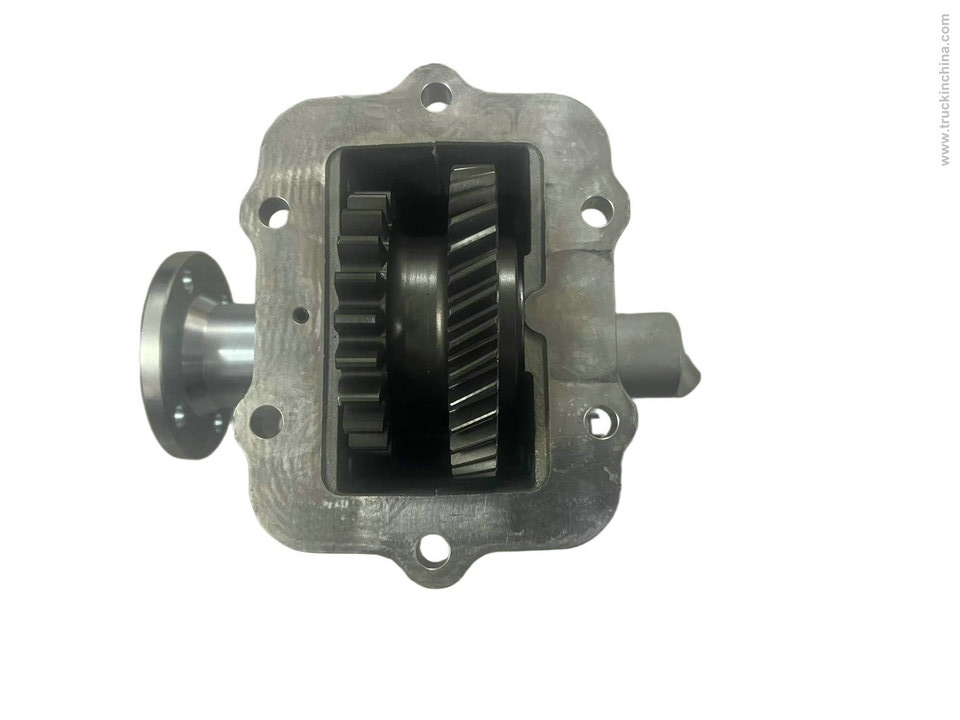

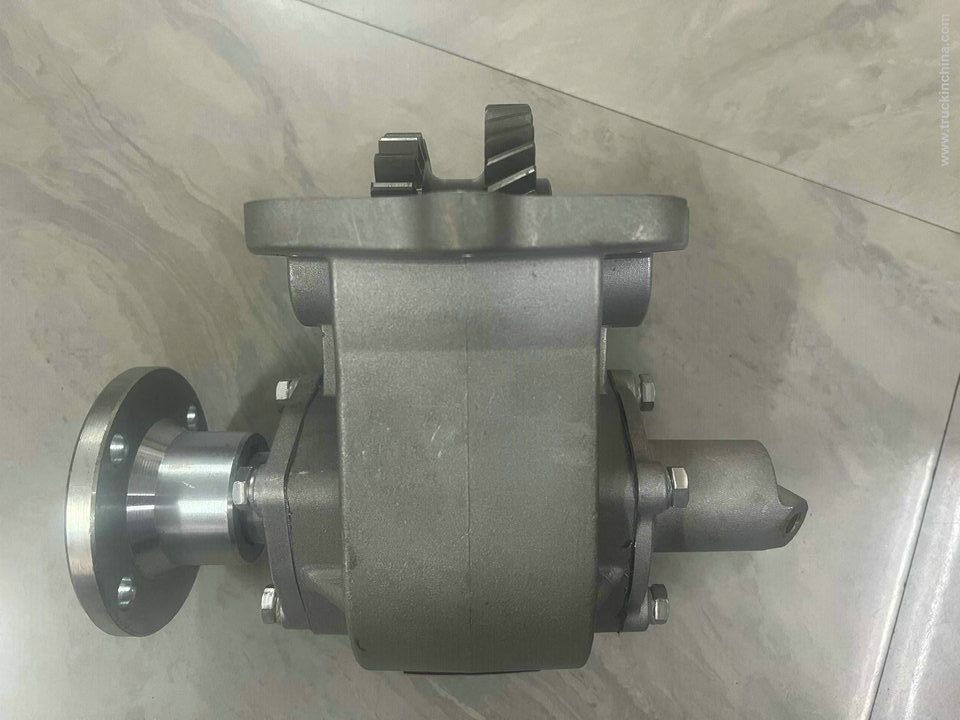

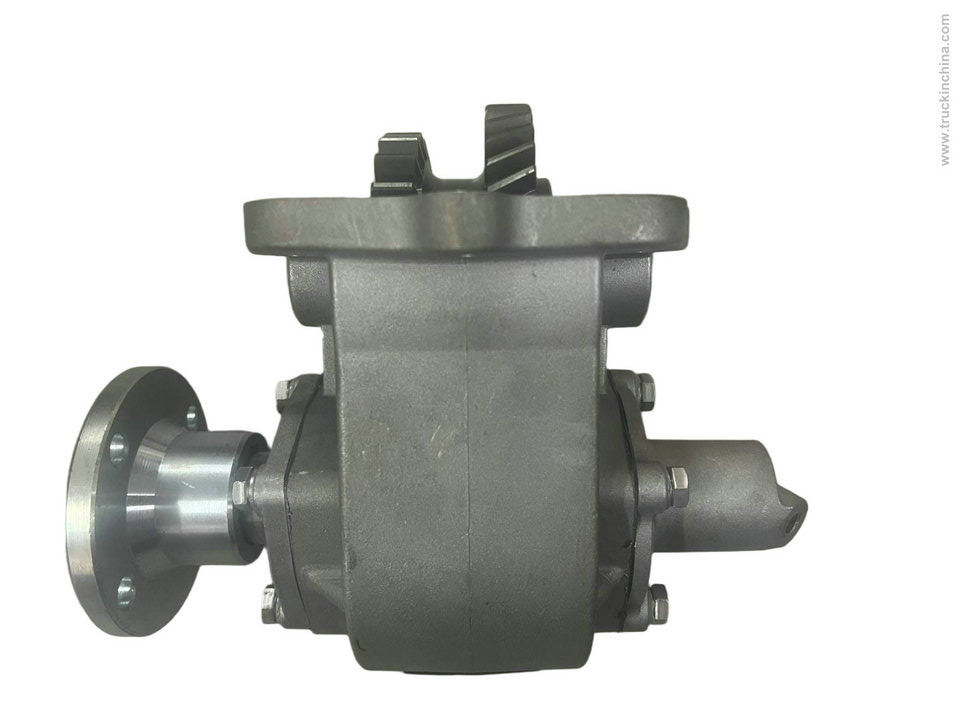

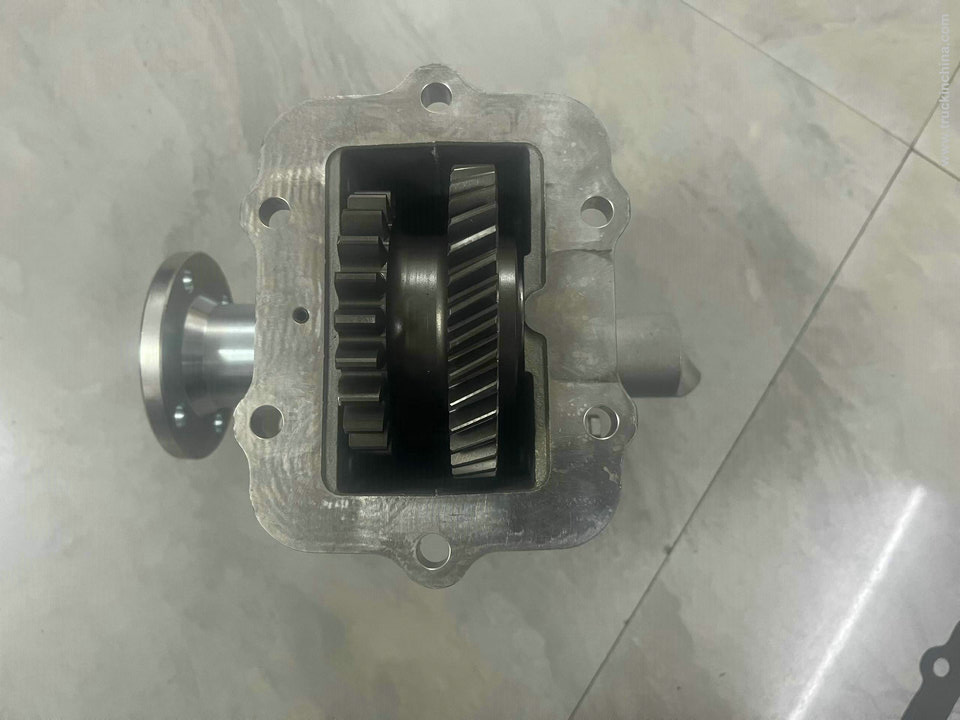

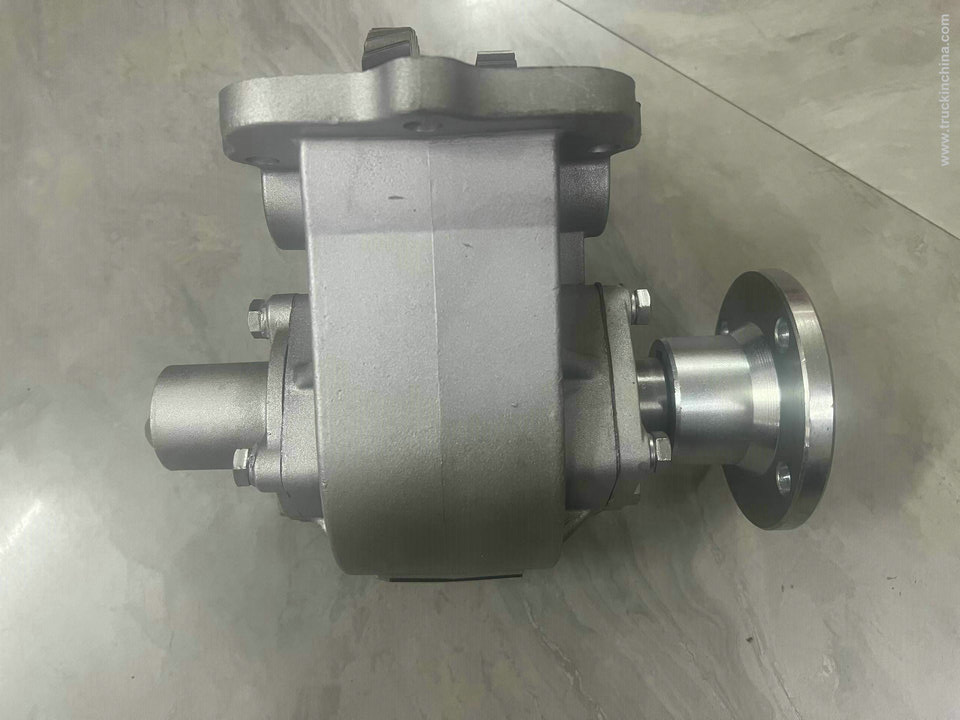

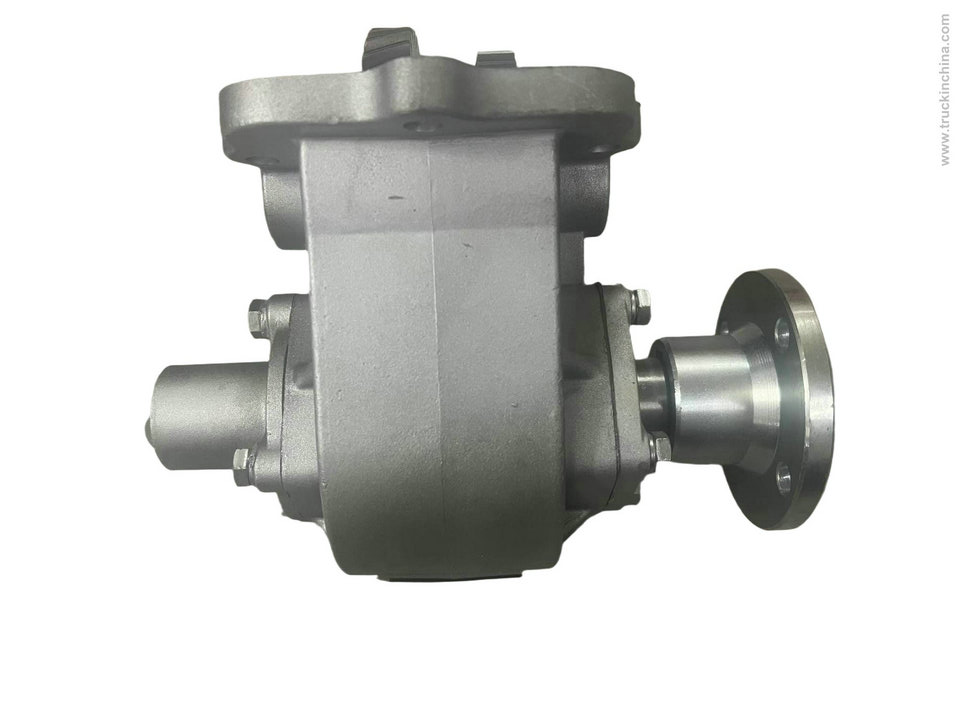

FAST EATON Power Take-Offs (PTOs) for C6J / C6J-45T Transmission Gearboxes
FAST EATON C6J Series 6-Speed Manual Transmission

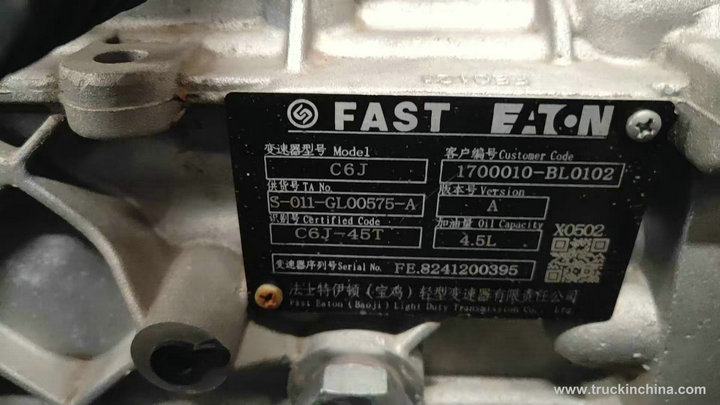

| Item | Content | Explanation |
|---|---|---|
| Brand | FAST EATON | Fast Eaton (Baoji) Light Duty Transmission Co., Ltd., a joint venture between Shaanxi Fast Group and Eaton Corporation |
| Transmission Model | C6J | 6-speed manual light-duty transmission series: C = Light Duty, 6 = 6 forward gears, J = Mechanical Manual |
| Certified Code | C6J-45T | Sub-model, representing a maximum input torque of ~450N·m with synchronizer (T) |
| Customer Code | 1700010-BL0102 | OEM custom code for specific vehicle matching |
| TA No. (Supply Order No.) | S-011-GL00575-A | Production batch/supply chain traceability number |
| Version | A | Product design revision |
| Oil Capacity | 4.5L | Standard lubricating oil filling capacity for the gearbox |
| Serial No. | FE.8241200395 | Unique production serial number for warranty and traceability |
2. Core Technical Parameters & Features
2.1 Key Technical Specifications
Gear Configuration: 6 forward gears + 1 reverse gear
Maximum Input Torque: 450N·m, suitable for 160-180HP light trucks, buses and engineering vehicles
Maximum Input Speed: 4000rpm
Structure: Single countershaft, full synchronizer design for smooth shifting
Adaptability: Supports rear-mounted Power Take-Off (PTO) and hydraulic retarder for special vehicle modification
Lightweight Design: Aluminum alloy housing to reduce vehicle weight and improve fuel economy
2.2 Application Scenarios
Light-duty trucks and light truck chassis modified vehicles
City buses, public transport and light passenger vehicles
Engineering work vehicles and special vehicles (e.g., sanitation, wrecker, mixer trucks)
3. Critical Operation & Maintenance Tips
Lubricant Filling: Strictly follow the 4.5L filling capacity specified on the nameplate, use Fast-specified GL-5 80W-90/85W-90 heavy-duty gear oil to avoid wear caused by insufficient oil.
Warranty Traceability: The serial number FE.8241200395 can be used to query production batch, warranty period and maintenance records.
PTO Compatibility: This model supports PTO installation, which can be matched with special devices for mixers, sanitation vehicles, etc. Please select the corresponding PTO model.
Regular Inspection: Check oil level and quality every 20,000km, replace gear oil every 60,000-80,000km, and repair synchronizer faults in a timely manner.
4. Model Naming Rule Interpretation
C: Light Duty transmission series
6: 6 forward gears
J: Mechanical Manual transmission
45: Maximum input torque rating (45 represents 450N·m)
T: Equipped with synchronizer
