FAST Bottom Gear Power Takeoff PTO QD70 22/35

FAST Bottom Gear Power Takeoff PTO QD70 22/35
Price: $ 880
Discount Price: $ 680
Availability:
Quantity:

  • QH70

  • Shanghai, China

  • T/T , Paypal , Union

  • Carton

  • 1 Ask for discount

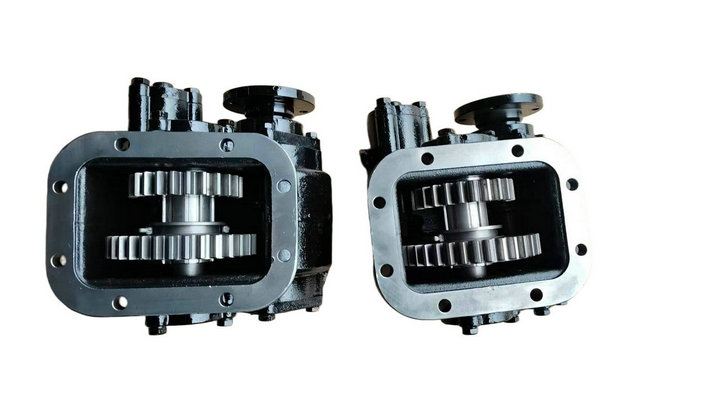

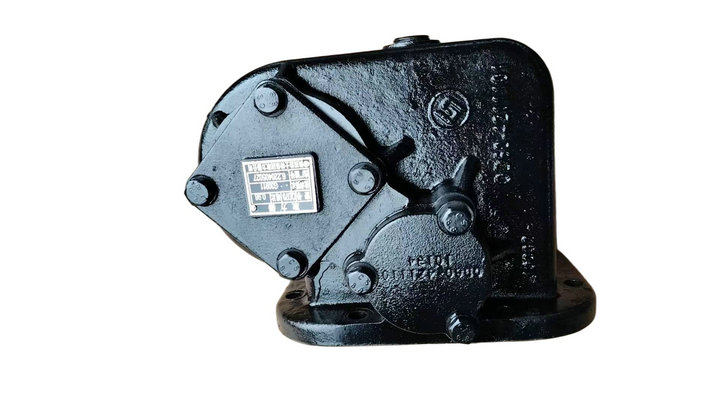

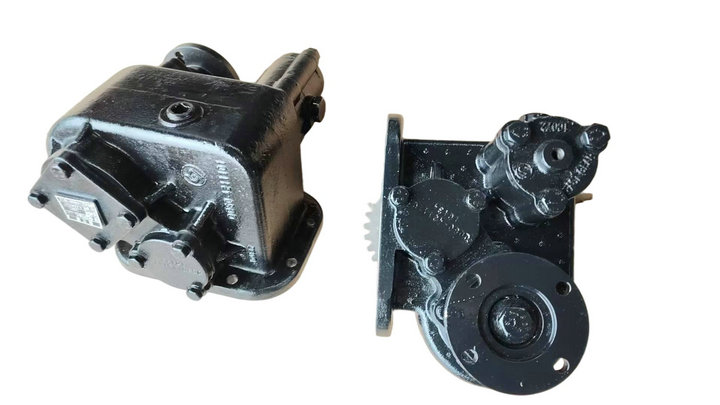

  FAST Bottom Gear Power Takeoff PTO QD70 22/35

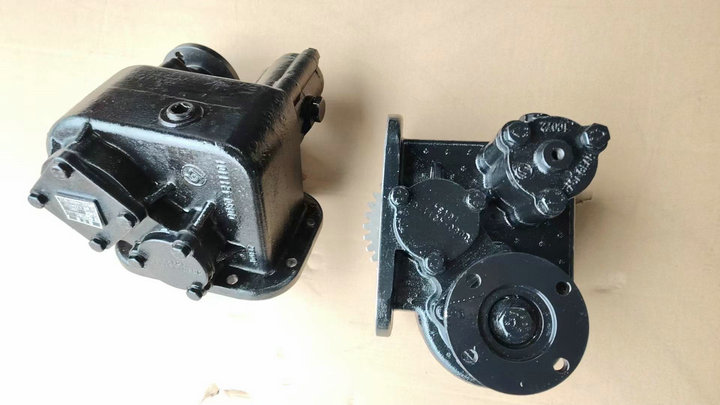

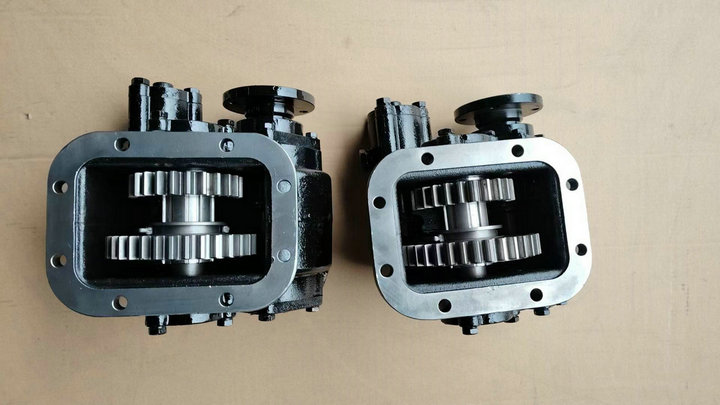

QD70 FAST Bottom 22-35 Gears PTO (1)QD70 FAST Bottom 22-35 Gears PTO (2)

QD70 (22/35) PTO Specifications
QD70 (22/35) is a Fast side/bottom-mounted heavy-duty power take-off (PTO) with a gear tooth ratio of 22:35, a gear ratio of 1.59, a rated torque of 700 N·m. It is compatible with 8/9/12-speed twin countershaft gearboxes and used for heavy-duty dump trucks, cement mixers, and large-tonnage truck-mounted cranes.

1. Core Parameters

  • Rated Torque: 700 N·m

  • Gear Tooth Ratio: 22:35 (22 driving teeth / 35 driven teeth)

  • Gear Ratio: 1.59 (reduction type)

  • Control Mode: Single-direction pneumatic engagement, disengagement when air supply cuts off

  • Rotation Direction: Opposite to the engine (standard)

  • Output Type: Flange / 8-spline optional

  • Weight / Dimension: Approx. 38 kg, 32×35×30 cm

  • Working Air Pressure: 0.7–0.8 MPa

2. Compatible Gearboxes (Fast Twin Countershaft)

  • Mainly Compatible: 8JS85E/C, 9JS119/135, 12JSD160

  • Installation Position: Universal for bottom / left / right side

  • Not Recommended: 16-speed gearboxes (mismatched gear ratio)

  • Typical Vehicles: 20–40 ton dump trucks, cement mixers, 25-ton truck-mounted cranes, fire trucks

3. Key Differences vs QH70

Model
Installation Position
Rated Torque
Gear Ratio / Tooth Ratio
Control Mode
Compatible Gearboxes
QD70 (22/35)
Side / Bottom-mounted
700 N·m
1.59 (22:35)
Single-direction pneumatic
8/9/12-speed
QH70
Rear-mounted
700 N·m
0.80 (standard)
Bi-directional pneumatic
9/12/16-speed

QD70 (G9910)  Ratio 0.7 For crane truck  9-speed gearbox  bottom  transmission power take-off

PTO Gearbox Power Take off Pto (5)PTO Gearbox Power Take off Pto
