DRZ5255GSSFS
Shacman
8705909990

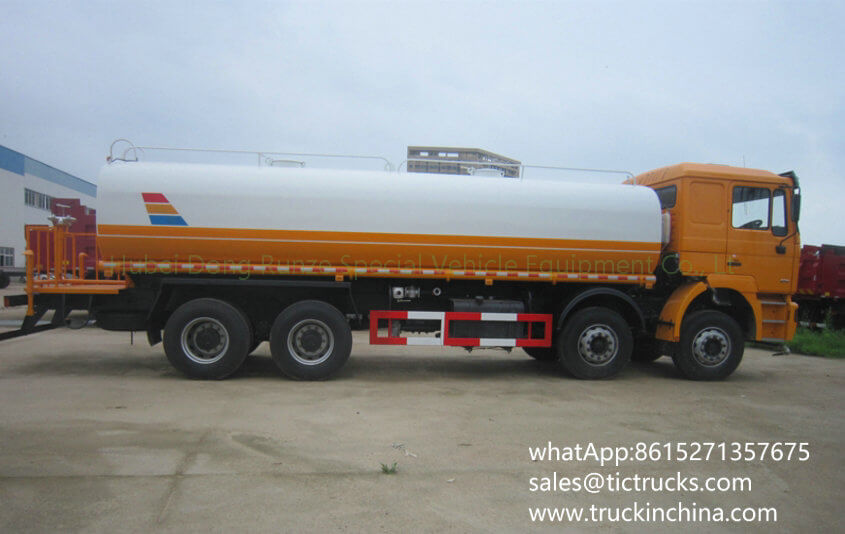

F2000 Shacman water Tanker Vehicle 28000L-30000L/5000 -6000gallon
Water truck is composed of automobile chassis, and out of the water system and tanker. According to the different use of the environment and the purpose of a variety of spraying and water transport function. Multifunctional sprinkler set a variety of functions as one, generally can be used by the user requirements of special restructuring.
Water Truck is suitable for various pavement washing, trees, green belt, green lawn, roads, construction of factories and mines, high-altitude construction flushing.
Water truck can be used for spraying water, suppressing dust, high and low spraying, pesticide spraying, rail and construction
washing and other functions, but also has the function of water transport, milk transport, water drainage, emergency fire and so on.
F2000 Shacman water Tanker Vehicle 28000L-30000L/5000 -6000gallon
Water truck is composed of automobile chassis, and out of the water system and tanker. According to the different use of the environment and the purpose of a variety of spraying and water transport function. Multifunctional sprinkler set a variety of functions as one, generally can be used by the user requirements of special restructuring.
Water Truck is suitable for various pavement washing, trees, green belt, green lawn, roads, construction of factories and mines, high-altitude construction flushing.
Water truck can be used for spraying water, suppressing dust, high and low spraying, pesticide spraying, rail and construction
washing and other functions, but also has the function of water transport, milk transport, water drainage, emergency fire and so on.
F2000 Shacman water Tanker Vehicle 28000L-30000L/5000 -6000gallon
Overall dimensions 12000X2490X3340mm Curb weight 14170kg
Tank dimensions 8200×2300×1535mm Tank volume 30000L
Chassis parameters
Chassis model SX1315NN4561 Chassis brand SHACMAN
Overall dimensions 11850x2490x3270mm Wheel base 1800+4575+1400mm
Front/rear wheel track 1939/1939/1800/1800mm Front/rear suspension 1525/2575mm
Approach/departure angle 18/12° Maximum speed 99km/h
Chassis Manufacturer Shanxi Automobile Group Co., Ltd.
Cab Configuration Delong F2000/ F3000 long a row and a half deluxe cab(with sleeping berth),allowable 3 passengers, electronically controlled automatic constant temperature air conditioner, electric rocking window machine, ordinary air filter, air master seat, four point airbag ,traveling data recorder
Color White ,other color is optional
Engine Model WP10.270E31
Emission Euro 3
Type 6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling, exhaust valve brake, direct injection diesel engine
Rated power 270hp,rated power speed 2200rpm
Displacement 9726ml
Bore x stroke 108×130mm
Manufacturer Weichai Power Co., Ltd.
Tire Size 11.00R20 steel wire tire
Number 12+1 nos
Clutch φ430 diaphragm clutch
Frame 850 × 300 (8 + 5)mm
Fuel tank 400L aluminum alloy + fuel anti-theft alarm device
Front axle MAN, 5.5 tons
Rear axle MAN,13 tons single level, main reduction ratio 4.111
Drive form 8X4
Suspension Multi leaf springs
Rated voltage 24V,DC
Transmissions gearbox 9JS119B, 9 speed forward 1 reverse.
Steering device Power assisted steering, steering machine (domestic ZF technology)
Steering wheel Left hand drive
Selective configuration central control door lock,600L aluminum alloy fuel tank, driving room electric flip, engine 300hp,engine 340hp
If there is a slight change in the chassis parameters above, please take the actual product as the standard
Water tank structure
Tank dimensions 8200×2300×1535mm Tank volume 30000L
Tank material Carbon steel Tank thickness 5mm
Nozzle sprinkling width ≥14m Range of water cannon ≥28m
Suction height ≥7m Color and Logo Optional
Item | unit | parameter | ||
Overall dimensions | mm | 11980X2490X3720 | ||
Fact cubage | L | 28000 | ||
GVW | kg | 40000 | ||
Rated loading weight | kg | 28000 | ||
Curb weight | kg | 11870 | ||
Body internal dimensions | mm | 9500*2300*900 | ||
Wheel base | 1800+4500+1350 | |||
F/R track base | 1939/1939, 2036/2036 | |||
Approach/departure angle | ° | 28/18 | ||
Exhaust/kw | ml/kw | 10800/283 | ||
Max speed | km/h | 80 | ||
Tire specification | 12.00R20 18PR | |||
Traction system | 8X4 | transmission | manual transmssion, 8-speed | |
Number of axles | 4 | Electric system | 24v | |
Operation control system | Electrically hydraulic control | Allowable passengers in cab | 3 | |
Engine | Xian cummins engine company LTD | |||
Production cycle | 10-15 days | |||
Warranty | 12 month,from the date of supply |
Item | unit | parameter | ||
Overall dimensions | mm | 11910X2500X3670 | ||
Fact cubage | L | 15000--30000 | ||
GVW | kg | 44500 | ||
Curb weight | kg | 14500 | ||
Rated loading weight | kg | 30000 | ||
Body internal dimensions | mm | 9250*2460*1550 | ||
Wheel base | 1800+3200+1350 | |||
F/R track base | 1939/1939 1850/1850 | |||
Approach/departure angle | ° | 28/20 | ||
Exhaust/kw | ml/kw | 11596/316 | ||
Max speed | km/h | 92 | ||
Tire specification | 12.00R20 18PR | |||
Traction system | 8X4 | transmission | Manual transmission, 12-speed | |
Number of axles | 4 | Electric system | 24v | |
Operation control system | Electrically hydraulic control | Allowable passengers in cab | 3 | |
Equipment | Equipped with front(rear,side)sprinkler(sprinkling width>14m ) Equipped with rear working platform with water cannon (range>28m) Equipped with WL pump(suction lift>6m) Equipped with fire valve,water valve,and filter gauze | |||
Engine | Weichai wp12.375n | |||
Production cycle | 10-15 days | |||
Warranty | 12 month,from the date of supply |
Water Truck,Shacman 30000L Water Truck,Shacman 30000L Water Bowser,Shacman 30000L Spraying Truck,Shacman 30000L water tank lorry,Shacman 30000L Water Cart,Shacman 30000L Water Tanker, Shacman 30000L Water Wagon,Shacman 30000L Water Tanker Truck,Shacman 30000L Water Sprinkler Truck,Shacman 30000L Watering Vehicle,Shacman 30000L Watering Cart
------------------
F2000 Shacman 10 wheels water Tanker Vehicle 20000L
Overall dimensions 9935X2490X3210mm Curb weight 11880kg
Tank dimensions 6600×2490×1535mm Tank volume 20000L
Chassis parameters
Chassis model SX1255NN464 Chassis brand SHACMAN
Overall dimensions 10299X2490X3270mm Wheel base 4575+1400mm
Front/rear wheel track 2011/1800/1800mm Front/rear suspension 1525/2824mm
Approach/departure angle 18/11° Maximum speed 99km/h
Chassis Manufacturer Shanxi Automobile Group Co., Ltd.
Cab Configuration Delong F3000 long a row and a half deluxe cab(with sleeping berth),allowable 3 passengers,electronically controlled automatic constant temperature air conditioner,electric rocking window machine, ordinary air filter,traveling data recorder
Color White,other color is optional
Engine Model WP10.290E32
Emission Euro 3
Type 6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling, exhaust valve brake, direct injection diesel engine
Rated power 290hp,rated power speed 2200rpm
Displacement 9726ml
Max.torque 1160N.m
Bore x stroke 126x130mm
Manufacturer Weichai Power Co., Ltd.
Tire Size 12.00R20 steel wire tire
Number 10+1 nos
Clutch φ430 diaphragm clutch
Frame 850 × 300 (8 + 7)mm
Fuel tank 400L aluminum alloy + fuel anti-theft alarm device
Front axle MAN, 7.5 tons
Rear axle MAN,13 tons casting bridge,main reduction ratio 5.262
Drive form 6X4
Suspension Multi leaf springs, four bolts
Rated voltage 24V,DC
Transmissions gearbox 9JS119, 9 speed forward 1 reverse.
Steering device Power assisted steering,steering machine (domestic ZF technology)
Steering wheel Left hand drive
Selective configuration central control door lock,600L aluminum alloy fuel tank,driving room electric flip,engine 310hp,engine 340hp
If there is a slight change in the chassis parameters above,please take the actual product as the standard
Water tank structure
Tank dimensions 6600×2490×1535mm Tank volume 20000L
Tank material Carbon steel Tank thickness 5mm or stainess steel
Nozzle sprinkling width ≥14m Range of water cannon ≥28m
Suction height ≥7m Color and Logo Optional
Standard configuration Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzle,rear working platform,water cannon,fire valve, water valve, filter gauze,water hose, climbing ladder.
Selective configuration Stainless steel/aluminum alloy water tank,insulation layer for water tank,stainless steel water pump, fire pump, fire gun,pesticide plate, cabin gas control operated, Honda pumps, lights, crane, hanging basket, rear spraying device, barrel pesticide spraying device, gasoline pesticide machine, diesel pesticide machine, LED arrow lights
Extended model water transporting truck, thermal insulation water transporting truck, drinking water tank truck, liquid food truck, fire water tank truck, pesticide spraying truck,and etc.
Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675
-----Fuel tank truck
-----Refuel tanker
-----Edible oil tank truck
-----Insulation oil tanker truck
-----Crude oil transport tank truck
-----Fuel tank full trailer
-----Fuel tank semi trailer
-----Mild steel oil tanker
-----Stainless steel oil tank
-----Aluminum fuel tank
-----Fuel tank container
-----Mobile refueling station
-----Horizontal storage fuel tanker
-----RHD fuel tank truck
And more customized products.
All more details of fuel tank truck, please kindly contact with us.
