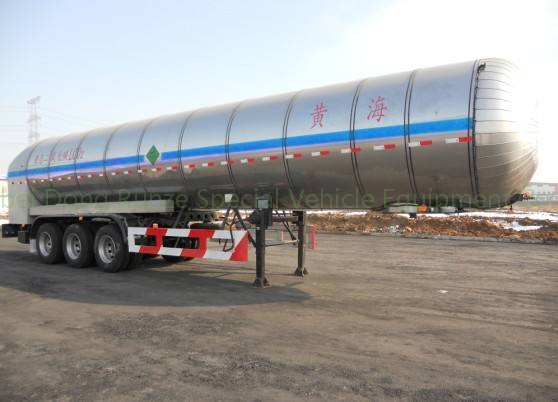

Carbon dioxide liquid CO2 LCO2 Tanker Tank Semitrailer

LIQUID CARBON DIOXIDE TANK SEMI-TRAILER Liquid Carbon Dioxide Cryogenic tank
Price: $ 60000
Discount Price: $ 57900
FOB:
Availability:
Quantity:

  • 9309GDY

  • DRZ

  • 87163190



LIQUID CARBON DIOXIDE TANK SEMI-TRAILER


Main technical parameter:



 25 cbm low-temperature liquid transport semi-trailer

Notice type

9390GDY

Curb weight

16910

Brand

DRZ

Type

Low temperature liquid, semi-trailer

Quality rated

22500

Total mass

39410

Axle load

23950 and three-axis

Number of axes

3

Wheelbase

5615+1320+1320

Axle load

23950 and three-axis

Number of spring leaf

-/8/8/8

Number of tires

12

Tire specification

11.00R20 12PR

Close to departure angle

-/16

Front overhang Rear overhang

-/2260

Rear track

1820/1820/1820

Whole length

11455

Vehicle width

2480

High vehicle

3600



Notes

Tank shape (including thermal insulation layer) size: 10560, 2200; tank liner size: length 10162, 1800; volume: 25 cubic meters a media name: liquid carbon dioxide; class: 2.2; density: 900 kilograms per cubic meter. Tractor three-axis.

26.79 m3 low-temperature liquid transport semi-trailer

Notice type

9403GDY3

Curb weight

15900

Brand

DRZ

Type

Low temperature liquid, semi-trailer

Quality rated

24100

Total mass

40000

Axle load

-/24000 (c-axis)

Number of axes

3

Wheelbase

6300+1350+1350

Axle load

-/24000 (c-axis)

Number of spring leaf

-/8/8/8

Number of tires

12

Tire specification

11.00R20 12PR

Close to departure angle

-/16.1

Rear track

1820/1820/1820

Front / Rear overhang

-/1900

Whole length

12530

Vehicle width

2490

High vehicle

3650



Notes

Tank volume: 26.79 m3, medium: liquid carbon dioxide, the class of dangerous goods number: 2.2, density: 900 kilograms/cubic meter, tank shell overall dimension: 11260x 2230mm, Interior overall dimension: 10860x 1828mm


27.88cbm low-temperature liquid transport semi-trailer

Notice type

 9400GYU

Curb weight

13540

Brand

DRZ

Type

Carbon dioxide transport semi-trailer

Quality rated

26460

Total mass

40000

Wheelbase

6150+1310+1310

Axle load

-/24000 (three-axis)

Number of spring leaf

-/4/4/4,-/-/-/-

air bag suspention

Number of tires

12

Tire specification

11R22.5 12PR,12R22.5 12PR

Close to departure angle

-/15

Rear track

1840/1840/1840

Front overhang Rear overhang

-/2340

Whole length

12970

Vehicle width

2498

High vehicle

3490

Number of axes

3

Notes

Tank dimensions (without insulation): φ 1824x11390. Insulation thickness 150mm. Tank 27.88.Load media for liquid carbon dioxide, dangerous goods class number 2.2. Volumetric filling quantity: 949.1 kg/m³.
