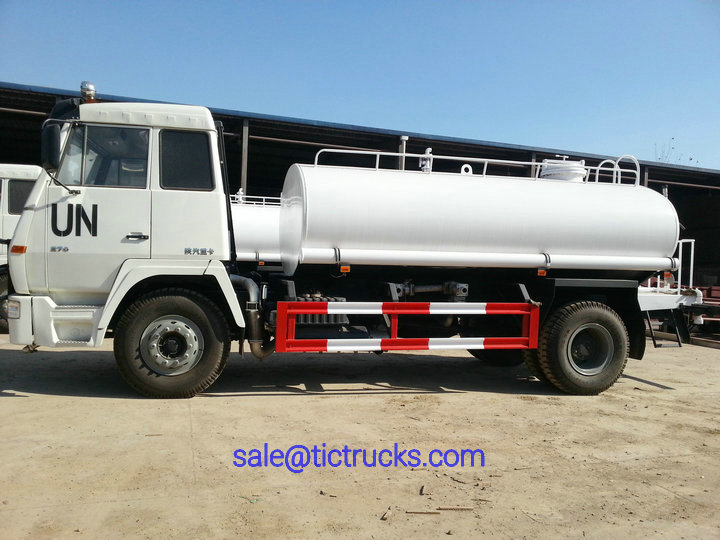

5165 STEYR 4x2 Military Truck water tanker

5165 STEYR 4x2 Military Truck water tanker
Overall dimensions 8620X2490X3100mm Curb weight 7940kg
Tank dimensions 4600×2400×1445mm Tank volume 15000L

Price: $ 35500

Discount Price: $ 32370

FOB:	DRZ5165GSSS
Availability:

Quantity:

Model:
DRZ5165GSSS
Brand:
SHACMAN
Code:
8705909990

5165 STEYR 4x2 Military Truck water tank/ Troop carrier

STEYR TRUCK-43T- Vehicle

F2000 Shacman water Tanker Vehicle 28000L-30000L/5000 -6000gallon
F2000 Shacman 10 wheels water Tanker Vehicle 20000L

- See more at: http://www.truckinchina.com/F2000-Shacman-water-Tanker-Vehicle-28000L-30000L-5000-6000gallon-pd6046965.html#sthash.ks5PkONp.dpuf

Water truck can be used for spraying water, suppressing dust, high and low spraying, pesticide spraying, rail and construction washing and other functions, but also has the function of water transport, milk transport, water drainage, emergency fire and so on.

Water truck is composed of automobile chassis, and out of the water system and tanker. According to the different use of the environment and the purpose of a variety of spraying and water transport function. Multifunctional sprinkler set a variety of functions as one, generally can be used by the user requirements of special restructuring.

Water Truck is suitable for various pavement washing, trees, green belt, green lawn, roads, construction of factories and mines, high-altitude construction flushing.

STEYR 4x2 Military Truck water truck

Overall dimensions 8620X2490X3100mm Curb weight 7940kg
Tank dimensions 4600×2400×1445mm Tank volume 15000L

Chassis parameters
Chassis model SX1165UN461 Chassis brand SHACMAN
Overall dimensions 8290x2490x3020mm Wheel base 4600mm
Front/rear wheel track 1939/1800mm Front/rear suspension 1576/2114mm
Approach/departure angle 18/12° Maximum speed 99km/h
Chassis Manufacturer Shanxi Automobile Group Co., Ltd.
Cab Configuration Aolong medium a row and a half deluxe cab(with sleeping berth),allowable 3 passengers, manual windows shake machine, hydraulic main seat, traveling data recorder
Color White, other color is optional
Engine Model WP10.270E32
Emission Euro 3
Type 6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling, exhaust valve brake, direct injection diesel engine
Rated power 270hp,rated power speed 2200rpm
Displacement 9726ml
Max.torque 1100N.m
Bore x stroke 126x130mm
Manufacturer Weichai Power Co., Ltd.
Tire Size 12.00R20 steel wire tire
Number 6+1 nos
Clutch φ430 domestic clutch
Frame 850 × 300 (8 + 5)mm
Fuel tank 380L iron oil tank
Front axle STR,6.5 tons
Rear axle STR,13.0 tons double level, main reduction ratio 4.8
Drive form 4X2
Suspension Multi leaf springs
Rated voltage 24V,DC
Transmissions gearbox 9JS119, 9 speed forward 1 reverse.
Steering device Power assisted steering, domestic steering machine
Steering wheel Left hand drive
Selective configuration Air conditioner, engine 290hp
If there is a slight change in the chassis parameters above, please take the actual product as the standard

Water tank structure
Tank dimensions 4600×2400×1445mm Tank volume 15000L
Tank material Carbon steel Tank thickness 5mm
Nozzle sprinkling width ≥14m Range of water cannon ≥28m
Suction height ≥7m Color and Logo Optional
Standard configuration Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzle, rear working platform, water cannon, fire valve, water valve, filter gauze, water hose, climbing ladder.
Selective configuration Stainless steel/aluminum alloy water tank ,insulation layer for water tank, stainless steel water pump, fire pump, fire gun, pesticide plate, cabin gas control operated, Honda pumps, lights, crane, hanging basket, rear spraying device, barrel pesticide spraying device, gasoline pesticide machine, diesel pesticide machine, LED arrow lights
Extended model water transporting truck, thermal insulation water transporting truck, drinking water tank truck, liquid food truck, fire water tank truck, pesticide spraying truck, and etc.

Water Truck,Shacman 15000L Water Truck,Shacman 15000L Water Bowser,Shacman 15000L Spraying Truck,Shacman 15000L water tank lorry,Shacman 15000L Water Cart,Shacman 15000L Water Tanker, Shacman 15000L Water Wagon,Shacman 15000L Water Tanker Truck,Shacman 15000L Water Sprinkler Truck,Shacman 15000L Watering Vehicle,Shacman 15000L Watering Cart

STEYR TRUCK-33T- Vehicle
carrier

Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675

Max speed(km/h)			92
Driving style			4×2
Dimension (LWH)(mm)		Overall dimension	8500×2495×3210
		Cargo body	6000×2326×600,800
thickness(mm)			Bottom , side
Curb weight (kg)			7975
Total weight(kg)			16000
Wheelbase (mm)			4600
Front /rear track(mm)			1939 / 1800
Front/rear overhang(mm)			1525 / 2375
Engine			WD615.56 / WP10.270E32 WP10.290E32(WEICHAI)
Horsepower			260 / 290hp 270 / 290hp
gearbox			8JS118 / 9JS119 (FAST )
Clutch			430 diaphragm
Steering			ZF technology
cabin			STR cabin with A/C
Axle	Front axle		6.5 tons
	Rear axle		13ton STR axle,ratio4.8
Tyre			11.00R20 / 12.00R20
Oil tanker(L)			380L

TIC TRUCKS , www.truckinchina.com

Max speed(km/h)	92
Driving style	4×2
Dimension (LWH)(mm)	Overall dimension	8500×2495×3210
Cargo body	6000×2326×600,800
thickness(mm)	Bottom , side
Curb weight (kg)	7975
Total weight(kg)	16000
Wheelbase (mm)	4600
Front /rear track(mm)	1939 / 1800
Front/rear overhang(mm)	1525 / 2375
Engine	WD615.56 / WP10.270E32 WP10.290E32(WEICHAI)
Horsepower	260 / 290hp 270 / 290hp
gearbox	8JS118 / 9JS119 (FAST )
Clutch	430 diaphragm
Steering	ZF technology
cabin	STR cabin with A/C
Axle	Front axle	6.5 tons
Rear axle	13ton STR axle,ratio4.8
Tyre	11.00R20 / 12.00R20
Oil tanker(L)	380L
