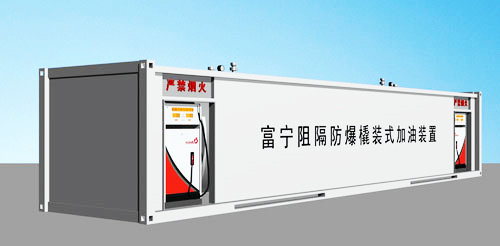

40" Containerized Fuel Station Skid-mounted Mobile Stations

40" Containerized Fuel Station Skid-mounted Mobile Stations
Availability:
Quantity:

40ft Skid-mounted mobile stations container mobile refuel station
Online call me Call me!Tom
2014062707352912416



   Skid-mounted mobile stations container mobile refuel station



   40" Containerized fuel station -43200 Liters, 1 oil product Mobile Petrol Station




           Major Technical Specification




           Name




           Containerized fuel station




           Specification




           40 Feet




           Tanker




           Double Skinned




           Capacity




           43,200L~




           Oil product




           One oil product  or Double




           Dispenser




           One nozzle  ,or  Double




           Others




           Customizable




  2012050715180156106

         refuel container size          12192*2438*2591 mm
         container station type          40 feet container
         tank capacity          40 m3
         Logo          Optional as required
         working temperature          -19~ 55
         tank material          MS/SS   Q345B mild steel. / 6 mm
         refueler          one or two fuel type



   Other Specifications:







   *  6 mm steel inner tank skin(Single wall tank)  / 6 mm steel inner tank skin & 4 mm external tank skin( Double wall tank)



   *  brand Kaisai Fuel Dispenser with Best Gear pump and Dundas flow meter



   *  Bottom fill system:



       Camlock fill adaptor with cap



       Mesh removable fuel strainer



       Spill container with locking covet



   *  Emergency ventilation system



   *  Vacuum pressure valve and piping







   Manhole, vent pipe, fire extinguisher... for detail information, please feel free to contact me. And you ideas of improving our product to fit your market better would be also appreciated, we accept any reasonable customzied requirements.


         Tank container for refer          C20          C40
         External dimension(exclude the guardrail height) (mm)          length          6058          12192
         width          2438          2438
         height          2591
         2896
         2591
         2896
         Rated capacity(liters)                    20,000          40,000
         Tare weight(kg)                    14,000          19,000
         Working temperature()          -20~55
         Manhole diameter(mm)          580
         Emergency relief pressure(kPa)          21-35
         Pressure vent valve          DN50/-2952000Pa
         Check valve          DN65/6Pa
         Explosion prevention system          mesh materials
         Paint          Epoxy zinc-rich primer + epoxy mio intermediate coating+ polyurethane top coating
