Shanghai, China
8000
T/T

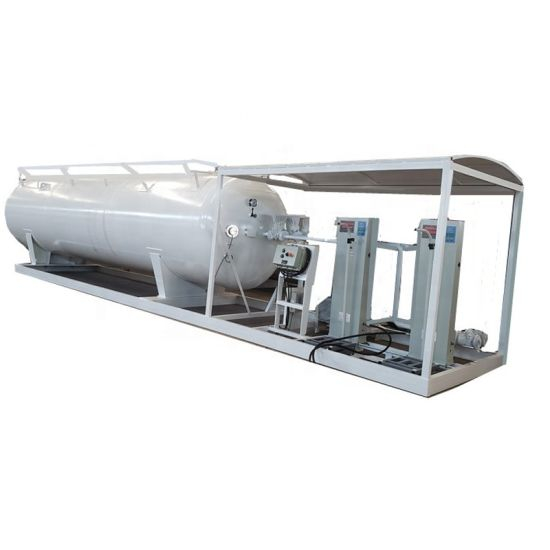

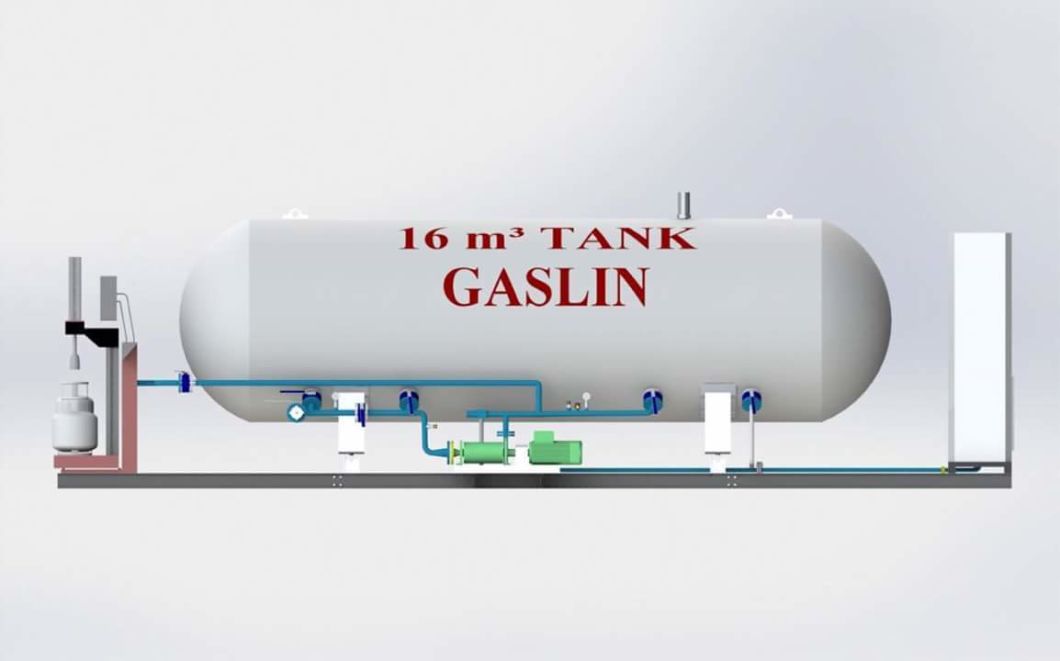

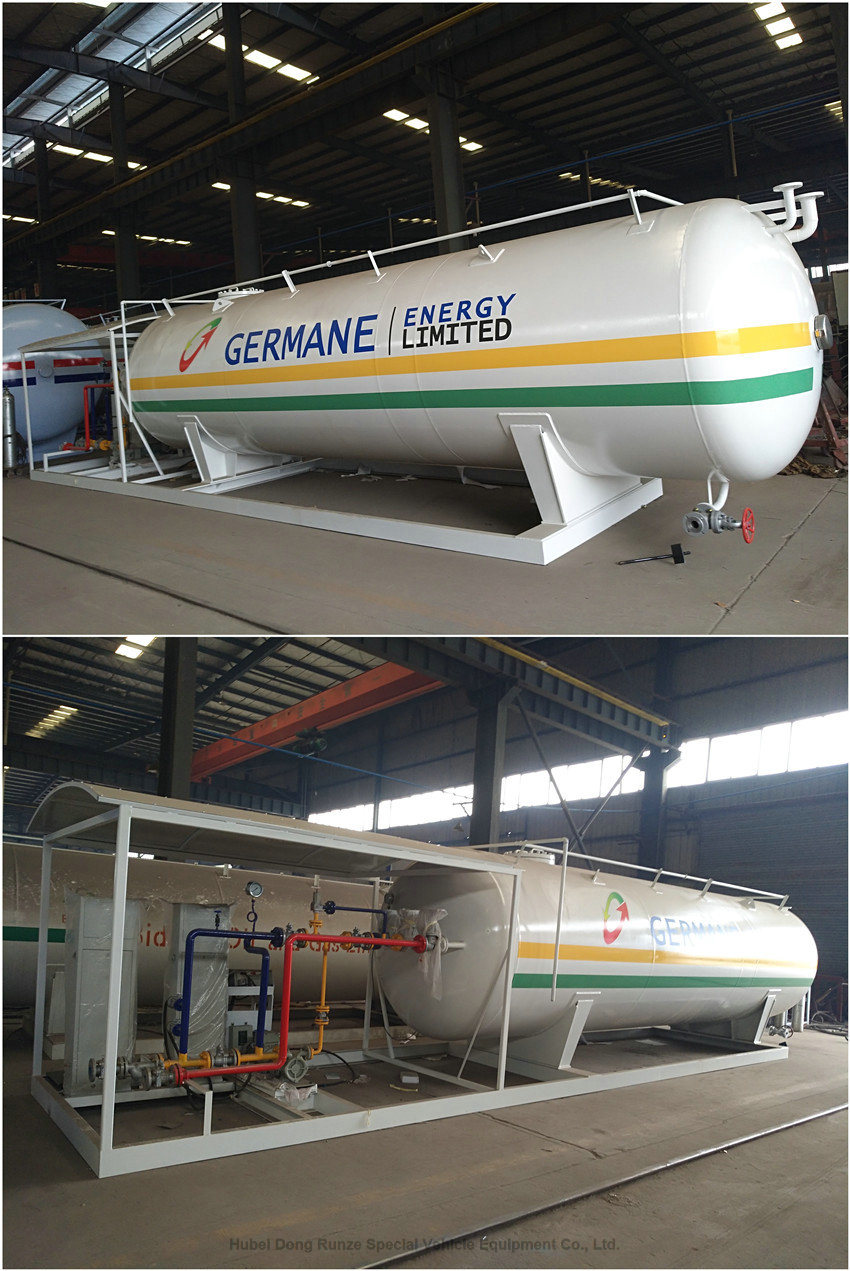

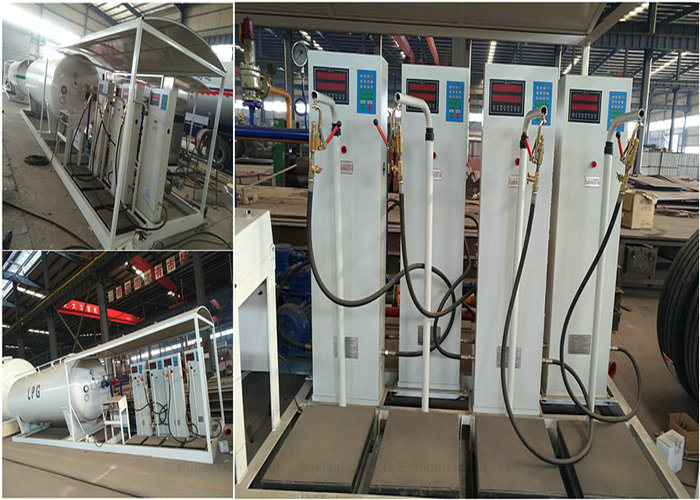

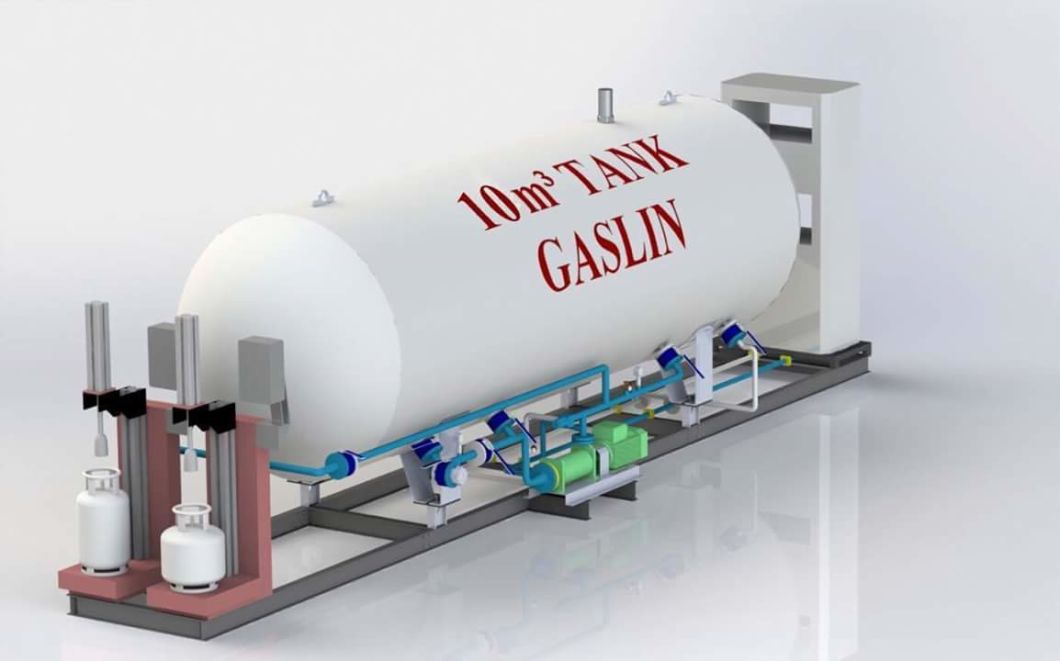

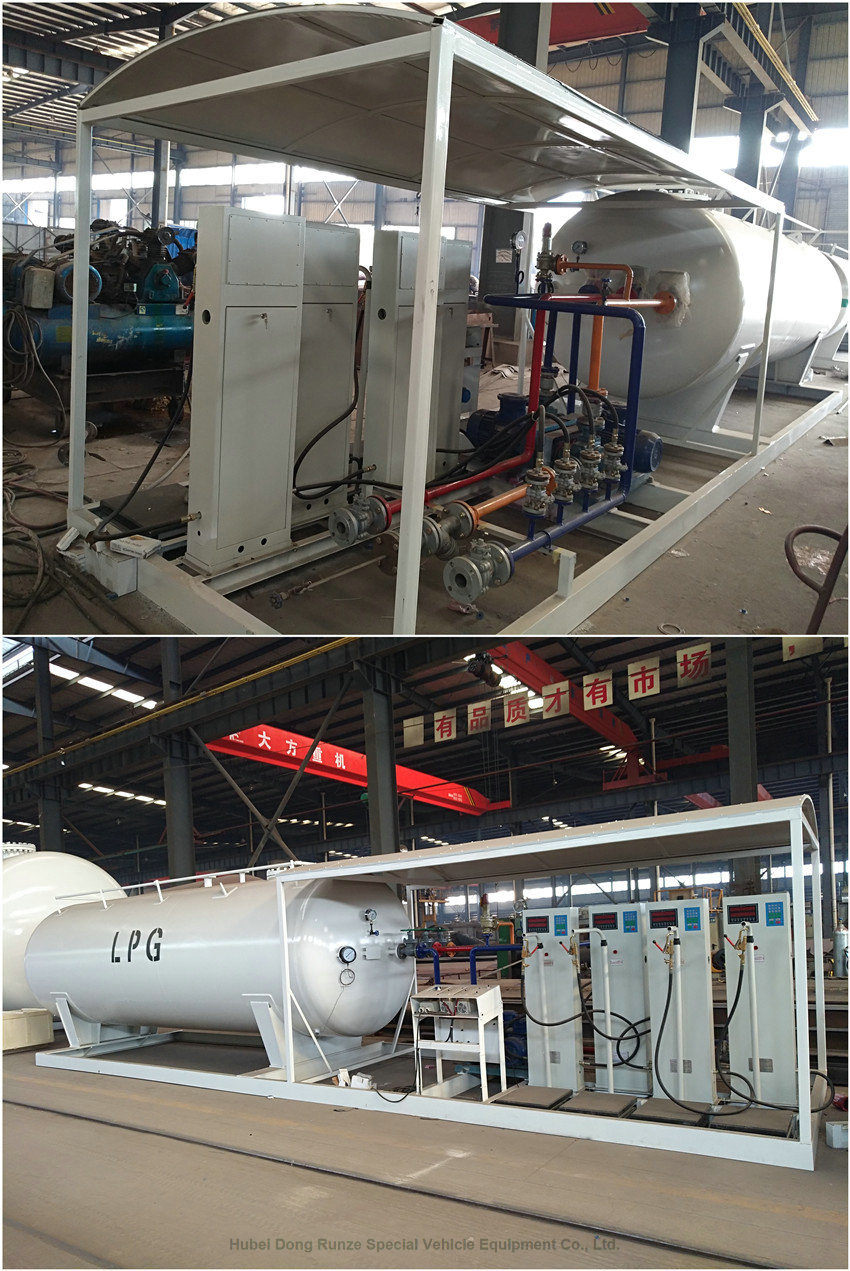

lpg filling station also called liquid petroleum cooking gas skid station. It adopt the Q345R or Q370R Or ASME material SA516 / SA612 material. Usually equipped with level gauge, pressure gauge, temperature gauge, safety valve, filling scale, dispenser etc.
Mainly used for filling cooking gas for lpg cylinder
Max volume for lpg products:
1. Our biggest capacity of LPG tanker truck is 35.5cbm;
2. Our biggest capacity of LPG tank trailer is 60cbm;
3. Our biggest capacity of LPG storage tank is 200cbm;
4. Our biggest capacity of LPG tank skid is 40cbm.
Besides, we can provide a series of accessories used for constructing gas plant, like LPG compressor, LPG pump, LPG filling scales, LPG dispenser, Safety valves, Cut off valves, level gauges.
Parameters of the cooking gas tanker station:
Parameter of 25cbm LPG Storage Tank | |||
ITEM | PARAMETER | ITEM | PARAMETER |
Volume | 25 cbm | Thickness of Shell | 12mm |
Tank Material | Carbon Steel Q345R | Thickness of End plate | 12mm |
Overall Size | 9594*3324*3514 mm | Tank Net Weight | 5970 kg |
Tank Diameter | 2100mm | Loading Capacity | 12500kg |
Design Pressure | 1.77Mpa | Gas Density | 500 kg/M3 |
Hydraulic Test Pressure | 2.22Mpa | Corrosion Allowance | 1mm |
Design Temperature | -20ºC~50ºC | Heat Treatment | Bulk |
Vapor Outlet | DN50 | Safety valve connector | DN80 |
Designed Life time | 15 years | Drain outlet | DN50 |
Main part in the lpg tank |
Item | Specification | Quantity |
Discharge Pipe | DN50 | 1 |
Inflow Pipe | DN50 | 1 |
Outlet | DN50 | 1 |
Gas phase balance pipes | DN50 | 2 |
Manhole | DN450 | 1 |
Drain Hole | DN50 | 1 |
Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. Skid Parts List will be show in separated page below. |
Model | DRZ-10-1 | Curb weight | 2950 |
Overall size | 5995*1900*2200(mm) | Loading capacity | 3990kg |
Material | Q345R | Design pressure | 1.77Mpa |
Design temperature | -15---50ºC | Filling factory | 0.42tons/cbm |
Thichness for tank | 10mm | Thichness for head | 10mm |
Tank volume | 40cbm | Corrosions Allowance | 1mm |
Filling medium | Propane | Valve | DN50 |
Serivce life | 20 years | Dispenser | Two |
NO. | model | design pressure | Cylinder size (diameter * tube length * wall thickness mm) | Dimensions (outside diameter * total height / total length mm) | Material | Total net weight(kg) |
1 | 10m/10000L | 1.77MPa | 1600*4400*10 | 1620*2400*5300 | Q345R | 2800 |
2 | 15m/15000L | 1.77MPa | 1800*5250*12 | 1824*2600*6300 | Q345R | 4250 |
3 | 25m/25000L | 1.77MPa | 2200*5800*12 | 2224*3000*7100 | Q345R | 5850 |
4 | 30m/30000L | 1.77MPa | 2200*7100*12 | 2224*3000*8400 | Q345R | 6800 |
5 | 45m/45000L | 1.77MPa | 2600*7500*14 | 2628*3400*9000 | Q345R | 9770 |
6 | 50m/50000L | 1.77MPa | 2600*8500*14 | 2628*3400*10000 | Q345R | 10800 |
P.S:We can produce according to your request, you need the model,To provide you with the best quality, best price, best service |
Technical Specification | Parameter | |
Tank | Tank name | LPG storage tank |
Overall dimensions | 13024*3244*3830 mm | |
Inner diameter | 3200mm | |
Vessel type | on the ground | |
Designing pressure | 1.91 Mpa | |
Working pressure | 1.61 Mpa | |
Designing temperature | -19~50 | |
Filling medium | Liquid petroleum/propane gas | |
Corrosion margin | 1.00 mm | |
Curb weight | 49400kg | |
Full capacity | 100m³ | |
Heat treatment | Bulk | |
Filling factor | 520 Kg/ m³ | |
Tanker & pressure parts material | Q345R | |
Hydraulic test pressure | 2.22 Mpa | |
Gas tight test pressure | 1.91 Mpa | |
Produce standard | ASME standard and GB150 standard | |
Optional accessories | safety valve, SCL-UHZ (magnetic flap gauge),pressure gauge,thermometer,cut-off valve etc. | |
Liquid indicator | Model | UHZ-518C14 |
Version | Magnetic | |
Nominal pressure | 2.5 Mpa | |
Scope of testing | 50~2500 mm | |
precision | 2.5 | |
Safety Valve | Model | A42F-2.5-80 |
Version | Built-in | |
Nominal pressure | 2.5 Mpa | |
Nominal radius | DN80 | |
Opening pressure | 1.68-1.76 Mpa | |
Re-seating pressure | ≥0.8 Mpa opening pressure | |
Handling System | Feed pipe | DN80 |
Drain pipe | DN80 | |
Admission port | DN50 | |
Sewage outfall port | DN80 | |
Vent nozzle port | DN80 |
1) lpg storage tank capacity
5,000l , 10,000l, 15,000l, 20,000l, 25,000l, 30,000l, 35,000l, 50,000l, 80,000l, 100,000l . 120,000l, 150,000l, 180,000l, 200,000l.
2) lpg storage tank material
Q345R Q370R SA516

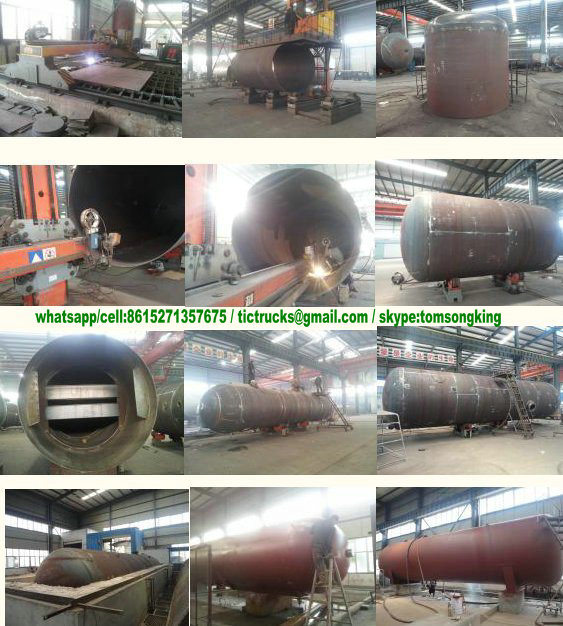

3) lpg storage tank production flow
cuttings-bending plate-submerged arc welding-assembly-non destructive testing-heat treatment- hydraulic test- sand blasting-painting
Technical Parameter for 30tons lpg storage tank
Item | Parameter | ||
Tank | Description of LPG tank | 60CBM LPG storage tank | |
Overall dimensions (mm) | 10962*2728*3318 | ||
Curb weight(kg) | 12750 | ||
Filling weight(kg) | 30000 | ||
Type of vessel | The third kind | ||
Design pressure | 1.77MPa | ||
Max working pressure | 1.61MPa | ||
Design temperature | -19~50ºC | ||
Filling medium | Liquid petroleum gas (propane) | ||
Corrosion allowance | 1.0mm | ||
Volume | 60 CBM | ||
Thermal treatment | The entirety | ||
Filling capacity | 420~450kg/CBM | ||
Material of the tank | Q345R | ||
Hydraulic test pressure | 2.22 M Pa | ||
Gas tight test pressure | 1.77 M Pa | ||
Cylinder thickness | 14mm | ||
Head thickness | 16mm | ||
Service life | 15 years | ||
Accessory for the LPG storage tank | |||
Liquid level indicator | Type | UNZ-518C14 | |
Version of the indicator | Magnetic type liquid level indicator | ||
Normal pressure | 2.5M Pa | ||
Scope of testing | 50-2300mm | ||
Precision | 2.5 | ||
Safety valve | Model | A42F-2.5-80 | |
Version | Built-in | ||
Normal pressure | 2.5 M Pa | ||
Normal diameter | DN80 | ||
Opening pressure | 1.68~1.76MPa | ||
Re-seating pressure | 0.8 times of the opening pressure | ||
Loading and unloading system | Normal diameter | Feed pipe | DN50 |
Drain pipe | DN50 | ||
Admission port | DN50 | ||
Sewage outfall port | DN50 | ||
Vent nozzle port | DN50 | ||
Standard | GB150 | ||
Safety fitting for selection | Safety valve, column magnetic liquid level gauge, pressure gauge, thermometer, cut-off valves, etc. | ||
Specification | Designed Pressure: 1.66Mpa Filling Ratio: 0.42 kg/L Working Temperature:-50ºC Corrosion Allowance: 1mm |

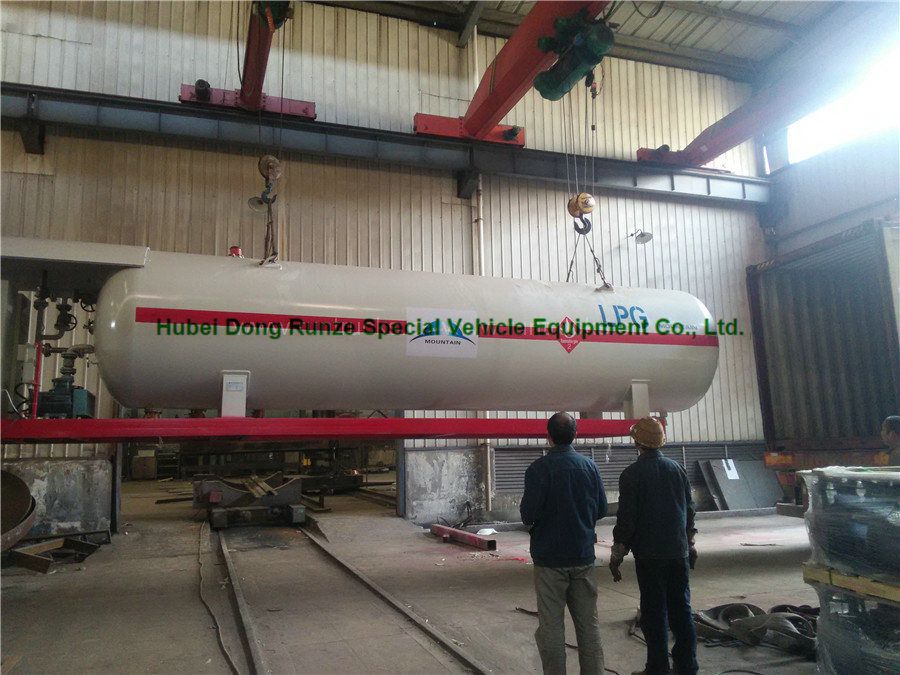

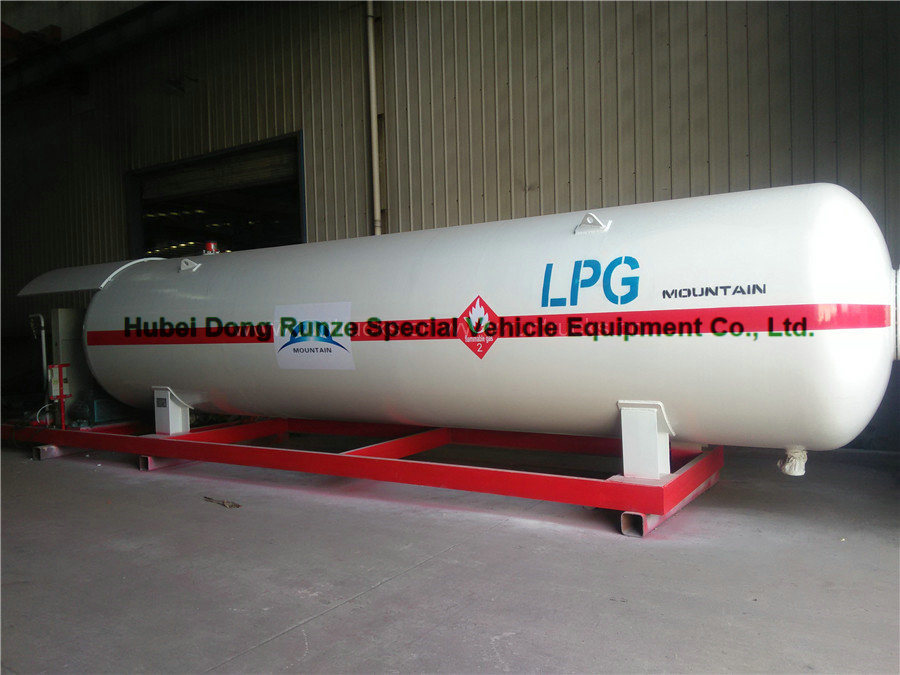

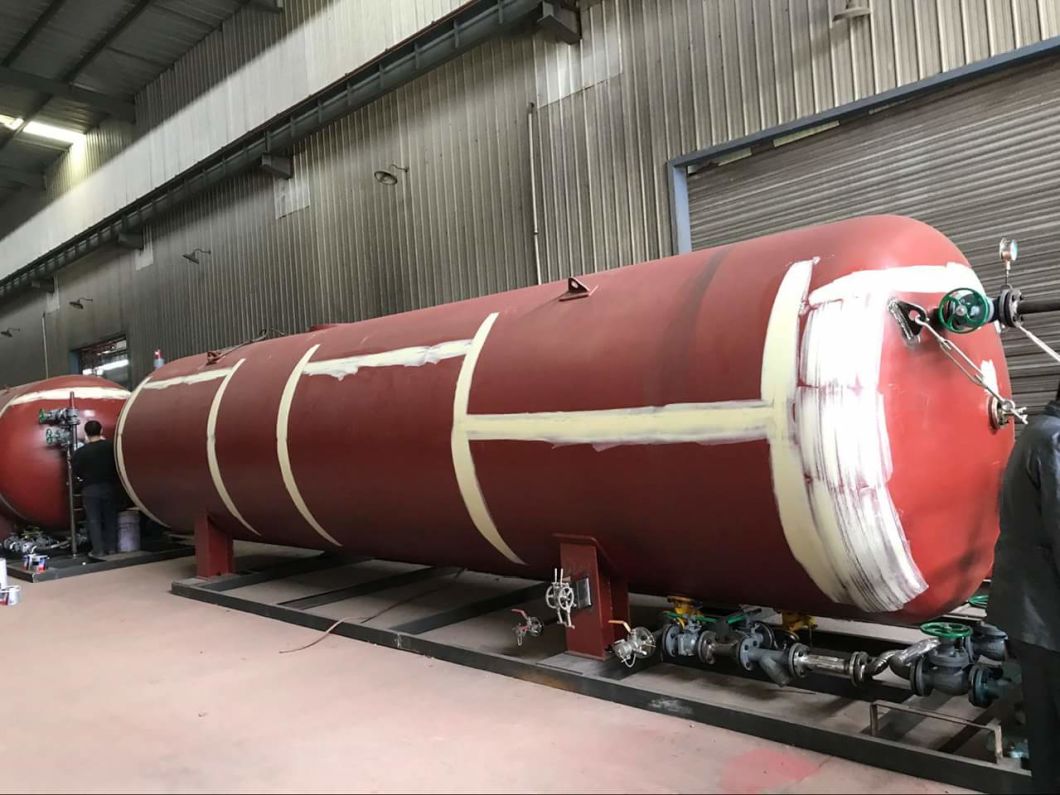

Detailed pics for 60cbm lpg gas storage tank ASME LPG storage tank
Technical Specification | Parameter | |
Tank | Tank name | LPG storage tank |
Model | DT3100-100LAG | |
Overall dimensions | 13024*3244*3830 mm | |
Inner diameter | 3200mm | |
Vessel type | on the ground | |
Designing pressure | 1.91 Mpa | |
Working pressure | 1.61 Mpa | |
Designing temperature | -19~50 | |
Filling medium | Liquid petroleum/propane gas | |
Corrosion margin | 1.00 mm | |
Curb weight | 49400kg | |
Full capacity | 100m³ | |
Heat treatment | Bulk | |
Filling factor | 520 Kg/ m³ | |
Tanker & pressure parts material | Q345R | |
Hydraulic test pressure | 2.22 Mpa | |
Gas tight test pressure | 1.91 Mpa | |
Produce standard | ASME standard and GB150 standard | |
Optional accessories | afety valve,SCL-UHZ(magnetic flap gauge),pressure gauge,thermometer,cut-off valve etc. | |
Liquid indicator | Model | UHZ-518C14 |
Version | Magnetic | |
Nominal pressure | 2.5 Mpa | |
Scope of testing | 50~2500 mm | |
precision | 2.5 | |
Safety Valve | Model | A42F-2.5-80 |
Version | Built-in | |
Nominal pressure | 2.5 Mpa | |
Nominal radius | DN80 | |
Opening pressure | 1.68-1.76 Mpa | |
Re-seating pressure | ≥0.8 Mpa opening pressure | |
Handling System | Feed pipe | DN80 |
Drain pipe | DN80 | |
Admission port | DN50 | |
Sewage outfall port | DN80 | |
Vent nozzle port | DN80 |
Tanker LPG gas tanker series list:
Storage tanker (Under ground Horizontal type)
S/N | Name | Model number | Volume | Tanker dimensions(L×W×H) | Thickness of raw material (MM) | Seal head type | Loading weight (KG) | Tanker weight(KG) | Others |
1 | lpg storage tank | DT1600-12 | 12 m3 | 6270×1620×2255 DN1600×10 | δ10 | Double oval | 4840 | 3298 | |
2 | lpg storage tank | DT2100-25 | 25 m3 | 7594×2124×2877 DN2100×12 | δ12 | Double oval | 10080 | 5688 | |
3 | lpg storage tank | DT2400-32 | 32 m3 | 7508×2428×3007 DN2400×14 | δ14 | Double oval | 12902 | 7460 | |
4 | lpg storage tank | DT2400-50 | 50 m3 | 11483×2428×3028 DN2400×14 | δ14 | Double oval | 20160 | 10824 | |
5 | Propane gas storage tanker | DT2600-50 | 50 m3 | 9912×2628×3215 DN2600×14 | δ14 | Double oval | 20160 | 10229 | |
6 | Propane gas storage tanker | DT3000-80 | 80 m3 | 11866×3032×3610 DN3000×16 | δ16 | Double oval | 32256 | 17900 | |
7 | Propane gas storage tanker | DT3200-100 | 100 m3 | 13010×3236×3716 DN3200×18 | δ18 | Double oval | 40320 | 21228 | |
8 | Liquid ammonium storage tanker | DT2000-20 | 20 m3 | 6806×2028×2611 DN2000×14 | δ14 | Double oval | 10188 | 5585 | |
9 | Liquid ammonium storage tanker | DT2200-32 | 32 m3 | 8914×2232×2810 DN2200×16 | δ16 | Double oval | 16301 | 8795 |
3
| LPG STORAGE TANK SPECIFICATION | ||||||
Capacity (CBM) | Diameter DN | Shell thickness (mm) | Head thickness (mm) | Kerb weight (kg) | Loading Weight (kg) | Overall dimension(mm) | |
5 | 1600 | 10 | 10 | 2030 | 1995 | 3070*1620*2210 | |
8 | 1600 | 10 | 10 | 2540 | 3192 | 4270*1620*2210 | |
10 | 1600 | 10 | 10 | 2950 | 3990 | 5260*1620*2210 | |
12 | 1800 | 10 | 12 | 3360 | 4788 | 5034*1820*2410 | |
15 | 1800 | 10 | 12 | 3920 | 5985 | 6224*1820*2410 | |
20 | 1800 | 10 | 12 | 4820 | 7980 | 8174*1820*2410 | |
25 | 2200 | 12 | 14 | 6020 | 9975 | 7008*2224*2814 | |
32 | 2400 | 14 | 14 | 7710 | 12768 | 7508*2428*3018 | |
50 | 2600 | 14 | 16 | 10910 | 19950 | 9912*2628*3218 | |
50 | 2700 | 14 | 16 | 10640 | 19950 | 9182*2728*3318 | |
80 | 3100 | 16 | 18 | 17000 | 31920 | 11166*3132*3722 | |
80 | 3200 | 18 | 18 | 18140 | 31920 | 10516*3236*3826 | |
100 | 3100 | 16 | 18 | 20410 | 39900 | 13866*3132*3722 | |
100 | 3200 | 18 | 18 | 21800 | 39900 | 13016*3236*3826 | |
120 | 3400 | 18 | 20 | 24960 | 47880 | 13820*3436*4026 | |
Design pressure | 1.77MPa | ||||||
Corrosion allowance( mm) | 1mm | ||||||
Medium density (kg/m3) | 420kg/m3 | ||||||
Material of tank and main pressure parts | Q345R | ||||||
Carried standard | Pressure vessels,supervision regulation on safety technology for stationary pressure vessels | ||||||
Safety valve of selection fitting | Safety valve, column magnetic reversible level meter,pressure gauge, thermometer,cut-off valve |
Product Model | T-LPG-TK |
Structural form | Integral type, separated type |
Install Method | Above-ground, |
System Approach OPTIONAL: | Double pump system, single pump system |
Storage Tank Volume(M 3;) | 5, 6, 10,15,20, 30 , 40 , 50 , 60,80, 100 , 125 , 150 |
Design pressure of storage tank | 1.77Mpa |
Design pressure of pipe | 2.5Mpa |
Opening pressure of safety valve | 1.75Mpa |
Ambient Temperature | -40-55°C |
Ambint Humidity | 10~95% |
Dimension of skid-mounted body | Up to customer's requirement |
Horizontal Storage HCL Acid Tanks Steel Lined LDPE 120000 Liters
For Storage Bleach, Hydrochloric Acid, Ferric Chloride, Oilfield Chemicals, Corrosive Wastes And Other Hazardous Cargoes.
Steel ( 6 mm -8mm ) Lined PE - Plastic 7042 (16mm - 20 mm ) storage tank
storage hydrochloride, hydrogen chlorate, sodium hydroxide,acrylic
acetic acid, glacial acetic acid, hydrogen peroxide
Propionic acid, ammonia,NH3·H2O
other tanks
Horizontal Oil Tank | Horizontal Oil Tank |
SS Double Oil Tank | |
SF Double Oil Tank | |
Industrial Condenser | U shape Condenser |
Tubular surface condenser | |
Reaction Tower | Pressure Reactor |
Pyrolysis Reactor |
Horizontal Fuel Storage Tank Cbm For Petroleum Oil,Gasoline, Petrol, Diesel Steel Q235 or Q345 .Q245.R20 thinckness 5.6.8mm - 10.12mm Custermizing 1-100CBM
Tri Axle 28Mt Liquid Petroleum Gas Lpg Tank Truck Semi Trailer For Sale
$35,900.00 - $37,500.00/Set(Min. Order)
Best Quality 60m3 Tri Axle Propane Tank Lpg Semi Trailer For Sale
$29,000.00 - $37,500.00/Set(Min. Order)
Lowest Price Q345R 30mt Bulk Propane Delivery Lpg Gas Tanker Trailer 60m3
$30,000.00 - $37,500.00/Set(Min. Order)
China New Tri Axle 50000 Liter Lpg Transport Tank Trailer Trucks 20 Ton
$32,000.00 - $33,600.00/Set(Min. Order)
China Mini 2.5 Metric Tonnes Howo Lpg Gas Distribution Tanker Truck 5000 Liter
$23,000.00 - $29,500.00/Set(Min. Order)
Sinotruk Howo Mini Mobile Truck Tankers Light Cargo Truck Box Truck For Liquefied Gas Mobile Gas Metan Refueling Trucks For Sale
$16,800.00 - $25,000.00/Unit
1 Unit(Min. Order)
New Liquid Ammonia Tank Container Mobile Gas Metan Refueling Lpg Road Tanker Bobtail Propane Mobile Dispenser Truck
$16,800.00 - $25,000.00/Unit
1 Unit(Min. Order)
New Liquid Methane Lpg Auto Gas 5 Mt Skid Gas Plant With Dispenser Pump Gas Refueling Nigeria Lpg Dispensing Trucks
$16,800.00 - $25,000.00/Unit
1 Unit(Min. Order)
Sinotruk Howo 4x2 Nigeria Bulk Lpg Dispensing Bullet Tank 2.5 Ton 3 Ton 4 Ton 5 Ton Mini 5m3 Lpg Bobtail Truck For Refilling
$16,800.00 - $25,000.00/Unit
1 Unit(Min. Order)
Sinotruk Howo 4x2 6m3 8m3 10m3 Flow Meter Lpg Gas Mini Transport Filling 5000 Litres Lpg Vehicle Fuel Tank
$16,800.00 - $25,000.00/Unit
1 Unit(Min. Order)
00:23
Famous 5-35cbm Dongfeng Kinland 220-375Hp 8x4 Propane Lpg Trucks For Sale
$25,000.00/Sets
00:23
Hot Sale 20 Cbm 30cbm 40cbm 50cbm Lpg Gas Tank Container Trailer 2 Axles 3 Axles Liquid Propane Gas Semi Trailer Made In China
$22,000.00/Sets
Sinotruk Howo 120hp 116hp Dimethyl Ether Tank Propane Gas Car Refilling Mobile Tanker Mobile Gas Filling Service Truck
$16,800.00 - $25,000.00/Unit
1 Unit(Min. Order)
Factory 2.5 Mt Howo Small Liquid Propane Gas Transport Truck For Sale
$23,000.00 - $29,500.00/Set(Min. Order)
China New Lowest Price Dongfeng Small 5000 l Propane Truck Transport Lpg Tanker For Sale
$23,000.00 - $29,500.00/Set(Min. Order)
Chinese Cheapest 6x4 Dongfeng 12 Ton Bulk Cooking Gas Lpg Truck 25000 Liters With Good Quality
$35,000.00 - $41,000.00/Set(Min. Order)
Chinese Cheapest Left Hand Drive 8x4 Jiefang Bulk Lpg Cooking Gas Delivery Tanker Truck 18 Ton
$58,000.00 - $59,000.00/Set(Min. Order)
12Mt Brand New 10 Wheeler Faw 24000 Liters Bulk Propane Transport Tanker Truck For Sale
$39,000.00 - $59,000.00/Set(Min. Order)
20m3 Chinese Factory 10ton Portable Lpg Filling Station For Sale
$22,000.00 - $35,000.00/Set(Min. Order)
Q345R Portable 10mt Gas Lpg Cylinder Filling Plant For Sale
$20,000.00 - $35,000.00/Set(Min. Order)
2.5 Ton To 60 Tons Propane Tank Skid Mounted Lpg Filling Station With Scale
$23,000.00 - $35,000.00/Set(Min. Order)
Factory Lowest Price Brand New Portable 40 Cubic Meter Lpg Tank Skid Fpr Sale
$23,000.00 - $35,000.00/Set(Min. Order)
China Lowest Price 15mt Propane Lpg Gas Filling Machine
$23,600.00 - $35,000.00/Set(Min. Order)
5m3 To 120m3 Lpg Cooking Gas Cylinder Filling Station Sale
$23,000.00 - $35,000.00/Set(Min. Order)
Hot Selling 10 Metric Tonne Portable Mobile Lpg Station With Lpg Dispenser
$24,500.00 - $31,500.00/Set(Min. Order)
2017 New Top Quality 21 Metric Ton Propane Gas Filling Station With Cheapest Price
$23,000.00 - $35,000.00/Set(Min. Order)
China Cheapest Brand New 20m3 Lpg Refilling Station For Cooking Gas Cylinder
$22,000.00 - $35,000.00/Set(Min. Order)
Chinese Factory Brand New Small Mobile 5 Ton Lpg Skid Station With Gas Scale For Sale
$21,000.00 - $25,000.00/Set(Min. Order)
Lowest Price New Mini Gas Cylinder Filling Mobile Station 6tons
$22,000.00 - $23,000.00/Set(Min. Order)
Best Quality Portable 20000 Liter Lpg Filling Tank Skid For Sale
$24,500.00 - $31,500.00/Set(Min. Order)
Factory 30000 Liter Auto Lpg Gas Filling Skid Station With Dispenser
$23,600.00 - $35,000.00/Set(Min. Order)
Brand New 15ton Cooking Gas Cylinder Filling Lpg Skid With 2 Scales
$23,600.00 - $35,000.00/Set(Min. Order)
High Safe 5m3 To 120m3 Chinese Lpg Filling Stations For Sale
$22,000.00 - $23,000.00/Set(Min. Order)
Top Quality 50000 Liters Gas Cylinder Lpg Filling Plant Made In China
$23,000.00 - $35,000.00/Set(Min. Order)
Chinese Cheapest Price 25 Metric Ton 50m3 Propane Station For Sale
$26,000.00 - $35,000.00/Set(Min. Order)
Factory Lowest Price 20000 Liters 10 Ton Lpg Gas Refilling Plant For Sale
$22,000.00 - $35,000.00/Set(Min. Order)
Acid Storage Tank for Oil Fied Chemical Contain Hydrochloric Acid 120CBM Horizontal
Used to contain: HCl (max 35%), NaOH (max 50%), NaCLO (max 10%), PAC (max 17%), H2SO4 etc
Horizontal / Vertical Storage HCL Acid Tanks Steel Lined LDPE 120000 Liters
For Storage Bleach, Hydrochloric Acid, Ferric Chloride, Oilfield Chemicals, Corrosive Wastes And Other Hazardous Cargoes.
Steel ( 6 mm -8mm ) Lined PE Plastic 7042 (16mm - 25 mm ) storage tank
water tank | stainless steel tank /water pump/ High pressure squirt gun |
---|---|
steel option | Q235/Q345/ 16 manganese steel/SS201/SS304 /SS316 alummin alloy tanker |
acids tanker | steel lined plastic for water/alcohol/ethanol acid, alkaline and salt HCL, NaOH ,NaCIO Sodium Hypochlorite NaCIO /hydrofluoric acid HF/CAUSTIC SODA alummin nitric acid |
oil/petrol,Fuel diesel/LPG/LNG | steel tank with oil pump/ gun fuel truck nozzle |
asphalt/bitumen/crude oil tanker/ AN ammonium methana Alcohol | burner/steam heating and insulation system ,pump option |

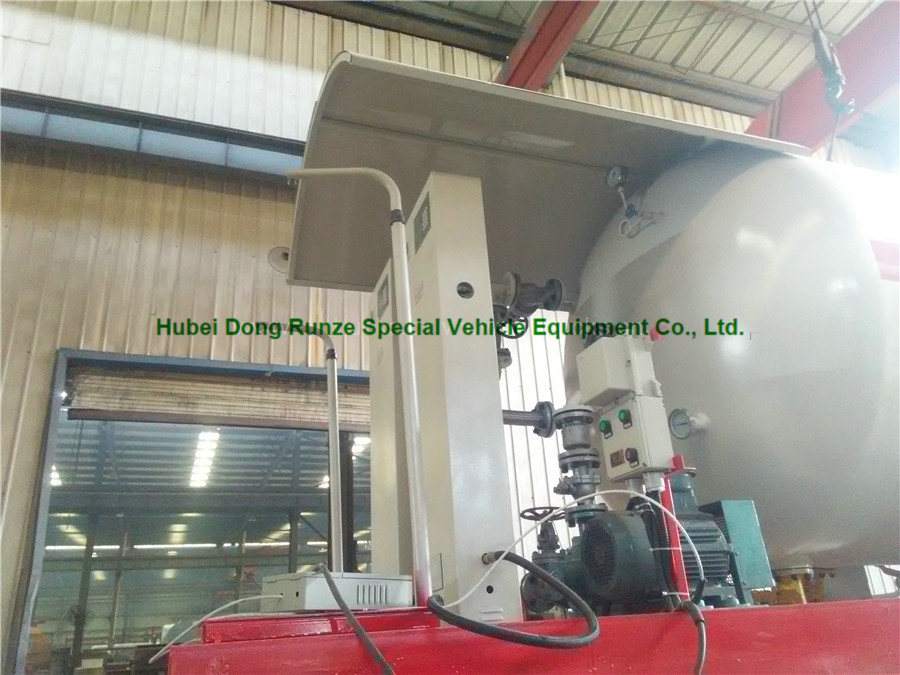

lpg filling station also called liquid petroleum cooking gas skid station. It adopt the Q345R or Q370R Or ASME material SA516 / SA612 material. Usually equipped with level gauge, pressure gauge, temperature gauge, safety valve, filling scale, dispenser etc.
Mainly used for filling cooking gas for lpg cylinder
Max volume for lpg products:
1. Our biggest capacity of LPG tanker truck is 35.5cbm;
2. Our biggest capacity of LPG tank trailer is 60cbm;
3. Our biggest capacity of LPG storage tank is 200cbm;
4. Our biggest capacity of LPG tank skid is 40cbm.
Besides, we can provide a series of accessories used for constructing gas plant, like LPG compressor, LPG pump, LPG filling scales, LPG dispenser, Safety valves, Cut off valves, level gauges.
Parameters of the cooking gas tanker station:
Parameter of 25cbm LPG Storage Tank | |||
ITEM | PARAMETER | ITEM | PARAMETER |
Volume | 25 cbm | Thickness of Shell | 12mm |
Tank Material | Carbon Steel Q345R | Thickness of End plate | 12mm |
Overall Size | 9594*3324*3514 mm | Tank Net Weight | 5970 kg |
Tank Diameter | 2100mm | Loading Capacity | 12500kg |
Design Pressure | 1.77Mpa | Gas Density | 500 kg/M3 |
Hydraulic Test Pressure | 2.22Mpa | Corrosion Allowance | 1mm |
Design Temperature | -20ºC~50ºC | Heat Treatment | Bulk |
Vapor Outlet | DN50 | Safety valve connector | DN80 |
Designed Life time | 15 years | Drain outlet | DN50 |
Main part in the lpg tank |
Item | Specification | Quantity |
Discharge Pipe | DN50 | 1 |
Inflow Pipe | DN50 | 1 |
Outlet | DN50 | 1 |
Gas phase balance pipes | DN50 | 2 |
Manhole | DN450 | 1 |
Drain Hole | DN50 | 1 |
Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. Skid Parts List will be show in separated page below. |
Model | DRZ-10-1 | Curb weight | 2950 |
Overall size | 5995*1900*2200(mm) | Loading capacity | 3990kg |
Material | Q345R | Design pressure | 1.77Mpa |
Design temperature | -15---50ºC | Filling factory | 0.42tons/cbm |
Thichness for tank | 10mm | Thichness for head | 10mm |
Tank volume | 40cbm | Corrosions Allowance | 1mm |
Filling medium | Propane | Valve | DN50 |
Serivce life | 20 years | Dispenser | Two |
NO. | model | design pressure | Cylinder size (diameter * tube length * wall thickness mm) | Dimensions (outside diameter * total height / total length mm) | Material | Total net weight(kg) |
1 | 10m/10000L | 1.77MPa | 1600*4400*10 | 1620*2400*5300 | Q345R | 2800 |
2 | 15m/15000L | 1.77MPa | 1800*5250*12 | 1824*2600*6300 | Q345R | 4250 |
3 | 25m/25000L | 1.77MPa | 2200*5800*12 | 2224*3000*7100 | Q345R | 5850 |
4 | 30m/30000L | 1.77MPa | 2200*7100*12 | 2224*3000*8400 | Q345R | 6800 |
5 | 45m/45000L | 1.77MPa | 2600*7500*14 | 2628*3400*9000 | Q345R | 9770 |
6 | 50m/50000L | 1.77MPa | 2600*8500*14 | 2628*3400*10000 | Q345R | 10800 |
P.S:We can produce according to your request, you need the model,To provide you with the best quality, best price, best service |
Technical Specification | Parameter | |
Tank | Tank name | LPG storage tank |
Overall dimensions | 13024*3244*3830 mm | |
Inner diameter | 3200mm | |
Vessel type | on the ground | |
Designing pressure | 1.91 Mpa | |
Working pressure | 1.61 Mpa | |
Designing temperature | -19~50 | |
Filling medium | Liquid petroleum/propane gas | |
Corrosion margin | 1.00 mm | |
Curb weight | 49400kg | |
Full capacity | 100m³ | |
Heat treatment | Bulk | |
Filling factor | 520 Kg/ m³ | |
Tanker & pressure parts material | Q345R | |
Hydraulic test pressure | 2.22 Mpa | |
Gas tight test pressure | 1.91 Mpa | |
Produce standard | ASME standard and GB150 standard | |
Optional accessories | safety valve, SCL-UHZ (magnetic flap gauge),pressure gauge,thermometer,cut-off valve etc. | |
Liquid indicator | Model | UHZ-518C14 |
Version | Magnetic | |
Nominal pressure | 2.5 Mpa | |
Scope of testing | 50~2500 mm | |
precision | 2.5 | |
Safety Valve | Model | A42F-2.5-80 |
Version | Built-in | |
Nominal pressure | 2.5 Mpa | |
Nominal radius | DN80 | |
Opening pressure | 1.68-1.76 Mpa | |
Re-seating pressure | ≥0.8 Mpa opening pressure | |
Handling System | Feed pipe | DN80 |
Drain pipe | DN80 | |
Admission port | DN50 | |
Sewage outfall port | DN80 | |
Vent nozzle port | DN80 |
1) lpg storage tank capacity
5,000l , 10,000l, 15,000l, 20,000l, 25,000l, 30,000l, 35,000l, 50,000l, 80,000l, 100,000l . 120,000l, 150,000l, 180,000l, 200,000l.
2) lpg storage tank material
Q345R Q370R SA516
3) lpg storage tank production flow
cuttings-bending plate-submerged arc welding-assembly-non destructive testing-heat treatment- hydraulic test- sand blasting-painting
Technical Parameter for 30tons lpg storage tank
Item | Parameter | ||
Tank | Description of LPG tank | 60CBM LPG storage tank | |
Overall dimensions (mm) | 10962*2728*3318 | ||
Curb weight(kg) | 12750 | ||
Filling weight(kg) | 30000 | ||
Type of vessel | The third kind | ||
Design pressure | 1.77MPa | ||
Max working pressure | 1.61MPa | ||
Design temperature | -19~50ºC | ||
Filling medium | Liquid petroleum gas (propane) | ||
Corrosion allowance | 1.0mm | ||
Volume | 60 CBM | ||
Thermal treatment | The entirety | ||
Filling capacity | 420~450kg/CBM | ||
Material of the tank | Q345R | ||
Hydraulic test pressure | 2.22 M Pa | ||
Gas tight test pressure | 1.77 M Pa | ||
Cylinder thickness | 14mm | ||
Head thickness | 16mm | ||
Service life | 15 years | ||
Accessory for the LPG storage tank | |||
Liquid level indicator | Type | UNZ-518C14 | |
Version of the indicator | Magnetic type liquid level indicator | ||
Normal pressure | 2.5M Pa | ||
Scope of testing | 50-2300mm | ||
Precision | 2.5 | ||
Safety valve | Model | A42F-2.5-80 | |
Version | Built-in | ||
Normal pressure | 2.5 M Pa | ||
Normal diameter | DN80 | ||
Opening pressure | 1.68~1.76MPa | ||
Re-seating pressure | 0.8 times of the opening pressure | ||
Loading and unloading system | Normal diameter | Feed pipe | DN50 |
Drain pipe | DN50 | ||
Admission port | DN50 | ||
Sewage outfall port | DN50 | ||
Vent nozzle port | DN50 | ||
Standard | GB150 | ||
Safety fitting for selection | Safety valve, column magnetic liquid level gauge, pressure gauge, thermometer, cut-off valves, etc. | ||
Specification | Designed Pressure: 1.66Mpa Filling Ratio: 0.42 kg/L Working Temperature:-50ºC Corrosion Allowance: 1mm |
Detailed pics for 60cbm lpg gas storage tank ASME LPG storage tank
Technical Specification | Parameter | |
Tank | Tank name | LPG storage tank |
Model | DT3100-100LAG | |
Overall dimensions | 13024*3244*3830 mm | |
Inner diameter | 3200mm | |
Vessel type | on the ground | |
Designing pressure | 1.91 Mpa | |
Working pressure | 1.61 Mpa | |
Designing temperature | -19~50 | |
Filling medium | Liquid petroleum/propane gas | |
Corrosion margin | 1.00 mm | |
Curb weight | 49400kg | |
Full capacity | 100m³ | |
Heat treatment | Bulk | |
Filling factor | 520 Kg/ m³ | |
Tanker & pressure parts material | Q345R | |
Hydraulic test pressure | 2.22 Mpa | |
Gas tight test pressure | 1.91 Mpa | |
Produce standard | ASME standard and GB150 standard | |
Optional accessories | afety valve,SCL-UHZ(magnetic flap gauge),pressure gauge,thermometer,cut-off valve etc. | |
Liquid indicator | Model | UHZ-518C14 |
Version | Magnetic | |
Nominal pressure | 2.5 Mpa | |
Scope of testing | 50~2500 mm | |
precision | 2.5 | |
Safety Valve | Model | A42F-2.5-80 |
Version | Built-in | |
Nominal pressure | 2.5 Mpa | |
Nominal radius | DN80 | |
Opening pressure | 1.68-1.76 Mpa | |
Re-seating pressure | ≥0.8 Mpa opening pressure | |
Handling System | Feed pipe | DN80 |
Drain pipe | DN80 | |
Admission port | DN50 | |
Sewage outfall port | DN80 | |
Vent nozzle port | DN80 |
Tanker LPG gas tanker series list:
Storage tanker (Under ground Horizontal type)
S/N | Name | Model number | Volume | Tanker dimensions(L×W×H) | Thickness of raw material (MM) | Seal head type | Loading weight (KG) | Tanker weight(KG) | Others |
1 | lpg storage tank | DT1600-12 | 12 m3 | 6270×1620×2255 DN1600×10 | δ10 | Double oval | 4840 | 3298 | |
2 | lpg storage tank | DT2100-25 | 25 m3 | 7594×2124×2877 DN2100×12 | δ12 | Double oval | 10080 | 5688 | |
3 | lpg storage tank | DT2400-32 | 32 m3 | 7508×2428×3007 DN2400×14 | δ14 | Double oval | 12902 | 7460 | |
4 | lpg storage tank | DT2400-50 | 50 m3 | 11483×2428×3028 DN2400×14 | δ14 | Double oval | 20160 | 10824 | |
5 | Propane gas storage tanker | DT2600-50 | 50 m3 | 9912×2628×3215 DN2600×14 | δ14 | Double oval | 20160 | 10229 | |
6 | Propane gas storage tanker | DT3000-80 | 80 m3 | 11866×3032×3610 DN3000×16 | δ16 | Double oval | 32256 | 17900 | |
7 | Propane gas storage tanker | DT3200-100 | 100 m3 | 13010×3236×3716 DN3200×18 | δ18 | Double oval | 40320 | 21228 | |
8 | Liquid ammonium storage tanker | DT2000-20 | 20 m3 | 6806×2028×2611 DN2000×14 | δ14 | Double oval | 10188 | 5585 | |
9 | Liquid ammonium storage tanker | DT2200-32 | 32 m3 | 8914×2232×2810 DN2200×16 | δ16 | Double oval | 16301 | 8795 |
3
| LPG STORAGE TANK SPECIFICATION | ||||||
Capacity (CBM) | Diameter DN | Shell thickness (mm) | Head thickness (mm) | Kerb weight (kg) | Loading Weight (kg) | Overall dimension(mm) | |
5 | 1600 | 10 | 10 | 2030 | 1995 | 3070*1620*2210 | |
8 | 1600 | 10 | 10 | 2540 | 3192 | 4270*1620*2210 | |
10 | 1600 | 10 | 10 | 2950 | 3990 | 5260*1620*2210 | |
12 | 1800 | 10 | 12 | 3360 | 4788 | 5034*1820*2410 | |
15 | 1800 | 10 | 12 | 3920 | 5985 | 6224*1820*2410 | |
20 | 1800 | 10 | 12 | 4820 | 7980 | 8174*1820*2410 | |
25 | 2200 | 12 | 14 | 6020 | 9975 | 7008*2224*2814 | |
32 | 2400 | 14 | 14 | 7710 | 12768 | 7508*2428*3018 | |
50 | 2600 | 14 | 16 | 10910 | 19950 | 9912*2628*3218 | |
50 | 2700 | 14 | 16 | 10640 | 19950 | 9182*2728*3318 | |
80 | 3100 | 16 | 18 | 17000 | 31920 | 11166*3132*3722 | |
80 | 3200 | 18 | 18 | 18140 | 31920 | 10516*3236*3826 | |
100 | 3100 | 16 | 18 | 20410 | 39900 | 13866*3132*3722 | |
100 | 3200 | 18 | 18 | 21800 | 39900 | 13016*3236*3826 | |
120 | 3400 | 18 | 20 | 24960 | 47880 | 13820*3436*4026 | |
Design pressure | 1.77MPa | ||||||
Corrosion allowance( mm) | 1mm | ||||||
Medium density (kg/m3) | 420kg/m3 | ||||||
Material of tank and main pressure parts | Q345R | ||||||
Carried standard | Pressure vessels,supervision regulation on safety technology for stationary pressure vessels | ||||||
Safety valve of selection fitting | Safety valve, column magnetic reversible level meter,pressure gauge, thermometer,cut-off valve |
Product Model | T-LPG-TK |
Structural form | Integral type, separated type |
Install Method | Above-ground, |
System Approach OPTIONAL: | Double pump system, single pump system |
Storage Tank Volume(M 3;) | 5, 6, 10,15,20, 30 , 40 , 50 , 60,80, 100 , 125 , 150 |
Design pressure of storage tank | 1.77Mpa |
Design pressure of pipe | 2.5Mpa |
Opening pressure of safety valve | 1.75Mpa |
Ambient Temperature | -40-55°C |
Ambint Humidity | 10~95% |
Dimension of skid-mounted body | Up to customer's requirement |
Horizontal Storage HCL Acid Tanks Steel Lined LDPE 120000 Liters
For Storage Bleach, Hydrochloric Acid, Ferric Chloride, Oilfield Chemicals, Corrosive Wastes And Other Hazardous Cargoes.
Steel ( 6 mm -8mm ) Lined PE - Plastic 7042 (16mm - 20 mm ) storage tank
storage hydrochloride, hydrogen chlorate, sodium hydroxide,acrylic
acetic acid, glacial acetic acid, hydrogen peroxide
Propionic acid, ammonia,NH3·H2O
other tanks
Horizontal Oil Tank | Horizontal Oil Tank |
SS Double Oil Tank | |
SF Double Oil Tank | |
Industrial Condenser | U shape Condenser |
Tubular surface condenser | |
Reaction Tower | Pressure Reactor |
Pyrolysis Reactor |
Horizontal Fuel Storage Tank Cbm For Petroleum Oil,Gasoline, Petrol, Diesel Steel Q235 or Q345 .Q245.R20 thinckness 5.6.8mm - 10.12mm Custermizing 1-100CBM
Tri Axle 28Mt Liquid Petroleum Gas Lpg Tank Truck Semi Trailer For Sale
$35,900.00 - $37,500.00/Set(Min. Order)
Best Quality 60m3 Tri Axle Propane Tank Lpg Semi Trailer For Sale
$29,000.00 - $37,500.00/Set(Min. Order)
Lowest Price Q345R 30mt Bulk Propane Delivery Lpg Gas Tanker Trailer 60m3
$30,000.00 - $37,500.00/Set(Min. Order)
China New Tri Axle 50000 Liter Lpg Transport Tank Trailer Trucks 20 Ton
$32,000.00 - $33,600.00/Set(Min. Order)
China Mini 2.5 Metric Tonnes Howo Lpg Gas Distribution Tanker Truck 5000 Liter
$23,000.00 - $29,500.00/Set(Min. Order)
Sinotruk Howo Mini Mobile Truck Tankers Light Cargo Truck Box Truck For Liquefied Gas Mobile Gas Metan Refueling Trucks For Sale
$16,800.00 - $25,000.00/Unit
1 Unit(Min. Order)
New Liquid Ammonia Tank Container Mobile Gas Metan Refueling Lpg Road Tanker Bobtail Propane Mobile Dispenser Truck
$16,800.00 - $25,000.00/Unit
1 Unit(Min. Order)
New Liquid Methane Lpg Auto Gas 5 Mt Skid Gas Plant With Dispenser Pump Gas Refueling Nigeria Lpg Dispensing Trucks
$16,800.00 - $25,000.00/Unit
1 Unit(Min. Order)
Sinotruk Howo 4x2 Nigeria Bulk Lpg Dispensing Bullet Tank 2.5 Ton 3 Ton 4 Ton 5 Ton Mini 5m3 Lpg Bobtail Truck For Refilling
$16,800.00 - $25,000.00/Unit
1 Unit(Min. Order)
Sinotruk Howo 4x2 6m3 8m3 10m3 Flow Meter Lpg Gas Mini Transport Filling 5000 Litres Lpg Vehicle Fuel Tank
$16,800.00 - $25,000.00/Unit
1 Unit(Min. Order)
00:23
Famous 5-35cbm Dongfeng Kinland 220-375Hp 8x4 Propane Lpg Trucks For Sale
$25,000.00/Sets
00:23
Hot Sale 20 Cbm 30cbm 40cbm 50cbm Lpg Gas Tank Container Trailer 2 Axles 3 Axles Liquid Propane Gas Semi Trailer Made In China
$22,000.00/Sets
Sinotruk Howo 120hp 116hp Dimethyl Ether Tank Propane Gas Car Refilling Mobile Tanker Mobile Gas Filling Service Truck
$16,800.00 - $25,000.00/Unit
1 Unit(Min. Order)
Factory 2.5 Mt Howo Small Liquid Propane Gas Transport Truck For Sale
$23,000.00 - $29,500.00/Set(Min. Order)
China New Lowest Price Dongfeng Small 5000 l Propane Truck Transport Lpg Tanker For Sale
$23,000.00 - $29,500.00/Set(Min. Order)
Chinese Cheapest 6x4 Dongfeng 12 Ton Bulk Cooking Gas Lpg Truck 25000 Liters With Good Quality
$35,000.00 - $41,000.00/Set(Min. Order)
Chinese Cheapest Left Hand Drive 8x4 Jiefang Bulk Lpg Cooking Gas Delivery Tanker Truck 18 Ton
$58,000.00 - $59,000.00/Set(Min. Order)
12Mt Brand New 10 Wheeler Faw 24000 Liters Bulk Propane Transport Tanker Truck For Sale
$39,000.00 - $59,000.00/Set(Min. Order)
20m3 Chinese Factory 10ton Portable Lpg Filling Station For Sale
$22,000.00 - $35,000.00/Set(Min. Order)
Q345R Portable 10mt Gas Lpg Cylinder Filling Plant For Sale
$20,000.00 - $35,000.00/Set(Min. Order)
2.5 Ton To 60 Tons Propane Tank Skid Mounted Lpg Filling Station With Scale
$23,000.00 - $35,000.00/Set(Min. Order)
Factory Lowest Price Brand New Portable 40 Cubic Meter Lpg Tank Skid Fpr Sale
$23,000.00 - $35,000.00/Set(Min. Order)
China Lowest Price 15mt Propane Lpg Gas Filling Machine
$23,600.00 - $35,000.00/Set(Min. Order)
5m3 To 120m3 Lpg Cooking Gas Cylinder Filling Station Sale
$23,000.00 - $35,000.00/Set(Min. Order)
Hot Selling 10 Metric Tonne Portable Mobile Lpg Station With Lpg Dispenser
$24,500.00 - $31,500.00/Set(Min. Order)
2017 New Top Quality 21 Metric Ton Propane Gas Filling Station With Cheapest Price
$23,000.00 - $35,000.00/Set(Min. Order)
China Cheapest Brand New 20m3 Lpg Refilling Station For Cooking Gas Cylinder
$22,000.00 - $35,000.00/Set(Min. Order)
Chinese Factory Brand New Small Mobile 5 Ton Lpg Skid Station With Gas Scale For Sale
$21,000.00 - $25,000.00/Set(Min. Order)
Lowest Price New Mini Gas Cylinder Filling Mobile Station 6tons
$22,000.00 - $23,000.00/Set(Min. Order)
Best Quality Portable 20000 Liter Lpg Filling Tank Skid For Sale
$24,500.00 - $31,500.00/Set(Min. Order)
Factory 30000 Liter Auto Lpg Gas Filling Skid Station With Dispenser
$23,600.00 - $35,000.00/Set(Min. Order)
Brand New 15ton Cooking Gas Cylinder Filling Lpg Skid With 2 Scales
$23,600.00 - $35,000.00/Set(Min. Order)
High Safe 5m3 To 120m3 Chinese Lpg Filling Stations For Sale
$22,000.00 - $23,000.00/Set(Min. Order)
Top Quality 50000 Liters Gas Cylinder Lpg Filling Plant Made In China
$23,000.00 - $35,000.00/Set(Min. Order)
Chinese Cheapest Price 25 Metric Ton 50m3 Propane Station For Sale
$26,000.00 - $35,000.00/Set(Min. Order)
Factory Lowest Price 20000 Liters 10 Ton Lpg Gas Refilling Plant For Sale
$22,000.00 - $35,000.00/Set(Min. Order)
Acid Storage Tank for Oil Fied Chemical Contain Hydrochloric Acid 120CBM Horizontal
Used to contain: HCl (max 35%), NaOH (max 50%), NaCLO (max 10%), PAC (max 17%), H2SO4 etc
Horizontal / Vertical Storage HCL Acid Tanks Steel Lined LDPE 120000 Liters
For Storage Bleach, Hydrochloric Acid, Ferric Chloride, Oilfield Chemicals, Corrosive Wastes And Other Hazardous Cargoes.
Steel ( 6 mm -8mm ) Lined PE Plastic 7042 (16mm - 25 mm ) storage tank
water tank | stainless steel tank /water pump/ High pressure squirt gun |
---|---|
steel option | Q235/Q345/ 16 manganese steel/SS201/SS304 /SS316 alummin alloy tanker |
acids tanker | steel lined plastic for water/alcohol/ethanol acid, alkaline and salt HCL, NaOH ,NaCIO Sodium Hypochlorite NaCIO /hydrofluoric acid HF/CAUSTIC SODA alummin nitric acid |
oil/petrol,Fuel diesel/LPG/LNG | steel tank with oil pump/ gun fuel truck nozzle |
asphalt/bitumen/crude oil tanker/ AN ammonium methana Alcohol | burner/steam heating and insulation system ,pump option |
20PCS UN 3394 3399 Portable Tanks C-480 TMA Cylinders to USA PORTABLE TANK (EMPTY AND NEW TANKS) C-480 CYLINDER HS:860900.00(USA) Adr/Rid Organometallic Substance, Liquid, Water- Reactive C-480 Saddle Type Portable Tank, tank capacity 1880L KS1880-T21 Portable Tanks ASME Test DATA Report(C250051-C250070) BV Certificate No.:IIC-BVCT2570036S KSVU 250051 -70 Max. gross mass : 4000 kg Tare : 1050 kg Payload : 2950 kg
4 Units T14 ISO Tank Container PE Lined for Hydrofluoric HF Hydrochloric Acid HCL, Ferric Chloride Potassium Hydroxide KOH Tank Container Export To India DTAU2502011 DTAU2502027 DTAU2502032 DTAU2502048 20 FT TANK CONTAINER FOR HYDROCHLORIC ACID UN1789 HCL, HYDROFLUORIC ACID UN1790 HF ACID CARON STEEL AND LINED WITH 16MM LLDPE TANKS CAPACITY 21 KL FOR ROAD INLAND MOVEMENTS SHELL THICKNESS 6MM ,HEAD 8MM LLDPE 16MM, TOP UNLOADING TARE WEIGHT 5200KG 1UNIT 20FT TANK CONTAINER FOR UN1814 KOH POTASSIUM HYDROXIDE 45% SOLUTION DISH HEAD TYPE TANK CAPACITY: 19000LITERS FOR ROAD INLAND MOVEMENTS SHELL THICKNESS 6MM ,HEAD 8MM LLDPE 16MM, BOTTOM UNLOADING TARE WEIGHT 5300KG 1UNIT 20FT TANK CONTAINER FOR UN2014 H2O2 HYDROGEN PEROXIDE 31% SOLUTION DISH HEAD TYPE TANK CAPACITY: 19000LITERS FOR ROAD INLAND MOVEMENTS SHELL THICKNESS 6MM ,HEAD 8MM LLDPE 16MM, BOTTOM UNLOADING TARE WEIGHT 5300KG 2UNITS
Steel Lined PE Plastic ISO Tank for Hydrochloric Acid HCL12KL,15KL/16KL/19KL/22KL To Vietnam Description of goods Quantity N.W PE LINED STEEL TANK 5100X 2350 X 1400MM / 12.5M3 (EMPTY AND NEW TANKS) MODEL: DTA5212 HS CODE : 7309000000 、6300KGS PE LINED STEEL TANK 6040 X 2400 X 1600MM / 15.8M3 (EMPTY AND NEW TANKS) MODEL: DTA5215 HS CODE : 7309000000 1 3650KG PE LINED STEEL TANK 7190 X 2300X 1300MM / 16.2M3 (EMPTY AND NEW TANKS) MODEL: DTA5316 HS CODE : 7309000000 、4350KG PE LINED STEEL TANK 8520 X 2260 X 1350MM / 19.5M3 (EMPTY AND NEW TANKS) MODEL: DTA5319 HS CODE : 7309000000 、4850KG 20 FT TANK CONTAINER 6058X2438X2591MM / 22.8M3 (EMPTY AND NEW TANKS) MODEL: DTAU2501015 、5800KG
1000L SS304 Stainless Steel Lined PE Plastic Tank for Hydrochloric Acid to GUAYAQUIL, EC STORAGE TANK 304 STAINLESS STEEL LINED PLASTIC TANK VERTICAL TANK STAINLESS STEEL 304 THICKNESS 5MM+PE 16MM CAPACITY: 1,000 L RESIST 15%~38% HYDROCHLORIC ACID HS CODE:730900
20Units UN T21 Portable Tank Container 1880L Cylinder For TEAL Metal Alkyls UN3394 UN3399 to USA with 30pcs Spare PSV RELIEF VALVES SF/A412F-25P(3B) Manufacturer (SHENYANG XINGUANG VALVE ) KS1880-T21 Portable Tanks Max. gross mass : 4000 kg Tare : 1050 kg Payload : 2950 kg KSVU240016 -KSVU240035 Adr/Rid Organometallic Substance, Liquid, Water- Reactive C-480 Saddle Type Portable Tank, tank capacity 1880L
6 Sets Thermal Insulated LLDPE Lined Tanks 25KL for Sodium Hypochlorite Hydrochloric Acid To Saudi Arabia Lined PE Tanks 6604Gallon For Truck Trailer mounted FROM WUHAN PORT CHINA TO DAMMAM, SAUDI ARABIA BY SEA. + Port of loading : WUHAN PORT + Port of unloading :DAMMAM SAUDI ARABIA
2 Units T14 Hydrofluoric Hydrochloric Acid UN1789 UN1790 ISOTank Container Road Transport For ASCOR 20FT Tank Container (EMPTY AND NEW TANKS) FOR HYDROCHLORIC ACID UN1789 HCL HYDROFLUORIC ACID HF ACID UN1790 CARBON STEEL AND LINED WITH 16MM LLDPE DTAU2404015, DTAU2404020
5 Units Keystone Vessel T21 TEAL UN Portable Tank C480 Cylinder To SAUDI ARABIA KS1880-T21 Portable Tanks Max. gross mass : 4000 kg Tare : 1050 kg Payload : 2950 kg KSVU2400114 KSVU2400120 KSVU2400135 KSVU2400140 KSVU2400156
7 Units T14 Hydrofluoric Acid ISO Tank Container For Export to India 20FT TANK CONTAINER (EMPTY AND NEW TANKS) 20 FT TANK CONTAINER FOR HYDROFLUORIC ACID UN1790 HF ACID, CARON STEEL AND LINED WITH 16 MM LLDPE TANKS CAPACITY 21 KL COUNTRY OF ORIGIN : CHINA MARKING TANK NO.: DTAU2407014 DTAU2407020 DTAU2407035 DTAU2407040 DTAU2407056 DTAU2407061 DTAU2407077
2 UNITS 20FT Sodium Cyanide ISO Tank Container for West Africa Global Mine Operations 20FT Tank Container for Sodium Cyanide carbon steel and lined with 16mm LLDPE Specialized Tank Container, Sodium Cyanide Tank T6, Capacity 20000litre Hydrochloric acid with the concentration of 1789 (38%) 2X20TK DTAU2024611 DTAU2024627
PE Lined 20FT ISOTank Container For HCL Acid KOH 18KL To Vietnam (EMPTY AND NEW TANKS) TANK CAPACITY: 18M3 DTAU2407082
20Ft Stainless Steel Tank Container For Water Road Transport TO PORT OF SPAIN, TT 20FT Tank Container For store water capacity 25KL DTAU2407098
10PCS T21 TEAL PORTABLE TANK CONTAINER to BUSAN KOREA 10UNITS T21 PORTABLE TANK (EMPTY AND NEW TANKS WITH ADDITIONAL SPARE VALVES AND GASKETS) HS CODE:8609009000 KSVU2400011 KSVU2400027 KSVU2400032 KSVU2400048 KSVU2400053 KSVU2400069 KSVU2400074 KSVU2400080 KSVU2400095 KSVU2400109 10 UNITS 10700.000 KGS 33.9000 CBM
10 Units T14 ISOTank Container For Hydrofluoric Acid Export to India 20FT TANK CONTAINER (EMPTY AND NEW TANKS) 20 FT TANK CONTAINER FOR HYDROCHLORIC ACID UN1789 HCL, HYDROFLUORIC ACID UN1790 HF ACID CARON STEEL AND LINED WITH 16MM LLDPE TANKS CAPACITY 21 KL FOR ROAD INLAND MOVEMENTS
6 pcs Metal Alky T21 UN3394 UN3399 Portable Tank TEAL DEAC MAO to SGP Max. gross weight : 4000 kg Tare : 1050 kg Payload : 2950 kg Portable Tank instruction : T21 ADR/RID tank code : N/A Special provisions : TP2 TP7 TP36 TP41 Model : KS1880-T21 ISO size/type code : N/A Type : UN Portable Tank Dimensions : 1148(E.D) x2128 (L) x1388 (H) mm Nominal capacity : 1880 L Measured capacity : 1880 L at 20°C Maximum allowable working pressure : 14 bar Test pressure : 21 bar APPROVALS ADR/RID: F/9151/BV/23 IMDG: F/BV/23/194-T21 US DOT: UN Portable Tank TIR*: GB/C 26839 BV/2023 SUBSTANCES SUITABLE FOR TRANSPORT: In accordance with the requirements of the applicable regulations and the construction of the tank and its equipment. (Substances not compatible with the tank and/or its accessories are excluded for transport) UN3394 & UN3399
