KJCJ-4.5
-
KJCJ-4.5
-
8705400000
-
China
-
300
-
T/T
-
1

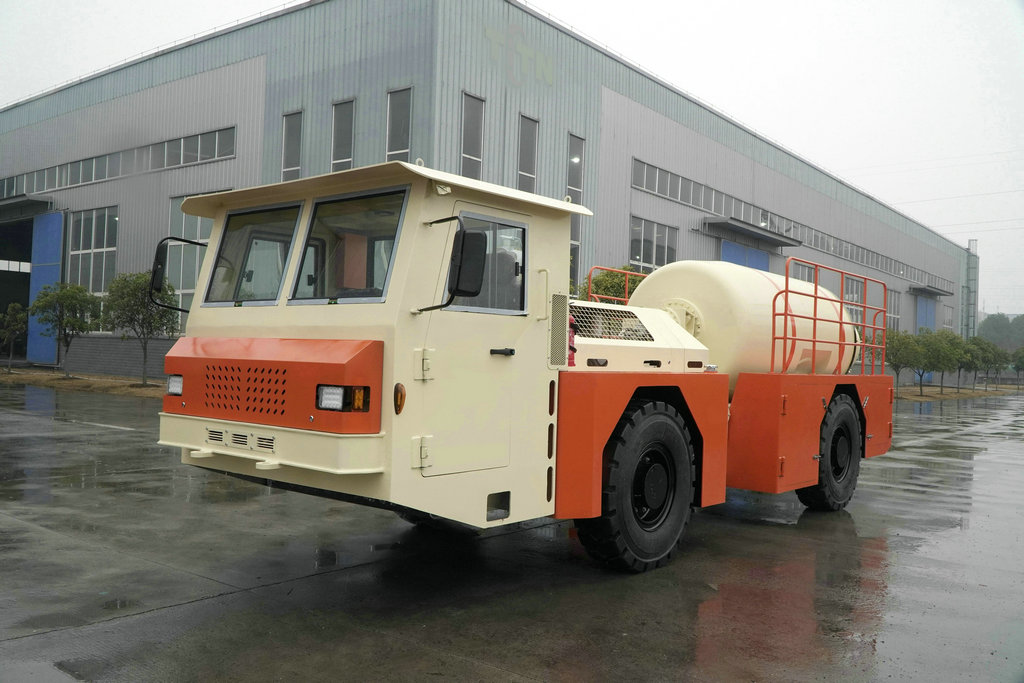

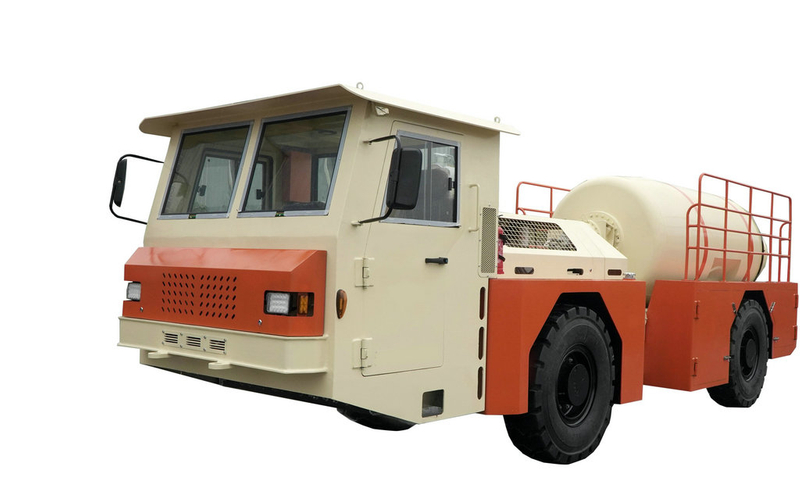

Underground Mines Tunnel Concrete Mixer Vehicle
The TTGC-5 concrete mixer has a practical carrying capacity of 4.4m³ and is suitable for concrete transport in underground mines and tunnels with a tramping height of 2.4 m or more. Powerful liquid-cooled, high-power liquid-cooled turbocharged Deutz119kW with a maximum speed of 9km/h in an upward-sloping 1:7 tunnel full load. In horizontal tunnels, with a maximum speed of 25km/h, the standard drum elevator features allow flexible adjustment of the concrete discharge height up to 1.9 m, making it possible to unload loads even if the receiving unit is not at the same Angle or level as the concrete transport
Concrete Tank Truck Parameters | ||
No. | Name | Parameter |
1 | Concrete Tank Capacity | 5.5 Cubic Meters |
2 | Load | 4.4 Cubic Meters |
3 | Roller Lift | Standard Configuration |
4 | Roller Discharge Height | 1330-2000 Mm |
5 | Steering Type | Center Articulation, Hydraulic Cylinder Power Steering |
6 | Diesel Engine | 119 Kw @ 2200 Rpm, EURO 3 / Cummins (Usa) |
7 | Tyre | 12.00-20 Pr 18 |
8 | Performance Curve | 1000 ;18584(119kw) |
Vehicle Weight | 10T | |
9 | Maximum Driving Speed In The Horizontal Tunnel | |
10 | 1 Gear | 6 Km / h |
11 | 2 Gear | 12 Km / h |
12 | 3 Gear | 25 Km / h |
13 | Maximum Driving Speed In Tunnel With Slope 1:7 | |
14 | Loaded | 9 Km / Hour |
15 | No Loading | 11 Km / h |

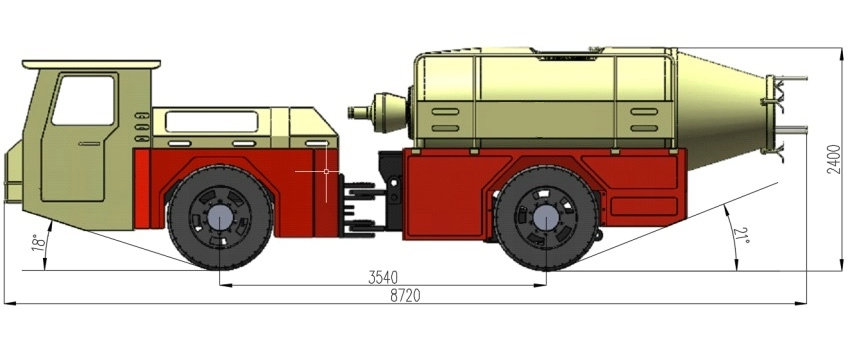

16 | Outline Dimension | |
Long | 8720mm | |
17 | Wide | 2100mm |
18 | Height | 2400mm |
20 | Wheel Base | 3540mm |
21 | Wheel track | 1830mm |
22 | Ground Clearance | ≥300mm |
23 | Maximum Discharge Height | 1900mm |
24 | Turning Radius | |
25 | Outer Turning Radius | 6290mm |
26 | Internal Turning Radius | 3670mm |
