mini Changan pickup fire truck export price
Views: 1887 Author: Dong Runze Special Vehicle Publish Time: 2017-07-07 Origin: Changan pickup fire truck

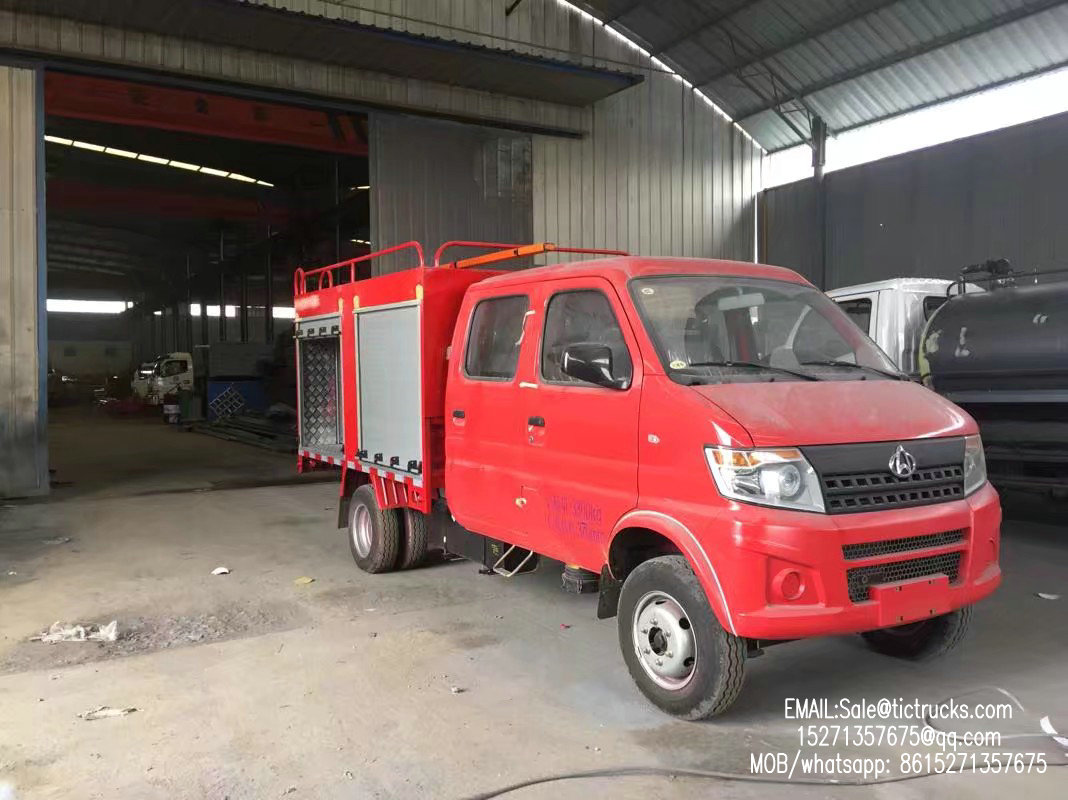

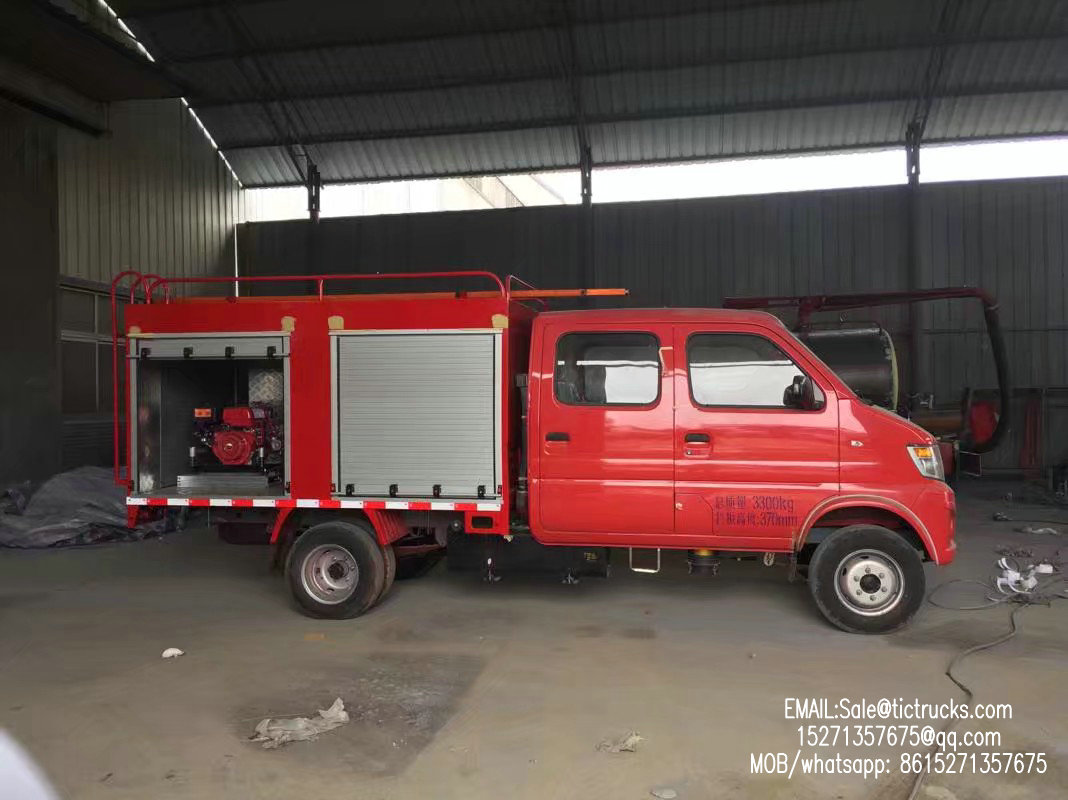

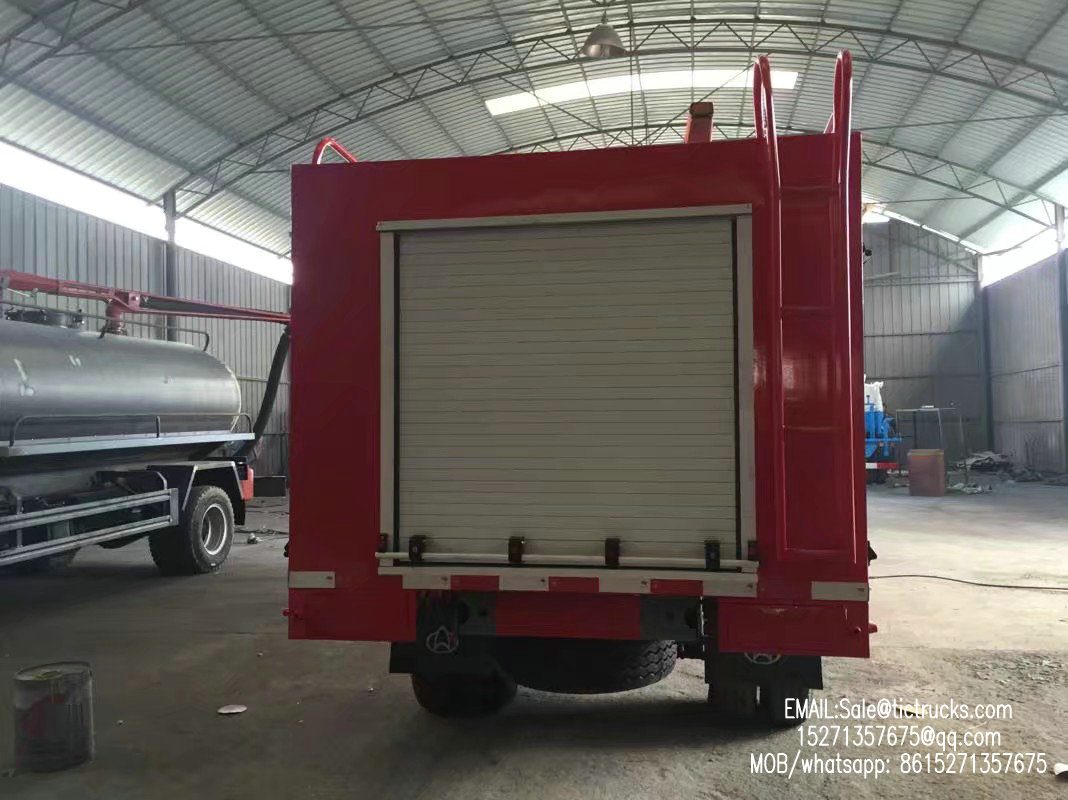

Changan pickup fire truck
Changan pickup fire truck , US $15000.00-US $20000.00 / Set
dongfeng pickup fire truck , US $15000.00-US $21000.00 / Set
Nissan pickup fire truck ,US $26000.00-US $32000.00 / Set
ISUZU pickup fire truck ,US $18800.00-US $24000.00 / Set
JMC pickup fire truck ,US $16900.00-US $23600.00 / Set
Foton pickup fire truck ,US $16900.00-US $23500.00 / Set
Specification of Nissan Pickup Water Fire Truck With Fire Pump 1000Liters:
Brand | NISSAN | Drive type | 4x2 |
Total mass | 2550kg | Water tank capacity | 600Liter(0.6m3) |
Curb weight | 1475kg | Overall dimension | 4980x1690x1650mm |
Wheel base | 2950mm | F/R axle load | 875/1675kg |
Quantity of leaf spring | -/4 | Quantity of tires | 4 |
Tyre type | LT215/75R15 | Max.vehicle speed | 155km/h |
Passengers in cabin | 2+3 | Chassis model | ZN1033U2G4J |
Engine | Model | KA24 | |
Max.power | 110kw/150HP | ||
Displacement | 2400ml | ||
Emission level | Euro 3 | ||
Fuel type | Gasoline | ||
Gearbox | Description | Manual,5 forward gears 1 reverse gear | |
Brake | Service brake | Double circuit pneumatic (air) brake | |
system | Parking brake | Spring-Power drum brake | |
Electric system | Operating voltage | 24V negative grounded | |
Starter | 24V,5.4KW | ||
Alternator | 28V,1.5KW | ||
Battery voltage | 2X12V/165Ah | ||
Cabin | Description | Double rows, 4 doors,sedan configuration, power steering, A/C provided | |

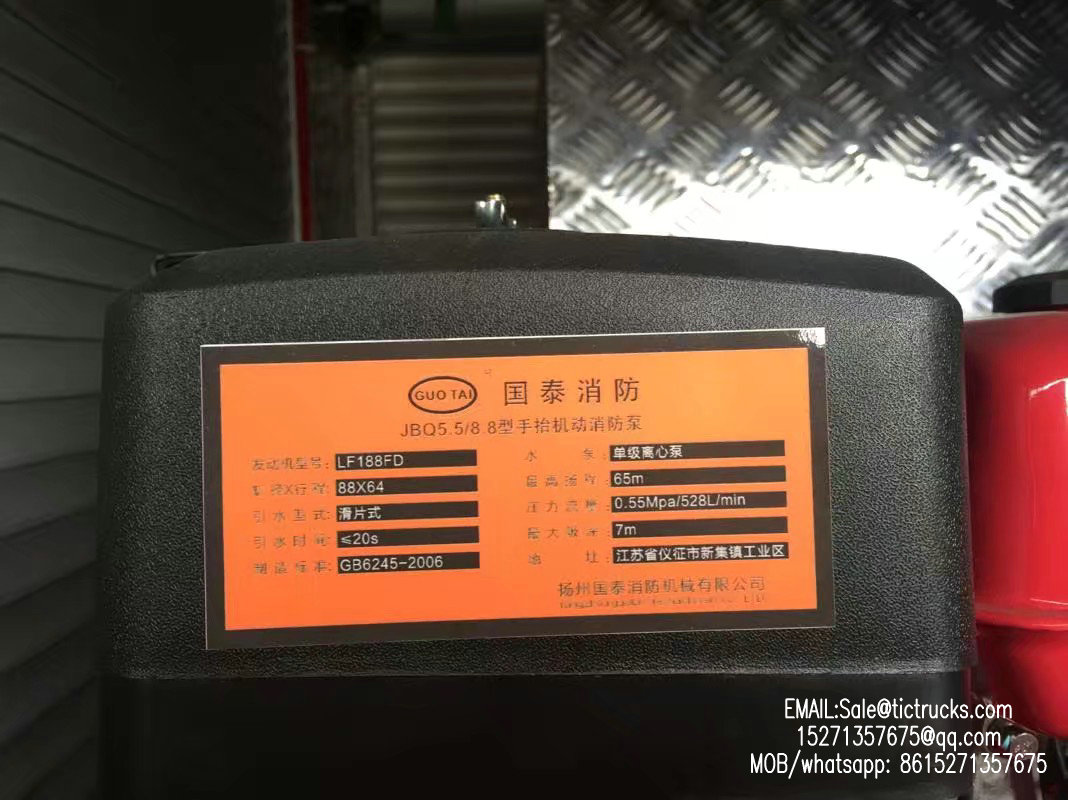

Special equipment | Fire pump | HONDA GX390 | |
Work pressure | 0.6MPa | ||
Flux | 60m /h | ||
Fire range | 65m | ||
Max.suction depth | 7m | ||
Time of sucking water | 5s | ||
Diameter of inlet | 65mm | ||
Diameter of outlet | 65mm | ||
The capacity of tank body from: 500Litres to 2,000Litres at our factory for your choice.
1. tank body is adopted an advanced automatic CNC vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite
water sprinkler, Fire Fighting Water Truck is also named Water Tanker truck, water sprinkler truck, Pesticide spraying Truck, water fire truck, Multifunction water truck, water spray vehicle
The water sprinkler is suit to spray wash all kinds of road, trees, Lawn green, Building construction, high speed road.
With multifunction, spray, anti-dust, high-low level spray, Pesticide spraying, Fire Water, Guardrail The water truck also can transport water, drinking water, discharge water and emergency fire function.
There is duckbill Nozzle or round Nozzle installing in the front of truck,
cylinder-shaped nozzle or shower shape Nozzle installing the rear of water truck, rear walk platform at rear of truck, there is water monitor installing at the walk platform.

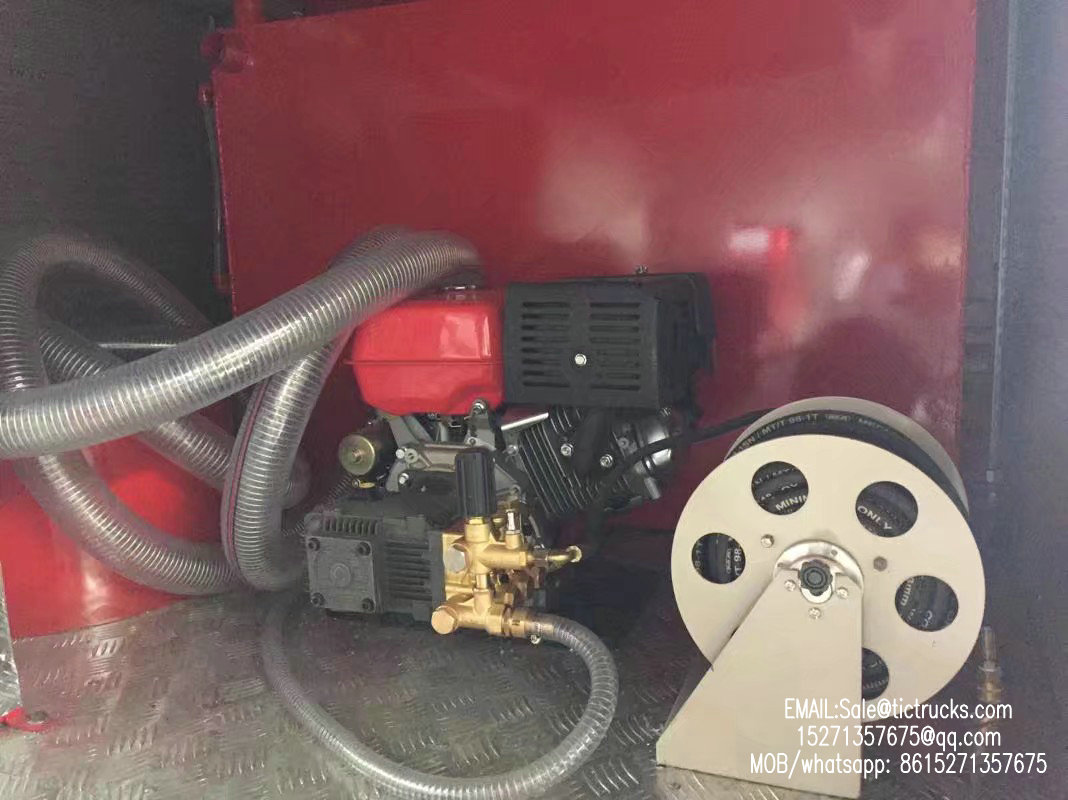

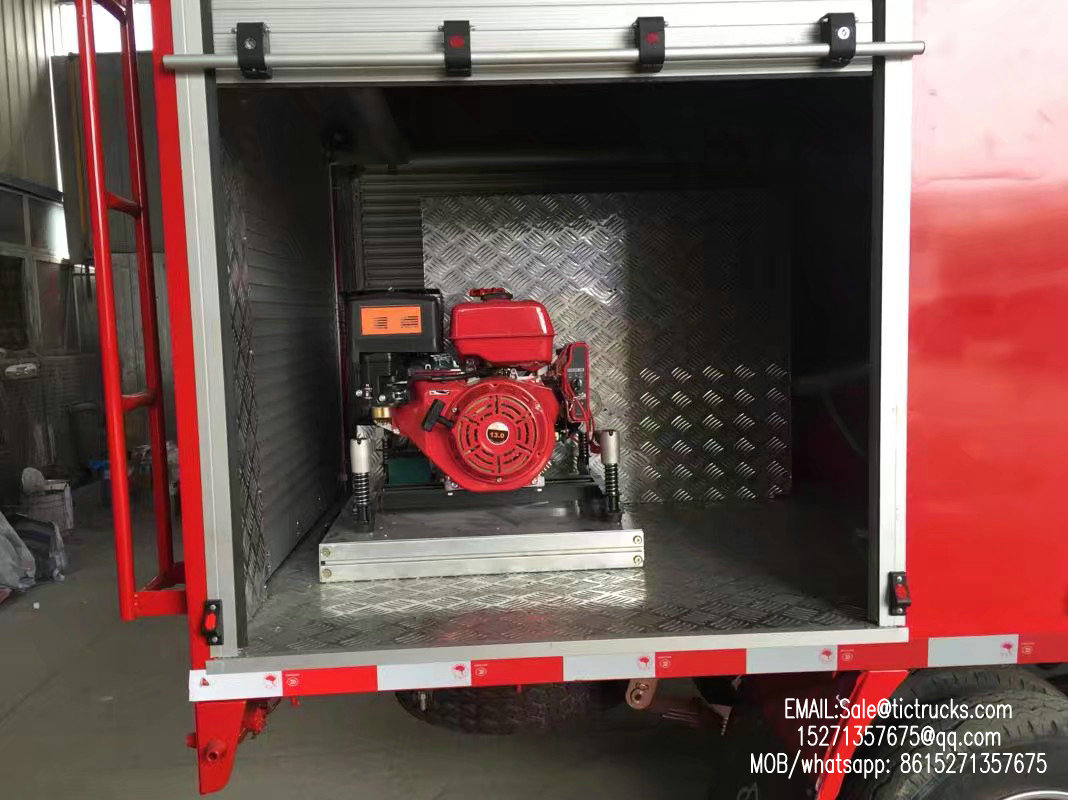

Install Fire Pump and Fire Monitor
JMC Pickup Water Mist Fire Fighting Truck
Fire Truck Engine Model JX493ZLQ4F ,72kw ,97HP,2771CC
JMC Fire Truck manufacturer , JMC Fire Truck quality
1. efficient fire: the introduction of efficient water mist system the latest technology, the double pipe, spray guns fire, high efficiency, large area fire. Evaluation room, without double counting cases, a liter of water can cover an area of about 100 square meters. Water consumption is 1% of the water consumption of the traditional, water-saving environmental protection, non-toxic and harmless. To minimize water loss of property have a significant effect.
2.Rapid handy: car through highly into a large fire with difficult access roads, streets alleys, narrow residential, country lanes, the first time to reach the leading edge of the fire, the first time to start fire fighting and rescue, the first time control fire.
Vehicle Name: | JMC Fire Truck | Vehicle Category: | JMC Fire Truck |
Chinese Brand: | JMC Fire Truck | English brand : | JMC Fire Truck |
Notice batch : | 264 | Exemption: | No |
Engine | Engine Manufacturer | Displacement (ml) | Power (kw) |
JX493ZLQ4F | Jiangling Motors Corporation, Ltd. | 2771 | 72 |
Engine brand : | JMC | Fuel type: | Diesel (mm) |
Dimensions: | 4990x1850x1755(mm) | Compartment Size : | × × (mm) |
The total mass : | 2390(Kg) | Payload: | 0 |
Curb weight: | 1780(Kg) | Rated Quality: | 235(Kg) |
Quality Trailer : | (kg) | Semitrailer saddle : | |
Rated capacity : | ( People ) | Cab seats : | 2+3( People ) |
Approach / departure angle : | 29/17(°) | Front / rear overhang : | 795/1170(mm) |
Axle load: | 7200/12450 | Wheelbase: | 3025(mm) |
Number of axes: | 2 | Maximum speed: | 120(km/h) |
Fuel consumption: | Spring: | -/6 | |
Number of tires : | 4 | Tire Size: | 215/75R15 |
Front track: | 1445 | Rear track: | 1425 |
Brake Front: | After braking : | ||
Built before the parade : | After operating system : | ||
Steering Type : | Steering wheel | Starting method: |
other pikup fire truck :dongfeng pickup fire truck , Nissan pickup fire truck ,ISUZU pickup fire truck ,
