Availability: | |
---|---|
Quantity: | |
DRZ5250GXWDF
Dongfeng
8705
Shanghai, China
800
T/T
Vacuum Tanker Combined Sewer Jetting 15, 000 Liters-20, 000liters Vac Tank Mounted Water Ring High Pressure Vacuum Pump RHD OR LHD 6x4 /6x6
For Cesspool Emptier
carbon - stainless steel
RHD OR LHD 6x4 - 6x6
The pictures are for your reference only.
Sewage suction truck capacity from 3000 litres to 20,000 litres
Fecal suction truck capacity from 3000 litres to 10,000 litres
septic tank truck, sewage suction truck, toilet truck,sewer truck, vacuum truck
Detailed Product Description
Product Technical Specifications | ||||
Item | Descriptions | Spesifications and Types | ||
Vehicle | Brand | CHENGLIWEI | ||
Overall Dimensions L*W*H | 8670*2500*3690mm | |||
Weights | GVW. | 25000kgs | ||
Kurb Weight | 16520kgs | |||
Rated Payload | 5350kgs | |||
Chassis | Chassis Brand | Dongfeng | ||
Drive Type | 6x4 | |||
Steering | LHD or RHD | |||
Engine | Brand | Dongfeng engine | ||
Power | 260 HP | |||
Emmission Level | EURO 2 or Euro 3 or EURO 4 | |||
Performance | Max. Speed | 76km/h | ||
Wheel base | 4350+1350 mm | |||
Tyre Specifications | 11.00-20 18PR,11.00R20 18PR,12.00-20 | |||
No. of Tyre | 6 pcs (1 spare tyre included) | |||
Cab | Cab Capacity | 2 persons allowed | ||
Body/Superstructure | Tank | Capacity | 15-20 m³ | |
Material | 5mm or 6mm high quality carbon steel | |||
Vacuum pump | China famous vacuum pump | |||
Vacuum rate | 99% thorically | |||
Suction head | 6m | |||
Rotation speed | 500 rpm,low noise,high efficiency | |||
Basic Equipments | Install vacuum pumps and hydraulic systems driven by engine through PTO. One multi-way valve, pressure gauges, water-gas separator, oil-gas separator, hydraulic oil tank, a level inspection window, hand washing tank and a piece of 6m suction hose | |||
Paint | Tank color is according to client's requirements. | |||
Optional Equipments | Italy or Spain vacuum pumps | |||
Stainless steel | ||||
Anti-rust coating inside tank |
vacuum sucker trucks
Basic equipment of sludge tank truck

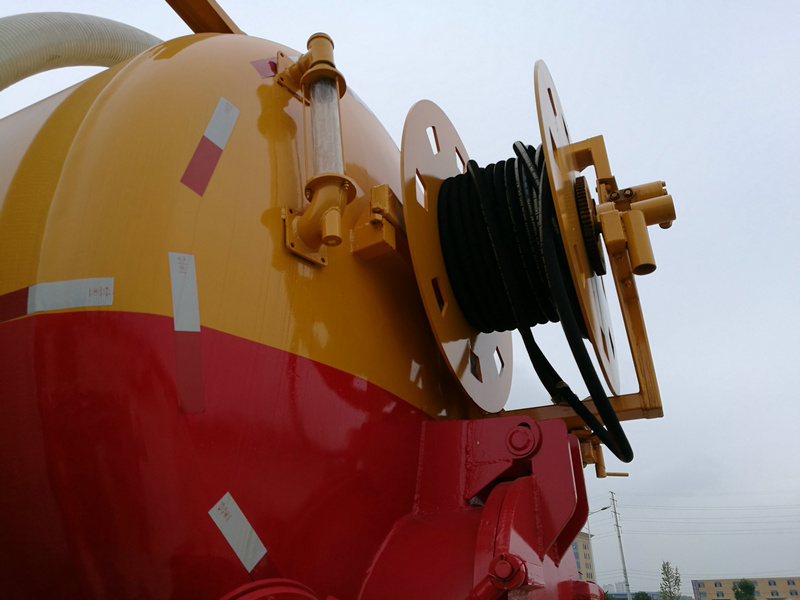

Imported vacuum pump, power-take-off, hydraulic cylinders, control valves , pressure gauge,
water gas separator , oil water separator, level inspection window, suction hose,pipeline system,etc.
1.Tank can be lifted hydraulically to 40 to 45 degree.Rear door can be opened&closed
hydraulically. With full opening design, discharge can be very quick&complete.
2.Overfill system with music horn is equipped to prevent the vacuum pump damage from sewage water into vacuum pump when the tank is full.
3.Super power of vacuum pump, seamless die casted sheel cover, designing for container with high ability of pressure-resistance,double hydraulic jack system, morestrength then cesspit
emptier.

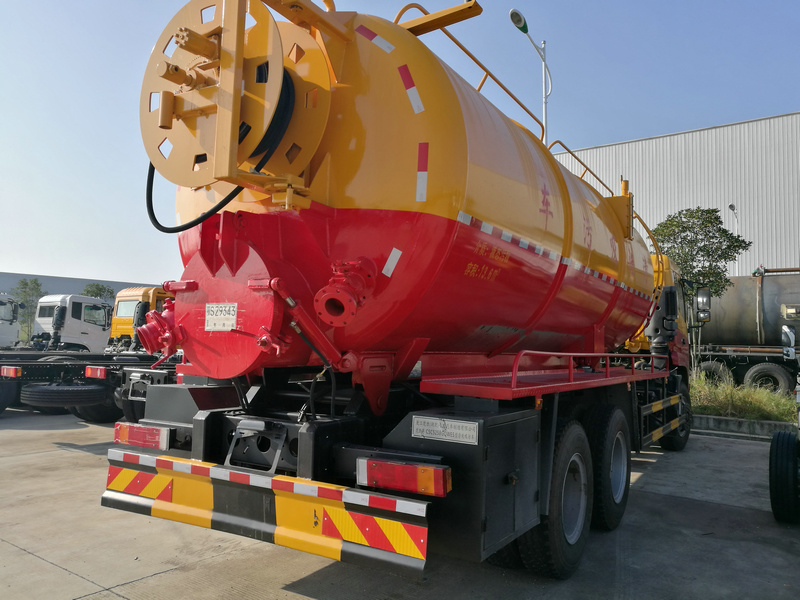

brand new high pressure vacuum suction truck
Product name | Dongfeng sewage sucking truck | Option | |
Colour | Customized | ||
Overall Dimensions(mm) | 9590×2500×3800 | ||
Wheel base(mm) | 4350+1350 | ||
Front and Rear Axle Load | 5ton | ||
GVW(kg) | 25000 | ||
Curb weight(kg) | 13005(Kg) | ||
Number of axes: | 2 | ||
Certificate | SGS CCC ISO | ||
Fuel type | Diesel | ||
Tire Size | 11.00R20 | ||
Tank size (mm) | 5500×Φ2000 | ||
Vertical suction | ≥8 m | ||
Time | Full time<5 min Emptying time<4min | ||
Max speed | 99km/h | ||
Equipped truck chassis | |||
Brand | Dongfeng | Howo,Dayun,Futon,JAC,Dongfeng,etc. | |
Wheel drive | LHD/RHD | ||
Driving cab | 3 seats | ||
Axle load: | 2640/4720 | ||
Emission standard | Euro 3 | Euro 5-6 | |
Operation Method | Manual or Automatic | ||
Special function description: | 1. The Dongfeng Tianlong suction truck suction pump is a double pump. The tank material is made of WISCO 5mm high-quality steel plate. The head is made of 6mm steel plate, which can effectively avoid the phenomenon of tank and head suction. 2. The ball valve of the car uses stainless steel ball valve, which not only increases the aesthetics, but also improves the corrosion resistance and frost crack resistance. The vacuum pump liner and the blade are centrifugally cast from wear-resistant ductile iron silicon steel, which is a high-efficiency suction pump. 3. The tank and metal accessories are pre-coated phosphating, sprayed with polymer anti-corrosive primer and metal topcoat, strong adhesion, good corrosion resistance, uniform paint film, long-lasting color, beautiful appearance, able to withstand moisture, Dust, salt spray and other adverse environments can prevent cracking, peeling, rust, fading and other problems. 4. The can body head is once die-casted, the tank can be opened later, and the double top is self-unloading. The dirt in the tank can be directly dumped through the back cover, which has a high degree of vacuum (more suction than the suction truck) and a large tonnage. High efficiency and more versatile features are especially suitable for the drainage, sedimentation and discharge of sediments in pipelines, pipeline sediments, dredging of dead angle mud trenches, cleaning of industrial drain pipes, wall surfaces, etc., especially for sucking sewer mud Large objects such as silt, stones, bricks, etc., and can also be used for watering, water transportation and rushing roads, and can be used for fire fighting in case of emergency. |
The above information is for reference only. We can produce according to your needs so, If you have any questions you can contact me at any time.
Looking forward to receiving your inquiry!
CONTACT US
Cellphone: (+86)15271357675
Website: www.truckinchina.com
Road to Your Success
12000L vacuum tanker truck, Cesspool Emptying Truck, septic tank, septik truck, Sewage Tank, sewage tanker, Sewage Vacuum Truck,Vac Tank Truck, Vacuum Tank, Vacuum Tank Truck, Vacuum tanker
Categories: Vacuum Suction Truck, Fecal Suction Truck Tags: 10000Liters Vacuum suction Truck, 10cbm vacuum sewage suction truck, 10Wheels Vacuum Truck, 15000Liters Vacuum Suction Truck, 20000Liters Vacuum Truck, 20m3 Sewage Suction Dump Truck, 5-6CBM vacuum sewage suction truck wholesale good price, 5000Liters Septic Tank Truck, 5000Liters Sewage Suction Truck, 5000Liters Vacuum Truck, 6000Liters Dirty Water Suction Truck, 6000Liters Toilet Trucks, 6000Liters Vacuum Truck, 6000Ltrs Septic Vacuum Trucks, 8000Liters Sludge Trucks, 8000Liters Toilet Trucks, 8000Liters vacuum sewage suction truck, 8000Liters Vacuum Trucks, 8cbm Sludge Trucks, 8m3 sludge trucks, 8m3 Vacuum Sewage Suction Trucks, 8Tons Sludge Truck, Big Powerful Sludge Suction Truck, Cesspit Emptier best 5-6CBM sewage suction truck hot sale, Cesspit Emptier Truck, Cesspit Emptier Trucks, cheap price, China Cesspit Emptier Truck, China fecal Suction Trucks, China Hubei Sewage Suction Trucks, China Hubei Sludge Trucks, China Hubei Toilet Trucks, China Vacuum Truck, Dongfeng Cesspit Emptier, Dongfeng Sewage Suction Trucks, Dump Sewage Suction Trucks, Fecal Suction Truck, fecal tank truck, fecal truck, Good Price Vacuum Truck, High pressure jetting trucks, Hubei Runli Mini Sludge Suction Truck, Hubei Vacuum Truck, Bin Cleaning Truck, Cesspit Emptier, Cesspit Emptier Truck, cesspool truck, Cleaning Truck For Sales, Combination Vacuum Truck, Dongfeng Fecal Suction Truck, Drain Cleaning Truck, fecal sucking truck, fecal sucking truck fecal suction truck, fecal suction tank truck, fecal suction tanker truck, Fecal Suction Truck, Fecal Suction Truck For Sale, Fecal Suction Vehicle, Fecal Tank Truck, Fecal/Sewage Vacuum Suction Tanker Truck, Garbage Can Cleaning Truck, Gully Emptier Truck, High Pressure Cleaning Truck,
