Availability: | |
---|---|
Quantity: | |
| |
5317GXYE6,5310GXY,5317GXY,5314GXY4
DRZ
8705909990

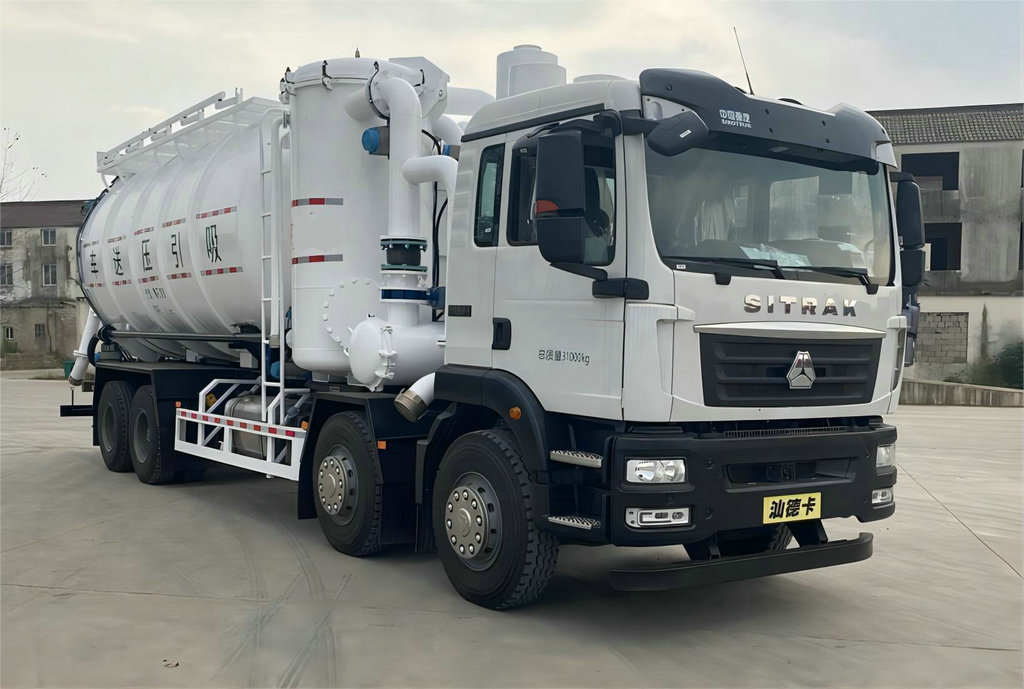

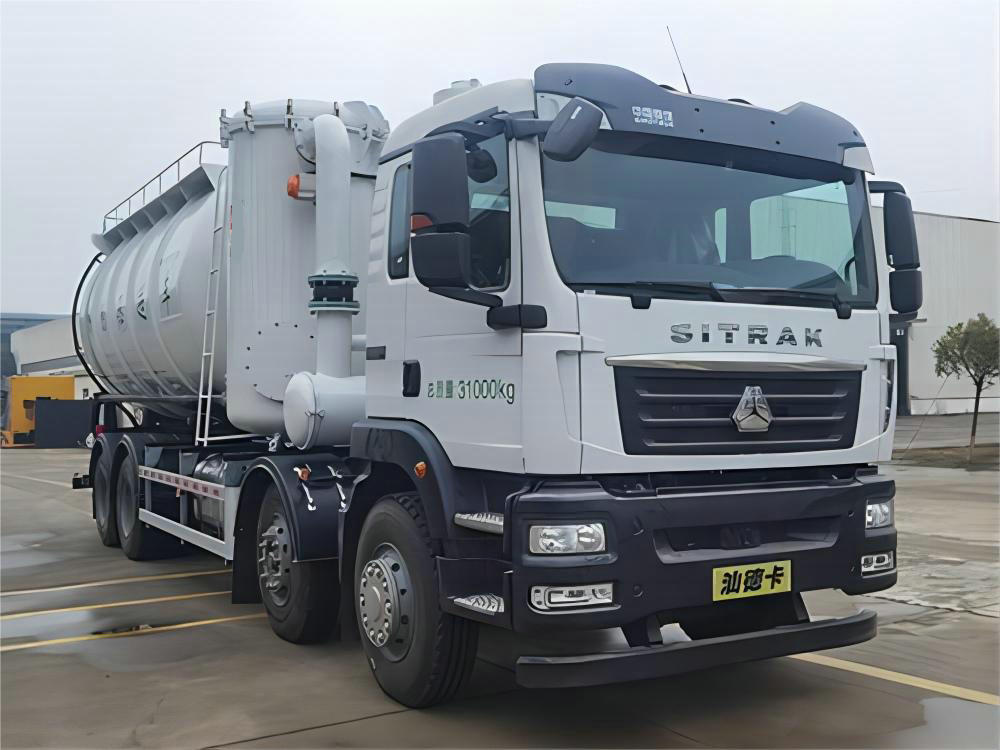

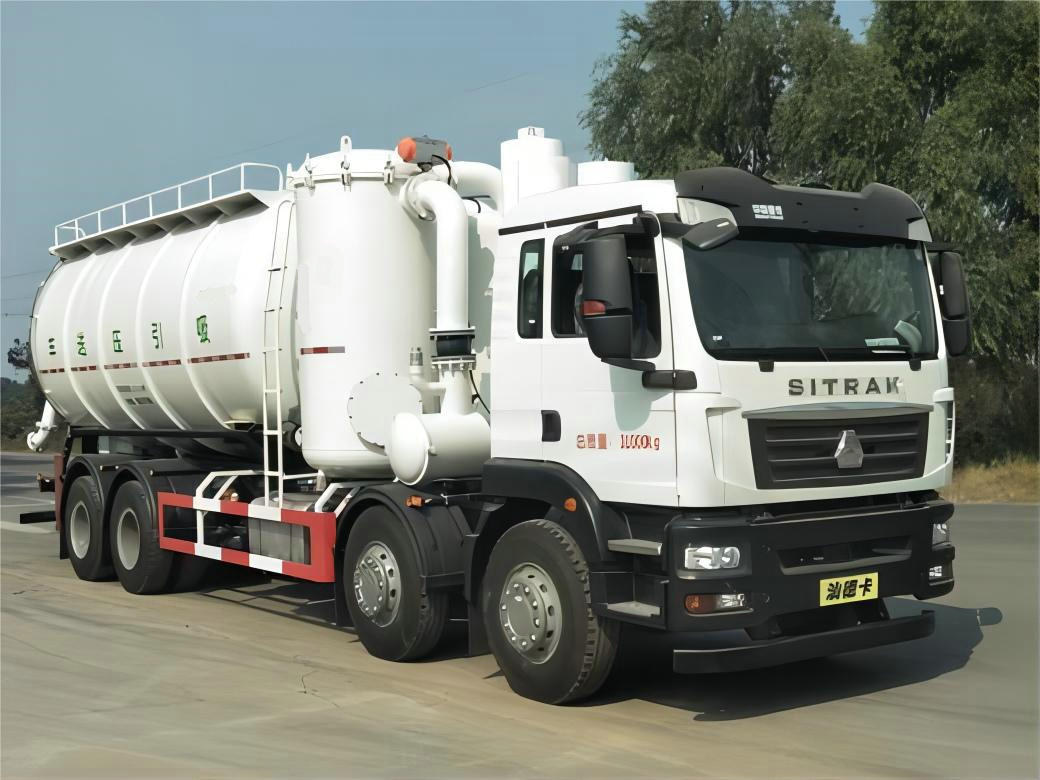

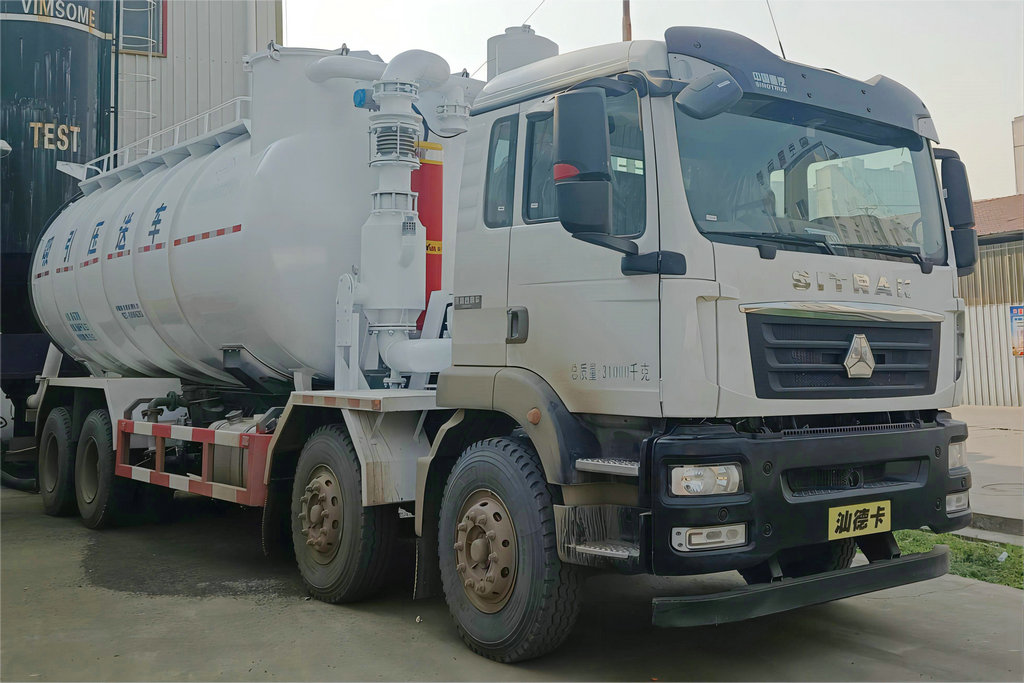

Customize SITRAK Industrial Vacuum Loader Supersucker Truck 22-24m3
Supersucker Vacuum Tanker For Dry Dust or Powder Pressure Suck and Blow Vacuum Loader
16-18m3 Vac tank, Equipped with air compressor, Roots vacuum pump
Sinotruck Chassis ZZ5316XXYN466GF1
Main technical parameters
Overall dimensions: | 11985×2550,2530×3980(mm) 11950×2510×3950(mm) 11760,11900×2496×3920(mm) 11960×2550×3880(mm) | Fuel Type: | Diesel oil |
G.W | 31000(Kg) | ||
N.W | 20510(Kg) 22370(Kg) | Rated load mass: | 10295,10360(Kg) 8500(Kg) 11980(Kg) 10270,10205(Kg) |
Approach Angle/Departure Angle: | 16/11 (°) 16/11(°) 16/19(°) 16/11(°) | Front/rear overhang: | 1450/2785(mm) 1450/2750(mm) 1450/2560,1450/2700(mm) 1450/2735,1450/2760(mm) |
Axle Load: | 6500/7000/17500 (Two axes) | Wheelbase: | 1800+3775+1400,1800+3800+1350,1800+4175+1400, 1800+4200+1350,1800+4375+1400,1800+4400+1350, 1800+4575+1400,1800+4600+1350,1800+3025+1400, 1800+3050+1350,1800+3575+1400,1800+3600+1350, 1800+3200+1350,1800+3175+1400(mm) |
Number of shafts: | 4 | Maximum speed: | 110,80,89(km/h) |
Number of tires: | 12(PCS) | Tire Specifications: | 295/80R22.5 18PR,12R22.5 18PR,11.00R20 18PR,12.00R20 18PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 2/2/4,2/2/5,3/3/4,3/3/5,3/3/10,11/11/10,2/2/-/-,3/3/-/-,11/11/12 |
Front wheel base: | 2015/2015,2035/2035(mm) | Rear wheel base: | 1850/1850(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
MC07.34-60; MC07.31-60; WP7.300 E61. MC07H.35-60; MC07H.33-60; WP8.350 E61. MC07H.29-60; MC07.33-60; MC07H.31-61; MC07H.35-61; WP8.350 E62 | China Heavy Duty Automobile Group Co., LTD.; Weichai Power Co., Ltd. | 6870; 6870; 7470; 7360; 7360; 7800; 7360; 6870; 7360; 7360; 7800 | 251; 228; 220; 257; 240; 257; 213; 240; 228; 254; 257 |
Equipped with Vac tank body, air compressor, vacuum pump, lifting cylinder and other special devices, through the vacuum pump to produce negative pressure for the powder material vacuum suction loading, using the air compressor positive pressure discharge; Total tank capacity :24 cubic meters, effective volume :22.8 cubic meters; Tank size (diameter × length)(mm):2400×6400; Transport medium: powdered graphite, density :450 kg/m3; The material used for the side protection is aluminum alloy and is bolted to the subframe; Optional speed limiting device, speed limiting 80km/h, 89km/h; Optional driving recorder with satellite positioning function; Optional ordinary cab, front light, overhead air conditioning. Optional operation box installation position. Optional Total capacity of the tank is 17.8 cubic meters, the effective volume of the tank is 16.9 cubic meters; Tank size: tank length × diameter (mm):6400×Φ2400. Transport medium is: hydrated lime powder, density :500 kg/cubic meter. The vehicle is equipped with Vac tank body, air compressor, vacuum pump, lifting cylinder and other special devices, through the vacuum pump to generate negative pressure for powder material suction loading, using the air compressor positive pressure discharge; Optional Total tank capacity :25.15 cubic meters, effective volume of tank :23.96 cubic meters, size of tank: 6947mm in length and 2300mm in diameter, Transport medium: hydrated lime powder with medium density of 500kg/cubic meter, Special devices are Roots vacuum pump, oil-free lubrication type swinging air compressor, filtration system, tank body, hydraulic lifting cylinder. Vacuum pump negative pressure suction, air compressor positive pressure discharge, dust filtration in the tank, transportation and other processes are carried out under closed conditions. The top closure cannot be slotted, the rear cannot be opened, and the filter seal movable door control handle is installed on the side. Vehicle optional vacuum pump form. Optional side protection material is aluminum alloy, which is connected with the vehicle bolt. Optional cab and front and rear lamps, the rear tail cover optional hydraulic locking device, bolt locking device and side opening form, the rear optional pneumatic ball valve, pneumatic disk valve. Tank right side ladder optional. Select the installation position of the tail marker plate. Optional ash valve at the tail, optional wheel guard plate style. Optional hydraulic rear leg. Optional vacuum pump intake pipe form. The vehicle Equipped with special equipment such as tank body, air compressor, vacuum pump, lifting cylinder, filtration system, hydraulic support leg, suction and discharge pipeline system. Negative pressure is generated by the vacuum pump, and the secondary pollutants are attracted to the tank in a vacuum closed way, and the dust removal and filtration system is used to separate the mixed air of secondary pollutants to remove dust and dust. During discharge, the air compressor generates positive pressure to discharge the secondary pollutants into a special storage container through a closed high-pressure discharge. Optional Total tank capacity :23.6 cubic meters, effective tank volume :22.65 cubic meters. Tank dimensions: Diameter × length (mm):Φ2400×6400. Transport medium is: powdered graphite, density :450 kg/m3. Select suction control valve and discharge control valve styles at the rear; Optional chassis front LED luminaire . Optional rotary adjusting clamp for rear suction pipe. |
Suction pressure delivery vehicle suction and discharge vehicle coal ash suction and discharge vehicle.
suction pressure conveyor, suction pressure conveyor, abbreviation suction discharge vehicle is suitable for metallurgy, chemical industry, energy, building materials, coal, mining, wharf transportation and other industries, for the collection, transfer and transportation of nearly 100 kinds of dust and powder materials under various working conditions. It can carry ironmaking, steelmaking, sintering, coking, raw materials, calcium carbide furnace purification and dust removal, gas burning lime density, refining desilication, dephosphorization agent, coke powder, aluminum powder, limestone, lime powder, mixed dust removal dust and other dust Material. Suction and discharge vehicle is a high-efficiency, safe and environment-friendly special vehicle for cleaning and transporting bulk materials.

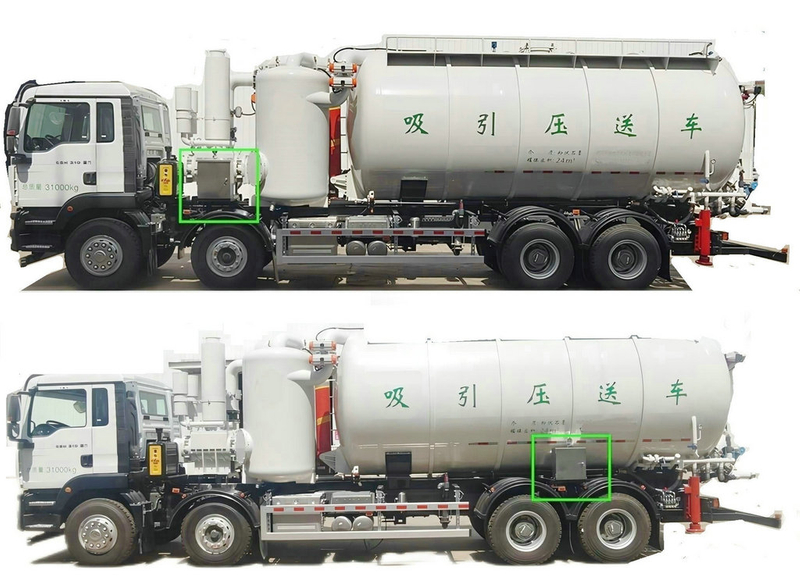

Special devices include Roots vacuum pump, oil-free lubricating swing air compressor, filtration system, lifting oil cylinder, tank body, negative pressure suction, positive pressure discharge, dust filtration and transportation in the tank.
Suction operation steps:
1) When the suction pressure delivery tank truck arrives at the ground storage bin, the vacuum port of the vehicle is butted with the suction interface of the storage system;
2) After the butt joint is completed, the vacuum suction system of the vehicle is started, and the negative pressure in the storage bin is sucked into the bearing tank of the suction pressure delivery tank car through the ground device feeding system of the storage bin.
Layout operation steps:
1) When the material carried by the suction pressure conveying tank truck arrives at the ground material receiving bin, the material discharging interface of the positive pressure pressure discharging system of the vehicle is butted with the material receiving system input interface of the material receiving system device ①;
2) After the butt joint is completed, the positive pressure discharge system of the vehicle is started, and through the material receiving system of the ground device of the material receiving bin, the material in the vehicle bearing tank is pressurized and discharged to the ground material receiving bin by using the compressed gas of the vehicle
