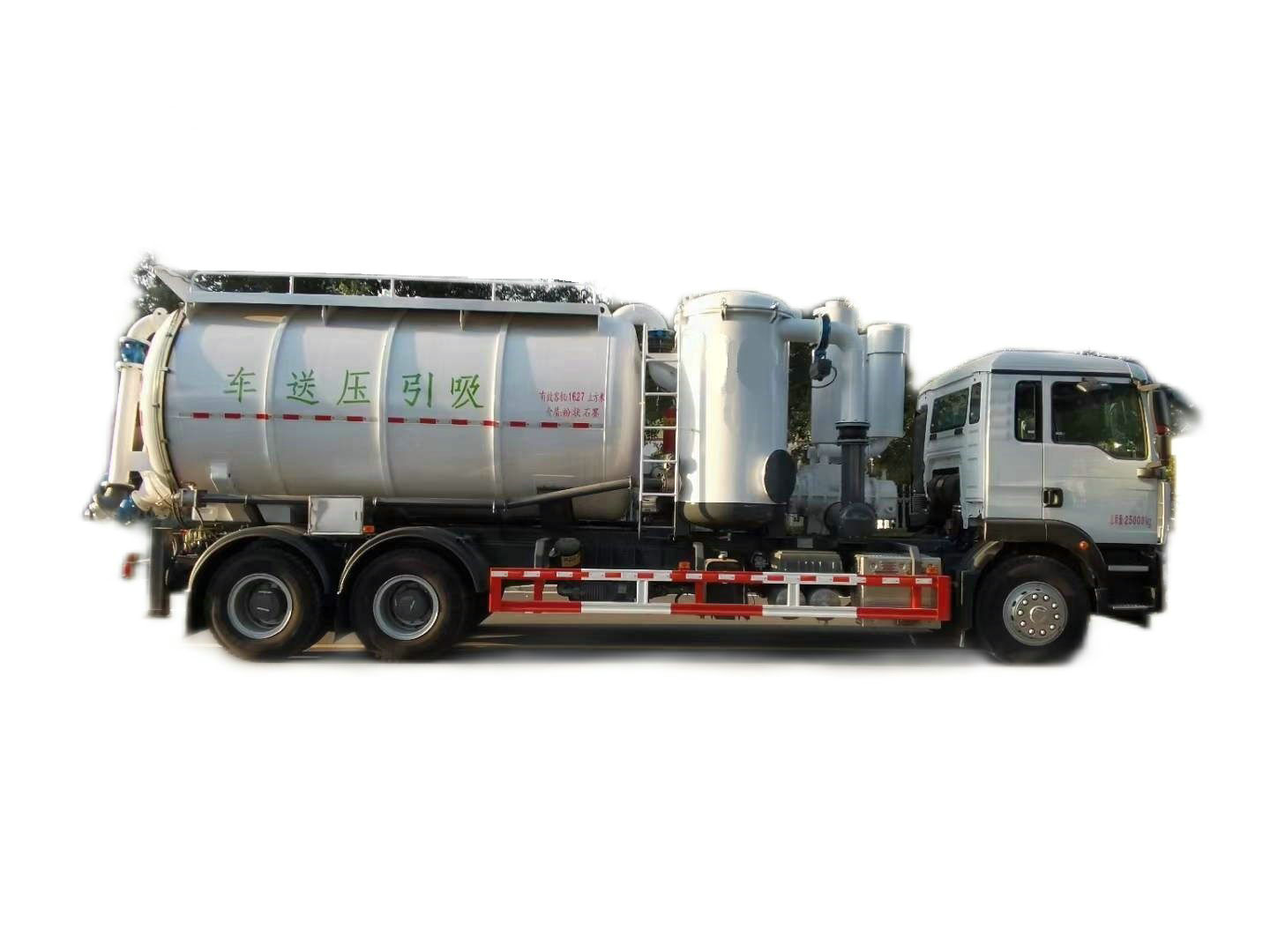

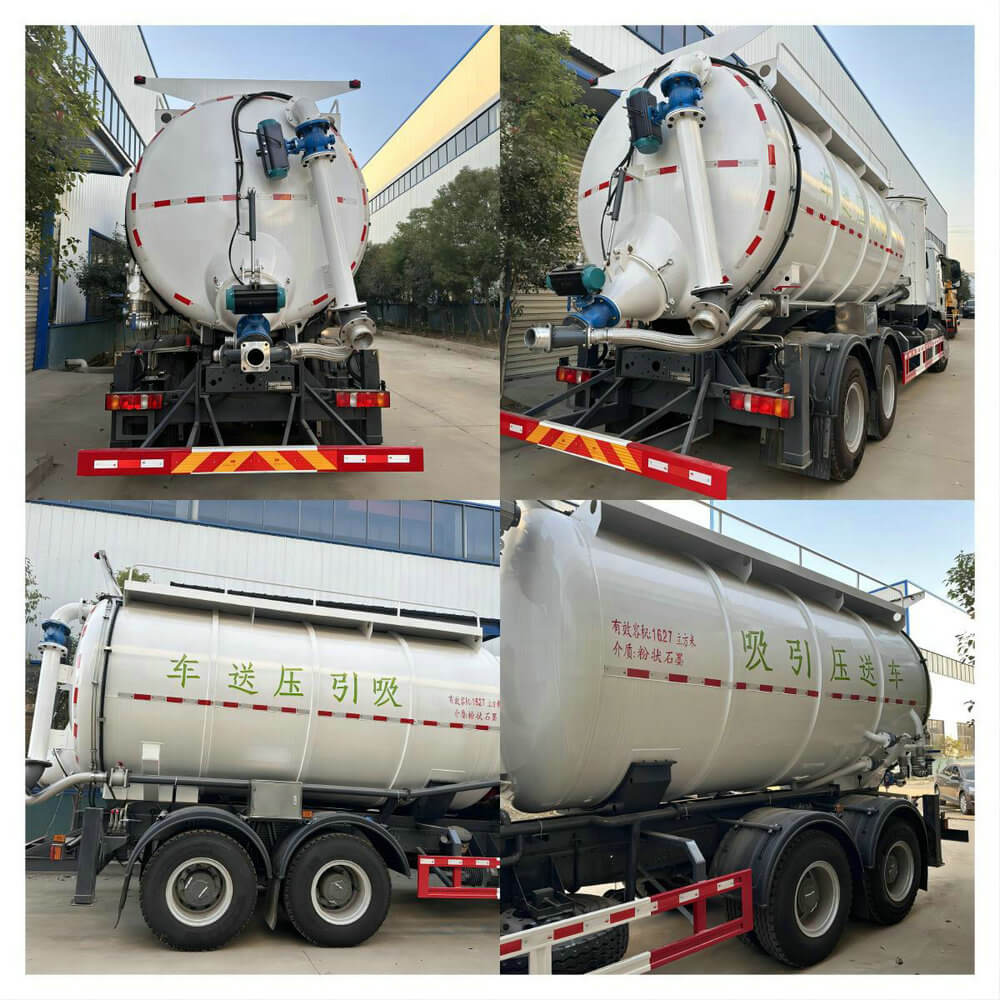

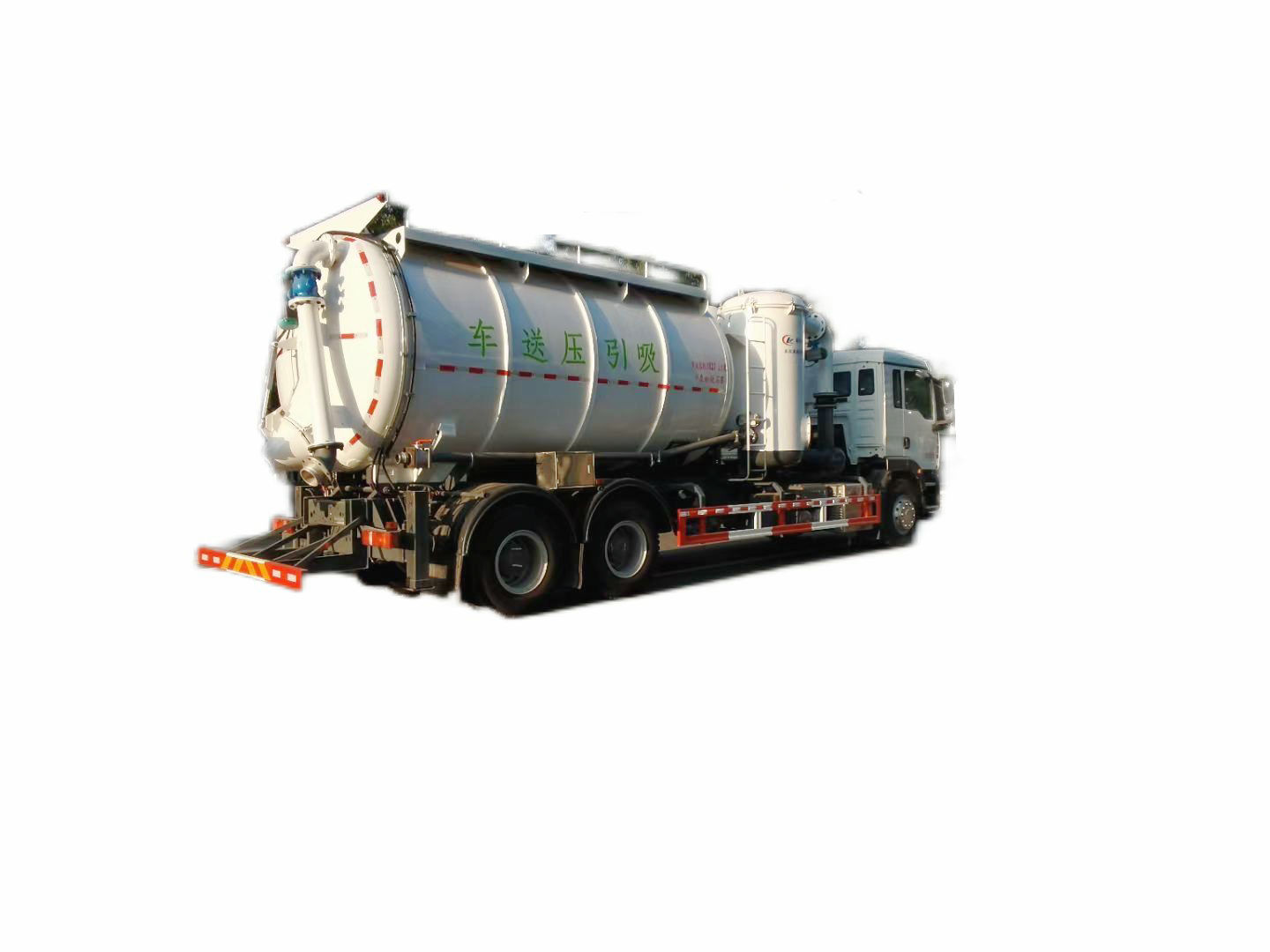

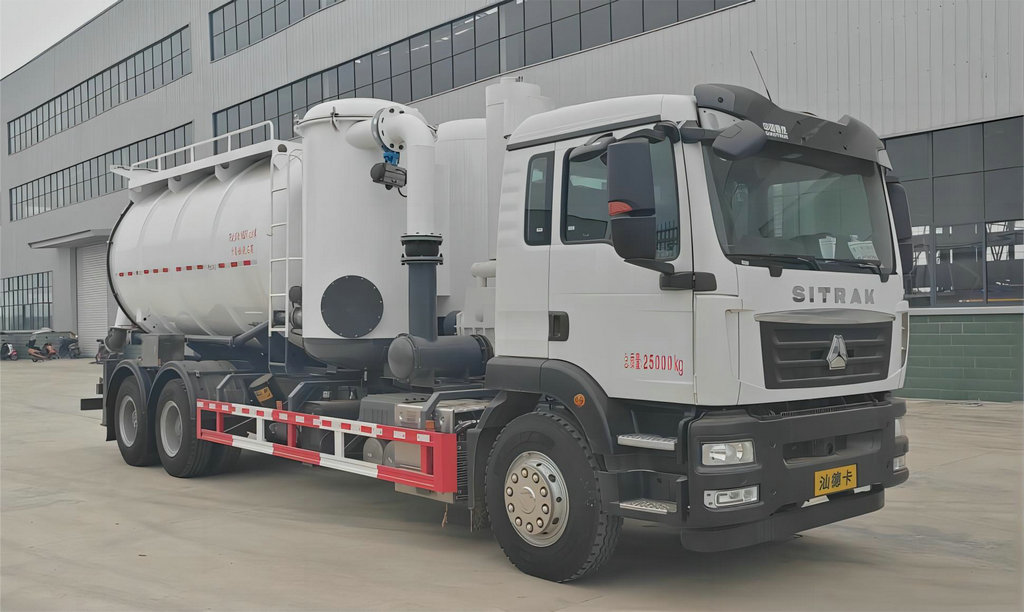

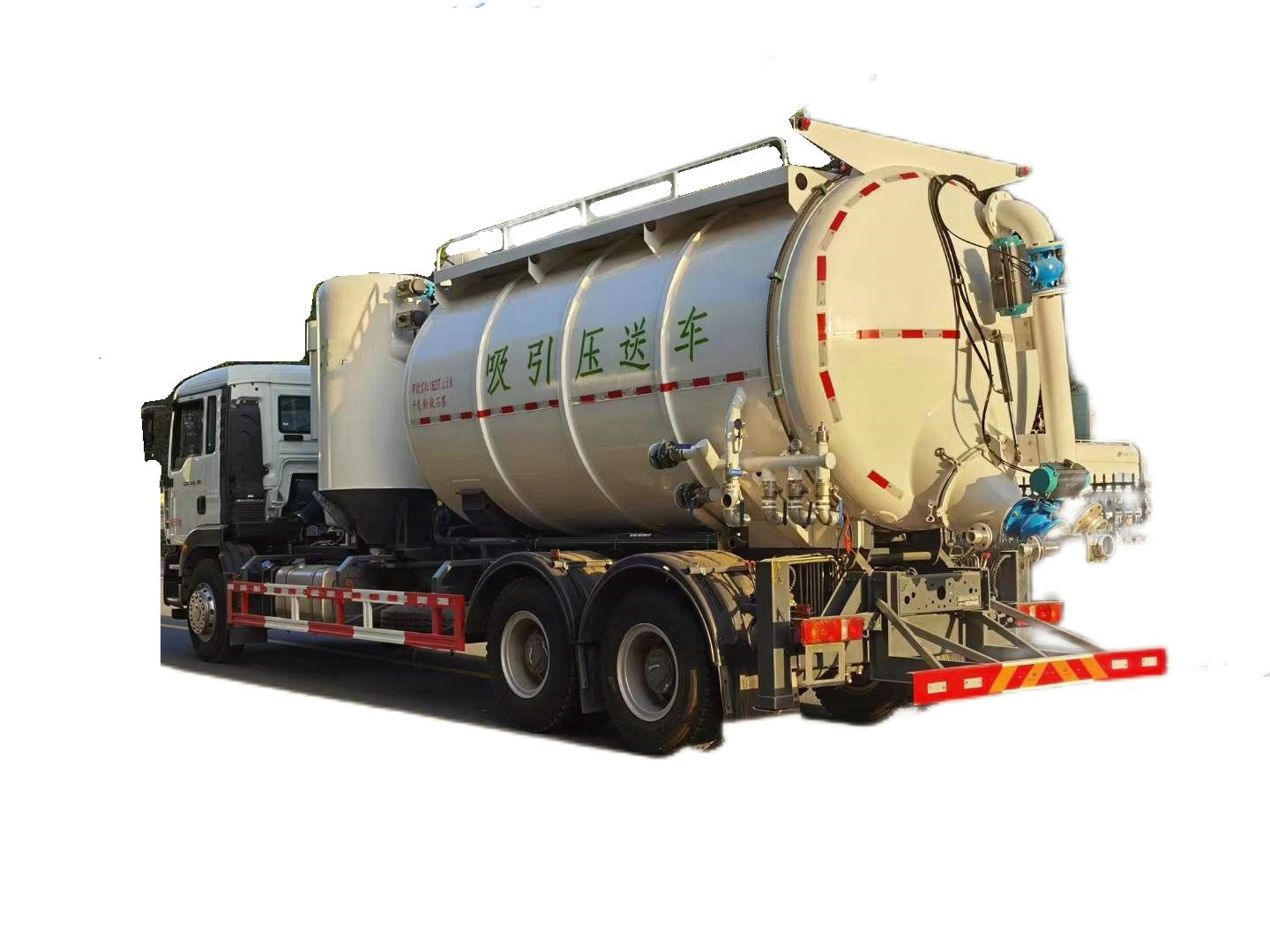

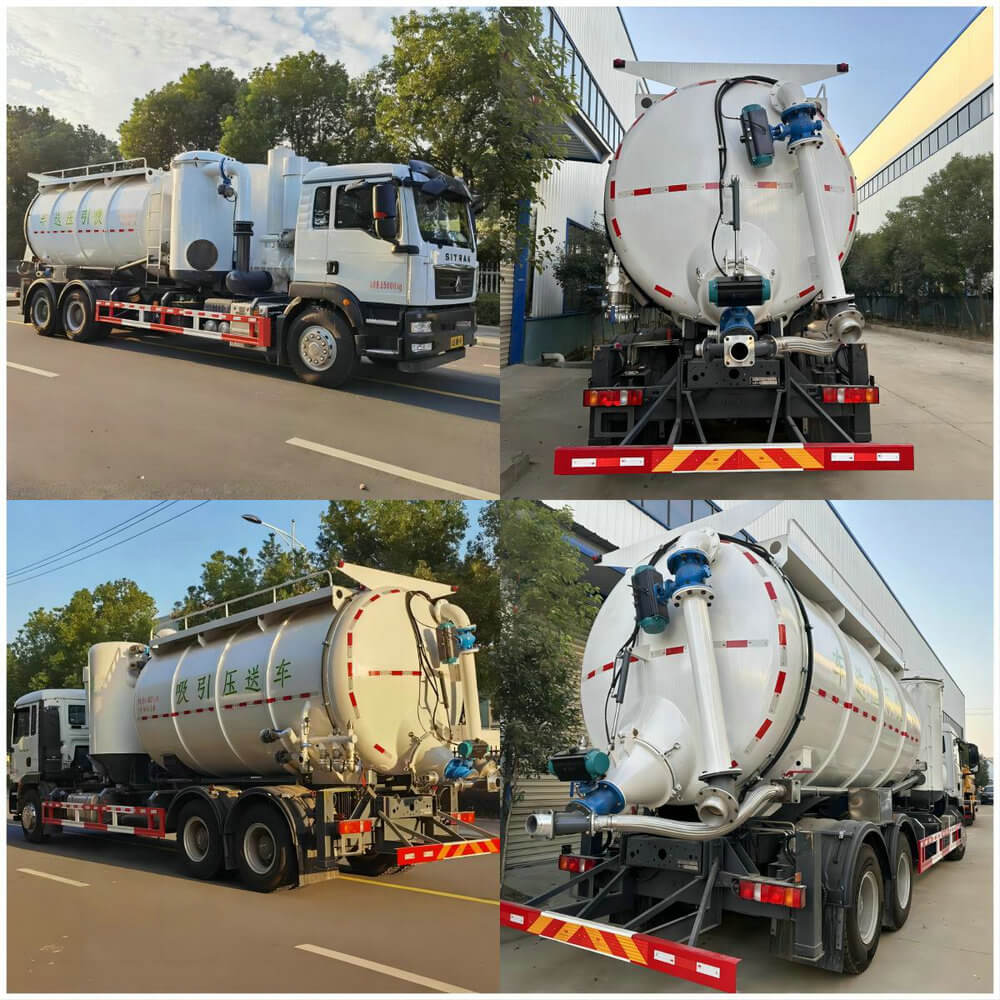

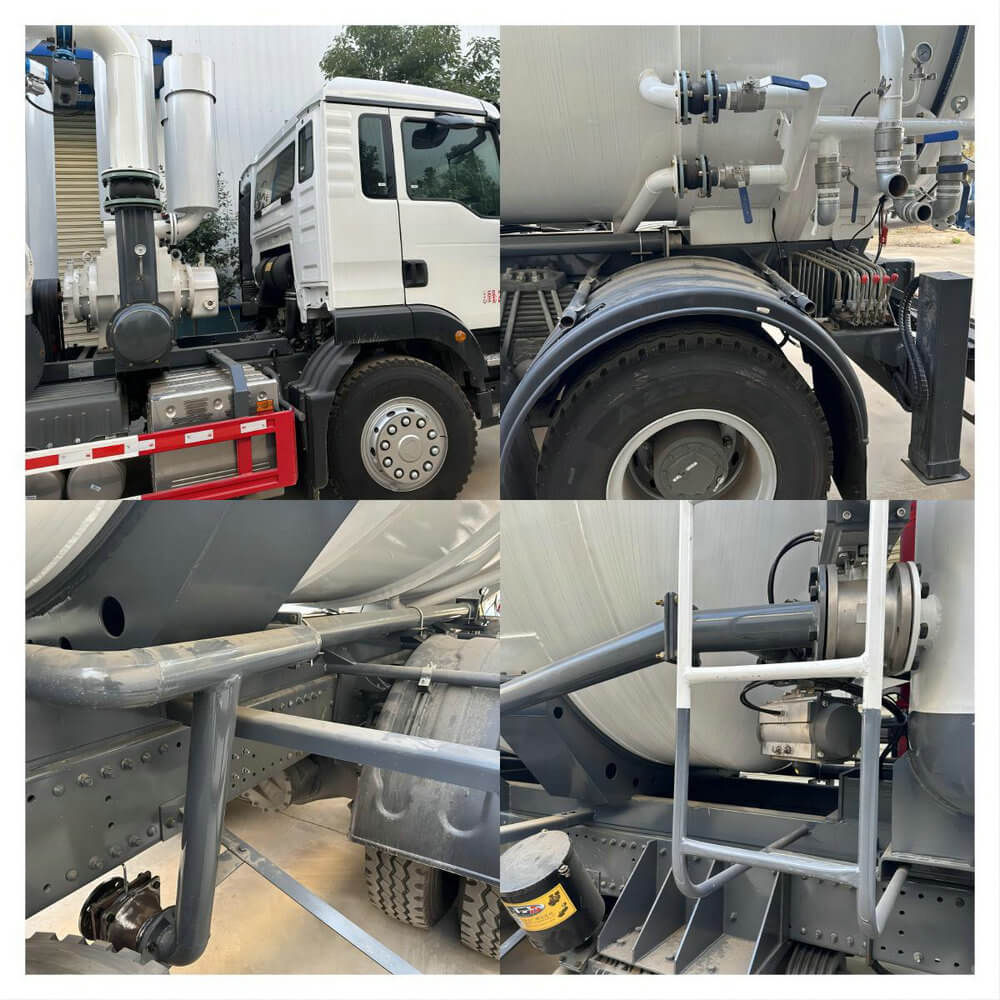

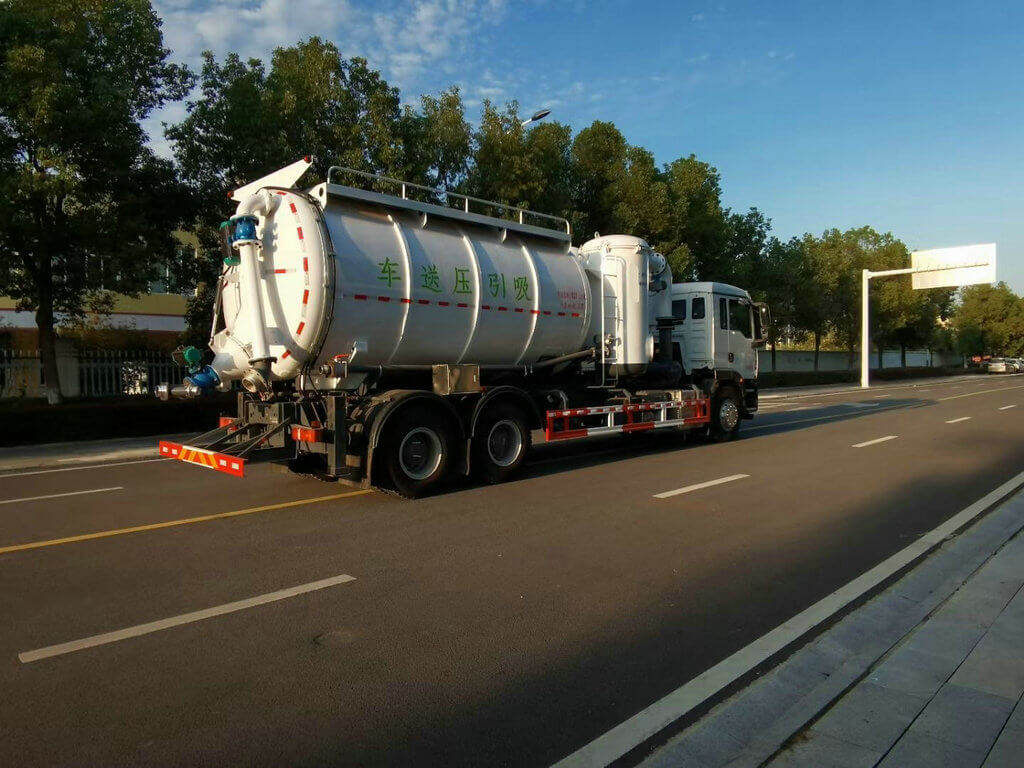

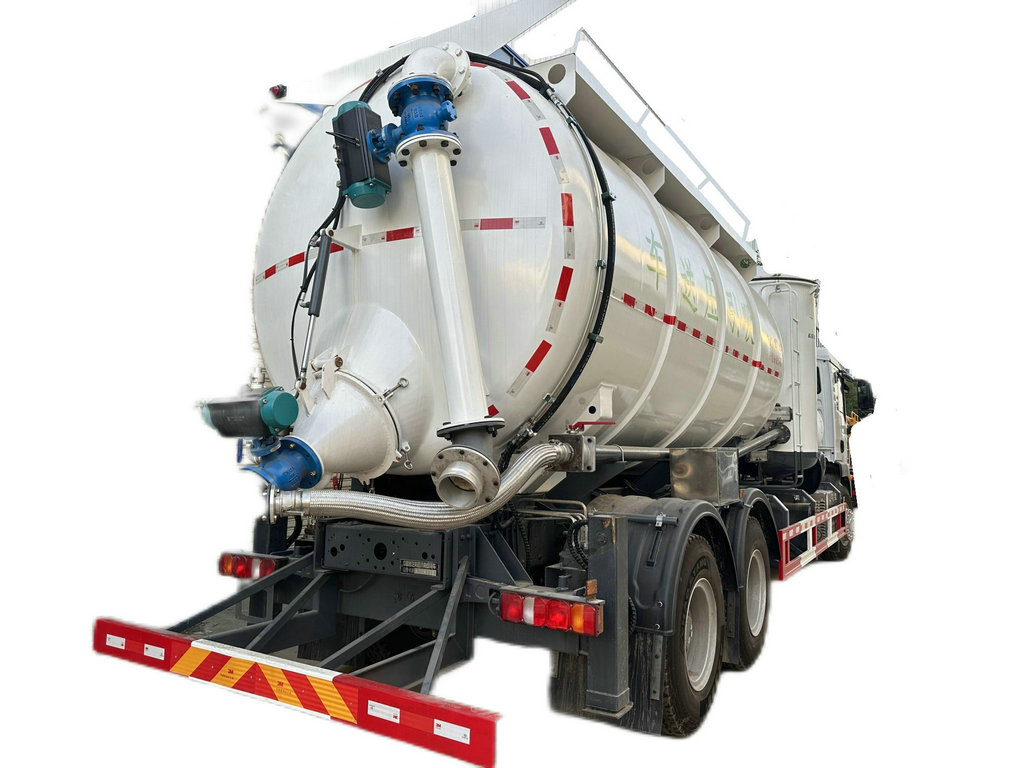

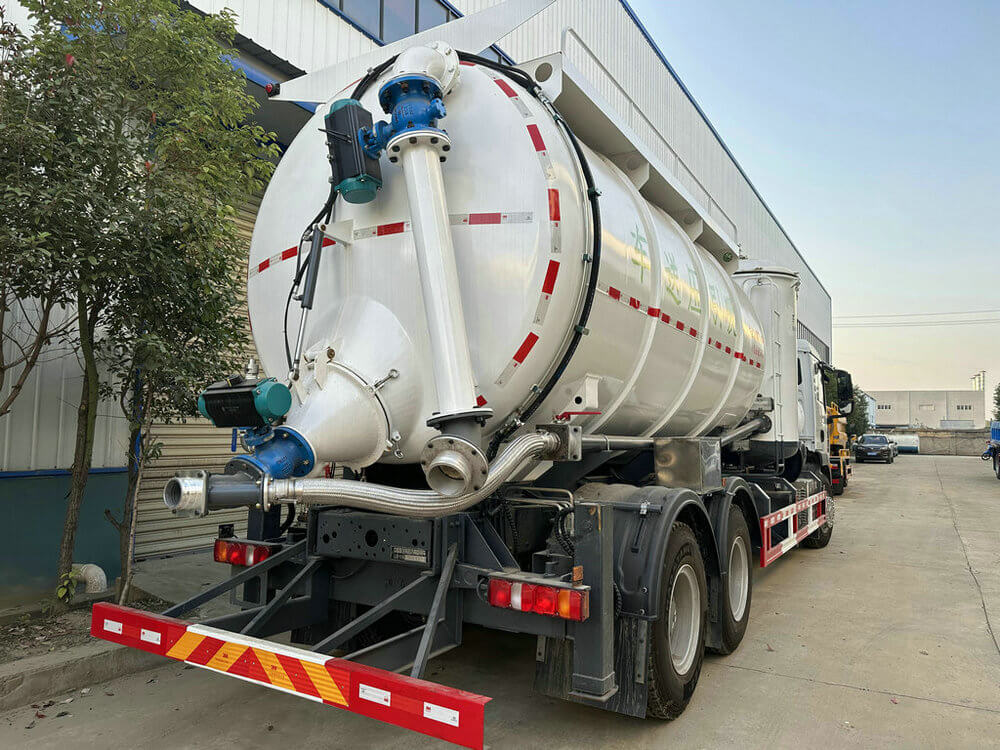

Customizing Super Sucker SITRAK Industrial Vacuum Truck 16M3
Dry Powder Super Suckers
16-17m3 tank, Equipped with air compressor, Roots vacuum pump
Chassis SITRAK ZZ5256XXYN504GF1
Main technical parameters
Overall dimensions: | 11000 * 2550 * 3750 (mm) | Fuel Type: | Diesel oil |
G.W | 25000(Kg) | ||
N.W | 17480(Kg) | Rated load mass: | 7390,7325(Kg) |
Approach Angle/Departure Angle: | 16/14 (°) | Front/rear overhang: | 1450/2400(mm) |
Axle Load: | 7000/18000(two-axis group) | Wheelbase: | 3875+1400,3900+1350,4275+1400, 4300+1350,4575+1400,4600+1350, 4975+1400,5000+1350,5375+1400, 5400+1350,5775+1400,5800+1350 (mm) |
Number of shafts: | 3 | Maximum speed: | 89,110(km/h) |
Number of tires: | 10(PCS) | Tire Specifications: | 12.00R20 16PR,11.00R20 18PR,12R22.5 18PR,295/80R22.5 18PR,315/80R22.5 18PR/315/80R22.5 16PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 3/4,3/5,3/10,11/10,11/12,3/-/- |
Front wheel base: | 1998,2035(mm) | Rear wheel base: | 1850/1850(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
WP7.270 E61. WP7.300 E61. MC07H.35-60; MC07H.33-60; MC07H.29-60; MC07.33-60; MC09.35-60; MC07.31-60; MC07.27-60; MC07.34-60; WP8.350 E61. WP6H270E61; MC09.38-60; MC07.25-60; WP8.320 E61. WP7H270E62; WP7H300E62; WP7H320E62; MC07H.31-61; MC07H.35-61; WP8.350 E62; MC07H.35P-61 | Weichai Power Co., LTD. China Heavy Duty Automobile Group Co., LTD | 7470; 7470; 7360; 7360; 7360; 6870; 8765; 6870; 6870; 6870; 7800; 6220; 8765; 6870; 7800; 6800; 6800; 6800; 7360; 7360; 7800; 7360 | 199; 220; 257; 240; 213; 240; 260; 228; 202; 251; 257; 199; 279; 188; 235; 199; 221; 235; 228; 254; 257; 258 |
wheelbase chassis 5800+1350(mm) . Equipped with tank body, air compressor, Roots vacuum pump, lifting cylinder and other special devices, through the vacuum pump to produce negative pressure for the powder material vacuum suction loading, using the air compressor positive pressure discharge. The top closure cannot be slotted, and the rear cannot be opened. The total capacity of the tank is 17.09 cubic meters, the effective volume is 16.27 cubic meters, the overall size of the tank (length × diameter)(mm): 5200×2200,T ransport medium is: powdered graphite, density :450 kg/cubic meter. Optional speed limiting device, speed limiting 89km/h. | |||
Configuration parameters of the tank | ||||||
Tank volume (m ³ ) | 16.27 | Optional loading flour and other grain food grade stainless steel tank, pipeline food grade fluorine rubber parts. | ||||
Seal head type | rotary press modelling | |||||
Maximum lifting Angle of the tank body | 45 ° | |||||
Maximum working negative pressure in the tank (mpa) | -0.08 | |||||
shell of tank | Inbuilt type integral type | With the lifting and unloading function | ||||
Landing Gear | Two-way rear leg | hydraulic pressure | ||||
Sucking system configuration parameters | ||||||
vacuum pump | Roots type | |||||
Drive type | PTO | |||||
Method of feeding | Negative pressure suction material | |||||
Maximum working negative pressure (MPa) | —0.05 | |||||
Sucking speed (T / h) | 30～80 | According to the material nature and the actual bin site debugging of the optimal speed | ||||
Inner diameter of suction pipe (mm) | 150 | |||||
Dust filtration method | Five-level filter dust removal : capacity expansion gravity, dust removal, cyclone curve dust removal, line, sexual gravity dust removal, cloth bag filter dust removal, micro-filter foreign body filtration | 50 filter bags (long service life of filter bags) | ||||
Exhaust dust content (mg / m³) | 8 | |||||
Filter bag ashcleaning mode | back flushing | |||||
Ultra-low emission design description: 1. The filtering system designed by proprietary technology, the first in China. 2,37 filter bag configuration, operation air emission 8 mg / m³ exhaust dust content, greatly improve the enterprise emission environmental protection standards. 3. Proprietary technology design, larger internal space of the filter system, reasonable filter bag distribution space, filter bag permeability better, longer service life, greatly saving the replacement cost of vulnerable parts. | ||||||
Discharge system | remarks | |||||
Gas source equipment | air compressor | Or ground external air source | ||||
air compressor | The swing is oil- free | |||||
Discharge method | 1. Pressure discharge 2, emergency open the back cover lifting and dumping | |||||
Maximum working pressure (MPa) | 0.2 | (Ground air source is equipped with pressure educing valve, with reduced pressure of <0.2MPa, flow rate >15m³ / min) | ||||
Discharge speed (T / h) | 30~80 (In no external gas source, discharge material Highly up to 23 m, reference material for cement) | According to the properties of the material and the actual material warehouse is present Field debugging gives the optimal speed | ||||
Inner diameter of discharge pipe (mm) | 100 | External explosive materials must be Transported Nitrogen gas. flour and other grain The air cooling system should be installed. | ||||
Back cover opening mode | Hydraulic on | |||||
The rear Manhole cover opens to the maximum angle | 100 ° | |||||
Manhole cover locking mode | The bolt lock | |||||
Residual material rate in the tank | 2% | |||||
Hydraulic lifting system configuration parameters | remarks | |||||
System pressure (MPa) | 16 | |||||
Hydraulic fuel tank volume (L) | About 80 | |||||
Other configuration parameters | ||||||
The suction valve | Valve DN 150 interface DN 150 | Chosen Food Grade stainless steel valve.when loading flour and other grains | ||||
Blow-off valve | Valve DN 125 interface DN 100 | |||||
Other valves | DN50～DN200 | |||||
Wear-resistant parts | Ceramic elbow and straight pipe (suction and discharge pipe elbow with special process of professional manufacturers) | |||||
