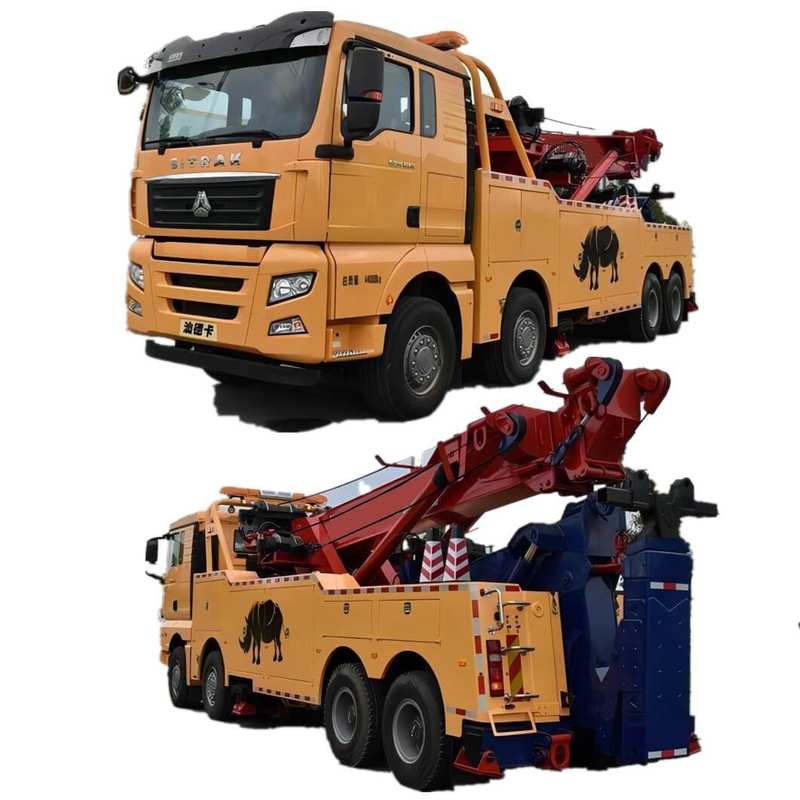

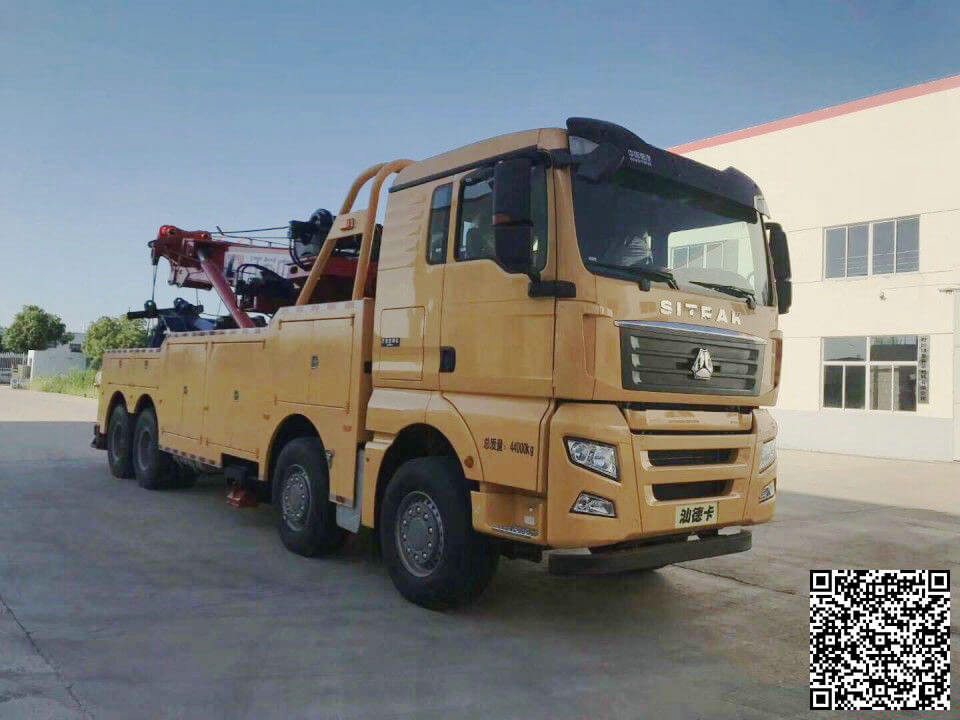

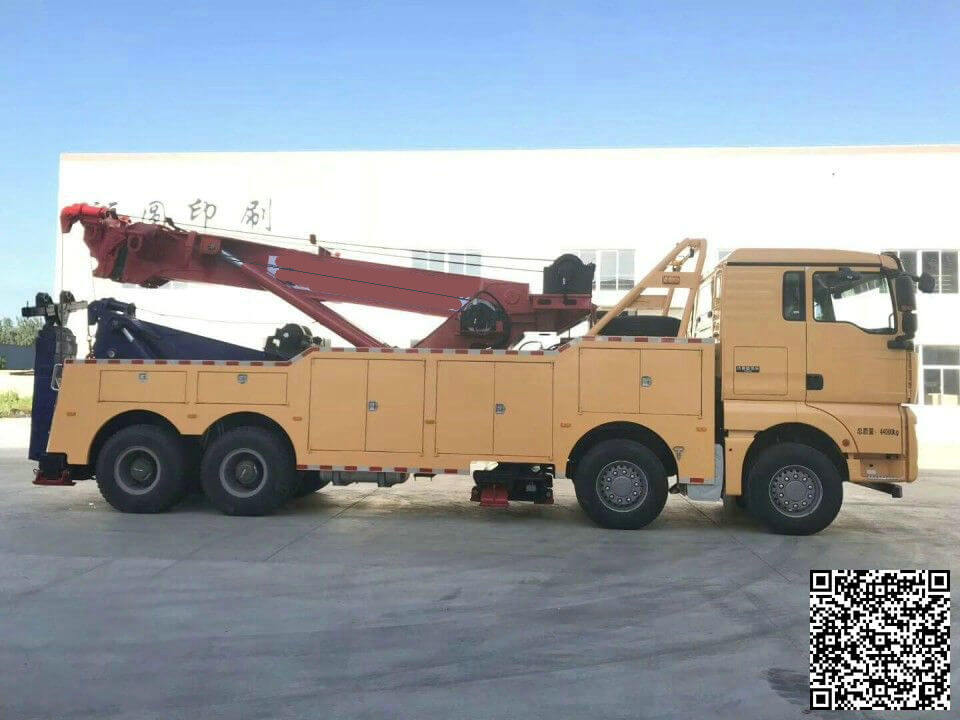

SITRACK MAN Engine Recovery Tow Trucks with 50T Rotator
with Two Hydraulic Winch 250KN Towing 50T
Price for refer only. Final Price Offer Discount.
| FOB: | |
|---|---|
| Quantity: | |
|
| |
-
DRZ5
-
Dong Run
-
8705909990
SITRACK Recovery Tow Trucks with 50T Rotator 500HP MAN Engine
Two Hydraulic Winch 250KN Towing 50T
Vehicle model | ZZ5180TQZ6 |
Chassis Model | ZZ5446V516MF1 |
Manufacturer | SINOTRUCK |
vehicle size | 11400×2500×3900 |
Full load mass/curb weight | 44000/39500 |
Driving form | 8×4 |
Wheelbase (mm) | 1950+4525+1350 |
Vehicle speed (km/h) | 90 |
Engine model | MC13.54-61 |
Manufacturer | SINOTRUCK |
Rated power (kW) | |
Fuel type | Dises |
Emissions | Euro 5-6 |
Tire specifications | 385/65R22.5 |
Rated lifting mass (kg) | 20000 |
Mass of lifting in place (kg) | 26000 |
Full extension large lift mass (kg) | 15000 |
Rated traction mass (kg) | 44000 |
Large design traction mass (kg) | 60000 |
Effective length of arm support (mm) | 3770 |
Telescopic stroke of supporting arm (mm) | 1850 |
Arm folding angle (°) | 97 |
Lower inclination angle of arm support (°) | -7 |
Rated lifting weight of lifting arm (kg) | 40000 |
Large lifting height of lifting arm (mm) | 14800 |
Boom telescopic travel (mm) | 6600 |
Boom rotation angle (°) | 360° |
Max boom Angle Amplitude variation (°) | 0～60 |
Complete vehicle model | ZZ5441TQZ6 | |
Chassis type | ZZ5446V516MF1 | |
manufacturer | Sinotruk Group Jinan Commercial Vehicle Co., LTD | |
Vehicle size (mm) | 11400×2500×3900 (X type) 11500×2500×3500 (Type S) | |
Full load mass/Service mass (kg) | 44000/39500 | |
Driving form | 8 x 4 | |
wheelbasemm) | 1950 + 4525 + 1350 | |
Speed of vehicle (km/h) | 90 | |
Engine type | MC13.50-60 | |
manufacturer | China Heavy | |
Rated power (kw) | 371 | |
Fuel type | Diesel oil | |
Emission standard | Euro 5 /6 | |
Rotator (Type X) | Intergrated (Type S) | |
Vehicle size (mm) | 11400 * 2500 * 3900 | 11500 * 2500 * 3500 |
Rated design lift quality (kg) | 20000 | 20000 |
Maximum load capacity at minimum reach (kg) | 26000 | 26000 |
Maximum towing device load capacity at maximum reach Full extension maximum lift mass (kg) | 15000 | 15000 |
Maximum towing device load capacity at minimum reach Pulling force of the winch Rated towing mass (kg) | 44000 | 44000 |
Maximum design holding mass (kg) | 60000 | 60000 |
Basic arm length (mm) | 6340 | 5560 |
Boom expansion travel (mm) | 6600 | 3300 |
Maximum lifting height of boom (mm) | 14800 | 5600 |
Maximum boom load capacity at minimum reach Maximum design bearing mass of boom (kg) | 60000 | 60000 |
Fully extended boom Angle 30° Maximum boom load capacity at maximum reach (kg) | 7000 | 20000 |
Wheel | Engine | Max | Under Lifting System | Boom System | Winch | Outrigger | ||||
mm | kM | kg | Max Hoisting kg | Max Hoisting | Max Lifting kg | Max Height mm | Qty. | Rated Of Pulling | F OutriggerSpan mm | R Outrigger Span(mm |
1995+4405+1370 | 339 | 41000 | 26000 | 12000 | 50000 | 7800 | 2 | 200x2 | 6600 FRONT | 4080(Rear |
1800+4600+1350 | 276 | 43000 | 16000 | 8700 | 40000 | 7000 | 2 | 150x2 | 6600 | 4080 |
1800+4600+1350 | 276 | 31000 | 16000 | 8700 | 40000 | 7000 | 2 | 150x2 | 6600 | 4080 |
1950+4625+1350 | 297 | 44000 | 16000 | 8700 | 40000 | 7000 | 2 | 150x2 | 6600 | 4080( |
Wheel | Engine | Max | Under Lifting System | BoomSystem | Winch | |||
mm | kM | kg | Max Hoisting kg | Max Hoisting All Extended kg | Max Lifting kg | Max Height mm | Qty. | Rated Of Pulling For Each One(kN |
1950+3625+1375+1350 | 327,400 | 53000 | 35000 | 13000 | 50000 | 6860 | 2 | 250×2 |
1800+4600+1350 | 276 | 31000 | 26000 | 11000 | 50000 | 6700 | 2 | 200×2 |
1800+4600+1400 | 287 | 43000 | 26000 | 11000 | 50000 | 6700 | 2 | 200×2 |
5900+1400 | 257 | 34000 | 16000 | 8000 | 20000 | 6500 | 2 | 100×2 |
5900+1400 | 257 | 34000 | 16000 | 8000 | 20000 | 6500 | 2 | 100×2 |
5900+1400 | 257 | 34000 | 16000 | 8000 | 20000 | 6500 | 2 | 100×2 |
5825+1350 | 249,276 | 25000 | 16000 | 8000 | 20000 | 6500 | 2 | 100×2 |
1800+4600+1350 | 276 | 31000 | 26000 | 11000 | 50000 | 6700 | 2 | 200×2 |
