Availability: | |
---|---|
Quantity: | |
DRZ5161
ISUZU
8705
Shanghai, China
800
T/T
Used to collect, transport and discharge liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.

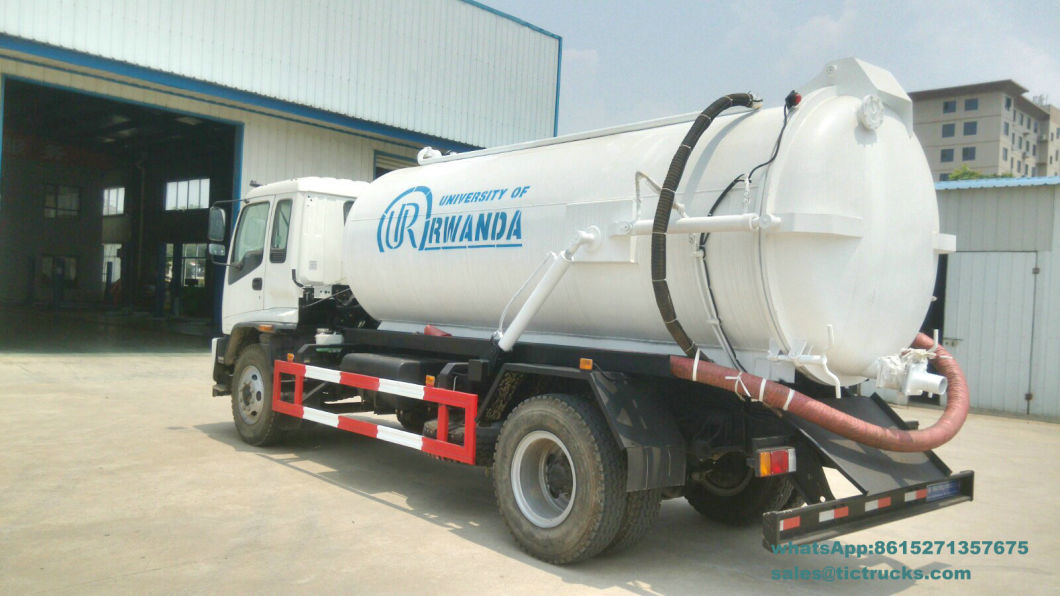

The tank of a sewer vacuum truck could be hydraulic lifted and the rear door of tank could be hydraulic opened for completely tipping sewage and solid stuff.
Features:
---- ISUZU chassis, perfect performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Vacuum pump super powerful, highly efficient.
---- Massive, durable, long service life.
Main body material | Q235A carbon steel / 6MM with 2 Strengthen rolled steel rings reinforcement, end of the tank with 8mm carbon steel. |
Vacuum pumps model | Rotary vane type 50QZXDG-45/400 or 65QZXDG-68/400 |
vacuuming both sewage and sludge | |
Maximum AOB | ≥45° |
Effective suction | ≥ 5 |
Vacuum system(MPa) | ≥11 |
Lifting time(s) | ≤45 |
Cover opening Angle(°) | ≥75° |
Cover open time (s) | ≤25 |
Suction pipe diameter (mm) | 100 |
length of the Hose | 18ft*4pcs |
Tanks full sucked time (min) | ≤12 |

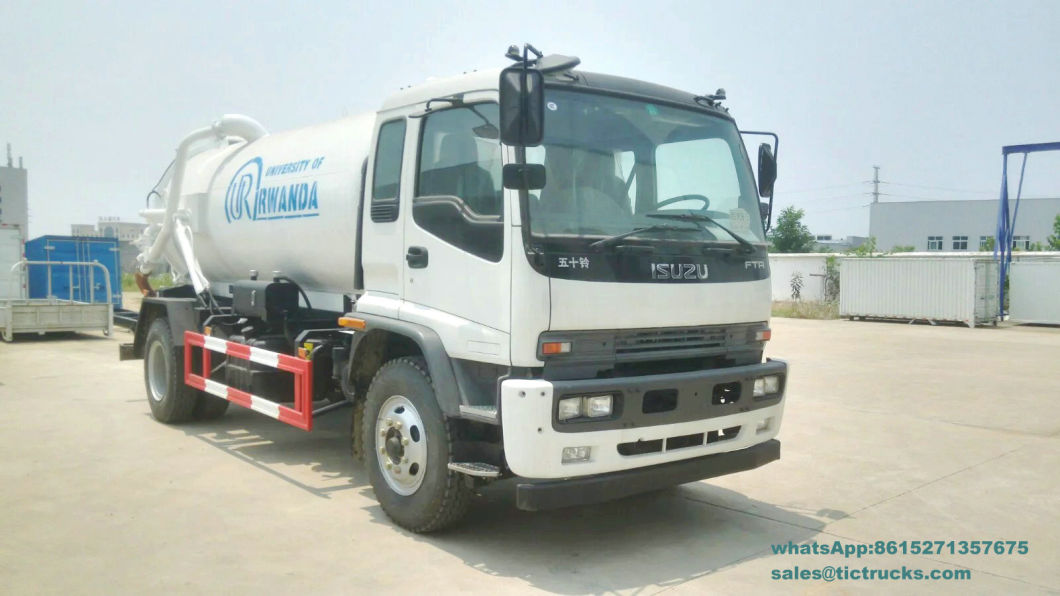

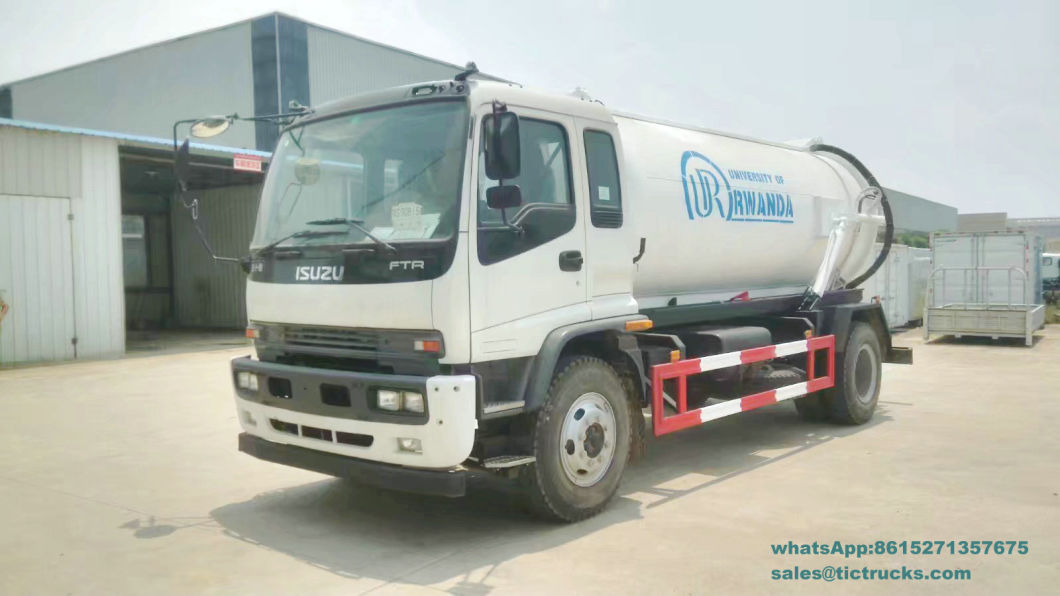

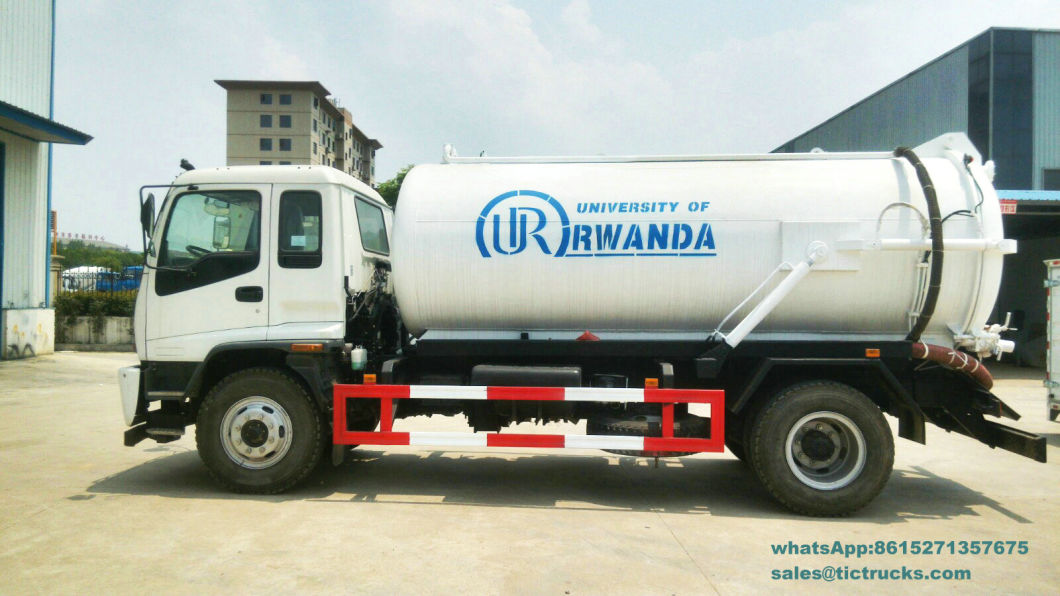

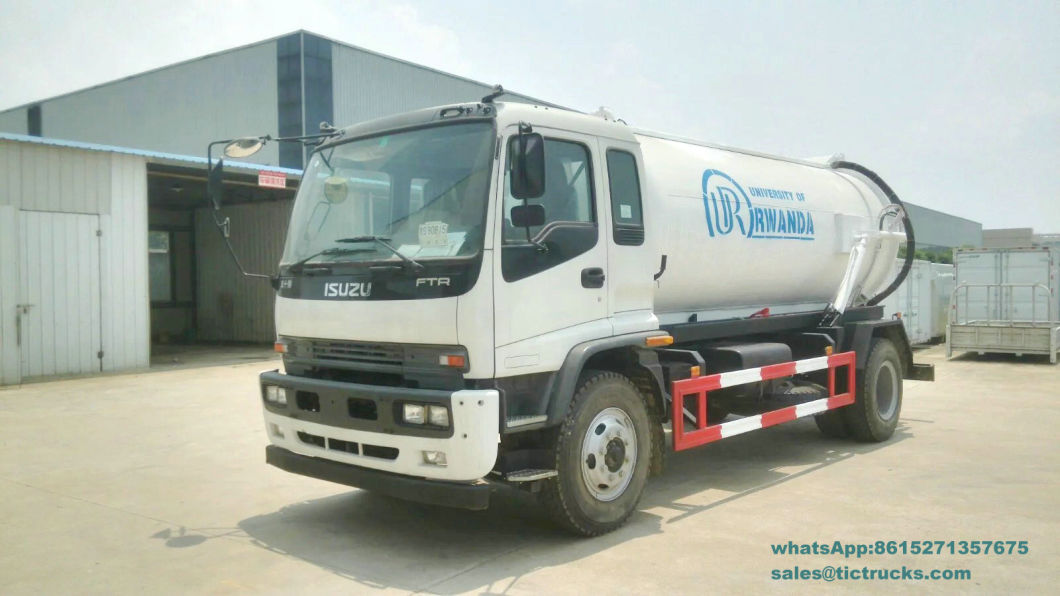

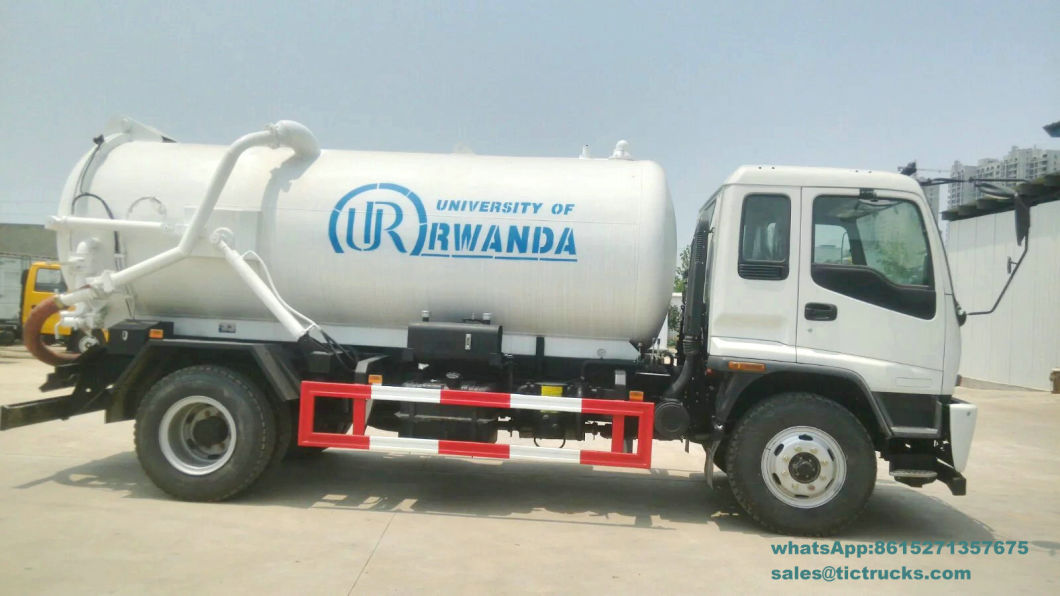

Sewer Vacuum Truck ISUZU (10,000 Litres) | ||||||||
General | Vehicle Brand | DONG RUNZE | ||||||
Chassis Brand | ISUZU | |||||||
Overall Dimension | 8250 * 2500 * 3300 mm | |||||||
GVW / Kerb Weight | 18,000 kg / 8,048 kg | |||||||
Cab | Cab Capacity | 3 persons allowed | ||||||
Air Conditioner | W/ air conditioner | |||||||
Engine | Fuel Type | Diesel | ||||||
Engine Brand | ISUZU engine 4HK1-TC50 | |||||||
Power | 205HP(150KW) | |||||||
Displacement | 5193 ml | |||||||
Emission Standard | Euro V / Euro5 | |||||||
Chassis | Drive Type | 4X2, left hand drive | ||||||
Transmission | ISUZU gear box, no overhaul within 500,000km | |||||||
Wheelbase/No. of axle | 4500 mm / 2 | |||||||
Tyre Specification | 10.00R20;11R22.5 | |||||||
Tyre Number | 6 tyres and 1 spare tyre | |||||||
Max Speed | 95 km/h | |||||||
Paint | Metallic paint | |||||||
Superstructure | Tank Capacity | 10,000 Litres | ||||||
Tank Material | Carbon steel Thickness: 6mm | |||||||
Suction Head | 7m | |||||||
Vacuum Pump | Highly efficient, vacuum rate 93%, Absolute working pressure: 400Pa Academic suction speed: 45L/s ;90L/s Rotation speed: 400~500rpm (5400 L/min ) | |||||||
Hose | High quality, wire strengthened hose | |||||||

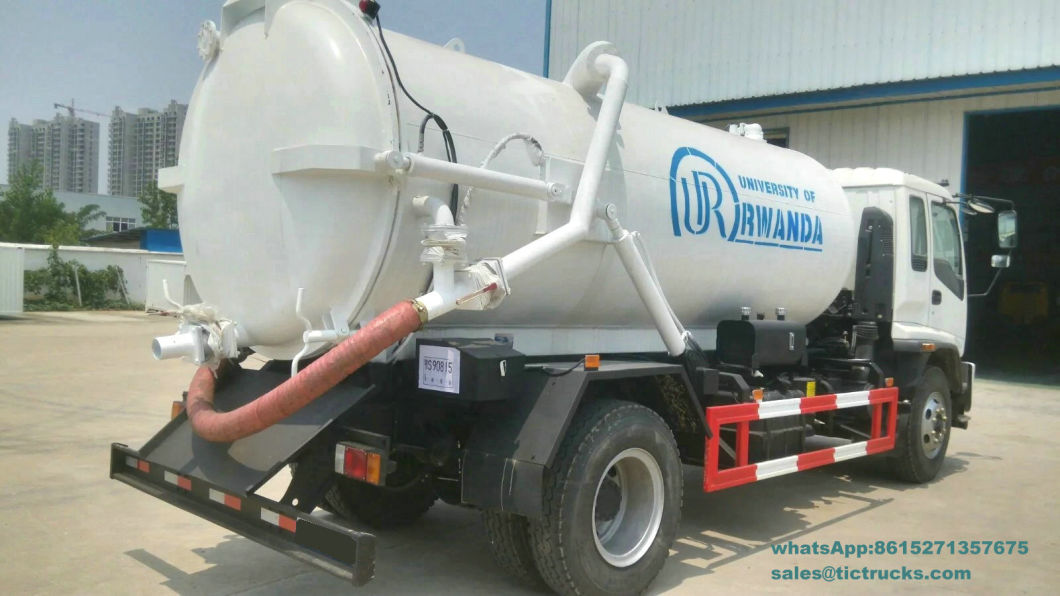

Rear door can be hydraulic opened for complete discharge of solid stuff. | ||||||||
All standard accessories: inlet, discharge, antifill valve..... | ||||||||
Optional | ** Tank material could be carbon steel, stainless steel..….. ** Vacuum pump could be imported brand... | |||||||
Left hand side control | Yes | |||||||
6 | Steering | Integral and hydraulic power assisted | Yes | |||||
System | Turning radius: 8 m | Yes | ||||||
leaf spring | ||||||||
Front Axle: Parabolic leaf spring or Air | leaf spring | |||||||
7 | Suspension | Rear Axle: Parabolic leaf spring or Air | ||||||
Front: Single, 11.00 x 20 Tyres | 11R22.5 or 11.00R20 | |||||||
8 | Tyres | Rear: Dual, 11.00 x 20 Tyres | 11R22.5 or 11.00R20 | |||||
Spare wheel same size, mounted ion frame rails | 11R22.5 or 11.00R20 | |||||||
Voltage: 24V | Yes | |||||||
Batteries: 2 x 12V, 150 Ah | Yes | |||||||
9 | Electrical | Alternator: 24V, 55A | Yes | |||||
Sytem | Starter Motor: 24V | Yes | ||||||
All electrical component fully tropicalized | Yes | |||||||
1 | Headlamps, fog Lamps | Yes | ||||||
All calibrations on gauge/meters to be in metric units | Yes | |||||||
10 | Instruments | Speedometer, odometer, tripmeter | Yes | |||||
Monitors | Engine coolant temperature gauge | Yes | ||||||
Low Engine oil warning light | Yes | |||||||
Battery charging warning light | Yes | |||||||
Fuel level gauge and low warning light | Yes | |||||||
Seating capacity: 3 persons | Yes | |||||||
Non-sleeper cab | Yes | |||||||
11 | Cab | Forward control tilting cab | Yes | |||||
Air conditioner | Yes | |||||||
SW/FM Radio with electronic tuning and CD player | Yes | |||||||
Capacity: 10,000 litres | Yes | |||||||
12 | Tank | Discharge test pressure: 58.8 kPa | Yes | |||||
Vacuum test pressure: 93.3 kPa | Yes | |||||||
Plate thickness: 6 mm | Yes | |||||||
Rotary vane type vacuum pump | ||||||||
13 | Pump | Vacuum pump driven by transmission P.T.O from driver's cab | Yes | |||||
14 | Main Fittings | Main Manhole | Yes | |||||
Safety valve pump driven by transmission P.T.O from driver's cab | Yes | |||||||
Compound gauge reading "Vacuum" & "Discharge" pressure | Yes | |||||||
Suction and Delivery Ball Valve | Yes | |||||||
Main separator with check valve | Yes | |||||||
Oil cleaner | Yes | |||||||
Sub separator | Yes | |||||||
2 Hose carrier boxes, one on each side of tank | Yes | |||||||
Level gauge at rear door upper section | Yes | |||||||
15 | Accessories | Suction & Delivery Hoses with coupling, 4 inch diameter x 18 ft long Qty: 4 | Yes | |||||
Tool box standard tool set | Yes | |||||||
Beacon light mounted | Yes | |||||||
16 | Miscellaneous | Rechargeable fire extinguisher 6 kg | Yes | |||||
Warning Triangle | Yes | |||||||
First Aid kit | Yes | |||||||
Heavy duty jack, wheel spanner and accessories | Yes | |||||||
Makers standard tool kit | Yes | |||||||
17 | Dimension and Weight | LxWxH: 8200 x 2500 x 3300 mm | ||||||
Front axle capacity: 7,000 kg | 7,000 kg | |||||||
Rear axle capacity: 11,000 kg | 13,000 kg | |||||||
Gross Vehicle Weight - 18,000 kg | Yes | |||||||
Wheelbase 4200 mm | 4500mm | |||||||
Ground clearance 260 mm | Yes | |||||||
Curb Vehicle Weight- 8000 kg | Yes | |||||||
Payload- 10,000 kg | Yes | |||||||
18 | Warranty | 2 years | Yes | |||||
19 | Operating Cost Info | Fuel consumption per 100 km run | Empty 12.8L / Full Loading 23.8L | |||||
Detailed maintenance cost for the first 40,000 kms | Clutch plate - 2 Nos Diesel Filter - 8 Nos Water Separator - 8 Nos Oil Filter - 16 Nos Air Filter - 4 Nos Fan Belt - 4 Nos Alternator Belt - 4 Nos Spare Vac pumps- 1Nos Sealing ring For tank cover 2 Nos $5000-- | |||||||
20 | After sales Service | State location of maintenance workshops | ||||||
State location of spare parts stores | ||||||||
Any other additional /privileged services not mentioned in the tender document | ||||||||
21 | Manuals | Original brochure must accompany bids | ||||||
Operating Manual in English |
Customizing | Recovery Wrecker | Special Car | Tanker truck | Aerial platform truck | Concrete mixer | Crane truck | Road Sweeper | Skip Loader | Vacuum truck Combined Jetting | Water Sprinkler truck | Fire Trucks | Milk Tank Truck | Sprayer tank Truck | Chemical Liquid Tanker | LPG Tanker | LED Advertising truck | Mobile fast food cooking truck | Mobile generator truck | Mobile workshop maintenance lorry
Isuzu QL1040A7HAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1-TCG51 | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5900 × 1980 × 2200 |
Power (kW): | 88 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2020 |
Isuzu QL1060A5KAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 3815 |
Displacement (cc): | 2999 | Dimensions (mm): | 6665 × 1980 × 2200 |
Power (kW): | 96 | Gross weight (kg): | 6500 |
Fuel type: | diesel fuel | Curb weight (kg): | 2180 |
Isuzu QL1044A5HAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5900 × 1980 × 2200 |
Power (kW): | 96 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2050 |
Isuzu QL1045A6HAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5LS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5900 × 1980 × 2200 |
Power (kW): | 72 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2050 |
Isuzu QL1240DTFZY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6HK1-TCSG40 | Wheelbase (mm): | 5700+1300 |
Displacement (cc): | 7790 | Dimensions (mm): | 11497 × 2465 × 2810 |
Power (kW): | 206 | Gross weight (kg): | 24000 |
Fuel type: | diesel fuel | Curb weight (kg): | 7300 |
Isuzu QL1080A8PAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TC51 | Wheelbase (mm): | 5200 |
Displacement (cc): | 5193 | Dimensions (mm): | 8912 × 2170 × 2330 |
Power (kW): | 141 | Gross weight (kg): | 8100 |
Fuel type: | diesel fuel | Curb weight (kg): | 3200 |
Isuzu QL1040A5FWY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 2765 |
Displacement (cc): | 2999 | Dimensions (mm): | 5230 × 1880 × 2200 |
Power (kW): | 96 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2100 |
Isuzu QL10909MARY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TCG40 | Wheelbase (mm): | 4475 |
Displacement (cc): | 5193 | Dimensions (mm): | 7930 × 2170 × 2350 |
Power (kW): | 139 | Gross weight (kg): | 9410 |
Fuel type: | diesel fuel | Curb weight (kg): | 3040 |
Isuzu QL10909KARY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TCG40 | Wheelbase (mm): | 3815 |
Displacement (cc): | 5193 | Dimensions (mm): | 6980 × 2170 × 2350 |
Power (kW): | 139 | Gross weight (kg): | 9390 |
Fuel type: | diesel fuel | Curb weight (kg): | 2970 |
Isuzu QL1072A5KAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 3815 |
Displacement (cc): | 2999 | Dimensions (mm): | 6760 × 1995 × 2260 |
Power (kW): | 96 | Gross weight (kg): | 7300 |
Fuel type: | diesel fuel | Curb weight (kg): | 2250 |
Isuzu QL1100A8MAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TC51 | Wheelbase (mm): | 4475 |
Displacement (cc): | 5193 | Dimensions (mm): | 7930 × 2170 × 2330 |
Power (kW): | 141 | Gross weight (kg): | 10000 |
Fuel type: | diesel fuel | Curb weight (kg): | 3210 |
Isuzu QL1160VQFRY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TC50 | Wheelbase (mm): | 5550 |
Displacement (cc): | 5193 | Dimensions (mm): | 8835 × 2490 × 2750 |
Power (kW): | 151 | Gross weight (kg): | 16000 |
Fuel type: | diesel fuel | Curb weight (kg): | 5225 |
Isuzu QL1160VKFRY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TC50 | Wheelbase (mm): | 3900 |
Displacement (cc): | 5193 | Dimensions (mm): | 6435 × 2490 × 2750 |
Power (kW): | 151 | Gross weight (kg): | 16000 |
Fuel type: | diesel fuel | Curb weight (kg): | 4990 |
Isuzu QL1100A8PAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TC51 | Wheelbase (mm): | 5200 |
Displacement (cc): | 5193 | Dimensions (mm): | 8912 × 2170 × 2330 |
Power (kW): | 141 | Gross weight (kg): | 10000 |
Fuel type: | diesel fuel | Curb weight (kg): | 3310 |
Isuzu QL1100A8KAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TC51 | Wheelbase (mm): | 3815 |
Displacement (cc): | 5193 | Dimensions (mm): | 6980 × 2170 × 2330 |
Power (kW): | 141 | Gross weight (kg): | 10000 |
Fuel type: | diesel fuel | Curb weight (kg): | 3180 |
Isuzu QL1180XMFRY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6HK1-TCL | Wheelbase (mm): | 4500 |
Displacement (cc): | 7790 | Dimensions (mm): | 7570 × 2490 × 2810 |
Power (kW): | 177 | Gross weight (kg): | 18000 |
Fuel type: | diesel fuel | Curb weight (kg): | 5500 |
Isuzu QL1180XQFRY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6HK1-TCL | Wheelbase (mm): | 5550 |
Displacement (cc): | 7790 | Dimensions (mm): | 8855 × 2490 × 2810 |
Power (kW): | 177 | Gross weight (kg): | 18000 |
Fuel type: | diesel fuel | Curb weight (kg): | 5730 |
Isuzu QL1160VMFRY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TC50 | Wheelbase (mm): | 4500 |
Displacement (cc): | 5193 | Dimensions (mm): | 7570 × 2490 × 2750 |
Power (kW): | 151 | Gross weight (kg): | 16000 |
Fuel type: | diesel fuel | Curb weight (kg): | 5090 |
Isuzu QL1100A8LAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TC51 | Wheelbase (mm): | 4175 |
Displacement (cc): | 5193 | Dimensions (mm): | 7430 × 2170 × 2330 |
Power (kW): | 141 | Gross weight (kg): | 10055 |
Fuel type: | diesel fuel | Curb weight (kg): | 3200 |
Isuzu QL1160VNFRY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TC50 | Wheelbase (mm): | 5000 |
Displacement (cc): | 5193 | Dimensions (mm): | 8835 × 2490 × 2750 |
Power (kW): | 151 | Gross weight (kg): | 16000 |
Fuel type: | diesel fuel | Curb weight (kg): | 5210 |
Isuzu QL1250WRFZY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6HK1-TCH | Wheelbase (mm): | 5100+1300 |
Displacement (cc): | 7790 | Dimensions (mm): | 10210 × 2490 × 2810 |
Power (kW): | 221 | Gross weight (kg): | 25000 |
Fuel type: | diesel fuel | Curb weight (kg): | 7820 |
Isuzu QL1250WPFZY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6HK1-TCH | Wheelbase (mm): | 4650+1300 |
Displacement (cc): | 7790 | Dimensions (mm): | 9410 × 2490 × 2810 |
Power (kW): | 221 | Gross weight (kg): | 25000 |
Fuel type: | diesel fuel | Curb weight (kg): | 7540 |
Isuzu QL1250WTFZY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6HK1-TCH | Wheelbase (mm): | 5700+1300 |
Displacement (cc): | 7790 | Dimensions (mm): | 11575 × 2490 × 2810/3610 |
Power (kW): | 221 | Gross weight (kg): | 25000 |
Fuel type: | diesel fuel | Curb weight (kg): | 8100, 8300 |
Isuzu QL1040A5FAY (batch 88)
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 2765 |
Displacement (cc): | 2999 | Dimensions (mm): | 4715 × 1880 × 2200 |
Power (kW): | 96 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 1980 |
Isuzu QL1071A5FAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 2765 |
Displacement (cc): | 2999 | Dimensions (mm): | 5310 × 1995 × 2260 |
Power (kW): | 96 | Gross weight (kg): | 7120 |
Fuel type: | diesel fuel | Curb weight (kg): | 2170 |
Isuzu QL1040A6FWY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5LS | Wheelbase (mm): | 2765 |
Displacement (cc): | 2999 | Dimensions (mm): | 5230 × 1880 × 2160 |
Power (kW): | 72 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2050 |
Isuzu QL1040A5EWY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 2490 |
Displacement (cc): | 2999 | Dimensions (mm): | 4605 × 1695 × 2120 |
Power (kW): | 96 | Gross weight (kg): | 4000 |
Fuel type: | diesel fuel | Curb weight (kg): | 1900 |
Isuzu QL1043A5HAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5995 × 1995 × 2260 |
Power (kW): | 96 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2200 |
Isuzu QL1042A6HWY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5LS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5900 × 1980 × 2200 |
Power (kW): | 72 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2180 |
Isuzu QL1040A6FAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5LS | Wheelbase (mm): | 2765 |
Displacement (cc): | 2999 | Dimensions (mm): | 5230 × 1880 × 2160 |
Power (kW): | 72 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 1950 |
Isuzu QL1040A5HWY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5900 × 1880 × 2200 |
Power (kW): | 96 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2150 |
Isuzu QL1071A5KAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 3815 |
Displacement (cc): | 2999 | Dimensions (mm): | 6665 × 1980 × 2200 |
Power (kW): | 96 | Gross weight (kg): | 7300 |
Fuel type: | diesel fuel | Curb weight (kg): | 2150 |
Isuzu QL1071A5HAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5995 × 1995 × 2260 |
Power (kW): | 96 | Gross weight (kg): | 7300 |
Fuel type: | diesel fuel | Curb weight (kg): | 2200 |
Isuzu QL1040A6EAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5LS | Wheelbase (mm): | 2490 |
Displacement (cc): | 2999 | Dimensions (mm): | 4605 × 1695 × 2120 |
Power (kW): | 72 | Gross weight (kg): | 4000 |
Fuel type: | diesel fuel | Curb weight (kg): | 1750 |
Isuzu QL1040A6EWY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5LS | Wheelbase (mm): | 2490 |
Displacement (cc): | 2999 | Dimensions (mm): | 4605 × 1695 × 2120 |
Power (kW): | 72 | Gross weight (kg): | 4000 |
Fuel type: | diesel fuel | Curb weight (kg): | 1900 |
Isuzu QL1044A6HAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5LS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5995 × 1995 × 2260 |
Power (kW): | 72 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2200 |
Isuzu QL1040A5HAY (batch 86)
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5900 × 1880 × 2200 |
Power (kW): | 96 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2000 |
Isuzu QL1070A5KWY (batch 86)
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 3815 |
Displacement (cc): | 2999 | Dimensions (mm): | 6665 × 1880 × 2200 |
Power (kW): | 96 | Gross weight (kg): | 6810 |
Fuel type: | diesel fuel | Curb weight (kg): | 2300 |
Isuzu QL1042A5HAY (batch 86)
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5900 × 1980 × 2200 |
Power (kW): | 96 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2020 |
Isuzu QL1040A6HWY (batch 86)
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5LS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5900 × 1880 × 2200 |
Power (kW): | 72 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2130 |
Isuzu QL1043A6HAY (batch 86)
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5LS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5900 × 1980 × 2200 |
Power (kW): | 72 | Gross weight (kg): | 4170 |
Fuel type: | diesel fuel | Curb weight (kg): | 2000 |
Isuzu QL1070A5FAY (batch 85)
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 2765 |
Displacement (cc): | 2999 | Dimensions (mm): | 5230 × 1880 × 2200 |
Power (kW): | 96 | Gross weight (kg): | 6720 |
Fuel type: | diesel fuel | Curb weight (kg): | 2050 |
Isuzu QL1070A5KAY (batch 85)
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 3815 |
Displacement (cc): | 2999 | Dimensions (mm): | 6665 × 1880 × 2200 |
Power (kW): | 96 | Gross weight (kg): | 7300 |
Fuel type: | diesel fuel | Curb weight (kg): | 2110 |
Isuzu QL1040A6HAY (batch 85)
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5LS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5900 × 1880 × 2200 |
Power (kW): | 72 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 1950 |
Isuzu QL1042A6HAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5LS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5900 × 1980 × 2200 |
Power (kW): | 72 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2000 |
Isuzu QL1070A5HAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5900 × 1880 × 2200 |
Power (kW): | 96 | Gross weight (kg): | 7300 |
Fuel type: | diesel fuel | Curb weight (kg): | 2080 |
Isuzu QL1070A5HWY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5900 × 1880 × 2200 |
Power (kW): | 96 | Gross weight (kg): | 6750 |
Fuel type: | diesel fuel | Curb weight (kg): | 2160 |
Isuzu QL1075A1HAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1-TCG40 | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5995 × 2020 × 2260 |
Power (kW): | 88 | Gross weight (kg): | 7300 |
Fuel type: | diesel fuel | Curb weight (kg): | 2160 |
Isuzu QL1073A1KAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1-TCG40 | Wheelbase (mm): | 3815 |
Displacement (cc): | 2999 | Dimensions (mm): | 6805 × 2020 × 2300 |
Power (kW): | 88 | Gross weight (kg): | 7495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2210 |
Isuzu QL1250AVCKY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6HK1-TCNG40 | Wheelbase (mm): | 1850+5650 |
Displacement (cc): | 7790 | Dimensions (mm): | 11765 × 2490 × 3025 |
Power (kW): | 177 | Gross weight (kg): | 25000 |
Fuel type: | diesel fuel | Curb weight (kg): | 7750 |
Isuzu QL1043A1HAY (batch #267)
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1-TCG40 | Dimensions (mm): | 5995 × 2020 × 2260 |
Displacement (cc): | 2999 | Gross weight (kg): | 4495 |
Power (kW): | 88 | Curb weight (kg): | 2140 |
Wheelbase (mm): | 3360 | Axle loads (kg): | 1750/2745 |
Isuzu QL11009HARY (batch #267)
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TCG40 | Dimensions (mm): | 5940 × 2170 × 2330/2410 |
Displacement (cc): | 5193 | Gross weight (kg): | 10000 |
Power (kW): | 139 | Curb weight (kg): | 2950 |
Wheelbase (mm): | 3360 | Axle loads (kg): | 3350/6650 |
Isuzu QL1061A1HAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1-TCG40 | Dimensions (mm): | 5900 × 1880 × 2160 |
Displacement (cc): | 2999 | Gross weight (kg): | 5800 |
Power (kW): | 88 | Curb weight (kg): | 1900 |
Wheelbase (mm): | 3360 | Axle loads (kg): | 2050/3750 |
Isuzu QL1042A1HAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1-TCG40 | Dimensions (mm): | 5900 × 1980 × 2150 |
Displacement (cc): | 2999 | Gross weight (kg): | 4495 |
Power (kW): | 88 | Curb weight (kg): | 1905 |
Wheelbase (mm): | 3360 | Axle loads (kg): | 1805/2690 |
Isuzu QL1250UPCZY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6UZ1-TCG40 | Dimensions (mm): | 9375 × 2490 × 3025 |
Displacement (cc): | 9839 | Gross weight (kg): | 24700 |
Power (kW): | 257 | Curb weight (kg): | 8200 |
Wheelbase (mm): | 4605+1300 | Axle loads (kg): | 6700/18000 |
Isuzu QL1250URCZY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6UZ1-TCG40 | Dimensions (mm): | 10170 × 2490 × 3025 |
Displacement (cc): | 9839 | Gross weight (kg): | 25000 |
Power (kW): | 257 | Curb weight (kg): | 8300 |
Wheelbase (mm): | 5100+1300 | Axle loads (kg): | 7000/18000 |
Isuzu QL1250UACZY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6UZ1-TCG40 | Dimensions (mm): | 8440 × 2490 × 3025 |
Displacement (cc): | 9839 | Gross weight (kg): | 25000 |
Power (kW): | 257 | Curb weight (kg): | 8120 |
Wheelbase (mm): | 4025+1300 | Axle loads (kg): | 7000/18000 |
Isuzu QL1250ULCZY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6UZ1-TCG40 | Dimensions (mm): | 7655 × 2490 × 3025 |
Displacement (cc): | 9839 | Gross weight (kg): | 25000 |
Power (kW): | 257 | Curb weight (kg): | 8055 |
Wheelbase (mm): | 3600+1300 | Axle loads (kg): | 7000/18000 |
Isuzu QL1250UTCZY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6UZ1-TCG40 | Dimensions (mm): | 11745 × 2490 × 3025 |
Displacement (cc): | 9839 | Gross weight (kg): | 24700 |
Power (kW): | 257 | Curb weight (kg): | 8400 |
Wheelbase (mm): | 5820+1300 | Axle loads (kg): | 6700/18000 |
Isuzu QL1310URCHY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6UZ1-TCG40 | Dimensions (mm): | 9695 × 2490 × 3025 |
Displacement (cc): | 9839 | Gross weight (kg): | 31000 |
Power (kW): | 257 | Curb weight (kg): | 8950 |
Wheelbase (mm): | 1850+3320+1300 | Axle loads (kg): | 6500/6500/18000 |
Isuzu QL1310UVCHY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6UZ1-TCG40 | Dimensions (mm): | 11745 × 2490 × 3025 |
Displacement (cc): | 9839 | Gross weight (kg): | 31000 |
Power (kW): | 257 | Curb weight (kg): | 9100 |
Wheelbase (mm): | 1850+4615+1300 | Axle loads (kg): | 6500/6500/18000 |
Isuzu QL1040A1FAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1-TCG40 | Dimensions (mm): | 5230 × 1880 × 2150 |
Displacement (cc): | 2999 | Gross weight (kg): | 3780 |
Power (kW): | 88 | Curb weight (kg): | 1870 |
Wheelbase (mm): | 2765 | Axle loads (kg): | 1310/2470 |
Isuzu QL1041A1HAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1-TCG40 | Dimensions (mm): | 5900 × 1880 × 2150 |
Displacement (cc): | 2999 | Gross weight (kg): | 3790 |
Power (kW): | 88 | Curb weight (kg): | 1800 |
Wheelbase (mm): | 3360 | Axle loads (kg): | 1315/2475 |
ISUZUseries | wheelbase mm | cabin | Isuzu model | equipments | |||||
ISUZU100P light truck EURO 5 | 2490 | single cabin | QL1040A6EAY | 4KH1CN5LS Isuzu 4KH1CN5LS diesel engine 98hp, Euro 5 emission, MSB five gears transmission, with A/C, hydraulic assist, front axle 2T, rear axle 4T, with ABS, tyre 7.00R16, double circuit type oil brake. single row cabin tiltable. hazardous chemicals transport truck chassis add disc brake, front mounted exhuast pipe, speed limit, speed limit device, exhaust brake. | |||||
double cabin | QL1040A6EWY | ||||||||
2765 | single cabin | QL1040A6FAY | |||||||
double cabin | QL1040A6FWY | ||||||||
3360 | single cabin | QL1040A6HAY | QL1042A6HAY | QL1043A6HAY | |||||
QL1045A6HAY | |||||||||
single cabin wider | QL1044A6HAY | ||||||||
single with sleeper | |||||||||
double cabin | QL1040A6HWY | QL1042A6HWY | |||||||
3815 | single cabin | ||||||||
double cabin | |||||||||
600P | 2490 | single cabin | Isuzu 4KH1CN5HS diesel engine 130hp,Euro 5 emission, MSB five gears transmission, with A/C, hydraulic assist, front axle 2.5T, rear axle 4.8T, with ABS, tyre 7.00R16, double circuit type oil brake. single row cabin tiltable, double row cabin can not tiltable. hazardous chemicals transport truck chassis add disc brake, front mounted exhuast pipe, speed limit device, exhaust brake. | ||||||
double cabin | QL1040A5EWY | ||||||||
2765 | single cabin | QL1070A5FAY | QL1040A5FAY | QL1071A5FAY | |||||
double cabin | QL1040A5FWY | ||||||||
3360 | single cabin | QL1070A5HAY | QL1071A5HAY | QL1040A5HAY | |||||
QL1044A5HAY | |||||||||
single cabin | QL1040A7HAY | ||||||||
single with sleeper | |||||||||
double cabin | QL1070A5HWY | QL1040A5HWY | |||||||
single cabin wider | QL1043A5HAY | ||||||||
3815 | single cabin | QL1070A5KAY | QL1071A5KAY | ||||||
QL1060A5KAY | |||||||||
single cabin wider | QL1072A5KAY | ||||||||
single with sleeper | |||||||||
double cabin | QL1070A5KWY | ||||||||
700P ISUZU middle truck | 3360 oil brake | single cabin | Isuzu 4HK1-TC51 diesel engine 190hp, Euro 5 emission, MLD six gears transmission, with A/C, hydraulic assist, front axle 4T, rear axle 7T, tyre 235/75R17.5, double circuit type oil brake. | ||||||
3815 oil brake | single cabin | ||||||||
single cabin | |||||||||
4175 oil brake | single cabin | ||||||||
4475 oil brake | single cabin | ||||||||
single cabin | |||||||||
single with sleeper | |||||||||
5200 oil brake | single cabin | QL1080A8PAY | |||||||
single with sleeper | |||||||||
3815air brake | single cabin | QL1100A8KAY | Isuzu 4HK1-TC51 diesel engine 190hp, Euro 5 emission, MLD six gears transmission, with A/C, hydraulic assist, front axle 4T, rear axle 7T, tyre 235/75R17.5, exhaust brake. | ||||||
4175air brake | single cabin | QL1100A8LAY | |||||||
4475air brake | single cabin | QL1100A8MAY | |||||||
5200air brake | single cabin | QL1100A8PAY | |||||||
FTR ISUZU middle truck | 3900 | single with sleeper | QL1160VKFRY | Isuzu 4HK1-TC50 diesel engine 205hp,Euro 5 emission, MLD six gears transmission, with A/C, hydraulic assist, central lock,power window, front axle 6.3T, rear axle 13T, tyre 10.00R20 , exhaust brake. | |||||
4500 | single with sleeper | QL1160VMFRY | |||||||
4700 | single with sleeper | ||||||||
5000 | single with sleeper | QL1160VNFRY | |||||||
5550 | single with sleeper | QL1160VQFRY | |||||||
5800 | single with sleeper | QL5160XXYVRFRY | |||||||
FVR heavy duty EURO5 | 3900 | single with sleeper | Isuzu 6HK1-TCL diesel engine 240hp,Euro 5 emission, MLD six gears transmission, with A/C, hydraulic assist, central lock,power window, front axle 6.3T, rear axle 13T, with ABS, tyre 295/80R22.5, exhaust brake. | ||||||
4500 | single with sleeper | QL1180XMFRY | |||||||
4700 | single with sleeper | ||||||||
5000 | single with sleeper | ||||||||
5550 | single with sleeper | QL1180XQFRY | |||||||
5800 | single with sleeper | QL5180XXYXRFRY | |||||||
1850+5650 | single with sleeper | 6HK1-TCL power 240hp | |||||||
4500 | single with sleeper | QL5190GXFWMFRY | 6HK1-TCH power 300hp | ||||||
FVZ ISUZU heavy duty EURO5 | 4000+1300 | single with sleeper | Isuzu 6HK1-TCH diesel engine 300hp,Euro 5 emission, FAST nine gears transmission, with A/C, hydraulic assist, central lock,power window, front axle 7T, rear axle 18T(double axles), with ABS, tyre 11.00R20, exhaust brake. | ||||||
4350+1300 | single with sleeper | ||||||||
4650+1300 | single with sleeper | QL1250WPFZY | |||||||
4900+1300 | single with sleeper | ||||||||
5100+1300 | single with sleeper | QL1250WRFZY | |||||||
5400+1300 | single with sleeper | ||||||||
5700+1300 | single with sleeper | QL1250WTFZY | |||||||
VC61 ISUZU heavy duty EURO5 | 4650 | single with sleeper | |||||||
3385+1370 | single with sleeper | QL4250W2NCZ | 6WG1-TCG51 power 450hp | ||||||
3600+1300 | single with sleeper | ||||||||
4025+1300 | single with sleeper | ||||||||
4605+1300 | single with sleeper | ||||||||
5100+1300 | single with sleeper | ||||||||
5820+1300 | single with sleeper | ||||||||
4605+1300 | single with sleeper | ||||||||
1850+3320+1300 single with sleeper | 6WG1-TCG51 power 450hp | ||||||||
1850+4575+1370 single with sleeper | QL5400GXFW2VCHY |
$27,300.00 / Set
ISUZU 700p sewer vacuum truck 7000L Applications
1).Hydrodynamic sewer and pipeline dredging and cleaning.
2).Hydrodynamic drain line dredging and cleaning.
3).High pressure surface cleaning.
4).High pressure industrial cleaning.
ISUZU SEWAGE SUCTION Truck ISUZU 700p sewer vacuum truck 7000L
Overall dimension(LxWxH)mm | 6980×2400×2580 |
G V W(kg) | 11070 |
Payload (kg) | 6000 |
Kerb mass(kg) | 4920 |
Approach/Departure Angle(°) | 21/13. |
Front/Rear Suspension (mm) | 1110/2055. |
Fuel Type | Diesel |
Fuel consumption(L/100km) | 9 |
Top speed | 95 |
Model | 4HK1-TC |
Exhaust/Power(kw) | 5193CC / 129KW 190hp |
Manufacturer | ISUZU Motor Co., Ltd. |
Type | 4-in-line electric control Common Rail Diesel Engine |
Drive type | 4×2 |
Wheelbase (mm) | 3815 |
Tread(front/rear)mm | 1680 / 1650. |
Front Bridge | 4 Ton |
Rear Bridge | 7 Ton |
Transmission | Double spoke wheel, circle ball transmission |
Gear box | Five forward gear, one reverse gear, mechanical transmission, flexible wiredraw operate |
Clutch | Uniwafer, dry membrane spring clutch |
Brake system | Air brake |
Cab | 0 |
Number of spring axles(front/rear) | 9/14. |
Tire specification | 9.5R17.5,8.25-20,8.25R20 |
Air condition | Chose to fix |
suction pump | Single Stage Rotary Oil Seal Vacuum Pump |
Vertical suction heihgt | ≥8 |
working pressure | 8500Pa |
rotation speed | 500 |
suction speed | 98L/S |
power | 5.5kw |
inlet diatmeter | 50mm |
filling time | 5s |
discharge time | 4s |
ISUZU vacuum Sewage Suction Truck 6000Liters
5-6CBM vacuum sewage suction truck wholesale good price, 5000Liters Sewage Suction Truck, 5000Liters Vacuum Truck, 6000Liters Dirty Water Suction Truck, 6000Liters Toilet Trucks, 6000Liters Vacuum Truck, 8000Liters Sludge Trucks, 8000Liters Toilet Trucks, 8000Liters vacuum sewage suction truck, 8000Liters Vacuum Trucks, 8cbm Sludge Trucks, 8m3 sludge trucks, 8m3 Vacuum Sewage Suction Trucks, 8Tons Sludge Truck, Cesspit Emptier best 5-6CBM sewage suction truck hot sale, cheap price, China Hubei Sewage Suction Trucks, China Hubei Sludge Trucks, China Hubei Toilet Trucks, China Vacuum Truck, Good Price Vacuum Truck, Hubei Vacuum Truck, ISUZU Cesspit Emptier, ISUZU septic pump truck, ISUZU Septic Tank Trucks, isuzu sewage suction truck, isuzu toilet truck isuzu sludge trucks, ISUZU Vacuum Sewage Suction Truck, isuzu vacuum truck, Sludge Transport Trucks, Vacuum Suction Dirty Water Trucks Export
Sucking sewage waste water operation
Vacuum Suction Sewage Trucks vacuum suction pump can be self-suction, self-discharge, fast working speed, large capacity, convenient transportation, suitable for the collection and transportation of waste, mud, oil, dirty water, sludge, septic, fecal, sludge, crude oil, and other solid stuff such as small stones, bricks as well.
The sewage suction truck can Self-suck and self-discharge. It has fast working speed, large capacity and convenient transportation. It is suitable for collecting and transporting liquid waste substances such as feces, mud and crude oil. The vacuum pump of the sewage suction truck, which is advanced in domestic technology, has large suction force and long suction distance. It is especially suitable for suction, loading and discharge of silt in sewer, especially for suction of larger objects such as slurry, silt, stone and brick in sewer. sewer cleaner truck vacuum tanker truck Collecting and transferring sludge, sewage, cleaning the sewer, Cesspoolage, cesspit, cesspool, gully, sewer etc. Sucking sludge tanker truck vacuum tanks brand Dongfeng, Jiefang, Foton, , HINO, Sinotruk Truck etc.
Dongfeng vacuum sewage suction truck, Jiefang sewage tanker truck, Futian suction truck, Heavy Truck suction truck, Shaanxi suction truck, Jianghuai suction truck and Qingling suction truck.
Used to collect, transport and discharge liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.
The tank of a sewer vacuum truck could be hydraulic lifted and the rear door of tank could be hydraulic opened for completely tipping sewage and solid stuff.
Features:
---- ISUZU chassis, perfect performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Vacuum pump super powerful, highly efficient.
---- Massive, durable, long service life.
Main body material | Q235A carbon steel / 6MM with 2 Strengthen rolled steel rings reinforcement, end of the tank with 8mm carbon steel. |
Vacuum pumps model | Rotary vane type 50QZXDG-45/400 or 65QZXDG-68/400 |
vacuuming both sewage and sludge | |
Maximum AOB | ≥45° |
Effective suction | ≥ 5 |
Vacuum system(MPa) | ≥11 |
Lifting time(s) | ≤45 |
Cover opening Angle(°) | ≥75° |
Cover open time (s) | ≤25 |
Suction pipe diameter (mm) | 100 |
length of the Hose | 18ft*4pcs |
Tanks full sucked time (min) | ≤12 |

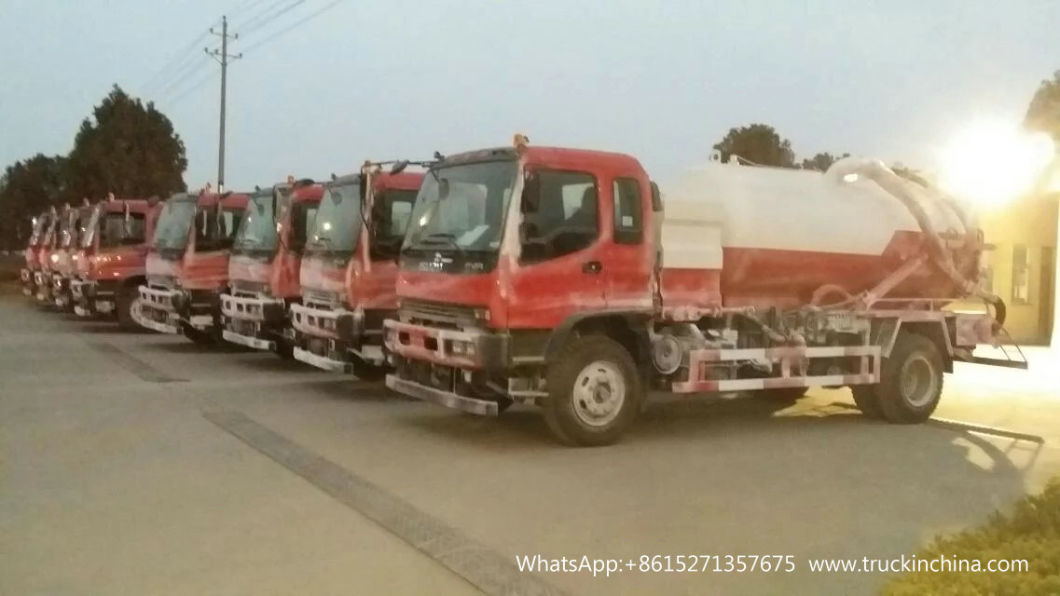

Sewer Vacuum Truck ISUZU (10,000 Litres) | ||||||||
General | Vehicle Brand | DONG RUNZE | ||||||
Chassis Brand | ISUZU | |||||||
Overall Dimension | 8250 * 2500 * 3300 mm | |||||||
GVW / Kerb Weight | 18,000 kg / 8,048 kg | |||||||
Cab | Cab Capacity | 3 persons allowed | ||||||
Air Conditioner | W/ air conditioner | |||||||
Engine | Fuel Type | Diesel | ||||||
Engine Brand | ISUZU engine 4HK1-TC50 | |||||||
Power | 205HP(150KW) | |||||||
Displacement | 5193 ml | |||||||
Emission Standard | Euro V / Euro5 | |||||||
Chassis | Drive Type | 4X2, left hand drive | ||||||
Transmission | ISUZU gear box, no overhaul within 500,000km | |||||||
Wheelbase/No. of axle | 4500 mm / 2 | |||||||
Tyre Specification | 10.00R20;11R22.5 | |||||||
Tyre Number | 6 tyres and 1 spare tyre | |||||||
Max Speed | 95 km/h | |||||||
Paint | Metallic paint | |||||||
Superstructure | Tank Capacity | 10,000 Litres | ||||||
Tank Material | Carbon steel Thickness: 6mm | |||||||
Suction Head | 7m | |||||||
Vacuum Pump | Highly efficient, vacuum rate 93%, Absolute working pressure: 400Pa Academic suction speed: 45L/s ;90L/s Rotation speed: 400~500rpm (5400 L/min ) | |||||||
Hose | High quality, wire strengthened hose | |||||||
Rear door can be hydraulic opened for complete discharge of solid stuff. | ||||||||
All standard accessories: inlet, discharge, antifill valve..... | ||||||||
Optional | ** Tank material could be carbon steel, stainless steel..….. ** Vacuum pump could be imported brand... | |||||||
Left hand side control | Yes | |||||||
6 | Steering | Integral and hydraulic power assisted | Yes | |||||
System | Turning radius: 8 m | Yes | ||||||
leaf spring | ||||||||
Front Axle: Parabolic leaf spring or Air | leaf spring | |||||||
7 | Suspension | Rear Axle: Parabolic leaf spring or Air | ||||||
Front: Single, 11.00 x 20 Tyres | 11R22.5 or 11.00R20 | |||||||
8 | Tyres | Rear: Dual, 11.00 x 20 Tyres | 11R22.5 or 11.00R20 | |||||
Spare wheel same size, mounted ion frame rails | 11R22.5 or 11.00R20 | |||||||
Voltage: 24V | Yes | |||||||
Batteries: 2 x 12V, 150 Ah | Yes | |||||||
9 | Electrical | Alternator: 24V, 55A | Yes | |||||
Sytem | Starter Motor: 24V | Yes | ||||||
All electrical component fully tropicalized | Yes | |||||||
1 | Headlamps, fog Lamps | Yes | ||||||
All calibrations on gauge/meters to be in metric units | Yes | |||||||
10 | Instruments | Speedometer, odometer, tripmeter | Yes | |||||
Monitors | Engine coolant temperature gauge | Yes | ||||||
Low Engine oil warning light | Yes | |||||||
Battery charging warning light | Yes | |||||||
Fuel level gauge and low warning light | Yes | |||||||
Seating capacity: 3 persons | Yes | |||||||
Non-sleeper cab | Yes | |||||||
11 | Cab | Forward control tilting cab | Yes | |||||
Air conditioner | Yes | |||||||
SW/FM Radio with electronic tuning and CD player | Yes | |||||||
Capacity: 10,000 litres | Yes | |||||||
12 | Tank | Discharge test pressure: 58.8 kPa | Yes | |||||
Vacuum test pressure: 93.3 kPa | Yes | |||||||
Plate thickness: 6 mm | Yes | |||||||
Rotary vane type vacuum pump | ||||||||
13 | Pump | Vacuum pump driven by transmission P.T.O from driver's cab | Yes | |||||
14 | Main Fittings | Main Manhole | Yes | |||||
Safety valve pump driven by transmission P.T.O from driver's cab | Yes | |||||||
Compound gauge reading "Vacuum" & "Discharge" pressure | Yes | |||||||
Suction and Delivery Ball Valve | Yes | |||||||
Main separator with check valve | Yes | |||||||
Oil cleaner | Yes | |||||||
Sub separator | Yes | |||||||
2 Hose carrier boxes, one on each side of tank | Yes | |||||||
Level gauge at rear door upper section | Yes | |||||||
15 | Accessories | Suction & Delivery Hoses with coupling, 4 inch diameter x 18 ft long Qty: 4 | Yes | |||||
Tool box standard tool set | Yes | |||||||
Beacon light mounted | Yes | |||||||
16 | Miscellaneous | Rechargeable fire extinguisher 6 kg | Yes | |||||
Warning Triangle | Yes | |||||||
First Aid kit | Yes | |||||||
Heavy duty jack, wheel spanner and accessories | Yes | |||||||
Makers standard tool kit | Yes | |||||||
17 | Dimension and Weight | LxWxH: 8200 x 2500 x 3300 mm | ||||||
Front axle capacity: 7,000 kg | 7,000 kg | |||||||
Rear axle capacity: 11,000 kg | 13,000 kg | |||||||
Gross Vehicle Weight - 18,000 kg | Yes | |||||||
Wheelbase 4200 mm | 4500mm | |||||||
Ground clearance 260 mm | Yes | |||||||
Curb Vehicle Weight- 8000 kg | Yes | |||||||
Payload- 10,000 kg | Yes | |||||||
18 | Warranty | 2 years | Yes | |||||
19 | Operating Cost Info | Fuel consumption per 100 km run | Empty 12.8L / Full Loading 23.8L | |||||
Detailed maintenance cost for the first 40,000 kms | Clutch plate - 2 Nos Diesel Filter - 8 Nos Water Separator - 8 Nos Oil Filter - 16 Nos Air Filter - 4 Nos Fan Belt - 4 Nos Alternator Belt - 4 Nos Spare Vac pumps- 1Nos Sealing ring For tank cover 2 Nos $5000-- | |||||||
20 | After sales Service | State location of maintenance workshops | ||||||
State location of spare parts stores | ||||||||
Any other additional /privileged services not mentioned in the tender document | ||||||||
21 | Manuals | Original brochure must accompany bids | ||||||
Operating Manual in English |
Customizing | Recovery Wrecker | Special Car | Tanker truck | Aerial platform truck | Concrete mixer | Crane truck | Road Sweeper | Skip Loader | Vacuum truck Combined Jetting | Water Sprinkler truck | Fire Trucks | Milk Tank Truck | Sprayer tank Truck | Chemical Liquid Tanker | LPG Tanker | LED Advertising truck | Mobile fast food cooking truck | Mobile generator truck | Mobile workshop maintenance lorry
Isuzu QL1040A7HAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1-TCG51 | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5900 × 1980 × 2200 |
Power (kW): | 88 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2020 |
Isuzu QL1060A5KAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 3815 |
Displacement (cc): | 2999 | Dimensions (mm): | 6665 × 1980 × 2200 |
Power (kW): | 96 | Gross weight (kg): | 6500 |
Fuel type: | diesel fuel | Curb weight (kg): | 2180 |
Isuzu QL1044A5HAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5900 × 1980 × 2200 |
Power (kW): | 96 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2050 |
Isuzu QL1045A6HAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5LS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5900 × 1980 × 2200 |
Power (kW): | 72 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2050 |
Isuzu QL1240DTFZY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6HK1-TCSG40 | Wheelbase (mm): | 5700+1300 |
Displacement (cc): | 7790 | Dimensions (mm): | 11497 × 2465 × 2810 |
Power (kW): | 206 | Gross weight (kg): | 24000 |
Fuel type: | diesel fuel | Curb weight (kg): | 7300 |
Isuzu QL1080A8PAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TC51 | Wheelbase (mm): | 5200 |
Displacement (cc): | 5193 | Dimensions (mm): | 8912 × 2170 × 2330 |
Power (kW): | 141 | Gross weight (kg): | 8100 |
Fuel type: | diesel fuel | Curb weight (kg): | 3200 |
Isuzu QL1040A5FWY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 2765 |
Displacement (cc): | 2999 | Dimensions (mm): | 5230 × 1880 × 2200 |
Power (kW): | 96 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2100 |
Isuzu QL10909MARY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TCG40 | Wheelbase (mm): | 4475 |
Displacement (cc): | 5193 | Dimensions (mm): | 7930 × 2170 × 2350 |
Power (kW): | 139 | Gross weight (kg): | 9410 |
Fuel type: | diesel fuel | Curb weight (kg): | 3040 |
Isuzu QL10909KARY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TCG40 | Wheelbase (mm): | 3815 |
Displacement (cc): | 5193 | Dimensions (mm): | 6980 × 2170 × 2350 |
Power (kW): | 139 | Gross weight (kg): | 9390 |
Fuel type: | diesel fuel | Curb weight (kg): | 2970 |
Isuzu QL1072A5KAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 3815 |
Displacement (cc): | 2999 | Dimensions (mm): | 6760 × 1995 × 2260 |
Power (kW): | 96 | Gross weight (kg): | 7300 |
Fuel type: | diesel fuel | Curb weight (kg): | 2250 |
Isuzu QL1100A8MAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TC51 | Wheelbase (mm): | 4475 |
Displacement (cc): | 5193 | Dimensions (mm): | 7930 × 2170 × 2330 |
Power (kW): | 141 | Gross weight (kg): | 10000 |
Fuel type: | diesel fuel | Curb weight (kg): | 3210 |
Isuzu QL1160VQFRY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TC50 | Wheelbase (mm): | 5550 |
Displacement (cc): | 5193 | Dimensions (mm): | 8835 × 2490 × 2750 |
Power (kW): | 151 | Gross weight (kg): | 16000 |
Fuel type: | diesel fuel | Curb weight (kg): | 5225 |
Isuzu QL1160VKFRY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TC50 | Wheelbase (mm): | 3900 |
Displacement (cc): | 5193 | Dimensions (mm): | 6435 × 2490 × 2750 |
Power (kW): | 151 | Gross weight (kg): | 16000 |
Fuel type: | diesel fuel | Curb weight (kg): | 4990 |
Isuzu QL1100A8PAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TC51 | Wheelbase (mm): | 5200 |
Displacement (cc): | 5193 | Dimensions (mm): | 8912 × 2170 × 2330 |
Power (kW): | 141 | Gross weight (kg): | 10000 |
Fuel type: | diesel fuel | Curb weight (kg): | 3310 |
Isuzu QL1100A8KAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TC51 | Wheelbase (mm): | 3815 |
Displacement (cc): | 5193 | Dimensions (mm): | 6980 × 2170 × 2330 |
Power (kW): | 141 | Gross weight (kg): | 10000 |
Fuel type: | diesel fuel | Curb weight (kg): | 3180 |
Isuzu QL1180XMFRY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6HK1-TCL | Wheelbase (mm): | 4500 |
Displacement (cc): | 7790 | Dimensions (mm): | 7570 × 2490 × 2810 |
Power (kW): | 177 | Gross weight (kg): | 18000 |
Fuel type: | diesel fuel | Curb weight (kg): | 5500 |
Isuzu QL1180XQFRY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6HK1-TCL | Wheelbase (mm): | 5550 |
Displacement (cc): | 7790 | Dimensions (mm): | 8855 × 2490 × 2810 |
Power (kW): | 177 | Gross weight (kg): | 18000 |
Fuel type: | diesel fuel | Curb weight (kg): | 5730 |
Isuzu QL1160VMFRY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TC50 | Wheelbase (mm): | 4500 |
Displacement (cc): | 5193 | Dimensions (mm): | 7570 × 2490 × 2750 |
Power (kW): | 151 | Gross weight (kg): | 16000 |
Fuel type: | diesel fuel | Curb weight (kg): | 5090 |
Isuzu QL1100A8LAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TC51 | Wheelbase (mm): | 4175 |
Displacement (cc): | 5193 | Dimensions (mm): | 7430 × 2170 × 2330 |
Power (kW): | 141 | Gross weight (kg): | 10055 |
Fuel type: | diesel fuel | Curb weight (kg): | 3200 |
Isuzu QL1160VNFRY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TC50 | Wheelbase (mm): | 5000 |
Displacement (cc): | 5193 | Dimensions (mm): | 8835 × 2490 × 2750 |
Power (kW): | 151 | Gross weight (kg): | 16000 |
Fuel type: | diesel fuel | Curb weight (kg): | 5210 |
Isuzu QL1250WRFZY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6HK1-TCH | Wheelbase (mm): | 5100+1300 |
Displacement (cc): | 7790 | Dimensions (mm): | 10210 × 2490 × 2810 |
Power (kW): | 221 | Gross weight (kg): | 25000 |
Fuel type: | diesel fuel | Curb weight (kg): | 7820 |
Isuzu QL1250WPFZY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6HK1-TCH | Wheelbase (mm): | 4650+1300 |
Displacement (cc): | 7790 | Dimensions (mm): | 9410 × 2490 × 2810 |
Power (kW): | 221 | Gross weight (kg): | 25000 |
Fuel type: | diesel fuel | Curb weight (kg): | 7540 |
Isuzu QL1250WTFZY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6HK1-TCH | Wheelbase (mm): | 5700+1300 |
Displacement (cc): | 7790 | Dimensions (mm): | 11575 × 2490 × 2810/3610 |
Power (kW): | 221 | Gross weight (kg): | 25000 |
Fuel type: | diesel fuel | Curb weight (kg): | 8100, 8300 |
Isuzu QL1040A5FAY (batch 88)
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 2765 |
Displacement (cc): | 2999 | Dimensions (mm): | 4715 × 1880 × 2200 |
Power (kW): | 96 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 1980 |
Isuzu QL1071A5FAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 2765 |
Displacement (cc): | 2999 | Dimensions (mm): | 5310 × 1995 × 2260 |
Power (kW): | 96 | Gross weight (kg): | 7120 |
Fuel type: | diesel fuel | Curb weight (kg): | 2170 |
Isuzu QL1040A6FWY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5LS | Wheelbase (mm): | 2765 |
Displacement (cc): | 2999 | Dimensions (mm): | 5230 × 1880 × 2160 |
Power (kW): | 72 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2050 |
Isuzu QL1040A5EWY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 2490 |
Displacement (cc): | 2999 | Dimensions (mm): | 4605 × 1695 × 2120 |
Power (kW): | 96 | Gross weight (kg): | 4000 |
Fuel type: | diesel fuel | Curb weight (kg): | 1900 |
Isuzu QL1043A5HAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5995 × 1995 × 2260 |
Power (kW): | 96 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2200 |
Isuzu QL1042A6HWY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5LS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5900 × 1980 × 2200 |
Power (kW): | 72 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2180 |
Isuzu QL1040A6FAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5LS | Wheelbase (mm): | 2765 |
Displacement (cc): | 2999 | Dimensions (mm): | 5230 × 1880 × 2160 |
Power (kW): | 72 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 1950 |
Isuzu QL1040A5HWY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5900 × 1880 × 2200 |
Power (kW): | 96 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2150 |
Isuzu QL1071A5KAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 3815 |
Displacement (cc): | 2999 | Dimensions (mm): | 6665 × 1980 × 2200 |
Power (kW): | 96 | Gross weight (kg): | 7300 |
Fuel type: | diesel fuel | Curb weight (kg): | 2150 |
Isuzu QL1071A5HAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5995 × 1995 × 2260 |
Power (kW): | 96 | Gross weight (kg): | 7300 |
Fuel type: | diesel fuel | Curb weight (kg): | 2200 |
Isuzu QL1040A6EAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5LS | Wheelbase (mm): | 2490 |
Displacement (cc): | 2999 | Dimensions (mm): | 4605 × 1695 × 2120 |
Power (kW): | 72 | Gross weight (kg): | 4000 |
Fuel type: | diesel fuel | Curb weight (kg): | 1750 |
Isuzu QL1040A6EWY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5LS | Wheelbase (mm): | 2490 |
Displacement (cc): | 2999 | Dimensions (mm): | 4605 × 1695 × 2120 |
Power (kW): | 72 | Gross weight (kg): | 4000 |
Fuel type: | diesel fuel | Curb weight (kg): | 1900 |
Isuzu QL1044A6HAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5LS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5995 × 1995 × 2260 |
Power (kW): | 72 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2200 |
Isuzu QL1040A5HAY (batch 86)
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5900 × 1880 × 2200 |
Power (kW): | 96 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2000 |
Isuzu QL1070A5KWY (batch 86)
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 3815 |
Displacement (cc): | 2999 | Dimensions (mm): | 6665 × 1880 × 2200 |
Power (kW): | 96 | Gross weight (kg): | 6810 |
Fuel type: | diesel fuel | Curb weight (kg): | 2300 |
Isuzu QL1042A5HAY (batch 86)
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5900 × 1980 × 2200 |
Power (kW): | 96 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2020 |
Isuzu QL1040A6HWY (batch 86)
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5LS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5900 × 1880 × 2200 |
Power (kW): | 72 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2130 |
Isuzu QL1043A6HAY (batch 86)
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5LS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5900 × 1980 × 2200 |
Power (kW): | 72 | Gross weight (kg): | 4170 |
Fuel type: | diesel fuel | Curb weight (kg): | 2000 |
Isuzu QL1070A5FAY (batch 85)
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 2765 |
Displacement (cc): | 2999 | Dimensions (mm): | 5230 × 1880 × 2200 |
Power (kW): | 96 | Gross weight (kg): | 6720 |
Fuel type: | diesel fuel | Curb weight (kg): | 2050 |
Isuzu QL1070A5KAY (batch 85)
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 3815 |
Displacement (cc): | 2999 | Dimensions (mm): | 6665 × 1880 × 2200 |
Power (kW): | 96 | Gross weight (kg): | 7300 |
Fuel type: | diesel fuel | Curb weight (kg): | 2110 |
Isuzu QL1040A6HAY (batch 85)
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5LS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5900 × 1880 × 2200 |
Power (kW): | 72 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 1950 |
Isuzu QL1042A6HAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5LS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5900 × 1980 × 2200 |
Power (kW): | 72 | Gross weight (kg): | 4495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2000 |
Isuzu QL1070A5HAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5900 × 1880 × 2200 |
Power (kW): | 96 | Gross weight (kg): | 7300 |
Fuel type: | diesel fuel | Curb weight (kg): | 2080 |
Isuzu QL1070A5HWY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1CN5HS | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5900 × 1880 × 2200 |
Power (kW): | 96 | Gross weight (kg): | 6750 |
Fuel type: | diesel fuel | Curb weight (kg): | 2160 |
Isuzu QL1075A1HAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1-TCG40 | Wheelbase (mm): | 3360 |
Displacement (cc): | 2999 | Dimensions (mm): | 5995 × 2020 × 2260 |
Power (kW): | 88 | Gross weight (kg): | 7300 |
Fuel type: | diesel fuel | Curb weight (kg): | 2160 |
Isuzu QL1073A1KAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1-TCG40 | Wheelbase (mm): | 3815 |
Displacement (cc): | 2999 | Dimensions (mm): | 6805 × 2020 × 2300 |
Power (kW): | 88 | Gross weight (kg): | 7495 |
Fuel type: | diesel fuel | Curb weight (kg): | 2210 |
Isuzu QL1250AVCKY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6HK1-TCNG40 | Wheelbase (mm): | 1850+5650 |
Displacement (cc): | 7790 | Dimensions (mm): | 11765 × 2490 × 3025 |
Power (kW): | 177 | Gross weight (kg): | 25000 |
Fuel type: | diesel fuel | Curb weight (kg): | 7750 |
Isuzu QL1043A1HAY (batch #267)
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1-TCG40 | Dimensions (mm): | 5995 × 2020 × 2260 |
Displacement (cc): | 2999 | Gross weight (kg): | 4495 |
Power (kW): | 88 | Curb weight (kg): | 2140 |
Wheelbase (mm): | 3360 | Axle loads (kg): | 1750/2745 |
Isuzu QL11009HARY (batch #267)
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TCG40 | Dimensions (mm): | 5940 × 2170 × 2330/2410 |
Displacement (cc): | 5193 | Gross weight (kg): | 10000 |
Power (kW): | 139 | Curb weight (kg): | 2950 |
Wheelbase (mm): | 3360 | Axle loads (kg): | 3350/6650 |
Isuzu QL1061A1HAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1-TCG40 | Dimensions (mm): | 5900 × 1880 × 2160 |
Displacement (cc): | 2999 | Gross weight (kg): | 5800 |
Power (kW): | 88 | Curb weight (kg): | 1900 |
Wheelbase (mm): | 3360 | Axle loads (kg): | 2050/3750 |
Isuzu QL1042A1HAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1-TCG40 | Dimensions (mm): | 5900 × 1980 × 2150 |
Displacement (cc): | 2999 | Gross weight (kg): | 4495 |
Power (kW): | 88 | Curb weight (kg): | 1905 |
Wheelbase (mm): | 3360 | Axle loads (kg): | 1805/2690 |
Isuzu QL1250UPCZY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6UZ1-TCG40 | Dimensions (mm): | 9375 × 2490 × 3025 |
Displacement (cc): | 9839 | Gross weight (kg): | 24700 |
Power (kW): | 257 | Curb weight (kg): | 8200 |
Wheelbase (mm): | 4605+1300 | Axle loads (kg): | 6700/18000 |
Isuzu QL1250URCZY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6UZ1-TCG40 | Dimensions (mm): | 10170 × 2490 × 3025 |
Displacement (cc): | 9839 | Gross weight (kg): | 25000 |
Power (kW): | 257 | Curb weight (kg): | 8300 |
Wheelbase (mm): | 5100+1300 | Axle loads (kg): | 7000/18000 |
Isuzu QL1250UACZY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6UZ1-TCG40 | Dimensions (mm): | 8440 × 2490 × 3025 |
Displacement (cc): | 9839 | Gross weight (kg): | 25000 |
Power (kW): | 257 | Curb weight (kg): | 8120 |
Wheelbase (mm): | 4025+1300 | Axle loads (kg): | 7000/18000 |
Isuzu QL1250ULCZY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6UZ1-TCG40 | Dimensions (mm): | 7655 × 2490 × 3025 |
Displacement (cc): | 9839 | Gross weight (kg): | 25000 |
Power (kW): | 257 | Curb weight (kg): | 8055 |
Wheelbase (mm): | 3600+1300 | Axle loads (kg): | 7000/18000 |
Isuzu QL1250UTCZY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6UZ1-TCG40 | Dimensions (mm): | 11745 × 2490 × 3025 |
Displacement (cc): | 9839 | Gross weight (kg): | 24700 |
Power (kW): | 257 | Curb weight (kg): | 8400 |
Wheelbase (mm): | 5820+1300 | Axle loads (kg): | 6700/18000 |
Isuzu QL1310URCHY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6UZ1-TCG40 | Dimensions (mm): | 9695 × 2490 × 3025 |
Displacement (cc): | 9839 | Gross weight (kg): | 31000 |
Power (kW): | 257 | Curb weight (kg): | 8950 |
Wheelbase (mm): | 1850+3320+1300 | Axle loads (kg): | 6500/6500/18000 |
Isuzu QL1310UVCHY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6UZ1-TCG40 | Dimensions (mm): | 11745 × 2490 × 3025 |
Displacement (cc): | 9839 | Gross weight (kg): | 31000 |
Power (kW): | 257 | Curb weight (kg): | 9100 |
Wheelbase (mm): | 1850+4615+1300 | Axle loads (kg): | 6500/6500/18000 |
Isuzu QL1040A1FAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1-TCG40 | Dimensions (mm): | 5230 × 1880 × 2150 |
Displacement (cc): | 2999 | Gross weight (kg): | 3780 |
Power (kW): | 88 | Curb weight (kg): | 1870 |
Wheelbase (mm): | 2765 | Axle loads (kg): | 1310/2470 |
Isuzu QL1041A1HAY
Isuzu truck chassis manufactured in China | |||
Vac Septic Tank Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4KH1-TCG40 | Dimensions (mm): | 5900 × 1880 × 2150 |
Displacement (cc): | 2999 | Gross weight (kg): | 3790 |
Power (kW): | 88 | Curb weight (kg): | 1800 |
Wheelbase (mm): | 3360 | Axle loads (kg): | 1315/2475 |
ISUZUseries | wheelbase mm | cabin | Isuzu model | equipments | |||||
ISUZU100P light truck EURO 5 | 2490 | single cabin | QL1040A6EAY | 4KH1CN5LS Isuzu 4KH1CN5LS diesel engine 98hp, Euro 5 emission, MSB five gears transmission, with A/C, hydraulic assist, front axle 2T, rear axle 4T, with ABS, tyre 7.00R16, double circuit type oil brake. single row cabin tiltable. hazardous chemicals transport truck chassis add disc brake, front mounted exhuast pipe, speed limit, speed limit device, exhaust brake. | |||||
double cabin | QL1040A6EWY | ||||||||
2765 | single cabin | QL1040A6FAY | |||||||
double cabin | QL1040A6FWY | ||||||||
3360 | single cabin | QL1040A6HAY | QL1042A6HAY | QL1043A6HAY | |||||
QL1045A6HAY | |||||||||
single cabin wider | QL1044A6HAY | ||||||||
single with sleeper | |||||||||
double cabin | QL1040A6HWY | QL1042A6HWY | |||||||
3815 | single cabin | ||||||||
double cabin | |||||||||
600P | 2490 | single cabin | Isuzu 4KH1CN5HS diesel engine 130hp,Euro 5 emission, MSB five gears transmission, with A/C, hydraulic assist, front axle 2.5T, rear axle 4.8T, with ABS, tyre 7.00R16, double circuit type oil brake. single row cabin tiltable, double row cabin can not tiltable. hazardous chemicals transport truck chassis add disc brake, front mounted exhuast pipe, speed limit device, exhaust brake. | ||||||
double cabin | QL1040A5EWY | ||||||||
2765 | single cabin | QL1070A5FAY | QL1040A5FAY | QL1071A5FAY | |||||
double cabin | QL1040A5FWY | ||||||||
3360 | single cabin | QL1070A5HAY | QL1071A5HAY | QL1040A5HAY | |||||
QL1044A5HAY | |||||||||
single cabin | QL1040A7HAY | ||||||||
single with sleeper | |||||||||
double cabin | QL1070A5HWY | QL1040A5HWY | |||||||
single cabin wider | QL1043A5HAY | ||||||||
3815 | single cabin | QL1070A5KAY | QL1071A5KAY | ||||||
QL1060A5KAY | |||||||||
single cabin wider | QL1072A5KAY | ||||||||
single with sleeper | |||||||||
double cabin | QL1070A5KWY | ||||||||
700P ISUZU middle truck | 3360 oil brake | single cabin | Isuzu 4HK1-TC51 diesel engine 190hp, Euro 5 emission, MLD six gears transmission, with A/C, hydraulic assist, front axle 4T, rear axle 7T, tyre 235/75R17.5, double circuit type oil brake. | ||||||
3815 oil brake | single cabin | ||||||||
single cabin | |||||||||
4175 oil brake | single cabin | ||||||||
4475 oil brake | single cabin | ||||||||
single cabin | |||||||||
single with sleeper | |||||||||
5200 oil brake | single cabin | QL1080A8PAY | |||||||
single with sleeper | |||||||||
3815air brake | single cabin | QL1100A8KAY | Isuzu 4HK1-TC51 diesel engine 190hp, Euro 5 emission, MLD six gears transmission, with A/C, hydraulic assist, front axle 4T, rear axle 7T, tyre 235/75R17.5, exhaust brake. | ||||||
4175air brake | single cabin | QL1100A8LAY | |||||||
4475air brake | single cabin | QL1100A8MAY | |||||||
5200air brake | single cabin | QL1100A8PAY | |||||||
FTR ISUZU middle truck | 3900 | single with sleeper | QL1160VKFRY | Isuzu 4HK1-TC50 diesel engine 205hp,Euro 5 emission, MLD six gears transmission, with A/C, hydraulic assist, central lock,power window, front axle 6.3T, rear axle 13T, tyre 10.00R20 , exhaust brake. | |||||
4500 | single with sleeper | QL1160VMFRY | |||||||
4700 | single with sleeper | ||||||||
5000 | single with sleeper | QL1160VNFRY | |||||||
5550 | single with sleeper | QL1160VQFRY | |||||||
5800 | single with sleeper | QL5160XXYVRFRY | |||||||
FVR heavy duty EURO5 | 3900 | single with sleeper | Isuzu 6HK1-TCL diesel engine 240hp,Euro 5 emission, MLD six gears transmission, with A/C, hydraulic assist, central lock,power window, front axle 6.3T, rear axle 13T, with ABS, tyre 295/80R22.5, exhaust brake. | ||||||
4500 | single with sleeper | QL1180XMFRY | |||||||
4700 | single with sleeper | ||||||||
5000 | single with sleeper | ||||||||
5550 | single with sleeper | QL1180XQFRY | |||||||
5800 | single with sleeper | QL5180XXYXRFRY | |||||||
1850+5650 | single with sleeper | 6HK1-TCL power 240hp | |||||||
4500 | single with sleeper | QL5190GXFWMFRY | 6HK1-TCH power 300hp | ||||||
FVZ ISUZU heavy duty EURO5 | 4000+1300 | single with sleeper | Isuzu 6HK1-TCH diesel engine 300hp,Euro 5 emission, FAST nine gears transmission, with A/C, hydraulic assist, central lock,power window, front axle 7T, rear axle 18T(double axles), with ABS, tyre 11.00R20, exhaust brake. | ||||||
4350+1300 | single with sleeper | ||||||||
4650+1300 | single with sleeper | QL1250WPFZY | |||||||
4900+1300 | single with sleeper | ||||||||
5100+1300 | single with sleeper | QL1250WRFZY | |||||||
5400+1300 | single with sleeper | ||||||||
5700+1300 | single with sleeper | QL1250WTFZY | |||||||
VC61 ISUZU heavy duty EURO5 | 4650 | single with sleeper | |||||||
3385+1370 | single with sleeper | QL4250W2NCZ | 6WG1-TCG51 power 450hp | ||||||
3600+1300 | single with sleeper | ||||||||
4025+1300 | single with sleeper | ||||||||
4605+1300 | single with sleeper | ||||||||
5100+1300 | single with sleeper | ||||||||
5820+1300 | single with sleeper | ||||||||
4605+1300 | single with sleeper | ||||||||
1850+3320+1300 single with sleeper | 6WG1-TCG51 power 450hp | ||||||||
1850+4575+1370 single with sleeper | QL5400GXFW2VCHY |
$27,300.00 / Set
ISUZU 700p sewer vacuum truck 7000L Applications
1).Hydrodynamic sewer and pipeline dredging and cleaning.
2).Hydrodynamic drain line dredging and cleaning.
3).High pressure surface cleaning.
4).High pressure industrial cleaning.
ISUZU SEWAGE SUCTION Truck ISUZU 700p sewer vacuum truck 7000L
Overall dimension(LxWxH)mm | 6980×2400×2580 |
G V W(kg) | 11070 |
Payload (kg) | 6000 |
Kerb mass(kg) | 4920 |
Approach/Departure Angle(°) | 21/13. |
Front/Rear Suspension (mm) | 1110/2055. |
Fuel Type | Diesel |
Fuel consumption(L/100km) | 9 |
Top speed | 95 |
Model | 4HK1-TC |
Exhaust/Power(kw) | 5193CC / 129KW 190hp |
Manufacturer | ISUZU Motor Co., Ltd. |
Type | 4-in-line electric control Common Rail Diesel Engine |
Drive type | 4×2 |
Wheelbase (mm) | 3815 |
Tread(front/rear)mm | 1680 / 1650. |
Front Bridge | 4 Ton |
Rear Bridge | 7 Ton |
Transmission | Double spoke wheel, circle ball transmission |
Gear box | Five forward gear, one reverse gear, mechanical transmission, flexible wiredraw operate |
Clutch | Uniwafer, dry membrane spring clutch |
Brake system | Air brake |
Cab | 0 |
Number of spring axles(front/rear) | 9/14. |
Tire specification | 9.5R17.5,8.25-20,8.25R20 |
Air condition | Chose to fix |
suction pump | Single Stage Rotary Oil Seal Vacuum Pump |
Vertical suction heihgt | ≥8 |
working pressure | 8500Pa |
rotation speed | 500 |
suction speed | 98L/S |
power | 5.5kw |
inlet diatmeter | 50mm |
filling time | 5s |
discharge time | 4s |
ISUZU vacuum Sewage Suction Truck 6000Liters
5-6CBM vacuum sewage suction truck wholesale good price, 5000Liters Sewage Suction Truck, 5000Liters Vacuum Truck, 6000Liters Dirty Water Suction Truck, 6000Liters Toilet Trucks, 6000Liters Vacuum Truck, 8000Liters Sludge Trucks, 8000Liters Toilet Trucks, 8000Liters vacuum sewage suction truck, 8000Liters Vacuum Trucks, 8cbm Sludge Trucks, 8m3 sludge trucks, 8m3 Vacuum Sewage Suction Trucks, 8Tons Sludge Truck, Cesspit Emptier best 5-6CBM sewage suction truck hot sale, cheap price, China Hubei Sewage Suction Trucks, China Hubei Sludge Trucks, China Hubei Toilet Trucks, China Vacuum Truck, Good Price Vacuum Truck, Hubei Vacuum Truck, ISUZU Cesspit Emptier, ISUZU septic pump truck, ISUZU Septic Tank Trucks, isuzu sewage suction truck, isuzu toilet truck isuzu sludge trucks, ISUZU Vacuum Sewage Suction Truck, isuzu vacuum truck, Sludge Transport Trucks, Vacuum Suction Dirty Water Trucks Export
Sucking sewage waste water operation
Vacuum Suction Sewage Trucks vacuum suction pump can be self-suction, self-discharge, fast working speed, large capacity, convenient transportation, suitable for the collection and transportation of waste, mud, oil, dirty water, sludge, septic, fecal, sludge, crude oil, and other solid stuff such as small stones, bricks as well.
The sewage suction truck can Self-suck and self-discharge. It has fast working speed, large capacity and convenient transportation. It is suitable for collecting and transporting liquid waste substances such as feces, mud and crude oil. The vacuum pump of the sewage suction truck, which is advanced in domestic technology, has large suction force and long suction distance. It is especially suitable for suction, loading and discharge of silt in sewer, especially for suction of larger objects such as slurry, silt, stone and brick in sewer. sewer cleaner truck vacuum tanker truck Collecting and transferring sludge, sewage, cleaning the sewer, Cesspoolage, cesspit, cesspool, gully, sewer etc. Sucking sludge tanker truck vacuum tanks brand Dongfeng, Jiefang, Foton, , HINO, Sinotruk Truck etc.
Dongfeng vacuum sewage suction truck, Jiefang sewage tanker truck, Futian suction truck, Heavy Truck suction truck, Shaanxi suction truck, Jianghuai suction truck and Qingling suction truck.
10 Units T14 ISOTank Container For Hydrofluoric Acid Export to India 20FT TANK CONTAINER (EMPTY AND NEW TANKS) 20 FT TANK CONTAINER FOR HYDROCHLORIC ACID UN1789 HCL, HYDROFLUORIC ACID UN1790 HF ACID CARON STEEL AND LINED WITH 16MM LLDPE TANKS CAPACITY 21 KL FOR ROAD INLAND MOVEMENTS
6 pcs Metal Alky T21 UN3394 UN3399 Portable Tank TEAL DEAC MAO to SGP Max. gross weight : 4000 kg Tare : 1050 kg Payload : 2950 kg Portable Tank instruction : T21 ADR/RID tank code : N/A Special provisions : TP2 TP7 TP36 TP41 Model : KS1880-T21 ISO size/type code : N/A Type : UN Portable Tank Dimensions : 1148(E.D) x2128 (L) x1388 (H) mm Nominal capacity : 1880 L Measured capacity : 1880 L at 20°C Maximum allowable working pressure : 14 bar Test pressure : 21 bar APPROVALS ADR/RID: F/9151/BV/23 IMDG: F/BV/23/194-T21 US DOT: UN Portable Tank TIR*: GB/C 26839 BV/2023 SUBSTANCES SUITABLE FOR TRANSPORT: In accordance with the requirements of the applicable regulations and the construction of the tank and its equipment. (Substances not compatible with the tank and/or its accessories are excluded for transport) UN3394 & UN3399
Customized Hydrochloric Acid HCL Tank Container Lined PE 24m3 for Trailer Mounted to Vietnam TANK CONTAINER VOLUME 24M3 STEEL SHEET 5MM, HEAD 6MM,Lined LLDPE 16mm for Hydrochloric Acid, Sulfuric Acid Transport 3 CHAMBERS HS CODE: 7309.00
6 units Metal Alky C480 Portable Tank TEAL DEAC Cylinder for Singapore 360 DEG. ROTATABLE TOP FLANGE VALVE (KV-MTFF DN15 PN 40), 360 DEG. ROTATABLE TOP FLANGE VALVE (KV-MTFE DN20 PN 40) K4430 Gaskets
6 Units 40KL 44KL 40FT ISO Steel Lined PE dilute sulfuric acid Tank Container to Kazakhstan40FT Tank Container PE Lined TankUsed to contain: HCl (max 35%), NaOH (max 50%), PAC (max 17%),H2SO4(max 94%) etc…Sulphuric Acid Tank Capacity: 40,000 Liters;44,000 LitersSteel sheet 6mm, head 6mmLiner thickness: 16mm PE01p
2 Sets HOWO Offroad AWD 6x6 Mixing And Charging ANFO Explosive Trucks Delivery
10 Units Hydrochloric Acid HCL PE LINED ISO Tank Containers to Vietnam 20FT Tank Container PE Lined Tank Used to contain: HCl (max 35%), NaOH (max 50%), PAC (max 17%),H2SO4(max 94%) etc… Tank Capacity: 21,900 Liters Steel sheet 6mm, head 6mm Liner thickness: 16mm PE
17m3 , 22m3 Lined PE Tank Container for Hydrochloric Acid HCL to Vietnam 20FT TANK CONTAINER TANK VOLUME/ STEEL THICKNESS 22M3/ 6MM (SOC / EMPTY AND NEW TANKS) BRAND: DONG RUNZE MODEL: DRAU2308018 STORAGE TANK CONTAINER TANK FOR HCL CARGO TRUCK TANK VOLUME/STEEL THICKNESS:17M3/ 6MM ( EMPTY AND NEW TANKS) BRAND: DONG RUNZE MODEL: DTA5260 HS CODE : 7309000000
4 Sets Polyethylene Lined Steel Offshore T14 Tanks For Hydrochloric Acid Transport to Kazakhstan Marks DTAU2305012 DTAU2305028 DTAU2305033 DTAU2305049
80Units Metal Alky C480 UN Portable Tank T21 TEAL Cylinders to USA 80Units UN T21 Portable Tank Container 1880L Cylinder For TEAL Metal Alkyls UN3394 UN3399 to USA Adr/Rid Organometallic Substance, Liquid, Water- Reactive C-430 Saddle Type Portable Tank , tank capacity 1630L C-480 Saddle Type Portable Tank, tank capacity 1880L C-1980 TEAL TMGa ,TEGa,TMIn, TMAl DEAC Metal Alky C-1980 T21 Metal Alky 7495L
6 Sets Polyethylene Lined Steel Tanks 6600Gallon For Hydrochloric Acid Storage Transport Hydrochloric Acid (HCl) to SAU Chemical Factory This the 4th LOT HCL ,NaCLO Tanks For this SAU Chemical Facttory . The 1 st Order date will go back to Date 13-1-2021. CAST IRON STORAGE TANK FOR CHEMICAL MATERIALS STORAGE TANK CAPACITY: 25M3 HS CODE:7309000000
3 Sets Lined PE Tanks 6604Gallon For Storage Transport Sodium Hypochlorite to Saudi Arabia FROM WUHAN PORT CHINA TO DAMMAM, SAUDI ARABIA BY SEA. + Port of loading : WUHAN PORT + Port of unloading :DAMMAM CAST IRON STORAGE TANK FOR CHEMICAL MATERIALS STORAGE TANK CAPACITY: 25M3 HS CODE:730900 10.2x2.1x2.5*3 160.65cbm 3X40HQ
4PCS Power Take-off PTO FOR JMC TRANSMISSION MODEL DN3-7003-EC 6MT1420 to URUGUAY Sdq51/65 (Gearbox Power Take off For ISUZU QINGLING Transmission DN3-70030-E0, 6MT1420 PTO Assembly) HWP-G32/65CHQ ,32/65 PQ1
12PCS PTO Wanliyang Transmission Power Take-off For WLY6T40 WLY6TS40 to Mexico 1 PC SDQ211/60LGQ1 PTO FOR 6DS60T-D TO SAUDI ARABIA
2 Units Righ Hand Drive Shacman F3000 Hydro Excavators Truck Combined Vacuum Sewer Jetting to Suva Port Fiji Shacman F3000 Hydro Excavators Truck Sewer Jet Suction Units (RHD 13500L Sewage+4000L Clean Water ) PTO, transmission shaft, vacuum pump, tanker, hydraulic system and jetting pipe system. Combined Sewer Suction & Jetting Unit SZW Aluminium Alloy Liquid Water Ring Compressor Vacuum Pump XW-2800 VAC Flow 2800 M³/h ,1648 Cfm 46.7M3/min 75KW
