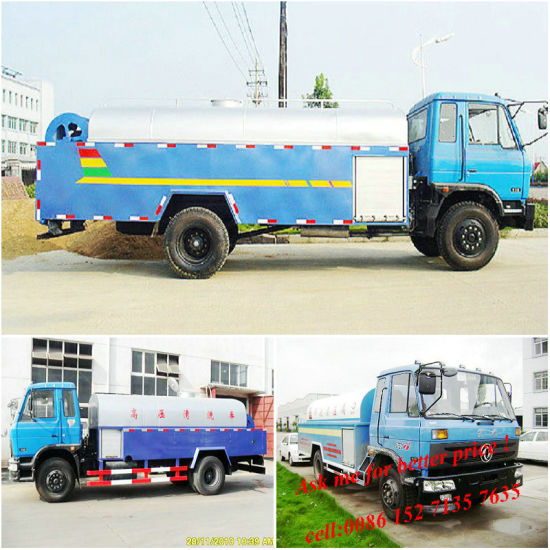

High Pressure Cleaning Water Tanker Truck 6000 ~7000litres

High Pressure Cleaning Water Tanker Truck 6000 ~7000litres
Availability:
Quantity:
  • 10000

  • T/T, Western Union

  • Nil


Dongfeng  high pressure cleaning truck
high pressure cleaning water tanker truck 6000 ~7000Litres

water/   oil tanker truck  Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale  86-152 -7135-7675

Product

Dongfeng 140 high pressure cleaning truck(5-6 m3)
Both Italy pump and domestic pump can be used

Chassis type
EQ1092F19DJ/EQ1092FJ/EQ1101GLJ;EQ1110GLJ
Cubage(CBM)6m3
ParametersOverall dimension length/width/height (mm)7950×2470×2500
Total Mass(kg)9700
Payload(kg)4.355
Kerb Mass(kg)5150
Approach angle/Departure           angle  (mm)33/22
Front suspension/rear suspension (mm)1065/1985
Fuel TypeDiesel
Fuel Consumption/100 km14-18
Max Speed (Km/h)80
EngineEngine TypeYC4E140-33/ YC4BJ115-33
Displacement/Power (kw)4257 /5420 / 105 /99
ManufacturerGuangxi Yuchai Machine Co.,Ltd/DFAC Commercial Vehicle Engine manufacturing.
Type4-in-line,six-cylinder 4-stroke supercharged diesel engine
ChassisDrive type4×2
Wheelbase(mm)3950
Tread(front/rear)1810 / 1800
Front axle3.6T
Rear axle8T
Steering gearDuel-armed steering wheel, worm and peg steering
Transmission5 forward gear,1 reverse gear,manual mechanical type
ClutchUniwafer, dry diaphragm spring clutch
Braking systemSplit air braking system,pneumatic servo,drum brake
CabLongheaded cab
Number of spring axle(front/rear)9/11+8
Tire Type9.00-20  12PR
Air-conditionChoose to fix


 High Pressure Jetting Truck water jetting trucks

Application
This high pressure watering and dredging truck is multi-functional equipment combined with water spraying, cleaning of road surface, curbs, handrails, billboard, verge by high pressure water, emergency firefighting, spraying dust, watering the green belt, clearing the sewer outfall and cleaning industrial cleaner. This kind of machine can be widely used in daily work of variable grades of highway, municipal administration, and sanitation.

Structural feature
Emission standard EUROIII, EUROIV
Water tank is designed as elliptical cross section with advanced preservative treatment on the surface, being equipped with flow meter; level gauge and low water level alarm inside, the power will be cut down automatically when water level reaches the lowest limit.
Low pressure waterway system realizes cleaning of road surface, water spraying, watering the green belt, and firefighting.
High-power water spraying truck is driven by self-priming centrifugal with large flow and high lift.
Front spraying and back impacting function, high pressure back impacting by 20m cleaning width. Controlled by air-control ball valve, can be operated inside cab.
Back spraying gun can be turned by 360°
High pressure waterway system realizes front impacting, left & right spraying in corners, spraying dust device, handheld-gun operation and draining.
Safety valve and overflow valve, double protection to high pressure water pump.
Front water spraying device can be stretched and turned left and right.
All nozzles are imported parts, fine spraying particles, large spraying range.
Draining, hose retracted by hydraulic reel.

  water tank truck ,  dongfeng Water tank ,  WATER TANK ,  Water tank Truck ,  water tanker

Our  water tank truck with different chassis, eg:DFAC, DFL, SINOTRUCK, CNHTC,NORTH BENS, FOTON, ISUZU, JAC, JMC, KAMA, YUEJIN, etc.
Our water tank series:
-----water tanker truck
-----sanitation water tank truck
-----sprinkler truck
-----water wagon truck
-----insulation water tank truck
-----pesticide sprinkling truck
-----water spraying truck
-----Mild steel water tank cart
-----Stainless steel tank water truck
-----Aluminum alloy water tanker
-----RHD watering cart
-----Water tank semi trailer
-----Storage water tanker

TIC TRUCKS , www.truckinchina.com

High Pressure Jetting Truck,Jetting Truck,Dredging Truck,water Jetting Truck,sewage Jetting Truck
