HOWO Road Asphalt Spraying Tank Truck (Asphalt Tank 8000-10000L Insulated Spray Bitumen 4.5 -6 meters)
| Quantity: | |
|---|---|
-
Shanghai, China
-
800
-
T/T
Road Construction Intelligent Asphalt Distributor
HOWO Asphalt Distributor 8000-10000L Tank Spraying Nozzles 30 Nos (Asphalt Tank 8000-10000L Insulated Spray Bitumen 4.5 -6 meters)
Cell: 0086 152 7135 7675
Asphalt distributor
Brief introduction of asphalt distributor truck

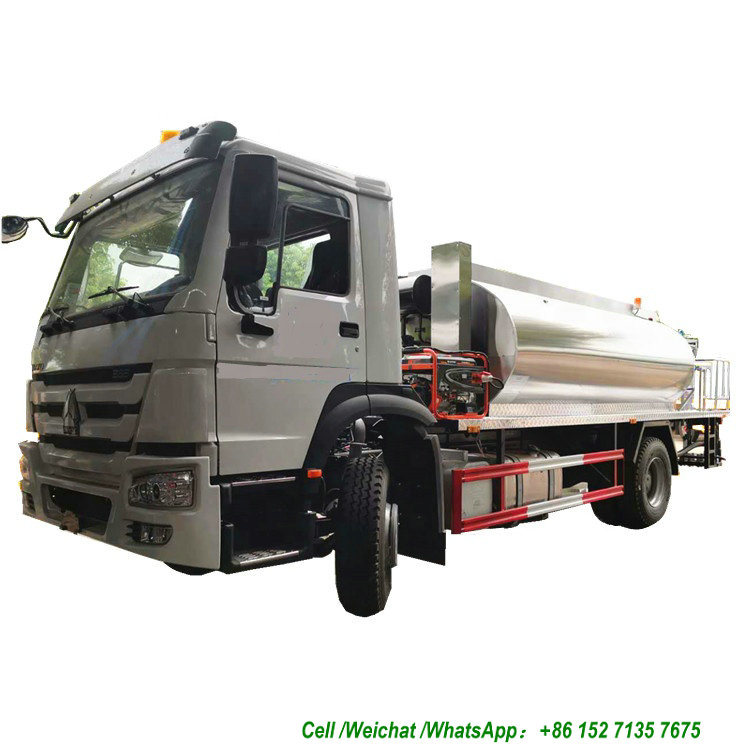

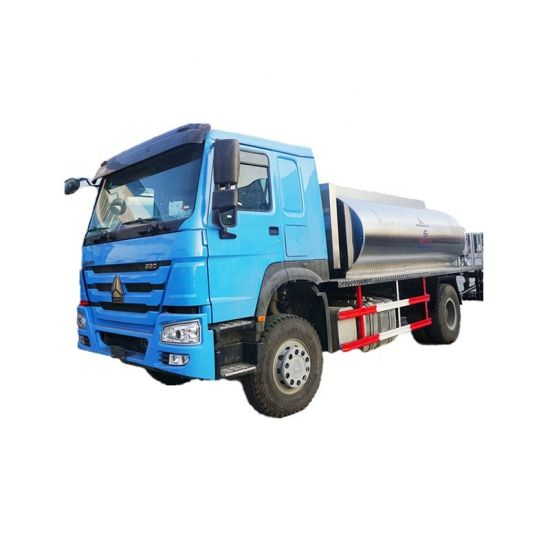

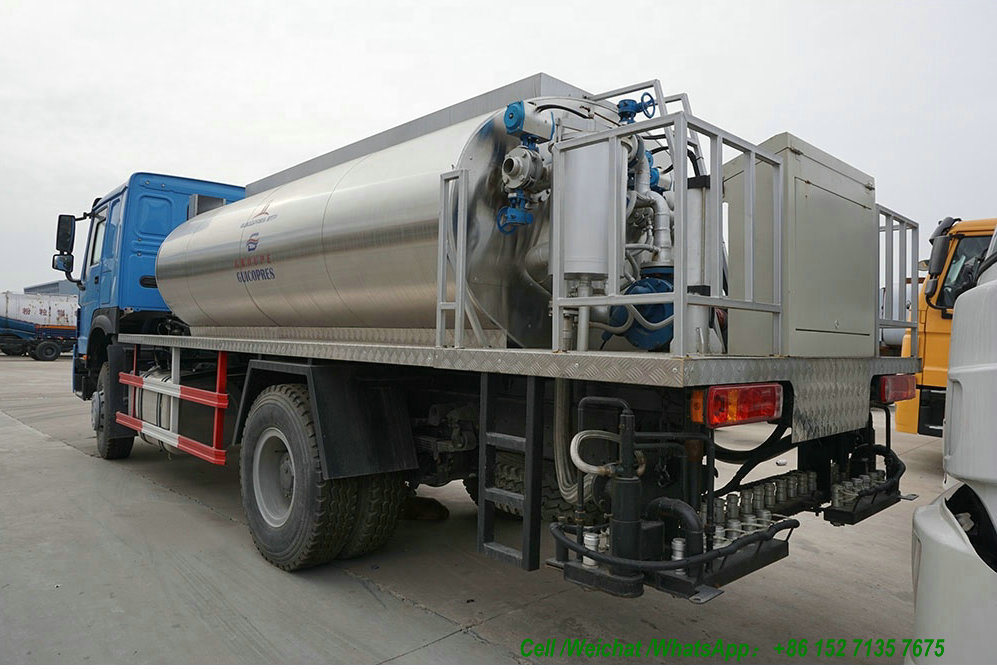

HOWO 4X2 Road Maintenance Truck Asphalt Spraying Tank Truck
| Overall dimensions | 8650×2480×3070mm | Fact cubage | 8000-10000L |
| Mass in working order | Appro×10305kg | Max speed | 90km/h |
| Wheel base | 4700mm/5000mm | Displacement | 6494mL |
| Vehicle model | ZZ1164K47AAA | Chassis model | ZZ1164K4715C1 |
| Tire specification | 11.00-20,11.00R20 | Drive seat | LHD |
| Engine transmission | 6 Speed , HW75706TC | Engine Power | 162KW/220HP |
| Engine modle | YC6J220-33 | Bitumen pump | TGGP-125-185 |
| Motor | ISB180 40 | Hydraulic pump | Rexroth |
| Working speed | 1.5-7km/h | Asphalt nozzle No | 48 |
| Heating mode | Heat conducting oil , heat automatic | ||

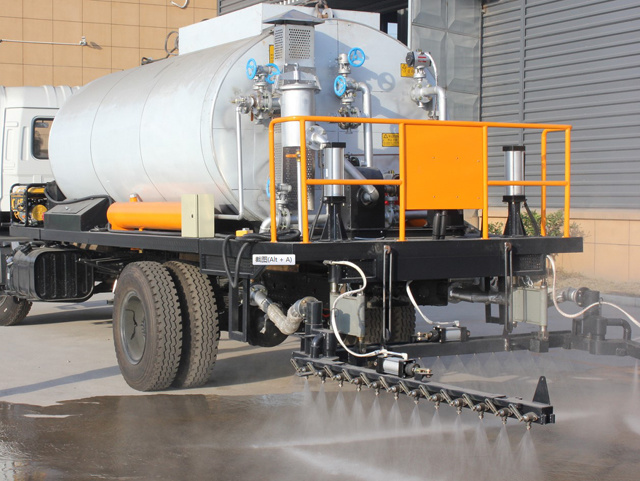

standard asphalt distributor is an high-tech product which can spread emulsified asphalt, fluxed asphalt, oil refining asphalt, heated asphalt, heavy traffic paving asphalt and high viscosity modified asphalt (vehicle with high configuration). The product has been widely used in highway construction and road maintenance projects. It can be used for construction of upper and lowers seal coat, prime coat, waterproof layer, bonding layer, bituminous surface treatment, bituminous penetration pavement, fog seal and other projects of different grades of highway pavement. It can also be used for transportation of liquid asphalt or other heavy oil
| Vehicle Description | |||||
| Vehicle model | Asphalt Distributor | Overall dimensions (mm) | 8335*2480*3050 | ||
| GVW (kg) | Appro×16000 | Fact loading capacity (L) | 6000 | ||
| Mass in working order (kg) | Appro×10160 | Max. Speed (km/h) | 95 | ||
| Chassis Description | |||||
| Chassis Model | ZZ1167K501GE | ||||
| Cab | Standard cabin with Left hand drive | ||||
| Color | Optional | ||||
| Allowable person in cab | 2 | ||||
| Wheel base (mm) | 4500 | ||||
| Front/Rear track base (mm) | 1506/1466 | ||||
| Front/Rear overhang (mm) | 1032/2068 | ||||
| Number of axles | 2 | ||||
| Axle | Front axle | 2320 | |||
| Rear axle | 3480 | ||||
| Traction system | 4x2 | ||||
| Operation control system | Power steering | ||||
| Braking system | Full air | ||||
| Electric system | 24V | ||||
| Transmission | Mechanical gear box 5 speeds + one rear | ||||
| Spring plate | 6/8+4 | ||||
| Tire specification | 275/80R22.5,10.00R20,10.00-20 | ||||
| Tire quantity | 6+1 | ||||
| Engine Description | |||||
| Engine model | MC05.16-50 | ||||
| Emission standard | Euro 2 | ||||
| Exhaust/output | 4580/118 | ||||
| Horse power | 160 | ||||
| Up-parts Description | |||||
| Asphalt tank Outline Dimension (mm) | 4350/2410/1710 | ||||
| Asphalt tank Inner Dimension(mm) | 3980/1950/1250 | ||||
| Insulating layer thickness (mm) | 50 | ||||
| Asphalt tank Total Volume(L) | 6000 | ||||
| Hydraulic pump | CBQ550-L | ||||
| Proportional valve | Taiwan EFBG-03-160-HF | ||||
| Asphalt pump | QGB680 | ||||
| Hydraulic motor for asphalt pump | 05-110-BD31 | ||||
| Heating System | Italian burner Riello | ||||
| Heat-transfer oil pump | 25-25-160 | ||||
| Control System | SIEMENS CLW-39-01 | ||||
| Generator | 5.5KW gasoline engine generator | ||||
| Number of nozzle | 30-39 | ||||
| Spray medium | Hot asphalt/ Hot modified asphalt/ Cutback asphalt/ Emulsified asphalt | ||||
| Spray width(m) | 4.5-6 | ||||
| Spray amount(L/m2) | 0.2-2 | ||||
| Working Condition: | 1,Altitude: 0-4500m 2,Temperature: -350C~+450C 3,Relative humidity: 80% 4,Wind force: ≤8 degree | ||||
Product Name | 6x4 Sinotruck Howo Asphalt Distributor Truck for sale (LHD or RHD) | |
General | Classis model | ZZ3257N/Sinotruck |
Overall dimension L/W/H (mm) | 9900X2500X3800(mm) | |
GVW/Curb Weight | 25,000kg / 16,000kg | |
Cab | Cab capacity | 3 person allowed |
Electric power window | Yes | |
Air-condition | Yes | |
Engine | Engine model | Cummins engine |
Fuel Type | Diesel | |
Engine Power | 336Hp(247kw) | |
Displacement | 9726 cc | |
Emission Standard | Euro 3/4/5 | |
Classis | Drive Type | 6x4, left hand drive or right hand drive |
Transmission | 10 speed forward and 1 reverse, manual | |
Wheelbase/No. of axle | 3825+1350 mm / 2 | |
Tire Type | 12.00R20 | |
Tire numbers | 10 tires and 1 spare tire | |
Max Speed | 79 km/h | |
Paint | Metallic paint | |
Superstructure | Asphalt tank capacity | 14 Ton |
Tank material | Carbon steel | |
Asphalt pump | QGB950, applying to high viscosity asphalt | |
Hydraulic pump | CBQ550-L, imported brand | |
Control system | Computer controlled | |
Burner | RIELLO G20,made in Italy | |
Heating method | Automatic by heat conduction oil | |
Spray volume | 0.25-4 L/m2 | |
Spray width | 4.5-6m | |
All other standard accessories: English version manual, basic tool kit,... | ||
Optional | Asphalt pump / Hydraulic pump can be equipped optionally. | |
inotruck howo brand 16 cbm road paver asphalt bitumen sprayer distributor truck
Asphalt tanker truck,bitumen spraying truck,which is mainly used for road construction.
Currently our company produce the asphalt spraying truck 3000~14000 liter design.
Meanwhile,our company also produce the multi-function truck that asphalt spraying with crush stone paver.Welcome for your inquiry.
Item | Unit | Specification |
Vehicle Model Name | Asphalt Spray Truck (standard,semi-auto,automatic,Imported Automatic) | |
Driving type | 6*4 | |
Tank Volume | M³(L) | 12-14 |
Overall Dimension | mm | 10200×2500×3450 |
Gross Weight | kg | 25000 |
Payload | kg | 8870,8805 |
Curb Weight | kg | 16000 |
Axle No. | 3 | |
Wheelbase | mm | 4600+1350 |
Max speed | Km/h | 95 |
Chassis Model | ZZ1257M4641W | |
Chassis Brand | HOWO | |
Chassis Manufacturer | CNHTC Jinan Truck Co., Ltd. | |
Chassis Category | Truck chassis (second) | |
Engine Model | WD615.92 | |
Engine Manufacturer | ChinaNationalHeavyDutyTruckGroupCo.,Ltd | |
Displacement / Power | ml/kw | 9726/192 |
Emission Standard | EURO II | |
Fuel Type | Diesel | |
Tire specification / Number | 11.00R20 /10 | |
Transmission | 10 forward,1 reverse | |
Front Axle /Rear Axle | T | |
Cab Seats | man | 3 |
Spray Width | mm | 6 |
Nozzle Quantity | pcs | 48 |
Control Method | Manual or Computer | |
Price | ||
Vehicle Profile | The asphalt spray truck is a kind of professional distributing emulsified asphalt, heat diluted asphalt, asphalt, high viscosity modified asphalt, it is an intelligent automation high-tech truck. The truck sprinkles road surface with asphalt and spray the priming oil, waterproof layer, bond layer on asphalt roadbed. It consist of chassis, Asphalt tank, asphalt pump , spray system, hot oil heating system , hydraulic system, burning system, control system, pneumatic system and operational platform. The truck is easy to operate. Based on existing technologies , it has new designed to make sure the sprinkling asphalt quantity , to improve construction environment for mankind. It is reasonable and reliable to ensure the asphalt distributing uniformity, computer control is stable and reliable, vehicle technical has reached the world advanced level. It can be work under the harsh environments. | |
Performance Feature | 1. Adjust the nozzles in any form through the computer according to the asphalt spraying quantity and working width. 2. Control the nozzles independently through the manual/automatic control, this can adjust the nozzles in any form. 3. It can control the asphalt spraying quantity not only in the cab but also on the operational platform at the end of the truck. 4. The automatic system can measure the truck speed, it also can automatically calculate the revolution of asphalt pump according to entered asphalt spraying quantity and spraying width, then adjust the pump number through the automatic system . 5. Equipped with Italy imports of diesel burner heating, with auto ignition and temperature control. 6.. Adopt to the advanced high viscosity asphalt pump, can put outside pump in the Tank to achieve self-absorption, also can put the asphalt out of the tank. 7.In order to make sure the vehicle reliability and extend the service life, the critical part of the vehicle adopt to the international famous parts. 8. All the heat pipe has the insulation layer to reduce heat release and avoid to scald the operator at the same time. 9. Vehicular rapid-heating system(10-15ºC/h) can improve the heating efficiency and reduce the construction time to ensure the spray temperature. 10. The asphalt spray bar is designed three-stage folded structure, move the asphalt spray up and down to achieve dual or multiple spraying, move the asphalt spray left and right to achieve extend the distributing range, what' more . It can avoid obstacles efficiently. 11. The manual spraying function can make spraying through the hand nozzle, it is quite flexible but only applicable to small and marginal construction condition. Install the hand spray gun, open the outlet valve, open the diverting valve, open the oil return valve, use the oil return valve to adjust the pressure of the spray gun. 12. It is designed the precipitation sewage tank in the asphalt tank, and equip with liquid level digital display and security alarms. 13.It has good thermal insulation layer, this is preservative and durable and ensure the static heat preservation performance index ≤12ºC/8h. 1414.The out package of the truck adopt to stainless steel plate, antiseptic and durable, beautiful designed | |
Parameters of Semi-Automatic Asphalt Distributor.
Model | 5251GLQ | 5162GLQ | 5161GLQ | 5120GLQ | 5111GLQ | 5090GLQ | 5081GLQ |
Truck | Cab-over-engine 6*4 | Cab-over-engine 4*2 | Cab-over-engine 4*2 | Cab-over-engine 4*2 | Cab-over-engine 4*2 | Cab-over-engine 4*2 | Cab-over-engine 4*2 |
Chassis Model | ZZ1257M4647C | DFL1160BX | BJ5163ELFFD | BJ1123VJPEG-S | EQ1110TJ12D5 | EQ1090T9ADJ3AC | HFC1081KT |
Burner model | G20 | G20 | G20 | G20 | G20 | G20 | G20 |
Asphalt capacity | 12000 | 8000 | 8000 | 6600 | 5400 | 4500 | 5000 |
Spray bar variable(m) | 0-6M | 0-6M | 0-6M | 0-6M | 0-6M | 0-6M | 0-5.5M |
Spray bar value(kg) | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 |
Dimension | 10500*2496*3350 | 8995*2490*3200 | 8785*2455*3015 | 8990*2350*2855 | 7998*2260*2870 | 7445*2285*2560 | 7350*2010*2460 |
| Configuration Type | Details of Asphalt truck | |||
| Normal configuration Simple type | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Burner: G10 imported from Italy 4. Temperature control: AI-218 microcomputer temperature controller; 5. Spreading width: 1.2m ~ 4.5m, optional 6m 6. Spray control: manual adjustment 7. Asphalt pipeline compressed air cleaning function | |||
| Ordinary configuration | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Hydraulic pump: F563 aluminum alloy gear pump; 4. Hydraulic system: manual flow control valve imported; 5. Burner: G10 imported from Italy 6. Temperature control: AI-218 microcomputer temperature controller; 7. Spreading width: 1.2m ~ 4.5m, optional 6m 8. Sprinkler control: manually adjust asphalt pipe 9. Asphalt pipeline compressed air cleaning function | |||
| Ordinary upgrade configuration | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Hydraulic pump: F563 aluminum alloy gear pump; 4. Hydraulic system: imported proportional flow control valve; 5. Burner: G10 imported from Italy 6. Heating method: automatically heating by heat-conduction oil 7. Temperature control: AI microcomputer temperature controller; 8. Width of Spray : 1.2m ~ 4.5m, optional 6m precise triple overlappingSpray , 9. Spraying quantity control: manually adjust asphalt nozzle; 10. Asphalt pipeline compressed air cleaning function | |||
| Semi-intelligent configuration | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Hydraulic pump: F563 aluminum alloy gear pump; 4. Hydraulic system: imported proportional flow control valve; 5. Burner: G10 imported from Italy 6. Heating method: automatically heating by heat-conduction oil 7. Temperature control: AI microcomputer temperature controller; 8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric controln ozzle, 9. Sprinkler control: front and background potentiometer adjustment, digital display; 10. Asphalt pipeline compressed air cleaning function | |||
| Full intelligent configuration | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Hydraulic pump: F563 aluminum alloy gear pump; 4. Hydraulic system: imported proportional flow control valve; 5. Burner: G10 imported from Italy 6. Heating method: automatically heating by heat-conduction oil with selective heating function 7.temperature control: Germany Siemens temperature control module, computer temperature control 8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric control nozzle, 9. Sprinkling width is precisely controlled by computer: sprinkling quantity control: Germany Siemens PLC, intelligent control, sprinkling quantity and speed precise linkage, front touch screen control system. 10. Asphalt pipeline compressed air cleaning function | |||
| Full intelligent configuration imported Pump |

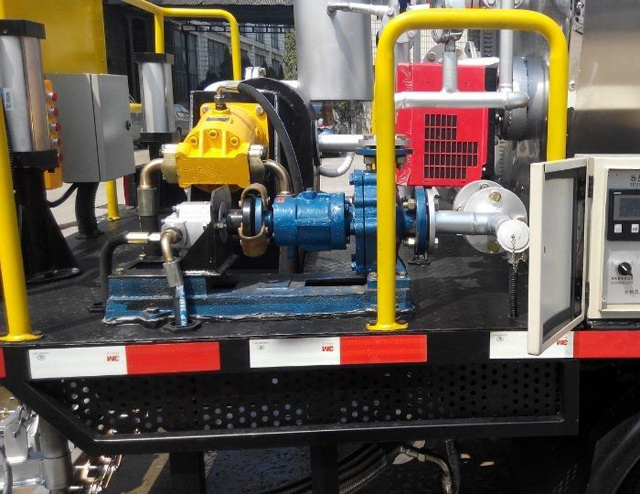

2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Hydraulic pump: Germany leisler plunger variable pump; 4. Hydraulic system: imported proportional flow control valve; 5. Burner: G10 imported from Italy 6. Heating method: automatically heating by heat-conduction oil with selective heating function 7. temperature control: Germany Siemens temperature control module, computer temperature control 8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric control nozzle, 9. Sprinkling width is precisely controlled by computer: sprinkling quantity control: Germany Siemens PLC, intelligent control, sprinkling quantity and speed precise linkage, front touch screen control system. 10. Asphalt pipeline compressed air cleaning function 11.spray volume 0.2 ~ 3 kg / , 28 sets of full electric nozzle, | |||
Our products enjoy a good reputation for the good quality!

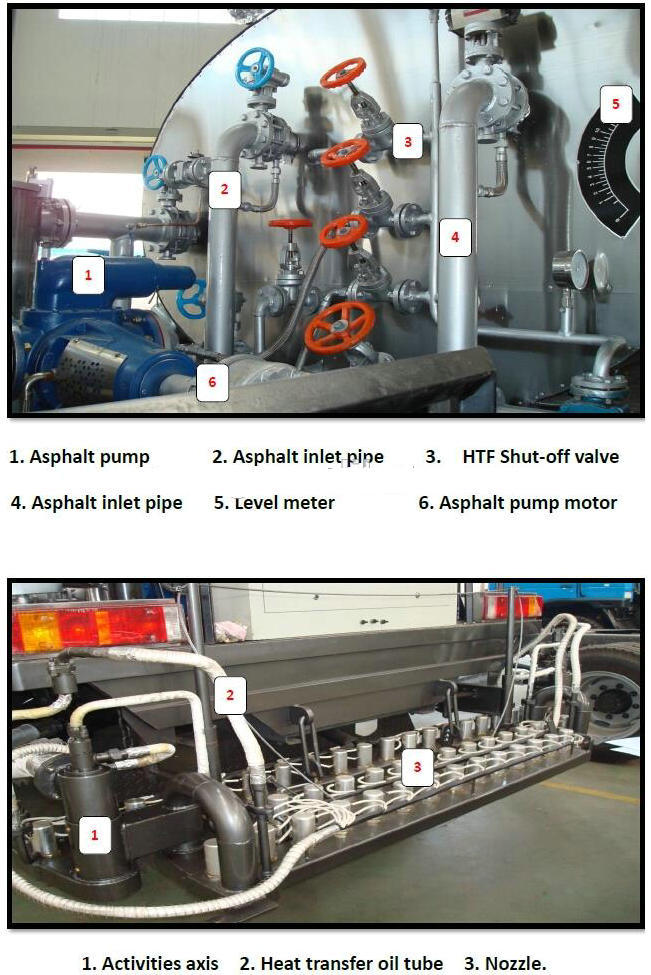

The asphalt distributor is made up by chassis, asphalt tank, asphalt pump, optional conduction oil heating system, electronic control system and spraybar system, etc.
Major features:
1) Digital display meters and instruments to indicate speed of the vehicle and the asphalt pump rotation, as well as temperature of asphalt inside the tank.
2) Possesses heat preservation, conduction oil recycling heating, transportation, spray, pumping and discharge function, etc.

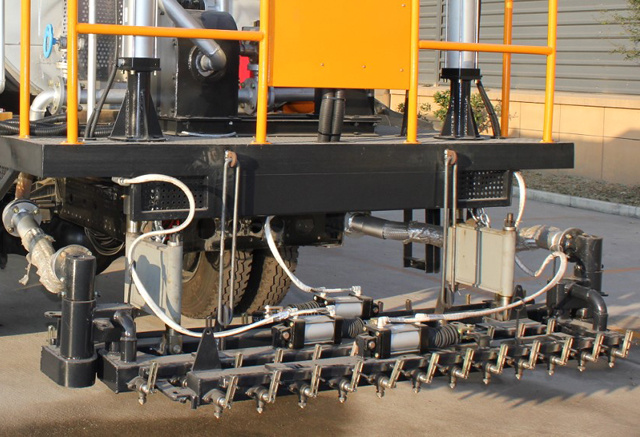

3) Nozzle controlled through pneumatic joint control operation of cylinder for opening and closing.
4) Cleaning system of compressed air
5) Hydraulic power take-off of chassis or auxiliary diesel engine for drive, heated with burner, optional conduction oil recycling system.
Road Construction Intelligent Asphalt Distributor
HOWO Asphalt Distributor 8000-10000L Tank Spraying Nozzles 30 Nos (Asphalt Tank 8000-10000L Insulated Spray Bitumen 4.5 -6 meters)
Cell: 0086 152 7135 7675
Asphalt distributor
Brief introduction of asphalt distributor truck
HOWO 4X2 Road Maintenance Truck Asphalt Spraying Tank Truck
| Overall dimensions | 8650×2480×3070mm | Fact cubage | 8000-10000L |
| Mass in working order | Appro×10305kg | Max speed | 90km/h |
| Wheel base | 4700mm/5000mm | Displacement | 6494mL |
| Vehicle model | ZZ1164K47AAA | Chassis model | ZZ1164K4715C1 |
| Tire specification | 11.00-20,11.00R20 | Drive seat | LHD |
| Engine transmission | 6 Speed , HW75706TC | Engine Power | 162KW/220HP |
| Engine modle | YC6J220-33 | Bitumen pump | TGGP-125-185 |
| Motor | ISB180 40 | Hydraulic pump | Rexroth |
| Working speed | 1.5-7km/h | Asphalt nozzle No | 48 |
| Heating mode | Heat conducting oil , heat automatic | ||
standard asphalt distributor is an high-tech product which can spread emulsified asphalt, fluxed asphalt, oil refining asphalt, heated asphalt, heavy traffic paving asphalt and high viscosity modified asphalt (vehicle with high configuration). The product has been widely used in highway construction and road maintenance projects. It can be used for construction of upper and lowers seal coat, prime coat, waterproof layer, bonding layer, bituminous surface treatment, bituminous penetration pavement, fog seal and other projects of different grades of highway pavement. It can also be used for transportation of liquid asphalt or other heavy oil
| Vehicle Description | |||||
| Vehicle model | Asphalt Distributor | Overall dimensions (mm) | 8335*2480*3050 | ||
| GVW (kg) | Appro×16000 | Fact loading capacity (L) | 6000 | ||
| Mass in working order (kg) | Appro×10160 | Max. Speed (km/h) | 95 | ||
| Chassis Description | |||||
| Chassis Model | ZZ1167K501GE | ||||
| Cab | Standard cabin with Left hand drive | ||||
| Color | Optional | ||||
| Allowable person in cab | 2 | ||||
| Wheel base (mm) | 4500 | ||||
| Front/Rear track base (mm) | 1506/1466 | ||||
| Front/Rear overhang (mm) | 1032/2068 | ||||
| Number of axles | 2 | ||||
| Axle | Front axle | 2320 | |||
| Rear axle | 3480 | ||||
| Traction system | 4x2 | ||||
| Operation control system | Power steering | ||||
| Braking system | Full air | ||||
| Electric system | 24V | ||||
| Transmission | Mechanical gear box 5 speeds + one rear | ||||
| Spring plate | 6/8+4 | ||||
| Tire specification | 275/80R22.5,10.00R20,10.00-20 | ||||
| Tire quantity | 6+1 | ||||
| Engine Description | |||||
| Engine model | MC05.16-50 | ||||
| Emission standard | Euro 2 | ||||
| Exhaust/output | 4580/118 | ||||
| Horse power | 160 | ||||
| Up-parts Description | |||||
| Asphalt tank Outline Dimension (mm) | 4350/2410/1710 | ||||
| Asphalt tank Inner Dimension(mm) | 3980/1950/1250 | ||||
| Insulating layer thickness (mm) | 50 | ||||
| Asphalt tank Total Volume(L) | 6000 | ||||
| Hydraulic pump | CBQ550-L | ||||
| Proportional valve | Taiwan EFBG-03-160-HF | ||||
| Asphalt pump | QGB680 | ||||
| Hydraulic motor for asphalt pump | 05-110-BD31 | ||||
| Heating System | Italian burner Riello | ||||
| Heat-transfer oil pump | 25-25-160 | ||||
| Control System | SIEMENS CLW-39-01 | ||||
| Generator | 5.5KW gasoline engine generator | ||||
| Number of nozzle | 30-39 | ||||
| Spray medium | Hot asphalt/ Hot modified asphalt/ Cutback asphalt/ Emulsified asphalt | ||||
| Spray width(m) | 4.5-6 | ||||
| Spray amount(L/m2) | 0.2-2 | ||||
| Working Condition: | 1,Altitude: 0-4500m 2,Temperature: -350C~+450C 3,Relative humidity: 80% 4,Wind force: ≤8 degree | ||||
Product Name | 6x4 Sinotruck Howo Asphalt Distributor Truck for sale (LHD or RHD) | |
General | Classis model | ZZ3257N/Sinotruck |
Overall dimension L/W/H (mm) | 9900X2500X3800(mm) | |
GVW/Curb Weight | 25,000kg / 16,000kg | |
Cab | Cab capacity | 3 person allowed |
Electric power window | Yes | |
Air-condition | Yes | |
Engine | Engine model | Cummins engine |
Fuel Type | Diesel | |
Engine Power | 336Hp(247kw) | |
Displacement | 9726 cc | |
Emission Standard | Euro 3/4/5 | |
Classis | Drive Type | 6x4, left hand drive or right hand drive |
Transmission | 10 speed forward and 1 reverse, manual | |
Wheelbase/No. of axle | 3825+1350 mm / 2 | |
Tire Type | 12.00R20 | |
Tire numbers | 10 tires and 1 spare tire | |
Max Speed | 79 km/h | |
Paint | Metallic paint | |
Superstructure | Asphalt tank capacity | 14 Ton |
Tank material | Carbon steel | |
Asphalt pump | QGB950, applying to high viscosity asphalt | |
Hydraulic pump | CBQ550-L, imported brand | |
Control system | Computer controlled | |
Burner | RIELLO G20,made in Italy | |
Heating method | Automatic by heat conduction oil | |
Spray volume | 0.25-4 L/m2 | |
Spray width | 4.5-6m | |
All other standard accessories: English version manual, basic tool kit,... | ||
Optional | Asphalt pump / Hydraulic pump can be equipped optionally. | |
inotruck howo brand 16 cbm road paver asphalt bitumen sprayer distributor truck
Asphalt tanker truck,bitumen spraying truck,which is mainly used for road construction.
Currently our company produce the asphalt spraying truck 3000~14000 liter design.
Meanwhile,our company also produce the multi-function truck that asphalt spraying with crush stone paver.Welcome for your inquiry.
Item | Unit | Specification |
Vehicle Model Name | Asphalt Spray Truck (standard,semi-auto,automatic,Imported Automatic) | |
Driving type | 6*4 | |
Tank Volume | M³(L) | 12-14 |
Overall Dimension | mm | 10200×2500×3450 |
Gross Weight | kg | 25000 |
Payload | kg | 8870,8805 |
Curb Weight | kg | 16000 |
Axle No. | 3 | |
Wheelbase | mm | 4600+1350 |
Max speed | Km/h | 95 |
Chassis Model | ZZ1257M4641W | |
Chassis Brand | HOWO | |
Chassis Manufacturer | CNHTC Jinan Truck Co., Ltd. | |
Chassis Category | Truck chassis (second) | |
Engine Model | WD615.92 | |
Engine Manufacturer | ChinaNationalHeavyDutyTruckGroupCo.,Ltd | |
Displacement / Power | ml/kw | 9726/192 |
Emission Standard | EURO II | |
Fuel Type | Diesel | |
Tire specification / Number | 11.00R20 /10 | |
Transmission | 10 forward,1 reverse | |
Front Axle /Rear Axle | T | |
Cab Seats | man | 3 |
Spray Width | mm | 6 |
Nozzle Quantity | pcs | 48 |
Control Method | Manual or Computer | |
Price | ||
Vehicle Profile | The asphalt spray truck is a kind of professional distributing emulsified asphalt, heat diluted asphalt, asphalt, high viscosity modified asphalt, it is an intelligent automation high-tech truck. The truck sprinkles road surface with asphalt and spray the priming oil, waterproof layer, bond layer on asphalt roadbed. It consist of chassis, Asphalt tank, asphalt pump , spray system, hot oil heating system , hydraulic system, burning system, control system, pneumatic system and operational platform. The truck is easy to operate. Based on existing technologies , it has new designed to make sure the sprinkling asphalt quantity , to improve construction environment for mankind. It is reasonable and reliable to ensure the asphalt distributing uniformity, computer control is stable and reliable, vehicle technical has reached the world advanced level. It can be work under the harsh environments. | |
Performance Feature | 1. Adjust the nozzles in any form through the computer according to the asphalt spraying quantity and working width. 2. Control the nozzles independently through the manual/automatic control, this can adjust the nozzles in any form. 3. It can control the asphalt spraying quantity not only in the cab but also on the operational platform at the end of the truck. 4. The automatic system can measure the truck speed, it also can automatically calculate the revolution of asphalt pump according to entered asphalt spraying quantity and spraying width, then adjust the pump number through the automatic system . 5. Equipped with Italy imports of diesel burner heating, with auto ignition and temperature control. 6.. Adopt to the advanced high viscosity asphalt pump, can put outside pump in the Tank to achieve self-absorption, also can put the asphalt out of the tank. 7.In order to make sure the vehicle reliability and extend the service life, the critical part of the vehicle adopt to the international famous parts. 8. All the heat pipe has the insulation layer to reduce heat release and avoid to scald the operator at the same time. 9. Vehicular rapid-heating system(10-15ºC/h) can improve the heating efficiency and reduce the construction time to ensure the spray temperature. 10. The asphalt spray bar is designed three-stage folded structure, move the asphalt spray up and down to achieve dual or multiple spraying, move the asphalt spray left and right to achieve extend the distributing range, what' more . It can avoid obstacles efficiently. 11. The manual spraying function can make spraying through the hand nozzle, it is quite flexible but only applicable to small and marginal construction condition. Install the hand spray gun, open the outlet valve, open the diverting valve, open the oil return valve, use the oil return valve to adjust the pressure of the spray gun. 12. It is designed the precipitation sewage tank in the asphalt tank, and equip with liquid level digital display and security alarms. 13.It has good thermal insulation layer, this is preservative and durable and ensure the static heat preservation performance index ≤12ºC/8h. 1414.The out package of the truck adopt to stainless steel plate, antiseptic and durable, beautiful designed | |
Parameters of Semi-Automatic Asphalt Distributor.
Model | 5251GLQ | 5162GLQ | 5161GLQ | 5120GLQ | 5111GLQ | 5090GLQ | 5081GLQ |
Truck | Cab-over-engine 6*4 | Cab-over-engine 4*2 | Cab-over-engine 4*2 | Cab-over-engine 4*2 | Cab-over-engine 4*2 | Cab-over-engine 4*2 | Cab-over-engine 4*2 |
Chassis Model | ZZ1257M4647C | DFL1160BX | BJ5163ELFFD | BJ1123VJPEG-S | EQ1110TJ12D5 | EQ1090T9ADJ3AC | HFC1081KT |
Burner model | G20 | G20 | G20 | G20 | G20 | G20 | G20 |
Asphalt capacity | 12000 | 8000 | 8000 | 6600 | 5400 | 4500 | 5000 |
Spray bar variable(m) | 0-6M | 0-6M | 0-6M | 0-6M | 0-6M | 0-6M | 0-5.5M |
Spray bar value(kg) | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 |
Dimension | 10500*2496*3350 | 8995*2490*3200 | 8785*2455*3015 | 8990*2350*2855 | 7998*2260*2870 | 7445*2285*2560 | 7350*2010*2460 |
| Configuration Type | Details of Asphalt truck | |||
| Normal configuration Simple type | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Burner: G10 imported from Italy 4. Temperature control: AI-218 microcomputer temperature controller; 5. Spreading width: 1.2m ~ 4.5m, optional 6m 6. Spray control: manual adjustment 7. Asphalt pipeline compressed air cleaning function | |||
| Ordinary configuration | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Hydraulic pump: F563 aluminum alloy gear pump; 4. Hydraulic system: manual flow control valve imported; 5. Burner: G10 imported from Italy 6. Temperature control: AI-218 microcomputer temperature controller; 7. Spreading width: 1.2m ~ 4.5m, optional 6m 8. Sprinkler control: manually adjust asphalt pipe 9. Asphalt pipeline compressed air cleaning function | |||
| Ordinary upgrade configuration | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Hydraulic pump: F563 aluminum alloy gear pump; 4. Hydraulic system: imported proportional flow control valve; 5. Burner: G10 imported from Italy 6. Heating method: automatically heating by heat-conduction oil 7. Temperature control: AI microcomputer temperature controller; 8. Width of Spray : 1.2m ~ 4.5m, optional 6m precise triple overlappingSpray , 9. Spraying quantity control: manually adjust asphalt nozzle; 10. Asphalt pipeline compressed air cleaning function | |||
| Semi-intelligent configuration | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Hydraulic pump: F563 aluminum alloy gear pump; 4. Hydraulic system: imported proportional flow control valve; 5. Burner: G10 imported from Italy 6. Heating method: automatically heating by heat-conduction oil 7. Temperature control: AI microcomputer temperature controller; 8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric controln ozzle, 9. Sprinkler control: front and background potentiometer adjustment, digital display; 10. Asphalt pipeline compressed air cleaning function | |||
| Full intelligent configuration | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Hydraulic pump: F563 aluminum alloy gear pump; 4. Hydraulic system: imported proportional flow control valve; 5. Burner: G10 imported from Italy 6. Heating method: automatically heating by heat-conduction oil with selective heating function 7.temperature control: Germany Siemens temperature control module, computer temperature control 8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric control nozzle, 9. Sprinkling width is precisely controlled by computer: sprinkling quantity control: Germany Siemens PLC, intelligent control, sprinkling quantity and speed precise linkage, front touch screen control system. 10. Asphalt pipeline compressed air cleaning function | |||
| Full intelligent configuration imported Pump |
2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Hydraulic pump: Germany leisler plunger variable pump; 4. Hydraulic system: imported proportional flow control valve; 5. Burner: G10 imported from Italy 6. Heating method: automatically heating by heat-conduction oil with selective heating function 7. temperature control: Germany Siemens temperature control module, computer temperature control 8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric control nozzle, 9. Sprinkling width is precisely controlled by computer: sprinkling quantity control: Germany Siemens PLC, intelligent control, sprinkling quantity and speed precise linkage, front touch screen control system. 10. Asphalt pipeline compressed air cleaning function 11.spray volume 0.2 ~ 3 kg / , 28 sets of full electric nozzle, | |||
Our products enjoy a good reputation for the good quality!

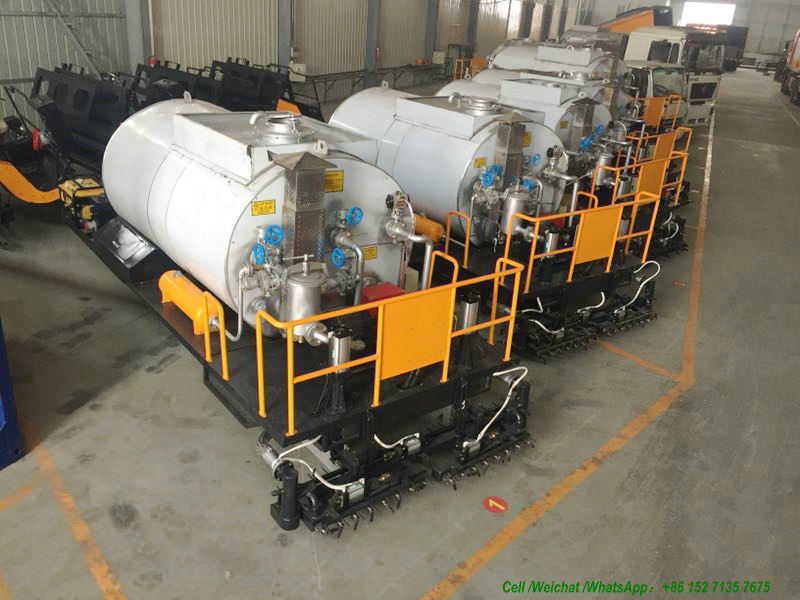

The asphalt distributor is made up by chassis, asphalt tank, asphalt pump, optional conduction oil heating system, electronic control system and spraybar system, etc.
Major features:
1) Digital display meters and instruments to indicate speed of the vehicle and the asphalt pump rotation, as well as temperature of asphalt inside the tank.
2) Possesses heat preservation, conduction oil recycling heating, transportation, spray, pumping and discharge function, etc.
3) Nozzle controlled through pneumatic joint control operation of cylinder for opening and closing.
4) Cleaning system of compressed air
5) Hydraulic power take-off of chassis or auxiliary diesel engine for drive, heated with burner, optional conduction oil recycling system.
