Product Name

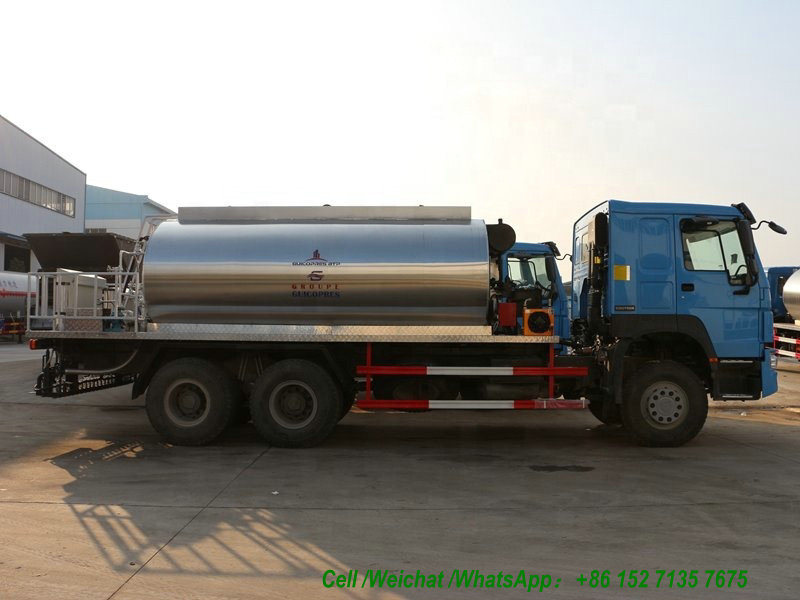

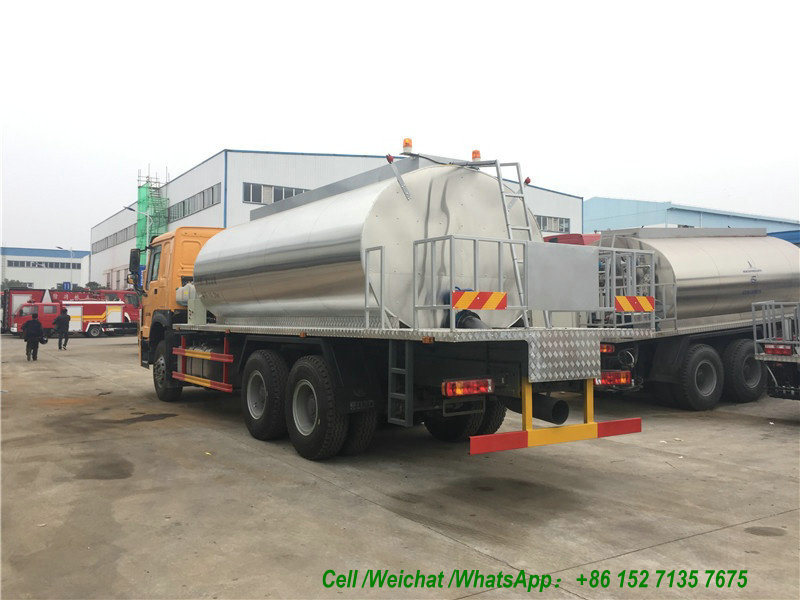

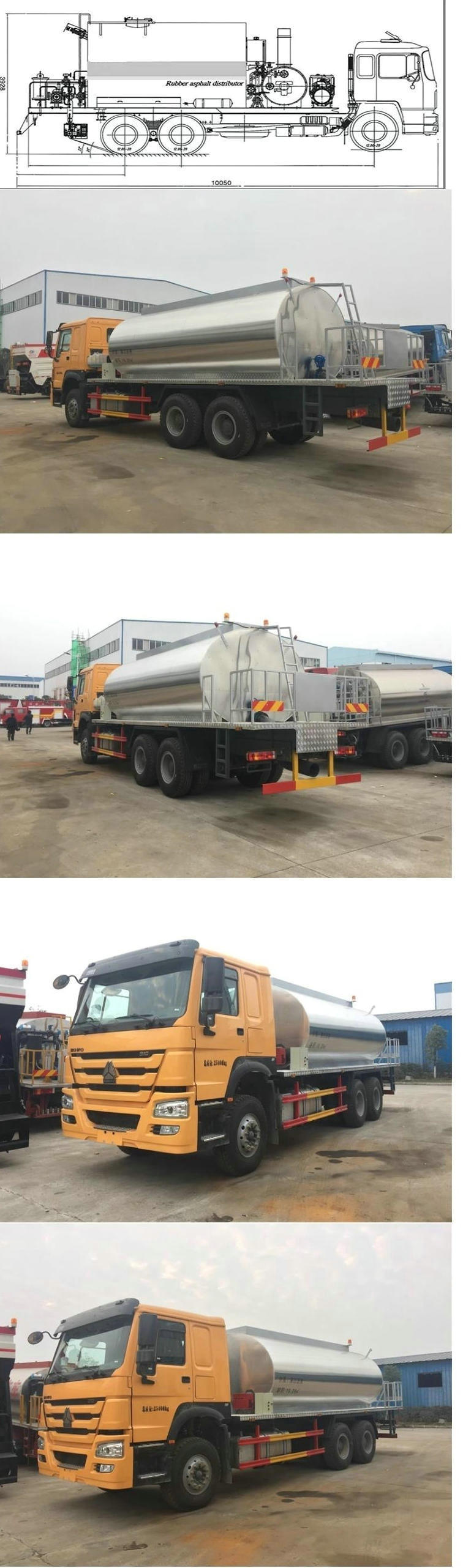

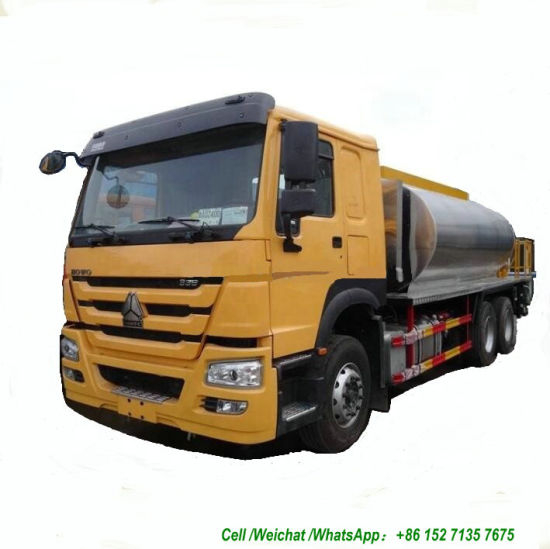

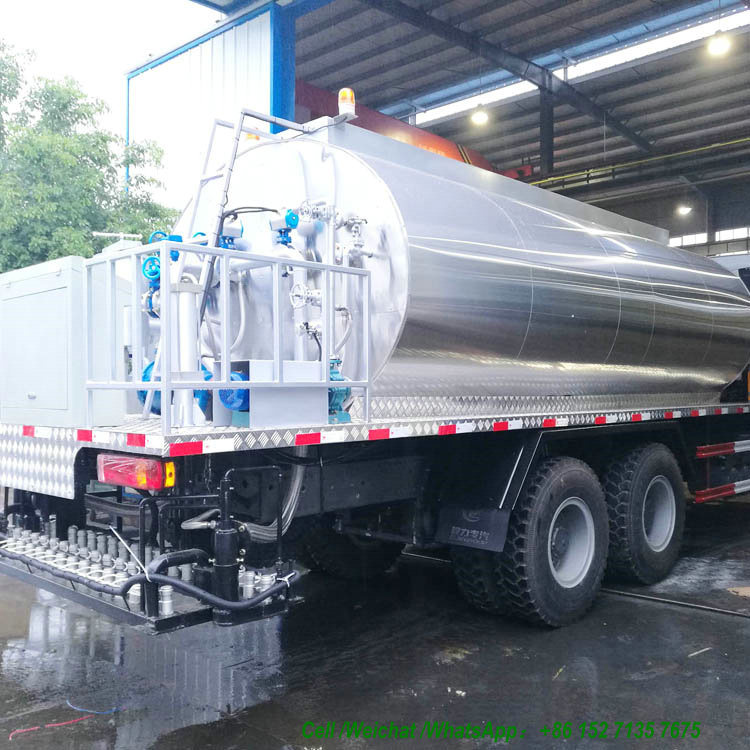

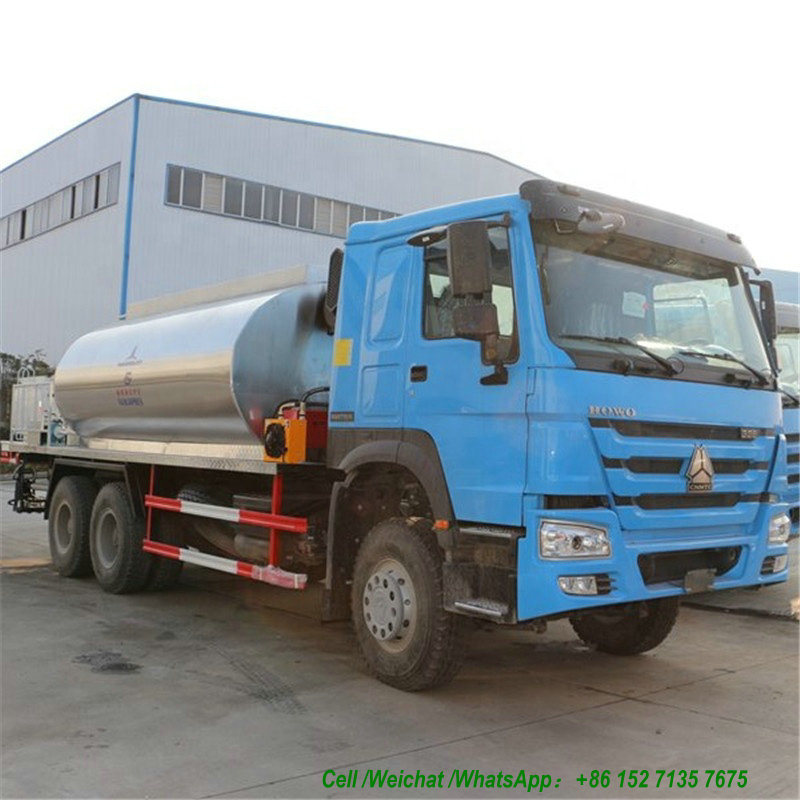

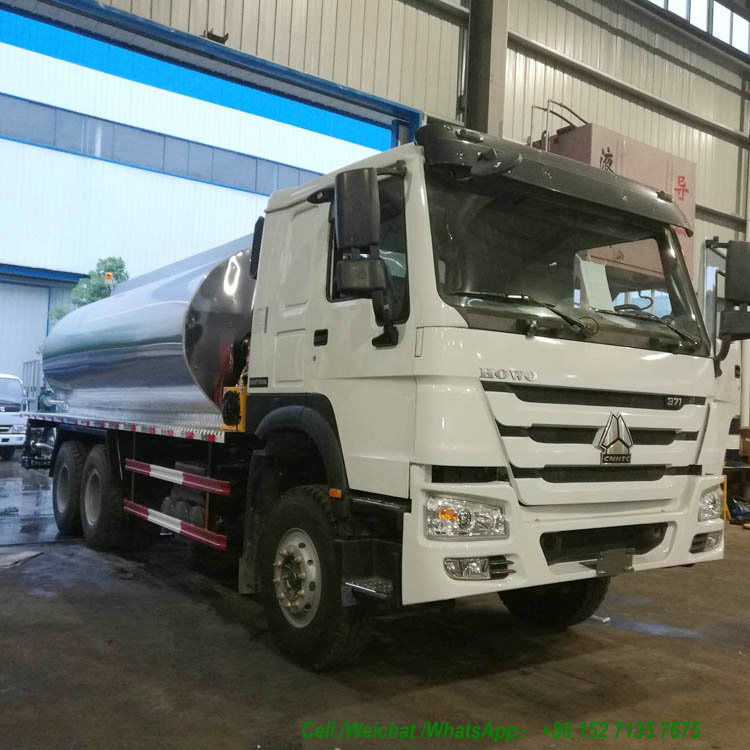

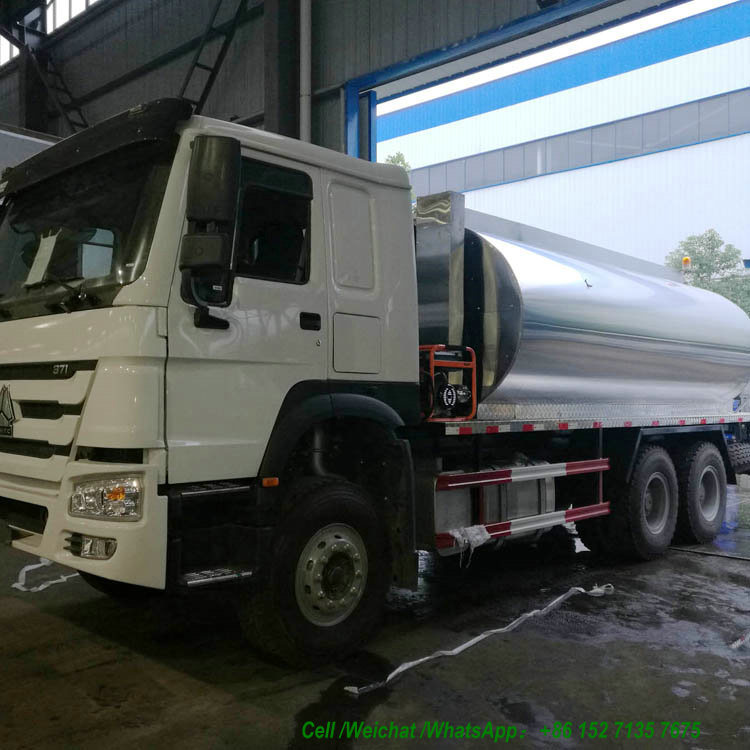

6x4 Sinotruck Howo Asphalt Distributor Truck for sale (LHD or RHD)

General

Classis model

ZZ3257N/Sinotruck

Overall dimension

L/W/H (mm)

9900X2500X3800(mm)

GVW/Curb Weight

25,000kg / 16,000kg

Cab

Cab capacity

3 person allowed

Electric power window

Yes

Air-condition

Yes

Engine

Engine model

Cummins engine

Fuel Type

Diesel

Engine Power

336Hp(247kw)

Displacement

9726 cc

Emission Standard

Euro 3/4/5

Classis

Drive Type

6x4, left hand drive or right hand drive

Transmission

10 speed forward and 1 reverse, manual

Wheelbase/No. of axle

3825+1350 mm / 2

Tire Type

12.00R20

Tire numbers

10 tires and 1 spare tire

Max Speed

79 km/h

Paint

Metallic paint

Superstructure

Asphalt tank capacity

14 Ton

Tank material

Carbon steel

Asphalt pump

QGB950, applying to high viscosity asphalt

Hydraulic pump

CBQ550-L, imported brand

Control system

Computer controlled

Burner

RIELLO G20,made in Italy

Heating method

Automatic by heat conduction oil

Spray volume

0.25-4 L/m²

Spray width

4.5-6m

All other standard accessories: English version manual, basic tool kit,...

Optional

Asphalt pump / Hydraulic pump can be equipped optionally.
Burner can be nominated different brand.

Item

Unit

Specification

Vehicle Model Name

Asphalt Spray Truck (standard,semi-auto,automatic,Imported Automatic)

Driving type

6*4

Tank Volume

M³(L)

12-14

Overall Dimension

mm

10200×2500×3450

Gross Weight

kg

25000

Payload

kg

8870,8805

Curb Weight

kg

16000

Axle No.

3

Wheelbase

mm

4600+1350

Max speed

Km/h

95

Chassis Model

ZZ1257M4641W

Chassis Brand

HOWO

Chassis Manufacturer

CNHTC Jinan Truck Co., Ltd.

Chassis Category

Truck chassis (second)

Engine Model

WD615.92

Engine Manufacturer

ChinaNationalHeavyDutyTruckGroupCo.,Ltd

Displacement / Power

ml/kw

9726/192

Emission Standard

EURO II

Fuel Type

Diesel

Tire specification / Number

11.00R20 /10

Transmission

10 forward,1 reverse

Front Axle /Rear Axle

T

Cab Seats

man

3

Spray Width

mm

6

Nozzle Quantity

pcs

48

Control Method

Manual or Computer

Price

Vehicle Profile

The asphalt spray truck is a kind of professional distributing emulsified asphalt, heat diluted asphalt, asphalt, high viscosity modified asphalt, it is an intelligent automation high-tech truck. The truck sprinkles road surface with asphalt and spray the priming oil, waterproof layer, bond layer on asphalt roadbed. It consist of chassis,

Asphalt tank, asphalt pump , spray system, hot oil heating system , hydraulic system, burning system, control system, pneumatic system and operational platform. The truck is easy to operate.  Based on existing  technologies , it has new designed to make sure the sprinkling asphalt quantity , to improve construction environment for mankind.  It is reasonable and reliable to ensure the asphalt distributing uniformity, computer control is stable and reliable, vehicle technical has reached the world advanced level. It can be work under the harsh environments.

Performance Feature

1. Adjust the nozzles in any form through the computer according to the asphalt spraying quantity and working width.

2. Control the nozzles independently through the manual/automatic control, this can adjust the nozzles in any form.

3. It can control the asphalt spraying quantity not only in the cab but also on the operational platform at the end of the truck.

4. The automatic system can measure the truck speed, it also can automatically calculate the revolution of asphalt pump according to entered asphalt spraying quantity and spraying width, then adjust the pump number through the automatic system .

5. Equipped with Italy imports of diesel burner heating, with auto ignition and  temperature control.

6.. Adopt to the advanced high viscosity asphalt pump, can put outside pump in the

Tank to achieve self-absorption, also can put the asphalt out of the tank.

7.In order to make sure the vehicle reliability and extend the service life, the critical part of the vehicle adopt to the international famous parts.

8. All the heat pipe has the insulation layer to reduce heat release and avoid to scald the operator at the same time.

9. Vehicular rapid-heating system(10-15ºC/h) can improve the heating efficiency and reduce the construction time to ensure the spray temperature.

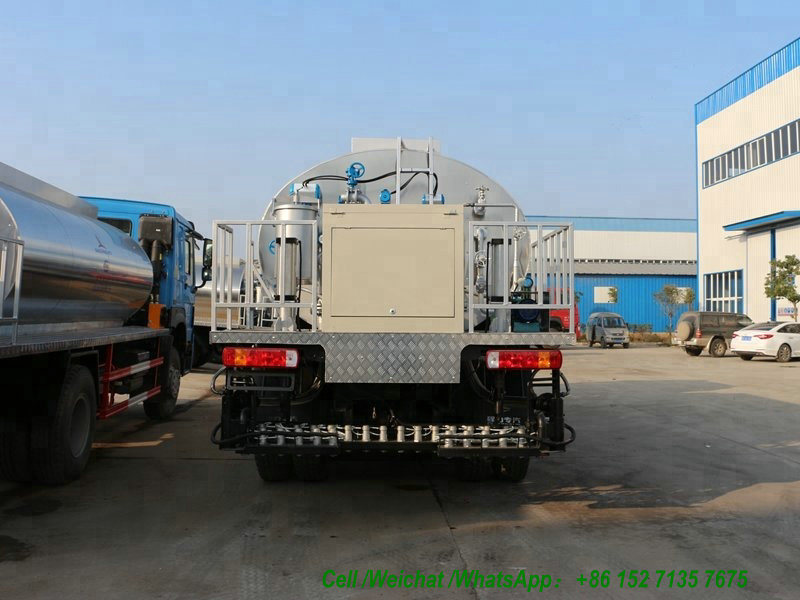

10. The asphalt spray bar is designed three-stage folded structure, move the asphalt spray up and down to achieve dual or multiple spraying, move the asphalt spray left and right to achieve extend the distributing range, what' more . It can avoid obstacles efficiently.

11. The manual spraying function can make spraying through the hand nozzle,

it is quite flexible but only applicable to small and marginal construction

condition. Install the hand spray gun, open the outlet valve, open the diverting valve, open the oil return valve, use the oil return valve to adjust the

pressure of the spray gun.

12. It is designed the precipitation sewage tank in the asphalt tank, and equip with liquid level digital display and security alarms.

13.It has good thermal insulation layer, this is preservative and durable and

ensure the static heat preservation performance index ≤12ºC/8h.

14The out package of the truck adopt to stainless

steel plate, antiseptic and durable, beautiful designed

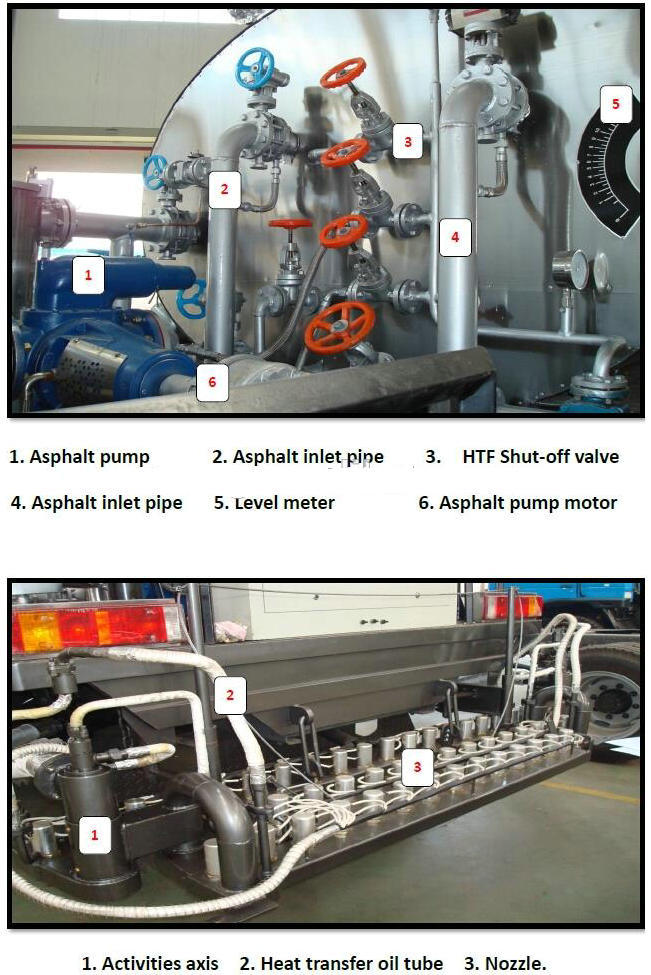

1. Asphalt pump:  European TGGP-86-100 heat preservation pump
