HOWO 6X4 Water Truck 18000L~20000L Stainless Steel
| Quantity: | |
|---|---|
- 1000
- T/T, Western Union
- Nil
1.We can supply 6X4,8X4 , 4X2 ,4X4,6X6,and 8X8 all kinds of driving truck.
2.Both left and Right hand driving is OK.
If you are interested in this model, pls feel free to send inquiry, and we will always be glad to quote.
Water Trucks Manufacturer can be range from 10CBM, 20 CBM, 30 CBM and 40 CBM.
Euro 3, Euro 4 6*4 water truck.

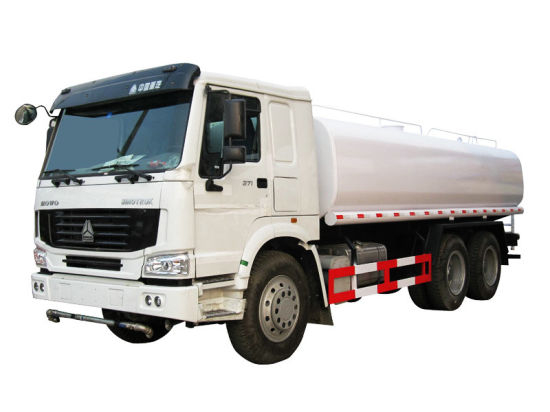

Howo 6x4 18000L~20000L water truck / watering cart stainless steel
howo truck specification ----------------------
Sinotruk Howo 6x4 Water Sprinkler Truck - 20 CBM | |
Chassis Model | 1257M4647C (Left Hand Driving) |
Production Year | new truck. |
Cabin | HW76 cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn,air conditioner , with transverse stabilizer,with 4-point support fully floating suspension + shock absorber. |
Engine | Make: SINOTRUK Diesel 4-stroke direct injection diesel engine Engine model: WD615.87, Euro 2/3, 290 HP 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 9.726 L |
Transmission | HW15710, 10F & 2R, with PTO Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
Steering | ZF power steering, modol ZF8098, hydraulic steering with power assitance |
Front Axle | HF9, 1x9000 KGS Steering with doubleT-cross section beam |
Rear Axle | HC16, 2x16000 KGS Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. Ratio: 4.8 |
Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
Chassis | Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer |
Brake | Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
Electrics | Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
Tyres | 315/80R22.5, Tubeless tires with one spare tire. |
Fuel Tank | 400L |
Tank Body | 20 Cubic Meters, with front and rear sprinkling system. stainless steel .carbon steel much cheaper |
Overall Dimension | 9400*2550*3400 mm |
All kinds of our water tank trucks
6x4 Water tank truck Sinotruk HOWO
watering cart 6x4 Water tank truck Sinotruk HOWO
EURO 3
Model | TIC5253GSSZZ water tank truck | Chassis Model | ZZ1257M4647C | ||
Weight parameter (kg) | Rated load weight | 12400 | Outline size (mm) | 9895×2496×2958 | |
Curb weight | 12450 | Tanker size (mm) | 6600×2330×1550 | ||
Overall weight | 25000 | Wheelbase (mm) | 4600+1350 | ||
Engine | Model | WD615.97C | Fuel type | Diesel engine | |
Power/Displacement(KW/L) | 300HP/9.726 | Engine manufacture | CNHTC | ||
Engine type | Straight in line,water-cooling,6 cylinder,4 stroke | ||||
Performance parameter | Max speed (km/h) | 90,102 | Track span (mm) | Front axle | 2022,2041 |
Emission standard | Europe 2 | Rear axle | 1830/1830 | ||
Drive type | 6x4 drive type | Reaching out of Vehicle (mm) | Front overhang | 1500,1500 | |
Number of axle | 3 axle | Rear overhang | 2445,2420 | ||
Number of tire | 10 | Driving angle (°) | Approach angle | 13.5 | |
Drive axle | Dual rear axle | Departure angle | 11.5 | ||
Axle load(T) | Front axle | 7T | Rear axle load | 12T×2 (2 axle fixed) | |
The number of leaf of spring | 10/12,4/12,10/- | Tirespecification | 11.00-20,12.00-20 | ||
Steering explanation | Power steering | Brake system Explanation | Double circle air break | ||
Clutch description | Monolithic dry type clutch | Transmission description | 10 forward,1 reverse Manual operation | ||
Electric system | Line voltage (V) | 24V | Generator power | 1000 W | |
Cab | 1. Flat cab,tippable cab, have air-conditioner, all metal enclosed type 2. 3 passenger allowed, with single sleeper bed in the cab | ||||
Special Function | Capacity (L) | 20,000 Liters | Tank size(mm) | 6600x2330x1550 | |
Sprinkling Area(m) | ≥20m | Suction lift(m) | ≥6m | ||
water cannon range | Water cannon range: ≥60m,it can rotation with 360°degree freely | ||||
Manhole size(mm) | Man way access hole on top of tank; manhole diameter:500mm | ||||
Front spray function | Front spray bar with fan sprayer on both sides, spray range: ≥20m | ||||
Rear spray function | Front spray bar with fan sprayer on both sides, spray range: ≥20m | ||||
Man walk way | With skid resistance man walk way on top of tank | ||||
Horse reels | Two 75 ft hose reels at each side of the truck | ||||
Others parts | Electronic tank level gauge and outside visible level indicator | ||||
Pump specification | Pump model | 80QZB(F)-60/90S | Flow rate(L/m) | 1000 | |
Head of delivery(m) | 90 | Shaft power | 22.5 | ||
Suction height(m) | 6.5 | Efficiency (%) | 95% | ||
ZZ1167M4617C 266 horsepower EGR, HW76 flat top, HW13710CL, MCY13 drive axle, HF7 disc front axle, ZF8098 direction of the machine, vacuum tire, including air conditioning
300 horsepower EGR, HW76 flat top, HW13710CL, MCY13 drive axle, HF7 disc front axle, ZF8098 direction of the machine, vacuum tire, including air conditioning
ZZ1167M4617C fire truck chassis 270 horsepower EFR, four-door, HW13710, ST16 drive axle, HF7 disc front axle, ZF8098 direction of the machine, 11.00 nylon tires, including air conditioning
300 horsepower EFR, four-door, HW13710, ST16 drive axle, HF7 disc front axle, ZF8098 direction of the machine, 12.00 nylon tires, including air conditioning
ZZ1257M4647C 266 horsepower EGR, HW76 flat top, HW13710CL, MCY13 drive axle, HF7 disc front axle, ZF8098 direction of the machine, vacuum tire, including air conditioning
300 horsepower EGR, HW76 flat top, HW13710CL, MCY13 drive axle, HF7 disc front axle, ZF8098 direction of the machine, vacuum tire, including air conditioning
ZZ1257N4647C 336 horsepower EGR, HW76 flat top, HW13710CL, MCY13 drive axle, HF7 disc front axle, ZF8098 direction of the machine, vacuum tire, including air conditioning
336 horsepower EGR, HW76 flat top, HW13710CL, MCY13 drive axle, HF7 disc front axle, ZF8098 direction of the machine, vacuum tire, including air conditioning
ZZ1257S4647C 375 horsepower EGR, HW76 flat top, HW19710CL, MCY13 drive axle, HF7 disc front axle, ZF8098 direction of the machine, vacuum tire, including air conditioning
375 horsepower EGR, HW76 flat top, HW19710CL, MCY13 drive axle, HF7 disc front axle, ZF8098 direction of the machine, vacuum tire, including air conditioning
ZZ1257M5247C 266 horsepower EGR, HW76 flat top, HW13710CL, MCY13 drive axle, HF7 disc front axle, ZF8098 direction of the machine, vacuum tire, including air conditioning
300 horsepower EGR, HW76 flat top, HW13710CL, MCY13 drive axle, HF7 disc front axle, ZF8098 direction of the machine, vacuum tire, including air conditioning
ZZ1257N5247C 336 horsepower EGR, HW76 flat top, HW13710CL, MCY13 drive axle, HF7 disc front axle, ZF8098 direction of the machine, vacuum tire, including air conditioning
375 horsepower EGR, HW76 flat top, HW13710CL, MCY13 drive axle, HF7 disc front axle, ZF8098 direction of the machine, vacuum tire, including air conditioning
ZZ1257M5847C 266 horsepower EGR, HW76 flat top, HW13710CL, MCY13 drive axle, HF7 disc front axle, ZF8098 direction of the machine, vacuum tire, including air conditioning
290 horsepower EGR, HW76 flat top, HW13710CL, MCY13 drive axle, HF7 disc front axle, ZF8098 direction of the machine, vacuum tire, including air conditioning
ZZ1257N5847C 336 horsepower EGR, HW76 flat top, HW13710CL, MCY13 drive axle, HF7 disc front axle, ZF8098 direction of the machine, vacuum tire, including air conditioning
375 horsepower EGR, HW76 flat top, HW13710CL, MCY13 drive axle, HF7 disc front axle, ZF8098 direction of the machine, vacuum tire, including air conditioning
ZZ1257M4647C 300 horsepower EGR, HW76 flat top, HW15710, HC16 drive axle, HF9 disc front axle, ZF8098 direction of the machine, 12.00 nylon tires, including air conditioning
ZZ1257N4647C 336 horsepower EGR, HW76 flat top, HW15710, HC16 drive axle, HF9 disc front axle, ZF8098 direction of the machine, 12.00 nylon tires, including air conditioning
ZZ1257S4647C 375 horsepower EGR, HW76 flat top, HW19710, HC16 drive axle, HF9 disc front axle, ZF8098 direction of the machine, 12.00 nylon tires, including air conditioning
ZZ1257M5247C 300 horsepower EGR, HW76 flat top, HW15710, HC16 drive axle, HF9 disc front axle, ZF8098 direction of the machine, 12.00 nylon tires, including air conditioning
ZZ1257N5247C 336 horsepower EGR, HW76 flat top, HW15710, HC16 drive axle, HF9 disc front axle, ZF8098 direction of the machine, 12.00 nylon tires, including air conditioning
375 horsepower EGR, HW76 flat top, HW19710, HC16 drive axle, HF9 disc front axle, ZF8098 direction of the machine, 12.00 nylon tires, including air conditioning
ZZ1257M5847C 290 horsepower EGR, HW76 flat top, HW15710, HC16 drive axle, HF9 disc front axle, ZF8098 direction of the machine, 12.00 nylon tires, including air conditioning
ZZ1257N5847C 336 horsepower EGR, HW76 flat top, HW15710, HC16 drive axle, HF9 disc front axle, ZF8098 direction of the machine, 12.00 nylon tires, including air conditioning
375 horsepower EGR, HW76 flat top, HW19710, HC16 drive axle, HF9 disc front axle, ZF8098 direction of the machine, 12.00 nylon tires, including air conditioning
ZZ1257M3847C fire truck chassis 266 horsepower EFR, four-door, HW13710, ST16 drive axle, HF7 disc front axle, ZF8098 direction of the machine, 11.00 nylon tires, including air conditioning
290 horsepower EFR, four-door, HW13710, ST16 drive axle, HF7 disc front axle, ZF8098 direction of the machine, 12.00 nylon tires, including air conditioning
ZZ1257N4347C fire truck chassis 336 horsepower EFR, four-door, HW13710, ST16 drive axle, HF7 disc front axle, ZF8098 direction of the machine, 12.00 nylon tires, including air conditioning
EURO4
Brand HOWO, Hao Han Suizhou tuning each country four Announcement Schedule
Vehicle chassis models wheelbase drive axle tire model after the cab of the engine gearbox form
Low density cement mixer ZZ1317N466MD1B T7H-F MC11.32-40 HW19710 AC16 12.00R20 1950 + 3800 + 1400,1950 + 3825 + 1350,1950 + 4600 + 1400,1950 + 4625 + 1350 8 × 4
MC11.36-40
T7H-U MC11.32-40
MC11.36-40
T7H-M MC11.32-40
MC11.36-40
Dry mortar truck ZZ3257M4347D1 HW76 D10.28-40 HW15710 AC16 11 (12) 4325 + 1350 6 × 4
D10.31-40 12 (11)
HW79 D10.28-40 11 (12)
D10.31-40 12 (11)
Dry mortar truck ZZ1257M4347D1 HW76 D10.31-40 HW15710 HC16 12 (11) 4325 + 1350,4300 + 1400 6 × 4
HW79
Dump garbage truck ZZ3257N4647D1 HW76 D10.34-40 HW19710 AC16 12 (11) 4625 + 1350 6 × 4
D10.38-40
D12.34-40
D12.38-40
Flammable liquid tank trucks ZZ1167M4617D1 HW70 D10.28-40 HW13710CL MCY13 295 / 80R22.5 (11/12) 4600,5600 4 × 2
D10.31-40 295 / 80R22.5 (12/11)
Sprinkler HW76 D10.28-40 295 / 80R22.5 (11/12)
D10.31-40 295 / 80R22.5 (12/11)
Flammable liquid tank trucks ZZ1317M466GD1 T5G-W MC07.24-40 HW13710C 153 (457 Cast) (4.875) 10.00R20 (11/295) 1800 + 4600 + 1350,1800 + 4575 + 1400 8 × 4
MC07.28-40
T5G-V MC07.24-40
MC07.28-40
Cement mixer T5G-W MC07.31-40 HW13710C 153 (457 Cast) (4.875) 10.00R20 (11/295) 1800 + 4600 + 1350,1800 + 4575 + 1400 8 × 4
MC07.34-40
Low density cement mixer T5G-V MC07.31-40
MC07.34-40
Dump garbage truck ZZ3257N4147D1 HW76 D10.34-40 HW19710 AC16 12 (11) 4125 + 1350 6 × 4
D10.38-40
D12.34-40
D12.38-40
Dump garbage truck ZZ3257N3647D1 HW76 D10.34-40 HW19710 AC16 12 (11) 3625 + 1350 6 × 4
D10.38-40
D12.34-40
D12.38-40
Dump garbage truck ZZ3257N4347D1 HW76 D10.34-40 HW19710 AC16 12 (11) 4325 + 1350 6 × 4
D10.38-40
D12.34-40
D12.38-40
Under gray cement mixer vehicle ZZ3317N4667D1 HW76 D10.34-40 HW19710 AC16 12 (11) 1800 + 4600 + 1350 8 × 4
D10.38-40
D12.34-40
D12.38-40
HW79 D10.34-40 HW19710 AC16 12 (11)
D10.38-40
D12.34-40
D12.38-40
Low density cement mixer ZZ1317N4667D1H HW76 D10.34-40 HW19710 HC16 12 (11) 1800 + 4600 + 1350,1800 + 4575 + 1400,2150 + 4600 + 1350,2150 + 4575 + 1400 8 × 4
D10.38-40
D12.34-40
Wrecker D12.38-40
HW79 D10.34-40
D10.38-40
Wrecker D12.34-40
D12.38-40
Low density cement mixer ZZ1317N4667D1LH HW76 T10.34 HW15710 HC16 12 (11) 1800 + 4600 + 1350,1800 + 4575 + 1400 8 × 4
T12.38 HW19710
HW79 T10.34 HW15710
T12.38 HW19710
Low density cement mixer ZZ1257N5847D1 HW76 D10.34-40 HW19710 HC16 12 (11) 5825 + 1350,5800 + 1400 6 × 4
D10.38-40
D12.34-40
D12.38-40
HW79 D10.34-40
D10.38-40
D12.34-40
D12.38-40
Wrecker ZZ1257M5847D1 HW76 D10.31-40 HW15710 HC16 12 (11) 5825 + 1350,5800 + 1400 6 × 4
HW79
Wrecker ZZ5507N31B7D1 HW76 D10.38-40 HW19710 HC16 12 1950 + 3075 + 1375 + 1350,1950 + 4575 + 1375 + 1350 10 × 4
D12.38-40
D12.42-40
Dump garbage truck ZZ3255N3846D1 H16 D10.34-40 HW15710 AC16 12.00R20 (11.00R20) 3800 + 1350 6 × 4
D10.38-40 HW19710
Concrete mixer truck ZZ1257N4347D1 HW76 D10.34-40 HW13710 HC16 12 (11) 4325 + 1350,4300 + 1400 6 × 4
D10.38-40 HW19710
D12.34-40
D12.38-40
Low density cement mixer ZZ1317N4667D1H HW76 D10.34-40 HW19710 HC16 12 (11) 1800 + 4600 + 1350,1800 + 4575 + 1400,2150 + 4600 + 1350,2150 + 4575 + 1400 8 × 4
D10.38-40
D12.34-40
Wrecker D12.38-40
HW79 D10.34-40
D10.38-40
Wrecker D12.34-40
D12.38-40
Wrecker ZZ1257N5847D1 HW76 D10.34-40 HW19710 HC16 12 (11) 5825 + 1350,5800 + 1400 6 × 4
D10.38-40
D12.34-40
D12.38-40
HW79 D10.34-40
D10.38-40
D12.34-40
D12.38-40
Concrete mixer truck ZZ1257N4047D1 HW76 D10.34-40 HW13710 HC16 12 (11) 4025 + 1350,4000 + 1400 6 × 4
D10.38-40 HW19710
D12.34-40
D12.38-40
Flammable liquid tank trucks ZZ1257M464GD1 T5G-M MC07.24-40 HW13710C 457 cast (4.875) 11 (10,295) + 4075 + 1400,4100 1400,4300 1350,4275 + + + 1350,4575 1400,4600 + 1350 6 × 4
MC07.28-40
Tanker MC07.24-40
MC07.28-40
Tanker ZZ1257K56CGD1 T5G-W MC05.21-40 DC7J100TC-1083 (8.4 / 0.79) 153 cast (5.143) 10.00R20 (11) 1800 + 4200,1800 + 4800,1800 + 5600 6 × 2
MC07.21-40
MC07.24-40
Flammable liquid tank trucks T5G-V MC05.21-40
MC07.21-40
MC07.24-40
Tanker ZZ1317N466MD1B T7H-F Deluxe MC11.32-40 HW19710 AC16 12.00R20 1950 + 3800 + 1400,1950 + 3825 + 1350,1950 + 4600 + 1400,1950 + 4625 + 1350 8 × 4
MC11.36-40
T7H-U luxury MC11.32-40
Corrosive materials tank trucks MC11.36-40
T7H-M Deluxe MC11.32-40
MC11.36-40
Flammable liquid aluminum tank trucks ZZ1317N466GD1 T5G-W MC07.31-40 HW13710C 153 (457 Cast) (4.875) 10.00R20 (11/295) 1800 + 4600 + 1350,1800 + 4575 + 1400 8 × 4
MC07.34-40
T5G-V MC07.31-40
MC07.34-40
Sand transport vehicles ZZ2257N4657D1 HW76 D10.34-40 HW19710 ST16 12.00-20 3800 + 1400,4300 + 1400,4600 + 1400 6 × 6
For liquid car
Under gray car D12.38-40
Flammable liquid tank trucks ZZ1257M4647D1 HW76 D10.31-40 HW15710 HC16 12 (11) 4600 + 1350,4575 + 1400 6 × 4
HW79 D10.31-40
Sand transport vehicles ZZ3257N3447D1 HW76 D10.34-40 HW19710 AC16 12 (11) 3425 + 1350 6 × 4
D10.38-40
D12.34-40
D12.38-40
Tanker ZZ1317N4667D1B HW76 D10.34-40 HW19710 HC16 12 (11) 1800 + 4600 + 1350,1800 + 4575 + 1400,2150 + 4600 + 1350,2150 + 4575 + 1400 8 × 4
D10.38-40
D12.34-40
D12.38-40
HW79 D10.34-40
D10.38-40
D12.34-40
D12.38-40
Concrete mixer truck ZZ1257N3847D1 HW76 D10.34-40 HW13710 HC16 12 (11) 3825 + 1350,3800 + 1400 6 × 4
D10.38-40 HW19710
D12.34-40
D12.38-40
Concrete mixer truck ZZ1257N4047D1 HW76 D10.34-40 HW13710 HC16 12 (11) 4025 + 1350,4000 + 1400 6 × 4
D10.38-40 HW19710
D12.34-40
D12.38-40
Cement mixer ZZ1317N4667D1H HW76 D10.34-40 HW19710 HC16 12 (11) 1800 + 4600 + 1350,1800 + 4575 + 1400,2150 + 4600 + 1350,2150 + 4575 + 1400 8 × 4
D10.38-40
D12.34-40
D12.38-40
HW79 D10.34-40
D10.38-40
D12.34-40
D12.38-40
Sludge truck ZZ3317N3867D1 HW76 D10.34-40 HW19710 AC16 12 (11) 1800 + 3800 +1350 8 × 4
D10.38-40
D12.34-40
D12.38-40
Cement mixer HW79 D10.34-40
D10.38-40
D12.34-40
D12.38-40
Measurement testing wagons ZZ1317N4667D1H HW76 D10.34-40 HW19710 HC16 12 (11) 1800 + 4600 + 1350,1800 + 4575 + 1400,2150 + 4600 + 1350,2150 + 4575 + 1400 8 × 4
D10.38-40
D12.34-40
D12.38-40
HW79 D10.34-40
D10.38-40
D12.34-40
D12.38-40
Concrete mixer truck ZZ1257N4047D1L HW76 T10.32 HW13710 HC16 12 (11) 4025 + 1350,4000 + 1400 6 × 4
T10.34
T12.38 HW19710
Concrete mixer truck ZZ1257N4047D1 HW76 D10.34-40 HW13710 HC16 12 (11) 4025 + 1350,4000 + 1400 6 × 4
D10.38-40 HW19710
D12.34-40
D12.38-40
Wrecker ZZ1317N4667D1H HW76 D10.34-40 HW19710 HC16 12 (11) 1800 + 4600 + 1350,1800 + 4575 + 1400,2150 + 4600 + 1350,2150 + 4575 + 1400 8 × 4
D10.38-40
D12.34-40
D12.38-40
HW79 D10.34-40
D10.38-40
D12.34-40
D12.38-40
Description: 1) The fourth generation air conditioning increases of 2000, reducing air conditioning Sale 1800. Special Note: When a non-factory-equipped with the company's air conditioning will be no guarantee of quality and after-sales service, the consequent loss of vehicle electrical systems and the company is not bad responsible for
2) HOWO 6 * 4: 11.00 nylon tire 11.00R20 steel tire change increases 5600 yuan; 12.00 nylon steel tire 12.00R20 tire change increases 6000 yuan; HOWO 8 * 4: 11.00 nylon tire 11.00R20 steel tire change increases 7200 yuan; 12.00 nylon tire 12.00R20 steel tire change increases 8500 yuan.
1.We can supply 6X4,8X4 , 4X2 ,4X4,6X6,and 8X8 all kinds of driving truck.
2.Both left and Right hand driving is OK.
If you are interested in this model, pls feel free to send inquiry, and we will always be glad to quote.
Water Trucks Manufacturer can be range from 10CBM, 20 CBM, 30 CBM and 40 CBM.
Euro 3, Euro 4 6*4 water truck.
Howo 6x4 18000L~20000L water truck / watering cart stainless steel
howo truck specification ----------------------
Sinotruk Howo 6x4 Water Sprinkler Truck - 20 CBM | |
Chassis Model | 1257M4647C (Left Hand Driving) |
Production Year | new truck. |
Cabin | HW76 cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn,air conditioner , with transverse stabilizer,with 4-point support fully floating suspension + shock absorber. |
Engine | Make: SINOTRUK Diesel 4-stroke direct injection diesel engine Engine model: WD615.87, Euro 2/3, 290 HP 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 9.726 L |
Transmission | HW15710, 10F & 2R, with PTO Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
Steering | ZF power steering, modol ZF8098, hydraulic steering with power assitance |
Front Axle | HF9, 1x9000 KGS Steering with doubleT-cross section beam |
Rear Axle | HC16, 2x16000 KGS Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. Ratio: 4.8 |
Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
Chassis | Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer |
Brake | Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
Electrics | Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
Tyres | 315/80R22.5, Tubeless tires with one spare tire. |
Fuel Tank | 400L |
Tank Body | 20 Cubic Meters, with front and rear sprinkling system. stainless steel .carbon steel much cheaper |
Overall Dimension | 9400*2550*3400 mm |
All kinds of our water tank trucks
6x4 Water tank truck Sinotruk HOWO
watering cart 6x4 Water tank truck Sinotruk HOWO
EURO 3
Model | TIC5253GSSZZ water tank truck | Chassis Model | ZZ1257M4647C | ||
Weight parameter (kg) | Rated load weight | 12400 | Outline size (mm) | 9895×2496×2958 | |
Curb weight | 12450 | Tanker size (mm) | 6600×2330×1550 | ||
Overall weight | 25000 | Wheelbase (mm) | 4600+1350 | ||
Engine | Model | WD615.97C | Fuel type | Diesel engine | |
Power/Displacement(KW/L) | 300HP/9.726 | Engine manufacture | CNHTC | ||
Engine type | Straight in line,water-cooling,6 cylinder,4 stroke | ||||
Performance parameter | Max speed (km/h) | 90,102 | Track span (mm) | Front axle | 2022,2041 |
Emission standard | Europe 2 | Rear axle | 1830/1830 | ||
Drive type | 6x4 drive type | Reaching out of Vehicle (mm) | Front overhang | 1500,1500 | |
Number of axle | 3 axle | Rear overhang | 2445,2420 | ||
Number of tire | 10 | Driving angle (°) | Approach angle | 13.5 | |
Drive axle | Dual rear axle | Departure angle | 11.5 | ||
Axle load(T) | Front axle | 7T | Rear axle load | 12T×2 (2 axle fixed) | |
The number of leaf of spring | 10/12,4/12,10/- | Tirespecification | 11.00-20,12.00-20 | ||
Steering explanation | Power steering | Brake system Explanation | Double circle air break | ||
Clutch description | Monolithic dry type clutch | Transmission description | 10 forward,1 reverse Manual operation | ||
Electric system | Line voltage (V) | 24V | Generator power | 1000 W | |
Cab | 1. Flat cab,tippable cab, have air-conditioner, all metal enclosed type 2. 3 passenger allowed, with single sleeper bed in the cab | ||||
Special Function | Capacity (L) | 20,000 Liters | Tank size(mm) | 6600x2330x1550 | |
Sprinkling Area(m) | ≥20m | Suction lift(m) | ≥6m | ||
water cannon range | Water cannon range: ≥60m,it can rotation with 360°degree freely | ||||
Manhole size(mm) | Man way access hole on top of tank; manhole diameter:500mm | ||||
Front spray function | Front spray bar with fan sprayer on both sides, spray range: ≥20m | ||||
Rear spray function | Front spray bar with fan sprayer on both sides, spray range: ≥20m | ||||
Man walk way | With skid resistance man walk way on top of tank | ||||
Horse reels | Two 75 ft hose reels at each side of the truck | ||||
Others parts | Electronic tank level gauge and outside visible level indicator | ||||
Pump specification | Pump model | 80QZB(F)-60/90S | Flow rate(L/m) | 1000 | |
Head of delivery(m) | 90 | Shaft power | 22.5 | ||
Suction height(m) | 6.5 | Efficiency (%) | 95% | ||
ZZ1167M4617C 266 horsepower EGR, HW76 flat top, HW13710CL, MCY13 drive axle, HF7 disc front axle, ZF8098 direction of the machine, vacuum tire, including air conditioning
300 horsepower EGR, HW76 flat top, HW13710CL, MCY13 drive axle, HF7 disc front axle, ZF8098 direction of the machine, vacuum tire, including air conditioning
ZZ1167M4617C fire truck chassis 270 horsepower EFR, four-door, HW13710, ST16 drive axle, HF7 disc front axle, ZF8098 direction of the machine, 11.00 nylon tires, including air conditioning
300 horsepower EFR, four-door, HW13710, ST16 drive axle, HF7 disc front axle, ZF8098 direction of the machine, 12.00 nylon tires, including air conditioning
ZZ1257M4647C 266 horsepower EGR, HW76 flat top, HW13710CL, MCY13 drive axle, HF7 disc front axle, ZF8098 direction of the machine, vacuum tire, including air conditioning
300 horsepower EGR, HW76 flat top, HW13710CL, MCY13 drive axle, HF7 disc front axle, ZF8098 direction of the machine, vacuum tire, including air conditioning
ZZ1257N4647C 336 horsepower EGR, HW76 flat top, HW13710CL, MCY13 drive axle, HF7 disc front axle, ZF8098 direction of the machine, vacuum tire, including air conditioning
336 horsepower EGR, HW76 flat top, HW13710CL, MCY13 drive axle, HF7 disc front axle, ZF8098 direction of the machine, vacuum tire, including air conditioning
ZZ1257S4647C 375 horsepower EGR, HW76 flat top, HW19710CL, MCY13 drive axle, HF7 disc front axle, ZF8098 direction of the machine, vacuum tire, including air conditioning
375 horsepower EGR, HW76 flat top, HW19710CL, MCY13 drive axle, HF7 disc front axle, ZF8098 direction of the machine, vacuum tire, including air conditioning
ZZ1257M5247C 266 horsepower EGR, HW76 flat top, HW13710CL, MCY13 drive axle, HF7 disc front axle, ZF8098 direction of the machine, vacuum tire, including air conditioning
300 horsepower EGR, HW76 flat top, HW13710CL, MCY13 drive axle, HF7 disc front axle, ZF8098 direction of the machine, vacuum tire, including air conditioning
ZZ1257N5247C 336 horsepower EGR, HW76 flat top, HW13710CL, MCY13 drive axle, HF7 disc front axle, ZF8098 direction of the machine, vacuum tire, including air conditioning
375 horsepower EGR, HW76 flat top, HW13710CL, MCY13 drive axle, HF7 disc front axle, ZF8098 direction of the machine, vacuum tire, including air conditioning
ZZ1257M5847C 266 horsepower EGR, HW76 flat top, HW13710CL, MCY13 drive axle, HF7 disc front axle, ZF8098 direction of the machine, vacuum tire, including air conditioning
290 horsepower EGR, HW76 flat top, HW13710CL, MCY13 drive axle, HF7 disc front axle, ZF8098 direction of the machine, vacuum tire, including air conditioning
ZZ1257N5847C 336 horsepower EGR, HW76 flat top, HW13710CL, MCY13 drive axle, HF7 disc front axle, ZF8098 direction of the machine, vacuum tire, including air conditioning
375 horsepower EGR, HW76 flat top, HW13710CL, MCY13 drive axle, HF7 disc front axle, ZF8098 direction of the machine, vacuum tire, including air conditioning
ZZ1257M4647C 300 horsepower EGR, HW76 flat top, HW15710, HC16 drive axle, HF9 disc front axle, ZF8098 direction of the machine, 12.00 nylon tires, including air conditioning
ZZ1257N4647C 336 horsepower EGR, HW76 flat top, HW15710, HC16 drive axle, HF9 disc front axle, ZF8098 direction of the machine, 12.00 nylon tires, including air conditioning
ZZ1257S4647C 375 horsepower EGR, HW76 flat top, HW19710, HC16 drive axle, HF9 disc front axle, ZF8098 direction of the machine, 12.00 nylon tires, including air conditioning
ZZ1257M5247C 300 horsepower EGR, HW76 flat top, HW15710, HC16 drive axle, HF9 disc front axle, ZF8098 direction of the machine, 12.00 nylon tires, including air conditioning
ZZ1257N5247C 336 horsepower EGR, HW76 flat top, HW15710, HC16 drive axle, HF9 disc front axle, ZF8098 direction of the machine, 12.00 nylon tires, including air conditioning
375 horsepower EGR, HW76 flat top, HW19710, HC16 drive axle, HF9 disc front axle, ZF8098 direction of the machine, 12.00 nylon tires, including air conditioning
ZZ1257M5847C 290 horsepower EGR, HW76 flat top, HW15710, HC16 drive axle, HF9 disc front axle, ZF8098 direction of the machine, 12.00 nylon tires, including air conditioning
ZZ1257N5847C 336 horsepower EGR, HW76 flat top, HW15710, HC16 drive axle, HF9 disc front axle, ZF8098 direction of the machine, 12.00 nylon tires, including air conditioning
375 horsepower EGR, HW76 flat top, HW19710, HC16 drive axle, HF9 disc front axle, ZF8098 direction of the machine, 12.00 nylon tires, including air conditioning
ZZ1257M3847C fire truck chassis 266 horsepower EFR, four-door, HW13710, ST16 drive axle, HF7 disc front axle, ZF8098 direction of the machine, 11.00 nylon tires, including air conditioning
290 horsepower EFR, four-door, HW13710, ST16 drive axle, HF7 disc front axle, ZF8098 direction of the machine, 12.00 nylon tires, including air conditioning
ZZ1257N4347C fire truck chassis 336 horsepower EFR, four-door, HW13710, ST16 drive axle, HF7 disc front axle, ZF8098 direction of the machine, 12.00 nylon tires, including air conditioning
EURO4
Brand HOWO, Hao Han Suizhou tuning each country four Announcement Schedule
Vehicle chassis models wheelbase drive axle tire model after the cab of the engine gearbox form
Low density cement mixer ZZ1317N466MD1B T7H-F MC11.32-40 HW19710 AC16 12.00R20 1950 + 3800 + 1400,1950 + 3825 + 1350,1950 + 4600 + 1400,1950 + 4625 + 1350 8 × 4
MC11.36-40
T7H-U MC11.32-40
MC11.36-40
T7H-M MC11.32-40
MC11.36-40
Dry mortar truck ZZ3257M4347D1 HW76 D10.28-40 HW15710 AC16 11 (12) 4325 + 1350 6 × 4
D10.31-40 12 (11)
HW79 D10.28-40 11 (12)
D10.31-40 12 (11)
Dry mortar truck ZZ1257M4347D1 HW76 D10.31-40 HW15710 HC16 12 (11) 4325 + 1350,4300 + 1400 6 × 4
HW79
Dump garbage truck ZZ3257N4647D1 HW76 D10.34-40 HW19710 AC16 12 (11) 4625 + 1350 6 × 4
D10.38-40
D12.34-40
D12.38-40
Flammable liquid tank trucks ZZ1167M4617D1 HW70 D10.28-40 HW13710CL MCY13 295 / 80R22.5 (11/12) 4600,5600 4 × 2
D10.31-40 295 / 80R22.5 (12/11)
Sprinkler HW76 D10.28-40 295 / 80R22.5 (11/12)
D10.31-40 295 / 80R22.5 (12/11)
Flammable liquid tank trucks ZZ1317M466GD1 T5G-W MC07.24-40 HW13710C 153 (457 Cast) (4.875) 10.00R20 (11/295) 1800 + 4600 + 1350,1800 + 4575 + 1400 8 × 4
MC07.28-40
T5G-V MC07.24-40
MC07.28-40
Cement mixer T5G-W MC07.31-40 HW13710C 153 (457 Cast) (4.875) 10.00R20 (11/295) 1800 + 4600 + 1350,1800 + 4575 + 1400 8 × 4
MC07.34-40
Low density cement mixer T5G-V MC07.31-40
MC07.34-40
Dump garbage truck ZZ3257N4147D1 HW76 D10.34-40 HW19710 AC16 12 (11) 4125 + 1350 6 × 4
D10.38-40
D12.34-40
D12.38-40
Dump garbage truck ZZ3257N3647D1 HW76 D10.34-40 HW19710 AC16 12 (11) 3625 + 1350 6 × 4
D10.38-40
D12.34-40
D12.38-40
Dump garbage truck ZZ3257N4347D1 HW76 D10.34-40 HW19710 AC16 12 (11) 4325 + 1350 6 × 4
D10.38-40
D12.34-40
D12.38-40
Under gray cement mixer vehicle ZZ3317N4667D1 HW76 D10.34-40 HW19710 AC16 12 (11) 1800 + 4600 + 1350 8 × 4
D10.38-40
D12.34-40
D12.38-40
HW79 D10.34-40 HW19710 AC16 12 (11)
D10.38-40
D12.34-40
D12.38-40
Low density cement mixer ZZ1317N4667D1H HW76 D10.34-40 HW19710 HC16 12 (11) 1800 + 4600 + 1350,1800 + 4575 + 1400,2150 + 4600 + 1350,2150 + 4575 + 1400 8 × 4
D10.38-40
D12.34-40
Wrecker D12.38-40
HW79 D10.34-40
D10.38-40
Wrecker D12.34-40
D12.38-40
Low density cement mixer ZZ1317N4667D1LH HW76 T10.34 HW15710 HC16 12 (11) 1800 + 4600 + 1350,1800 + 4575 + 1400 8 × 4
T12.38 HW19710
HW79 T10.34 HW15710
T12.38 HW19710
Low density cement mixer ZZ1257N5847D1 HW76 D10.34-40 HW19710 HC16 12 (11) 5825 + 1350,5800 + 1400 6 × 4
D10.38-40
D12.34-40
D12.38-40
HW79 D10.34-40
D10.38-40
D12.34-40
D12.38-40
Wrecker ZZ1257M5847D1 HW76 D10.31-40 HW15710 HC16 12 (11) 5825 + 1350,5800 + 1400 6 × 4
HW79
Wrecker ZZ5507N31B7D1 HW76 D10.38-40 HW19710 HC16 12 1950 + 3075 + 1375 + 1350,1950 + 4575 + 1375 + 1350 10 × 4
D12.38-40
D12.42-40
Dump garbage truck ZZ3255N3846D1 H16 D10.34-40 HW15710 AC16 12.00R20 (11.00R20) 3800 + 1350 6 × 4
D10.38-40 HW19710
Concrete mixer truck ZZ1257N4347D1 HW76 D10.34-40 HW13710 HC16 12 (11) 4325 + 1350,4300 + 1400 6 × 4
D10.38-40 HW19710
D12.34-40
D12.38-40
Low density cement mixer ZZ1317N4667D1H HW76 D10.34-40 HW19710 HC16 12 (11) 1800 + 4600 + 1350,1800 + 4575 + 1400,2150 + 4600 + 1350,2150 + 4575 + 1400 8 × 4
D10.38-40
D12.34-40
Wrecker D12.38-40
HW79 D10.34-40
D10.38-40
Wrecker D12.34-40
D12.38-40
Wrecker ZZ1257N5847D1 HW76 D10.34-40 HW19710 HC16 12 (11) 5825 + 1350,5800 + 1400 6 × 4
D10.38-40
D12.34-40
D12.38-40
HW79 D10.34-40
D10.38-40
D12.34-40
D12.38-40
Concrete mixer truck ZZ1257N4047D1 HW76 D10.34-40 HW13710 HC16 12 (11) 4025 + 1350,4000 + 1400 6 × 4
D10.38-40 HW19710
D12.34-40
D12.38-40
Flammable liquid tank trucks ZZ1257M464GD1 T5G-M MC07.24-40 HW13710C 457 cast (4.875) 11 (10,295) + 4075 + 1400,4100 1400,4300 1350,4275 + + + 1350,4575 1400,4600 + 1350 6 × 4
MC07.28-40
Tanker MC07.24-40
MC07.28-40
Tanker ZZ1257K56CGD1 T5G-W MC05.21-40 DC7J100TC-1083 (8.4 / 0.79) 153 cast (5.143) 10.00R20 (11) 1800 + 4200,1800 + 4800,1800 + 5600 6 × 2
MC07.21-40
MC07.24-40
Flammable liquid tank trucks T5G-V MC05.21-40
MC07.21-40
MC07.24-40
Tanker ZZ1317N466MD1B T7H-F Deluxe MC11.32-40 HW19710 AC16 12.00R20 1950 + 3800 + 1400,1950 + 3825 + 1350,1950 + 4600 + 1400,1950 + 4625 + 1350 8 × 4
MC11.36-40
T7H-U luxury MC11.32-40
Corrosive materials tank trucks MC11.36-40
T7H-M Deluxe MC11.32-40
MC11.36-40
Flammable liquid aluminum tank trucks ZZ1317N466GD1 T5G-W MC07.31-40 HW13710C 153 (457 Cast) (4.875) 10.00R20 (11/295) 1800 + 4600 + 1350,1800 + 4575 + 1400 8 × 4
MC07.34-40
T5G-V MC07.31-40
MC07.34-40
Sand transport vehicles ZZ2257N4657D1 HW76 D10.34-40 HW19710 ST16 12.00-20 3800 + 1400,4300 + 1400,4600 + 1400 6 × 6
For liquid car
Under gray car D12.38-40
Flammable liquid tank trucks ZZ1257M4647D1 HW76 D10.31-40 HW15710 HC16 12 (11) 4600 + 1350,4575 + 1400 6 × 4
HW79 D10.31-40
Sand transport vehicles ZZ3257N3447D1 HW76 D10.34-40 HW19710 AC16 12 (11) 3425 + 1350 6 × 4
D10.38-40
D12.34-40
D12.38-40
Tanker ZZ1317N4667D1B HW76 D10.34-40 HW19710 HC16 12 (11) 1800 + 4600 + 1350,1800 + 4575 + 1400,2150 + 4600 + 1350,2150 + 4575 + 1400 8 × 4
D10.38-40
D12.34-40
D12.38-40
HW79 D10.34-40
D10.38-40
D12.34-40
D12.38-40
Concrete mixer truck ZZ1257N3847D1 HW76 D10.34-40 HW13710 HC16 12 (11) 3825 + 1350,3800 + 1400 6 × 4
D10.38-40 HW19710
D12.34-40
D12.38-40
Concrete mixer truck ZZ1257N4047D1 HW76 D10.34-40 HW13710 HC16 12 (11) 4025 + 1350,4000 + 1400 6 × 4
D10.38-40 HW19710
D12.34-40
D12.38-40
Cement mixer ZZ1317N4667D1H HW76 D10.34-40 HW19710 HC16 12 (11) 1800 + 4600 + 1350,1800 + 4575 + 1400,2150 + 4600 + 1350,2150 + 4575 + 1400 8 × 4
D10.38-40
D12.34-40
D12.38-40
HW79 D10.34-40
D10.38-40
D12.34-40
D12.38-40
Sludge truck ZZ3317N3867D1 HW76 D10.34-40 HW19710 AC16 12 (11) 1800 + 3800 +1350 8 × 4
D10.38-40
D12.34-40
D12.38-40
Cement mixer HW79 D10.34-40
D10.38-40
D12.34-40
D12.38-40
Measurement testing wagons ZZ1317N4667D1H HW76 D10.34-40 HW19710 HC16 12 (11) 1800 + 4600 + 1350,1800 + 4575 + 1400,2150 + 4600 + 1350,2150 + 4575 + 1400 8 × 4
D10.38-40
D12.34-40
D12.38-40
HW79 D10.34-40
D10.38-40
D12.34-40
D12.38-40
Concrete mixer truck ZZ1257N4047D1L HW76 T10.32 HW13710 HC16 12 (11) 4025 + 1350,4000 + 1400 6 × 4
T10.34
T12.38 HW19710
Concrete mixer truck ZZ1257N4047D1 HW76 D10.34-40 HW13710 HC16 12 (11) 4025 + 1350,4000 + 1400 6 × 4
D10.38-40 HW19710
D12.34-40
D12.38-40
Wrecker ZZ1317N4667D1H HW76 D10.34-40 HW19710 HC16 12 (11) 1800 + 4600 + 1350,1800 + 4575 + 1400,2150 + 4600 + 1350,2150 + 4575 + 1400 8 × 4
D10.38-40
D12.34-40
D12.38-40
HW79 D10.34-40
D10.38-40
D12.34-40
D12.38-40
Description: 1) The fourth generation air conditioning increases of 2000, reducing air conditioning Sale 1800. Special Note: When a non-factory-equipped with the company's air conditioning will be no guarantee of quality and after-sales service, the consequent loss of vehicle electrical systems and the company is not bad responsible for
2) HOWO 6 * 4: 11.00 nylon tire 11.00R20 steel tire change increases 5600 yuan; 12.00 nylon steel tire 12.00R20 tire change increases 6000 yuan; HOWO 8 * 4: 11.00 nylon tire 11.00R20 steel tire change increases 7200 yuan; 12.00 nylon tire 12.00R20 steel tire change increases 8500 yuan.
