China truck WeiChai Engine Parts 612600010611,Oil separator, Breathing elbow connector,Original parts engine belt 61500060217 Crankshaft and Flywheel

China truck WeiChai Engine Parts Weichai engine parts , Oil filler neck,612600010611,Oil separator,Crankshaft,Flywheel
Price: $ 1.5  -  40
Discount Price: $ 0.88  -  30
FOB:
Availability:
Quantity:

  • WeiChai Engine

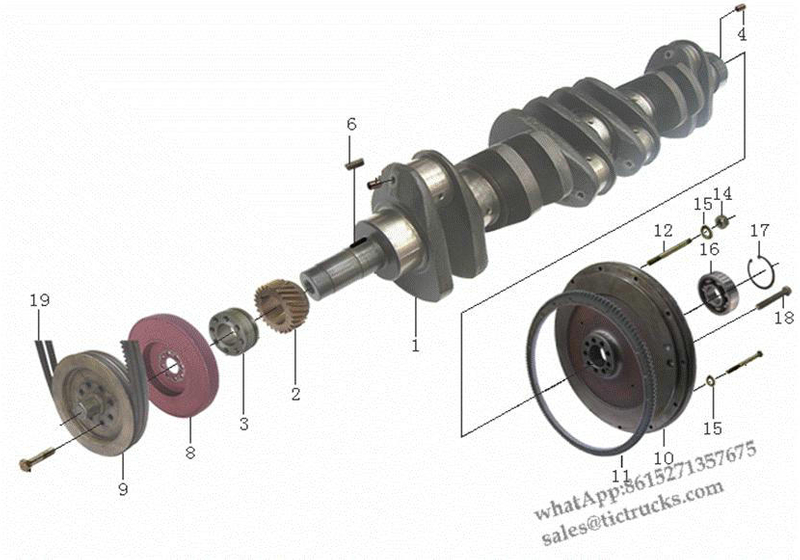

China truck WeiChai Engine Parts  Crankshaft and Flywheel

WD615.34,WD615.38,WD615.44, WD615.46,WD615.50, WD615.56

China truck WeiChai Engine Parts 612600010611,Oil separator, Breathing elbow connector,Original parts engine belt 61500060217seal on Hubei Dong Runze Special Vehicle Equipment Co., LtdCrankshaft and Flywheel part


61560020029 Crankshaft assembly

61500020071 Crankshaft assembly

612600020233 Crankshaft assembly

612600020373 Crankshaft assembly
1 61560020024 Crankshaft
1 61500020012 Crankshaft
1 612600020235 Crankshaft
2 614020038 Crankshaft gear
2 612600020234 Crankshaft gear
3 61500020070 Flange
4 90003901418 Straight pin
6 90003960569 Straight key
8 61560020010 Vibration damper
8 61800020012 Vibration damper
9 61560020016 Belt pulley
9 61560020017 Belt pulley
9 612600020210 Belt pulley
9 61800061004 Belt pulley
9 61800061002 Belt pulley
10 615Q0170026 Flywheel
10 612600020220 Flywheel
10 612600020416 Flywheel
11 612600020208 Starter ring gear
12 90011620022 Stud
14 90003871305 Hexagon nut
15 90003932024 Wave spring washer
16 90003311416 Ball bearing
17 90003934310 Retaining ring
18 61500020046 Hex head bolt
19 81500060228 Original parts engine belt
19 61500060217 Original parts engine belt

China truck WeiChai Engine Parts Catalog.pdf  Download

SINOTRUK, WD615, EURO II

Cylinder Block

CYLINDER BODY, WD615-II, SINOTRUK HOWO SPARE PARTS C

CYLINDER BODY, WD615-II, SINOTRUK HOWO SPARE PARTS CATALOG

Hubei Dong Runze Special Vehicle Equipment Co., Ltd

Serial Number Name Quantity
0   WD615.69 336hp
0   WD615.47 371hp
0   WD615.62 266hp
0   WD615.87 290hp
0 61500010816 engine 1
1 61500010344 cylinder liner 6
2 81500010125 thrust washer 2
3 81500010046 main shaft bearing 7
4   614 010134 sealing gasket 2
5 61500010100 oil seal for crankshaft 1
6 61460070011 rear plug screw of fuel pipe 1
7 612600070083  pipe for fule return 1
8   614 010120 pipe 2
10 90003802493 hexagon head bolt 2
12 90003862428 hexagon screw 22
13 90003962050 inside hexagon plug screw 1
14 90003098086 sealing gasket 1
15 90003901604 pin (12m6*20 DIN7) 6
16 90003909626 pin (6*12 D01481) 6
17   90003901604A pin (12m6*26 D00007) 3
19 90003989480  plug (17/8 N5564) 2
20   188 250083 self-locking gasket 22
21 90003989204 plug 1
22 90003989289 plug (40/12-MS N5564) 4
23 90003989288 plug (65/14 N5564) 1
24 90003982121 plug (45/12 N5564) 4
25 90003989215   plug (45/12 N5564) 3
26 90003989210  plug (75/14 N5564) 6
27   614 010217 bolt for cap of main shaft 1
28 61500010185 bolt for cylinder cap 21
29   614 010279 pipe for ventilation 1
30 61560010029 bush for camshaft 7
32   614 010114 bolt for main shaft bearing 13
33 90003098086 sealing gasket (AKM NO5125) 1
34   61560010097A cylinder body assy 1
34-1   61560010095B cylinder body 1
34-2 61560010109 crankshaft case 1
GEAR CASE & FLYWHEEL HOUSING.jpg

GEAR CASE & FLYWHEEL HOUSING, WD615-II

Hubei Dong Runze Special Vehicle Equipment Co., Ltd

www.truckinchina.com

Serial Number Name Quantity
1   61560010094B gear case 1
2 61560010069  gear cap of air compressor 1
3   614 010040 pad for gear cap of air compressor 1
4   614 010070 pad for gear cap of camshaft 1
5 61500010012  flywheel housing 1
6 61500010101  flywheel housing bolt 7
06a 61500010062  flywheel housing bolt 6
7 61500010037  front oil seal 1
8 1800210011  cap of observing hole  1
9 612600010193  nameplate 1
10 90003802511    hexagon head bolt  (M10*18 D00933) 2
11 90003802523    hexagon head bolt (M10*25 D00933) 3
12 90003802561     hexagon head bolt (M10*75 D00933) 6
13 90003802576    hexagon head bolt (M10*90 D00933) 1
14 90003800458    hexagon head bolt (M8*70 DOO931) 4
15 90003800571    hexagon head bolt (M10*80 D00931) 1
16 90003802424    hexagon head bolt (M8*25 D00933) 19
17 90003862524  inner hexagon screw (M10*20 D00912) 1
17a 90003862532  inner hexagon screw (M10*30 D00912) 1
18 90003098086  sealing gasket (A30*36 D07603) 1
19 90003813429  double head bolt (M8*22 D00939) 12
20 90003813470  double head bolt (M8*60 D00939) 3
21 90003811531  double head bolt (M10*30 D00835) 1
22 90003813443  double head bolt (M8*30 D00939) 1
23 90003813628  double head bolt (M12*30 D00939) 6
24 90003932023  elastic gasket (B8 D00137) 41
25 90003813537  double head bolt (M10*35 D00939) 12
26 90003813527  double head bolt (M10*28 D00939) 3
27 90003888451    hexagon bolt (VM8 D00980) 2
28 90003888452    hexagon bolt  (VM10 D00980) 5
29 90003888453    hexagon bolt  (VM12 D00980) 8
30 90003871252    hexagon nut (M8 D00934) 16
31 90003871305    hexagon nut (M10 D00934) 12
32 90003962621  hollow bolt (A8 D07623) 6
33 90003098014  sealing gasket (A14*18 D07603) 1
34 90003098015  sealing gasket (A14*20 DIN7603) 6
35 90003932024  elastic gasket (B10 D00137) 1
35a 90003931122  spring gasket (B10 D00127) 21
36 90003930012  gasket (10.5 D07340) 1
37 90003930271  gasket 1
38 90003932025  elastic gasket 2
39 90003909603  column pin 6
40 90003901507  column pin 4
41 90003901604  column pin 6
42 61560010047  components for inject nozzle 6
42 61560010090  components for inject nozzle 6
43 90003813638  double head bolt (M12*35 D00939) 2
44   61500010008A camshaft gear cap  1
45 90003962051    hexagon head bolt (CM30*1.5 D07604) 1
46 90003962020    hexagon head bolt (A14*1.5 D07604) 1
47   614010084B pad for oil cooler cap 1
48   614010083B oil cooler cap 1
49   AZ1500010336A front oil seal 1
50   614010106A pad for front oil seal 1
51 90003862327  inner hexagon column screw 4
