Bogie type lowboy trailer 2 lines 4 axles 120tone Features

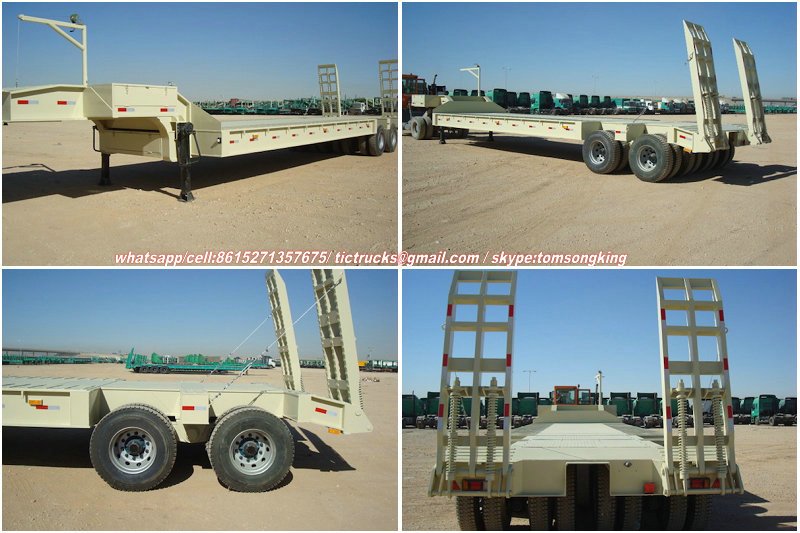

Name: Bogie type lowboy trailer
Loading capacity: 120 ton

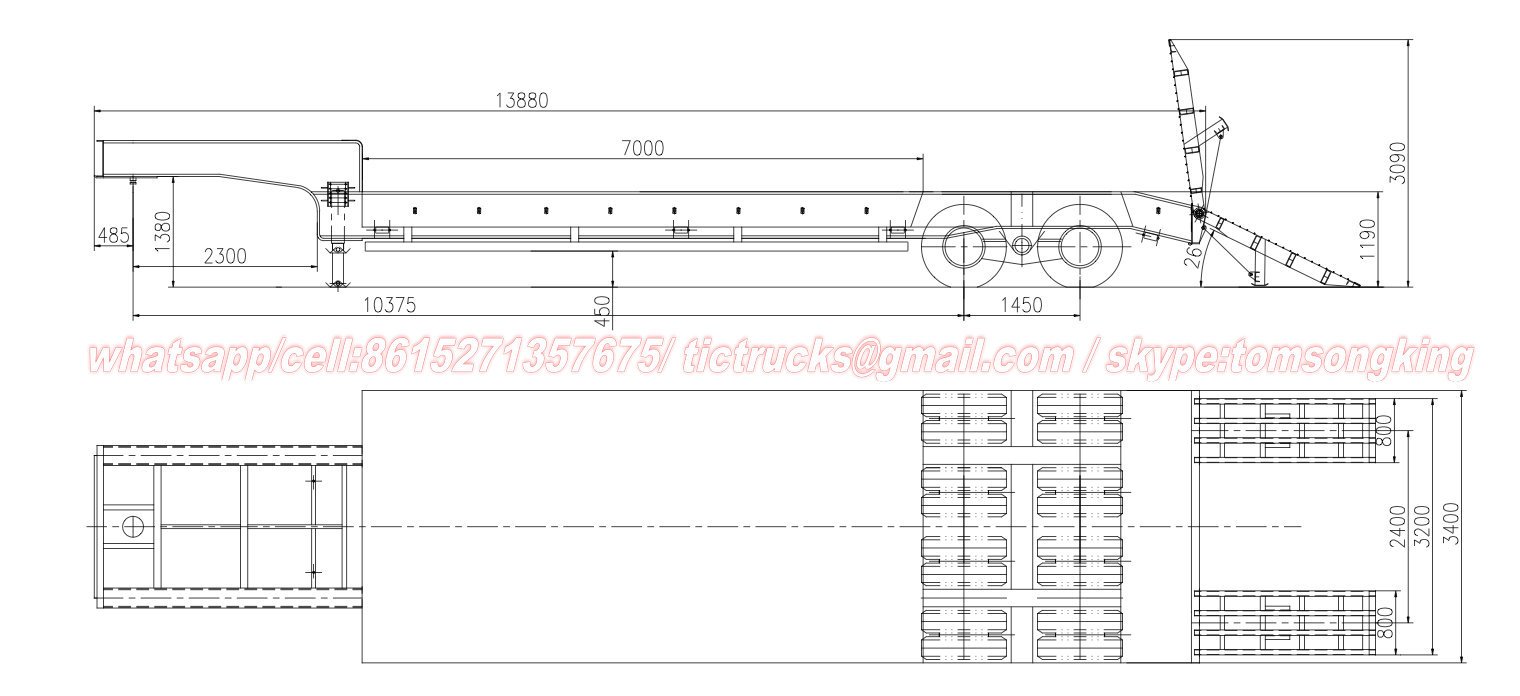

Overall dimension: 15765*3400*3090mm
Useful deck length: 11200mm
Ground clearance: 1200mm
Wheel base: (12000+1500)mm
Tare weight: 20ton
Axle and suspension: Balance suspension with steering function. Bogie axle 80ton each
Tires: 12R22.5, radial tires, wheel rim: 9.0*22.5
Landing gear: double speed JOST 50T
Ramps: Mechanical spring ramps, hydraulic ramps are optional
Kingpin: JOST 3.5''
Brake system: Wabco dual line pneumatic brake line
Electrical system: 12/24V, 7 pin socket (US, EU or Australian standard)
Accessories: Tool box, D-rings, Stake pockets, container twist locks, etc
Light: tail lamp, side lamp, brake lamp, etc. All LED
Surface process: sandblasted
Painting: base coating + surface painting
lowboy trailer manufacturers, our featuring low bed trailer for sale are welded by longitudinal beam, side beam and crossbeam. Steal grade Q460 which will not deform until intension reaches 460Mpa. This kind of steel has features of high strength, various temperature ductility, low yield ratio and high elongation. Axles of the lowboy is non driving type, hubs, drum brakes, rims and tires are fixed on each side. Bogie are provided with balance suspension which faciliates the steering during road duty, during which all axles match with the bumping of roads, balancing the loads on the lowboy deck. It's an ideal choice for heavy load duty, especially military forces, in tough road condition.
High tension steel with various temperature ductility
Bogie axles adopted for smaller steering ratio
Various ramps, decks, gooseneck options.
Various payload options
Since the lowboy trailer in normally low in height, the total cubage is not that large as car carrier trailer or tanker trailer. It's more preferable to ship the low loader trailer in CBU terms ( complete built unit).
