DRZ9401TDP 3 axles Low Bed Trailer Lowboy Truck Semi Trailer

DRZ9401TDP 3 axles Low Bed Trailer Lowboy Truck Semi Trailer Semi Low Bed Trailer

Price: $ 22996
Discount Price: $ 16900
FOB:
Quantity:

  • DRZ9401TDP
  • DRZ
  • 87164000

DRZ9401TDP 3 axles Low Bed Trailer  Lowboy Truck Semi Trailer Semi Low Bed Trailer

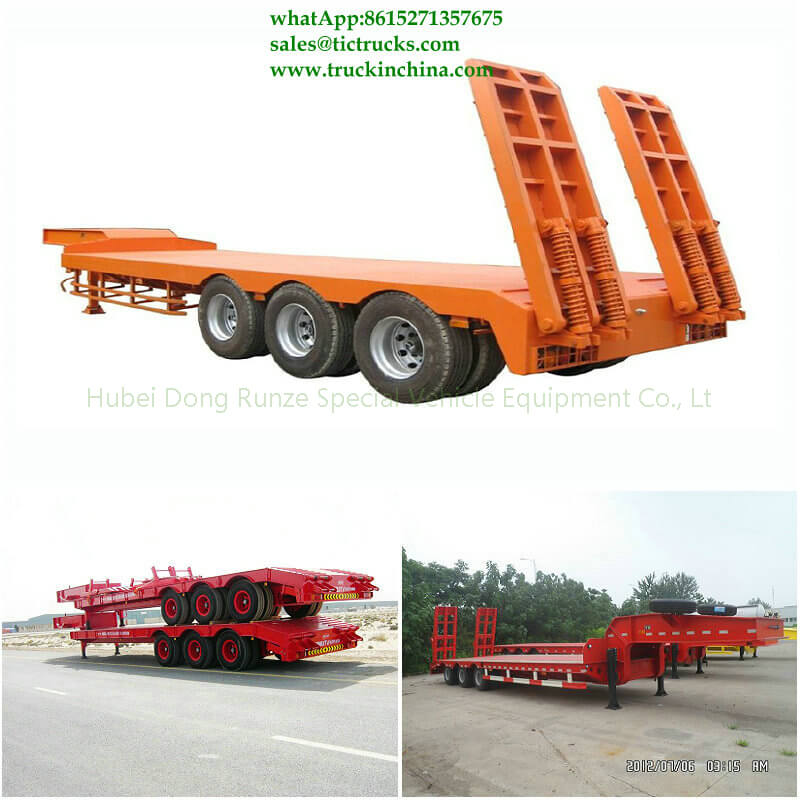

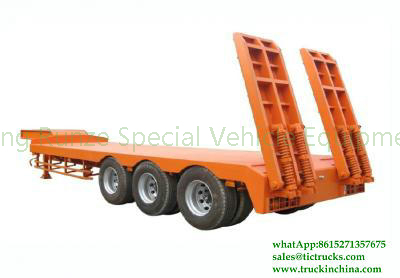

3 Low bed semi-trailer 3 axle(1)_lit




DTA9400TDP Lowboy trailer

2 axle Low-Bed-Semi-Trailer 5.jpg


2-Axle-Lowbed-Semi-Trailer(2).jpgTotal mass (KG) 33860 rated mass (KG) 24000

Kerb  mass  (KG) 9860
Shafts: 2 wheelbase  ( mm) 8500+1300
Anti-lock braking  system front/rear overhang (o ) -/1350
Shapes (length/width/ height) (mm) 11600x3000x2960


9340TDP low flat panel  semi-trailer


Total mass (KG) 33860  rated  mass (KG) 24000


Kerb  mass (KG) 9860 trailer  mass (KG)


Shafts: 2 wheelbase (mm)  8500+1300
Anti-lock braking system front / rear overhang (o)-/1350


Dimension data
Shapes (length/width/height) ( mm ) 11600x3000x2960
Tire parameters
8.25R20 16PR tire tires  specifications: 8
Rear track (mm)  2100/2100


Semi-trailer saddle 15880


Axle load-/17980 (and dual- axis )


Spring-/8/8  close to the left corner-/21
850mm1000mm, 1150mm, the only  transportable  non- collapsible  object, optional tire concave and flat structure; Material:  Q235A,  replaced  rear  underrun protectionstructure, material Q235A, and ride height: 530mm; ABS


 9400TDP Lowboy trailer Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675 LOAD CAPACITY:   45T 50T, 70T, 90T

 LENGTH:                11m,12m,13m, 14m,16m

 AXLE:                     FUWA AXLE 13T (16T, 20T)    OPTION:L1, BPW AXLE (12T, 13T,16T,18T,20T), ABS

 TIRE:                     315/80R22.5 11.00R20 12.00R22.5 315/80R22.5

    OPTION: 385/65R22.5 (Single tire)

low bed semi trailer price



Axle No. 2 3 3
Outside Dimention  12600*300*1700 13000*2800*2960 12500*3000*3050
Total Weight 35000 37000 39980
Loading Weight 26700  27000 29000   28500 30000
Curb Weight 8300  8000 8000   8500 9980
Wheel Base 9340+1310,
8840+1310
9080+1150+1150
9120+1150+1150
7930+1310+1310
8430+1310+1310
9080+1310+1310
Front/ Rear Suspension /1500 /1050,/1220 /1500,/1220
Tire Model 8.25R20 8.25-20

8.25R16LT16PR

8.25R2014PR

8.25R20 8.25-20

1 ,60T low bed semi trailer for sale

General

Overall Dimension

11960mm*3000mm*3300mm

Flatbed Dimension

8000mm*3000mm

Tare Weight

9630kg

Pay Load

60ton

King Pin Setting

450mm

Rear Overhang

1870mm

Wheel base

7950mm+1305mm+1305mm

Loading Surface Height

1320mm

Track

2160mm

Running Gear

Suspension

Tri-axle 8-pcs leaf spring suspension with equalizer beam

Tires

311.00-20, 11.00R20,12.00-20,12.00R20  12units

Axles

AQ,FUWA, BPW or STEYR axle, 13T capacity

Brakes

Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake

Under Frame

Main Beam

I shape, Mild Alloy (16Mn) by Automatic submerged arc welding.

Cross Beam

Mild Alloy Q235, 16# channel beam

King Pin

Size: 50# (2'') or 90#(3.5’’); Type: welded or assembled

Landing Gear

Single side operation or double side operation, Static capacity 30Ton

Flatbed Floor

Checkered sheet, thickness 4mm

Rear Ladders

Spring power-assisted

Electrical & Paint

Lights & Reflectors

Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light

2. 50-ton  3 Axles Low Bed Truck Trailer Lowboy Flatbed Gooseneck Trailers for sale 12000×3000×2900mm


No

Name

Unit

Quantity

Remarks

1

Tare weight

kgs


11200


Payload

kgs


50000


Gross  Weight

kgs


58200

2

GB Frame Dimensions

mm


 12000×3000×2900

3

Axle

piece

2

13T FUWA brand


Wheelbase



7610+1310+1310

4

Tire Specification



unit

9

Double Coins 11.00R-20

5

Rim

Unit

9

8.25-20 (one spare set is included)

6

Leaf spring

Unit

8

Domestic 100 width 10pieces 16 thickness underslung

7

Suspension


3

Common mechanical Suspension

Unit

8

Electrical and air pipeline

Whole vehicle


Quick release valve will be installed

9

Landing gear

Pair

1

China brand,Tongyada brand

10

Kingpin 3.5’’

Piece

1

3.5'' traction pin

11

Longitudinal beam



Top flange thickness 20mm, width 250mm; bottom flange thickness  20mm, width 250mm;

web plate thickness 12mm, the height of longitudinal beam is 500mm

12

Side beams



300mm “H” steel  (the hook for loop will be welded)

13

Floor



6mm checkered plate

14

Relay valve

Piece

2

China brand

15

Braking chamber

Piece

2

Double chamber

16

Paint



wax whole trailer, white polyurethane

17

Ramp



Width 800MM, 4.5 MM checkered plate will be welded,

and then the antiskid bar will be welded.



3. 60Ton 3-AXLE LOW-BED SEMITRAILER Can load machinery like excavator Transport Heavy Cargo And Excavator 13000 x 3000 x 1750mm

3 AXLE LOW BED SEMI TRAILER

DIMENSIONS

Tare weight

12000kg



Payload

60000 kg



Dimention

13000,12500 * 3000,2800 * 2900,1750



SPECIFICATION

Chassis

Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes.

Axle

3;fuwa;13T



Suspension

Mechanical suspension

Leaf spring

Leaf spring

Floor

5mm checkered plate 5mm

Tire

12.00R20  12pcs

Wheel rim

9.0

Kingpin

3.5bolt-in king pin 90

Landing gear

two-speed, manual operating ,heavy duty landing gear

Ladder

Mechanical ladder

Vehicular applications

Machine transport

Drawing

Including

Braking system

RE6 relay valve ;T30/30 spring brake chamber;40L air tanks

Painting

Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint

Accessories

One standard tool box

4,50ton 3-axle low-bed semi trailer 12590 x 3000 x 1710mm

Type 3-axle low-bed semi trailer
Overall dimension(mm) 12590 x 3000 x 1710
Flatbed dimension(mm) 8452 x 3000
Pay Load(Kg) 50000
Kingpin setting 450mm
Rear Overhang 1870mm
Wheel Base 7650mm + 1310mm + 1310mm
Loading surface height 1100mm
Track 2160mm
Suspension 3-axle 10pcs leaf spring suspension with equalizer beam
Tire 12.00R20, 12units
Axle FUWA Brand, 13T capacity
Brake Dual line pneumatic brake system
Main Beam I shape, Q345 by automatic submerged arc welding.The height of the beam is 500mm,
upper plate is 12mm,down plate is 14mm, middle plate is 10mm.
Cross Beam Q345B, 16# channel steel
Kingpin Size:50#(2") or 90#(3.5"); Type: weld or assembled
Landing Gear Single side operation or double side operation,static capacity 28T
Flatbed Floor Checkered sheet,thickness 3mm
ABS 4S/2M
Rear Ladders Spring Power-assisted
Lights & Reflectors Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Wiring 24V, 6 lines
Air/Elec. Connector ISO Standard air connector, 24V 7 pin plug socket



5,60T 3 Axle Low bed Semi Trailer 13000*3000*1550mm

 3 Axle Low bed Semi Trailer

Assembly Name

Composition

Specifications

Chassis

Main beam

Q345Steel;The height of the beam is 500mm;

Upper plate;18mm;Middle plate is 12mm;Down plate is 20mm.

Cross beam

14# channel steel

Side beam

25# channel steel

King Pin

2”(50mm)or 3.5”(90mm)traction pin

Dimensions(L*W*H)

13000*3000*1550mm

Floor

4mm diamond steel plate

Fence

1.5m steel plate 600mm height, fence 1000mm+20mm top

Ladder

60T Heavy duty Mechanical ladder(optional hydraulic ladder

Suspension

Suspension type

Common mechanical

Steel Spring

10/10/10

Running system

Axle

3 Axle ,Fuwa Brand

Wheel Rim

9.0-22.5 steel wheel rim

Tire

Spe:12R22.5; Number of Tire:12 pieces

Brake system

Brake Chamber

6 big chamber

Brake Valve

KTL Brand/WABCO

Brake system

Dual Line Brake system

Other

Tool box

2 set standard tool box

Light

Tail lamp with turn signal ,brake light & reflector, side lamp etc.

Painting

1 coat of anticorrosive prime, twice coats of final paint.

Spare Tire Carriers

2 pieces

Leading gear

28T Manual operating, Heavy duty landing gear

Weight

Tare Weight

12000Kg

Loading Capacity

60T

Axle weight load

13T



 6, 40T 3 axles heavy duty lowboy trailer low bed semi trailer for sale 12950*2490*2900mm

Tare weight 9.0T-9.5T
Dimension 12950*2490*2900mm
Loading Capacity 40T-60T
Axle 3 axle FUWA 2180  13T
Rim 9.0-22.5 12PCS better brand
Tire 12R22.5 12CPS  double coin
Suspension Mechanical suspension
King Pin JOST brand 2.0 or 3.5inch bolts typer or welding type
Support legs china brand 28T (Singe or double speed)
Main beam Upper plate is 16-20mm,middle plate is 10-12mm,down plate is 18-20mm Q345 steel
Side beam 20#-25# channel steel (material is Q235 steel)
FLoor 4-5MM chekered plate
Brake chamber WABCO RE6 relay valve:T30/30+T30 spring brake chamber,two pieces of 45L air tankes
ABS optional
Valve WABCO valve
Light LED light
Voltage 24V
TOOL box 1M*0.5M*0.5M one piece
Recepatacie 7 ways(7 wire harness)
Painting Complete chassis sand blasting to clean rust,1 coat of anticorrosive prime,2 coats of final pain

7, 30T Heavy Duty Transport 2 3 4 Axles Low Bed Semi Trailer for sale

PARAMETER

Dimension(mm)

L*W*H: 12000X3000X3180(MM)

Kin Pin Plate Height (mm)

H

Axle space(mm)

1300mm

Tare weight(kg)

8800KGS

Payload (kg)

30000KGS

G.V.W.R.

38800KGS

“I” BEAM

500/16/18/10

OEM

Landing gear

Two speed manual operation type with sand shoe

Kingpin

2”Bolted type

Brake system

Dual line pneumatic brake system. WABCO brake valve

ABS

No

Brake chamber

Type 30/30 spring brake chamber

Suspension

Spring suspension

Axle

FUWA square axle, 13 ton capacity/set,2pcs

Tire

8.25R20  8Pcs

Rim

6.5-20  8 Pcs

Tool box

1(1M)

Spare tire carrier

2 Units

OTHERS

Floor

4mm checked plate

Painting

As customer request




DELIVERY TIME

30 days after we received the down payment

PAYMENT TERMS

30% down payment ,70%balance by T/T before delivery



8,30T 2 axle low bed semi trailer 9,950x3,000x1,750 mm

Model number DRZ9300TDP
Total size 9,950x3,000x1,750 mm
Loading weight 30,000 kg
Departure angle 16
Axle brand 13 ton FUWA Brand axle
Axle number two
Suspension system mechanical suspension
Steel spring 10/10/10 leaf spring suspension
Main beam

Q345B, autimatic submerged arc welded

Beam height 500 mm, Upper plate  18 mm, Down plate  20 mm,middle plate  12 mm

Cross beam material

Q235B

SIde beam

Channel steel

Platform plate 3 mm diamond plate
Tire type and quantity Radial tire 11.00R20 x 12 units
Ladder with ladder
Tration pin 2" or 3.5"
Landing gear Standard 28T, JOST brand is optional
Brake system Dual line braking system/ABS
Brake air chamber Six big double air chamber
Spare wheel bracket 2 pieces
Painting One coat anti-rust prime, two coats final paint
Light Tail lamp with turn singal, brake light& reflector, side lamp, etc

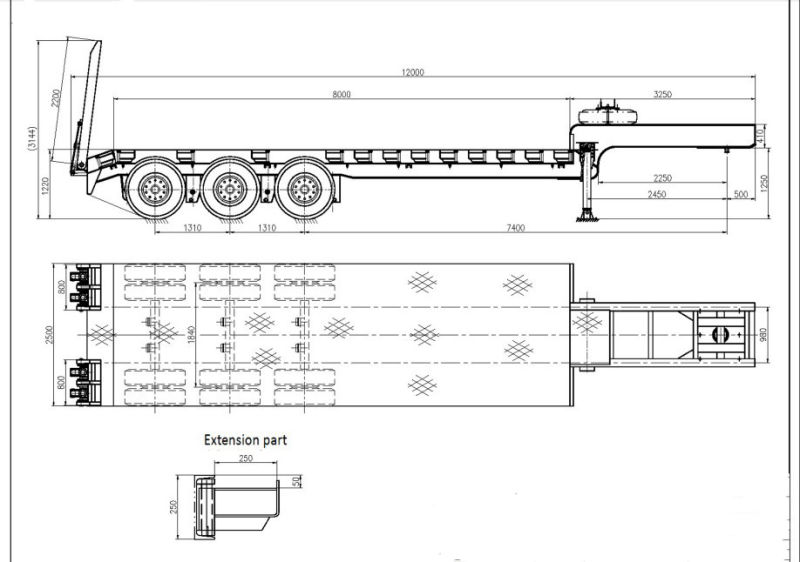

9, 80T Heavy duty LOW BED Semi TRAILER could be load by th container, platform:8000X3000mm

DIMENSIONS
Tare  Weight 10000kg
Payload 80000kg
Total  Weight 90000kg
Overall  Length 12000mm
Overall  Width 2500mm(can extend to 3000mm)
Overall  Height 3144mm
Wheel track 1840mm
Wheelbase 7400mm+1310mm+1310mm
SPECIFICATION
Main  Frame Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes.
500mm Height beam, Top Flange 20mm, width 140mm;
Middle Flange 10mm; Bottom Flange 20mm, width 140mm
Floor Steel Sheet 3mm thickness
Axle Three units of L1-13T axle
Suspension A couple of heavy duty FUWA under-slung 3-axle suspension
Leaf Spring Six sets of reliable local brand, 8-piece leaf spring, 16x90mm
King Pin One unit of 2" bolt-in kingpin
Landing Gear Two-speed ,manual operation, heavy duty SAF 19" linked landing gear
Wheel Rim 13 units of 8.25-22.5 rim, including 1 unit spare rim
Tyre 13 units of 11R22.5 tire, including 1 unit spare tire
Spare Wheel Carrier One set of spare wheel carrier
Rear Ladder Spring Four pieces of rear ladder spring
Pneumatic Braking System Two units of WABCO RE 4 relay valve; four units of T30/30 chamber;
two units of T30 chamber, two units of reliable local brand 45L air tank;
Two units of reliable local brand standard coppery air-connector.
Electrical  System One unit of JAEGER POWAY, 24V 7-pin ISO 1185 socket;
Two sets of reliable, local brand standard rear light,
(Turn light, rear reflector, side light, side reflector etc.)
One set of DAFA (brand) 6-core standard Cable.
Painting Sand blasting before painting;
One coat of primer, anti-corrosion;
Two coats of finish painting;
Color advised by client.
Accessory One box with a set of standard trailer tool


Packaging & Shipping_1.jpgtanker -06- truck_1.jpg

SUCCESS CASES

More >>

Contact Us

EMAIL:Sale@tictrucks.com
TEL:  86-152-71357635    MOB: 86-152-71357675
 WeiChat:king253725877
truck in china weichat made in china truck
 Add:Wuhan Office 1: No.1 Taizong Avenue Gaoqiao Industry Park Taiwanese  Investment Area Dongxihu District Wuhan City, Hubei Province, P.R China
Address CRRC Factory : No. 8 Jiliangdadao,Zengdu Economic Development Zone,Suizhou City, Hubei Province, P.R China P.O. Box 441300
Address Yuchai DTA Truck Factory : No. 121, Liangshui 1St Road, Zengdu Economic Development Zone Suizhou City, P.R. China  P.O. Box 441300  .......

Hubei Dong Runze Special Vehicle Equipment Co., Ltd. All rights reserved. 2009-2019 XML webmail
