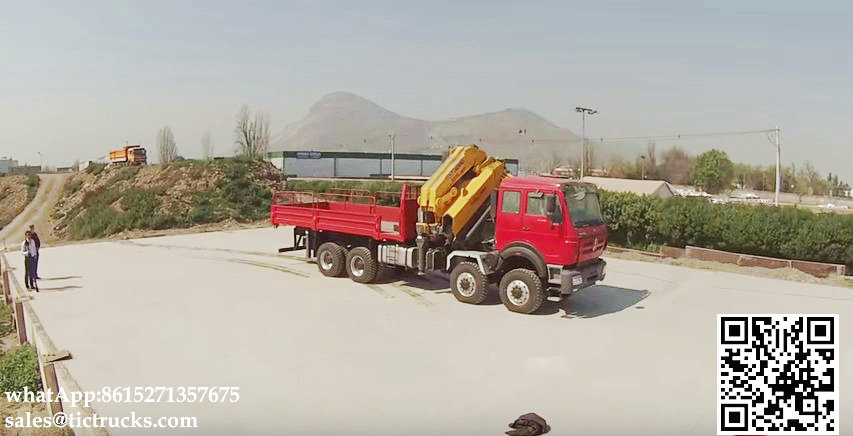

Beiben 8x8 Off Road Truck Loading Crane Mounted 25T XCMG

Share to:

Beiben 8x8 Off Road Truck Loading Crane Mounted 25T XCMG

Availability:

Quantity:



Inquire Add to Basket

Beiben 8x8 off road Truck loading crane mounted 25T XCMG knuckle boom Euro 2, 3,4 ,5 for sale

heavy duty truck crane

Durable XCMG 25 Ton Knuckle Boom Truck Mounted Crane Driven By Hydraulic

Beiben 8x8 off road Truck loading crane mounted 25T XCMG Specifications:Max. Lifting Capacity: 25 ton

Max. Lifting Moment: 62.5 t.m

Max. Oil Flow of Hydraulic System: 80 L/min

Max. Lifting height:19meters

Brand: XCMG

Crane Weight: 7945 kg

Oil Tank Capacity: 300 L

Knuckle boom crane, help you loading goods on your truck. The crane will fold to compact size after working and will not affect the space of the carriage. The arms are driven by hydraulic, move fast, more effective. The arms can easy to reach narrow spaces like inside the workshop. More accessories like fork, grab bucket, can be attached for different goods loading.

Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.

XCMG is the first company to develop newer design loader crane in China, shared more than 50% of the Chinese crane market for many recent years by the help of advanced design, good quality, attentive service and competitive price.

Together we define your needs and make the crane to match your request in every detail. The lifting capacity of our loader cranes spans from 1 to 25 ton and outreach over 26 meters.

Knuckle boom crane SQ25ZK6Q is lifting capacity is 25tons, moment is 62.5T.M.

Applications:

It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.

Model	SQ25ZK6Q	Unit
Max Lifting Moment	62.5	t.m
Max Lifting Capacity	25000	kg
Recommend Power Needed At Recommend Oil Flow	50	kw
Max Oil Flow of Hydraulic System	80	L/min
Rated Pressure Of Hydraulic System	31.5	MPa
Oil Tank Capacity	300	L
Rotation Angle	(360°) All Rotation	^.
Crane Weight	7945	kg
Installation Space	3000	mm

SQ25ZK6Q Lifting capability diagram
Working radius(m)	2.5	4.22	5.93	7.74	9.59	11.48	13.43	15.45
Lifting capacity(kg)	25000	14000	9000	6500	5000	4000	3000	2500

Assisatant stabilizer leg

Stabilizer leg	Spread
Fixed	2179mm
Single extension	2256-3556mm
Double extension	2212-4752mm

Applications:

It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.

Knuckleboom cranes have the ability to easily load and unload materials in just about any possible situation.

Dimension Drawing:
