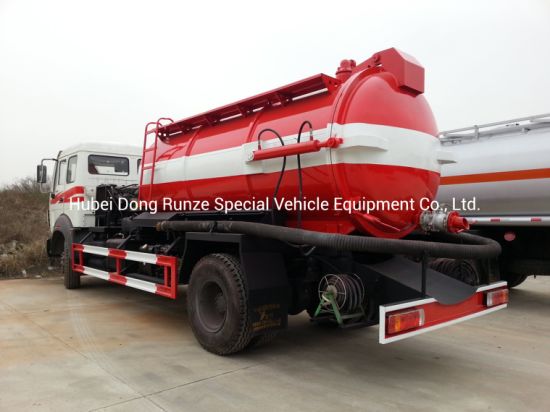

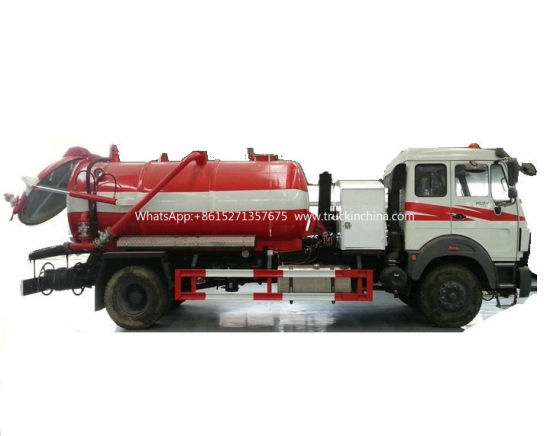

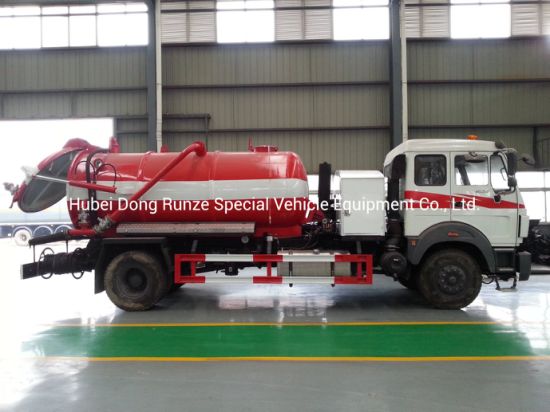

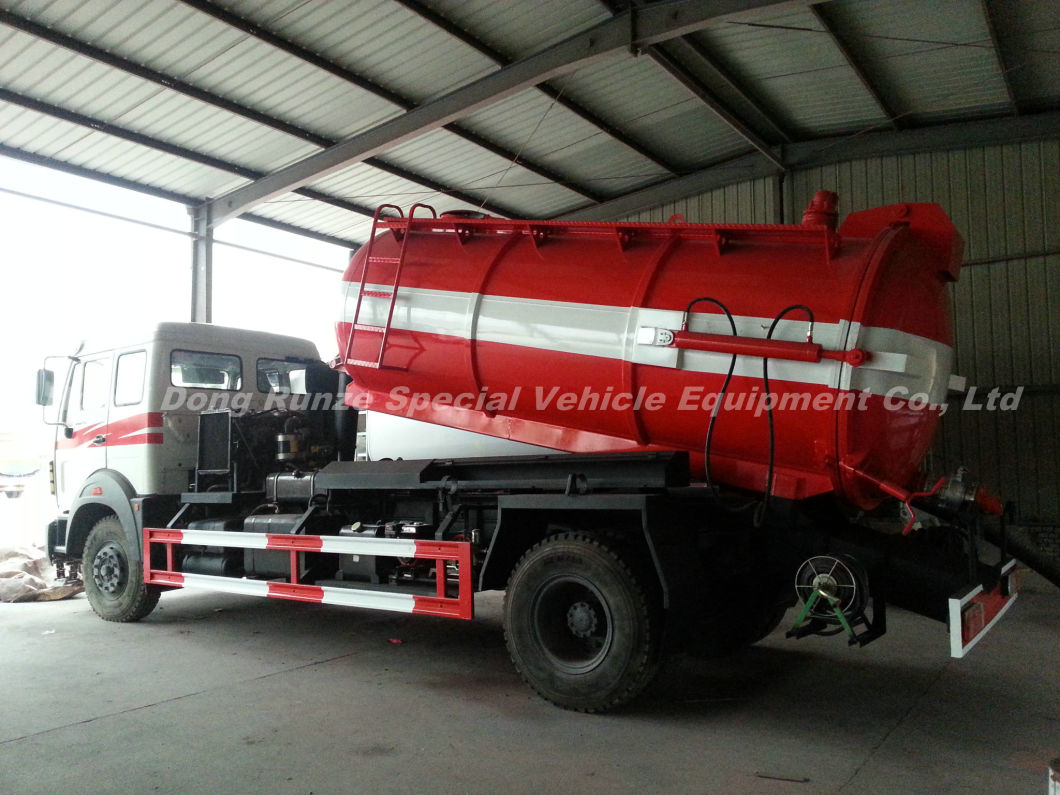

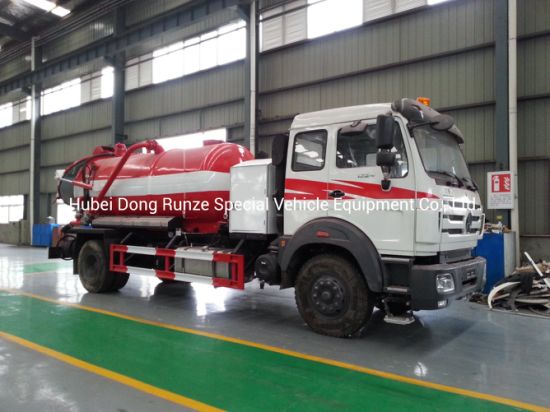

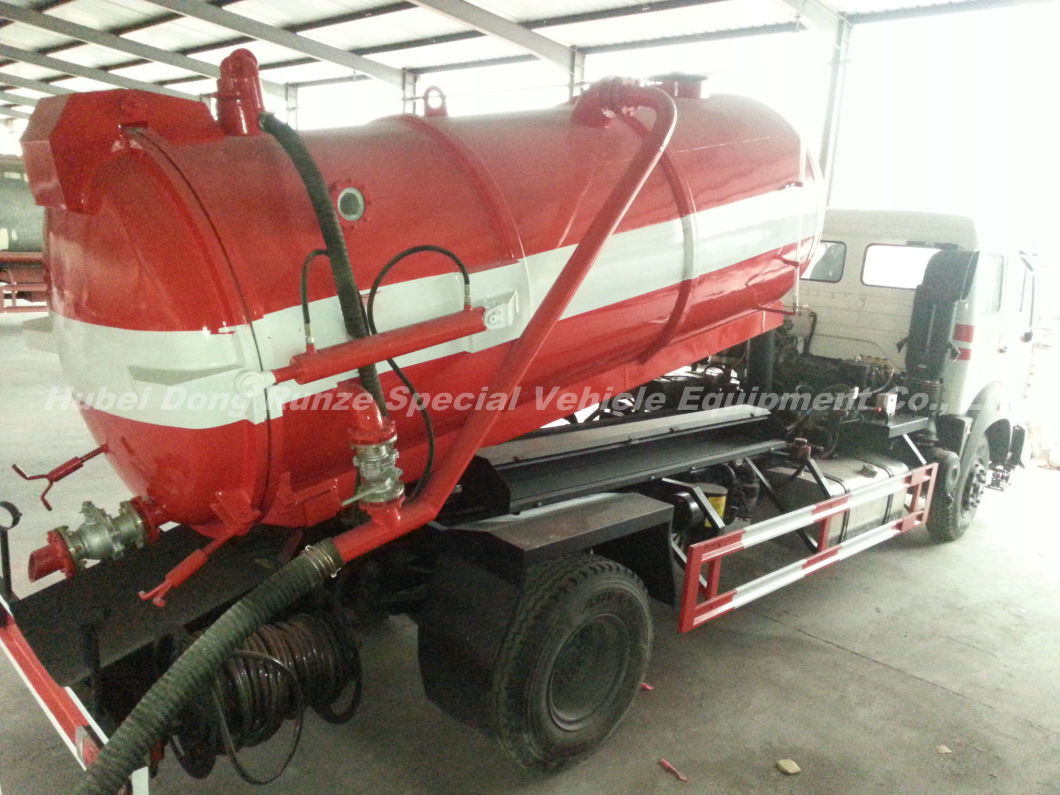

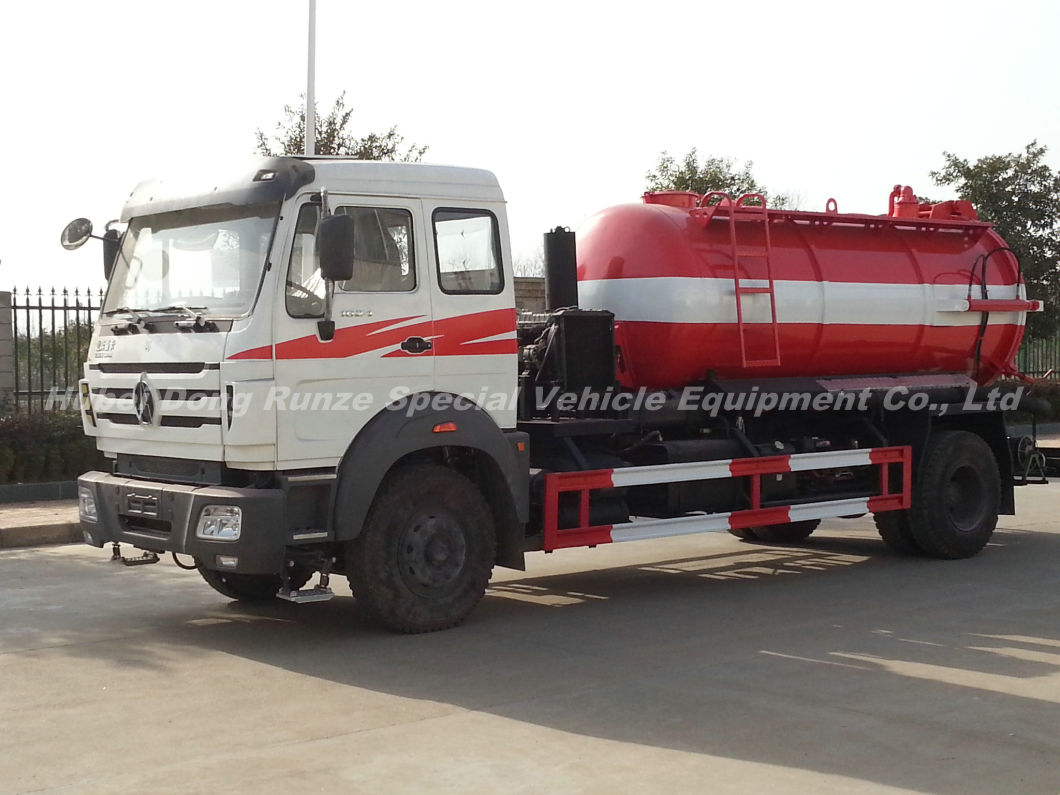

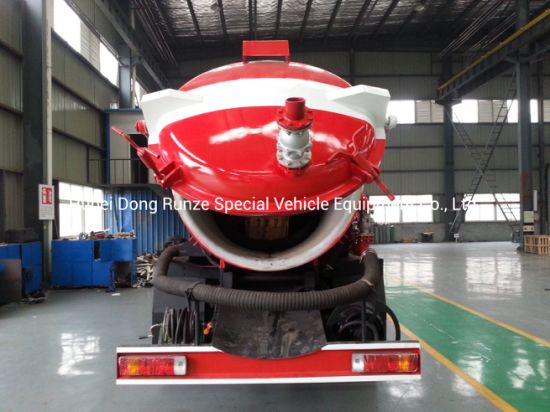

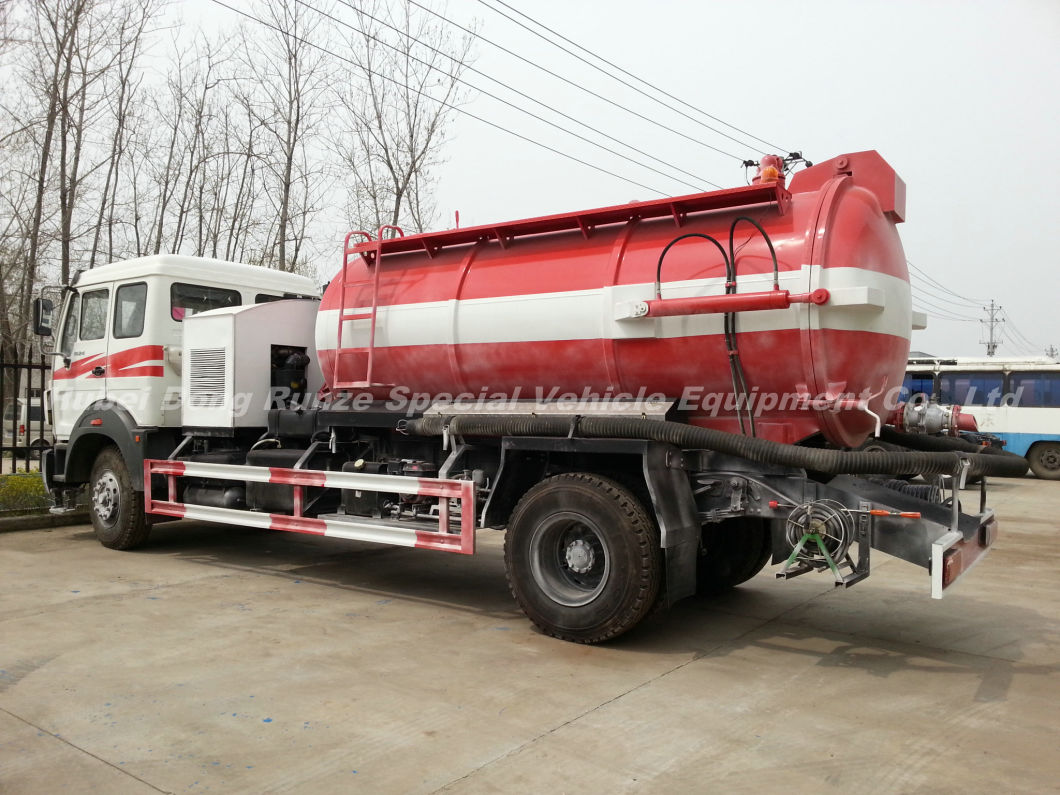

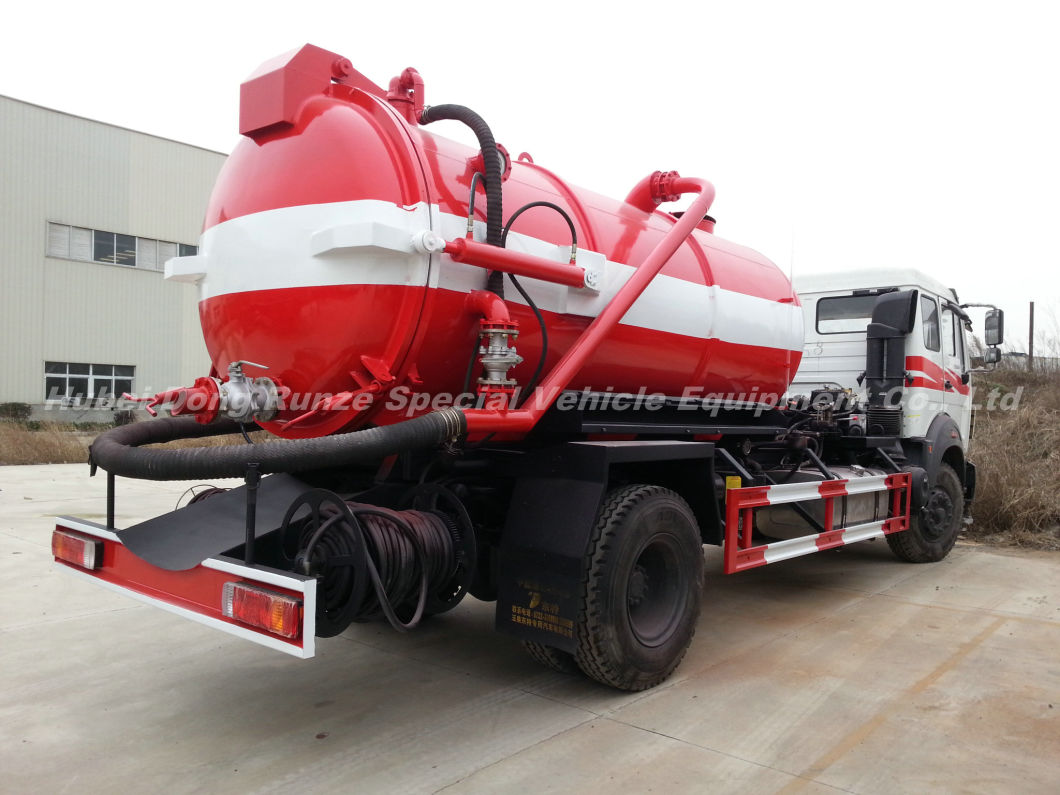

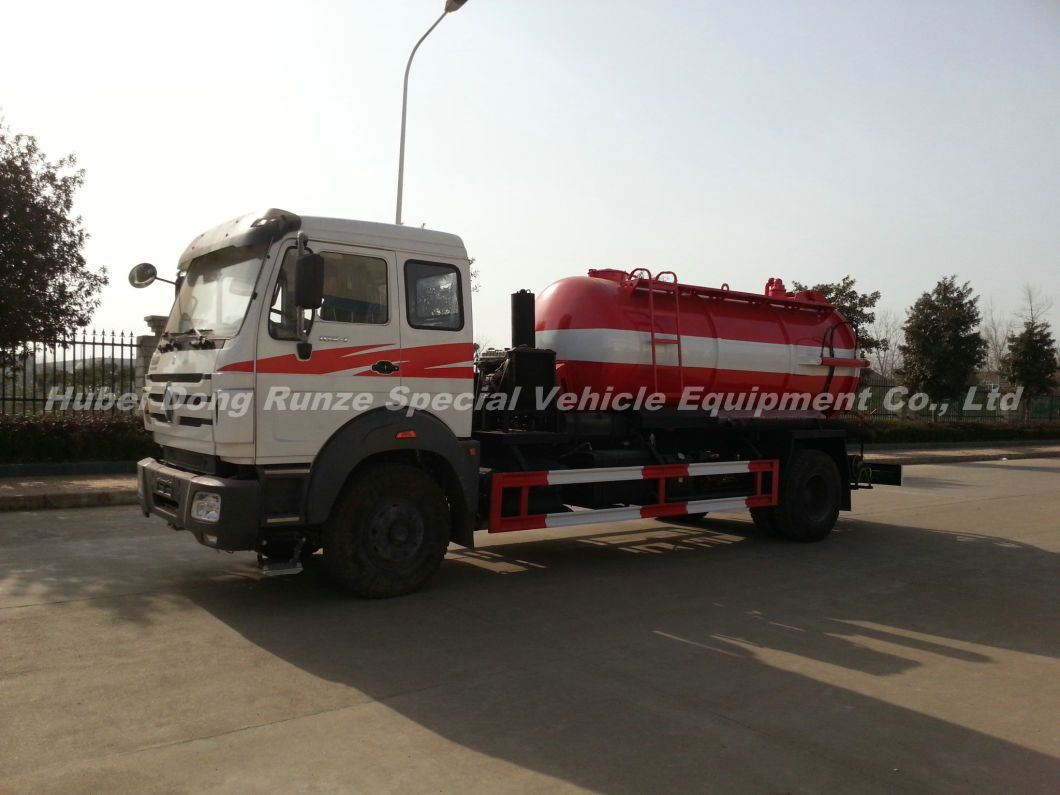

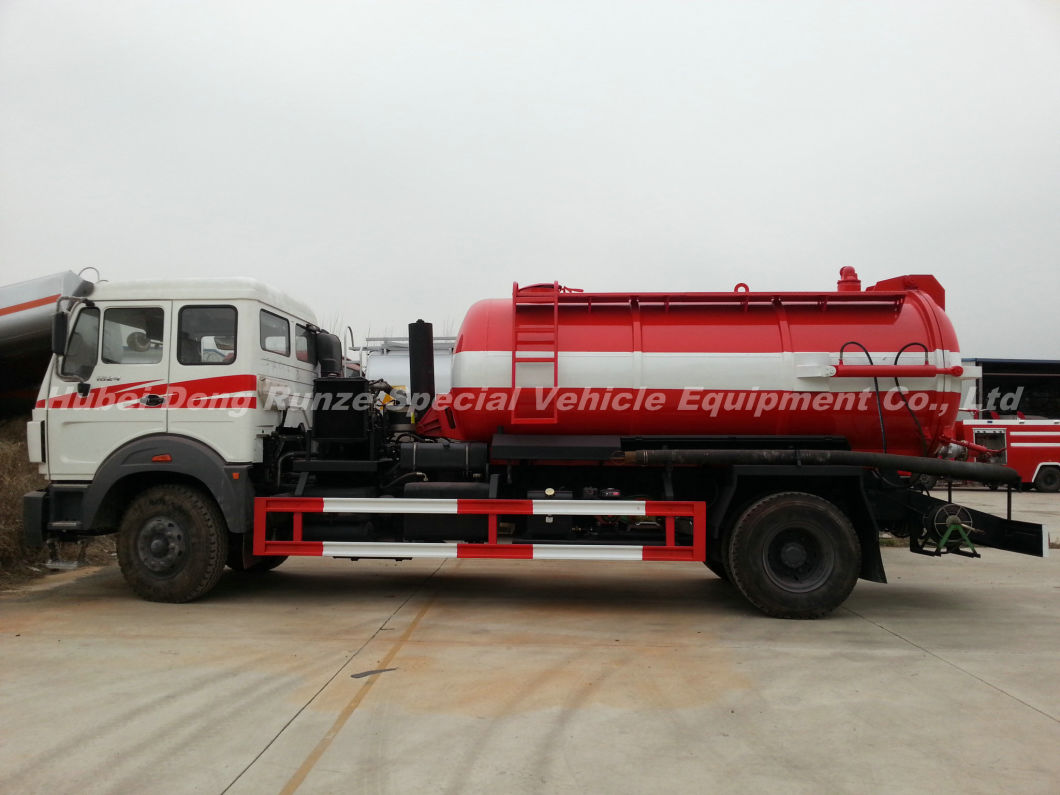

Beiben 1627 Vacuum Tanker Combined Sewer Jetting Tank a 6000ltrs of Solid Liquid Human Waste Tank Part B 4000litrs of Clean Water for Cleaning and Flushing
| Quantity: | |
|---|---|
-
1627,1629,1630,
-
BEIBEN TRUCK
-
8705
-
Shanghai, China
-
800
-
T/T
BEIBEN Jet and Vacuum Suction Tanker Truck For Cesspool Emptier
carbon - stainless steel
RHD OR LHD 4x4 - 4x2
NG80cab, 9-speed gearbox Fast, 270HP Engine WP10.270 Mercedes-Benz rear axles, 12.00R20 tire
Tank part A:Capacity: 6000ltrs of solid/liquid human waste. Tank part B: Capacity: 6000litrs of clean water for cleaning and flushing jetting
The pictures are for your reference only.
Sewage suction truck capacity from 3000 litres to 20,000 litres
Fecal suction truck capacity from 3000 litres to 10,000 litres
septic tank truck, sewage suction truck, toilet truck, sewer truck, vacuum truck
Detailed Product Description
| Product name | BEIBEN 1627 Jet and Vacuum Suction Tanker Truck vacuum cesspool emptying Truck | |||||
| Dimension (Length*width*height) (mm) | 9100×2500×3500 | |||||
| Chassis: | Beiben ND1163A48J right hand drive | |||||
| Track(front/rear) (mm) | 1995/1800 | |||||
| Approaching angle/ Departure angle(˚) | 26/22 | |||||
| Suspension(front/rear) (mm) | 1410/2200 | |||||
| Min distance to the ground(mm) | 399 | |||||
| Wheel distance(front/rear) (mm) | 4800 | |||||
| GVW (KG) | 16000 | |||||
| Rated load(kg) | 12000 | |||||
| Configuration | 4*2 | |||||
| Tank Volume (m³) | 10 | |||||
| Front slope fully laden (%) | 60 | |||||
| Turning Radius (M) | 20 | |||||
| Max speed (km/h) | 99 | |||||
| Ground Clearance (mm) | 339 | |||||
| Engine | 270HP Diesel, water cooler,direct injection, 6 cylinder in line, inter cooler turbocharger Emission standard GB3847-2005,GB17691-2005 Euro 3 | |||||
| Displacement(L) | 9.726 | |||||
| Max power(kw/rpm) | 199/2200 | |||||
| Max torque(N.m/rpm) | 1100/1200-1600 | |||||
| Min Fuel consumption (g/kw.h) | 197 | |||||
| Fuel tank (L) | 300 | |||||
| Transmission type | Clutch type GF 420, Hydraulic power, Single dry friction clutch 9JS118, Gear box with 9-speeds+one rear, manual Transmission | |||||
| Brake | Service Brake | Brake gap can be adjusted automatically, double circulation air brake system | ||||
| Assistant brake | Engine exhaust brake | |||||
| Park brake | Spring loaded press on rear wheels | |||||
| Vehicle Frame | Fish belly shape, variable width, variable section, side beam trapezium structure German Benz technology | |||||
| Front axle | German Benz technology. Double hoof chip air brake, | |||||
| Rear axle | German Benz technology. Double hoof chip air brake, hyperbola gear, driving axle, Edge reducer | |||||
| Front overhang rack | German Benz technology. Longitudinal offset plate spring, with hydraulic shock absorber cavitation effect, transverse stabilizer | |||||
| Rear overhang rack | German Benz technology .Longitudinal offset plate spring, with hydraulic shock absorber, transverse stabilizer | |||||
| Tire size | 12.00R20 | |||||
| PTO | N71/1B | |||||
Electrical | Battery | 2x12V/135Ah * | ||||
| Generator | 28V-35A | |||||
| Starter | 5.4KW/24V | |||||
| Cab | Tilting forward65˚,driver's seat adjustable German Benz technology (BC-001) Passenger 3 | |||||

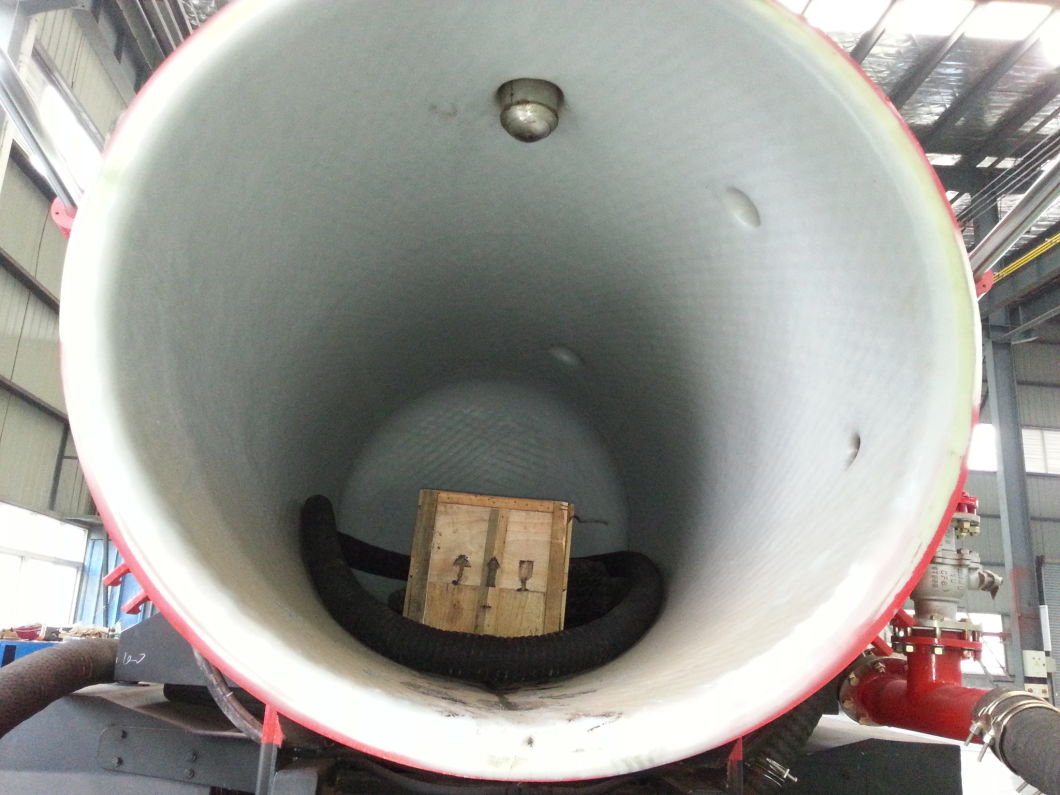

| Tank body Two compartment of 0.5bar torsion free Steel Tanks , A & B 1. Tank A:Capacity: 10000ltrs of solid/liquid human waste. 2. Tank B: Capacity: 2000litrs of clean water for drinking, cleaning and flushing. | ||||||
| Design volume | 6000ltrs of solid/liquid human waste. 6000litrs of clean water for drinking, cleaning and flushing. | |||||
| Main body material | Q235A/6MM | |||||
| Vacuum pumps model | 50QZXDH-68/ manufacture: Hangzhou weilong pump Co., LTD | |||||
| vacuuming both sewage and sludge | ||||||
| Maximum AOB | ≥45° | |||||
| Effective suction | ≥ 5 | |||||
| Vacuum system(MPa) | ≥11 | |||||

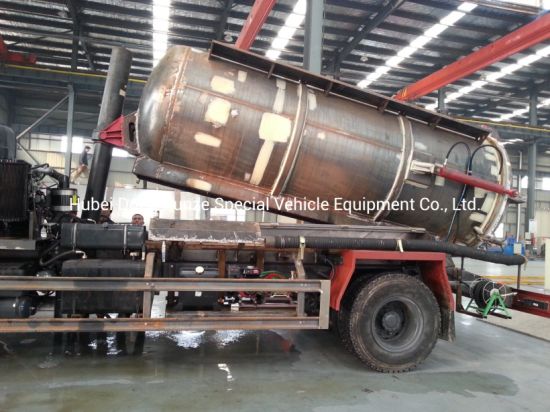

| Lifting time(s) | ≤45 | |||||
| Cover opening Angle(°) | ≥75° | |||||
| Cover open time (s) | ≤25 | |||||
| Suction pipe diameter (mm) | 100 | |||||

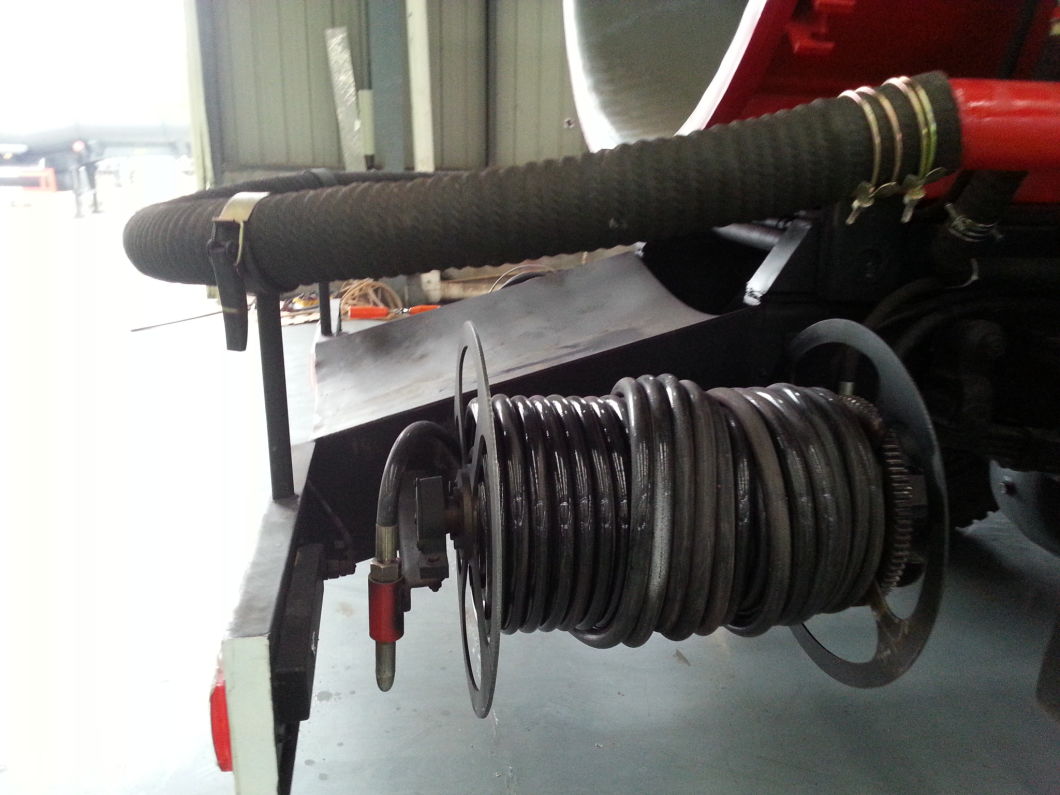

| length of the Hose (m) | 6 | |||||
| Tanks full sucked time (min) | ≤12 | |||||
| QHY005-2003standard Warranty 12 mouths, from the date of supply | ||||||
| the items listed below are also included: 1. The two tanks have an inspection glass 2. Tool box 3. Spare tyre & rim | ||||||
| delivery date : within 55 days after receive 50% downpayment | ||||||
The above information is for reference only. We can produce according to your needs so, If you have any questions you can contact me at any time.
Looking forward to receiving your inquiry!
