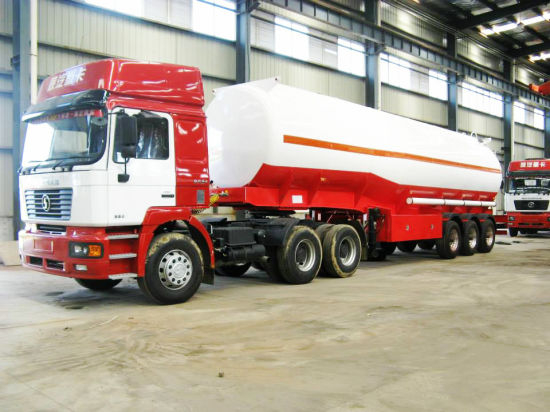

Tank Trailer Manufacturers
tanker semi trailer factory sale Call:86-15271357675
ARAMETER | Dimension(mm) | L*w*h: 12972x2500x3950(mm) |
King pin setting(mm) | 1715mm | |
Kin pin plate height (mm) | 1366mm | |
Axle space(mm) | 7060mm+1310mm+1310mm | |
Tare weight | 7500kgs | |
Loading capacity | 49000L (Valid 47500L) | |
OEM | Landing gear | Two speed manual operation type with sand shoe |
Kingpin | Jost 2" bolted type | |
Brake system | Wabco brake valve; | |
Abs | 4s/2M | |
Brake chamber | Type 30/30 spring brake system on all axles | |
Suspension | Air bag Suspension | |
Axle | Fuwa axle,13 ton capacity/set,3sets | |
Tire | 425/65R22.5-20pr , 6 pcs Double Coin Brand; or 12 pcs 13R22.5 | |
Rim | 13.0-22.5 6pcs, Aluminium Alloy | |
Tool box | 1 | |
Spare tire carrier | 2 | |
TANK SPECS | Compartment | Three,15000l/15000l/15000l |
Tank material | Aluminium Alloy, thickness 6mm,5mm | |
Bulkhead and Baffle | Thickness is 7mm | |
Tank Shell | Thickness is 6mm & 5mm | |
Shape of tank | Ellipse (double "d") | |
Test pressure designed | 36kpa | |
Manhole | Aluminium Alloy Manhole Cover, C801-560, | |
bottom valves | 3, Aluminium Alloy | |
OTHERS | Oil Gas recovery System | Equiipped |
Anti-overflow System | Equipped |
