20Ft Nitric Acid (Hno3)Tank Container Pure 1060 Aluminum Tank DAF Huu Nghi

Views: 2167     Author: Site Editor     Publish Time: 2022-09-29      Origin: Site

20Ft Nitric Acid (Hno3)Tank Container Pure 1060 Aluminum Tank DAF Huu Nghi

20Ft Nitric Acid (Hno3)Tank Container Pure 1060 Aluminum Tank  DAF Huu Nghi

20ft pure aluminum 1060 tank container no pressure (ISOTANK)

Tank volume/thickness: ~18,000 litres/ 12mm

Brand: Dong Runze

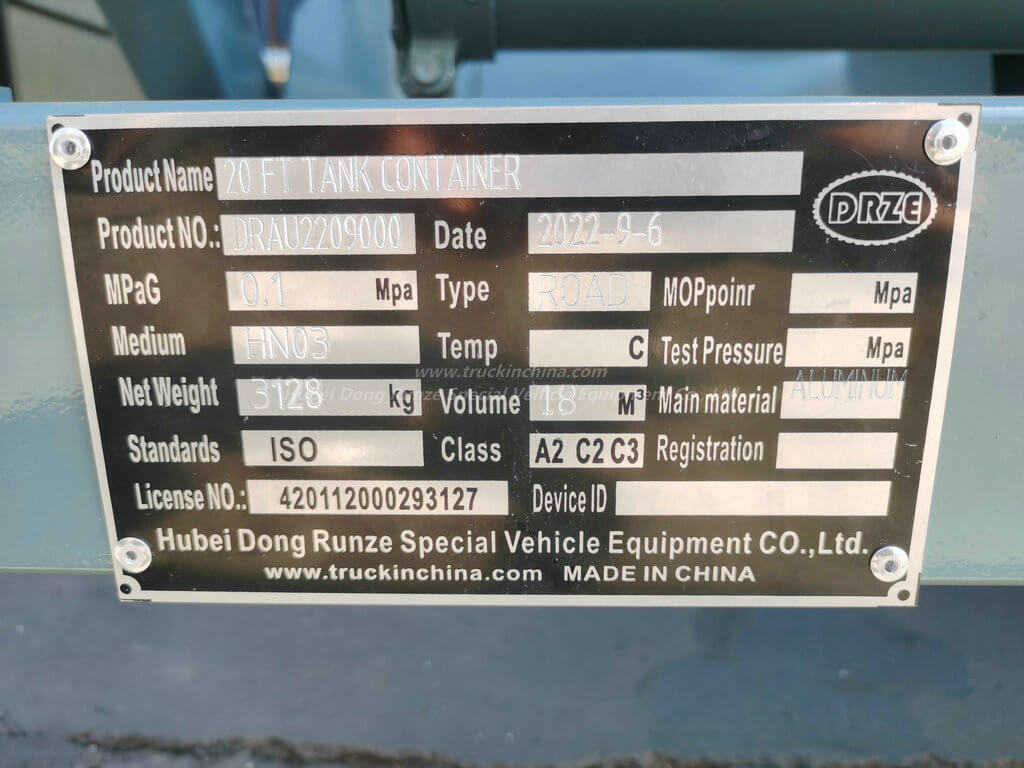

Model: DRAU2209000

20ft Nitric acid (HNO3)TANK CONTAINER  aluminum tank  DAF Huu Nghi

20FT TANK CONTAINER

ALUMINUM TANK FOR NITRIC ACID (HNO3 98%) ROAD TRANSPORT TANK THICKNESS 12MM CAPACITY18,000LITRES

TANK SIZE Φ2000×5500

TANK SHELL MATERIAL AAA ALUMINUM / 12.00 MM

HEAD PLATE MATERIAL AAA ALUMINUM / 14.00 MM

WAVE PLATE AAA ALUMINUM / 8.00 MM

CONTAINER FRAME 6058×2438×2591

LOCK BASE STEEL CASTING 45 #(180×165×120)

CONTAINER COLUMN SQUARE TUBE Q235 / 4.00MM(120×120×4)

CONTAINER CROSS FRAME SQUARE TUBE Q235 / 4.00MM(120×100×4)

DATE OF MANUFACTURER 2022-09-06

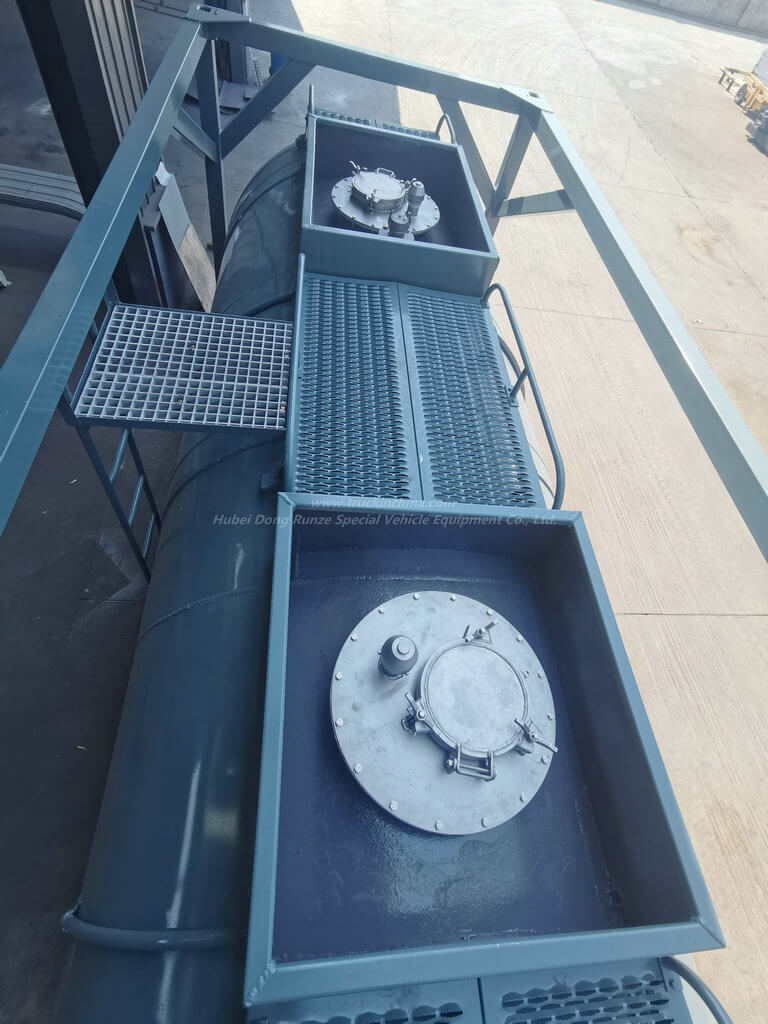

MANHOLE COVER 316L STAINLESS STEEL,DN500, 0.4MPA, -40C~150C,  MADE 2022-06

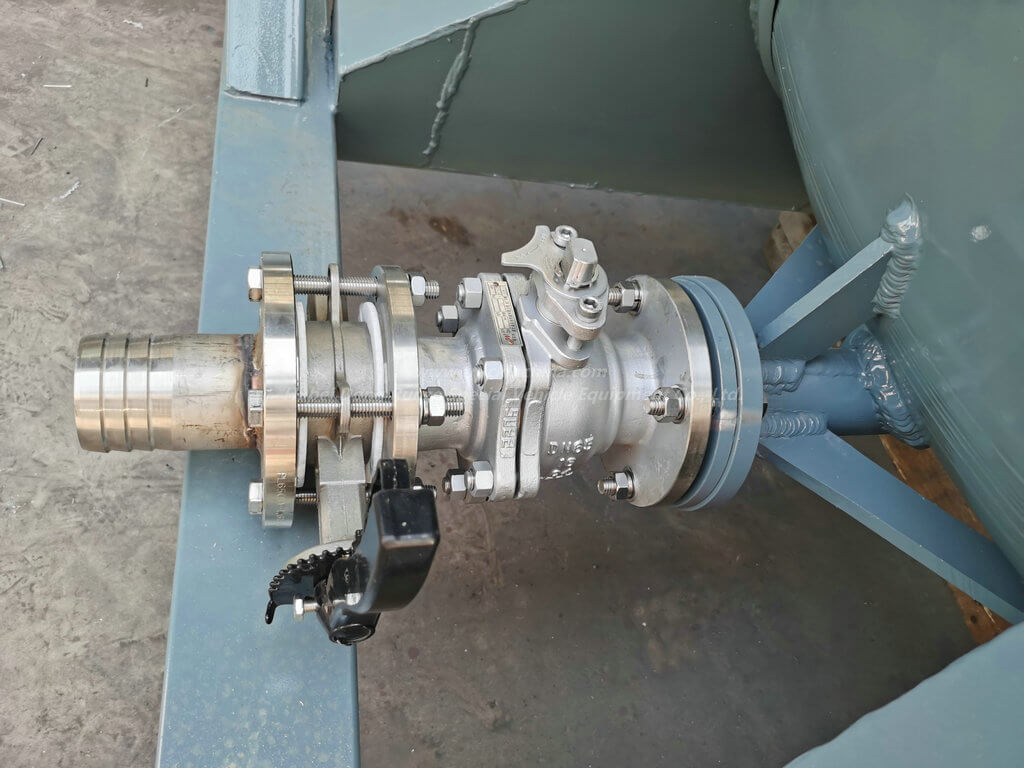

DISCHARGE VALVE Q41F-16C4/DN65,1.6MPA,<80C. MADE 2022-04

BUTTERFLY VALVE D71F-16RL,1.6MPA, MADE 2022-09

BREATHER VALVE 316L STAINLESS STEEL HXF-50,-20C~150C, MADE 2022-04

ISO 20ft Nitric Acid HNO3 Storage Transport Tank Container (70)ISO 20ft Nitric Acid HNO3 Storage Transport Tank Container (43)ISO 20ft Nitric Acid HNO3 Storage Transport Tank Container (56)ISO 20ft Nitric Acid HNO3 Storage Transport Tank Container (31)ISO 20ft Nitric Acid HNO3 Storage Transport Tank Container (69)ISO 20ft Nitric Acid HNO3 Storage Transport Tank Container (37)ISO 20ft Nitric Acid HNO3 Storage Transport Tank Container (62)ISO 20ft Nitric Acid HNO3 Storage Transport Tank Container (90)

Overall dimension (mm)

6058 x 2438 x 2591

Tank materials

Pure aluminum 1060

Water testing pressure (MPa)

0.4

Tank capacity

18m3

Thickness of shell materials/ seal head materials (mm)

12/ 12

Corner post materials

16Mn

Manhole cover

One set or as confirmed

Breather valve (on the top of the tank), Bottom-stop valve, Discharge valve

Breather valve DN 65;

Bottom-stop valve and Discharge valve: DN65

Pipeline

Connecting to the tank body
