2 Sets 13M Low Bed Trailer 3m Wide 60 Tons With 14T BPW Axles and 4pcs Container Locks

Views: 201964     Author: Site Editor     Publish Time: 2019-08-26      Origin: Site

2 Sets 13M Low Bed Trailer 3m Wide 60 Tons With 14T BPW Axles and 4pcs Container Locks

2 Sets 13M Low Bed Trailer  3m Wide 60 Tons With 14T BPW Axles and 4pcs Container Locks

Heavy Equipment Transport Lowbed Semi Trailers

with 4pcs container locks

T9400TDP 3 Axles Low Bed Trailer 60 Tons Customizing with 20ft Container Locks

3 axles LOWBED TRAILERS 60 tons

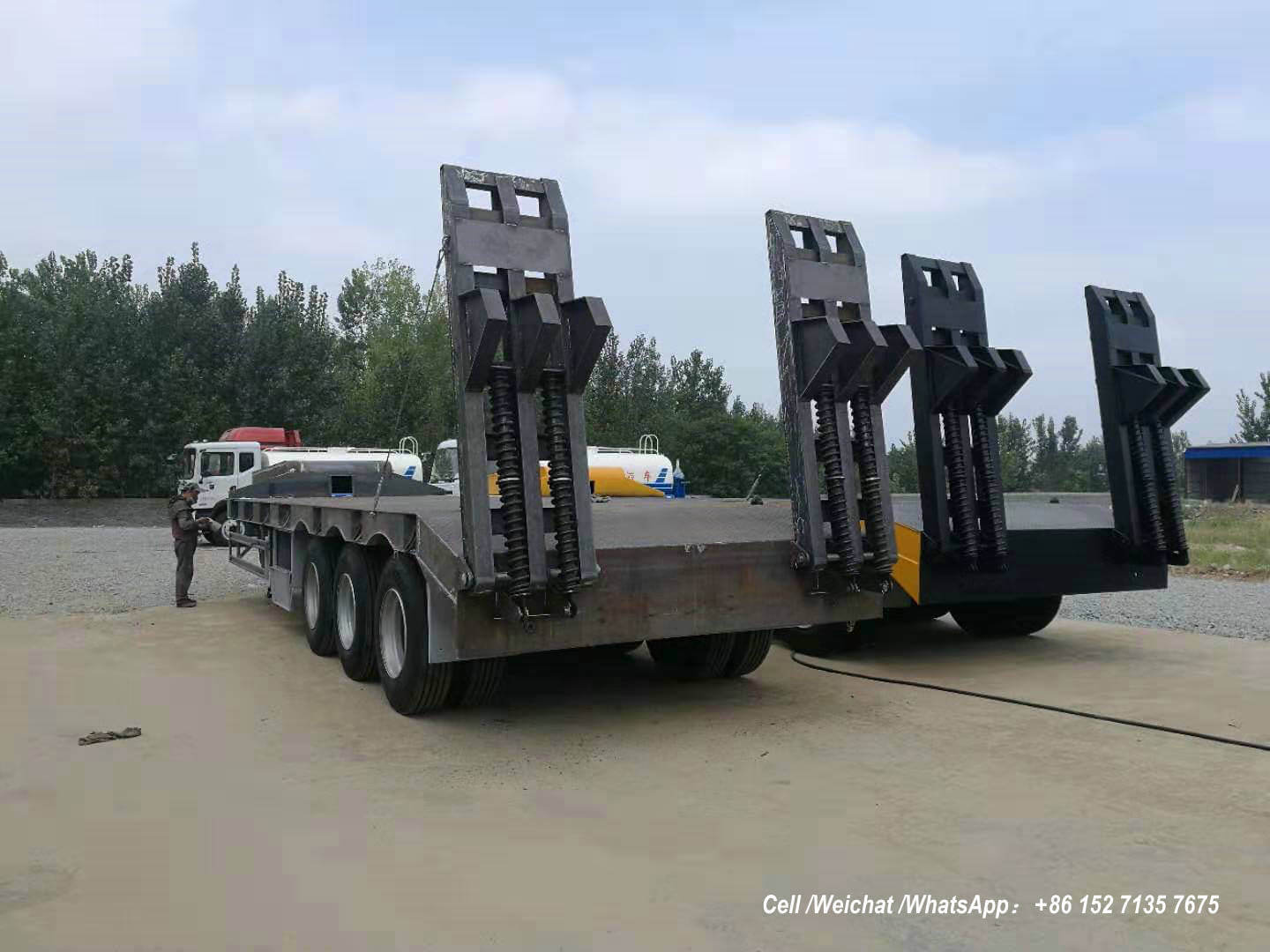

Low Bed Trailer 60 Tons BPW -00-Container truck

BPW Axles 14T 2180mm, with 4pcs contAIner locks,TIRES 12.R22.5 equip 13 pcs

LOW BED OVERALL WIDE 3M

Paint coulor Yellow,goosneck open 30*30cm for rope

    Transport:FROM SHANGHAI PORT,CHINA TO MOMBASA ports , BY SEA

Price TERM: CIF MOMOMBASA

COUNTRY OF DESTINATION: UGANDA OR JUBA SOUTH SUDAN

Term of Payment: By TT

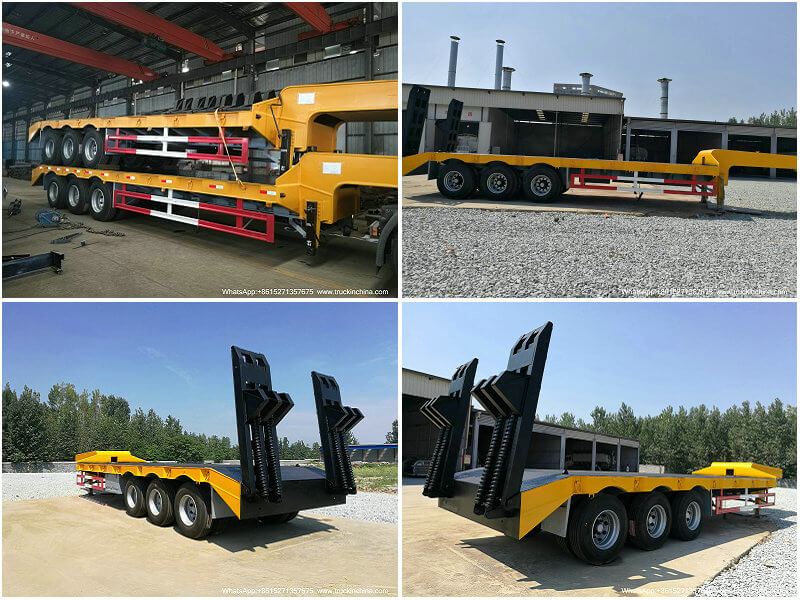

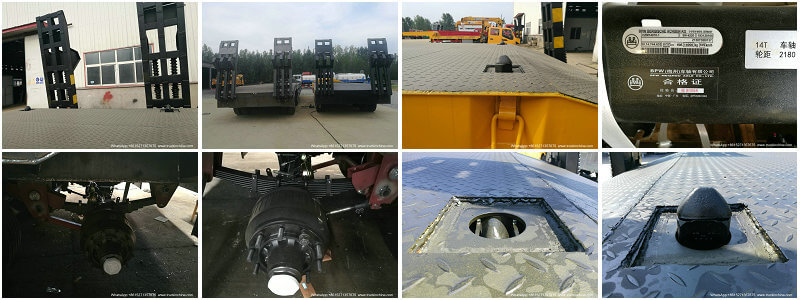

lowbed trailer-6 3 Axle Low Bed Semi Trailerlowbed trailer- 3 Axle Low Bed Semi Trailer

Low Bed Trailer 60 Tons BPW -02-Container truck

Marks

Description of goods

Quantity

N.W

g.w

MEASUREMENT

N/M

  T9400TDP

3 axles LOWBED TRAILERS 60 tons

BPW Axles 14T 2180mm, with 4pcs contAIner locks,TIRES 12.R22.5 equip 13 pcs

LOW BED OVERALL WIDE 3M

Paint coulor Yellow vin:LA939VRT1KAHLM801

vin:LA939VRT3KAHLM802

HS:8716399000

2UNITS



24500

KG



24500

KG

12.8*3*3.1m



35.95CBM


 60Ton 13m Low Bed Trailer Customizing with Hydraulic Ramp

Tare Weight

About 12000KG

Dimension

12800/13000mm*3000mm*1650 /3100 mm

Loading Capacity (T)

60T

Axle

14T, BPW Axles Brand

Rim

8.00-20 (Special for export market)

Tire

12.R22.5   13pieces(including one spare tire)

Suspension

Mechanical suspension (America Type)(Special for export market)

Spring leaf

10/10/10 pieces per axles (Intensify)

King pin

China brand 3.5inch bolts type

Support leg

China brand

Main beam

The height of the beam is500mm,upper plate is 20 mm, down plate is20 mm, middle plate is 12mm,Made of Q345.Side beam is 25# Channel Steel, made of Q235..

Bending Pieces

With

Side beam

25mm channel steel ( Material is Q235steel ).

Bottom Platform

5mm thickness diamond steel plate

Ladder

Manual type

Gooseneck

For choose

Brake chamber

WABCO RE 6 relay valve , Four double and two single chamber

ABS

Optional

Twist Locks

By your choose

Valve

WABCO valve

Light

LED light (Special for export market)

Voltage

24V

Receptacle

7 ways (7 wire harness) (Special for export market)

Tool box

One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final yellow paint,

Shipping Terms:

By bulk cargo carrier,
