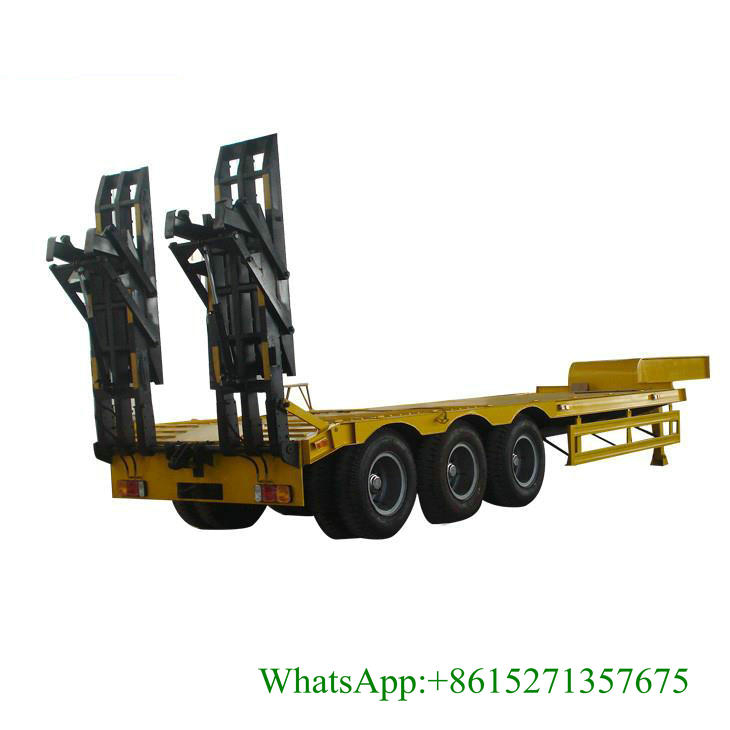

60Ton 13m Low Bed Trailer Customizing with Hydraulic Ramp

60Ton 13m Low Bed Trailer Customizing with Hydraulic Ramp
13M Low Bed Trailer BPW Axles 14T 2180mm, TIRES 11R22.5 equip 13 pcs
LOW BED OVERALL WIDE 3M
Ask Us for Better Price..

Price: $ 25800
Discount Price: $ 23800
FOB:
Quantity:

  • T9400TDP
  • DRZE
  • 871639900

 60Ton 13m Low Bed Trailer Customizing with Hydraulic Ramp

13M Low Bed Trailer BPW Axles 14T 2180mm,  TIRES 11R22.5 equip 13 pcs

LOW BED OVERALL WIDE 3M

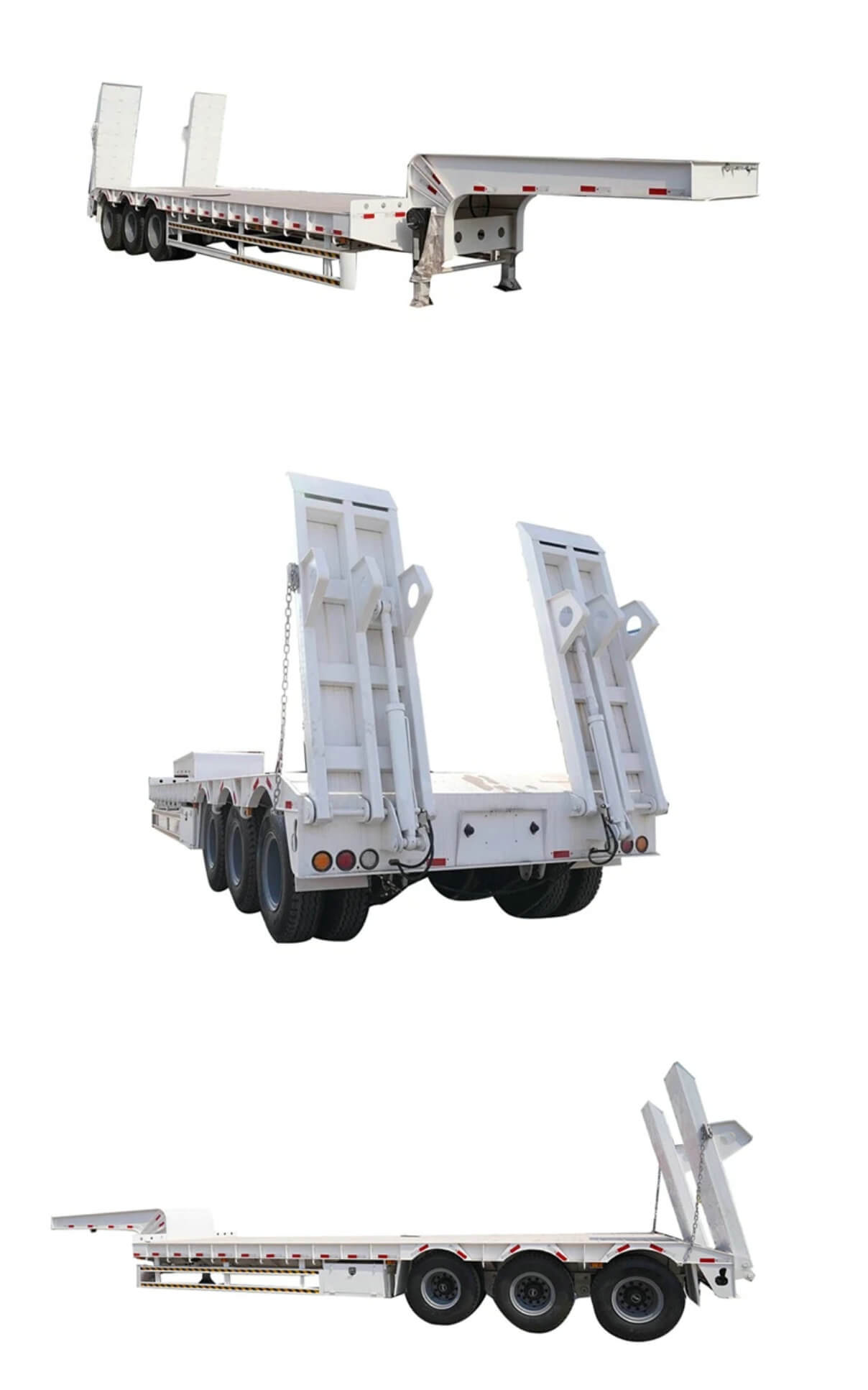

Low Bed Semi Trailer Heavy Duty Trailer_2

Description
Low Bed Semi Trailer Also Named As Low Boy, Low Loader, Drop Deck Etc, Used For Long Distance Or Short Distance Equipment Transport Or Long Item, Heavy Item Transport. Enhanced I Beam Makes This Trailer Very Strong And Durable, Suitable For Heavy Duty Transport. Low Bed Height Is Quite Low Which Means Low Gravity, And Makes The Whole Trailer Quite Stable.
The Low Bed Semi Trailer Could Be Customized Design, Like 2 Alxe, 3 Alxe Or 4 Axle, Or Tarden Axle, To Suitable For Different Payload. The Working Platform Width And Height Is Also Could Be Designed As What You Want. We Use Good Quality Carbon Steel, And Famous Reliable Key Parts, Like Bpw Axle, Fuwa Axle, Jost Landing Gear, To Ensure This Is Really High Quality Item.

60 Ton Lowboy trailer Specification

SPECIFICATION

Payload

60,000kg

Tare Weight

12,800kg

Overall  Length

13,100mm

Overall  Width

2,750mm

Overall Height

3,330mm

Main  Frame

Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes.
500mm Height beam, Top Flange 25mm, width 180mm;
Middle Flange 14mm; Bottom Flange 25mm, width 180mm;
Side beam: 30# channel steel

Floor

Steel Sheet 4mm thickness

Axle

L1,FUWA,-16T axle for rear 3 axle , or BPW 14 Ton

Suspension

A couple of heavy duty under-slung mechanical suspension for rear 3 axle

Leaf Spring

Six sets of reliable local brand, 8pcs -10pcs leaf spring, 16x90mm

King Pin

One unit of 3.5" welded kingpin   or Bolt-in

Landing Gear

Two-speed, manual operation, heavy duty FUWA 19" linked landing gear

Wheel Rim

13   units 8.5-20, 8.25-22.5, 9.0-22.5, including 1 unit spare rim

Tire

13 units of 275/70R22.5

11.00-20, 8.25R15, 11.00R20,

12.00R20, 11R22.5, 12R22.5, 315/80R22.5

tire, including 1 unit spare tire;

Hydraulic System of Rear Ladder

1set of hydraulic ladder

Pneumatic Braking System

Two units of WABCO RE 4 relay valve; four units of T30/30 chamber;
four units of reliable local brand 45L air tank;
Two units of reliable local brand standard coppery air-connector.

Electrical  System

One unit of JAEGER POWAY, 24V 7-pin ISO 1185 socket;
Two sets of reliable, local brand standard rear light,
(Turn light, rear reflector, side light, side reflector etc.)
One set of DAFA(brand) 6-core standard Cable.

Painting

Sand blasting before painting; One coat of primer, anti-corrosion;
Two coats of finish painting; Color advised by client.

Accessory

One box with a set of standard trailer tool

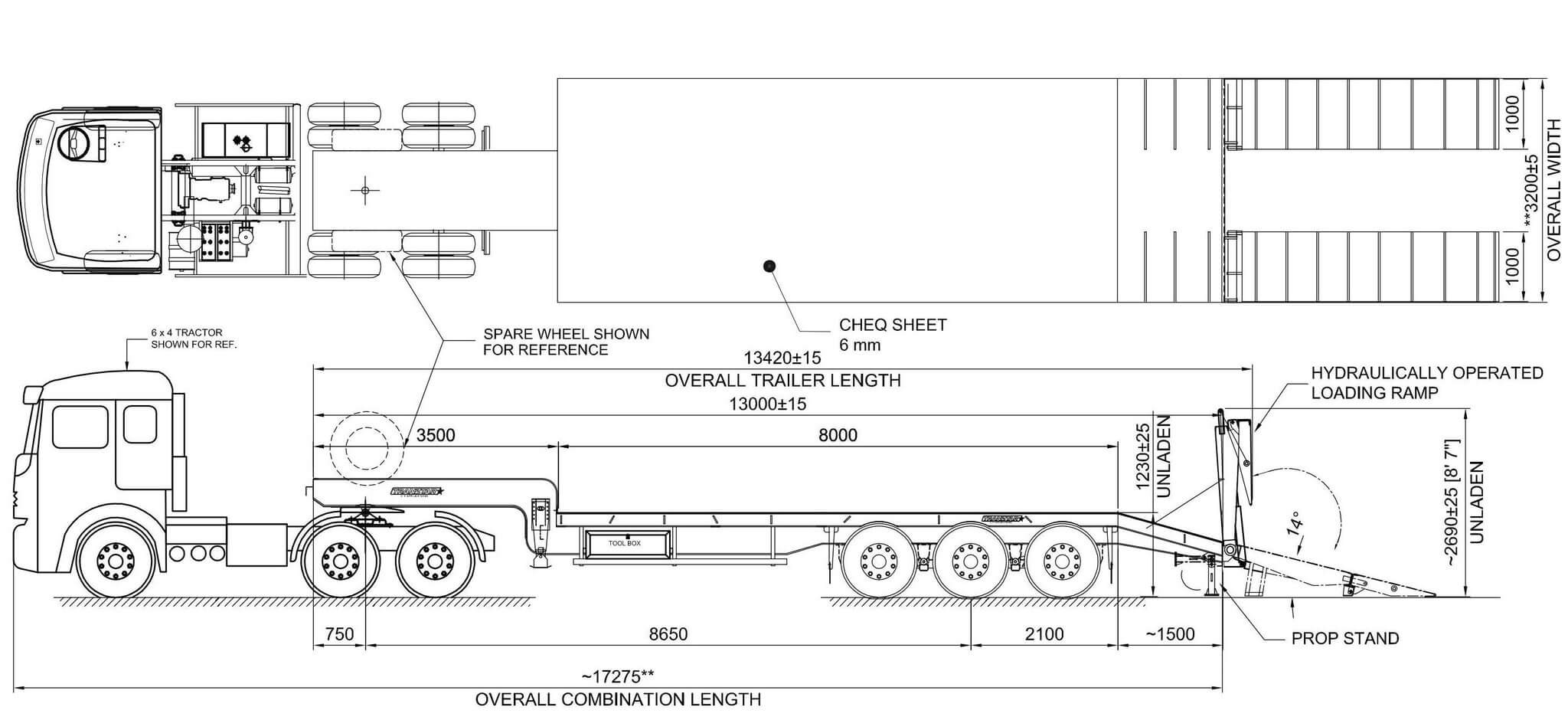

 Drawing For  Ref

lowbed trailer- 3 Axle Low Bed Semi Trailer

Customizing Other Trailer Trucks

80T Low Bed Semi Trailer

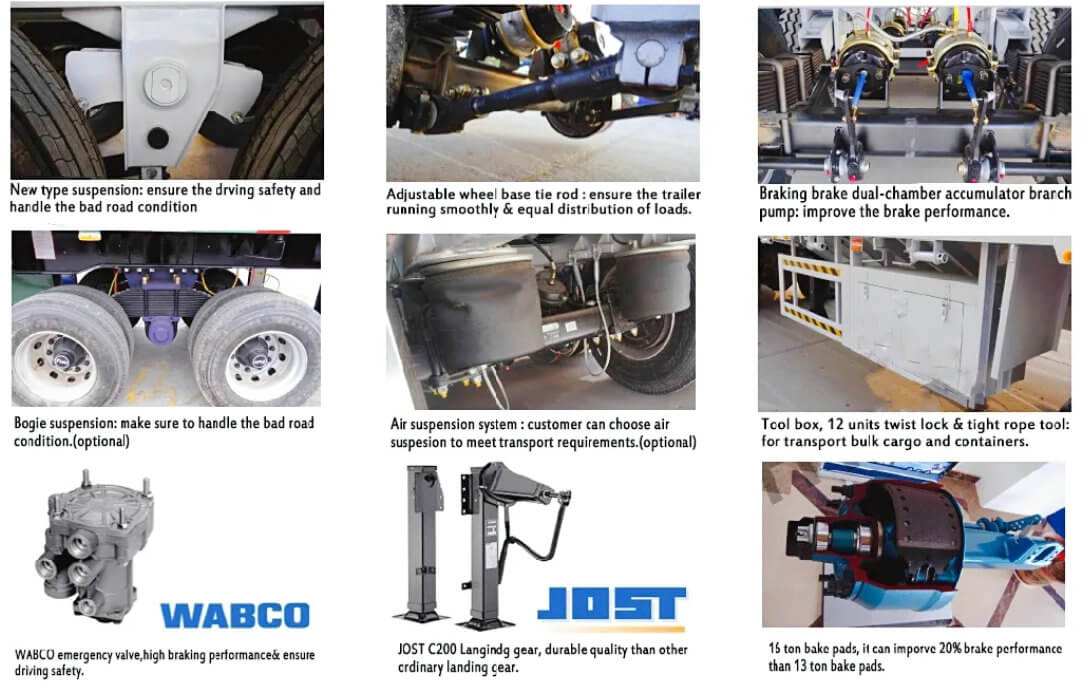

Low Bed Semi Trailer Heavy Duty Trailer_ 3

lowbed trailer-6 3 Axle Low Bed Semi Trailerlowbed trailer- 3 Axle Low Bed Semi Trailer

SUCCESS CASES : Export to Africa

FROM SHANGHAI PORT,CHINA TO MOMBASA ports , BY SEA

Price TERM: CIF MOMOMBASA

Ship Vessel details  : GRAND PAVO (Vehicles Carrier) Voyage V.083    Time of Loading  2019-09-25 lowbed trailer-81t 3 Axle Low Bed Semi Trailer


Heavy Equipment Transport Trailer

3 Axle Drop Deck Low Bed Trailer

Low bed Tridem Axle Semi-Trailer with Hydraulic Loading ramp
Trailer Weight ~11000 kg
Dimensions
Overall Length - 13000 ± 15 mm (Refer note)
Platform Length - 8000 ± 10 mm
Overall Width - 3200 ± 5 mm
Unladen Height - 1200 ± 25 mm
Chassis 02 Nos. Main rails fabricated I-sections with pressed cross members and 6 mm MS chequered platform.
Loading ramps
2 nos Hydraulically operated loading ramps at rear.
24V powerpack is used for operating hydraulic cylinder (Battery of prime mover to be used for operation)
Axles  3 Nos. 16T capacity heavy duty axles.
Suspension  Heavy duty tridem multi-leaf spring suspension.
King pin 2"  or  3.5''de-mountable kingpin
Tyres 10.00 x 20 – 16 PR Tyre – 12 nos
Rims  7.5 x 20 – 12 nos
Landing Legs Two speed telescopic type landing leg
Brakes
2-line pneumatic brake system with air tank, relay emergency valve and brake chambers.
Electrical 24 V DC electrical include Tail lamp, Brake lamp and direction indicator fitted on rear end of trailer. 7 pole connector wiring.
Shot Blasting & Painting
Trailer shall be shot blasted and coated with epoxy primer and two coats of finish enamel paint. Color can be as per customer choice.
Accessories
Spare wheel (Optional)
Tool box – 1 No
Swing type 'prop stands' at rear
Warranty
Warranty – 12 Months from the date of invoice under normal operating conditions excluding Leaf Springs & Tyres and other proprietary items. Warranty of bought out parts will be as per supplier's terms & conditions.

Application of 3 Axle Heavy Duty Low Bed Trailer

Due to the limitation of the structure and driving speed, construction machineries have to be transported by other facilities to the workplace. The construction development increases the volume and weight of equipments. Thus, this heavy duty low bed trailer can meet the market demand.


Wind Blade Transport Extendable Trailer

Total Standard Fuel Tank Trailer

Heavy Duty Low Loader Trailer

Heavy Equipment Transport Trailer

4 Axle 2 Line Low Bed Trailer

3 Axle Heavy Duty Low Bed Trailer

Advantages of 3 Axle Heavy Duty Low Bed Trailer


• Heavy duty I beam

The heavy duty I beam is consist of the top flange, middle plate and bottom flange. The strength it bears is scientifically calculated by engineer.


• Well-made Superstructure

The superstructure of this low bed trailer is well designed by our experienced engineer.


• Customized Design

Since different construction equipments have different weight and size, we could make the unique low bed trailer for your equipment, especially some abnormal size one.

low bed semi trailer also named as low boy, low loader, drop deck etc, used for long distance or short distance equipment transport or long item, heavy item transport. Enhanced I beam makes this trailer very strong and durable, suitable for heavy duty transport. Low bed height is quite low which means low gravity, and makes the whole trailer quite stable.
The low bed semi trailer could be customized design, like 2 alxe, 3 alxe or 4 axle, or tarden axle, to suitable for different payload. The working platform width and height is also could be designed as what you want. We use good quality carbon steel, and famous reliable key parts, like BPW axle, Fuwa axle, JOST landing gear, to ensure this is really high quality item.
