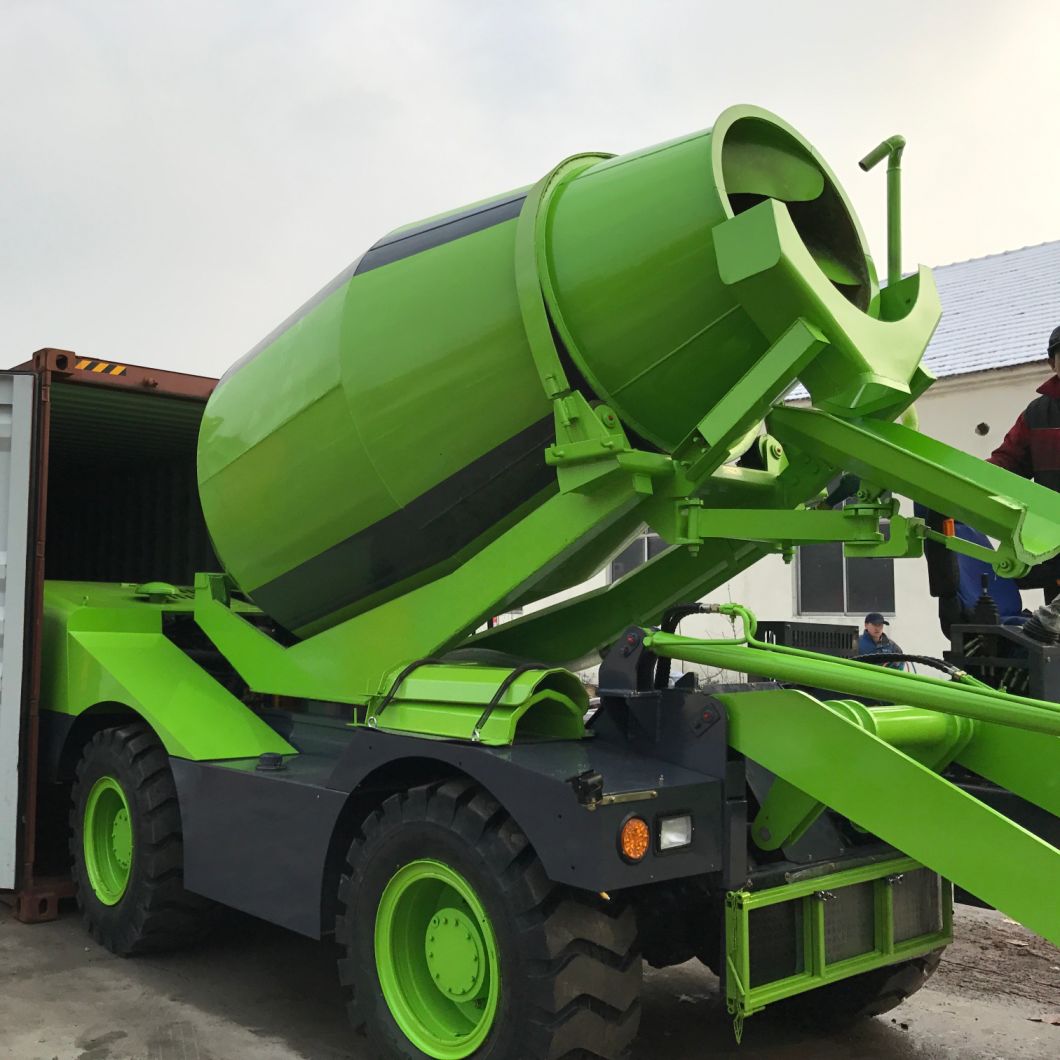

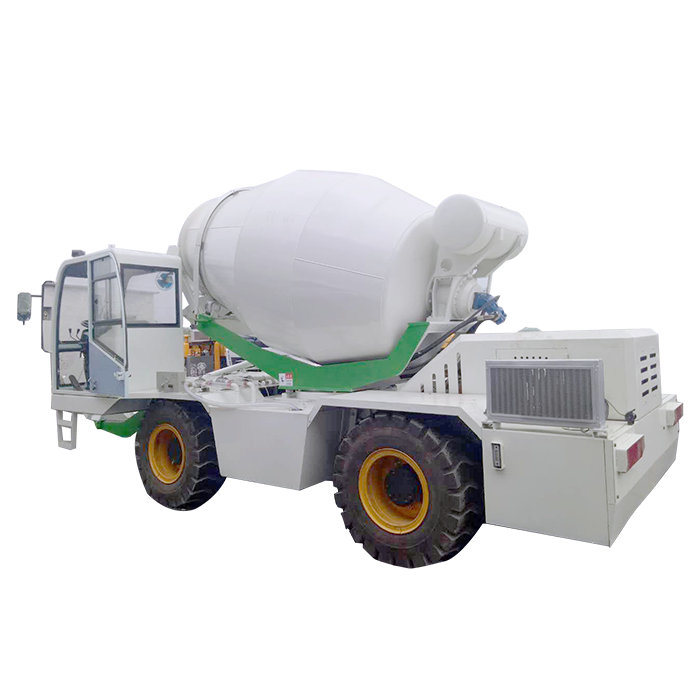

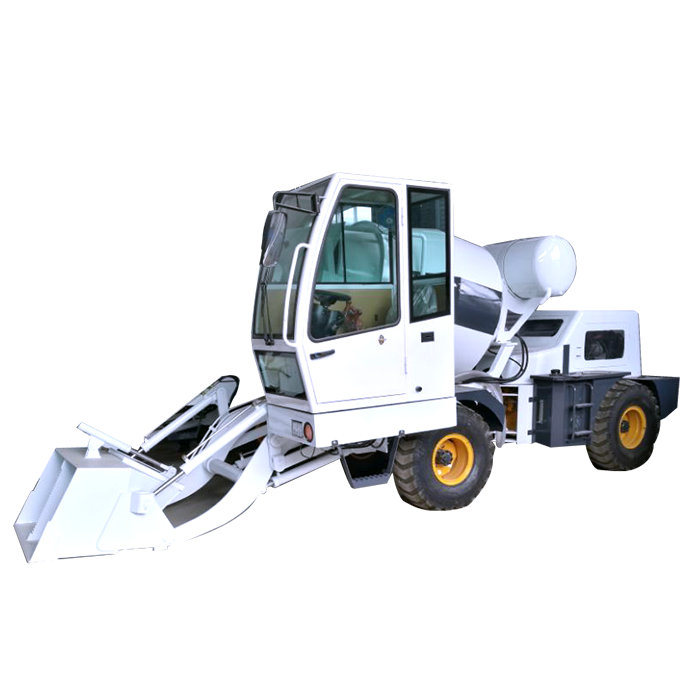

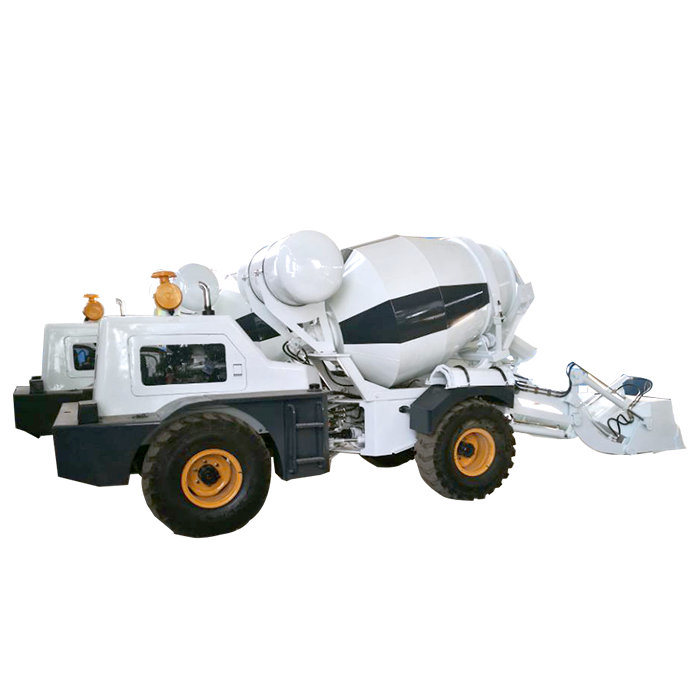

Concrete Mixer For Tunnels (Cement Agitator Tank) 3-18CBM
The pictures are for your reference only.
Type | Parameter |

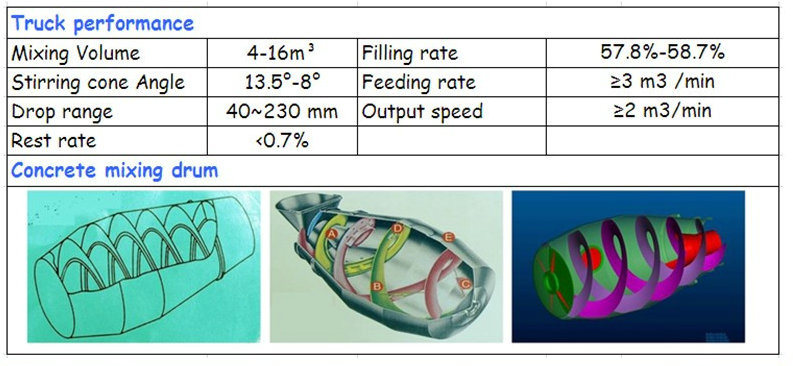

Mixing system | The capacity of the drum is 6 cubic meters, and the actual mixing amount is 4. The discharge port is 1.8 meters high. |
Throughput | 4m³,16m³/hr. |
Diesel engine | Yulai engine, water cooling, 4 cylinders. |
Transmission mode | Full hydraulic drive. 4 wheel drive, front wheel steering. Broken air brake bridge. |
Walking speed | Low speed 0 - 9 km/h, high speed 0 - 20km/h. |
Cab | Left driving, anti turn, anti drop cab. Front loading shovel. |
Hydraulic system | The hydraulic system of Rexroth and Sao, closed loop, variable walking pump 38Mpa, displacement, 85ml/r, 38Mpa displacement of walking motor 80ml/r, mixing pump 35Mpa, displacement 75ml/r, 35Mpa displacement 63ml/r of agitator motor, mixing pump for hydraulic transmission and roller rotation. |
Joystick | Hydraulic four - bit electronic control operating lever |

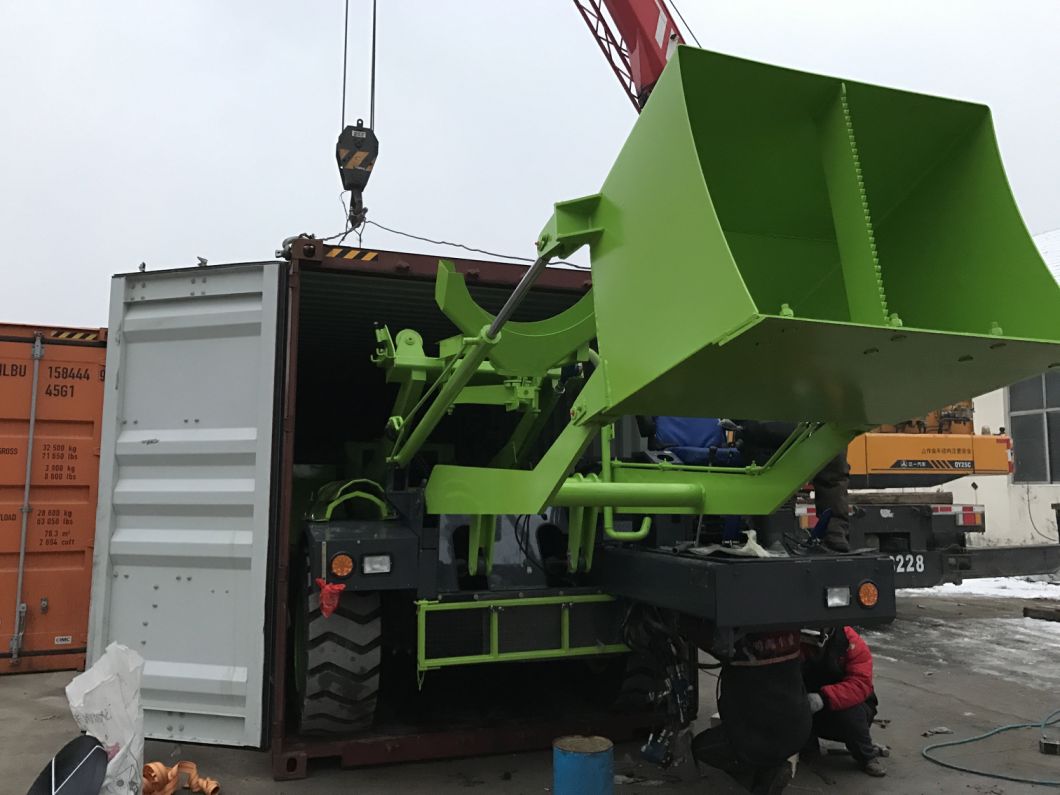

A scraper bucket | 700 liters, hydraulic gate |
chute | Hydraulic adjustment angle to increase discharge length, chute can swing within 120 degrees. |
Water supply system | 2 x 500 liters. Hydraulic drive self suction pump water. High pressure water pump flushing vehicle |
brake | Pneumatic brake, air break brake. Double independent circuit. |
tyre | Special tire 16/70-20 for engineering machinery. |
electric power system | 24Volt |
tank | Diesel tank: 130 litres. Hydraulic tank: 180 liters. |
weight | 8800kg |
Shape size | Length: 7.6 meters wide: 2.6 meters high: 3.2 meters. |
metering | Electronic weighing, water meter. Formula controlled |
Wheelbase | 2.6m |

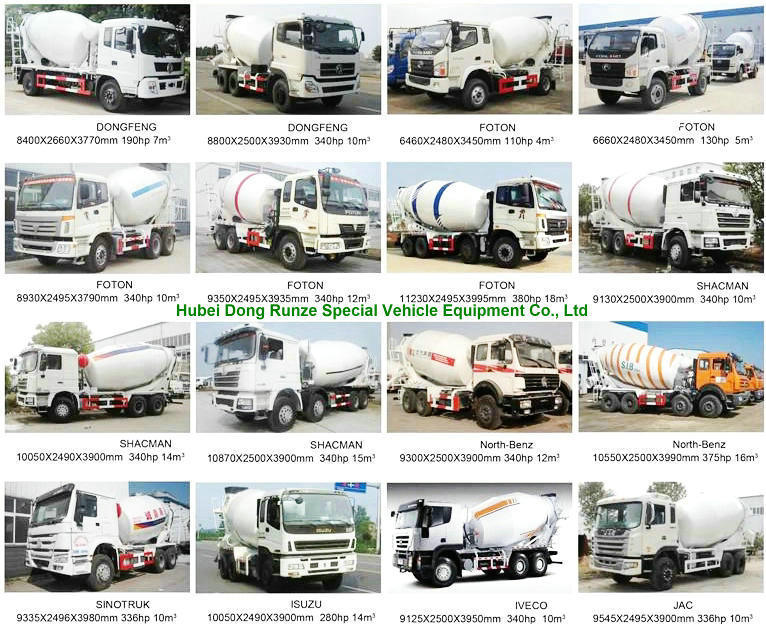

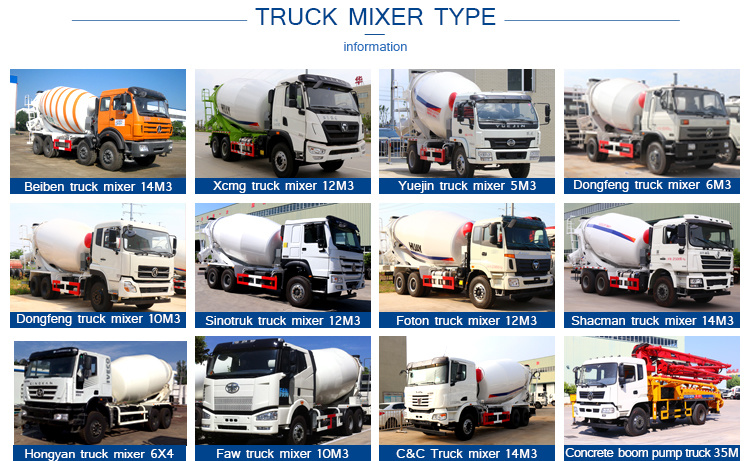

Vehicle model | Chassis brand | Chassis model | Load | Overall dimensions | Wheel base | Engine model | hp/standard | Tire | FOB Price | CIF | |||||||||||||||||||||
LHD RHD price add $2000 | m3 | mm | mm | USD | 100%TT 50%+50% | ||||||||||||||||||||||||||
DRZ5250GJBD | DONGFENG | DFL5250GJBA | 10 | 8800X2500X3930 | 3650+1350 | L340-30 | 340/Euro 3 | 11.00R20 | 353000 | $51920 | $57970 | ||||||||||||||||||||
DRZ5142GJBB | FOTON | BJ5142GJB-G1 | 4 | 6460X2480X3450 | 3400 | YCD4F22-110 | 110/Euro 2 | 8.25-16 | 112300 | 16520 | $20500 | ||||||||||||||||||||
DRZ5142GJBB1 | FOTON | BJ5142GJB-G1 | 5 | 6660X2480X3450 | 3600 | YCD4D130-33 | 130/ Euro 2 | 8.25-20 | 129300 | 19020 | $23090 | ||||||||||||||||||||
DRZ5162GJBB | FOTON | BJ5162GJB-F1 | 7 | 6980X2490X3750 | 4200 | YC6J190-33 | 190/Euro 2 | 10.00R20 | 199500 | $29340 | $33930 | ||||||||||||||||||||
DRZ5252GJBB | FOTON | BJ5252GJB-S | 10 | 8930X2495X3790 | 3575+1350 | WP10.340E32 | 340/Euro 3 | 11.00R20 | 338900 | $49840 | $55820 | ||||||||||||||||||||
DRZ5253GJBB | FOTON | BJ5253GJB-S2 | 12 | 9350X2495X3935 | 4100+1350 | WP10.340E32 | 340/Euro 3 | 12.00R20 | 357000 | $52500 | |||||||||||||||||||||
DRZ5318GJBB | FOTON | BJ5318GJB-1 | 14 | 10752X2495X3998 | 1800+3450+1350 | WP10.340E32 | 340/Euro 3 | 12.00R20 | 422200 | $62090 | |||||||||||||||||||||
DRZ5313GJBB | FOTON | BJ5313GJB-11 | 18 | 11230X2495X3995 | 1800+3650+1350 | WP12.380E32 | 380/Euro 3 | 12.00R20 | 450300 | $66230 | |||||||||||||||||||||
DRZ5250GJBQ | I.S.U.Z.U | QL1250DAFZY | 14 | 10050X2490X3900 | 4000+1300 | 6HK1-TCSG50 | 280/Euro 5 | 11.00R20 | 496400 | 73000 |

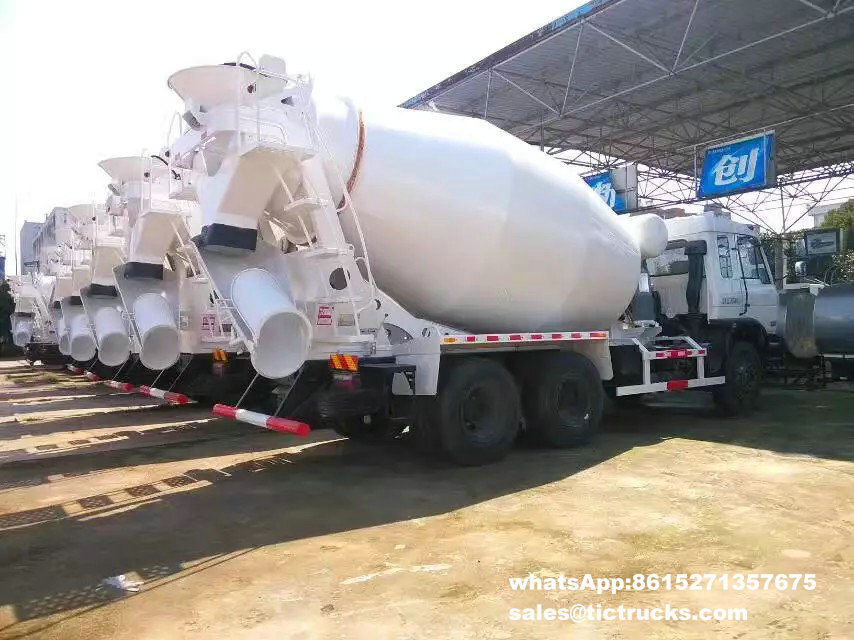

Concrete Mixer Tunnels
8 CUBIC METERS BODY WITH FULL YUCHAI 130HP ENGINE AND PUMP Germany ZF reducer,Germany REXROTH hydraulic pump, KAIPENG radiator( USE THE MIXER INDIVIDUAL WITHOUT ANY CONNECTION FOR THE TRUCK)
MIXERS 8 CUBIC METERS BODY WITH FULL 130HP ENGINE AND PUMP
( USE THE MIXER INDIVIDUAL WITHOUT ANY CONNECTION FOR THE TRUCK)
Concrete mixer truck structure parameters | ||||
Loading capacity | 8m3 | Tank material | 5mm steel | |
Tank front head | 8mm steel | Reducer | Germany ZF | |
Hydraulic pump | Germany REXROTH | Hydraulic motor | Germany REXROTH | |
Radiator | KAIPENG | Color and Logo | Optional | |
Standard configuration | sub frame,mixer tank,reducer, hydraulic pump,hydraulic motor, radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device. | |||
8m3 | Germany ZF reducer,Germany REXROTH hydraulic pump, KAIPENG radiator,mixer tank(main tank 5mm alloy steel wear resistant material,front tank head 8mm steel wear resistant material) | |||
Selective ENGINE | YUCHAI ENGINE 130HP Model :YC4D /YC4E Series Displacement(L)4.214 Emission Euro 2/ 3/4 Rated Power96/2800 (kw/rpm)MaximumTorque380/1700-2000(Nm/r/min) |
Concrete Pump
Concrete Pump main motor 30kw/Horizontal pumping distance 200 meters, vertical 50 meters,100kw diesel generator
Aluminum / midd Steel Stainless Steel Vaccum Tank
