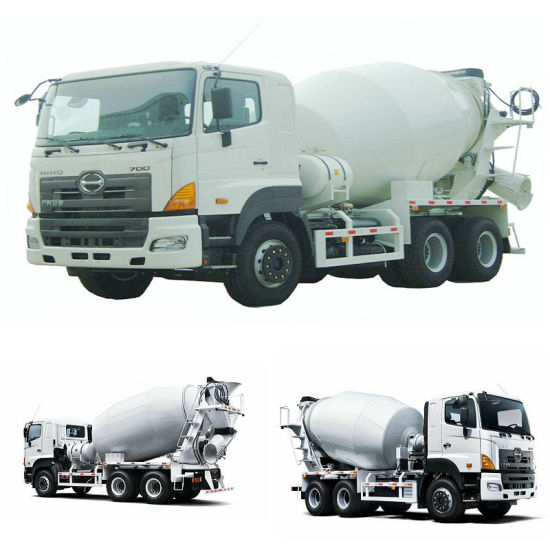

Hino 700 Concrete Mixer Truck 6X4

Hino 700 Concrete Mixer Truck 6X4
Quantity:
  • 800
  • T/T, Western Union
  • Nil

HINO 700 Concrete Mixer Truck 6x4   8~10 M3 concrete mixer truck factory sale
concrete mixer trucks

6x4 concrete truck mixer for sales

Engine   HINO

Volume 8m³ - 10m³

CONTACT US


Cellphone:  (+86)15271357635
Website:  www.truckinchina.com





mixer drum

Tanker capacity

10-14M3

Tanker Material

16MnR

Filling speed (M3/min)

≥ 2.8

Unloading speed (M3/min)

≥ 1.2

Discharge reside rat( %)

≤ 0.5

Mixer drum rotation speed (rpm)

0~12

Driving system

Hydraulic pump

ITALY or GERMANY or China

Hydraulic motor

ITALY or GERMANY or China

Reducer

ITALY or GERMANY or China

Radiator

ITALY or GERMANY or China

Water supply system

Tank volume

300L

Type

Air pressure water supply

Operating system

Model

Linkage operation


Product CategoriesCement mixer chassis
Product TypeFS2PKUM-GQWFS2PKUM-HQWFS2PKUM-HQWFS2PKUM-YQWFS2PKUM-YQWFS2PMUM-GQW
Configuration codingW1-YG00W1-YH00W1-YK00W1-FN00W1-FP00W1-YL00
Drive mode6x4
Maximum gross weight (kg)25,00025,00025,00025,00025,00025,000
CabStandardStandardStandardStandardStandardStandard
Dimensions
(Length x width x height) (mm)
8380x2500x37408380x2500x37408380x2500x37408380x2500x37408380x2500x37408940x2500x3900
Wheelbase (mm)3300 + 14103300 + 14103300 + 14103300 + 14103300 + 14103640 + 1410
Front / rear track (mm)2060/1855/18552060/1855/18552060/1855/18552060/1855/18552060/1855/18552060/1855/1855
Front / rear overhang (mm)1410/22601410/22601410/22601410/22601410/22601410/2480
Minimum ground clearance (mm)≥200≥200≥200≥200≥200≥200
Minimum turning diameter (m)≤16≤16≤16≤16≤16≤17
Curb weight (kg)129001290012900129001290013700
Engine ModelP11C-UJP11C-UJP11C-UJP11C-UJP11C-UJP11C-UJ
Rated Power (PS) kW / r / min(350) 259/2100(350) 259/2100(350) 259/2100(350) 259/2100(350) 259/2100(350) 259/2100
Maximum torque Nm / r / min1454/11001454/11001454/11001454/11001454/11001454/1100
Displacement L10.52010.52010.52010.52010.52010.520
ClutchDry-type single DSF-430Dry-type single DSF-430Dry-type single DSF-430Dry-type single DSF-430Dry-type single DSF-430Dry-type single DSF-430
TransmissionRT11509CDC12J150TDC12J150T12JSD160TA12JSD160TART11509C
Rear axle ratio4.625
5.428
4.6254.6254.6254.6254.625
Tire11.00R2011.00R2011.00R2011.00R2011.00R2011.00R20
Emission standardsState IIIState IIIState IIIState IIIState IIIState III
Product Categories190 cement mixer chassis
Product TypeFS2PMUM-GQWFS2PMUM-GQWFS2PMUM-HQWFS2PMUM-HQWFS2PMUM-YQWFS2PMUM-YQW
Configuration codingW1-YM00W1-XE00W1-YN00W1-YP00W1-FQ00W1-FR00
Drive mode6x4
Maximum gross weight (kg)25,00025,00025,00025,00025,00025,000
CabStandardStandardStandardStandardStandardStandard
Dimensions
(Length x width x height) (mm)
8940x2500x39008940x2500x39008940x2500x39008940x2500x39008940x2500x39008940x2500x3900
Wheelbase (mm)3640 + 14103640 + 14103640 + 14103640 + 14103640 + 14103640 + 1410
Front / rear track (mm)2060/1855/18552060/1855/18552060/1855/18552060/1855/18552060/1855/18552060/1855/1855
Front / rear overhang (mm)1410/24801410/24801410/24801410/24801410/24801410/2480
Minimum ground clearance (mm)≥200≥200≥200≥200≥200≥200
Minimum turning diameter (m)≤17≤17≤17≤17≤17≤17
Curb weight (kg)137001370013700137001370013700
Engine ModelP11C-UJP11C-UJP11C-UJP11C-UJP11C-UJP11C-UJ
Rated Power (PS) kW / r / min(350) 259/2100(350) 259/2100(350) 259/2100(350) 259/2100(350) 259/2100(350) 259/2100
Maximum torque Nm / r / min1454/11001454/11001454/11001454/11001454/11001454/1100
Displacement L10.52010.52010.52010.52010.52010.520
ClutchDry-type single DSF-430Dry-type single DSF-430Dry-type single DSF-430Dry-type single DSF-430Dry-type single DSF-430Dry-type single DSF-430
TransmissionRT11509CRT11509CDC12J150TDC12J150T12JSD160TA12JSD160TA
Rear axle ratio4.6254.6254.6254.6254.6254.625
Tire11.00R2011.00R2011.00R2011.00R2011.00R2011.00R20
Emission standardsState IIIState IIIState IIIState IIIState IIIState III
Product CategoriesCement mixer chassis
Product TypeFY2PUUM-CQWFY2PUUM-CQW
Configuration codingW1-Z300W1-Z302
Drive mode8 × 4
Maximum gross weight (kg)3100031000
CabStandardStandard
Dimensions
(Length x width x height) (mm)
9380x2495x31309380x2495x3130
Wheelbase (mm)1850 + 3400 + 14101850 + 3400 + 1410
Front / rear track (mm)2060/2060/1855/18552060/2060/1855/1855
Front / rear overhang (mm)1410/13101410/1310
Minimum ground clearance (mm)≥240≥240
Minimum turning diameter (m)≤20≤20
Curb weight (kg)1100011000
Engine ModelP11C-UJP11C-UJ
Rated Power (PS) kW / r / min259/2100259/2100
Maximum torque Nm / r / min1454/11001454/1100
Displacement L10.52010.520
ClutchDry-type single DSF-430Dry-type single DSF-430
Transmission12JSD160TA12JSD160TA
Rear axle ratio5.2855.285
Tire11.00R2011.00R20
Emission standardsState IIIState III
Product CategoriesConcrete mixer chassisConcrete mixer chassis
Product TypeFS2PMUM-TQZFS2PMUM-SQZFY2PUUM-MQZ
Configuration codingW1-NR00W1-BL00W1-DL00
Drive mode6x48x4
Maximum gross weight (kg)25,00025,00031000
CabStandardStandardStandard
Dimensions
(Length x width x height) (mm)
8050x2495x30708050x2495x30709380x2495x3130
Wheelbase (mm)3640 + 14103640 + 14101850 + 3400 + 1410
Front / rear track (mm)2060/1855/18552060/1855/18552060/2060/1855/1855
Front / rear overhang (mm)1410/15901410/15911410/1310
Minimum ground clearance (mm)≥220≥220≥240
Minimum turning diameter (m)≤18.4≤18.4≤20
Curb weight (kg)9200,94009200,940011000
Engine ModelP11C-VKP11C-VKP11C-VK
Rated Power (PS) kW / r / min(350) 259/1900(350) 259/1900(350) 259/1900
Maximum torque Nm / r / min1483/11001483/11001483/1100
Post-processing systemSCR
Displacement L10.52010.52010.520
ClutchDry-type single DSF-430Dry-type single DSF-430Dry-type single DSF-430
Transmission12JSD160TART-11509C12JSD160TA
Front / rear axleTHD17THD17THD18
Rear axle Save Ratio4.6254.6255.285
Tire11.00R2011.00R2011.00R20
Emission standardsState IVState IVState IV
