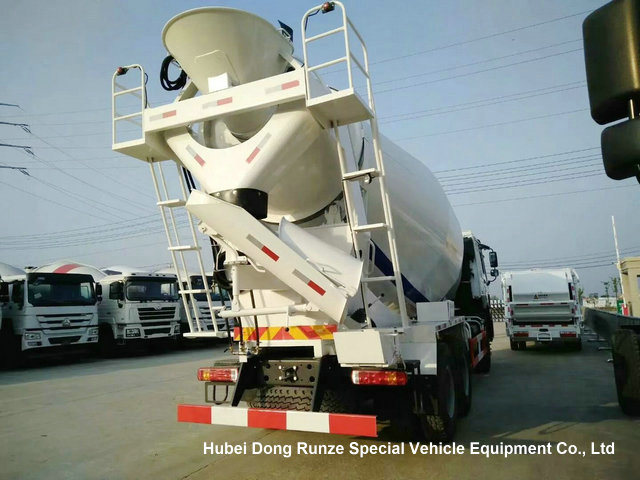

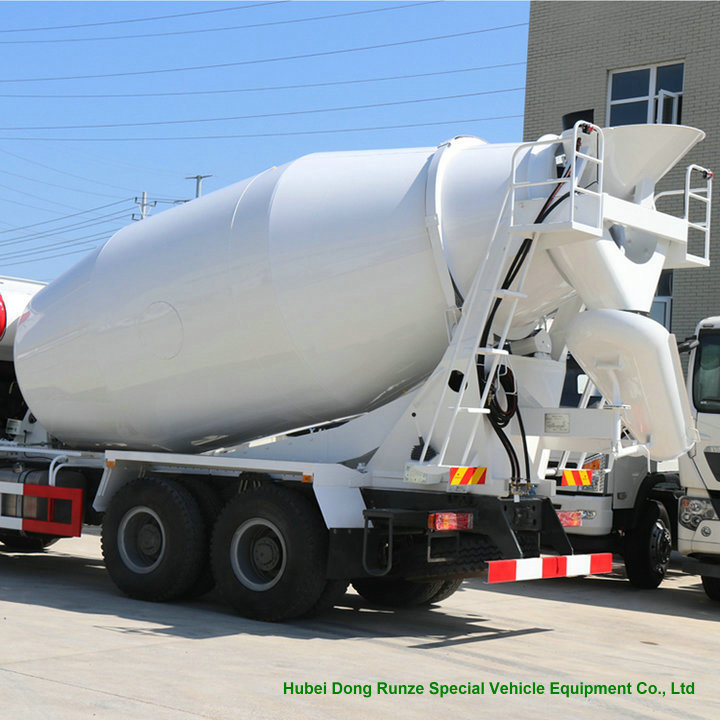

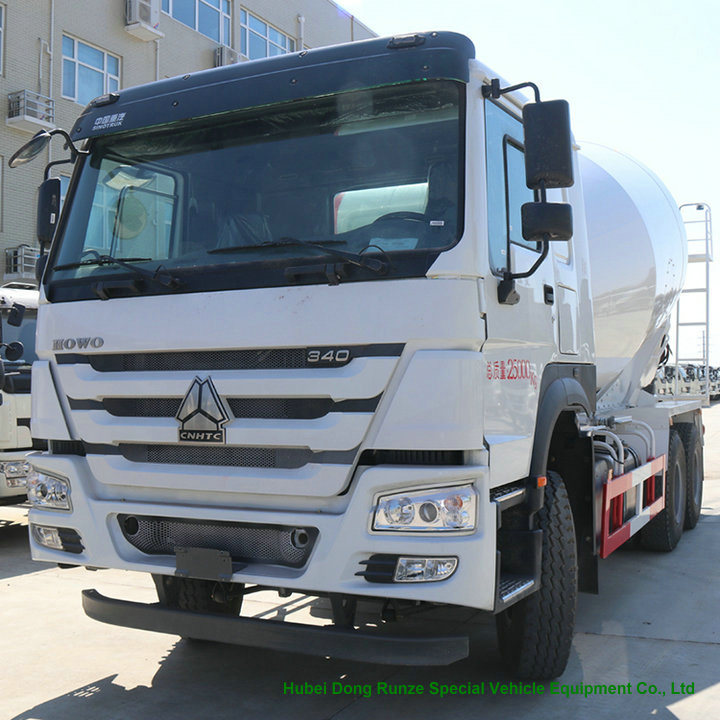

HOWO Truck Mounted Concrete Mixer (Transit Mixer Tank 10m3-Max Mixer Drum18m3)

Quantity:
  • Shanghai, China
  • 3000
  • T/T
  • HOWO Truck Mounted Concrete Mixer
  • ≤5
  • 351-450hp
  • >8L
  • Concrete Cement
  • Tubeless
  • New
  • 6058*2438*2591mm
  • DRAU
  • Road
  • 3000L-18500L
  • Cn
  • 8705909990
  • Manual
  • Diesel
  • 11-20t
  • Euro 3-5 -6 -7
  • 10001-15000L
  • 6×4

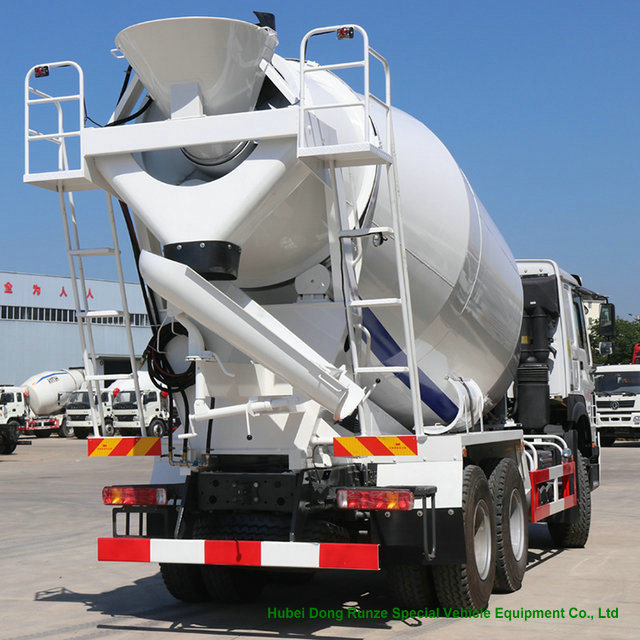

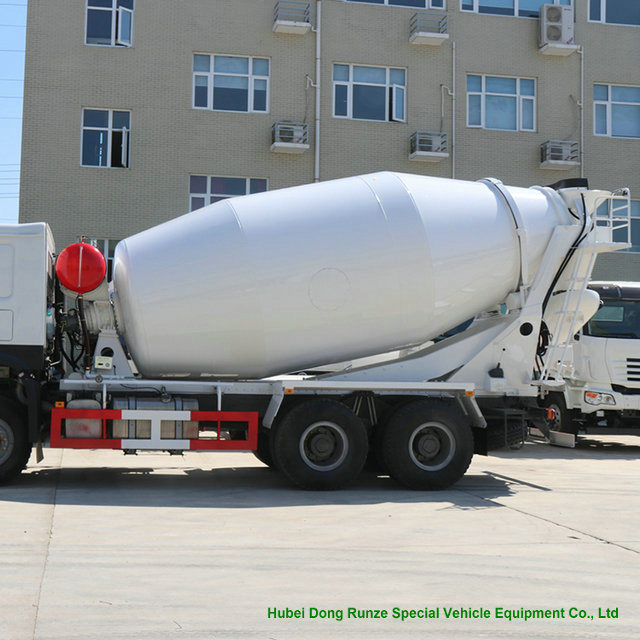

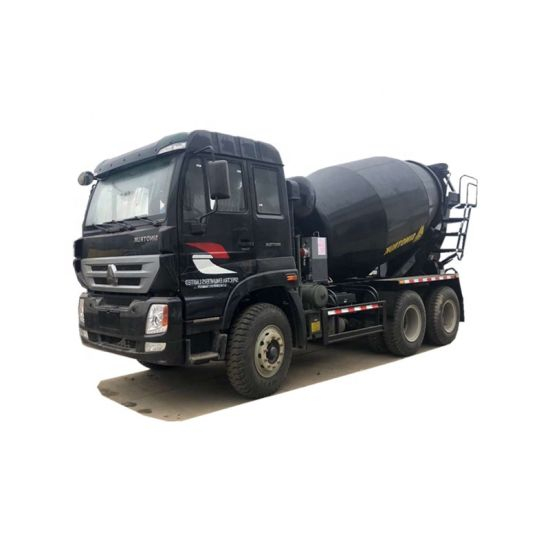

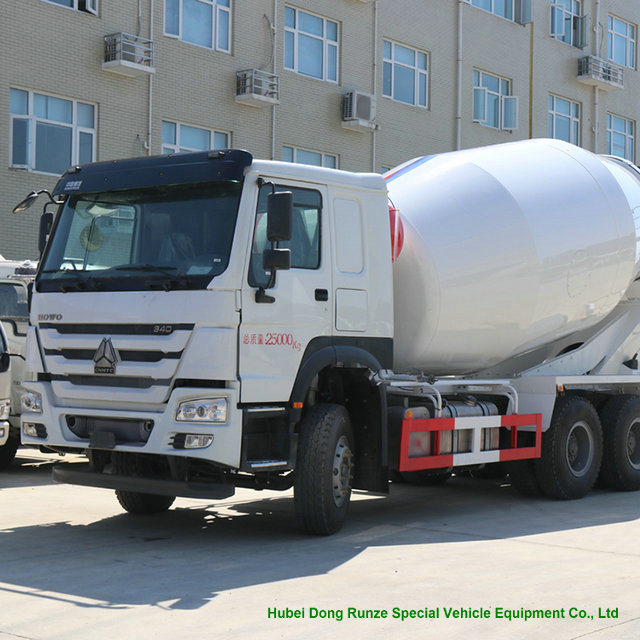

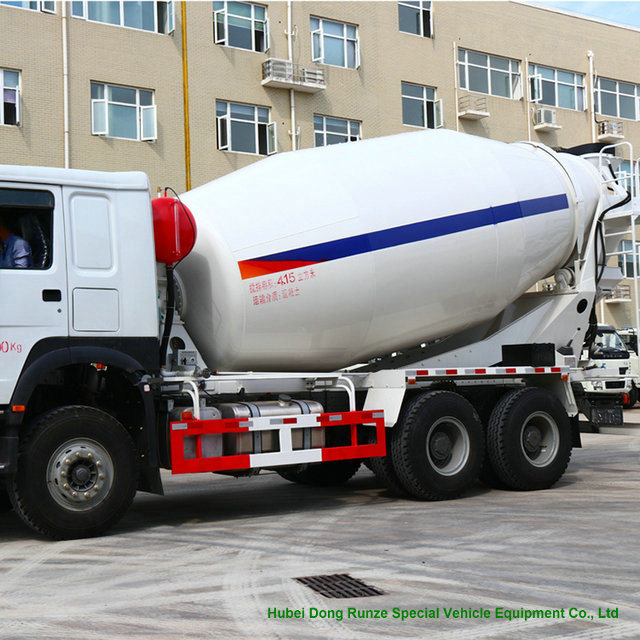

HOWO Truck Mounted Concrete Mixer ( Transit Mixer Tank 10m3-Max Mixer Drum18m3 )

Concrete Mixer For Tunnels (Cement Agitator Tank) 3-12CBM


Ask for better price

Cell /+8615271357675

The pictures are for your reference only.

3m3-10m3 Concrete Mixer Tank (Concrete Truck Mixer Upper Part )
HOWO Truck Mounted Concrete Mixer (Transit Mixer Tank 10m3-Max Mixer Drum18m3)
HOWO Truck Mounted Concrete Mixer (Transit Mixer Tank 10m3-Max Mixer Drum18m3)
HOWO Truck Mounted Concrete Mixer (Transit Mixer Tank 10m3-Max Mixer Drum18m3)
HOWO Truck Mounted Concrete Mixer (Transit Mixer Tank 10m3-Max Mixer Drum18m3)
HOWO Truck Mounted Concrete Mixer (Transit Mixer Tank 10m3-Max Mixer Drum18m3)
HOWO Truck Mounted Concrete Mixer (Transit Mixer Tank 10m3-Max Mixer Drum18m3)
HOWO Truck Mounted Concrete Mixer (Transit Mixer Tank 10m3-Max Mixer Drum18m3)


HOWO Truck Mounted Concrete Mixer (Transit Mixer Tank 10m3-Max Mixer Drum18m3)
HOWO Truck Mounted Concrete Mixer (Transit Mixer Tank 10m3-Max Mixer Drum18m3)
HOWO Truck Mounted Concrete Mixer (Transit Mixer Tank 10m3-Max Mixer Drum18m3)

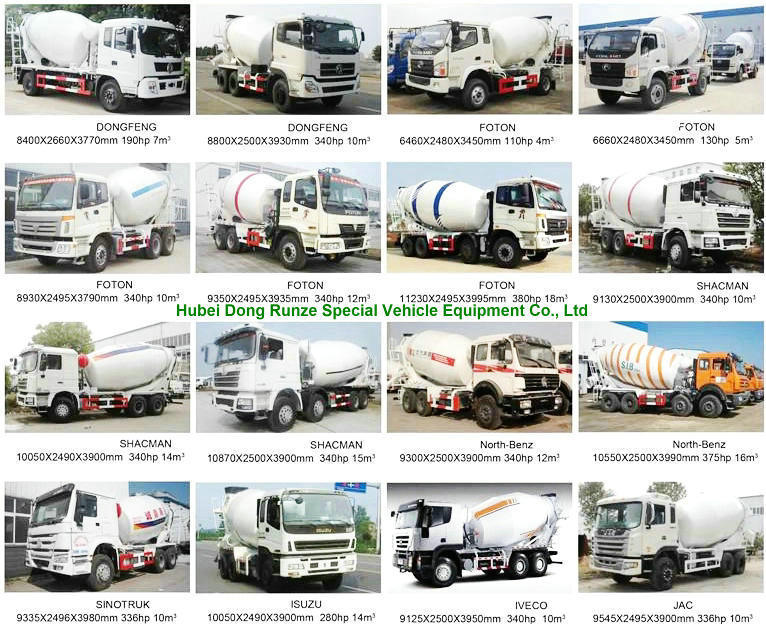

Vehicle model Chassis brand Chassis model Load Overall dimensions Wheel base Engine model hp/standard Tire FOB Price CIF
LHD
RHD price add $2000
m3 mm mm USD 100%TT
50%+50%
DRZ5250GJBD DONGFENG DFL5250GJBA 10 8800X2500X3930 3650+1350 L340-30 340/Euro 3 11.00R20 353000 $51920 $57970
DRZ5142GJBB FOTON BJ5142GJB-G1 4 6460X2480X3450 3400 YCD4F22-110 110/Euro 2 8.25-16 112300 16520 $20500
DRZ5142GJBB1 FOTON BJ5142GJB-G1 5 6660X2480X3450 3600 YCD4D130-33 130/ Euro 2 8.25-20 129300 19020 $23090
DRZ5162GJBB FOTON BJ5162GJB-F1 7 6980X2490X3750 4200 YC6J190-33 190/Euro 2 10.00R20 199500 $29340 $33930
DRZ5252GJBB FOTON BJ5252GJB-S 10 8930X2495X3790 3575+1350 WP10.340E32 340/Euro 3 11.00R20 338900 $49840 $55820
DRZ5253GJBB FOTON BJ5253GJB-S2 12 9350X2495X3935 4100+1350 WP10.340E32 340/Euro 3 12.00R20 357000 $52500
DRZ5318GJBB FOTON BJ5318GJB-1 14 10752X2495X3998 1800+3450+1350 WP10.340E32 340/Euro 3 12.00R20 422200 $62090
DRZ5313GJBB FOTON BJ5313GJB-11 18 11230X2495X3995 1800+3650+1350 WP12.380E32 380/Euro 3 12.00R20 450300 $66230
DRZ5250GJBQ I.S.U.Z.U QL1250DAFZY 14 10050X2490X3900 4000+1300 6HK1-TCSG50 280/Euro 5 11.00R20 496400 73000
Concrete Mixer Tunnels
8 CUBIC METERS BODY WITH FULL YUCHAI 130HP ENGINE AND PUMP Germany ZF reducer,Germany REXROTH hydraulic pump, KAIPENG radiator( USE THE MIXER INDIVIDUAL WITHOUT ANY CONNECTION FOR THE TRUCK)
MIXERS 8 CUBIC METERS BODY WITH FULL 130HP ENGINE AND PUMP
( USE THE MIXER INDIVIDUAL WITHOUT ANY CONNECTION FOR THE TRUCK)
Concrete mixer truck structure parameters
Loading capacity 8m3 Tank material 5mm steel
Tank front head 8mm steel Reducer Germany ZF
Hydraulic pump Germany REXROTH Hydraulic motor Germany REXROTH
Radiator KAIPENG Color and Logo Optional
Standard configuration sub frame,mixer tank,reducer, hydraulic pump,hydraulic motor, radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device.
8m3 Germany ZF reducer,Germany REXROTH hydraulic pump, KAIPENG radiator,mixer tank(main tank 5mm alloy steel wear resistant material,front tank head 8mm steel wear resistant material)
Selective ENGINE YUCHAI ENGINE 130HP
Model :YC4D /YC4E Series
Displacement(L)4.214 Emission Euro 2/ 3/4
Rated Power96/2800 (kw/rpm)MaximumTorque380/1700-2000(Nm/r/min)

Concrete Pump
Concrete Pump main motor 30kw/Horizontal pumping distance 200 meters, vertical 50 meters,100kw diesel generator

Aluminum / midd Steel Stainless Steel Vaccum Tank


HOWO Truck Mounted Concrete Mixer (Transit Mixer Tank 10m3-Max Mixer Drum18m3)

HOWO Truck Mounted Concrete Mixer (Transit Mixer Tank 10m3-Max Mixer Drum18m3)
