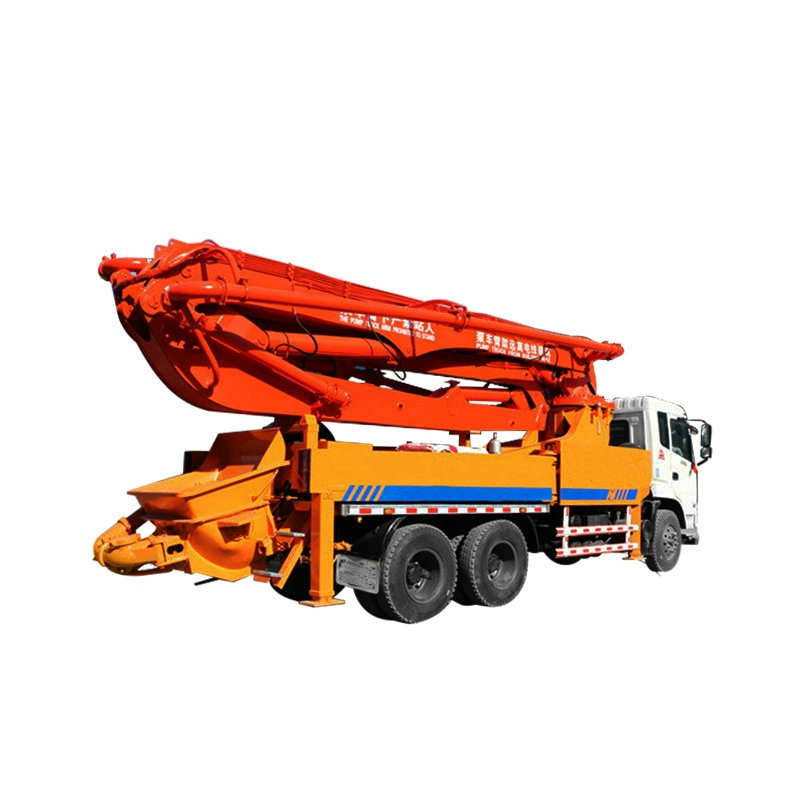

Truck Mounted Concrete Pump 34m-35m

Truck Mounted Concrete Pump 34m-35m
Availability:
Quantity:
  • Shanghai, China

  • 3000

  • T/T

Small Truck Mounted Concrete Pump 24m -27M CDW 60-90m3 / h RHD.LHD. 4X2.4X4 .6x4

Truck Mounted Concrete Pump 34m-35m
Truck Mounted Concrete Pump 34m-35m
Truck Mounted Concrete Pump 34m-35m

Truck Mounted Concrete Pump 34m-35m

small concrete pump truck produced has advanced design, convenient operation, good reliability, high efficiency, low fuel consumption and low noise. It is the international advanced concrete pump equipment, which fills the gap in rural housing and bridge construction and has a revolutionary breakthrough.

Technical parameters of 37m double bridge concrete pump truck
Name DRZ5290THB-37m concrete pump truck
Machine parameters
Overall length of the vehicle 10000 mm
Overall width of the vehicle 2500 mm
Overall height of the vehicle 3700 mm
Wheelbase Vehicle quality 22000 kg
Boom system
Maximum vertical height of boom 36.7 m
Boom horizontal fabric radius 33.4 m
The depth of the fabric 24.9 m
First arm length 7188 mm
Second arm length 6170 mm
Third arm length 5810 mm
Fourth arm length 5820 mm
Fifth arm length 6100 mm
Rotation Angle of each arm 90°/180°/270°/360/240°
Boom control mode Load sensitive proportional control
Boom folding method R/Z type
Turret rotation angle 360°
Front leg spanning distance 6000 mm
Rear leg across the distance 7000 mm
Front and rear leg longitudinal distance 6300 mm
Leg opening method X
Tail hose length 3000 mm
Concrete pipe diameter 125 mm
Electrical control system
Control power supply 24 V
Control module brand Siemens, Germany
Operating Voltage 24 V
Intermediate electrical appliance brand Omron
Wireless remote control brand Sany Heavy Industry

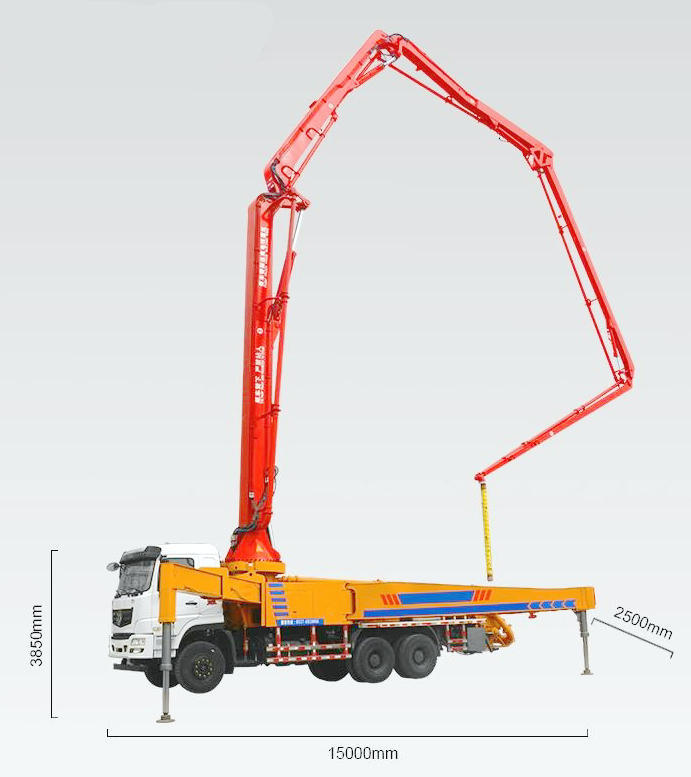

Technical parameters of 48m double bridge concrete pump truck
Name DRZ5290THB-48m concrete pump truck
Machine parameters
Overall length of the vehicle 15000 mm
Overall width of the vehicle 2500 mm
Overall height of the vehicle 3850 mm
Wheelbase Vehicle quality 38000 kg
Boom system
Maximum vertical height of boom 47.6 m
Boom horizontal fabric radius 48 m
The depth of the fabric 46.5 m
Rotation Angle of each arm 90/180/270/360/240°
Boom control mode Load sensitive proportional control
Boom folding method R/Z type
Turret rotation angle 360°
Front leg spanning distance 7000 mm
Rear leg across the distance 8000 mm
Front and rear leg longitudinal distance 7200 mm
Leg opening method X
Tail hose length 3000 mm
Concrete pipe diameter 125 mm
Electrical control system
Control power supply 24 V
Control module brand Siemens, Germany
Operating Voltage 24 V
Intermediate electrical appliance brand Omron
Wireless remote control brand Sany Heavy Industry
Hydraulic drive system
Hydraulic system type Closed hydraulic system
System work pressure 35.0 Mpa
Main hydraulic pump brand Rexroth,Germany
Main oil pump model Rexroth A4VG125
Main electro-hydraulic reversing valve brand Import
Suction and return oil filter element brand Xugong
Boom multi-way valve brand Harvey, Germany
Boom balance valve brand US SUN
Boom oil pump brand Import
Outrigger multi-way valve brand Italy
Safety valve brand Import
Cylinder hydraulic seal brand Parker
Hydraulic tank volume 450 L
Hydraulic oil cooling method Air cooled
Main cylinder Xieli 1400 mmX80 mmX130 mm
Transfer case brand German Sibao
Slewing reducer brand Import
Hose connector brand Eaton, United States
Chassis
Chassis model Dongfeng or Shaanxi Automobile
Emission Standards EU standard
Engine Yuchai or Weichai
Wheelbase 5800 mm
Maximum travel speed 83 km/h
Vehicle approach/away angle 24.6°/15.6°
Tire specifications 11.00R20  18 layer
Pumping system
Concrete distribution valve form S valve
Concrete piston brand Domestic
Maximum concrete outlet pressure 10.5-20 Mpa
Conveying cylinder inner diameter/stroke 230 mmX1600 mm
Maximum feeding height 1450 mm
Bucket capacity 0.65 m²
Pumpable concrete slump 160--220
Maximum aggregate size allowed 40 mm
Lubrication method Centralized lubrication

Ask for better price
Truck Mounted Concrete Pump 34m-35m

Truck Mounted Concrete Pump 34m-35m
Hydraulic drive system
Hydraulic system type Closed hydraulic system
System work pressure 35.0 Mpa
Main hydraulic pump brand Rexroth
Main oil pump model Rexroth A4VG125
Main electro-hydraulic reversing valve brand Import
Suction and return oil filter element brand Xugong
Boom multi-way valve brand Harvey, Germany
Boom balance valve brand US SUN
Boom oil pump brand Domestic
Outrigger multi-way valve brand Italy
Safety valve brand Import
Cylinder hydraulic seal brand Parker
Hydraulic tank volume 450 L
Hydraulic oil cooling method Air cooled
Main cylinder Xieli 1400 mmX80 mmX130 mm
Transfer case brand German Sibao
Slewing reducer brand Domestic
Hose connector brand Eaton, United States
Chassis
Chassis model Dongfeng
Emission standards EU standard
Engine Yuchai 240
Wheelbase 4700 mm
Maximum travel speed 83 km/h
Vehicle approach/away angle 24.6°/15.6°
Tire specifications 11.00R20  18 layer
Pumping system
Concrete distribution valve form S valve
Concrete piston brand Domestic
Maximum concrete outlet pressure 10.5-20 Mpa
Conveying cylinder inner diameter/stroke 230 mmX1450 mm
Maximum feeding height 1450 mm
Bucket capacity 0.65 m²
Pumpable concrete slump 160--220
Maximum aggregate size allowed 40 mm
Lubrication method Centralized lubrication
Truck Mounted Concrete Pump 34m-35m

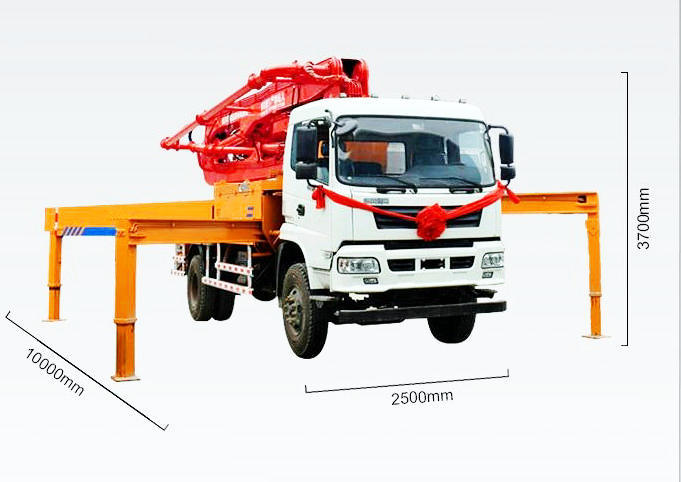

  Truck Mounted Concrete Pump 34m-35m   34m single-bridge concrete pump truck   DRZ5190THB-34m concrete pump truck   Truck Mounted Concrete Pump 34m-35m
34m concrete pump truck
Name DRZ5190THB-34m concrete pump truck
Machine parameters
Overall length of the vehicle 10000 mm
Overall width of the vehicle 2550 mm
Overall height of the vehicle 3700 mm
Wheelbase Vehicle quality 21000 kg
Boom system
Maximum vertical height of boom 33.7 m
Boom horizontal fabric radius 32.4 m
The depth of the fabric 23.9 m
First arm length 7200 mm
Second arm length 6300 mm
Third arm length 5900 mm
Fourth arm length 5400 mm
Fifth arm length 5200 mm
Rotation Angle of each arm 90°/180°/270°/360°/240°
Boom control mode Load sensitive proportional control
Boom folding method R/Z type
Turret rotation angle 360°
Front leg spanning distance 6000 mm
Rear leg across the distance 7000 mm
Front and rear leg longitudinal distance 6300 mm
Leg opening method X
Tail hose length 3000 mm
Concrete pipe diameter 125 mm
Electrical control system
Control power supply 24 V
Control module brand Siemens, Germany
Operating Voltage 24 V
Intermediate electrical appliance brand Omron
Wireless remote control brand Sany Heavy Industry
Hydraulic drive system
Hydraulic system type Closed hydraulic system
System work pressure 35.0 Mpa
Main hydraulic pump brand Rexroth
Main oil pump model Rexroth A4VG125
Main electro-hydraulic reversing valve brand Import
Suction and return oil filter element brand Xugong
Boom multi-way valve brand Harvey, Germany
Boom balance valve brand US SUN
Boom oil pump brand Import
Outrigger multi-way valve brand Italy
Safety valve brand Import
Cylinder hydraulic seal brand Parker
Hydraulic tank volume 450 L
Hydraulic oil cooling method Air cooled
Main cylinder Xieli 1400 mmX80 mmX130 mm
Transfer case brand German Sibao
Slewing reducer brand Domestic
Hose connector brand Eaton, United States
Chassis
Chassis model Dongfeng
Emission Standards EU standard
Engine Yuchai 240
Wheelbase 4700 mm
Maximum travel speed 83 km/h
Vehicle approach/away angle 24.6°/15.6°
Tire specifications 11.00R20  18 layer
Pumping system
Concrete distribution valve form S valve
Concrete piston brand Domestic
Maximum concrete outlet pressure 10.5-20 Mpa
Conveying cylinder inner diameter/stroke 230 mmX1450 mm
Maximum feeding height 1450 mm
Bucket capacity 0.65 m²
Pumpable concrete slump 160--220
Maximum aggregate size allowed 40 mm
Lubrication method Centralized lubrication
Stirring system
Customized JS750 mixer
Truck Mounted Concrete Pump 34m-35m
  Truck Mounted Concrete Pump 34m-35m


  Cell /+8615271357675

The pictures are for your reference only. Truck Mounted Concrete Pump 34m-35m

Vehicle model Chassis brand Chassis model Load Overall dimensions Wheel base Engine model hp/standard Tire FOB Price CIF
LHD
RHD price add $2000


m3     mm mm



USD 100%TT
50%+50%
DRZ5250GJBD DONGFENG DFL5250GJBA 10 8800X2500X3930 3650+1350 L340-30 340/Euro 3 11.00R20 353000 $51920 $57970
DRZ5142GJBB FOTON BJ5142GJB-G1 4 6460X2480X3450 3400 YCD4F22-110 110/Euro 2 8.25-16 112300 16520 $20500
DRZ5142GJBB1 FOTON BJ5142GJB-G1 5 6660X2480X3450 3600 YCD4D130-33 130/ Euro 2 8.25-20 129300 19020 $23090
DRZ5162GJBB FOTON BJ5162GJB-F1 7 6980X2490X3750 4200 YC6J190-33 190/Euro 2 10.00R20 199500 $29340 $33930















DRZ5252GJBB FOTON BJ5252GJB-S 10 8930X2495X3790 3575+1350 WP10.340E32 340/Euro 3 11.00R20 338900 $49840 $55820















DRZ5253GJBB FOTON BJ5253GJB-S2 12 9350X2495X3935 4100+1350 WP10.340E32 340/Euro 3 12.00R20 357000 $52500















DRZ5318GJBB FOTON BJ5318GJB-1 14 10752X2495X3998 1800+3450+1350 WP10.340E32 340/Euro 3 12.00R20 422200 $62090
DRZ5313GJBB FOTON BJ5313GJB-11 18 11230X2495X3995 1800+3650+1350 WP12.380E32 380/Euro 3 12.00R20 450300 $66230
DRZ5250GJBQ I.S.U.Z.U QL1250DAFZY 14 10050X2490X3900 4000+1300 6HK1-TCSG50 280/Euro 5 11.00R20 496400 73000
Concrete Mixer Tunnels
8 CUBIC METERS BODY WITH FULL YUCHAI 130HP ENGINE AND PUMP  Germany ZF reducer,Germany REXROTH hydraulic pump, KAIPENG radiator( USE THE MIXER INDIVIDUAL WITHOUT ANY CONNECTION FOR THE TRUCK)
MIXERS 8 CUBIC METERS BODY WITH FULL 130HP ENGINE AND PUMP
( USE THE MIXER INDIVIDUAL WITHOUT ANY CONNECTION FOR THE TRUCK)
Concrete mixer truck structure parameters
Loading capacity 8m3 Tank material 5mm steel
Tank front head 8mm steel Reducer Germany ZF
Hydraulic pump Germany REXROTH Hydraulic motor Germany REXROTH
Radiator KAIPENG Color and Logo Optional
Standard configuration sub frame,mixer tank,reducer, hydraulic pump,hydraulic motor, radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device.
8m3 Germany ZF reducer,Germany REXROTH hydraulic pump, KAIPENG radiator,mixer tank(main tank 5mm alloy steel wear resistant material,front tank head 8mm steel wear resistant material)
Selective ENGINE YUCHAI ENGINE 130HP
Model :YC4D  /YC4E Series
Displacement(L)4.214 Emission Euro 2/ 3/4
Rated Power96/2800 (kw/rpm)MaximumTorque380/1700-2000(Nm/r/min)

Concrete Pump
Concrete Pump main motor 30kw/Horizontal pumping distance 200 meters, vertical 50 meters,100kw diesel generator
