2534 / 2634 V3 Beiben Concrete Mixer Truck (with 8m3-12m3 Mixer Drum Right Hand Drive or left hand drive)
2534 / 2634 V3 Beiben Concrete Mixer Truck (with 8m3-12m3 Mixer Drum Right Hand Drive or left hand drive)
| Quantity: | |
|---|---|
- Shanghai, China
- 3000
- T/T
2534 / 2634 Beiben Concrete Mixer Truck ( with 8m3-12m3 Mixer Drum Right Hand Drive or left hand drive )
Truck Mounted Concrete Mixer ( Transit Mixer Tank 10m3-Max Mixer Drum12m3 )
Concrete Mixer For Tunnels (Cement Agitator Tank) 3-12CBM
Ask for better price
Cell /+8615271357675
The pictures are for your reference only.

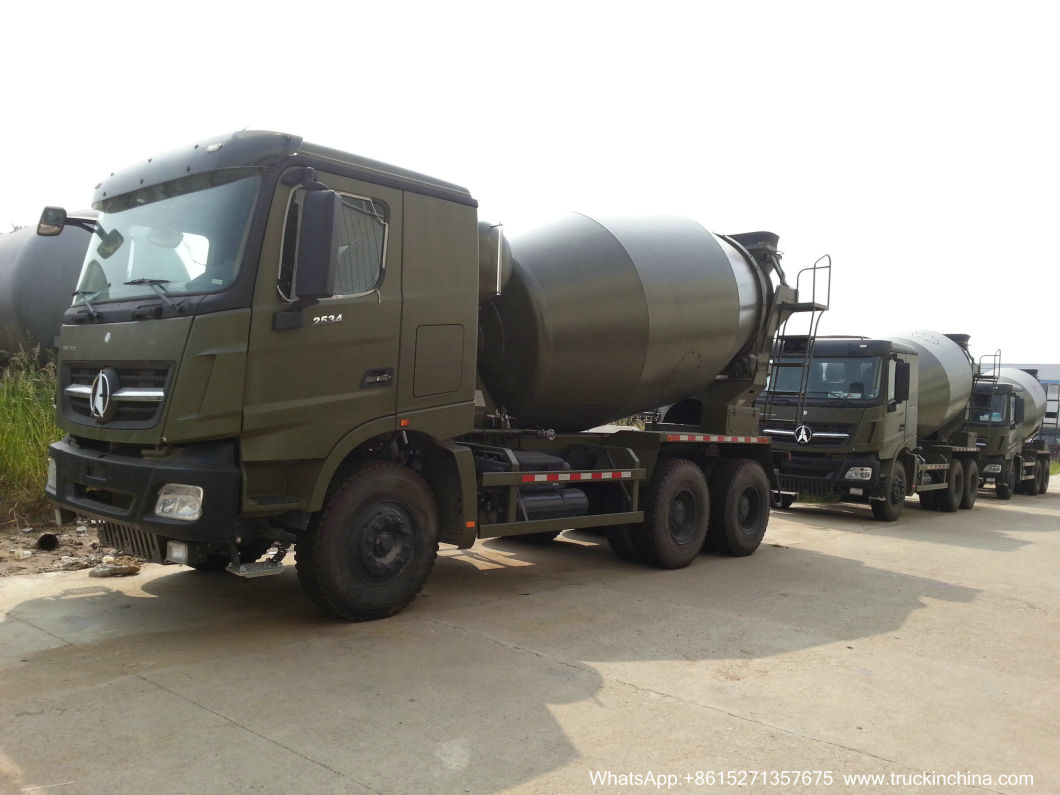

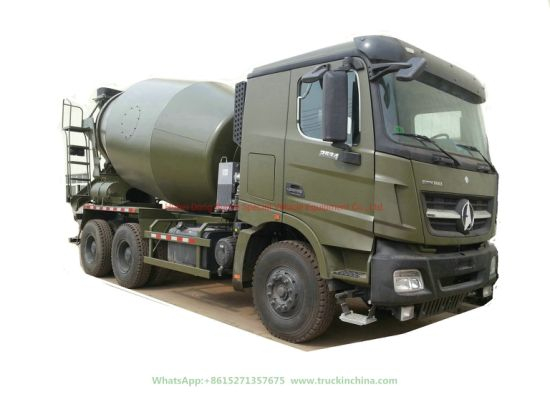

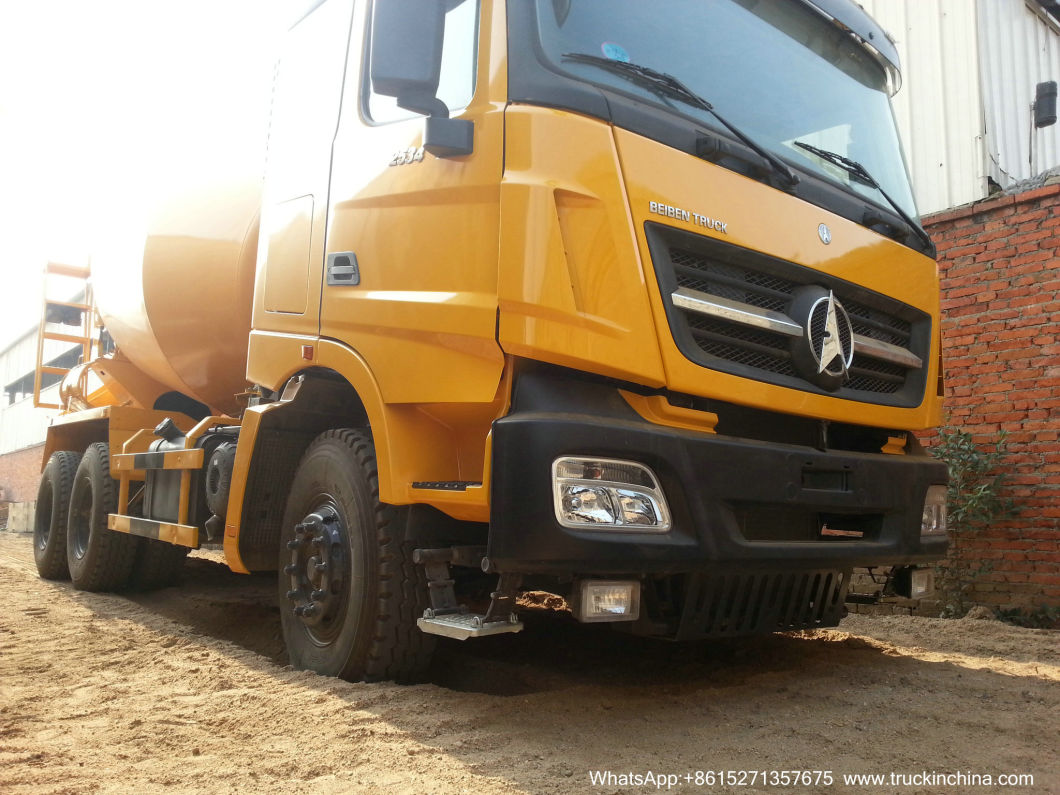

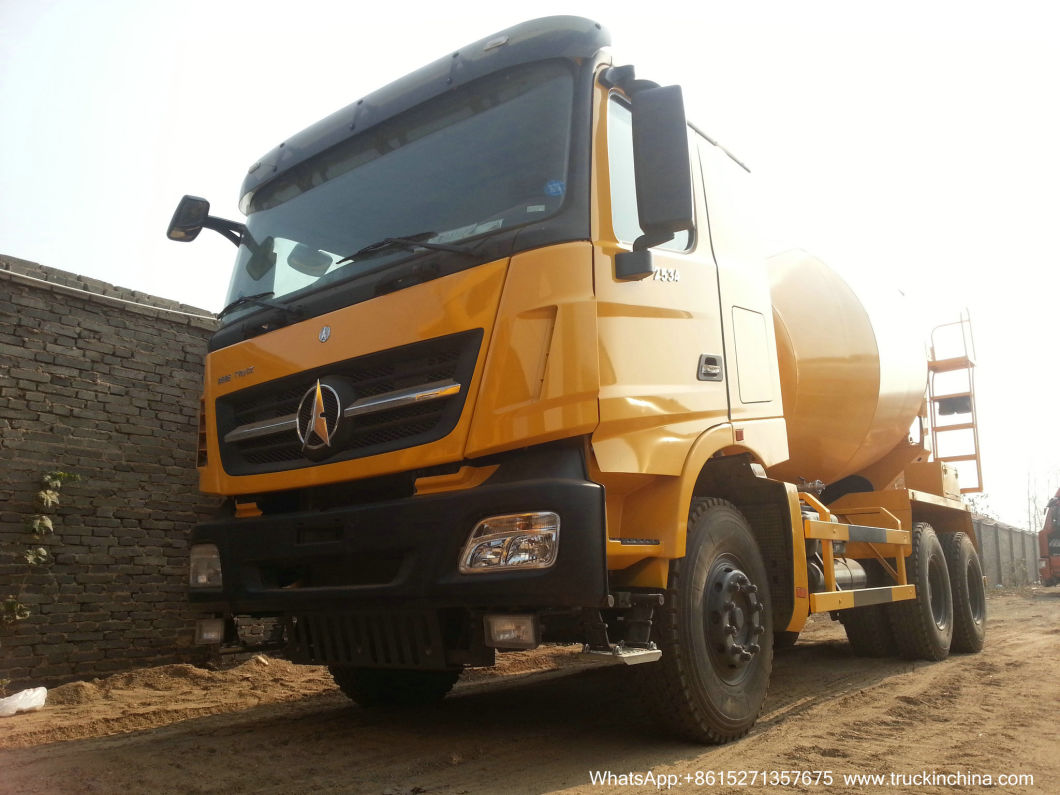

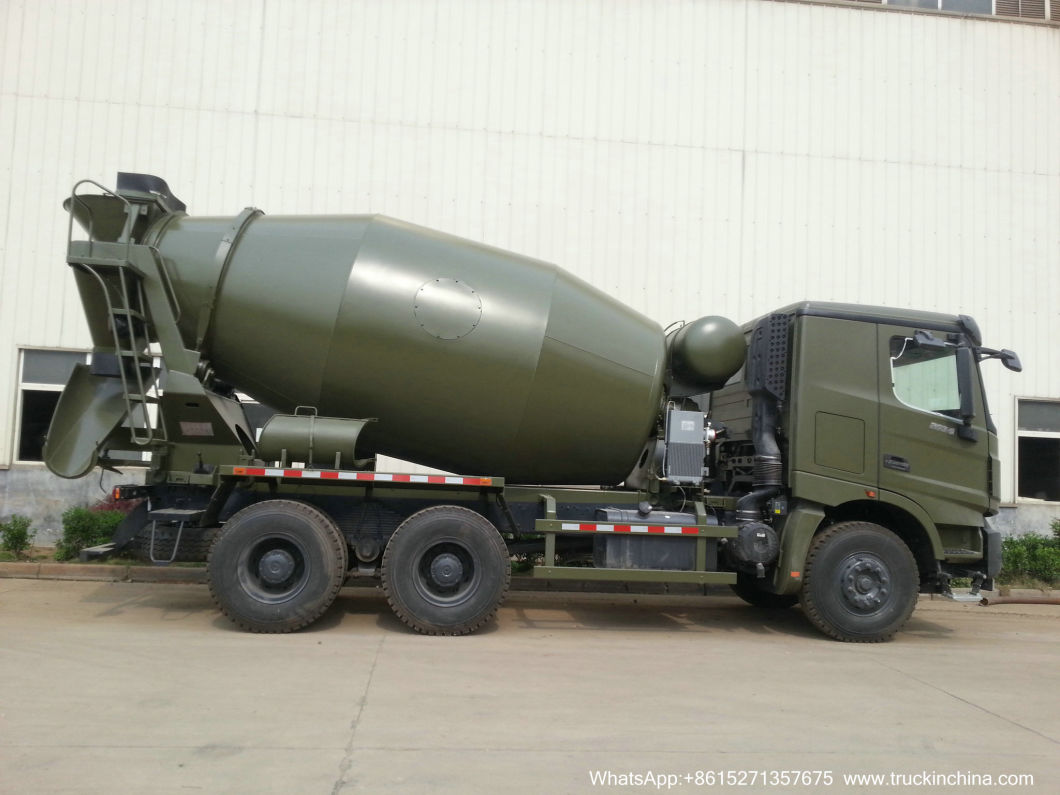

Beiben10wheelers concrete mixer truck
Concrete Mixer Truck for your selection, LHD and RHD cabin are both available.
| Parts | Technical Parameter | Remark | |
| Overall | Chassis Model | ND5250GJBZ15 | |
| Curb Weight | 13000kg | ||
| Rated Loading Weight | 12000kg | ||
| Overall Size (L*W*H) | 9950×2500×4000mm | ||
| Engine | Type of Fuel | Diesel | |
| Brand/Model | WP/ WP10.336N | ||
| Horse Power | 336HP | ||
| Chassis | Brand | BeiBen | |
| Wheelbase | 4100+1450mm | ||
| Cabin | Left-hand driving, Air conditioner, Flat headed | ||
| Transmission | FAST 9-speed | ||
| Brake System | Pneumatic brake | ||
| Tyre | Specification | 12.00R20 | |
| Number of Tyre | 10+1 spare tyre | ||
| Durm | Drum Capacity | 12m3 | |
| Material | Q345-A manganese steel | WuHan Iron and Steel (Group) Corp. | |
| Thickness | 5mm | ||

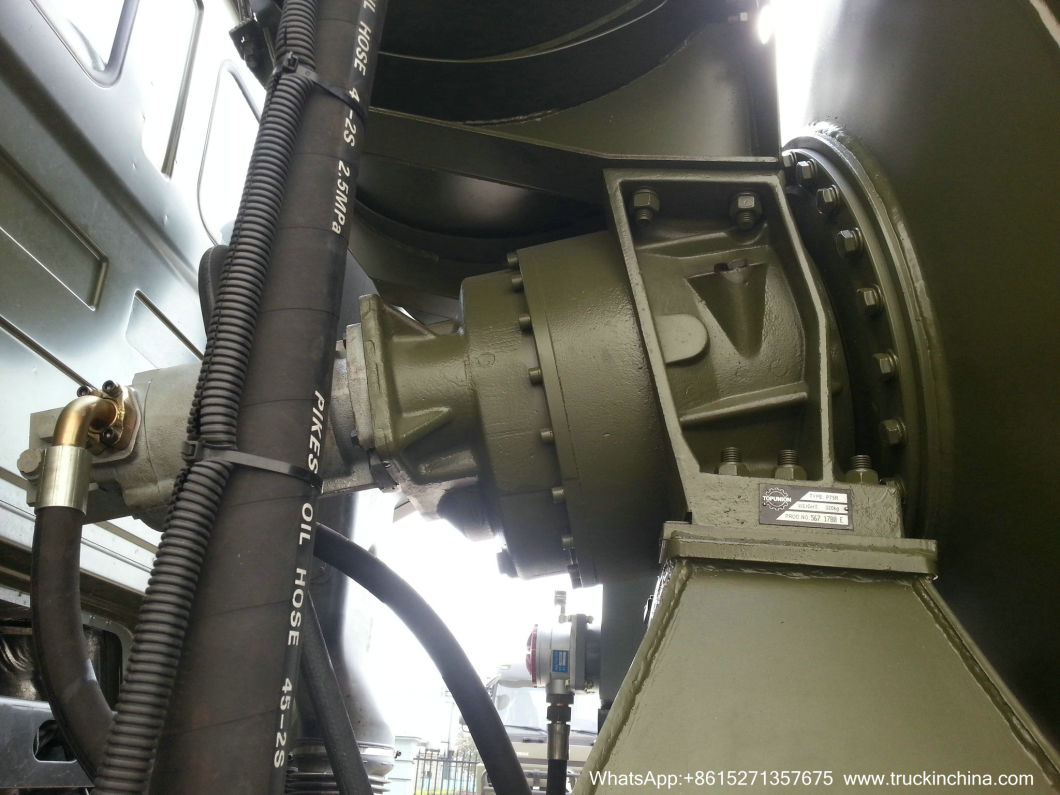

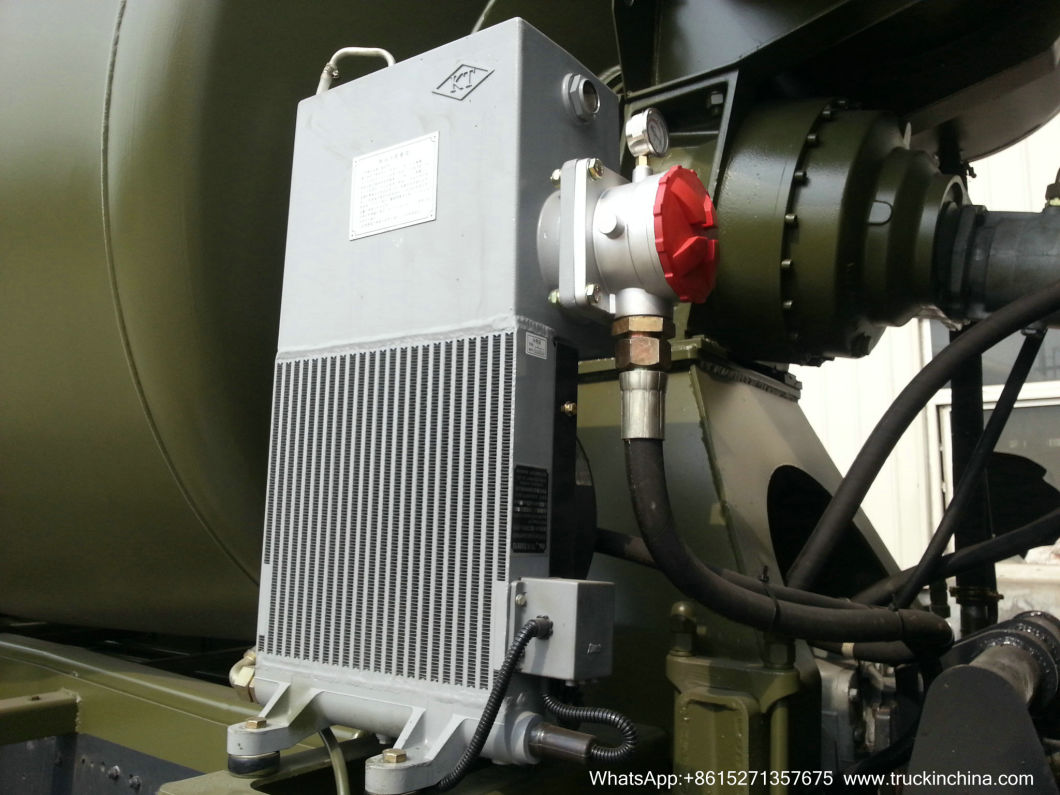

| Hydraulic System | Motor | ARK(Italy),ZF(Germany),Eaton(USA) | |
| Pump | ARK(Italy),ZF(Germany),Eaton(USA) | ||
| Reducer | TOP(Italy),Bonfiglioli(Italy) | ||
| Note | Some components are optional according to your requirements. | ||
| 6*4 | ND5257GJBZ | 3800+1450 | WP10.340E32 |
| ND5256GJBZ | 4100+1450 | ||
| 8*4 | ND5313GJBZ | 1500+3550+1450 | WP10.336 |
| WP10.375 |
| ND5250GJBZ15 | 3800+1450 | WP10.336E40 |
| 4100+1450 | ||
| ND5310GJBZ08 | 1950+3100+1450 | WP10.336E40 |
| WP10.375E40 | ||
| ND5310GJBZ09 | 1950+3400+1450 | WP10.336E40 |
| WP10.375E40 |

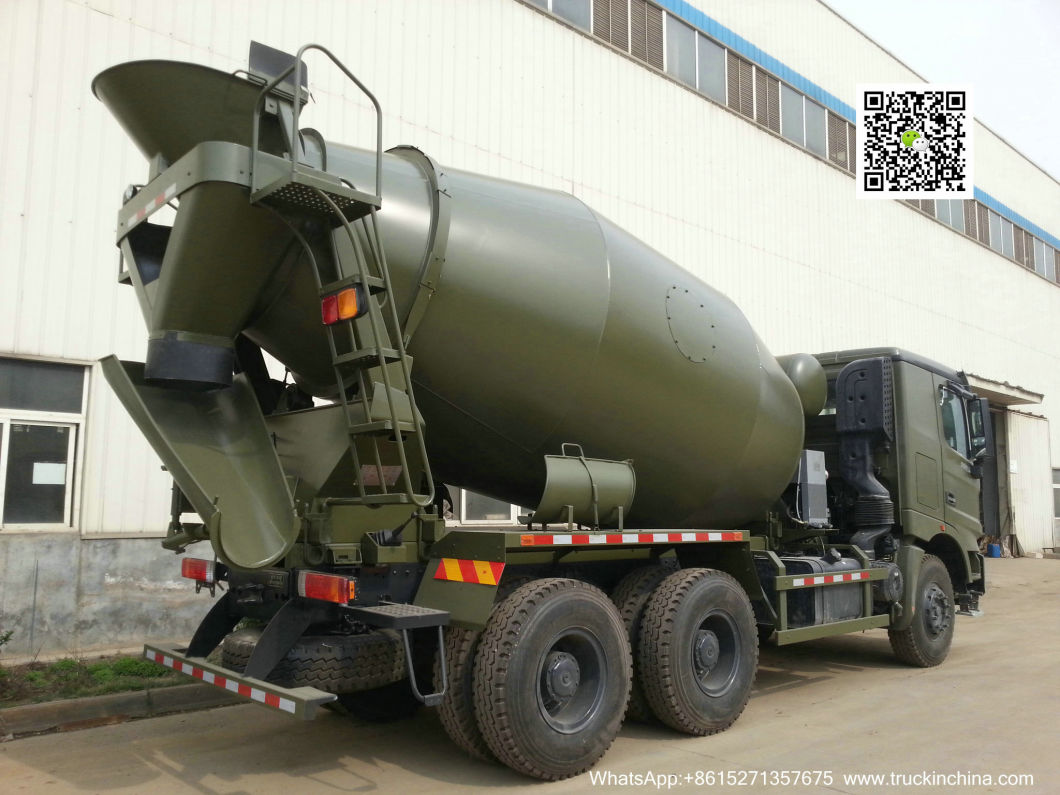

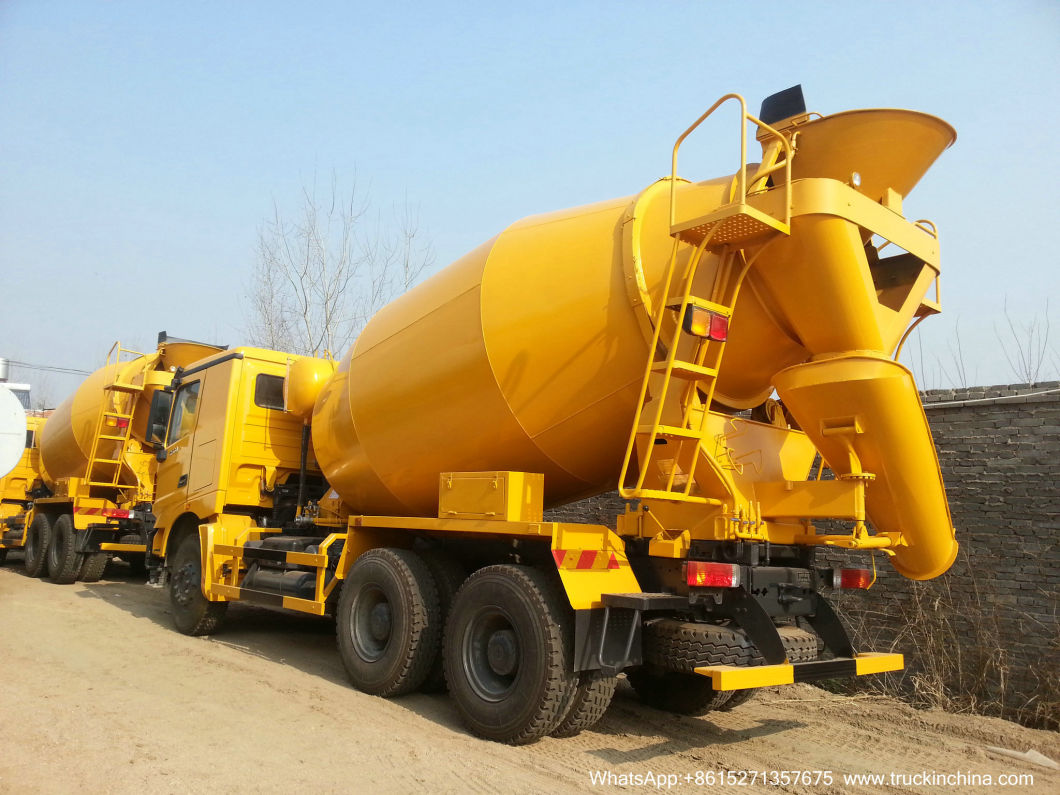

8m3-12m3 Concrete Mixer Tank (Concrete Truck Mixer Upper Part )
8cbm Beiben concrete mixer truck price
| 6X4 CONCRETE MIXER TRUCK | |
| Model | ND5257GJBZ |
| Driving type | LHD |
| Driver's cab | Long cabin/short cabin , single sleeper, Air conditioner, Dash board with all necessary gauges |
| such as (km meter, rpm, oil pressure, temperature, air pressure, fuel level), | |
| NG90 Headlight, Sun protection on cabin | |
| Engine | Maker: WEICHAI |
| Engine model: WP10.340E32 340hp | |
| EUROIII EGR emission standard | |
| Maximum output: 340HP@2200 rpm | |
| Number of cylinder:6 | |
| Displacement: 9.726L | |
| Clutch | 430mm, hydraulically operating with air assistance |
| Transmission | FULLER Brand 9T--160 |
| Front Axle | 7.5 tons |
| Rear Axle | 13ton Double-shoe pneumatic brake, ductile casting casing, with hub redactor, |
| double reduction driving axle. | |
| Ratio: 5.263 | |
| Steering | TAS85 |
| Wheel & Types | Tyres: 12.00-20 Bias tyre |
| Spring | 10/13 |
| Electrics | Operating voltage: 24V, negative grounded |
| Dimensions in mm | Wheel base: 3800+1450 |
| Overall size: 9300×2500×3900 | |
| Weight in kg | Kerb weight: 13650 |
| Permissible trailing capacity: 25000 | |
| Performance | Maximum driving speed(km/h): 85 |
| Mixer drum | HYD drive system | Decelerator: Italy TOP P68 |
| Pump:Italy TOP 089 | ||
| Motor:Italy TOP | ||
| Drum specifications | Mixing volume:8m3 | |
| Gradient:15 | ||
| Filling rate:58% | ||
| Rest rate:≤1‰ | ||
| Rotational speed:0-14r/min |
Parameter
| 2538BY /6×4/4300+1450/Long-Flat Roof Cab | ||||||
| Dimension | 10075*2500*3980mm | |||||
| Approaching angle/Departure angle | 16/20° | |||||
| Overhang(front/rear) | 1515/2810mm | |||||
| Wheel base | 4300+1450mm | |||||
| Max speed | 90km/h | |||||
| Curb weight | 15950kg | |||||
| Loading capacity | 8920kg | |||||
| Slope climbing capability | Max.40% | |||||
| Engine | Model | WP10.375,water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection | ||||
| Displacement | 9.726L/Diesel | |||||
| Stroke | 126/130mm | |||||
| Max. power | 276/2200 (kw/rpm) | |||||
| Max.torque | 1460/1200-1600(Nm/rpm) | |||||
| Emission stantard | Euro | |||||
| Fuel tanker capacity | 300L | |||||
| Clutch | ∮430, Single dry frictional disc,Hydraulic boosting | |||||
| Gearbox | 9T-180mechanism,9 forward gears,1 reverse gear, manual operated, with synchronizer | |||||
| Gear ratio of gear box | 12.82/7.93/6.00/4.43/3.43/2.31/1.75/1.29/1.00 R: 11.21 | |||||
| Suspension system | Front | Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs | ||||
| Rear | Non-free standing stablization spring, balance suspension system, 13pcs | |||||
| Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system | ||||
| Assistant brake | Engine exhaust brake | |||||
| Park brake | Potential springs pressing on middle and rear wheels | |||||
| Steering system | TAS85,whole circulation in ball, hydraulic booster | |||||
| Frame | Fish belly shape, variable width, variable sections | |||||
| Front axle (Mercedes Technology) | Double-shoe pneumatic brake, non-driving steering axle | |||||
| Middle and Rear axle (Mercedes Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle | |||||
| Tyre | 12.00R20 Radial | |||||
| Electrical system | Battery | 2X12V/135Ah | ||||
| Generator | 28V-35A | |||||
| Starter | 5.4Kw/24V | |||||
| Cabin | V3 Long-Flat roof cabin with single sleeper Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back seat for driver;Electric lifting window ; With inner A/C | |||||

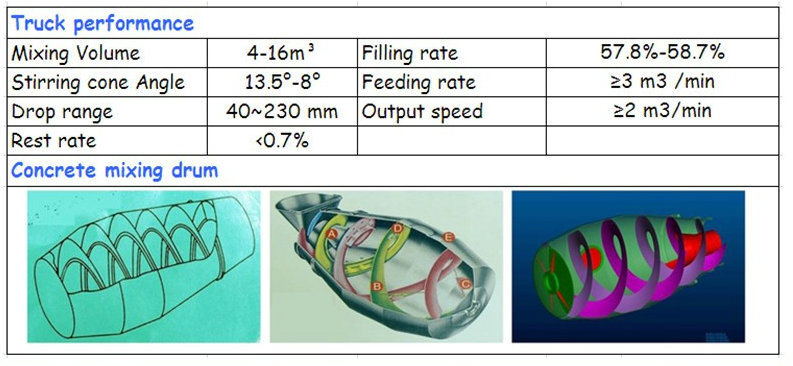

| Main technical parameters of concrete mixer | ||||||
| Drum performance parameter | Geometric Volume m3 | 19.2 m3 | ||||
| Effective Volume m3 | 12 m3 | |||||
| Filling Ratio % | 65.00% | |||||
| Gradient of the Drum ° | 15° | |||||
| Filling speed m3/min | ≥3 | |||||
| Discharging Speed m3/min | ≥2 | |||||
| Surplus Ration % | <1% | |||||
| Range of Slump mm | 20~300 | |||||
| Hydraulic System | Pump | Eaton 64 (ACA642337) | ||||
| Motor | Eaton 64 (HHD6423321) | |||||
| Gear Box | PMP7YSP | |||||
| Water supply system | Volume of water tank | 400L | ||||
| Water supply type | Air pressure Type | |||||
Parameter
| 3138BY /8×4/1500+3850+1450/Long-Flat Roof Cab | ||||||
| Dimension | 10950*2500*3990mm | |||||
| Approaching angle/Departure angle | 16/15° | |||||
| Overhang(front/rear) | 1515/2685mm | |||||
| Wheel base | 1500+3850+1450mm | |||||
| Max speed | 90km/h | |||||
| Curb weight | 16825kg | |||||
| Loading capacity | 14045kg | |||||
| Slope climbing capability | Max.40% | |||||
| Engine | Model | WP10.375,water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection | ||||
| Displacement | 9.726L/Diesel | |||||
| Stroke | 126/130mm | |||||
| Max. power | 276/2200 (kw/rpm) | |||||
| Max.torque | 1460/1200-1600(Nm/rpm) | |||||
| Emission stantard | Euro | |||||
| Fuel tanker capacity | 300L | |||||
| Clutch | ∮430, Single dry frictional disc,Hydraulic boosting | |||||
| Gearbox | 9T-180mechanism,9 forward gears,1 reverse gear, manual operated, with synchronizer | |||||
| Gear ratio of gear box | 12.82/7.93/6.00/4.43/3.43/2.31/1.75/1.29/1.00 R: 11.21 | |||||
| Suspension system | Front | Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs | ||||
| Rear | Non-free standing stablization spring, balance suspension system, 13pcs | |||||
| Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system | ||||
| Assistant brake | Engine exhaust brake | |||||
| Park brake | Potential springs pressing on middle and rear wheels | |||||
| Steering system | TAS85,whole circulation in ball, hydraulic booster | |||||
| Frame | Fish belly shape, variable width, variable sections | |||||
| Front axle (Mercedes Technology) | Double-shoe pneumatic brake, non-driving steering axle | |||||
| Middle and Rear axle (Mercedes Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle | |||||
| Tyre | 12.00R20 Radial | |||||
| Electrical system | Battery | 2X12V/135Ah | ||||
| Generator | 28V-35A | |||||
| Starter | 5.4Kw/24V | |||||
| Cabin | V3 Long-Flat roof cabin with single sleeper Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back seat for driver;Electric lifting window ; With inner A/C | |||||
| Main technical parameters of concrete mixer | ||||||
| Drum performance parameter | Geometric Volume m3 | 26.1 m3 | ||||
| Effective Volume m3 | 16 m3 | |||||
| Filling Ratio % | 61.30% | |||||
| Gradient of the Drum ° | 9° | |||||
| Filling speed m3/min | ≥3 | |||||
| Discharging Speed m3/min | ≥2 | |||||
| Surplus Ration % | <1% | |||||
| Range of Slump mm | 20~300 | |||||
| Hydraulic System | Pump | Eaton 64 (ACA642337) | ||||
| Motor | Eaton 64 (HHD6423321) | |||||
| Gear Box | PMB7.8SP | |||||
| Water supply system | Volume of water tank | 400L | ||||
| Water supply type | Air pressure Type | |||||
| Sales No. | 2638B | |
| Dimension(mm) | Long | 9300 |
| Wide | 2500 | |
| High | 3900 | |
| Wheel base(mm) | 3800+1450 | |
| Drive | 6×4 | |
| Engine | Model | WP10.380E32 |
| Cabin | V3/ Long cab,flat roof | |
| Clutch(mm) | Φ430 | |
| Front Axle | 7.5T | |
| Rear/Mid Axle | Model/speed radio | Double Reduction Driving Axle /5.263 |
| Steering System | ZF8098 | |
| Braking System | Dual Circulation Air Brake System | |
| Fuel Tank(L) | 400L | |
| Frame/mm | 317×70×8.5+7 | |
| Tire | 12.00R24 | |
| Front/Rear Overhang | 1410/2640 | |
| Transmission | 9T-180 | |
| Curb Weight(kg) | 13785 | |
| Up Body Volume(m³) | 9 | |
| Max Speed(km/h) | 90 | |

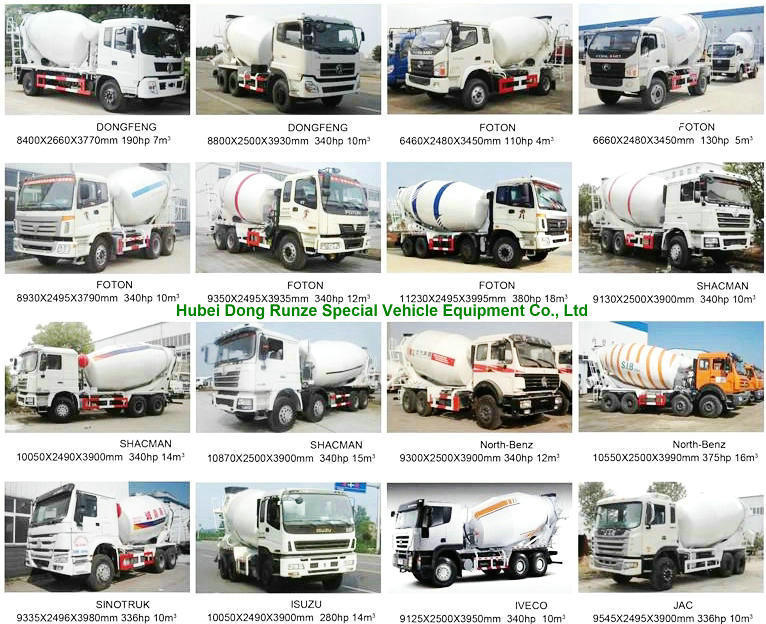

| Vehicle model | Chassis brand | Chassis model | Load | Overall dimensions | Wheel base | Engine model | hp/standard | Tire | FOB Price | CIF | |||||||||||||||||||||
| LHD RHD price add $2000 | m3 | mm | mm | USD | 100%TT 50%+50% | ||||||||||||||||||||||||||
| DRZ5250GJBD | DONGFENG | DFL5250GJBA | 10 | 8800X2500X3930 | 3650+1350 | L340-30 | 340/Euro 3 | 11.00R20 | 353000 | $51920 | $57970 | ||||||||||||||||||||
| DRZ5142GJBB | FOTON | BJ5142GJB-G1 | 4 | 6460X2480X3450 | 3400 | YCD4F22-110 | 110/Euro 2 | 8.25-16 | 112300 | 16520 | $20500 | ||||||||||||||||||||
| DRZ5142GJBB1 | FOTON | BJ5142GJB-G1 | 5 | 6660X2480X3450 | 3600 | YCD4D130-33 | 130/ Euro 2 | 8.25-20 | 129300 | 19020 | $23090 | ||||||||||||||||||||
| DRZ5162GJBB | FOTON | BJ5162GJB-F1 | 7 | 6980X2490X3750 | 4200 | YC6J190-33 | 190/Euro 2 | 10.00R20 | 199500 | $29340 | $33930 | ||||||||||||||||||||
| DRZ5252GJBB | FOTON | BJ5252GJB-S | 10 | 8930X2495X3790 | 3575+1350 | WP10.340E32 | 340/Euro 3 | 11.00R20 | 338900 | $49840 | $55820 | ||||||||||||||||||||
| DRZ5253GJBB | FOTON | BJ5253GJB-S2 | 12 | 9350X2495X3935 | 4100+1350 | WP10.340E32 | 340/Euro 3 | 12.00R20 | 357000 | $52500 | |||||||||||||||||||||
| DRZ5318GJBB | FOTON | BJ5318GJB-1 | 14 | 10752X2495X3998 | 1800+3450+1350 | WP10.340E32 | 340/Euro 3 | 12.00R20 | 422200 | $62090 | |||||||||||||||||||||
| DRZ5313GJBB | FOTON | BJ5313GJB-11 | 18 | 11230X2495X3995 | 1800+3650+1350 | WP12.380E32 | 380/Euro 3 | 12.00R20 | 450300 | $66230 | |||||||||||||||||||||
| DRZ5250GJBQ | I.S.U.Z.U | QL1250DAFZY | 14 | 10050X2490X3900 | 4000+1300 | 6HK1-TCSG50 | 280/Euro 5 | 11.00R20 | 496400 | 73000 | |||||||||||||||||||||
| BEIBEN 6 X4 CONCRETE MIXER TRUCK | |||
| Driving type | LHD (Right Hand Drive is optional) | ||
| Driver's cab | Long cabin, one sleeper | ||
| Engine | Maker: WEICHAI | ||
| Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & intercooling | |||
| Engine model: WP10 series | |||
| EUROIII emission standard | |||
| Maximum output: 290hp @2200 rpm | |||
| Number of cylinder:6 | |||
| Displacement: 9.726L | |||
| Clutch | 430mm, hydraulically operating with air assistance | ||
| Transmission | FULLER Brand . | ||
| Front Axle | Benz front axle 7.5 tons | ||
| Rear Axle | Benz double reduction drive axle, ratio=5.2 | ||
| Steering | TAS85,,Option: ZF8098, hydraulic steering with power assistance | ||
| Wheel & Types | Tyres: 12.00R20 | ||
| Optional: 12R22.5 | |||
| Radial tire and tubeless tire is optional | |||
| Dimensions | Wheel base: 3250+1450mm | ||
| Overall size: 9100×2495×3900mm | |||
| Weight | Kerb weight :12870KG | ||
| Performance | Maximum driving speed(km/h) 85 | ||
| Body mm | 8CBM | ||
Cell :+861527135767
2534 / 2634 Beiben Concrete Mixer Truck ( with 8m3-12m3 Mixer Drum Right Hand Drive or left hand drive )
Truck Mounted Concrete Mixer ( Transit Mixer Tank 10m3-Max Mixer Drum12m3 )
Concrete Mixer For Tunnels (Cement Agitator Tank) 3-12CBM
Ask for better price
Cell /+8615271357675
The pictures are for your reference only.
Beiben10wheelers concrete mixer truck
Concrete Mixer Truck for your selection, LHD and RHD cabin are both available.
| Parts | Technical Parameter | Remark | |
| Overall | Chassis Model | ND5250GJBZ15 | |
| Curb Weight | 13000kg | ||
| Rated Loading Weight | 12000kg | ||
| Overall Size (L*W*H) | 9950×2500×4000mm | ||
| Engine | Type of Fuel | Diesel | |
| Brand/Model | WP/ WP10.336N | ||
| Horse Power | 336HP | ||
| Chassis | Brand | BeiBen | |
| Wheelbase | 4100+1450mm | ||
| Cabin | Left-hand driving, Air conditioner, Flat headed | ||
| Transmission | FAST 9-speed | ||
| Brake System | Pneumatic brake | ||
| Tyre | Specification | 12.00R20 | |
| Number of Tyre | 10+1 spare tyre | ||
| Durm | Drum Capacity | 12m3 | |
| Material | Q345-A manganese steel | WuHan Iron and Steel (Group) Corp. | |
| Thickness | 5mm | ||
| Hydraulic System | Motor | ARK(Italy),ZF(Germany),Eaton(USA) | |
| Pump | ARK(Italy),ZF(Germany),Eaton(USA) | ||
| Reducer | TOP(Italy),Bonfiglioli(Italy) | ||
| Note | Some components are optional according to your requirements. | ||
| 6*4 | ND5257GJBZ | 3800+1450 | WP10.340E32 |
| ND5256GJBZ | 4100+1450 | ||
| 8*4 | ND5313GJBZ | 1500+3550+1450 | WP10.336 |
| WP10.375 |
| ND5250GJBZ15 | 3800+1450 | WP10.336E40 |
| 4100+1450 | ||
| ND5310GJBZ08 | 1950+3100+1450 | WP10.336E40 |
| WP10.375E40 | ||
| ND5310GJBZ09 | 1950+3400+1450 | WP10.336E40 |
| WP10.375E40 |

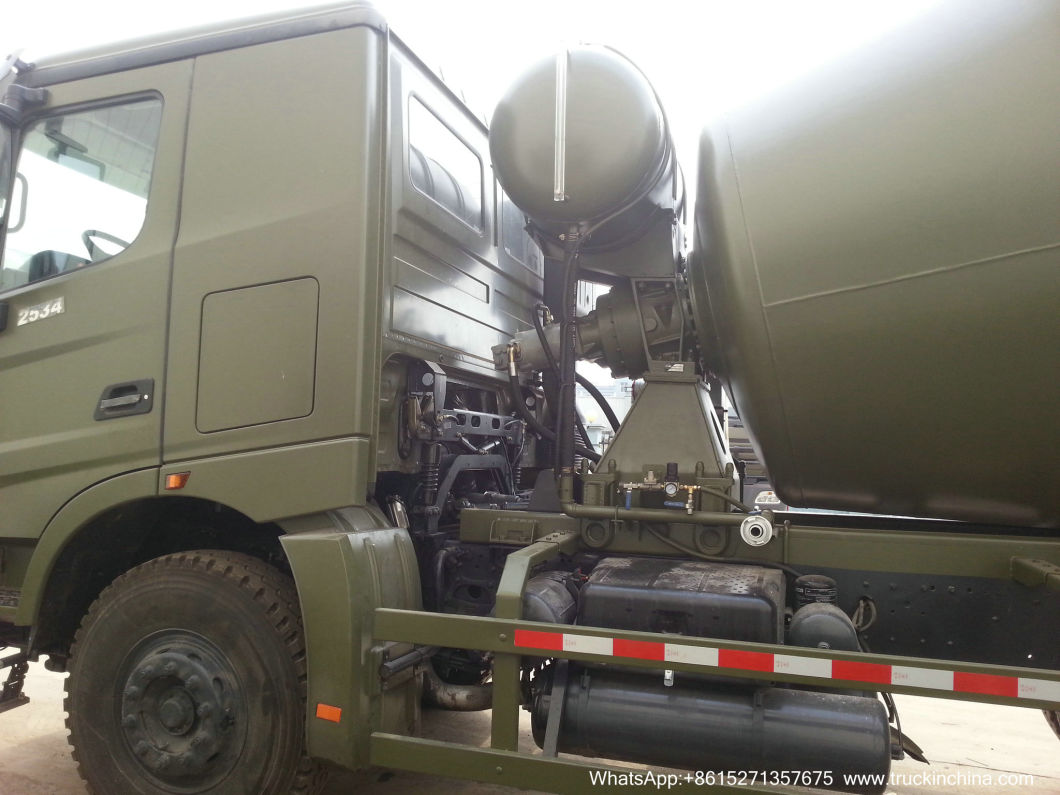

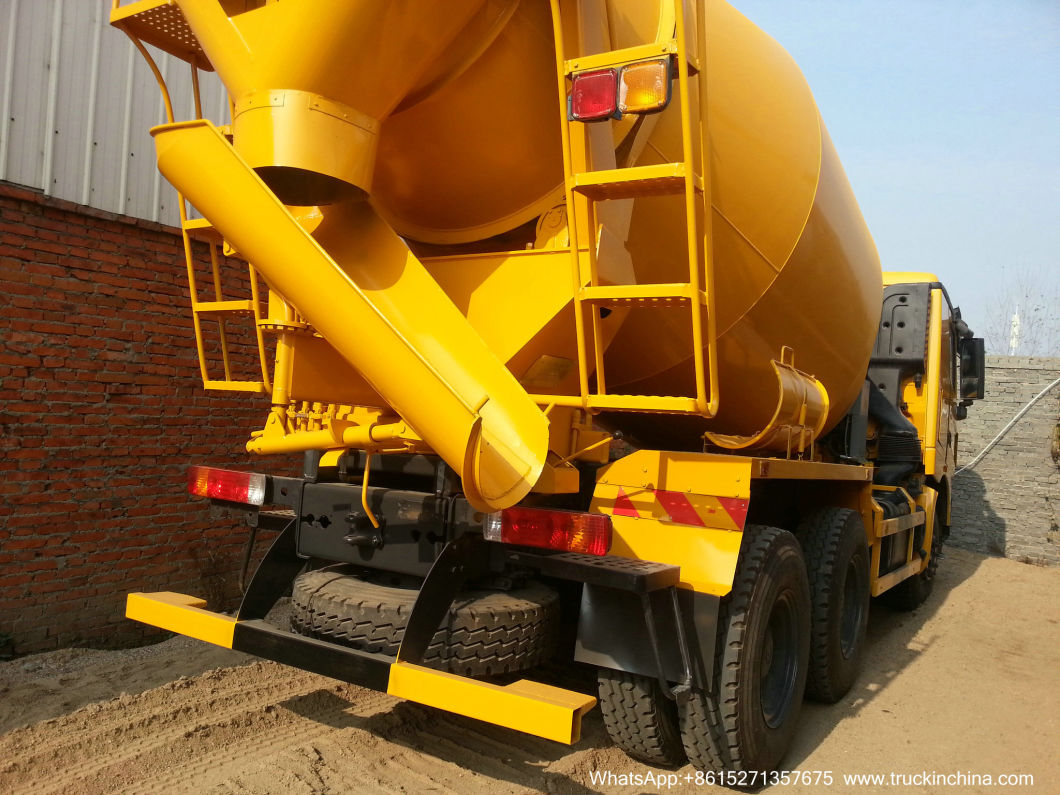

8m3-12m3 Concrete Mixer Tank (Concrete Truck Mixer Upper Part )
8cbm Beiben concrete mixer truck price
| 6X4 CONCRETE MIXER TRUCK | |
| Model | ND5257GJBZ |
| Driving type | LHD |
| Driver's cab | Long cabin/short cabin , single sleeper, Air conditioner, Dash board with all necessary gauges |
| such as (km meter, rpm, oil pressure, temperature, air pressure, fuel level), | |
| NG90 Headlight, Sun protection on cabin | |
| Engine | Maker: WEICHAI |
| Engine model: WP10.340E32 340hp | |
| EUROIII EGR emission standard | |
| Maximum output: 340HP@2200 rpm | |
| Number of cylinder:6 | |
| Displacement: 9.726L | |
| Clutch | 430mm, hydraulically operating with air assistance |
| Transmission | FULLER Brand 9T--160 |
| Front Axle | 7.5 tons |
| Rear Axle | 13ton Double-shoe pneumatic brake, ductile casting casing, with hub redactor, |
| double reduction driving axle. | |
| Ratio: 5.263 | |
| Steering | TAS85 |
| Wheel & Types | Tyres: 12.00-20 Bias tyre |
| Spring | 10/13 |
| Electrics | Operating voltage: 24V, negative grounded |
| Dimensions in mm | Wheel base: 3800+1450 |
| Overall size: 9300×2500×3900 | |
| Weight in kg | Kerb weight: 13650 |
| Permissible trailing capacity: 25000 | |
| Performance | Maximum driving speed(km/h): 85 |
| Mixer drum | HYD drive system | Decelerator: Italy TOP P68 |
| Pump:Italy TOP 089 | ||
| Motor:Italy TOP | ||
| Drum specifications | Mixing volume:8m3 | |
| Gradient:15 | ||
| Filling rate:58% | ||
| Rest rate:≤1‰ | ||
| Rotational speed:0-14r/min |
Parameter
| 2538BY /6×4/4300+1450/Long-Flat Roof Cab | ||||||
| Dimension | 10075*2500*3980mm | |||||
| Approaching angle/Departure angle | 16/20° | |||||
| Overhang(front/rear) | 1515/2810mm | |||||
| Wheel base | 4300+1450mm | |||||
| Max speed | 90km/h | |||||
| Curb weight | 15950kg | |||||
| Loading capacity | 8920kg | |||||
| Slope climbing capability | Max.40% | |||||
| Engine | Model | WP10.375,water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection | ||||
| Displacement | 9.726L/Diesel | |||||
| Stroke | 126/130mm | |||||
| Max. power | 276/2200 (kw/rpm) | |||||
| Max.torque | 1460/1200-1600(Nm/rpm) | |||||
| Emission stantard | Euro | |||||
| Fuel tanker capacity | 300L | |||||
| Clutch | ∮430, Single dry frictional disc,Hydraulic boosting | |||||
| Gearbox | 9T-180mechanism,9 forward gears,1 reverse gear, manual operated, with synchronizer | |||||
| Gear ratio of gear box | 12.82/7.93/6.00/4.43/3.43/2.31/1.75/1.29/1.00 R: 11.21 | |||||
| Suspension system | Front | Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs | ||||
| Rear | Non-free standing stablization spring, balance suspension system, 13pcs | |||||
| Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system | ||||
| Assistant brake | Engine exhaust brake | |||||
| Park brake | Potential springs pressing on middle and rear wheels | |||||
| Steering system | TAS85,whole circulation in ball, hydraulic booster | |||||
| Frame | Fish belly shape, variable width, variable sections | |||||
| Front axle (Mercedes Technology) | Double-shoe pneumatic brake, non-driving steering axle | |||||
| Middle and Rear axle (Mercedes Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle | |||||
| Tyre | 12.00R20 Radial | |||||
| Electrical system | Battery | 2X12V/135Ah | ||||
| Generator | 28V-35A | |||||
| Starter | 5.4Kw/24V | |||||
| Cabin | V3 Long-Flat roof cabin with single sleeper Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back seat for driver;Electric lifting window ; With inner A/C | |||||
| Main technical parameters of concrete mixer | ||||||
| Drum performance parameter | Geometric Volume m3 | 19.2 m3 | ||||
| Effective Volume m3 | 12 m3 | |||||
| Filling Ratio % | 65.00% | |||||
| Gradient of the Drum ° | 15° | |||||
| Filling speed m3/min | ≥3 | |||||
| Discharging Speed m3/min | ≥2 | |||||
| Surplus Ration % | <1% | |||||
| Range of Slump mm | 20~300 | |||||
| Hydraulic System | Pump | Eaton 64 (ACA642337) | ||||
| Motor | Eaton 64 (HHD6423321) | |||||
| Gear Box | PMP7YSP | |||||
| Water supply system | Volume of water tank | 400L | ||||
| Water supply type | Air pressure Type | |||||
Parameter
| 3138BY /8×4/1500+3850+1450/Long-Flat Roof Cab | ||||||
| Dimension | 10950*2500*3990mm | |||||
| Approaching angle/Departure angle | 16/15° | |||||
| Overhang(front/rear) | 1515/2685mm | |||||
| Wheel base | 1500+3850+1450mm | |||||
| Max speed | 90km/h | |||||
| Curb weight | 16825kg | |||||
| Loading capacity | 14045kg | |||||
| Slope climbing capability | Max.40% | |||||
| Engine | Model | WP10.375,water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection | ||||
| Displacement | 9.726L/Diesel | |||||
| Stroke | 126/130mm | |||||
| Max. power | 276/2200 (kw/rpm) | |||||
| Max.torque | 1460/1200-1600(Nm/rpm) | |||||
| Emission stantard | Euro | |||||
| Fuel tanker capacity | 300L | |||||
| Clutch | ∮430, Single dry frictional disc,Hydraulic boosting | |||||
| Gearbox | 9T-180mechanism,9 forward gears,1 reverse gear, manual operated, with synchronizer | |||||
| Gear ratio of gear box | 12.82/7.93/6.00/4.43/3.43/2.31/1.75/1.29/1.00 R: 11.21 | |||||
| Suspension system | Front | Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs | ||||
| Rear | Non-free standing stablization spring, balance suspension system, 13pcs | |||||
| Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system | ||||
| Assistant brake | Engine exhaust brake | |||||
| Park brake | Potential springs pressing on middle and rear wheels | |||||
| Steering system | TAS85,whole circulation in ball, hydraulic booster | |||||
| Frame | Fish belly shape, variable width, variable sections | |||||
| Front axle (Mercedes Technology) | Double-shoe pneumatic brake, non-driving steering axle | |||||
| Middle and Rear axle (Mercedes Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle | |||||
| Tyre | 12.00R20 Radial | |||||
| Electrical system | Battery | 2X12V/135Ah | ||||
| Generator | 28V-35A | |||||
| Starter | 5.4Kw/24V | |||||
| Cabin | V3 Long-Flat roof cabin with single sleeper Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back seat for driver;Electric lifting window ; With inner A/C | |||||
| Main technical parameters of concrete mixer | ||||||
| Drum performance parameter | Geometric Volume m3 | 26.1 m3 | ||||
| Effective Volume m3 | 16 m3 | |||||
| Filling Ratio % | 61.30% | |||||
| Gradient of the Drum ° | 9° | |||||
| Filling speed m3/min | ≥3 | |||||
| Discharging Speed m3/min | ≥2 | |||||
| Surplus Ration % | <1% | |||||
| Range of Slump mm | 20~300 | |||||
| Hydraulic System | Pump | Eaton 64 (ACA642337) | ||||
| Motor | Eaton 64 (HHD6423321) | |||||
| Gear Box | PMB7.8SP | |||||
| Water supply system | Volume of water tank | 400L | ||||
| Water supply type | Air pressure Type | |||||
| Sales No. | 2638B | |
| Dimension(mm) | Long | 9300 |
| Wide | 2500 | |
| High | 3900 | |
| Wheel base(mm) | 3800+1450 | |
| Drive | 6×4 | |
| Engine | Model | WP10.380E32 |
| Cabin | V3/ Long cab,flat roof | |
| Clutch(mm) | Φ430 | |
| Front Axle | 7.5T | |
| Rear/Mid Axle | Model/speed radio | Double Reduction Driving Axle /5.263 |
| Steering System | ZF8098 | |
| Braking System | Dual Circulation Air Brake System | |
| Fuel Tank(L) | 400L | |
| Frame/mm | 317×70×8.5+7 | |
| Tire | 12.00R24 | |
| Front/Rear Overhang | 1410/2640 | |
| Transmission | 9T-180 | |
| Curb Weight(kg) | 13785 | |
| Up Body Volume(m³) | 9 | |
| Max Speed(km/h) | 90 | |
| Vehicle model | Chassis brand | Chassis model | Load | Overall dimensions | Wheel base | Engine model | hp/standard | Tire | FOB Price | CIF | |||||||||||||||||||||
| LHD RHD price add $2000 | m3 | mm | mm | USD | 100%TT 50%+50% | ||||||||||||||||||||||||||
| DRZ5250GJBD | DONGFENG | DFL5250GJBA | 10 | 8800X2500X3930 | 3650+1350 | L340-30 | 340/Euro 3 | 11.00R20 | 353000 | $51920 | $57970 | ||||||||||||||||||||
| DRZ5142GJBB | FOTON | BJ5142GJB-G1 | 4 | 6460X2480X3450 | 3400 | YCD4F22-110 | 110/Euro 2 | 8.25-16 | 112300 | 16520 | $20500 | ||||||||||||||||||||
| DRZ5142GJBB1 | FOTON | BJ5142GJB-G1 | 5 | 6660X2480X3450 | 3600 | YCD4D130-33 | 130/ Euro 2 | 8.25-20 | 129300 | 19020 | $23090 | ||||||||||||||||||||
| DRZ5162GJBB | FOTON | BJ5162GJB-F1 | 7 | 6980X2490X3750 | 4200 | YC6J190-33 | 190/Euro 2 | 10.00R20 | 199500 | $29340 | $33930 | ||||||||||||||||||||
| DRZ5252GJBB | FOTON | BJ5252GJB-S | 10 | 8930X2495X3790 | 3575+1350 | WP10.340E32 | 340/Euro 3 | 11.00R20 | 338900 | $49840 | $55820 | ||||||||||||||||||||
| DRZ5253GJBB | FOTON | BJ5253GJB-S2 | 12 | 9350X2495X3935 | 4100+1350 | WP10.340E32 | 340/Euro 3 | 12.00R20 | 357000 | $52500 | |||||||||||||||||||||
| DRZ5318GJBB | FOTON | BJ5318GJB-1 | 14 | 10752X2495X3998 | 1800+3450+1350 | WP10.340E32 | 340/Euro 3 | 12.00R20 | 422200 | $62090 | |||||||||||||||||||||
| DRZ5313GJBB | FOTON | BJ5313GJB-11 | 18 | 11230X2495X3995 | 1800+3650+1350 | WP12.380E32 | 380/Euro 3 | 12.00R20 | 450300 | $66230 | |||||||||||||||||||||
| DRZ5250GJBQ | I.S.U.Z.U | QL1250DAFZY | 14 | 10050X2490X3900 | 4000+1300 | 6HK1-TCSG50 | 280/Euro 5 | 11.00R20 | 496400 | 73000 | |||||||||||||||||||||
| BEIBEN 6 X4 CONCRETE MIXER TRUCK | |||
| Driving type | LHD (Right Hand Drive is optional) | ||
| Driver's cab | Long cabin, one sleeper | ||
| Engine | Maker: WEICHAI | ||
| Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & intercooling | |||
| Engine model: WP10 series | |||
| EUROIII emission standard | |||
| Maximum output: 290hp @2200 rpm | |||
| Number of cylinder:6 | |||
| Displacement: 9.726L | |||
| Clutch | 430mm, hydraulically operating with air assistance | ||
| Transmission | FULLER Brand . | ||
| Front Axle | Benz front axle 7.5 tons | ||
| Rear Axle | Benz double reduction drive axle, ratio=5.2 | ||
| Steering | TAS85,,Option: ZF8098, hydraulic steering with power assistance | ||
| Wheel & Types | Tyres: 12.00R20 | ||
| Optional: 12R22.5 | |||
| Radial tire and tubeless tire is optional | |||
| Dimensions | Wheel base: 3250+1450mm | ||
| Overall size: 9100×2495×3900mm | |||
| Weight | Kerb weight :12870KG | ||
| Performance | Maximum driving speed(km/h) 85 | ||
| Body mm | 8CBM | ||
Cell :+861527135767
