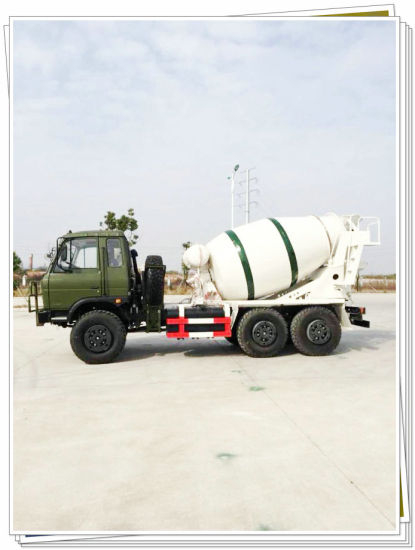

6X6 All Wheel Dive off Road Concrete Mixer Truck Factory Sale
6X6 All Wheel Dive off Road Concrete Mixer Truck Factory Sale
| Quantity: | |
|---|---|
-
800
-
T/T, Western Union
-
Nil
6x6 all wheel dive off road concrete mixer truck factory saleconcrete mixer trucks
Concrete Mixer Truck
6x6 concrete truck mixer for sales
ixer drum | Tanker capacity | 6-12M3 |
Tanker Material | 16MnR | |
Filling speed (M3/min) | ≥ 2.8 | |
Unloading speed (M3/min) | ≥ 1.2 | |
Discharge reside rat( %) | ≤ 0.5 | |
Mixer drum rotation speed (rpm) | 0~12 | |
Driving system | Hydraulic pump | ITALY or GERMANY or China |
Hydraulic motor | ITALY or GERMANY or China | |
Reducer | ITALY or GERMANY or China | |
Radiator | ITALY or GERMANY or China | |
Water supply system | Tank volume | 300L |
Type | Air pressure water supply | |
Operating system | Model | Linkage operation |
3. concrete mixer truck Euro 3,
Truck Chassis model | EQ2102(6*6 drive type) EQ5160GLJ | |
Dimension(Lx Wx H)(mm) | 7760×2470×2740 | |
Track(front/rear)(mm) | 1876/1870 | |
Front/rear overhang (mm) | 1410/625 | |
Approach / Departure angle () | 35/34 | |
Wheel distance(mm) | 3475+1250,3500+1250 | |
Total mass (kg) | 10675 | |
Kerb mass (kg) | 6965 | |
Rated load weight (kg) | 3715 | |
Drive type | 6x6 | |
Max.grade ability (%) | 60% | |
Max.slop ability (%) | 40% | |
Min.turning circle (m) | 18.8 | |
Max speed (km/h) | 90 | |
Max.brake distance (m) | 8m | |
Min.ground clearance (mm) | 305 | |
Vertical obstacle-navigation Height (mm) | 700 | |
Climbing trenches depth (mm) | 700 | |
Max.fording depth (m) | 1 | |
Engine | Engine model:EQ6BT5.9; or B190 Engine manufacture: Dongfeng cummins co.,Ltd Rated power(kw/r/min):118/2800 | |
Displacement (L) | 5.880 | |
Max.power (kw/hp) | 118kw/160hp ;or 140kw/190hp | |
Max rated speed (r/min) | 2800 | |
Fuel consumption (L/100km) | 26.5L | |
Emission standard | Euro II | |
Fuel tank (L) | Main fuel tank:145L,spare fuel tank:50L | |
Fuel tank material | Aluminum alloy | |
Clutch | Valeo 350 | |
Dry single plate, hydraulic control booster Mechanical operation with hydraulic assistance | ||
Mechanism,5 gears, 5 forward,1reverse gear Manual operation | ||
Braking | Service Brake | Brake gap can be adjusted automatically double circulation air brake system |
Assistant brake | WEVB(Engine exhaust brake) | |
Park brake | Spring brake effect to middle and rear tires | |
Steering description | Whole circulation in ball type, hydraulic power assistance | |
Vehicle frame dimension(mm) | 232x75x6.5 | |
Front axle description(T) | 3.7T | |
Rear axle description(T) | 4Tx2 axle | |
Tire and number | 12.5R-20 off-road tire,6+1 tires | |
Cab | 1. Full steel skeleton structure cab 2. One sleeper bed in the cab,with Air-conditioner 5.Air- damping driver\\\\ s seat | |
Optional winch: | Install 10 tons of hydraulic winch | 1 | $6,600 | $6,600USD |
which has excellent performance with reasonable price. Euro 4
Chassis Specifications | |
| Chassis Model | DFS5160GLJ |
| Fuel type | Diesel |
| Cabin | Dongfeng153,Half row |
| Whole Vehicle main dimensions (mm) | |
| Overall dimensions (L×W×H) | 7760*2500*3150 |
| Box dimensions ((L×W×H) | 5000*2500*2020 |
| Wheel base | 3500+1250 |
| Front track | 1916 |
| Rear track | 1876/1876 |
| Weight data (kg) | |
| G.V.W | 10740 |
| Curb weight (chassis) | 9600 |
| Whole vehicle main performance | |
| Max. speed (km/h) | 90 |
| Max. slope of climb (%) | 30 |
| Engine Specifications | |
| Model | ISDe185 40 |
| Emission Standards | EURO IV |
| Maximum power | 136kw / 185HP |
| Number of cylinders | 6 |
| Displacement (L) | 6.7 |
| Rated power speed | 2500RPM |
| Maximum torque | 700N.m |
| Maximum torque speed | 1400RPM |
| Engine size | 810x720x820mm |
| Compression ratio | 17.3:1 |
| Bore x Stroke | 107x124mm |
| Engine Type | Inline six cylinder electronically controlled high pressure common rail system enhanced particulate filter |
Engine Manufacturer | Dongfeng Cummin |
| Others | |
| Gear box | 6-speed |
| Axle | 3 |
| Suspension | Spring plate 10/12 |
| Steering Wheel | Lelf hand drive |
| Brake system | Air braking |
| Electric device | 24V |
| Oil tank capacity | 160L |
| Tyres & Quantity | 12.5R20 / 6 |
military
